CGDI MB Car Key Programmer Support All Key Lost with Full Adapters for ELV Repair

Product Overview

Description

CGDI MB Car Key Programmer Support All Key Lost with Full Adapters for ELV Repair

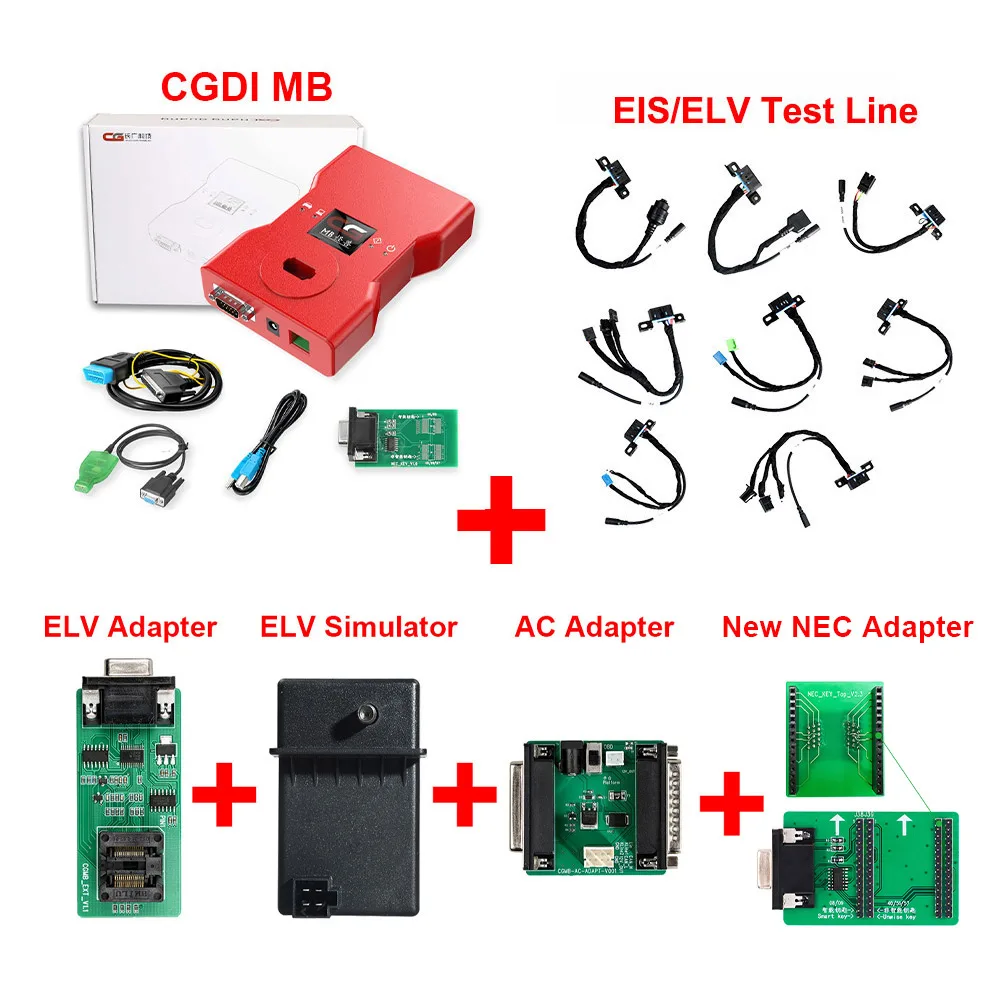

1. CGDI MB with Full Adapters including EIS/ELV Test Line + ELV Adapter + ELV Simulator + AC Adapter. CGDI MB for Benz is designed for Mercedes Benz Locksmith, the main functions are key matching, ELV repair, ECU read and erase, mileage adjustment, gateway repair and so on. It is very easy to operate and update in real time

2. With new Diode equipped, which make infrared more sensitive to keyless go keys. No need to replace diode chip yourself anymore.





CGDI Mercedes for Benz Key Programmer Highlights:



1. Support fastest for Benz Car key add: collection time 1'50s, password calculation time 40s, 99% get password for one time calculator, it is the fastest key programming tool to calculate the password at present. Work Faster than Xhorse VVDI MB Tool
2. Support MB all key lost: support models including 211,209,204,207,212,166,246,197,172,164 +, 216
3. CGDI Prog MB can calculate the password twice free each day
4. It can work with Bekey or orginal key, such as SA1252, SA1252-B, SA1253, SA1253-B
5. Update online for free, update online frequently, you can check cgdi mb Latest update
6. With Mileage Repair and Gateway Read/Write Authorization Free NOW! (Since March 2nd, 2019),

7. Language: Chinese, English, Spanish, French, German (Russian, Polish, Turkish need to pay extraly).



Function of CGDI MB



Noun Analysis



EIS: Also known as EZS, the ignition system of for Mercedes-Benz vehicles.
ELV: Car steering lock, also known as ESL.
ECU: Automobile electronic control unit, also known as trip computer.
TCU: Automobile gearbox computer.
ISM: Car gear computer, also known as DSM and ESM.
ZGW: Automotive Gateway
Added: Use the existing key to match the new key
Lost all: match the new key when the car does not have the car key
FBS: Anti-theft name (FBS3/FBS4, can be queried by VIN, or can be read and identified by CGMB device)

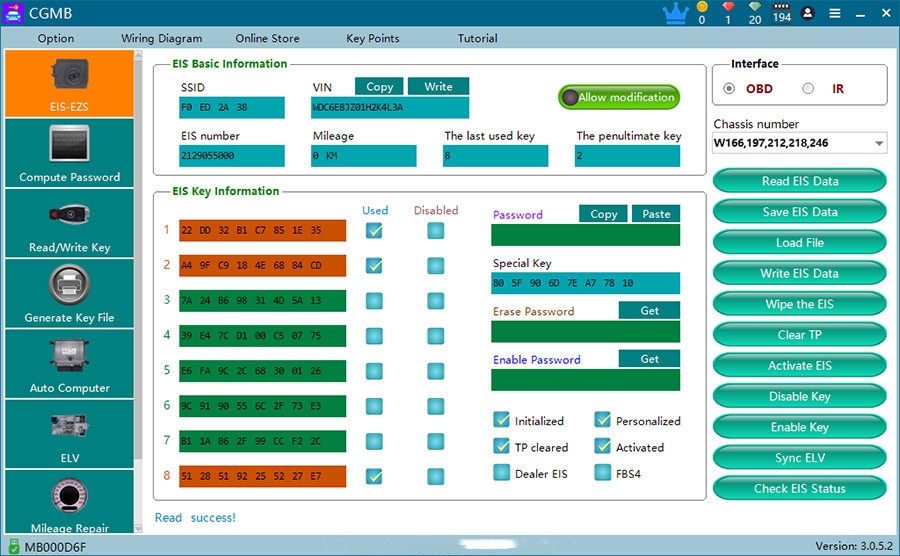

EIS Function



1.Support OBD mode and infrared mode to automatically recognize EIS and read data. (FBS3/FBS4)
2.Support the identification of SSID and EIS number. (FBS3/FBS4)
3.Support to read/modify VIN. (FBS3 and FBS4 only support reading)
4.Support reading kilometers. (FBS3/FBS4)
5.Support reading KEY track code. (FBS3)
6.Support the detection of KEY usage and enabling status. (FBS3/FBS4)
7.Support to read the last used KEY position. (FBS3/FBS4)
8.Support reading the penultimate use KEY position. (FBS3/FBS4)
9.Support detecting EIS status. (FBS3/FBS4)
10.Support erasing EIS. (Online online, FBS3)
11.Support writing EIS data. (FBS3)
12.Support the protection of clearing TP. (FBS3)
13.Support disabling EIS. (FBS3/FBS4)
14.Support for enabling EIS. (FBS3)
15.Support activating EIS. (FBS3)
16.Support infrared mode to directly read the KEY password of W215 and a few W209/W211 EIS. (FBS3)
17.Support EIS type:
W164, W251 -2009
W164, W251 2009-
W166, W197, W212, W218, W246
W169, W209, W211
W172, W204, W207, W212(ELV)
W202, W208, W210(K)
W203, W463, W639(K)
W215, W220(K)
W216
W221
W230(K)
W639 2009-(CAN)
W906



KEY Read And Write Function



1.Support infrared mode to directly read KEY basic information, including SSID, available times, used times, KEY location, KEY status, KEY version.
2.Support BE KEY infrared mode to directly read KEY password, erase, write new KEY data and activate.
3.Support KEY write data with 21DF status.
4.Support reading/activating the new BGA KEY.
5.Support KEY hopping code repair.
6.Support smart KEY (08/09) and non-smart KEY (40/51/57).
7.Only support reset KEY chip type:
00043650 chip
00040582 chip
8.Types of KEY chips that support reading, writing and resetting:
00040229 chip
567897041 chip
567897051 chip
567897061 chip
567897071 chip
567897081 chip
9.Support CGMB KEY frequency switching, 433Mhz/315Mhz, resistance control arbitrary switching.

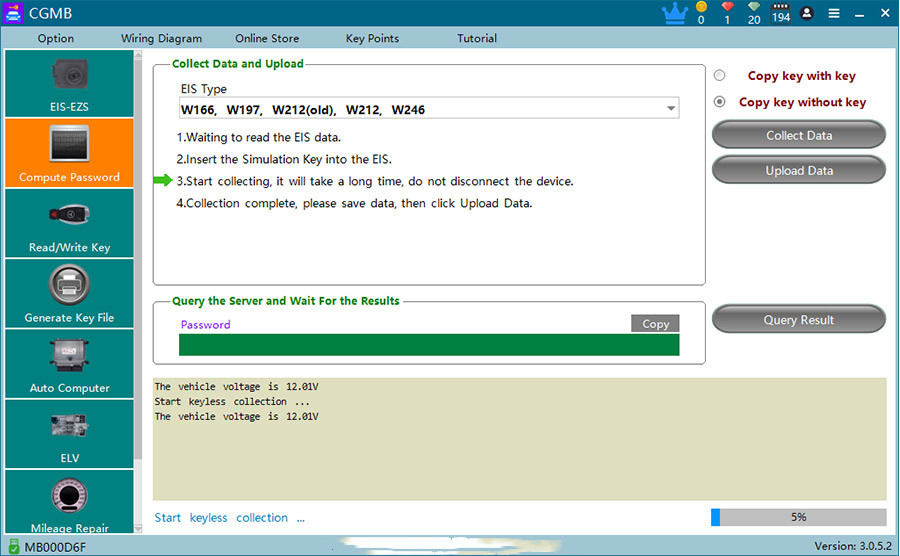

Password Calculation Function(online)



1.Support for having car keys and keyless (all lost) calculation passwords, of which all lost support normal collection and fast collection.
2.To calculate the password, you first need to collect data, which takes about 3 minutes with the car key.
3.In 99% of cases, the password is calculated at one time, and the time is about one minute.
4.If there is a car key, calculate the EIS type supported by the password:
For Mercedes-Benz A series after 2004
For Mercedes-Benz B series after 2005
For Mercedes-Benz C series after 2001 (including W210)
For Mercedes-Benz E series after 2001 (including W203)
For Mercedes-Benz CL series after 2001
For Mercedes-Benz GLK series after 2004
For Mercedes-Benz ML series after 2003
For Mercedes-Benz R series after 2003
For Mercedes-Benz G series after 2003
For Mercedes-Benz S series after 2001 (including 220)
For Mercedes-Benz SLK series after 2003
For Mercedes-Benz SLS series after 2004
For Mercedes-Benz Vito series after 2003
For Mercedes-Benz Sprinter series after 2003
5.If there is no car key, calculate the EIS type supported by the password:
W164, W216(2009-)
W164, W221(-2009)
W166, W197, W212(old), W212, W246
W169
W172, W204, W207, W209, W211
W202, W203, W208, W210, W463, W639(K)
W215, W220
W230
W639(CAN)
W906
6.In the absence of a car key, some EIS support quick collection, the types are as follows:
(Quick collection does not require repeated attempts and the collection speed is faster)
W164, W251 2009-
W164, W251 -2009
W169
W172, W207, W209, W211
W202, W203, W208, W210, W463, W639(K)
W216
W221
W639 2009-(CAN)

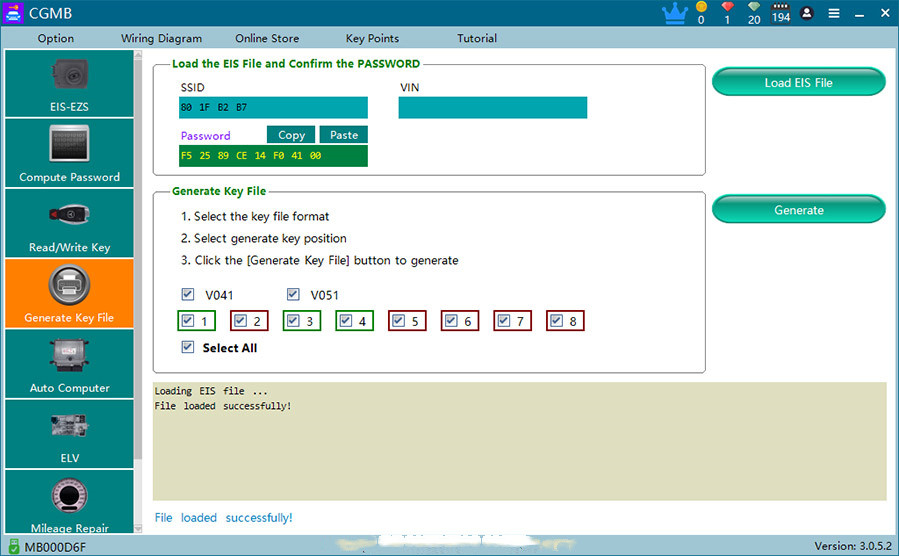

Generate KEY Data Function (online)



1. Load EIS data to generate KEY data.
2. The time to generate KEY data is about 10 seconds.
3. Support generating KEY data of HC05/908/912/9S12/NEC type EIS.

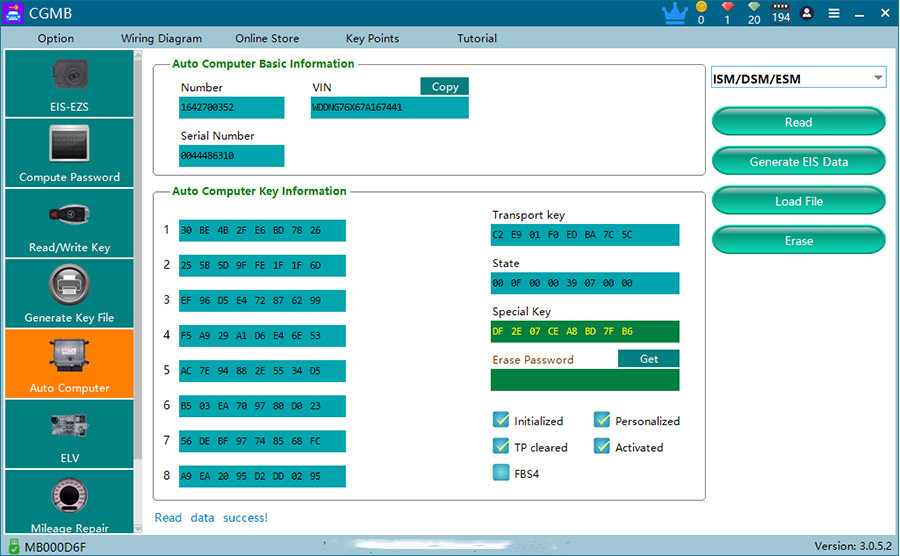

ECU/TCU/ISM Pogramming Function



1.Support reading data of ECU/TCU/ISM.
2.Support the erasing of ECU/TCU/ISM. (online)
3.Support ECU/TCU/ISM data loading and saving.



ELV Function



1.Support OBD mode to read ELV data directly. (Clamp on the ELV K line with a small yellow clip)
2.Support to erase ELV. (Online)
3.Support direct write direction lock data. (Online)
4.Support for synchronizing ELV data.
5.Support checking ELV damage.
6.Support for activating ELV.
7.Support to repair ELV.
8.Support ELV type:
W209, W211
W204, W207, W212
W169
W639(NEC)
W906
9.Support W204/W207/W212 ELV simulator function.

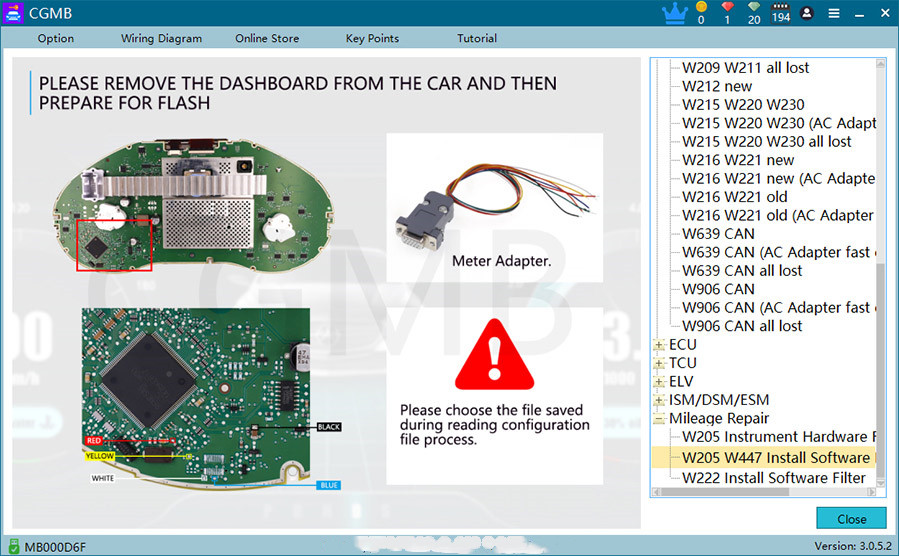

Car Mileage Repair Function



1.Support to read the internal data of the instrument, including serial number and mileage.
2.Support for writing mileage information.
3.Support to clear the fault code of the instrument.
4.Support EEPROM reading and writing of the instrument.
5.The supported instrument types are as follows:
C-CLASS/CLK-CLASS: W203, W204, W205 (2014-2017), W209
CLS-CLASS: W218, W219
E-CLASS: W207, W211, W212
GL-CLASS: X164
GLK-CLASS: X204
M-CLASS: W164
R-CLASS: W251
S-CLASS/CL-CLASS: W221, W222 (2013-2016)
SL-CLASS/SLK-CLASS: R171
SLS-CLASS: W197
VITO/VIANO: W447(2014-2017)

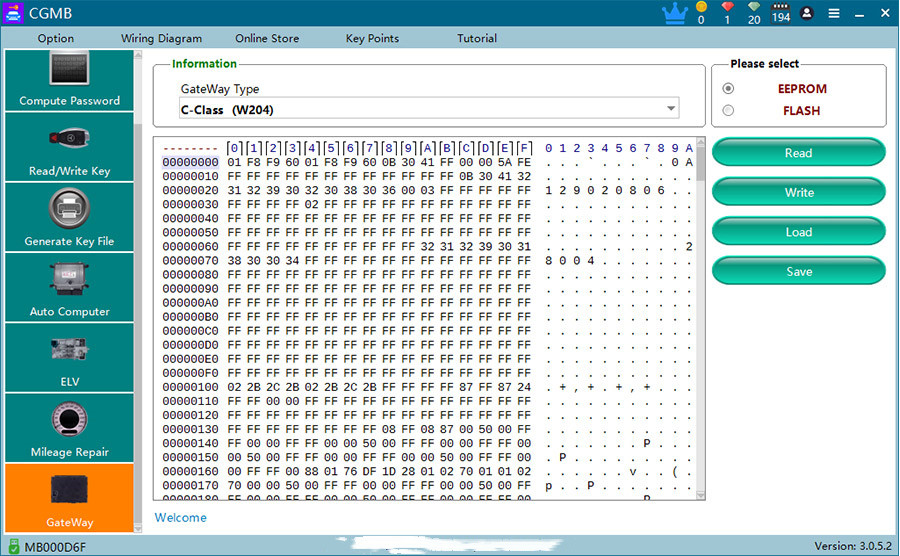

ZGW Data Read And Write Function

1.Support ZGW's EEPROM/FLASH read and write.
2.The types of ZGW supported are as follows:
C-CLASS: W204
E-CLASS: W211, W212
M-CLASS: W164
R-CLASS: W251
S-CLASS: W221
CLK-CLASS: X204, W207
CLS-CLASS: W218
SLK-CLASS: R171
GL-CLASS: X164
CL-CLASS: W216
SLS-CLASS: W197



Functions of the Adapters:

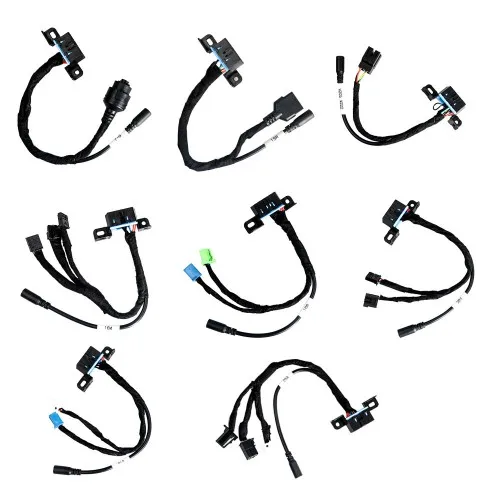

EIS/ELV Test Line for Mercedes (without Having to Get on the Car)



Mercedes Locks Platform Test Line for W204 W212 W221 W164 W166 W205 W222



Scope of Application:



The EIS ELV maintenance
Key programmer
Detection key

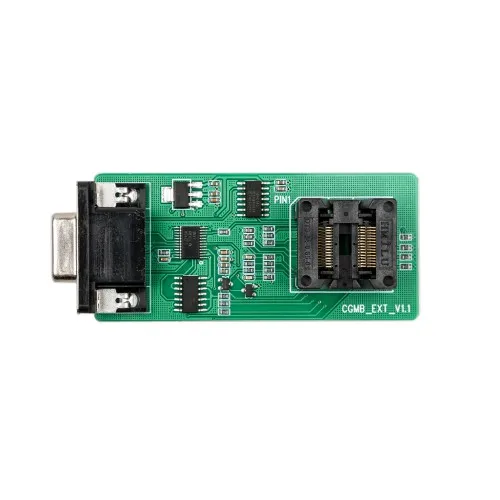

ELV Repair Adapter for CGDI MB for Benz Key Programmer



1. Automatically forced clearingcontents
2. Enable ELV,Get out of suspended anim ation
3. Virgin,Solve accidental errors
4. Test Write ELV,Determine if it is working properly
5. W204 W207 W212 W209 W906 Reparing locked chip



CGDI ELV Simulator Renew ESL for Benz 204 207 212 with CGDI MB for Benz Key Programmer



CGDI MB ELV Emulator is newly released adapter by CGDI Company, which can Renew ESL for Benz 204 207 212, work with CGDI MB for Benz key programmer, can do the same function with Xhorse ELV Emulator with cheaper price.



Most W204 W207 W212 ESL will damage with EIS. In this case, there are two possible reasons and solution:
ESL motor is damaged and need to replace a new motor
NEC chip is locked, theoretically it can be unlock, actually it needs to replace new ESL.

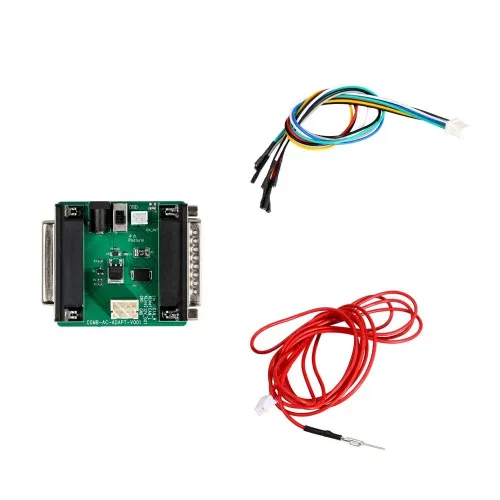

CGDI MB AC Adapter Features:



Acquire data via OBD at a quick speed
No need to dismantle EIS
No need to plug and insert the cable
Save much data acquisition time



CGDI MB AC Adapter Workable Models and the Data Acquisition Time:



For Mercedes Benz S series
Chassis W221 EIS model 216 free of disassembly,free of plugging in and out,acquisition time of 12 minutes



For Mercedes Benz E series
Chassis W221 EIS model 211 free of disassembly,free of plugging in and out,acquisition time of 9 minutes



For Mercedes Benz C series
Chassis W209 EIS model 209 free of disassembly,free of plugging in and out,acquisition time of 9 minutes



For Mercedes Benz B series
Chassis W246 EIS model 169 free of disassembly,free of plugging in and out,acquisition time of 35 minutes



For Mercedes Benz A series
Chassis W246 EIS model 169 free of disassembly,free of plugging in and out,acquisition time of 35 minutes



For Mercedes Benz R series
Chassis W251 EIS model 164905 free of disassembly,free of plugging in and out,acquisition time of 12 minutes



For Mercedes Benz ML series
Chassis W164 EIS model 164905 free of disassembly,free of plugging in and out,acquisition time of 12 minutes



For Mercedes Benz GL series
Chassis W166 EIS model 164905 free of disassembly,free of plugging in and out,acquisition time of 12 minutes

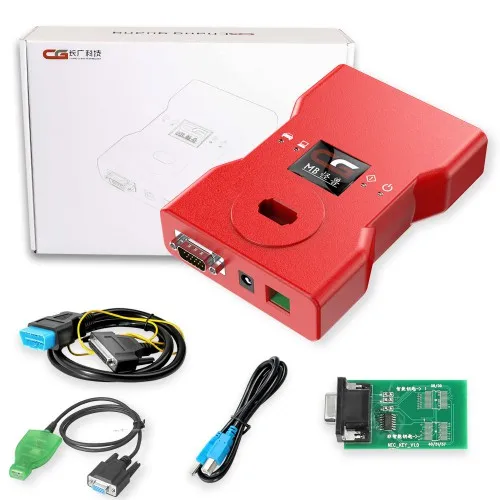

Packcage List:

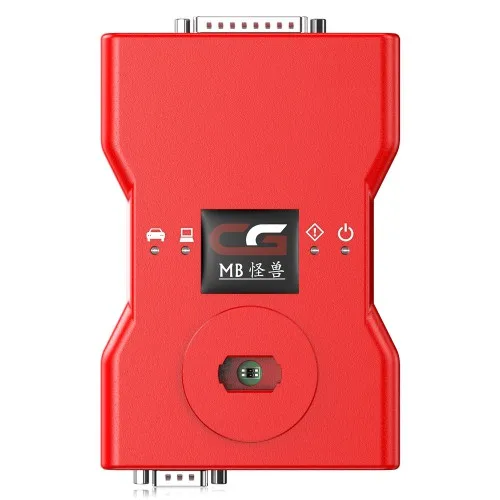

1pc x CGDI MB Multiplexer
1pc x NEC Key Adapter
1pc x IR Adapter
1pc x OBD Cable
1pc x USB Cable
1set x EIS/ELV Test Line for Mercedes
1pc x ELV Adapter
1pc x ELV Simulator
1pc x AC Adapter

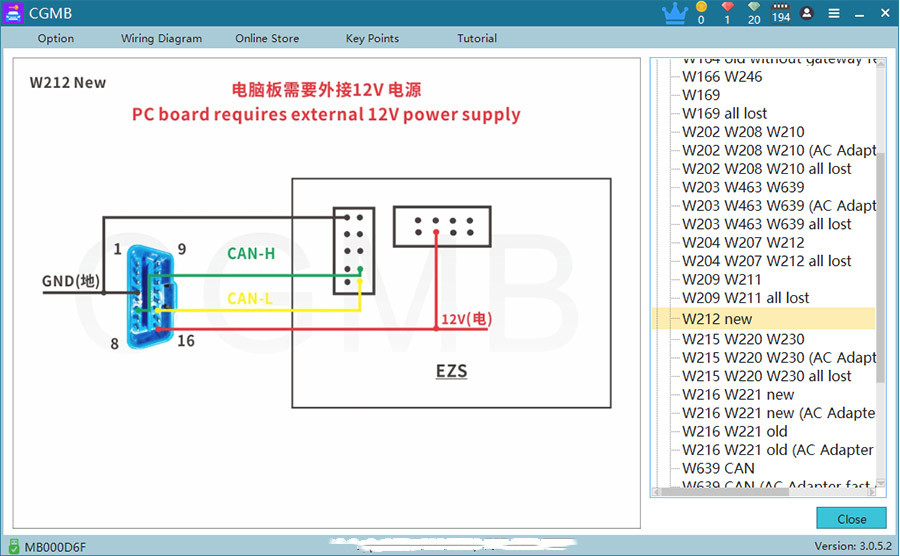

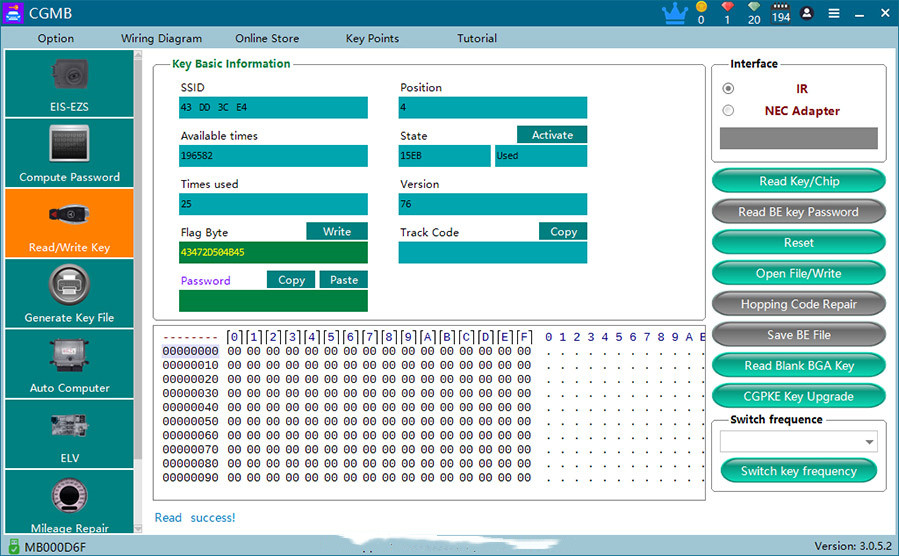

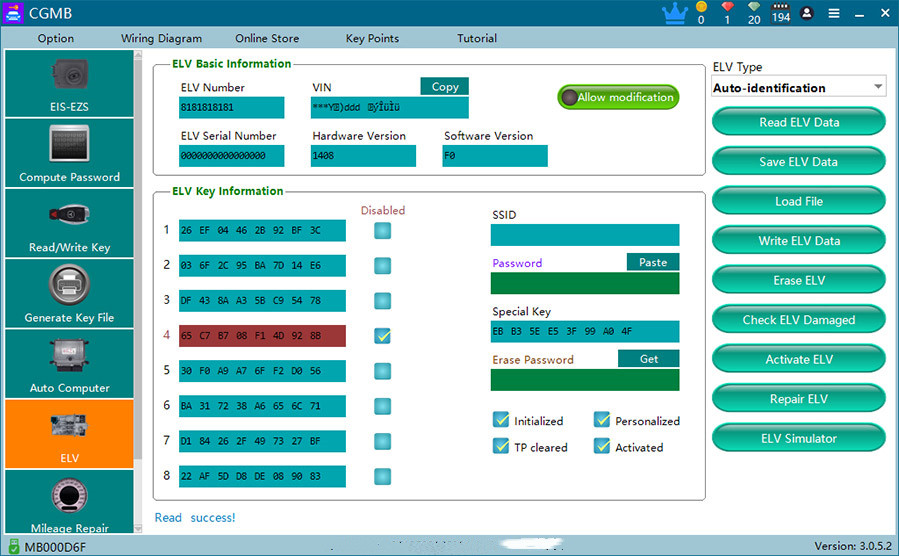

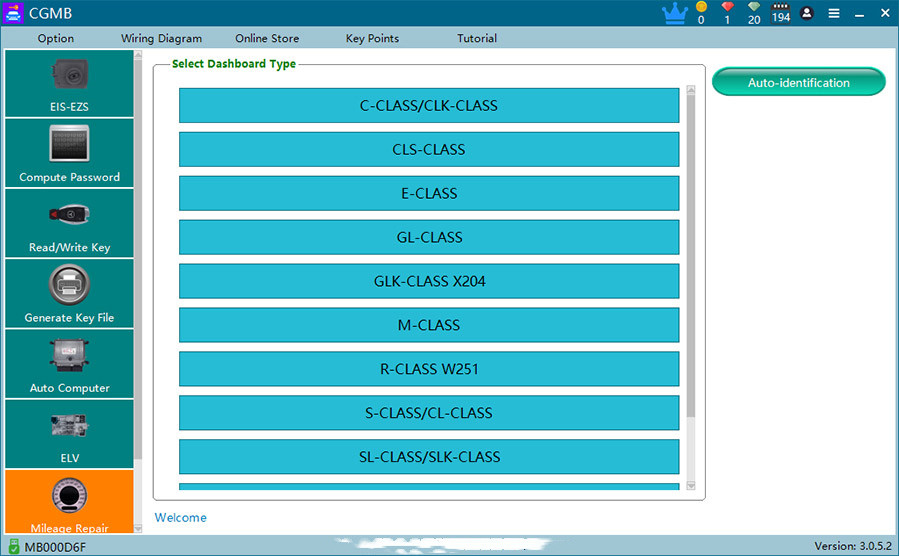

CGDI MB Software Display:





CGDI MB Car Key Programmer Support All Key Lost with Full Adapters for ELV Repair

CGDI MB Car Key Programmer Support All Key Lost with Full Adapters for ELV Repair

CGDI MB Car Key Programmer Support All Key Lost with Full Adapters for ELV Repair
