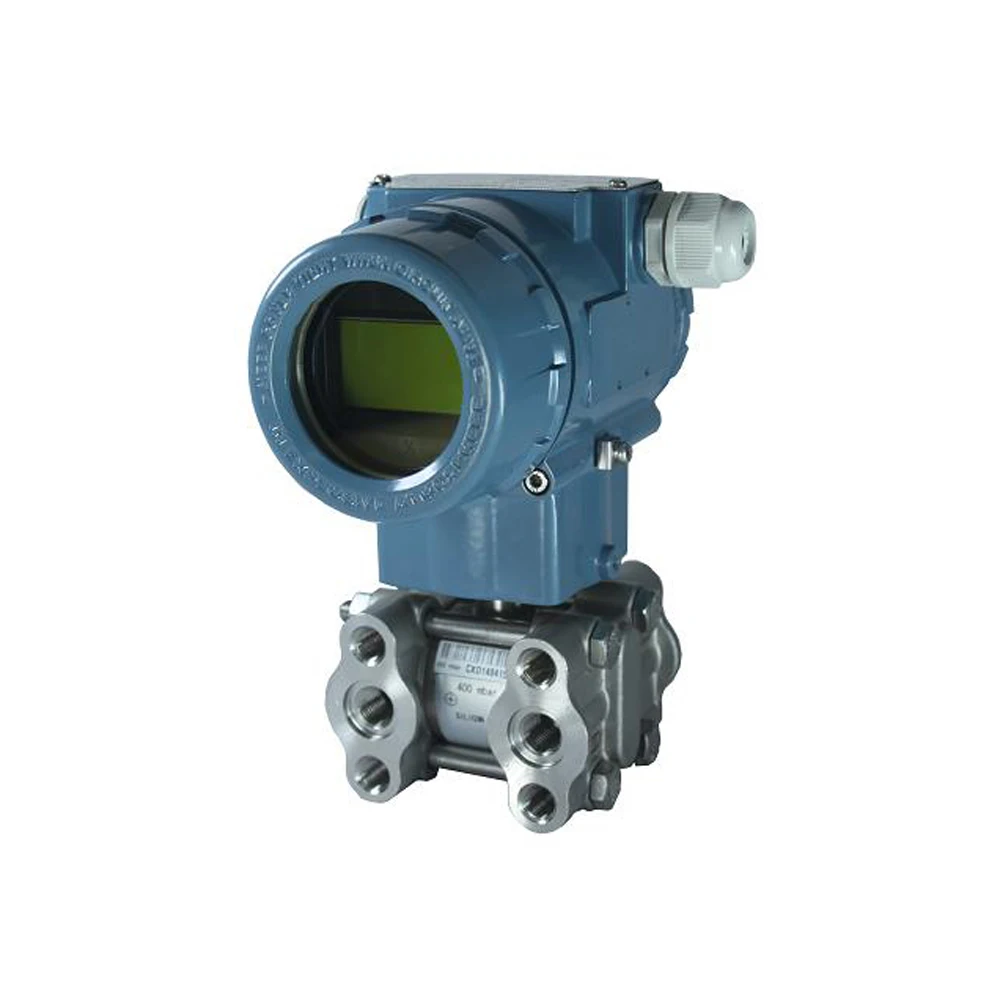

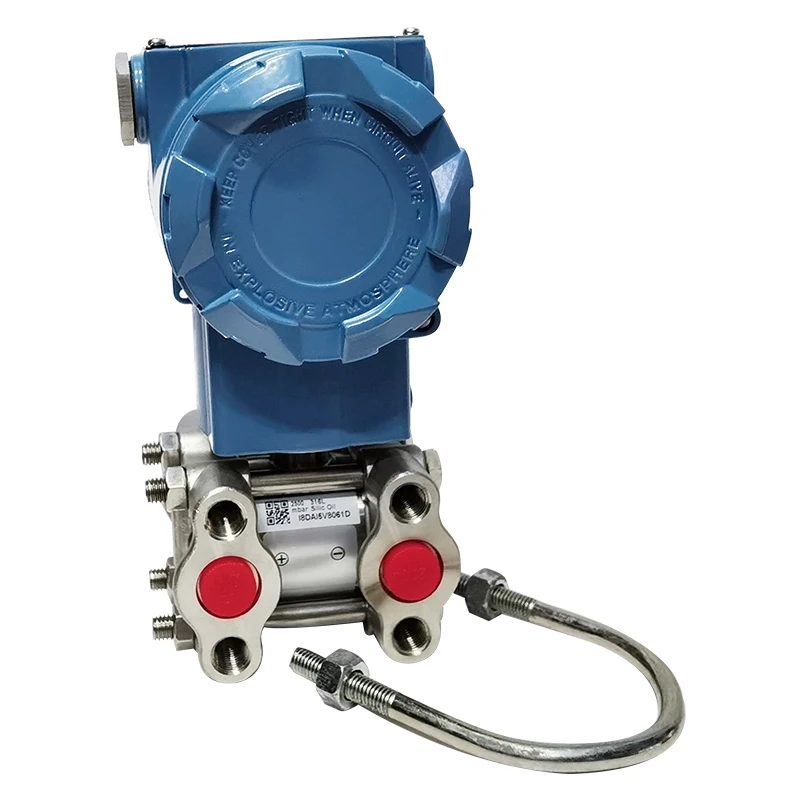

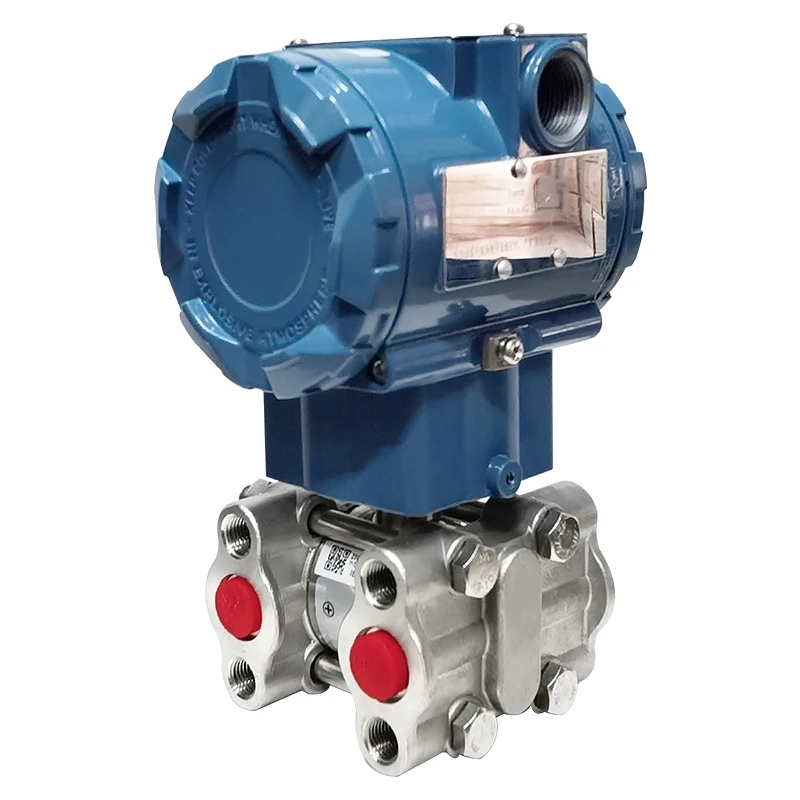

TX3351 D DP Range 0~3MPa pressure transmitter 0.1% Differential Pressure Transmitter
- Category: Pressure Transmitters >>>
- Supplier: Changzhou Tianli Intelligent Control Co. Ltd.
Share on (1600746318728):
Product Overview
Description
Product Description
TX3351-DP Differential pressure transmitters are used to measure the liquid level, density, pressure and flow of liquid, gas or steam，then convert it into 4～20mADC HART current signal output。 TX3351-DP can communicate with RST375 handheld terminal or RSM100 Modem for parameter setting, process monitoring, etc.
Specification
TX3351/D- | ||||
Sensor type | ||||
DP | Differential pressure sensor | |||
Accuracy | ||||
C | ±0.1% | |||
Output | ||||
1 | 4mA-20mADC | |||
2 | 485 Communication | |||
3 | 4mA-20mADC/485 Communication | |||
Range (when no migration)（kPa） | ||||
B | 0～1-6 | |||
C | 0～4-40 | |||
D | 0～25-250 | |||
F | 0～250-3000 | |||
Isolate Diaphragm | Filling Fluid | |||
A | 316L Stainless Steel | Silicon Oil | ||
B | 316L Stainless Steel | Fluorine oil | ||
C | Hastelloy C | Silicon Oil | ||
D | Hastelloy C | Fluorine oil | ||
Rated Working Pressure | ||||
1 | 16MPa | |||
3 | 40MPa | |||
Process Flange | ||||
N | 1/4NPT and 7/16 threaded hole without relief valve | |||
B | 1/4NPT and 7/16 threaded hole, rear end relief valve | |||
Wet sealing material | ||||
N | Nitrile rubber（NBR） | |||
F | Fluorine rubber（FKM） | |||
P | （PTFE） | |||
Electrical Interface | ||||
122 | M20×1.5 Female thread (with cable sealing head) | |||
222 | NPT1/2 Female | |||

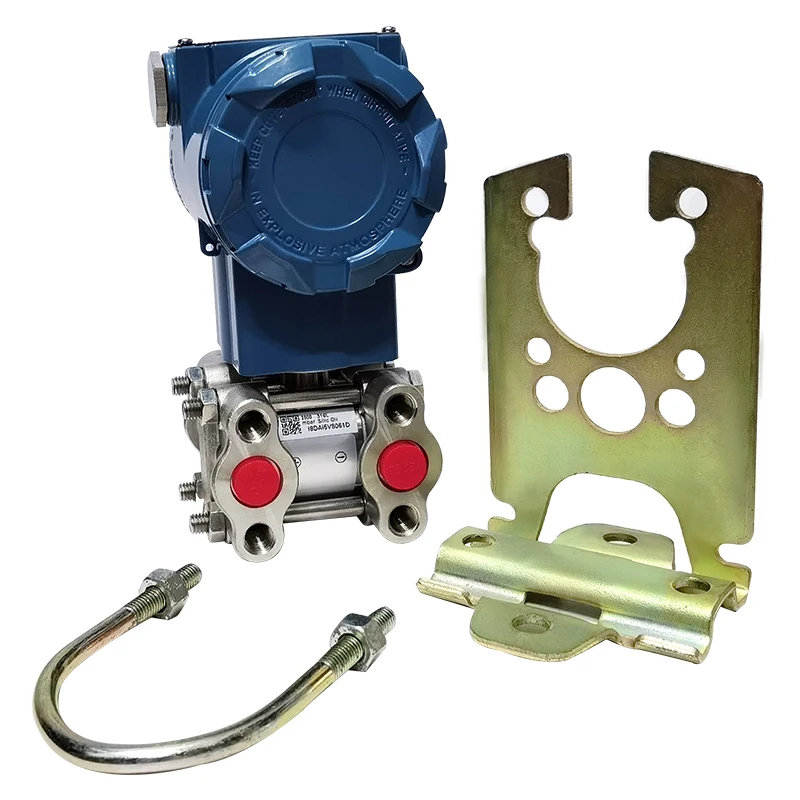

Mounting Bracket and Material | ||||
N | None | |||
1 | Stainless steel mounting bracket | |||
2 | Carbon steel mounting bracket | |||
he bit number Location | ||||
N | None | |||
2 | Hanging stainless steel standard | |||
Manual | ||||
C | Chinese | |||
E | English | |||
Company Profile
Changzhou Tianli Intelligent Control Co.,Ltd is a ISO9001:2000 proved high-Tech. Enterprise. We are professional in manufacturing products includes: Pressure/Differential Transmitters, Indicating Pressure Switches, Two-level Pressure Switches,Stainless Pressure Gauges, Shakeproof Pressure Gauge,etc. We serve a countrywide market of oil and gas, chemical, petrochemical, chemical fiber,power industries ,metallurgy,medical, light industry , telecommunication industries and Self-check & Control center of refregrating equipment, Self-alarm in process application and protection.

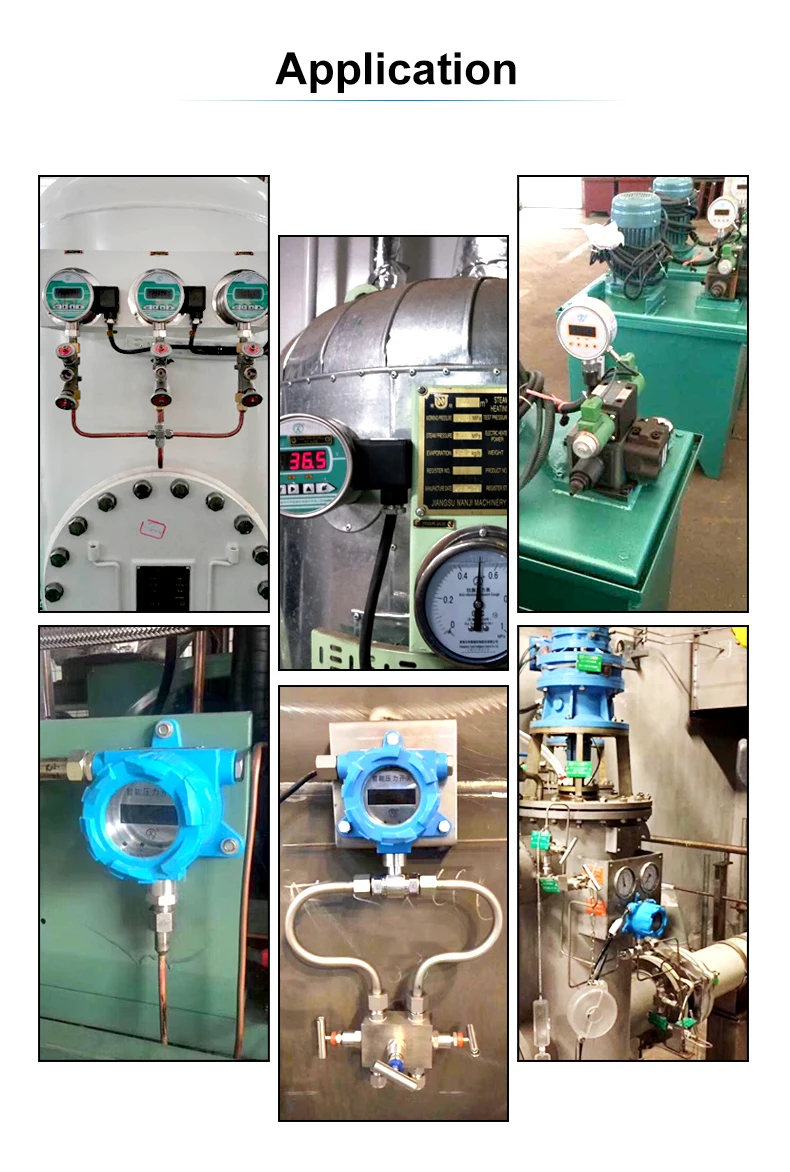

Application
