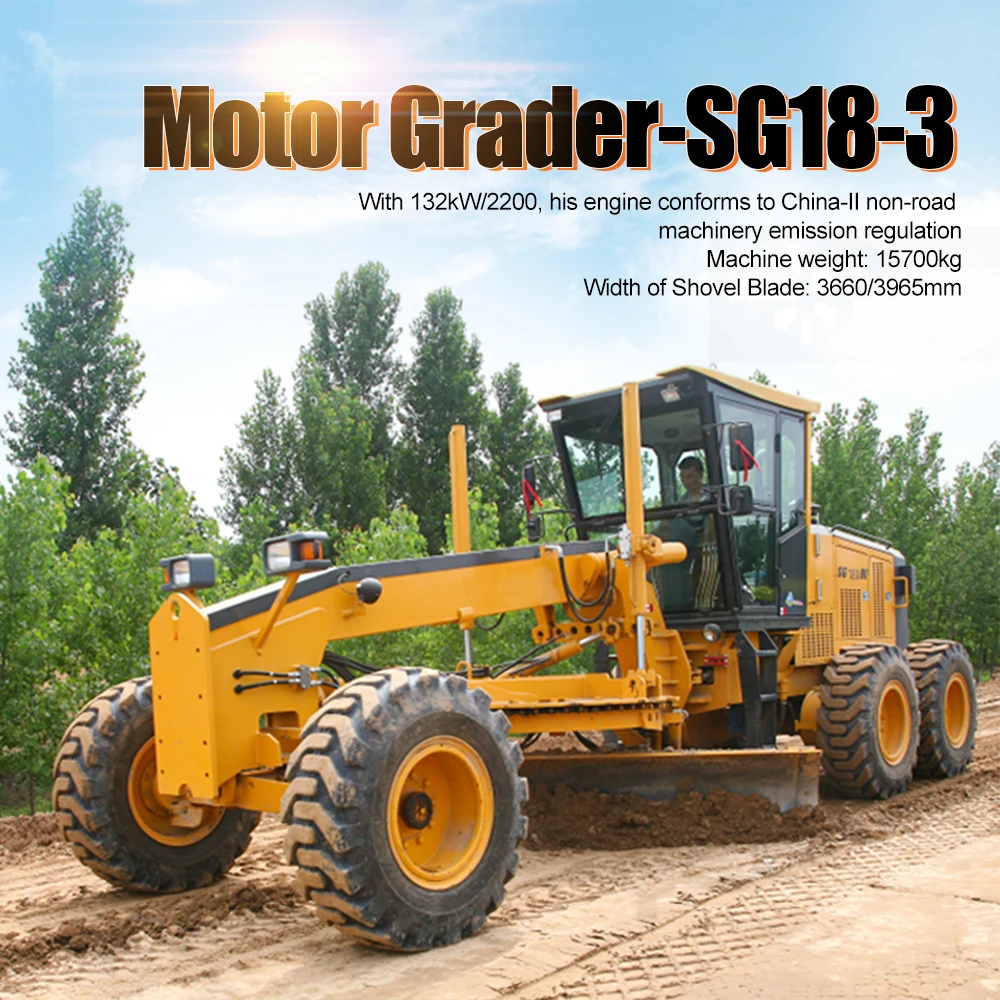

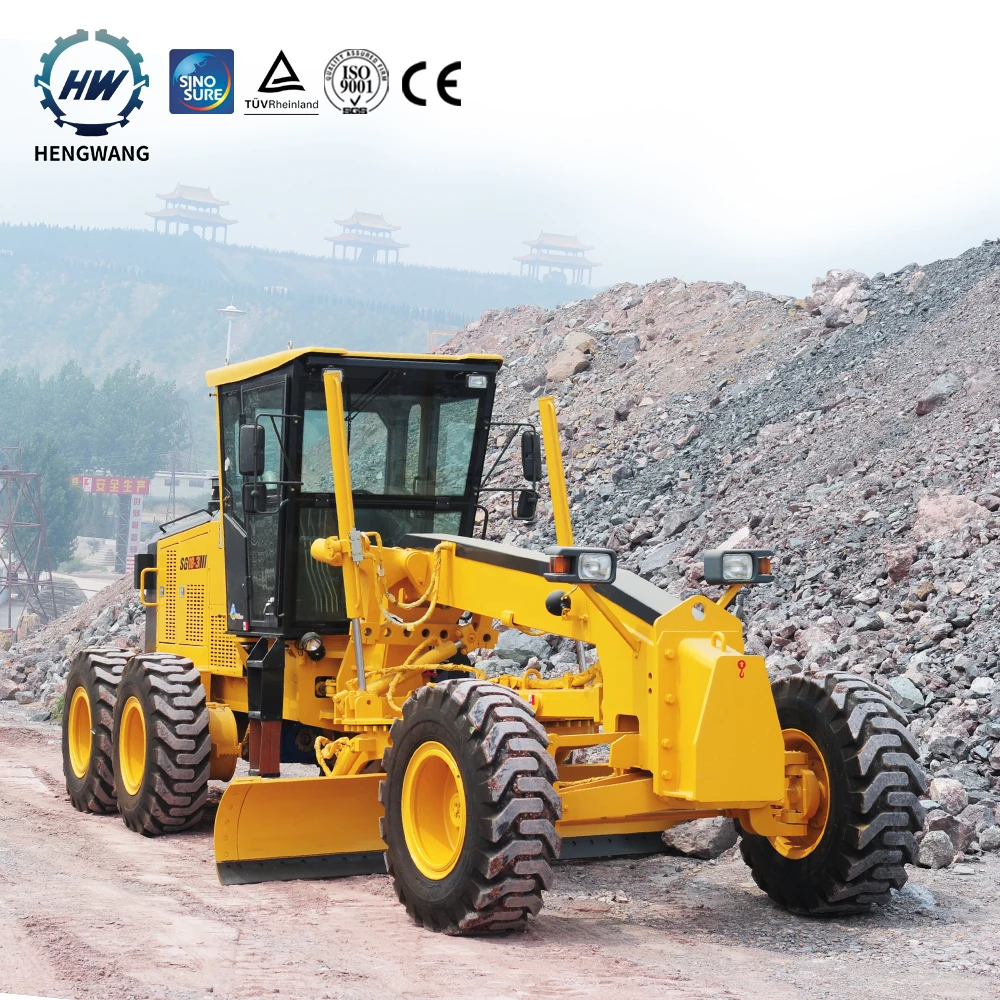

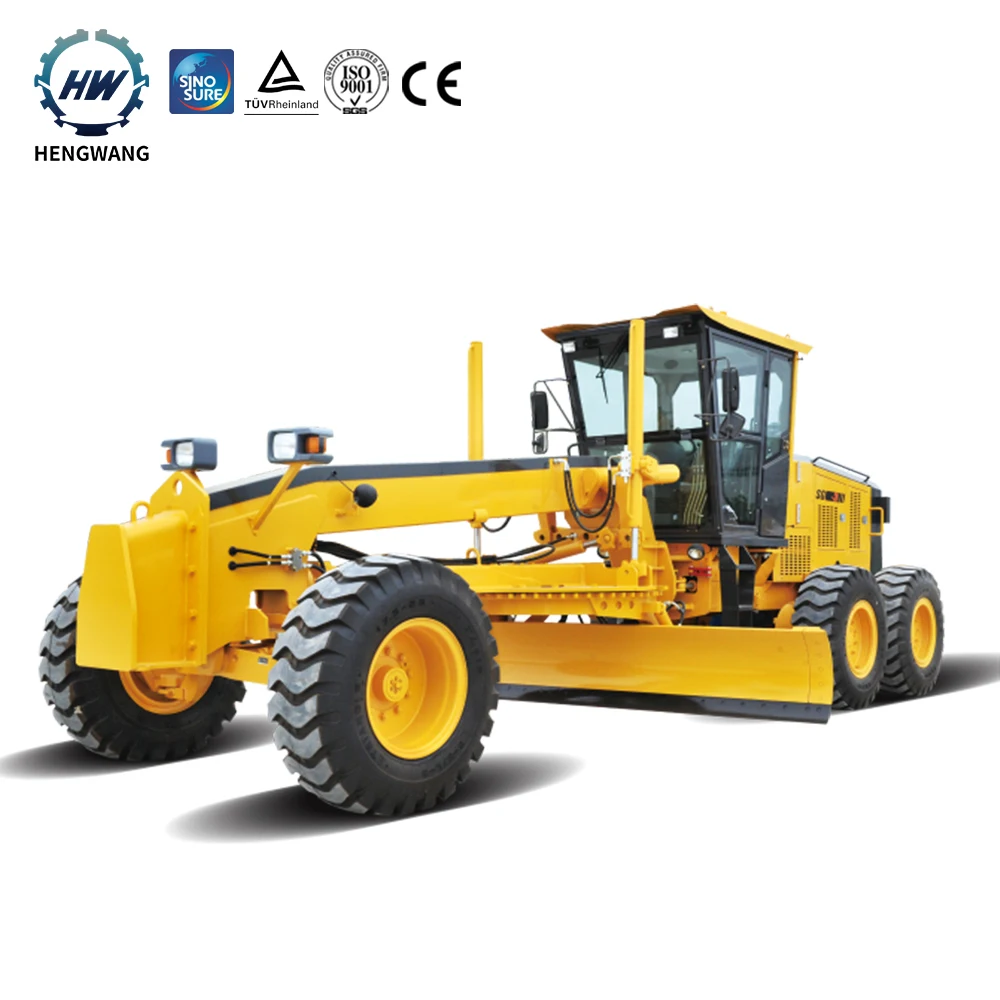

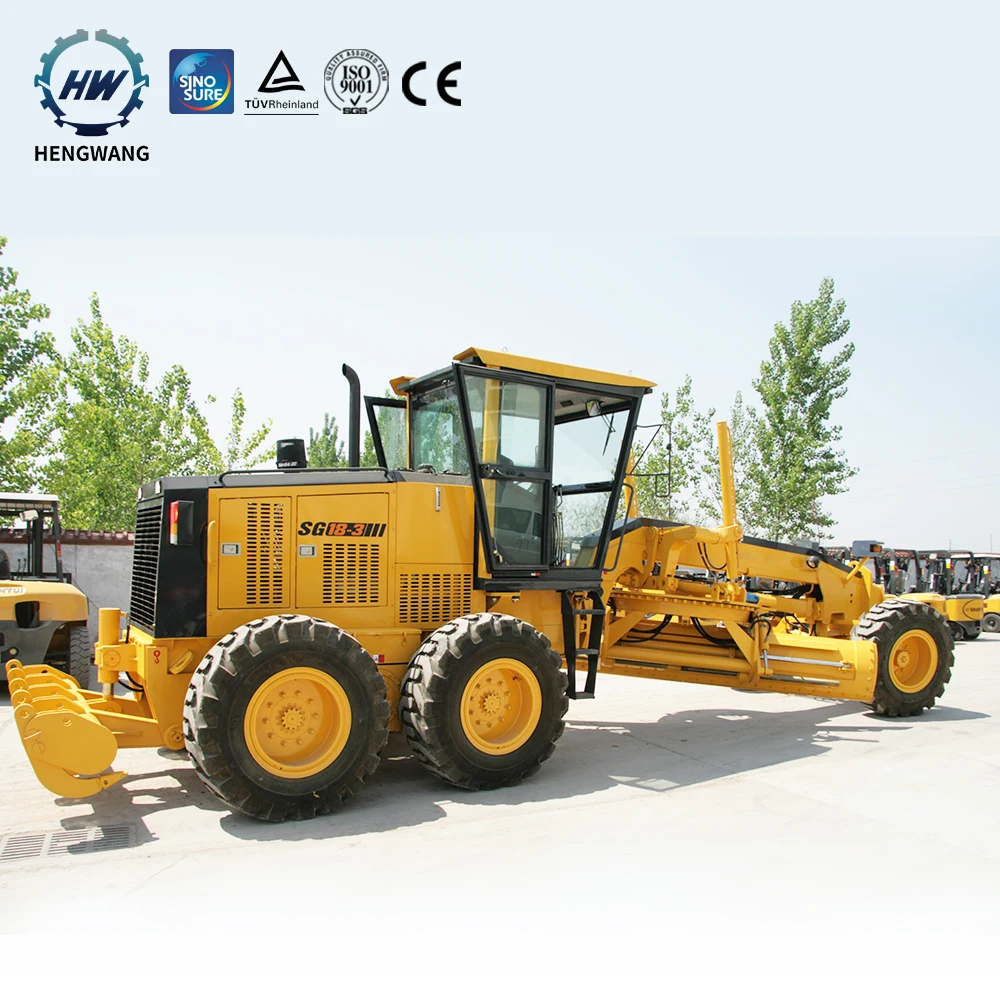

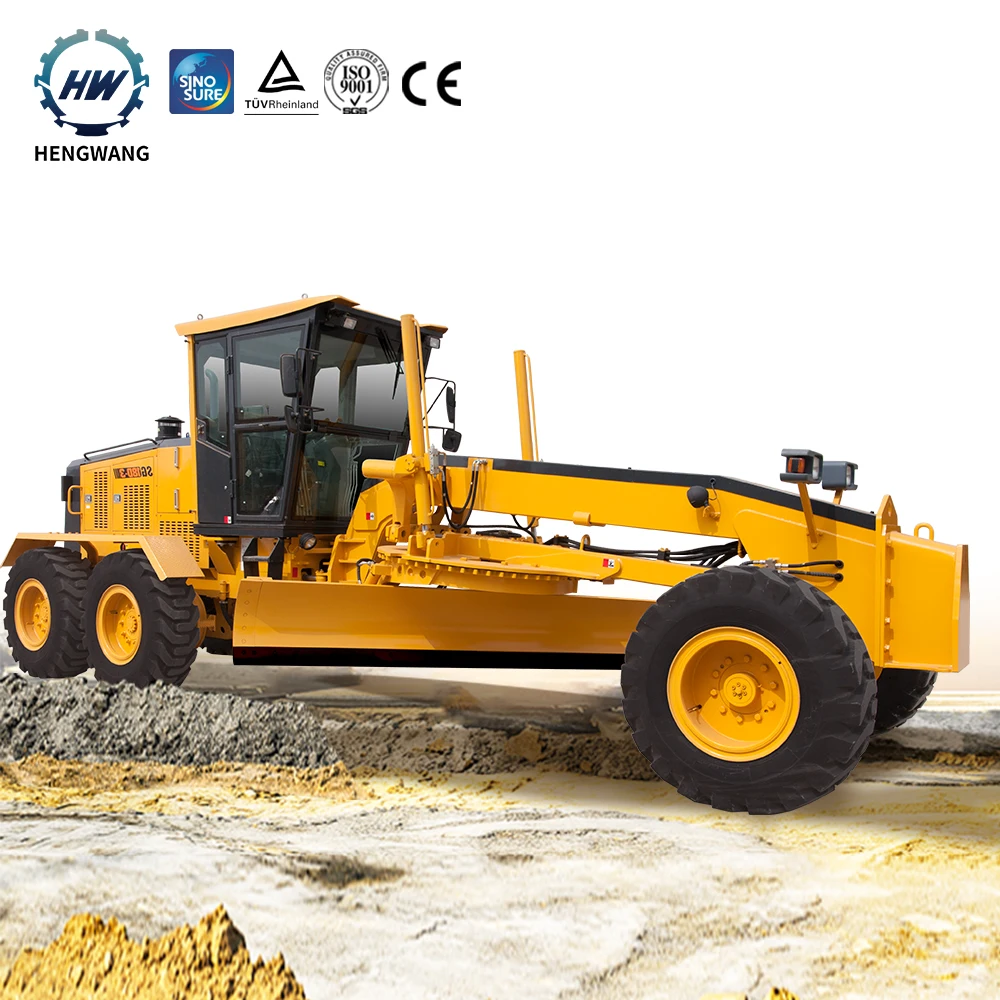

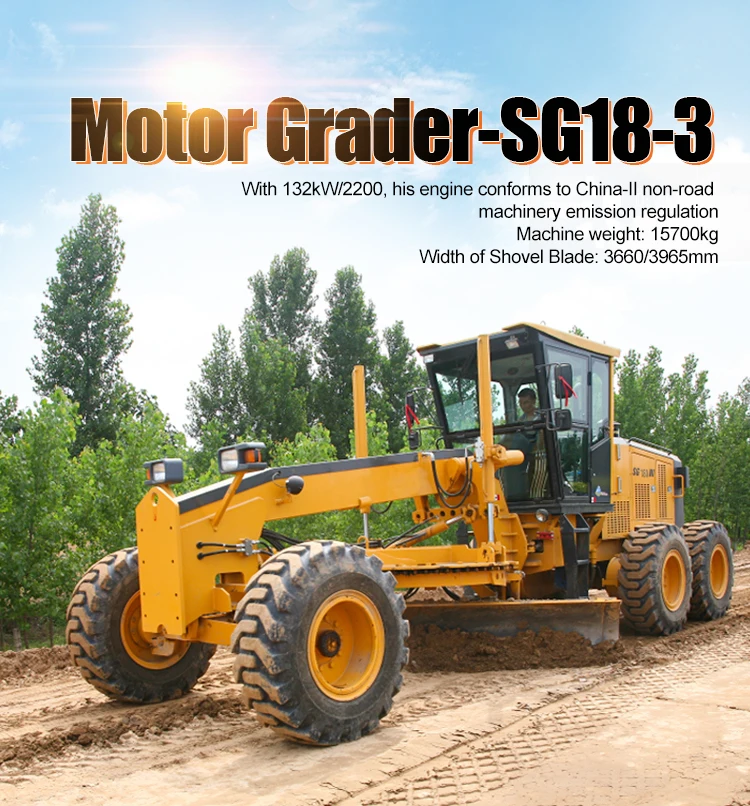

2023 new Hengwang grader construction equipment SG18 3 cheap grader for sale
- Category: >>>
- Supplier: Jining Fangze Machinery Co. Ltd.
Share on (1600747655784):
Product Overview
Description

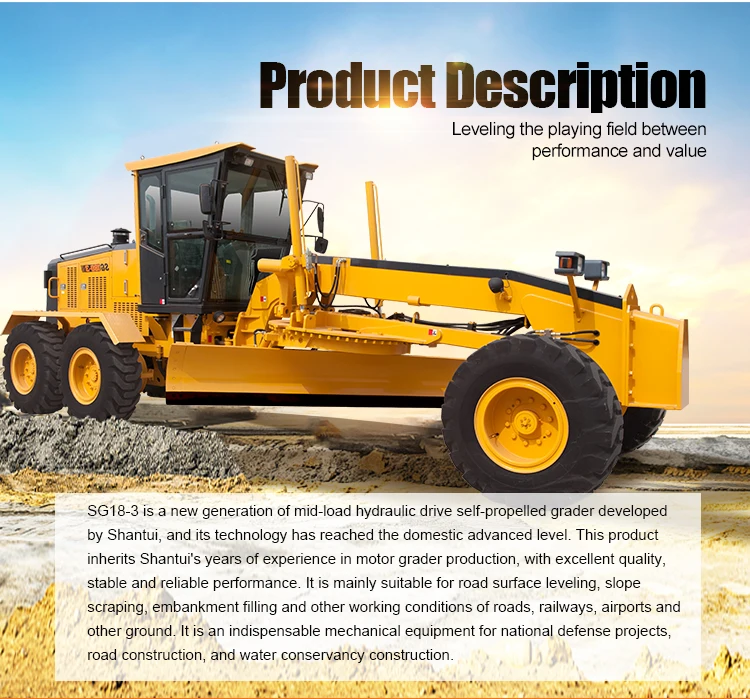

Products Description
The grader is the main machine used for shaping and leveling operations in earthworks, and is widely used in large-area ground leveling operations such as roads and airports.
Wide Range Of Use
Product Manual
Product name | SG18-3 |
Operating weight of machine (kg) | 15900 |
Wheelbase (mm) | 6260 |
Wheel tread (mm) | 2155 |
Minimum ground clearance (mm) | 430 |
Steering angle of front wheels (°) | ±45 |
Articulated steering angle (°) | ±25 |
Maximum traction force (kN) | 83.5（f=0.75） |
Turning radius (mm) | 7,800 (Outer side of front wheel) |
Maximum gradeability (°) | 20 |
Width of shovel blade (mm) | 3660/3965 |
Height of shovel blade (mm) | 635 |
Blade slewing angle (º) | 360 |
Blade cutting angle (º) | 37-83 |
Maximum digging depth of blade (mm) | 500 |
Length (mm) | 9015 |
Width (mm) | 2600 |
Heigh (mm) | 3400 |

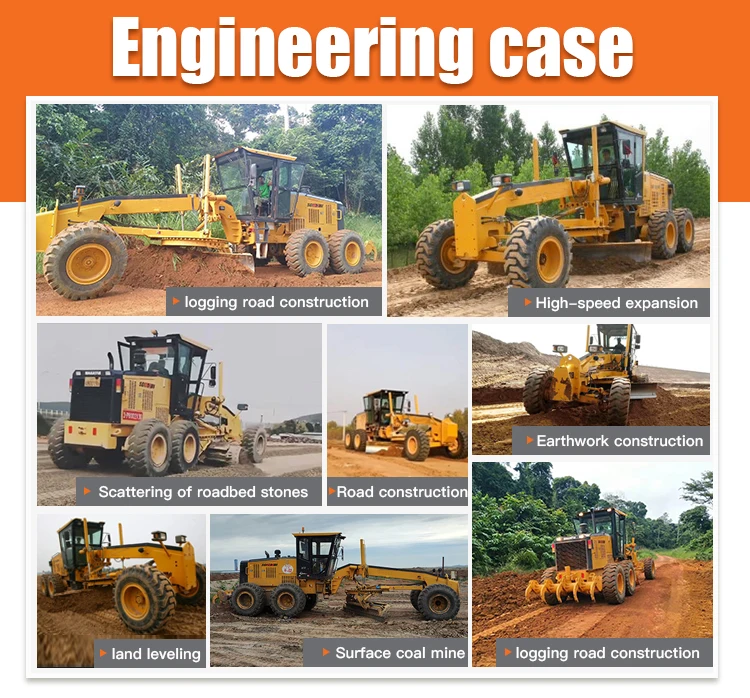

Project case

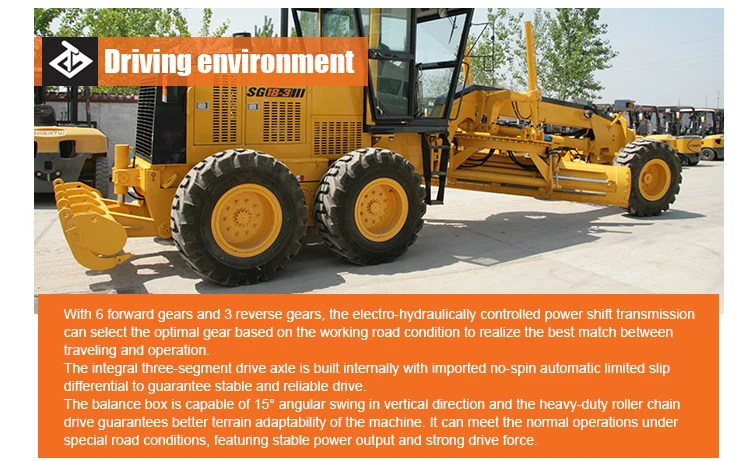

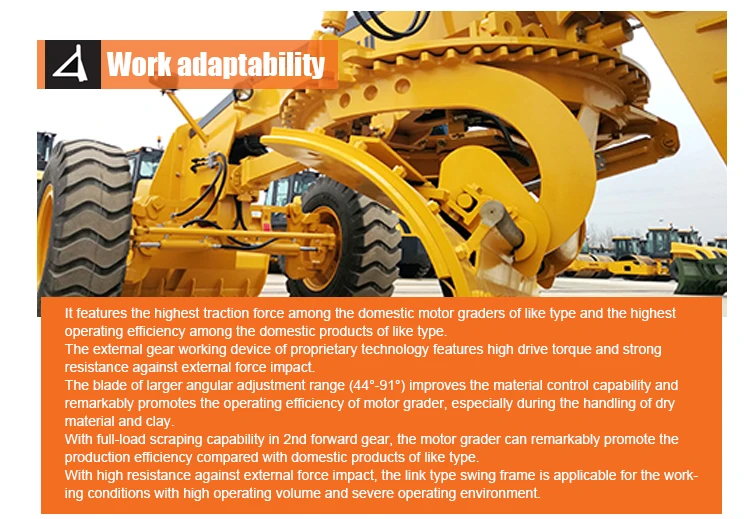

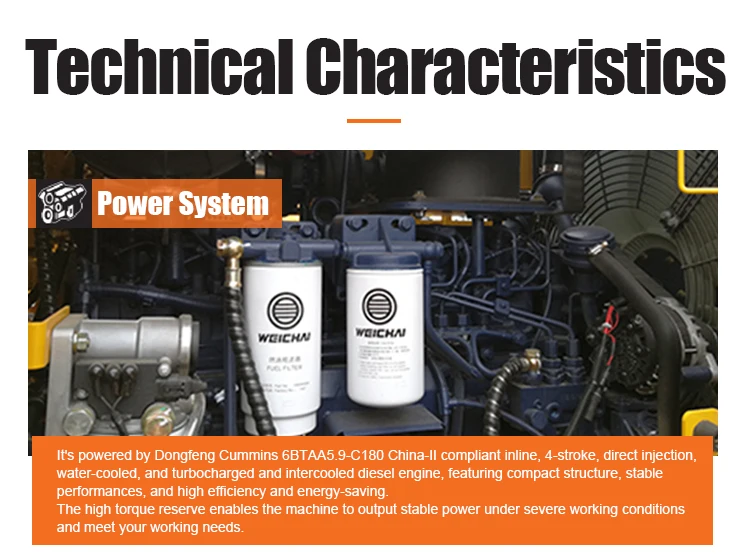

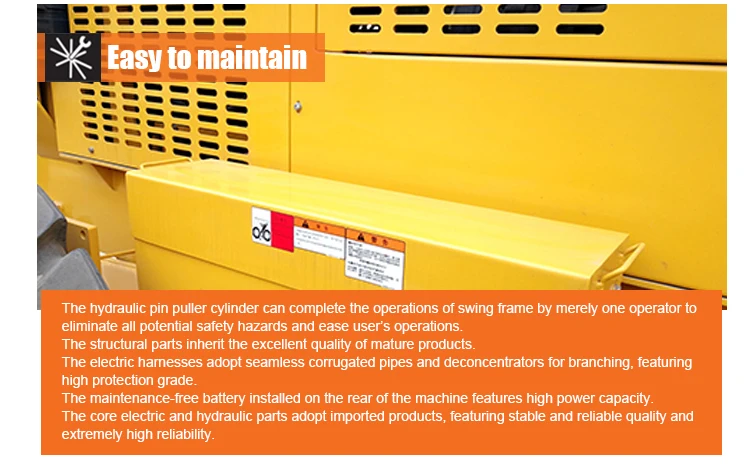

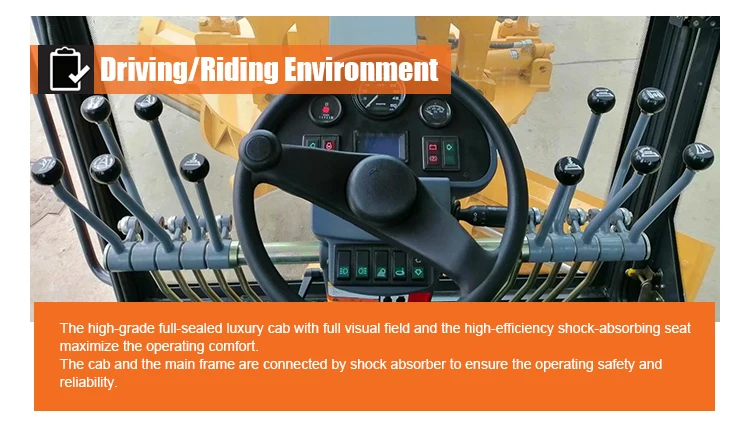

Technical features
Exhibition certificate

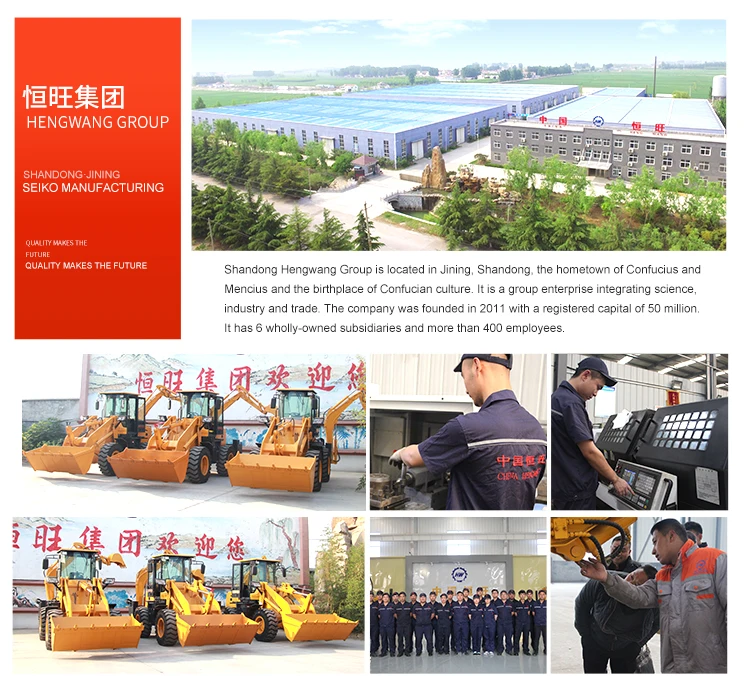

Company Profile
