Защита от перегрузки BMS, терморегулятор для системы управления батареей
- Category: Electronic Components, Accessories & Telecommunications >>>
- Supplier: Huizhou Huakaiwei Electronic Sci&tech Co. Ltd.
Share on (1600765361585):
Product Overview
Description
Product Description

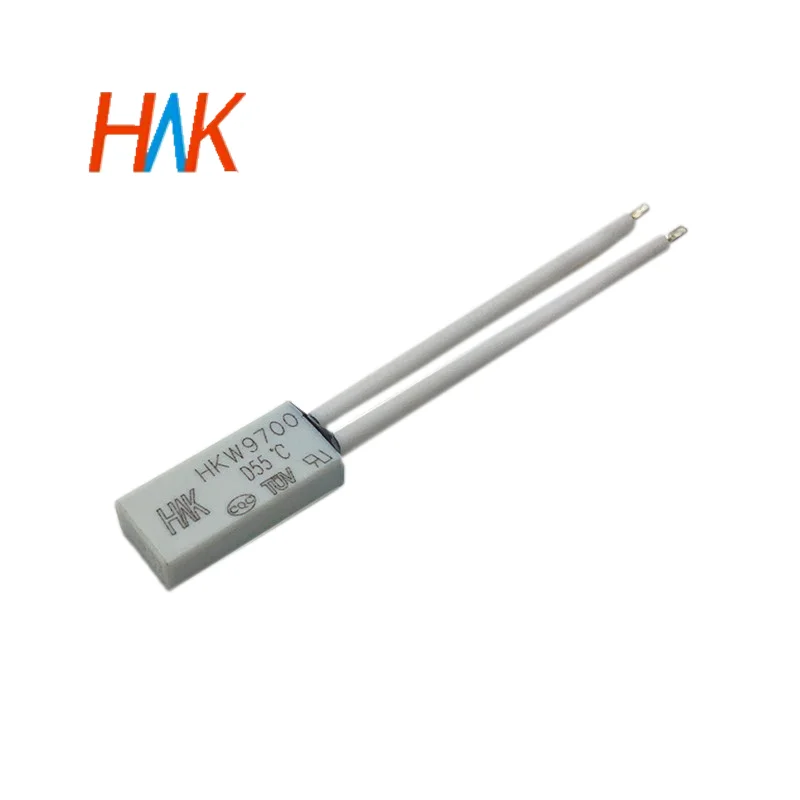

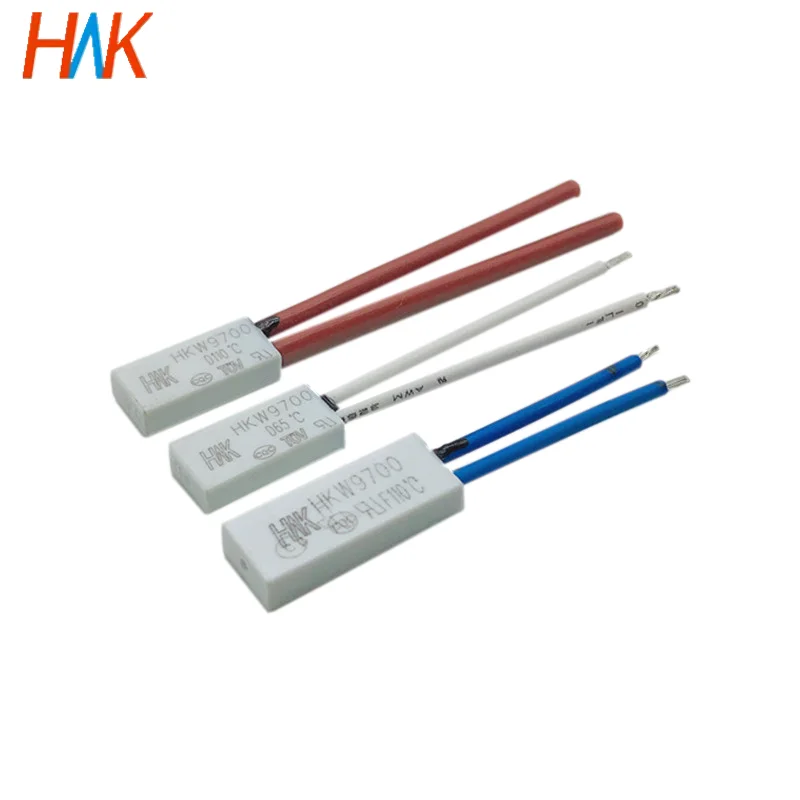

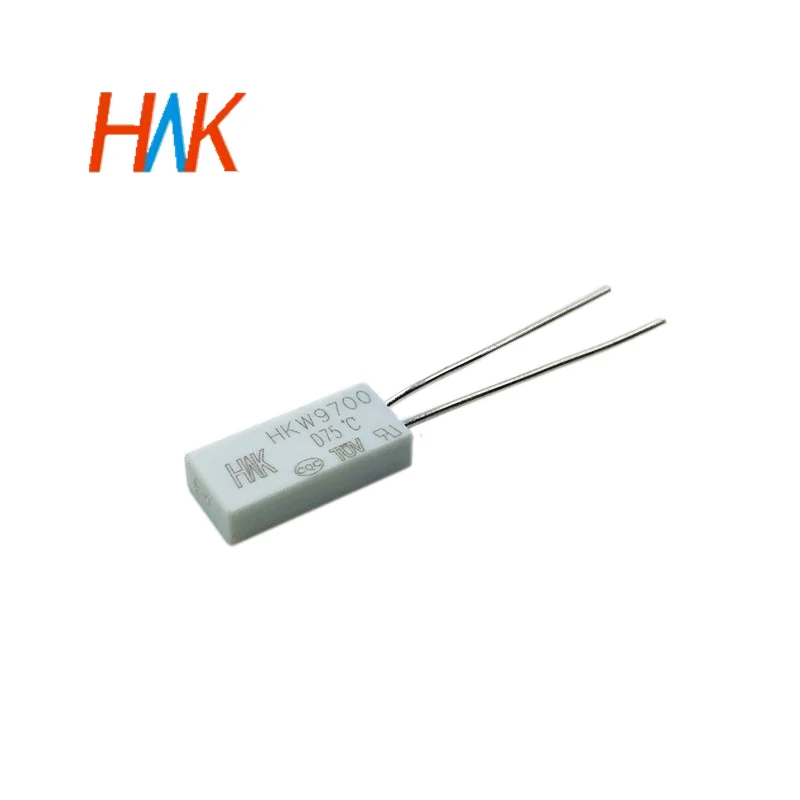

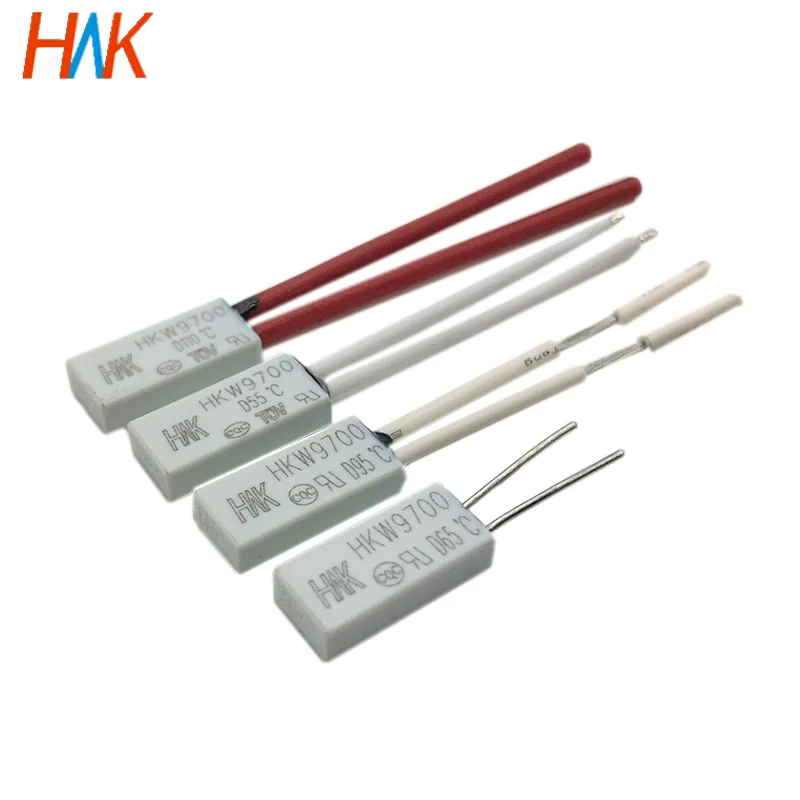

HKW 9700-D

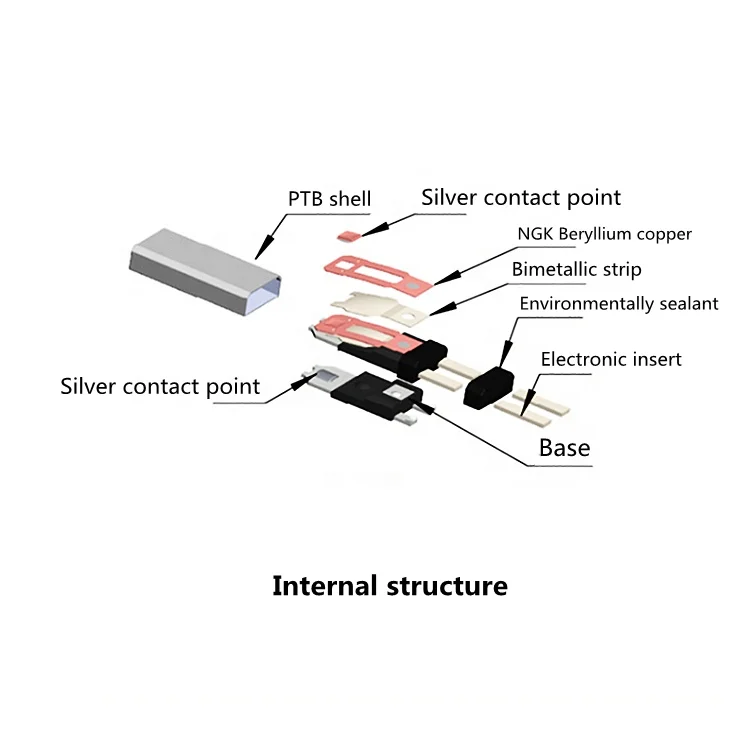

The HKW9700-D series thermal protection shell is made of PBT plastic and iron shell. The product is small in size, reliable in performance, and high in insulation and electrical strength. It is a widely used thermal protector.
Technical Parameters
contact type: | Normally closed/opend |
operationg temp: | 30-155℃，5℃ per stepper step |
Tolerance: | ±3℃ ±5℃ |
Contact | resistance:≦50mΩ |
Reset temperature: | action temp down 10-45℃ |
Electrical strength: | AC1500V/min No breakdown |
cycle lifetime: | ≧10000 times |
Feature
* Miniature size, easy to install
* Individually temperature calibrated and checked
* Positive make and break with snap action bimetal disc
* Repeatable temperature performance over life
* Available in metallic shell and plastic shell
* Temperature sensitivity for maximum design flexibility
* Wide selection of leads and imported Mylar insulating sleeves.
* Strict RoHS environmental standard implemented for each component
* Cadmium free silver-nickel alloy contacts
* Wide selection of trip off temperatures: 45~160°C
* Individually temperature calibrated and checked
* Positive make and break with snap action bimetal disc
* Repeatable temperature performance over life
* Available in metallic shell and plastic shell
* Temperature sensitivity for maximum design flexibility
* Wide selection of leads and imported Mylar insulating sleeves.
* Strict RoHS environmental standard implemented for each component
* Cadmium free silver-nickel alloy contacts
* Wide selection of trip off temperatures: 45~160°C
Company Profile
Huizhou Huakaiwei electronic Sci&Tech co., LTD., specializing in the production of over-current protector, thermal protectors, temperature control switch, thermostat, our company has a number of patents, independent products passed UL, TUV, CQC,KC,ROHS,REACH multinational international safety certification and environmental testing, the products are widely used in protecting home appliances motor or any motors and other industries. HKW with professional technology is committed to providing reliable overheating over-current protection integrated solutions.
