Гидравлический буксировочный подъемник для вишневого захвата прицепа 10 22 м
- Category: Lifting, Pulling & Positioning >>>
- Supplier: Jinan Plk Machinery Co. Ltd.
Share on (1600770803370):
Product Overview
Description

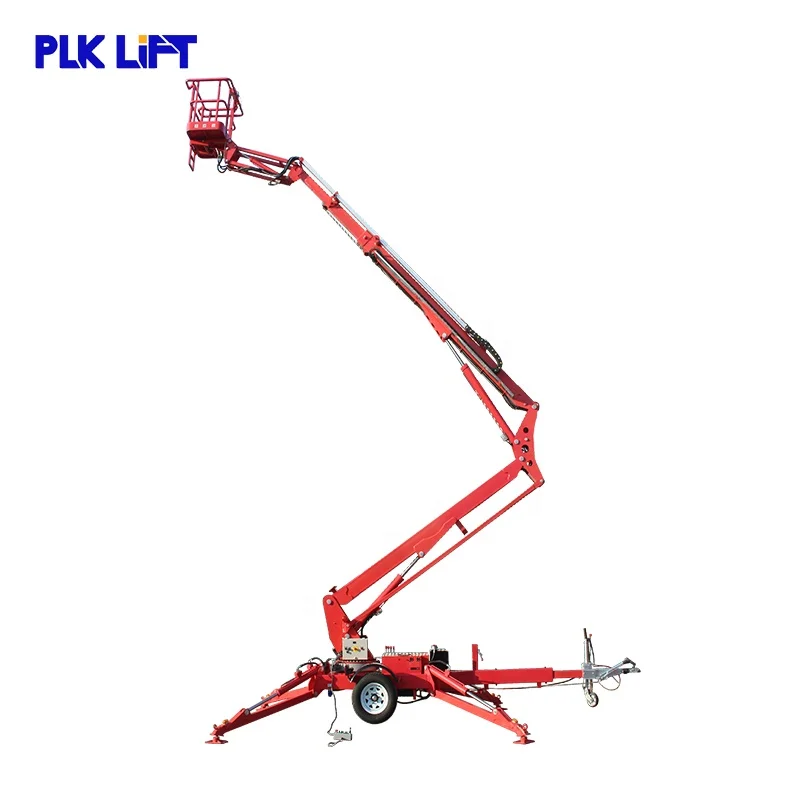

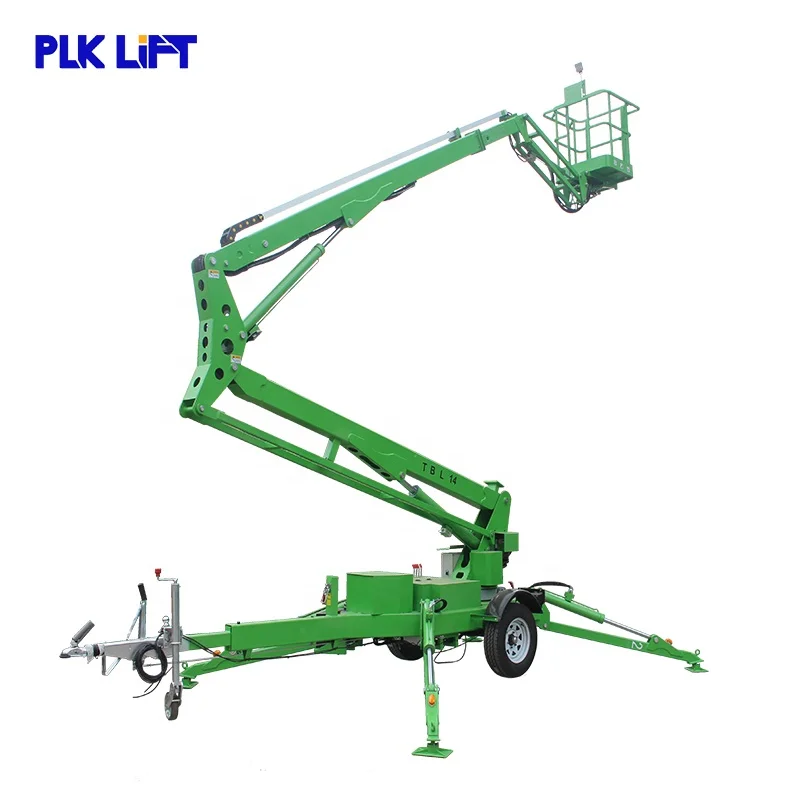

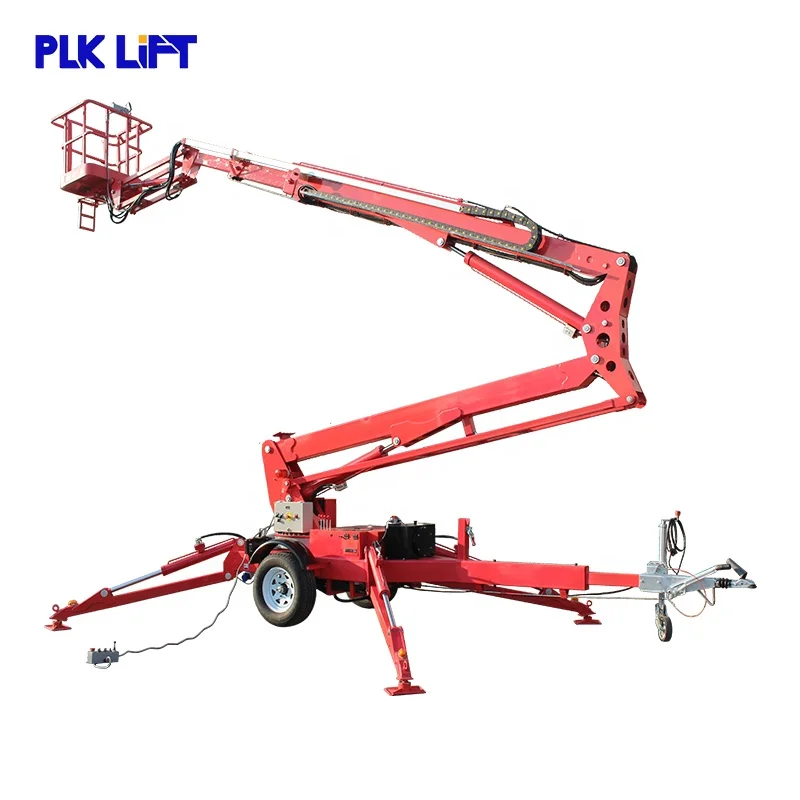

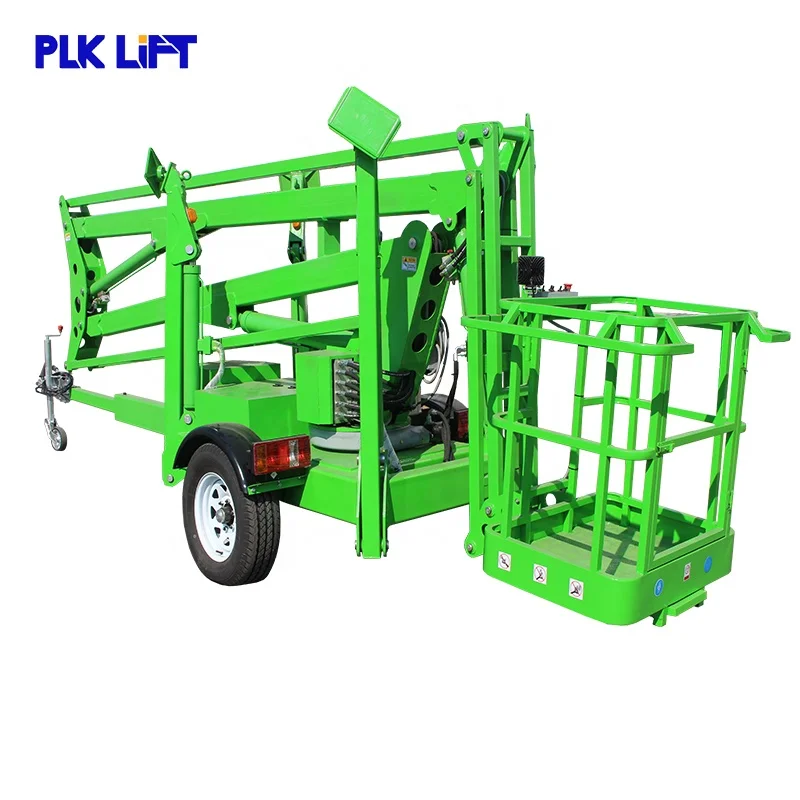

10m~22m Towable Boom Lift Cherry Picker
Towable boom lift platform height from 10m to 16m (working height from 12m to 18m). Load capacity 200kg. It can be towed easily from site to site and work for you quickly. It is widely used for aerial working, such as road lamp repair, palm tree trimming work and cleaning the window etc.
Power options available on PLK towable boom lift include AC (connect with electricity), DC (battery power), gasoline, diesel and 'Dual-Energy' ( for example battery & diesel or battery & gasoline), combining the benefits of two power sources on the same machine. Towable Cherry Picker is popular for its easily moving and operation. Having it will be your wisest choice.
| Model | TBL-12A | TBL-14A | TBL-16A | TBL-18A | TBL-20A | TBL-22A |
| +Telescopic | +Telescopic | +Telescopic | +Telescopic | |||
| Lifting height | 10M | 12M | 14M | 16M | 18M | 20M |
| Working height | 12M | 14M | 16M | 18M | 20M | 22M |
| Load capacity | 300kg | 200kg | ||||
| Platform size | 1.2x0.8M | |||||
| Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
| Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 2800KG | 3500KG |
| Overall Size( L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
Supporting Legs Stride Distance (Horizontal) | 3.0 M | 3.6 M | 3.6 M | 3.9 M | 3.9 M | 3.9 M |
Supporting Legs Stride Distance (Vertical) | 4.7 M | 4.7 M | 4.7 M | 4.9 M | 4.9 M | 4.9 M |
| Wind Resistance Level | equal or less than 5 | |||||
| 20’/40’ Container Loading Quantity | 1set/3sets | 1set/3sets | 1set/3sets | 1set/3sets | 1set/2sets | 1set/2sets |
| Power | AC-electrical/Diesel/Gasoline Power(Single Power) | |||||
| DC Battery Power(Single Power) | ||||||
| AC + Diesel/Gasoline Power(Dual Power) | ||||||
| DC Battery + AC/Diesel/Gasoline Power(Dual Power) | ||||||
| Optional | Friction wheel walking device: (Automatic Moving) | |||||
| Use remote control to make the boom lift walk itself, no need to use tractor towing. | ||||||
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
