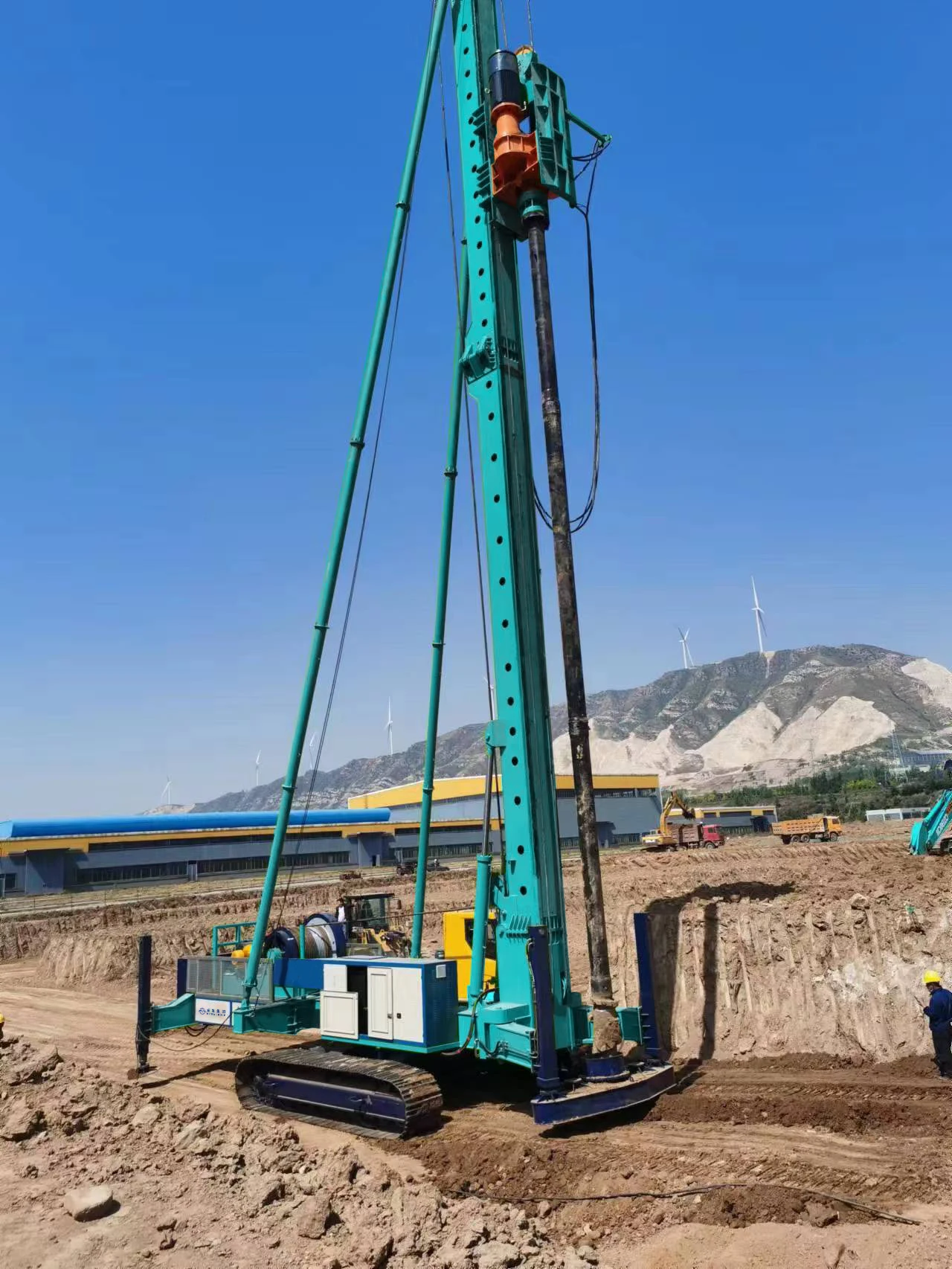

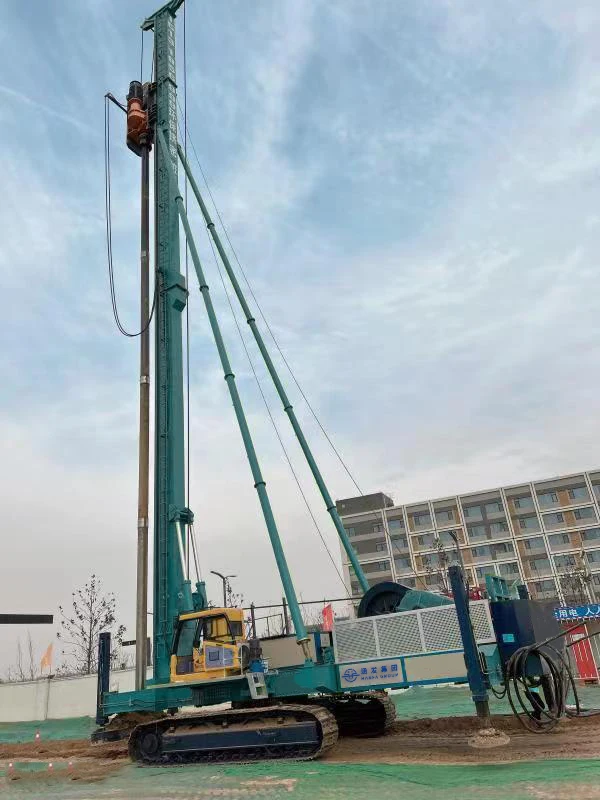

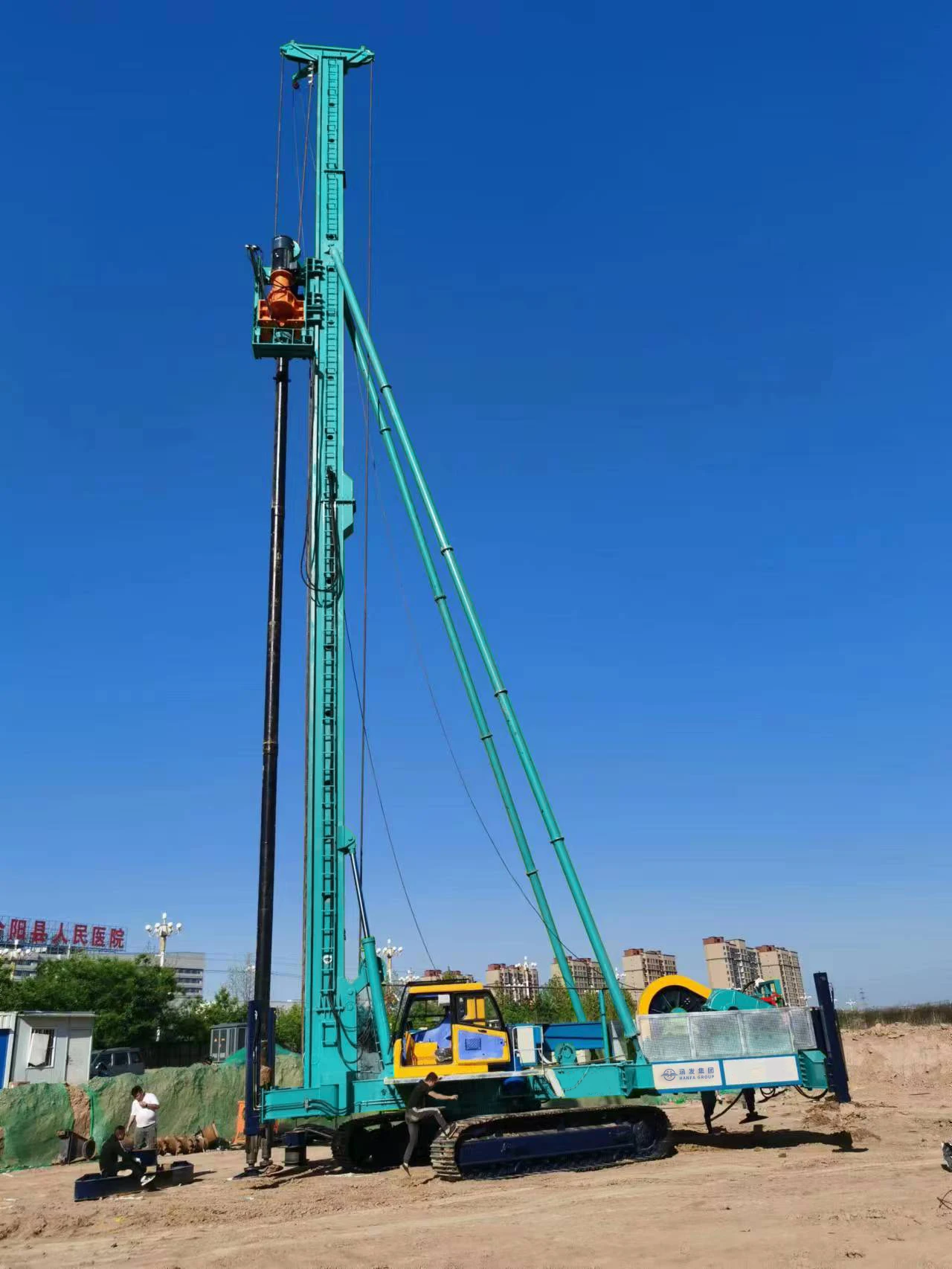

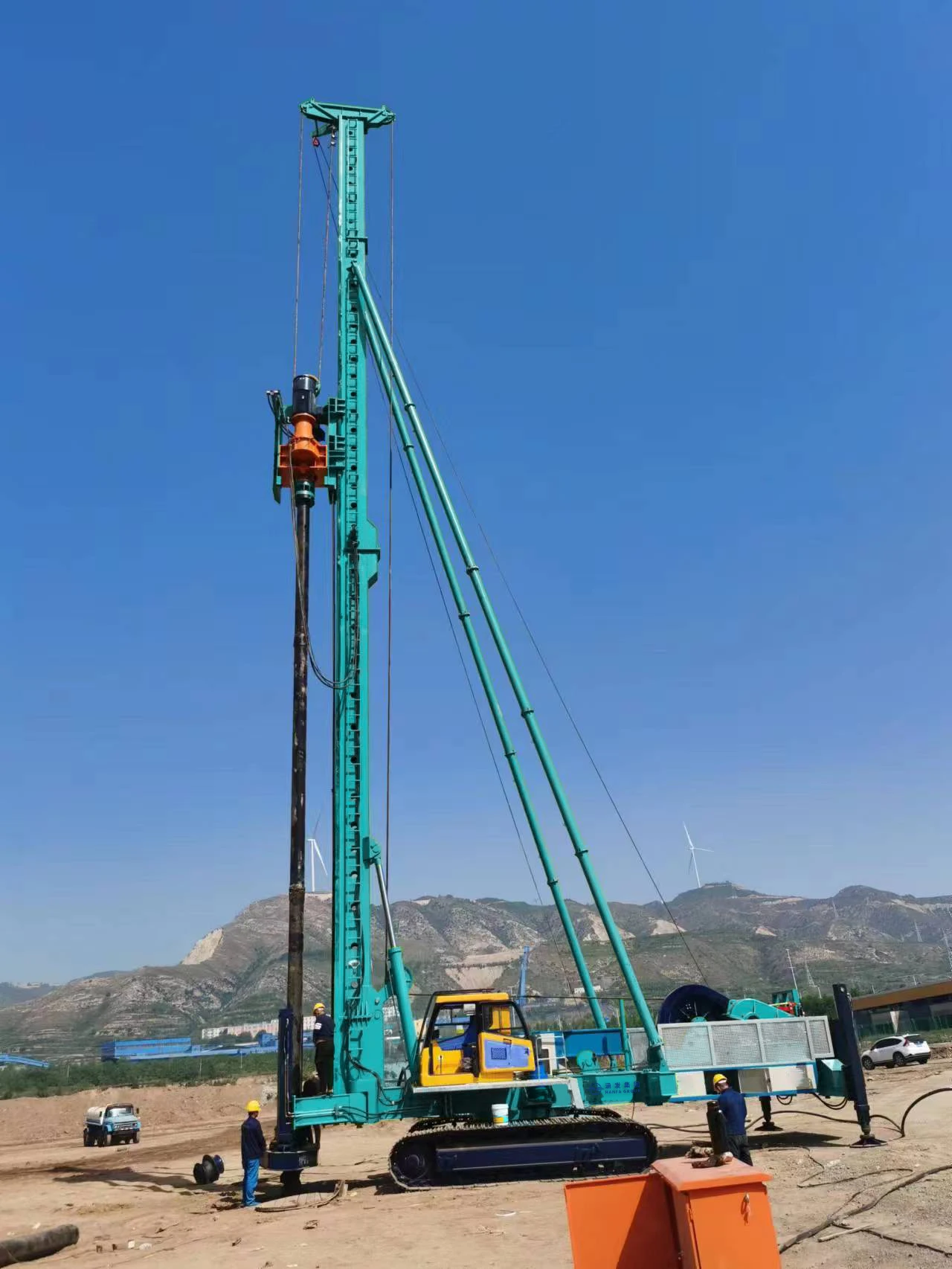

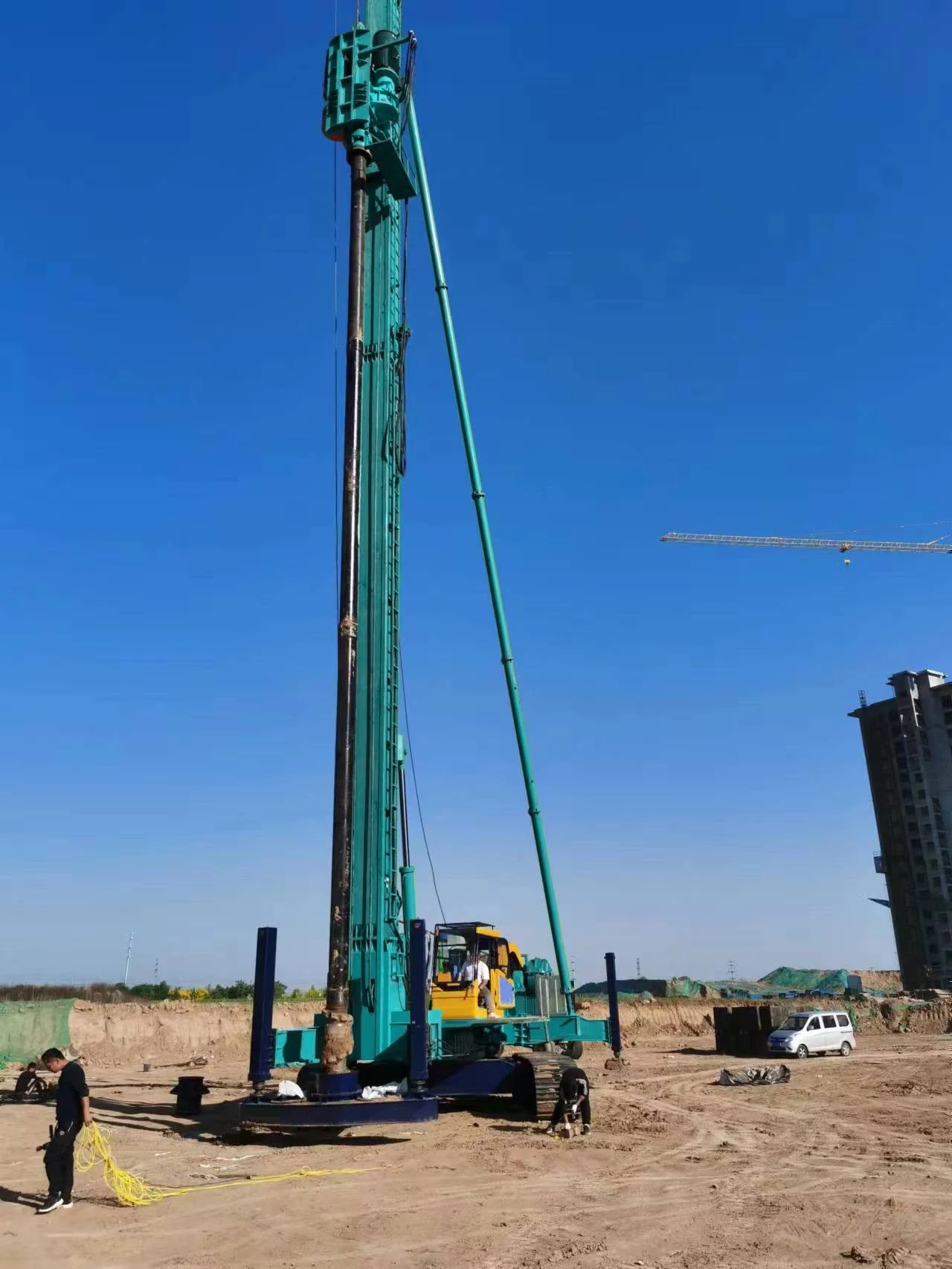

Building materials machinery ground screw small hydraulic static pile driver price
- Category: >>>
- Supplier: Zhengzhou Hanfa Imp & Exp Trading Co. Ltd.
Share on (1600776540889):
Product Overview
Description
Product Description
Detailed Images
Borehole diameter（mm） | Ф400-600 | Drilling depth（m） | 20 | |||||
Maximum theoretical torque of power head（kN/m） | 250-350 | Power head speed（ r/min） | 7-9 | |||||
Power of power head motor（kw） | 110frequency conversion*2 | Synchronous speed of power head motor（ r/min） | 960 | |||||
Main winch motor power(kw) | 37 | Maximum total tension of main winch（kN） | 600 | |||||
Auxiliary winch motor power(kw) | 7.5 | Total tension of auxiliary winch（kN） | 50 | |||||
Chassis slewing device motor power(kw) | 4 | Maximum torque of chassis slewing device（N/m） | 7000 | |||||
Chassis hydraulic system motor power(kw) | 22/30 | Maximum oil pressure of chassis hydraulic system(MPa) | 25 | |||||
Chassis swing angle( °) | 360 | Chassis slewing reference speed（ r/min） | 0.35 | |||||
Working state reference dimension(mm) | 12141*6432*30288 | Reference dimension of the largest piece transportation status（mm） | 14266*3000*3680 | |||||
Guide rail center distance(mm) | 600 | Fuselage thickness（mm） | 560 | |||||
Front leg pad | Overall composite of casing foot pad | Rear outrigger foot plate diameter（mm） | 700复合 | |||||
It can be equipped with maximum guide rail diesel pile hammer(t) | ----- | Maximum drill diameter with DTH hammer（mm） | ----- | |||||
Length and width of track（mm） | 800*5100 | Track travel reference speed m/min | 4.2 | |||||
Average ground specific pressure of track(t/m2) | 9.2 | Reference weight of complete machine(t) | 80 | |||||
Guide rail specification (square □/seamless tube □) | Square tube 100*100 | |||||||
Diameter of main winch wire（mm） | Ф40 | Single rope tension of main winch（KN） | 300 | |||||
Main winch adopts positive and negative lifting and pressurization | ||||||||
Column lifting method: oil cylinder lifting (square main tower) | ||||||||
Main tower specification: folding square connection | ||||||||
FAQ
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
