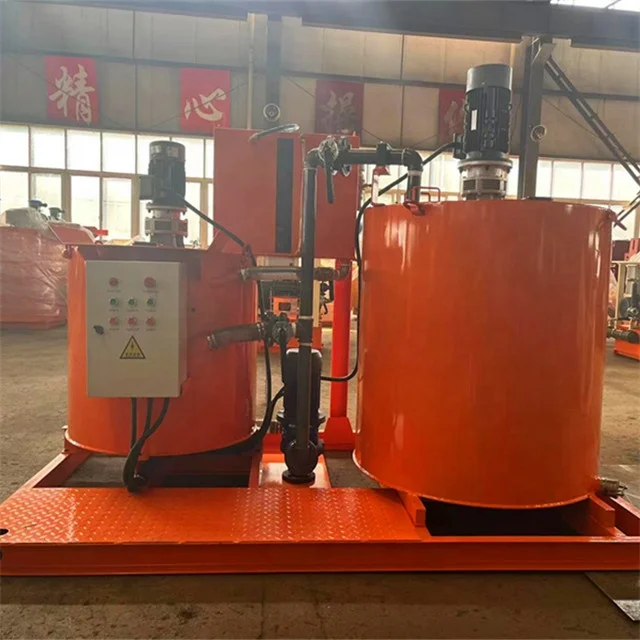

500L tank high shear cement slurry electric colloidal grout mixer machine
- Category: >>>
- Supplier: Zhengzhou Sinogrout Machinery Co. Ltd.
Share on (1600780298875):
Product Overview
Description
Products Description

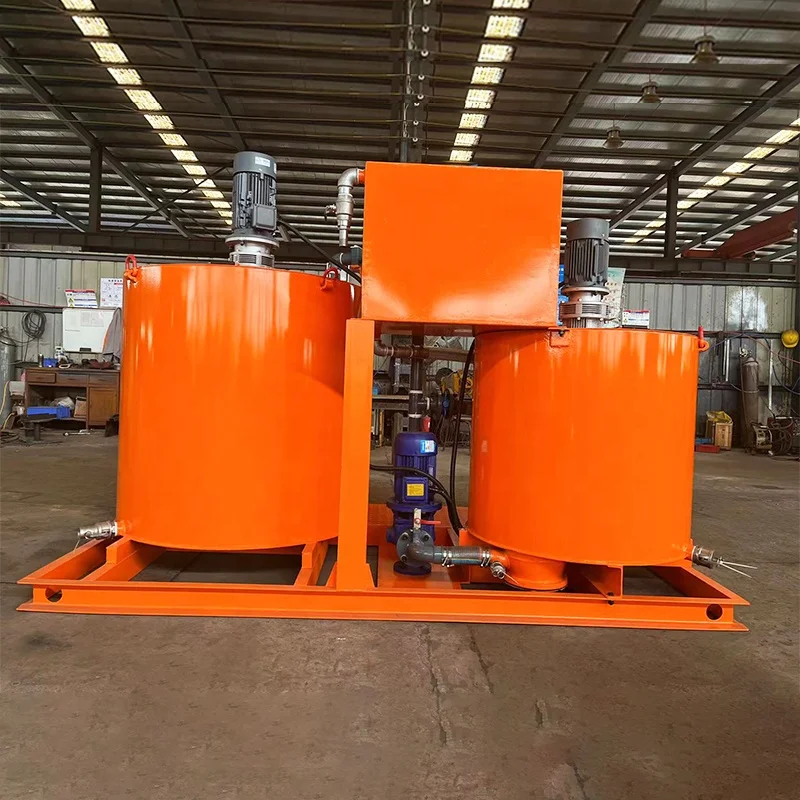

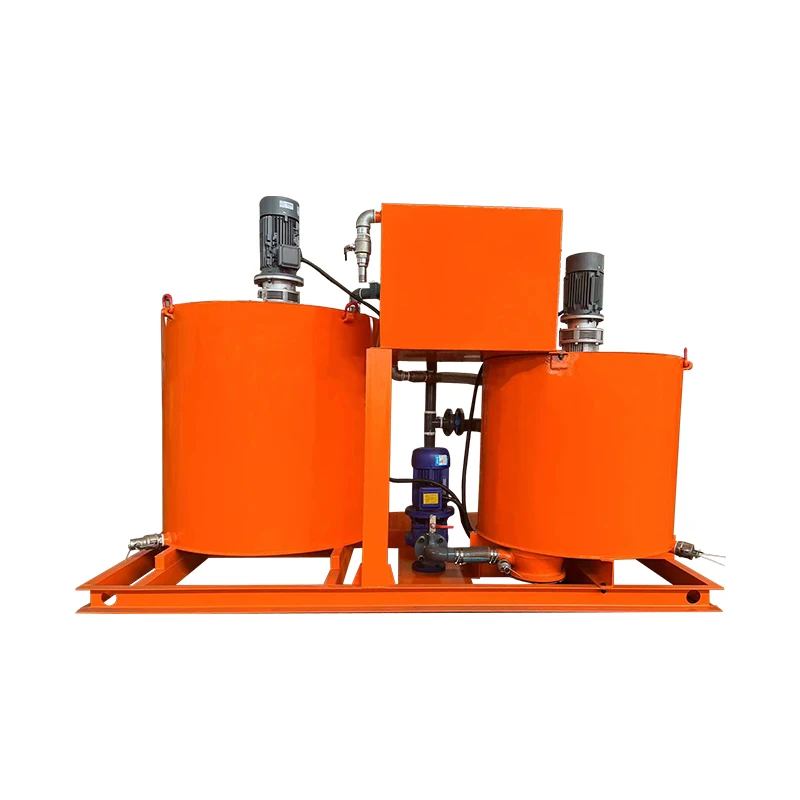

DMA500-1000E Cement grout mixer with agitator is a combination of mixer and agitator, it is specially design for continuous cement mixing and grouting in ground/underground engineering. lt can fast mix water, cement and additive, then the mixed slurry can be stored into a 1000 liters agitator, thus the mixing work can continuously be done.
Technical Parameters
Model | DMA500-1000E |
Mixer Rated capacity | 500 liter |
Acceptable W/C ratio | ≥0.5:1 |
Mixer Motor Power | 1.5kW |
Mixer Rated Rev. | 34rpm |
Mixing pump | Centrifugal pump |
Pump motor power | 3kw |
Pump Rated Rev. | 2950rpm |
Water tank | 200L |
Feeding height | 1065mm |
Agitator Rated capacity | 1000 liter |
Rated Rev. | 35rpm |
Agitator Motor Power | 1.5kW |
Dimension | 2550*1425*1860mm |
weight | 960kg |
Features of Series Grouting Mixer and Agitator

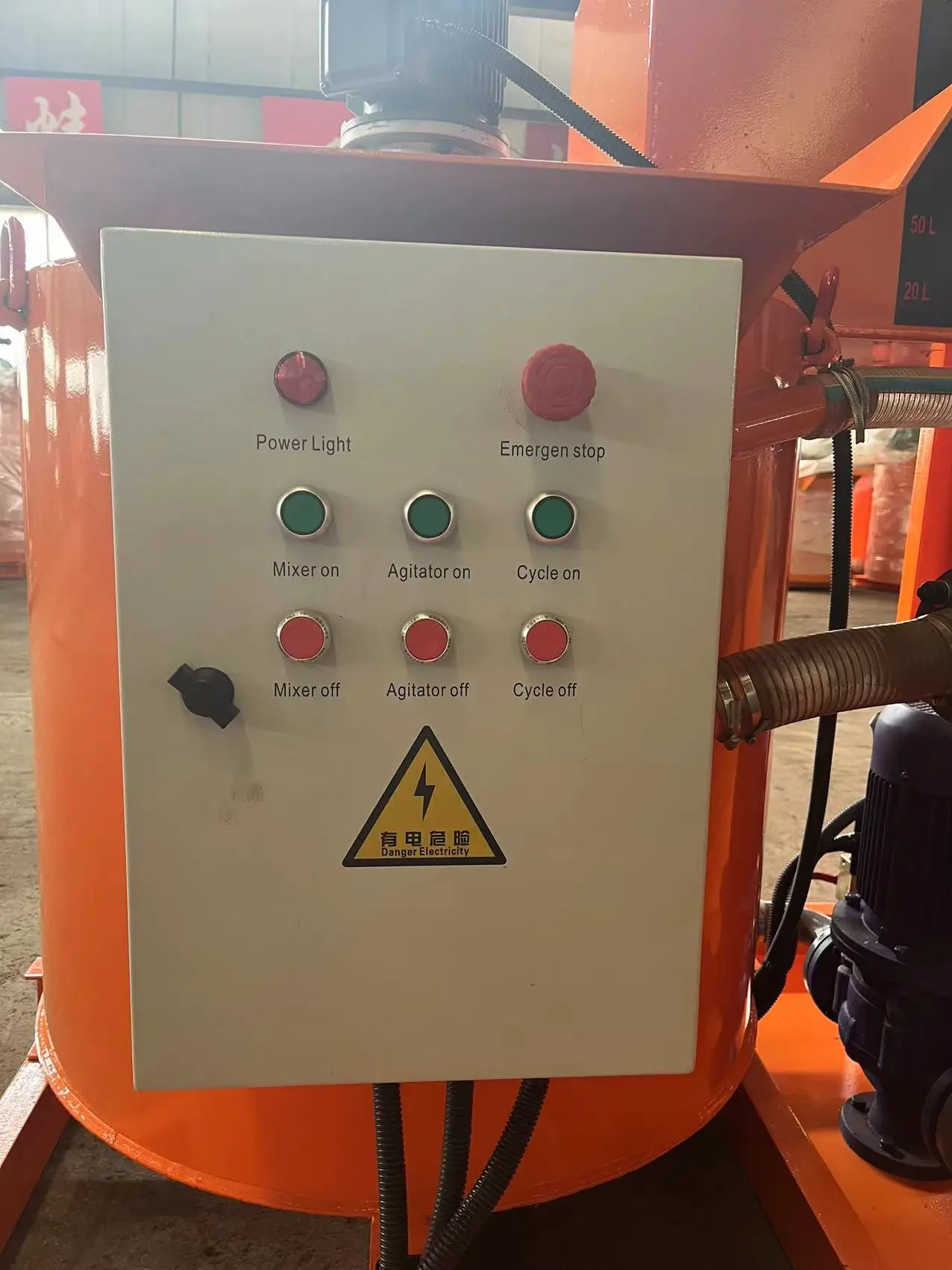

1. One-man operation;
2. Extremely fast mixing;

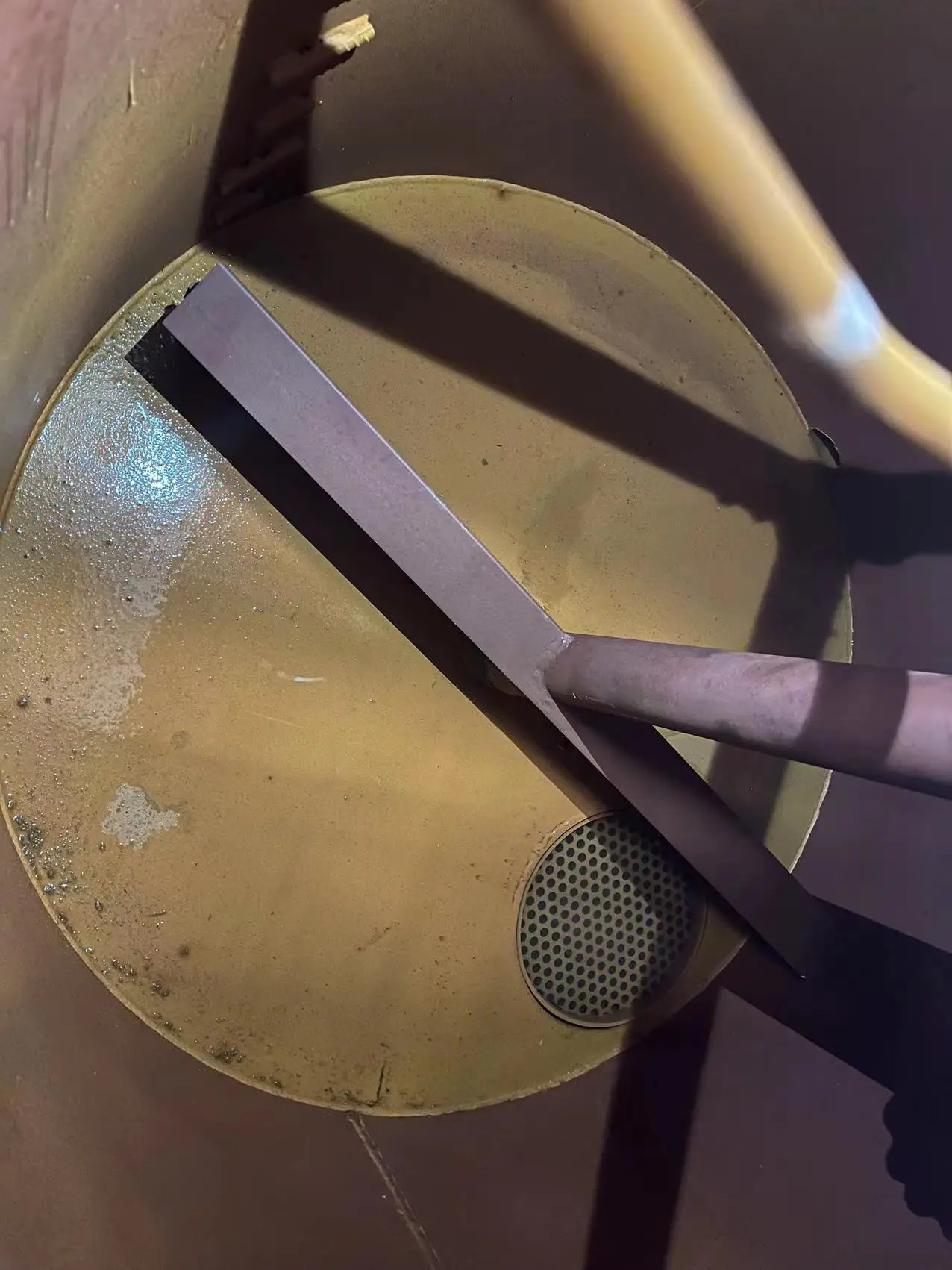

3. No seals to wear out from grout;
4. Simple grout transfer from mixer to agitator.
3. No seals to wear out from grout;
4. Simple grout transfer from mixer to agitator.

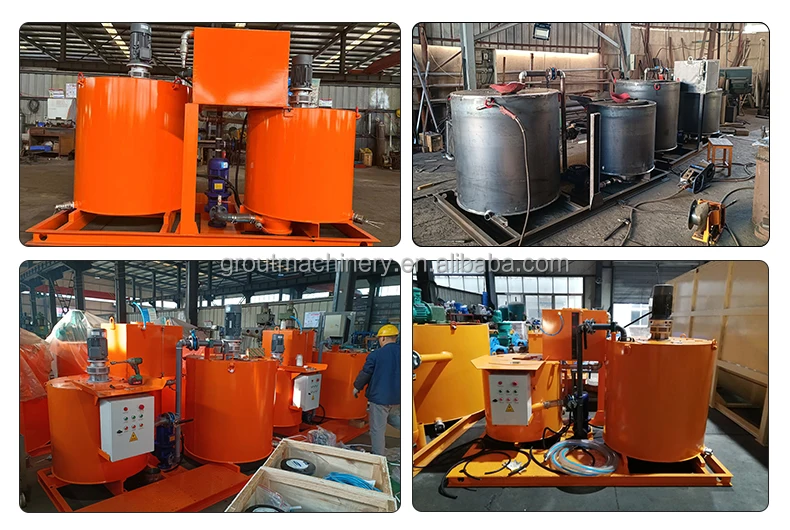

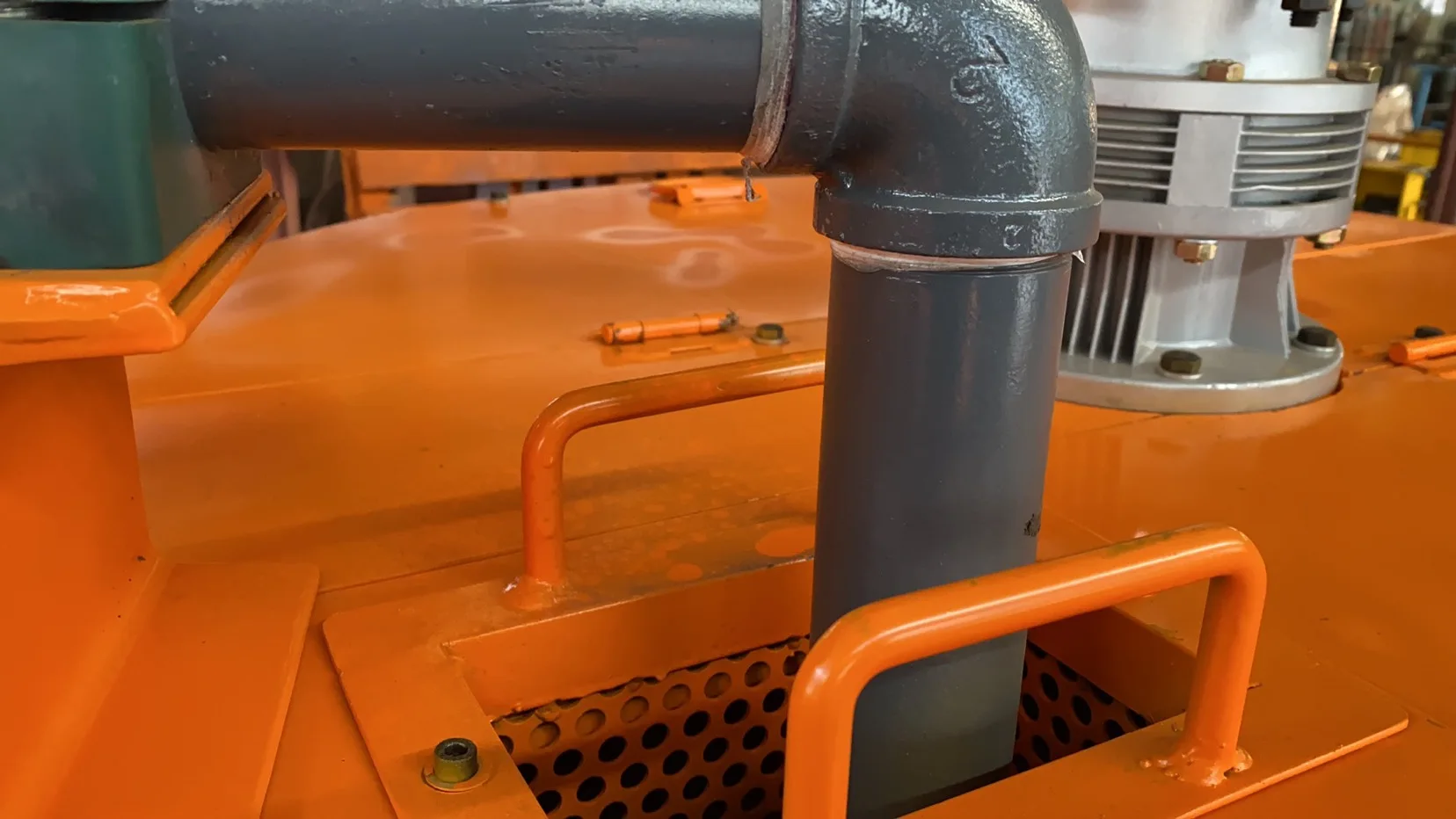

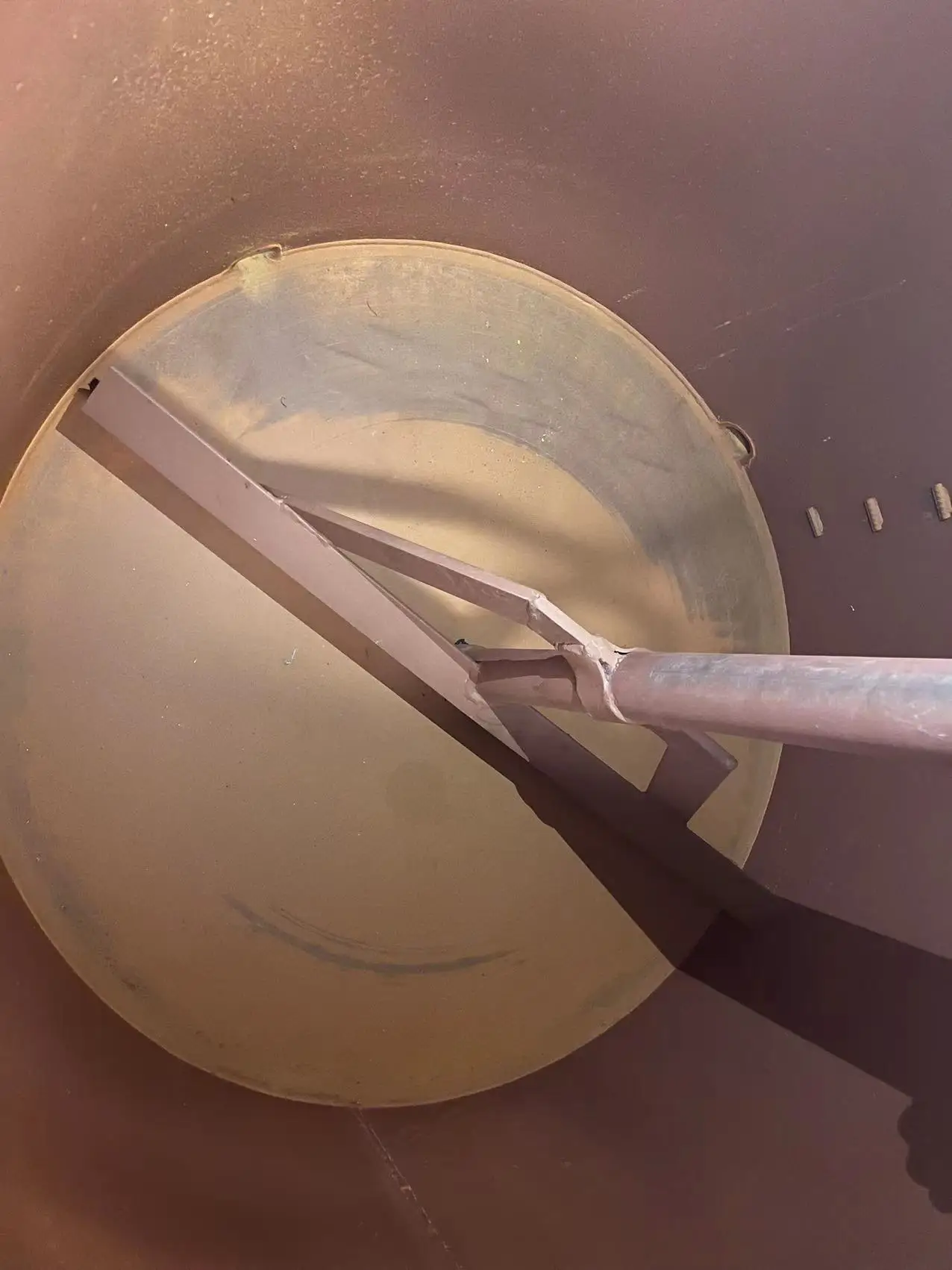

Details Images

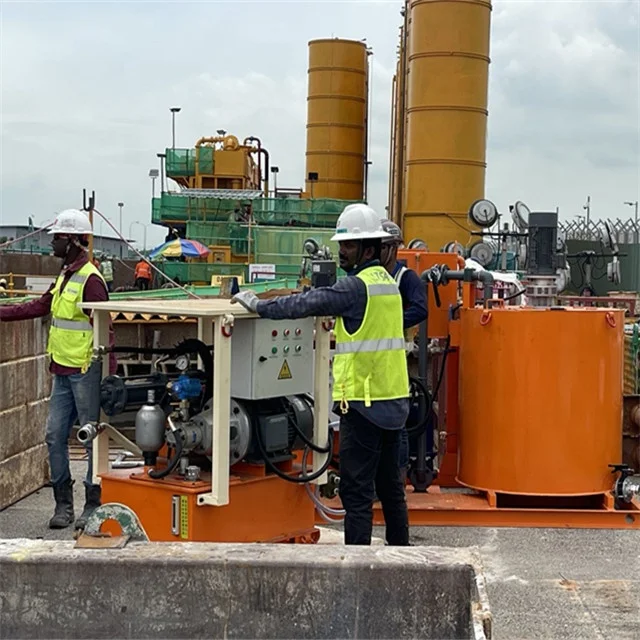

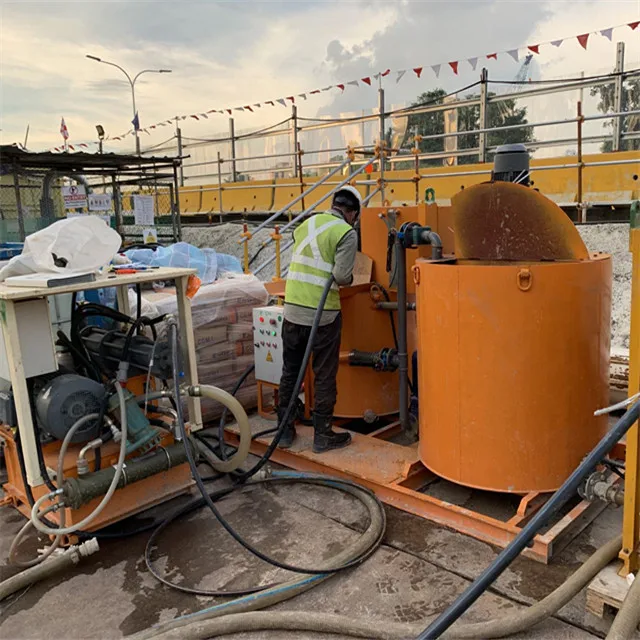

Application

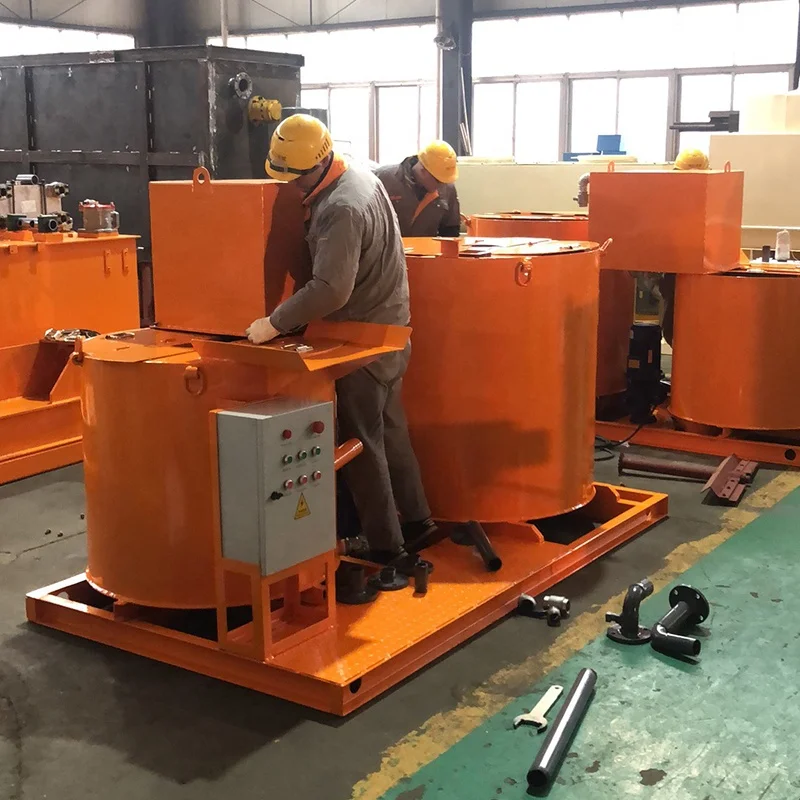

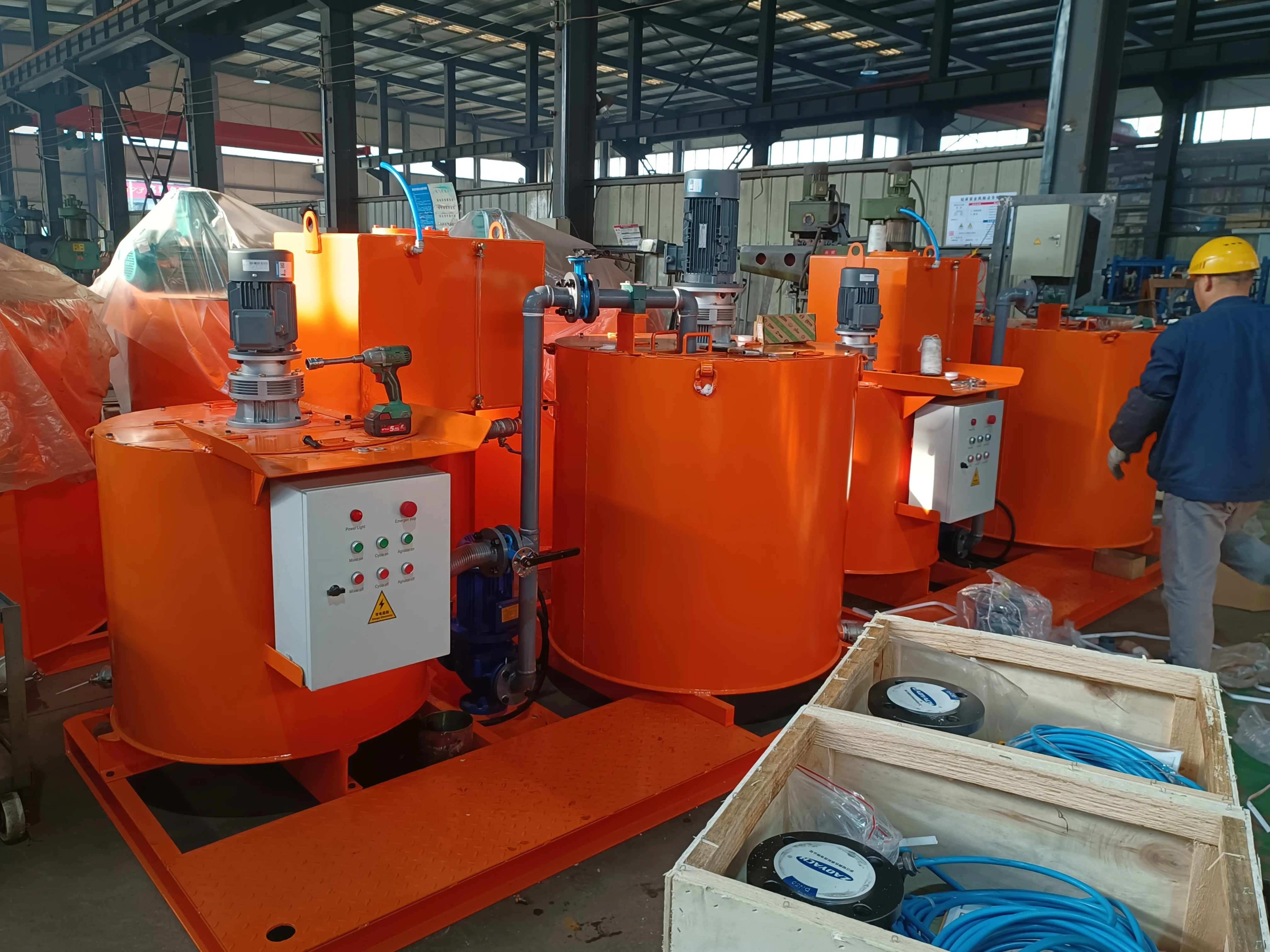

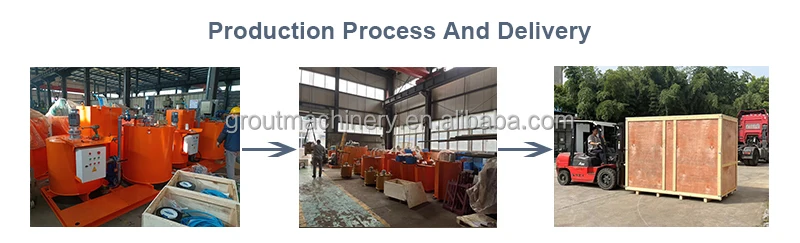

Factory Show
Company Profile
Zhengzhou Sinogrout Machinery Co., Ltd. is a professional manufacturer of hydroseeder, shotcrete machine,grout pump, grout mixer, concrete pupmp,slurry pump,mortar pump,etc.construction machinery in China.Our factory is located in Xingyang, Zhengzhou City, Henan Province, it is in the middle of China. With more than 10 years of experience, Sinogrout has grown into a leading grouting equipment supplier in China, as well as an excellent supplier with ISO 9001:2008,SGS and CE certificate in above products in China. Our products have been exported to the Colombia, Greece, Singapore, Malaysia, Philippine,Vietnam, Jordan, India,Pakistan, Qatar, Bahrain...We are committed to develop new products to meet our customers' need, with the ability to provide the necessary technical support and engineering experience required.
Certifications
FAQ
1. Q: What is the guarantee period of grouting equipment?
A: It is one year count from one month after shipping date except wearing parts. We will send some wearing parts of machine when delivery.
,Escrow, Western Union, Credit card,etc.
A: It is one year count from one month after shipping date except wearing parts. We will send some wearing parts of machine when delivery.
2. Q: What is tank capacity do you have?
A:We have 200L,300L,400L,500L,600L,800L,1000L for your choice, custom size is also available.
3. Q: What is lead time?
A: It cost about 10-15days depends on the quantity.
4. Q: What's the payment you accept ?
A: As usual our payment is 30%T/T as deposit, and the 70% balance payment. Also we accept the payment such as L/C,Escrow, Western Union, Credit card,etc.
