DALI Phase adaptive Dimming Power Amplifier L6993 02AD
- Category: >>>
- Supplier: Foshan Sun & Light E-Commerce Co. Ltd.
Share on (1600787204615):
Product Overview
Description
Product Description

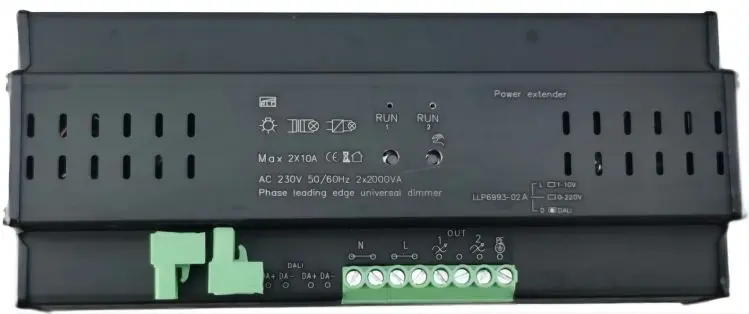

DALI Phase-adaptive Dimming Power Amplifier
●Dimming power amplifier adopt leading edge phase dimming，input DALI signal and convert into high power 0-220V TRIAC dimming.
●Applicable for incandescent lamps, dimmable LED lamps, and low-voltage halogen lamps with electronic transformer.
●Each channel output power up to 2000W.
●Applicable for incandescent lamps, dimmable LED lamps, and low-voltage halogen lamps with electronic transformer.
●Each channel output power up to 2000W.
Features
●Manual dimming button/metal shell heat dissipation/multiple temperature protection
/flickerless module
●Signal input buffer design, smooth dimming, timing>=220us
●Short out protection, overload and over-voltage protection
●Long life cycle, small size and 35mm DIN-rail installation
●Signal input terminal plug design, easy connection
/flickerless module
●Signal input buffer design, smooth dimming, timing>=220us
●Short out protection, overload and over-voltage protection
●Long life cycle, small size and 35mm DIN-rail installation
●Signal input terminal plug design, easy connection
Product Paramenters
Model No | L6993-02AD | L6993-02A | L6993-02AL |
Brand | LAMMIN | ||
Input Signal | DALI signal | 0-220V signal | 0/1-10V signal |
Input Voltage | AC 220V | ||
Output Voltage | AC 0-220V | ||
Frequency Range | 50/60Hz | ||
Max Load Current | 10A/CH*2 | ||
Max Output | 2000W*2 | ||
Min Load | 40W | ||
Certification | CE | ||
Working Temp | -20℃~+50℃ | ||
Warranty | 3 years | ||
Size(L*W*H)MM | 216*88*65 | ||
Installation | 35mm DIN rail | ||
Customization | YES |

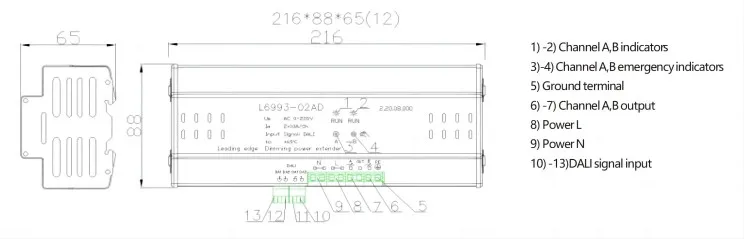

Mechanical Structures and Installations
Instructions
●Long press the 3) or 4)button, loop cyclic dimming, maintain manual dimming, indicator flash.
●Short press or power on the device again to return to the manual state.
●If there is no dimming signal, blink slowly.
●Short press or power on the device again to return to the manual state.
●If there is no dimming signal, blink slowly.
Company Introduction
Guangzhou LAMMIN Electronics Co., Ltd. founded in 2008, is a high-tech enterprise dedicated to research and development, production, sales of professional intelligent control system and accessories.
We provide KNX/EIB, DALI, MODBUS, EnOcean,WIZ protocol intelligent lighting control system, (SCR, 0/1-10V, DALI) dimmable LED power supply, professional dimmers.
