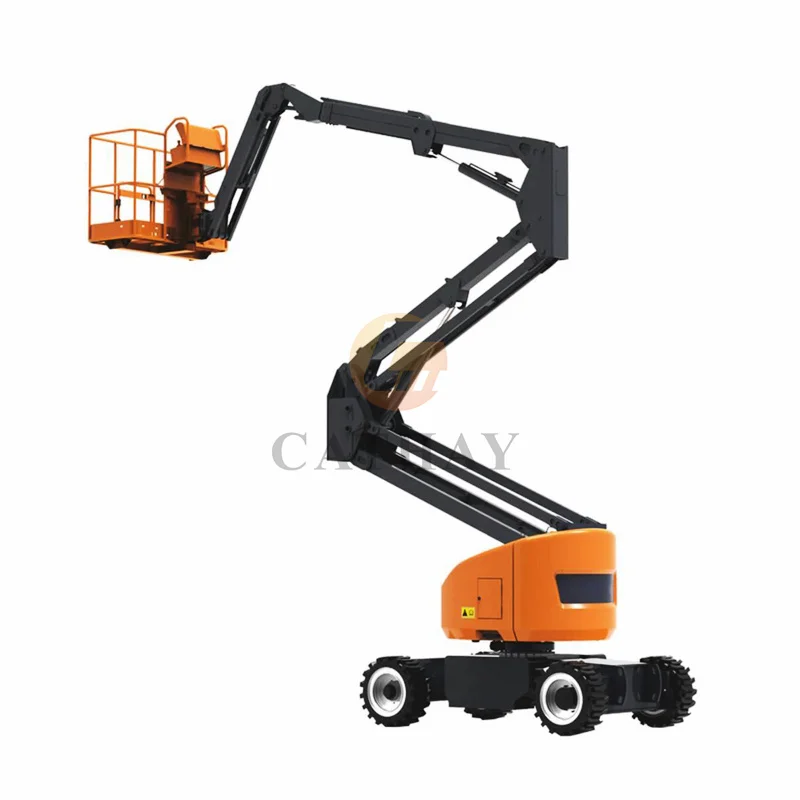

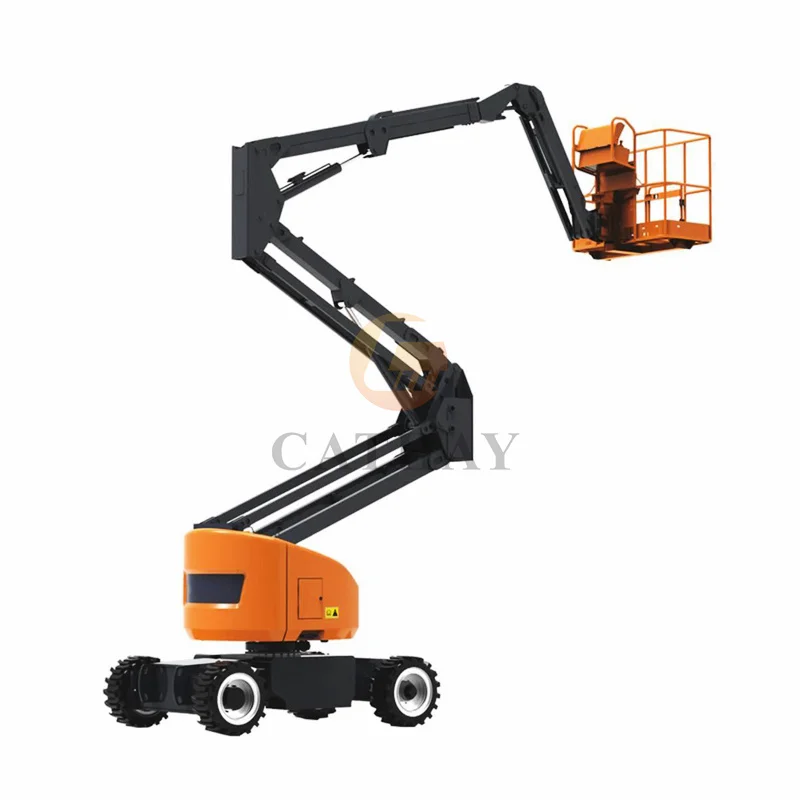

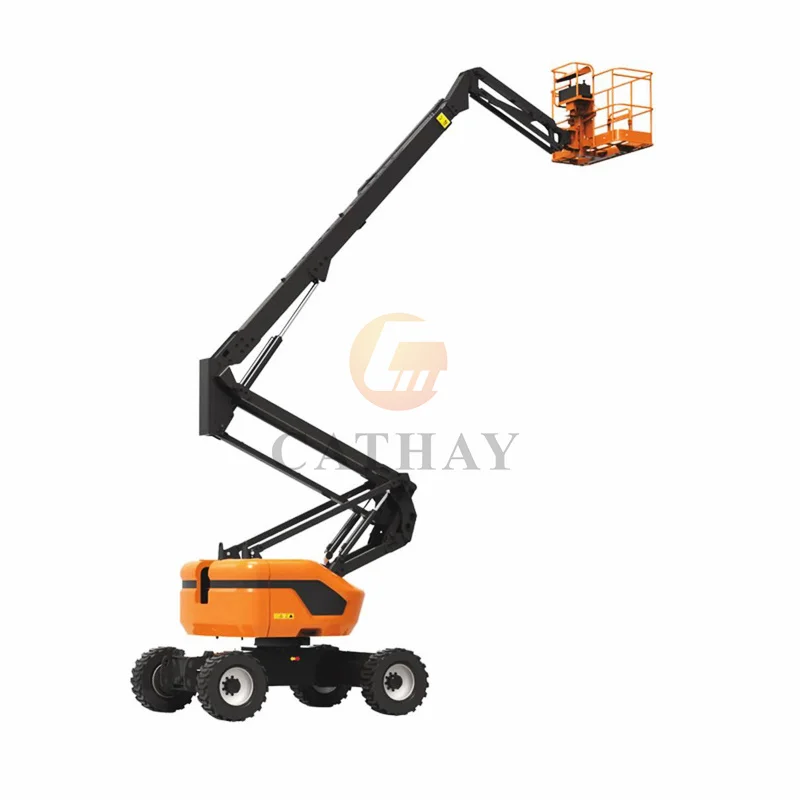

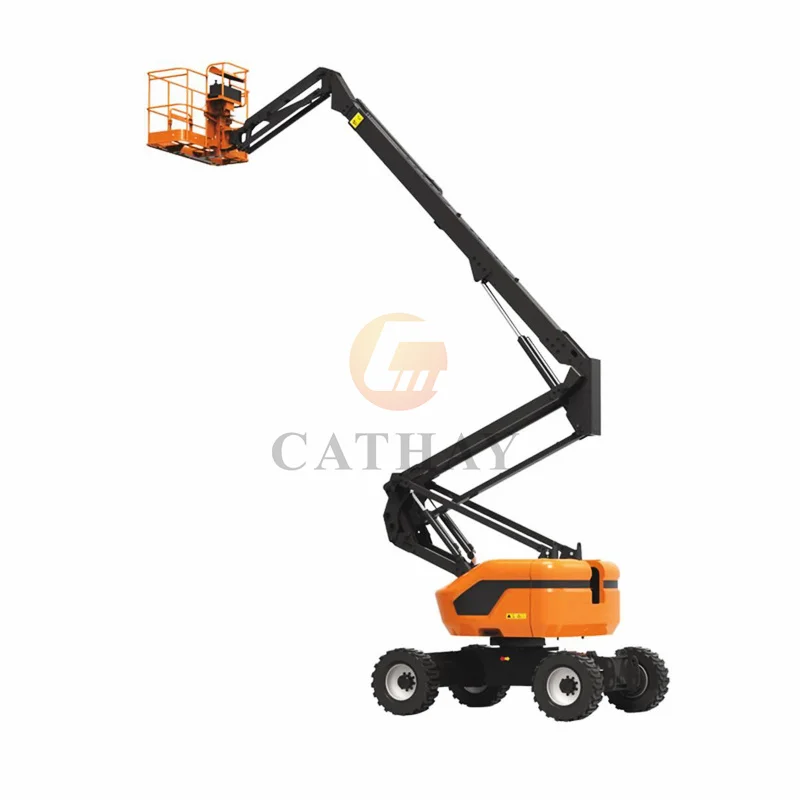

США ЕС 10 ~ 20 м шарнирный Электрический промышленный строительный небольшой самоходный подъемник jlg с jlb

Model

CABL-10B

CABL-12B

CABL-14B

CABL-16B

CABL-20B

Working Height

12 m

14 m

16.05 m

17.8 m

21.9 m

Platform Height

10 m

12 m

14.05 m

15.8 m

19.9 m

Max Horizontal Reach

5.8 m

8 m

8.1 m

10 m

12.3 m

Lift capacity

200kg

200kg

230kg

230kg

230kg

Crossing height

4.78 m

5 m

7.6 m

7.6 m

9.2 m

Wheelbase

1.65 m

2 m

2 m

2.2 m

2.6 m

Ground clearance

0.15 m

0.2 m

0.2 m

0.2 m

0.3 m

Platform measurement

1.1*0.65 m

1.1*0.65 m

1.53*0.76 m

1.53*0.76 m

1.53*0.76 m

Grade ability

25%

25%

30%

30%

25%

Vertical jib rotation

140°

140°

140°

140°

140°

Turntable swing

±80 °

±80 °

±80 °

±80 °

±80 °

Platform rotation

355°

355°

355°

355°

355°

Platform leveling

Automatic leveling

Control voltage

24v DC

24V DC

24V DC

24V DC

24V DC

Driving electric motor

6.5 kw*2

6.5 kw*2

6.5 kw*2

6.5 kw*2

6.5 kw*2

Pump electric motor

7.5kw

7.5kw

5kw

5kw

5kw

Wheel*Drive*Steering

4WD*2WS / 4WD*4WS (WD: wheel drive, WS: wheel steering)
