DALI Switch Actuator LR06CD
DALI Switch Actuator LR06CD

DALI Switch Actuator LR06CD

Share on (1600790049299):


Price:

Quantity:


Product Overview

Description



Product Description


LR06CD


●High-power switch actuator can achieve high power switching control through DALI signal input
●4 channels with single loop max output power reach to 20A
●High-power magnetic latching relays




Features
●Applicable for standard DALI signal and other inductive loads
●High-power magnetic latching relays, no power consumption
●Power consumption, anti-surge current>170A
●Long life cycle, small size and DIN-rail installation,easy to install
●Relay manual operation is optional
●White or black metal shell


Product Paramenters


Model No
LR06CD
LR04CD
LR08CD
LR12CD
Brand
LAMMIN
Input Signal
DALI signal
Input Voltage
AC 220V
Frequency Range
50/60Hz
Max Load Current
20A/CH*6
20A/CH*4
20A/CH*8
20A/CH*12
Max Output
20A 250VAC,4000W, 3*104 (fluorescent lamp)5HP 250VAC 3*104( motor load)
Min Load
60W
Certification
CE
WorDing Temp
-20℃~+50℃
Warranty
3 years
Size(L*W*H)MM
144*92*65
72*92*65
144*92*65
216*92*65
Installation
35MM Din-rail
Customization
YES

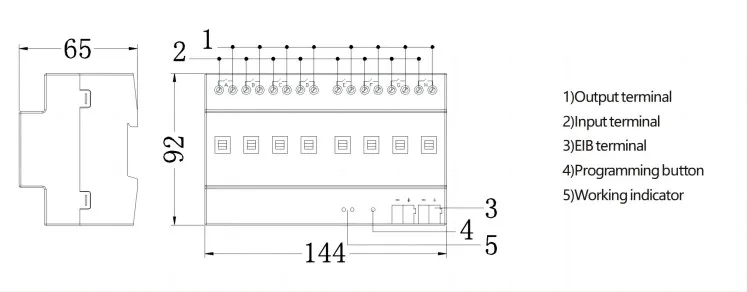

Mechanical Structures and Installations






Company Introduction


Guangzhou LAMMIN Electronics Co., Ltd. founded in 2008, is a high-tech enterprise dedicated to research and development, production, sales of professional intelligent control system and accessories.
We provide KNX/EIB, DALI, MODBUS, EnOcean,WIZ protocol intelligent lighting control system, (SCR, 0/1-10V, DALI) dimmable LED power supply, professional dimmers.
