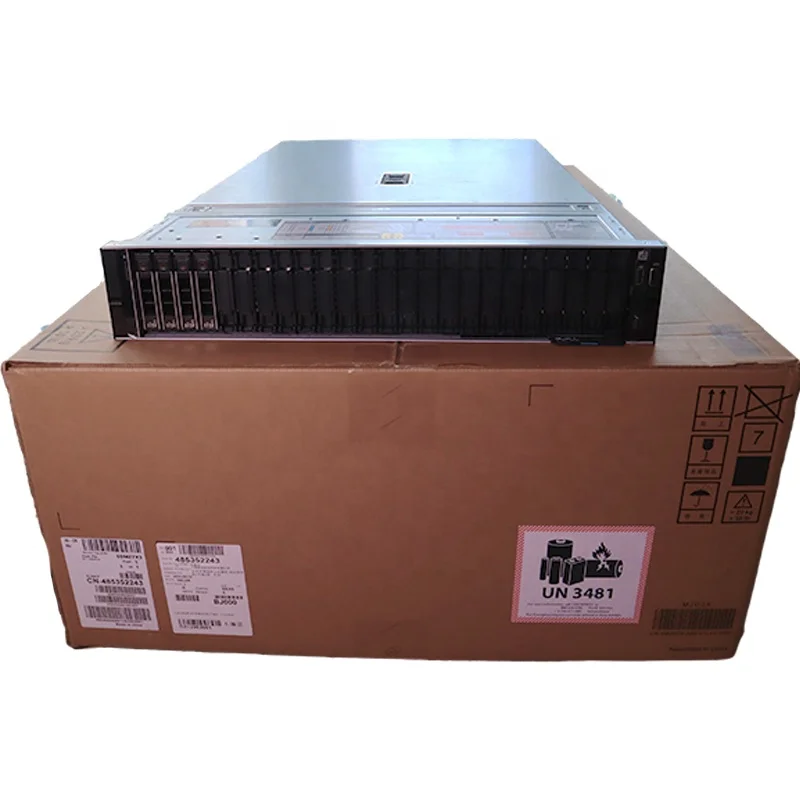

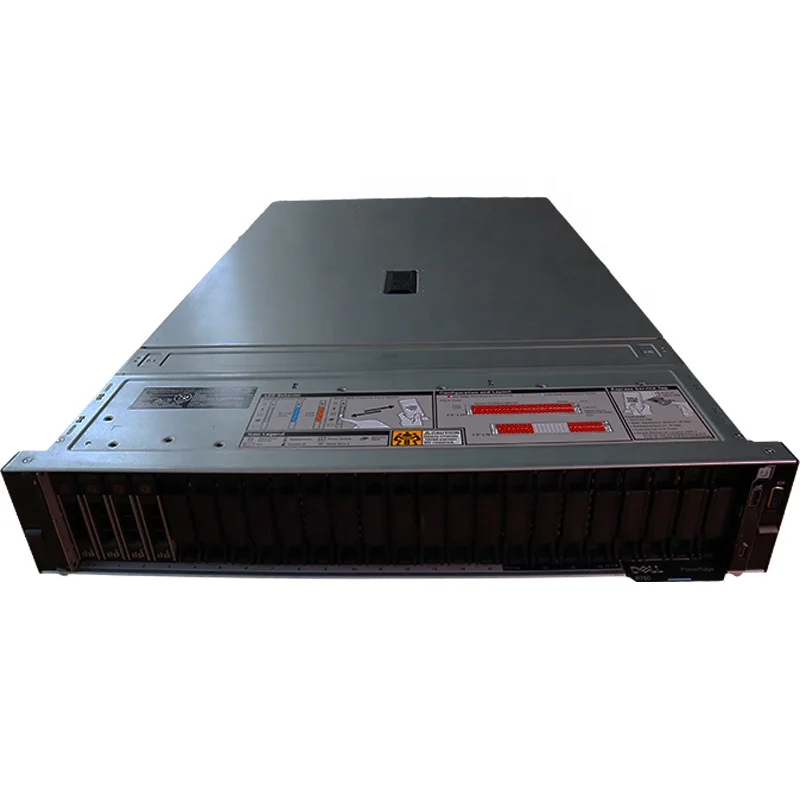

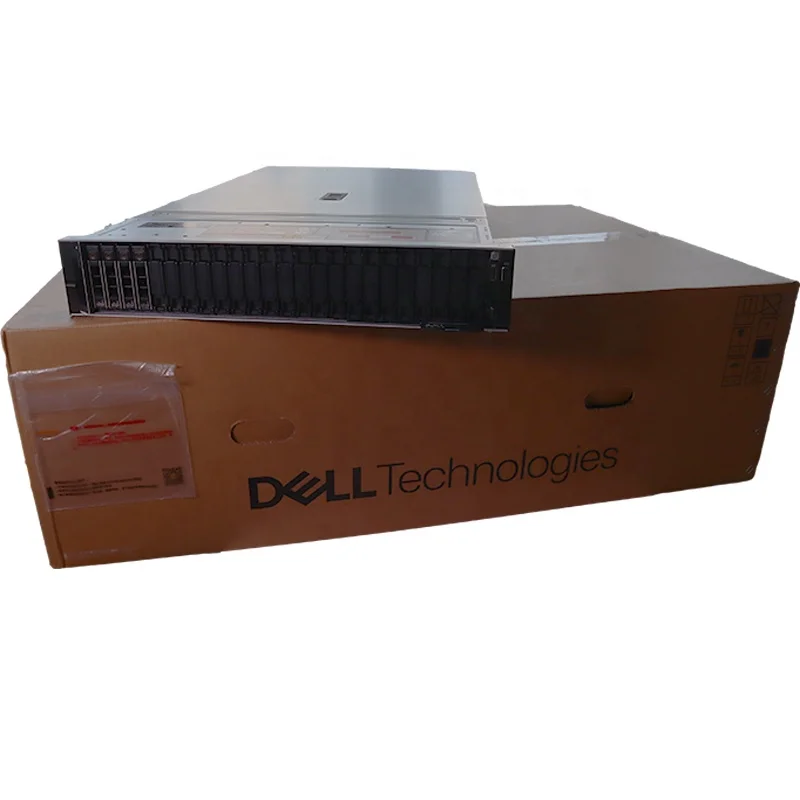

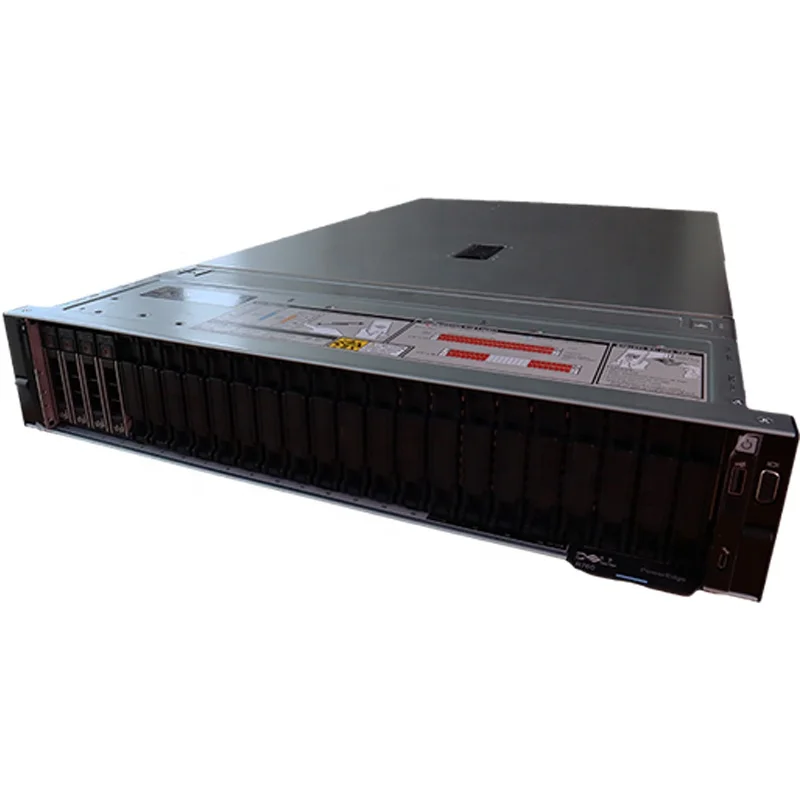

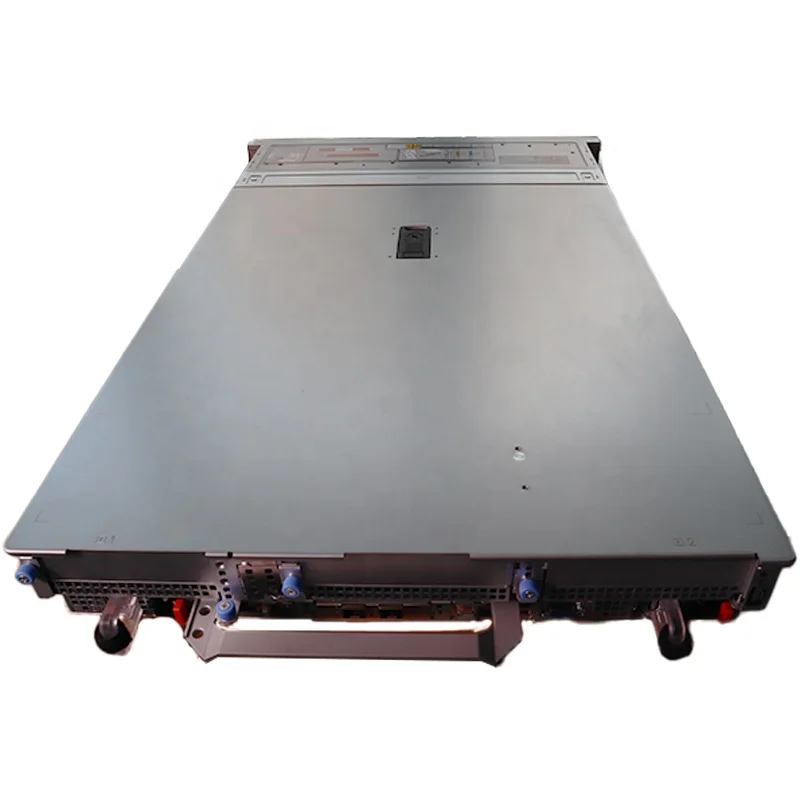

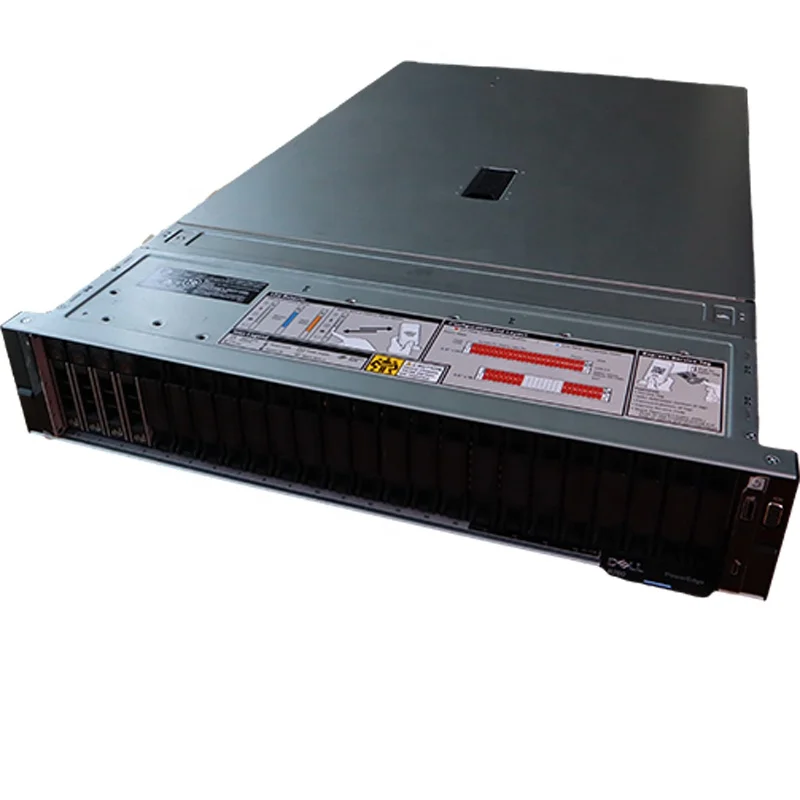

latest style 2U rack dell PowerEdge R760 PowerEdge R760xd2 PowerEdge R760xs dell servers

Model

Dell EMC PowerEdge R760

Processor Name

Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology

Memory

32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s

Storage controllers

Internal Controllers:

PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i

• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB

• External HBA (non-RAID): HBA355e • Software RAID: S160

Drive Bays

Front bays:

• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB

• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB

• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB

• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

Rear bays:

• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

• Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

Power Supplies

 • 700 W Platinum AC/240 mixed mode

• 800 W Platinum AC/240 mixed mode

• 1100 W Titanium AC/240 mixed mode

• 1400 W Platinum AC/240 mixed mode

• 1800 W Platinum AC/240 mixed mode

• 2400 W Platinum AC/240 mixed mode

• 2800 W Platinum AC/240 mixed mode

Dimensions

• Height – 86.8 mm (3.41 inches)

• Width – 482 mm (18.97 inches)

• Depth – 758.3 mm (29.85 inches) - without bezel 772.14 mm (30.39 inches) - with bezel

GPU support

Up to 2 x 350 W DW and 6 x 75 W SW

PCIe

Up to eight PCIe slots:

• Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length

• Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length

• Slot 3: 1 x16 Gen4 Low profile, Half length

Full length

• Slot 6: 1 x16 Gen4 Low profile, Half length

• Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length

Operating System and Hypervisors

• Canonical Ubuntu Server LTS

• Citrix Hypervisor

• Microsoft Windows Server with Hyper-V

• Red Hat Enterprise Linux

• SUSE Linux Enterprise Server

• VMware ESXi
