12psb test bench Hot sale Diesel Fuel Injection Pump Test Bench COM 12PSB

Product Overview

Description

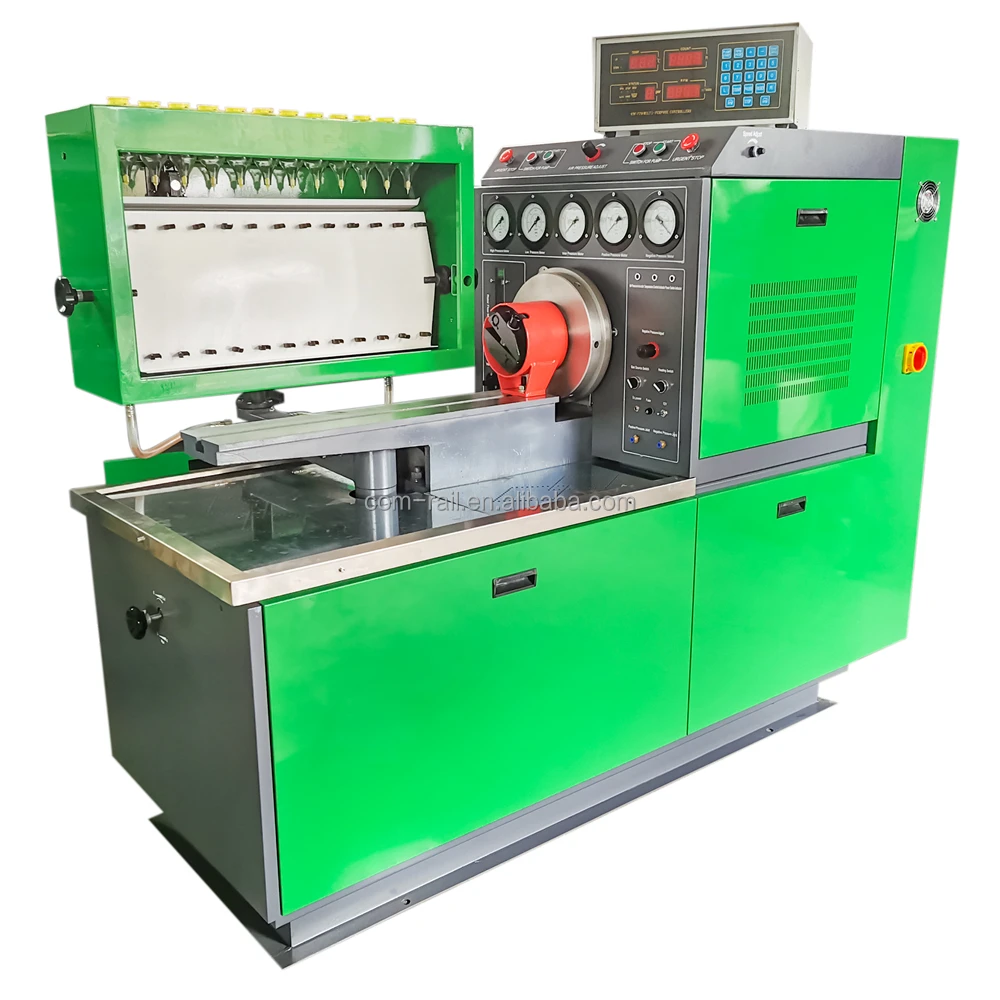

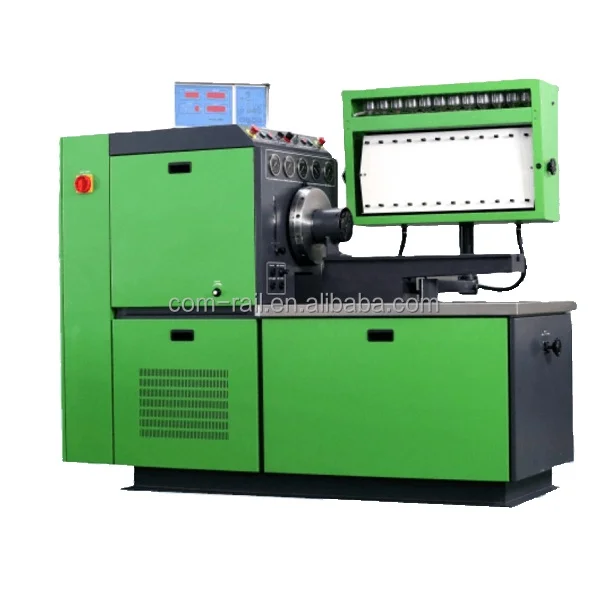

 COM-12PSB fuel injection pump test bench





    COM-12PSB fuel injection pump test bench adopts the most advanced frequency conversion speed regulation technology, and the stepless speed regulation range can reach 0~4000RPM, the speed is stable, the output torque is large, and the noise is ultra-low. The rotation speed, temperature and oil quantity of the test bench are displayed by a digital meter, and the air pressure is displayed by a mechanical meter. The display is clear and the work is reliable.

The most prominent feature of this test bench is: it has ten speed presets, fast preset speed and high precision, which greatly saves the time of pump adjustment and improves work efficiency. It is used for diesel engine, automobile, and tractor manufacturers to conduct oil pump debugging inspections. The equipment is also an ideal product for the oil pump maintenance industry.

COM-12PSB test bench has power supply options of 7.5KW, 11KW and 15KW etc.



>>>CHARACTERISTIC



1. Main motor speed ajusted by frequency converter;

2. Low fall of rotational speed and high output torque;

3. High precision;

4. The function of over voltage short circuit and overload protecting;

5. Ten kinds of rotation speed presetting;

6. Constant temperature control;

7. Ultra-low noise;

8. Potentiometer mutually exclusive operation on both sides, convenient and reliable;

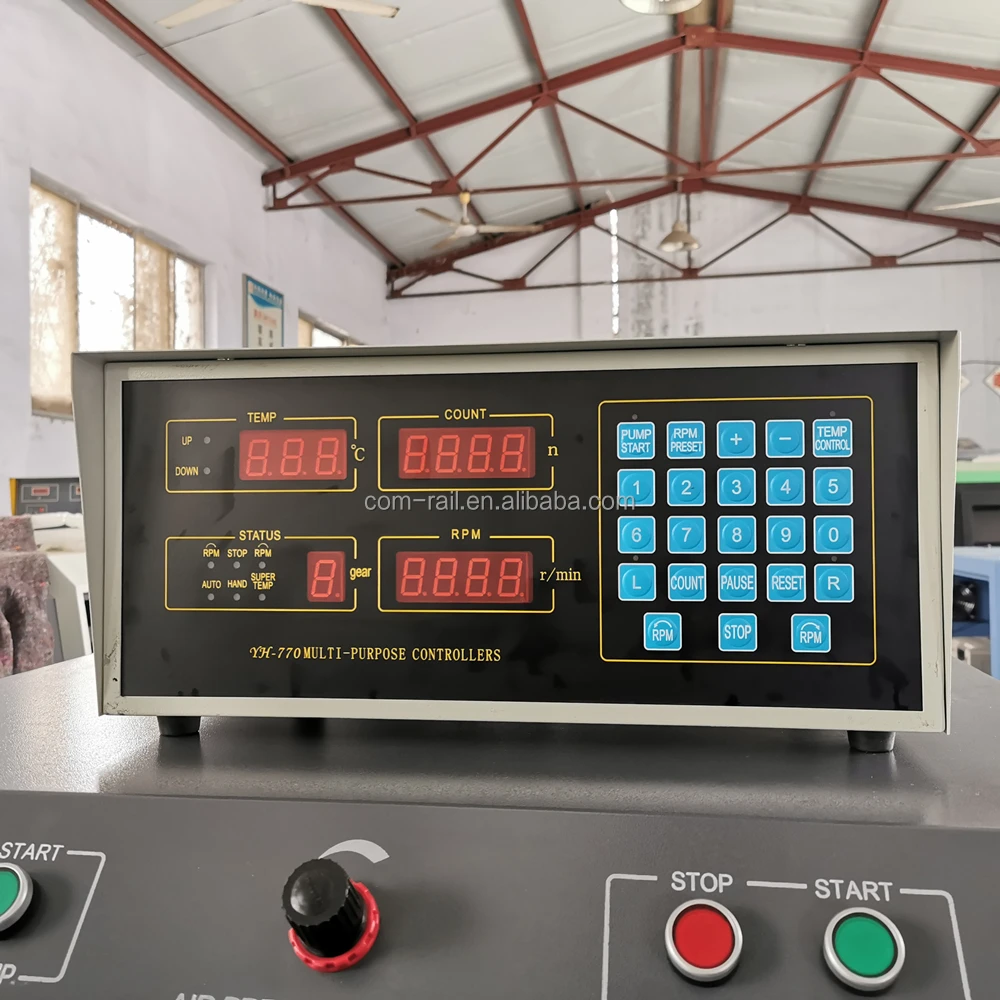

9. Digit-display of rotation speed, count and temperature, the air pressure is displayed by mechanical gauge;

10. Inside air pump system.





 >>>FUNCTION



1. Measure each cylinder’s delivery at various rotation speeds;

2. Check the oil supply time of each cylinder stactically;

3. Check mechanical governor performance;

4. Check the electromagnetic valve of distributor pump;

5. Check the performance of the pneumatic governor;

6. Check the performance of the pressure compensator;

7. Measure oil return of the distribution pump;

8. Messure the inner pressure of the distribution pump boby;

9. Check the negative pressure performance of the air governor;

10. Test the sealing of fuel injection pump.



>>>TECHNICAL  PARAMETER





Range of rotational speed adjusted	0~4000rpm
Double series of graduates	45CC, 150CC
Volume of oil tank	60L
Temperature stabllization	40±2℃
Test oil-filtering unit	5u
DC.supply	12V/24V
Feed pressure	0-4MPa; low: 0-0.4MPa
Air pressure	positive 3 MPa; negative: -0. 03~0 MPa
3-phase electrical supplies	380V/50HZ(or on request)
Flywheel inertia's moment	0. 8kg·m2
Shaft height	125mm
Output power	5.5KW, 7.5KW, 11KW, 15KW,18.5KW (or on request)
Overall dimensions	1700×960×1860 (MM)
Net weight	1000KG

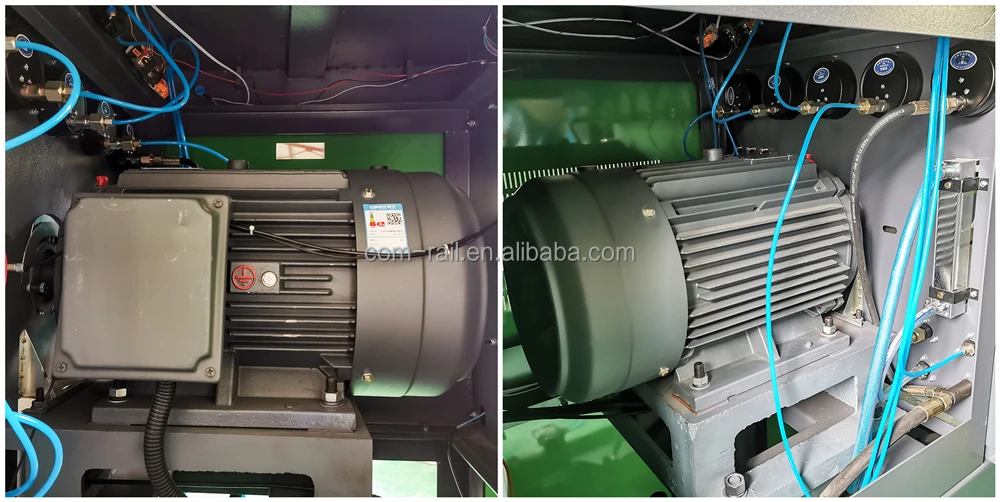

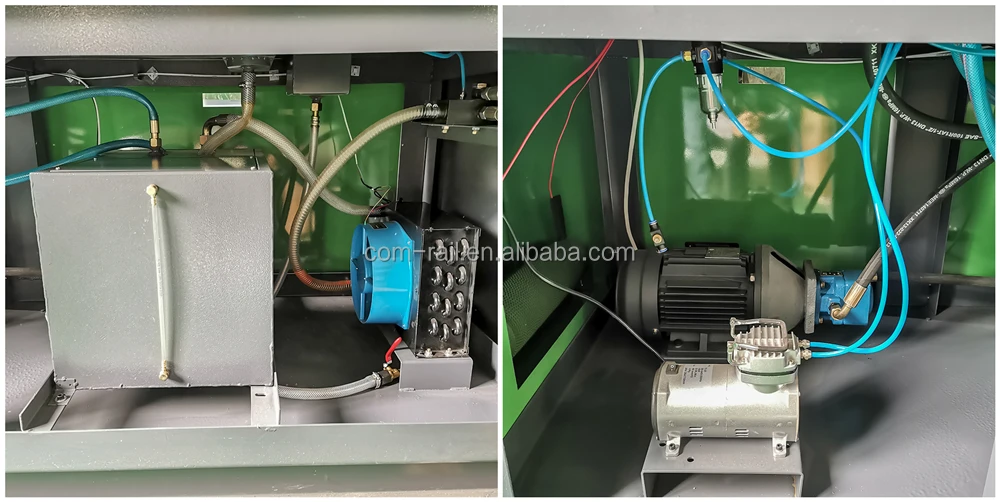

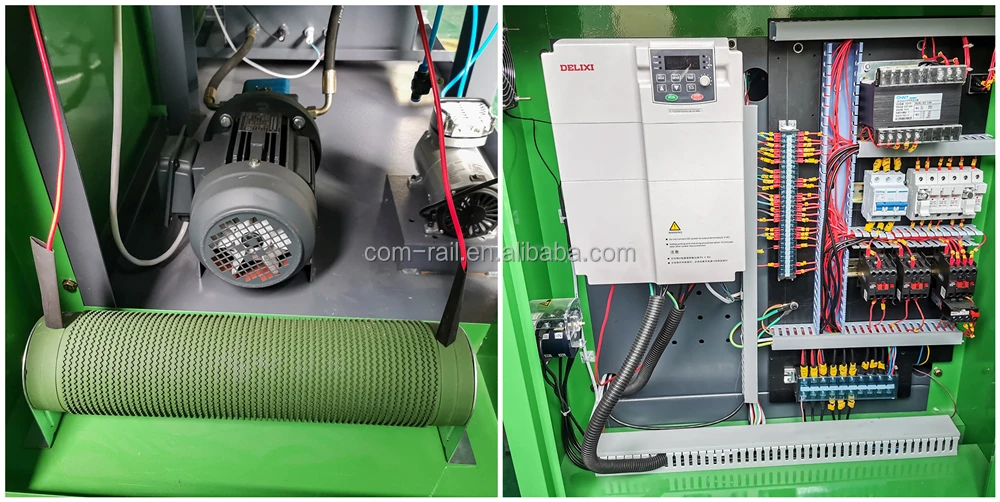

>>>DETAILS SHOW

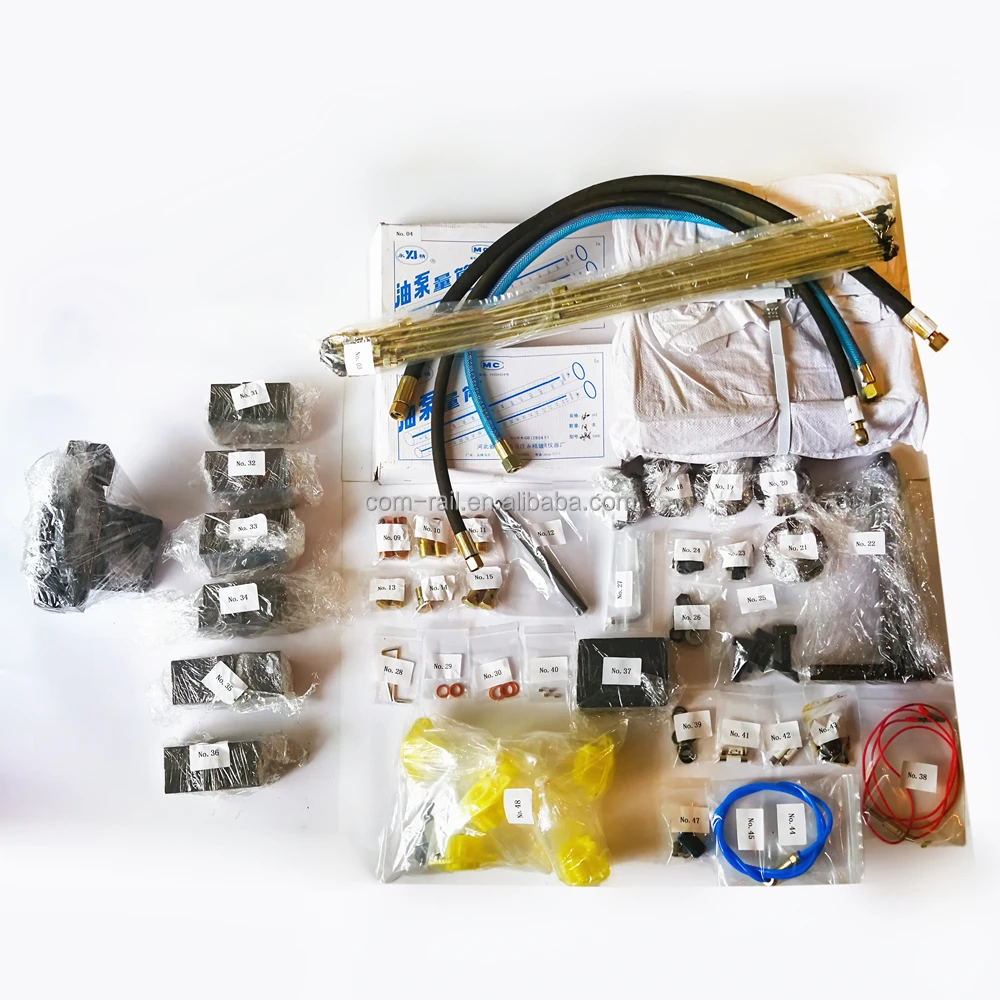

 >>>STANDARD ACCESSORIES

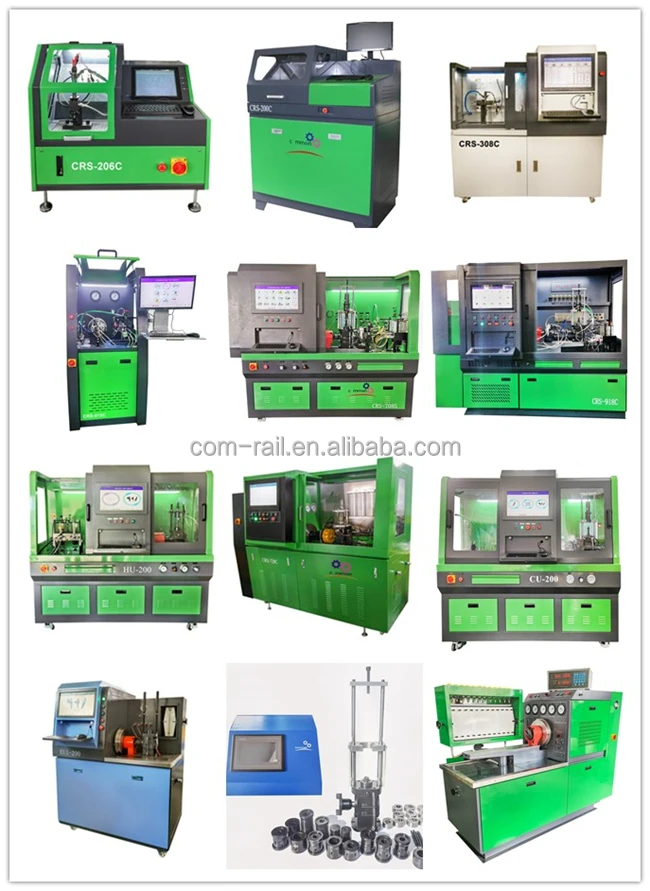

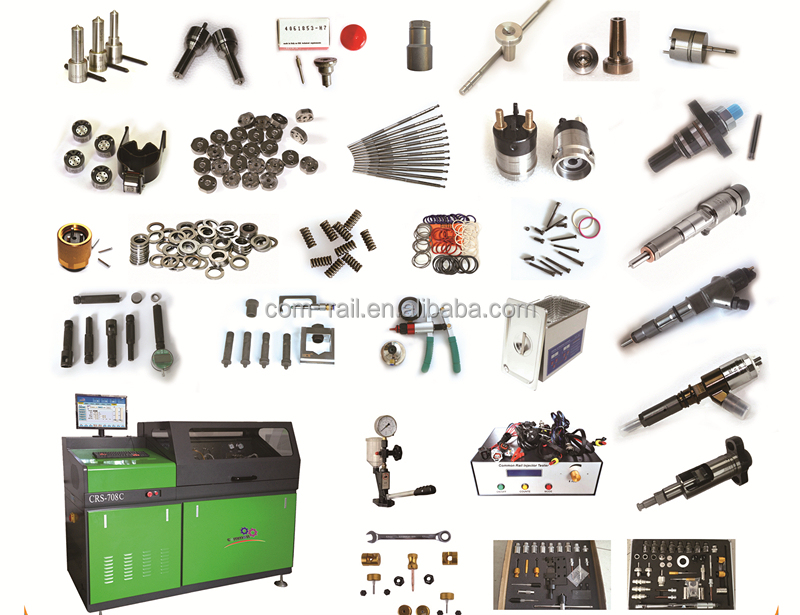

>>>HOT SALE PRODUCTS

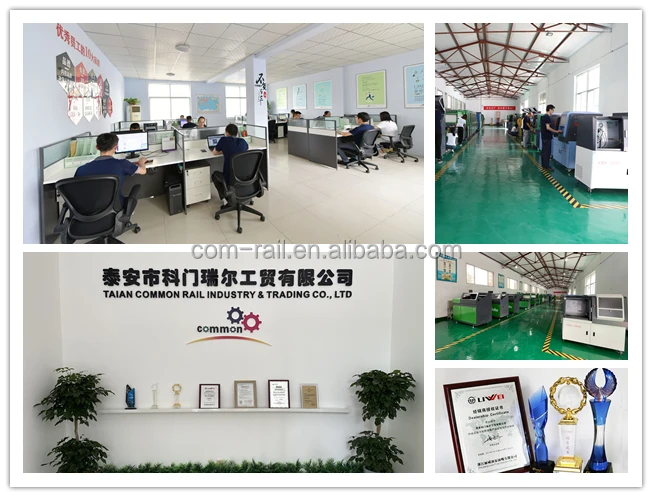

>>>COMPANY INFORMATION

Taian Common Rail Industry & Trading Co., Ltd produce professional testing equipment:

common rail injector and pump tester, fuel injection pump tester, EUI/EUP, HEUI tester...with high quality.

    We supply more than 5000kinds of common rail diesel spare parts: injector, nozzle,

pump, control valve, orifice valve, sensor, plunger, repair kits, adjusting shims, repair tools...

   We have maintained long-term reliable cooperation with many customers in many countries.
