Flier Factory Multirotor Drone UAV Plane 380A brushless ESC paramotor
US $108.00-$168.00
Features
Note:
1.This engine is not toy. For your own safety, please read the manual carefully before operation.
2.Before every use, check the engine assembly, propeller and airframe carefully for loose screws and nuts. (Loctite242,243) is strongly recommended on all the screws.
3.During the break-in process, engine must running with shock absorber installed. Or the engine will be seriously damaged by vibration.
4.Always stand clear of and behind the propeller; never allow anyone including yourself, to be in front of or to the sides of the propeller when starting or running the engine. Anyone near the engine should wear protective eyewear. Do not wear loose clothing near the engine or propeller
1.This engine is not toy. For your own safety, please read the manual carefully before operation.
2.Before every use, check the engine assembly, propeller and airframe carefully for loose screws and nuts. (Loctite242,243) is strongly recommended on all the screws.
3.During the break-in process, engine must running with shock absorber installed. Or the engine will be seriously damaged by vibration.
4.Always stand clear of and behind the propeller; never allow anyone including yourself, to be in front of or to the sides of the propeller when starting or running the engine. Anyone near the engine should wear protective eyewear. Do not wear loose clothing near the engine or propeller
Product Details
Engine Features:
1.Performance: 12HP / 7500rpm
2.Idle speed: 1300 rpm
3.Rally 26.5Kg / 100 meters above sea
4.Rally 23.5Kg / 1,800 meters above sea
5.Propeller Applicable specification: 26×10;26×12;27×10;28×10;
6.Model for a spark plug: NGK CM6
Engine Parameter:
1.Displacement: 120cm3
2.Bore × Stroke:47mm × 35mm
3.Compression ratio: 10.5: 1
4.Lubrication ratio: 30: 1
5.Weight: 2.4KG
6.Exhaust pipe Weight: 0.3KG
7.Ignition Weight: 0.19KG
8.Ignition voltage: 4.8V-8.4V
Item Packing

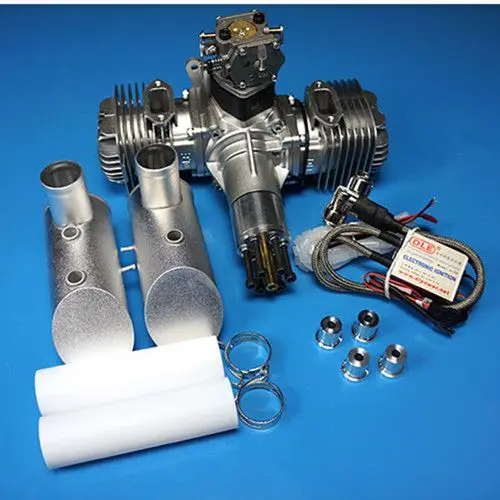

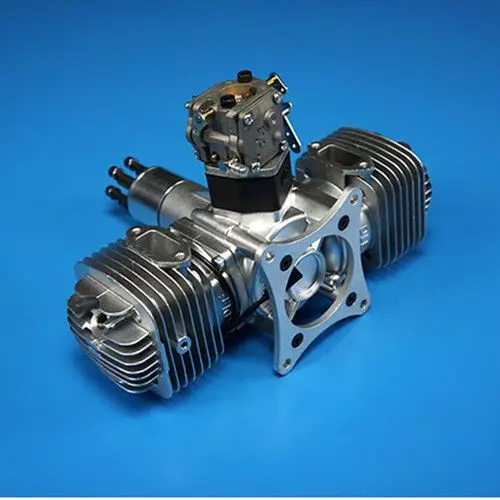

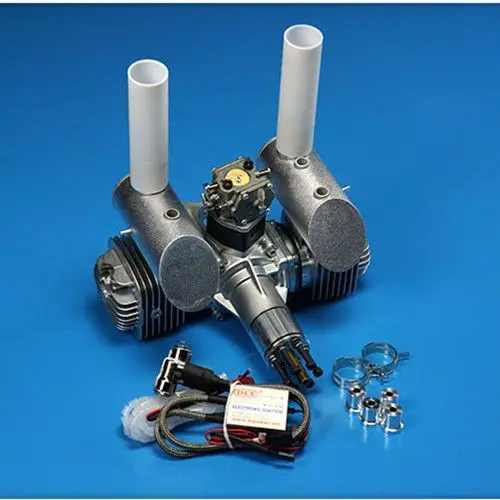

1*DLE Gasoline Engine DLE120

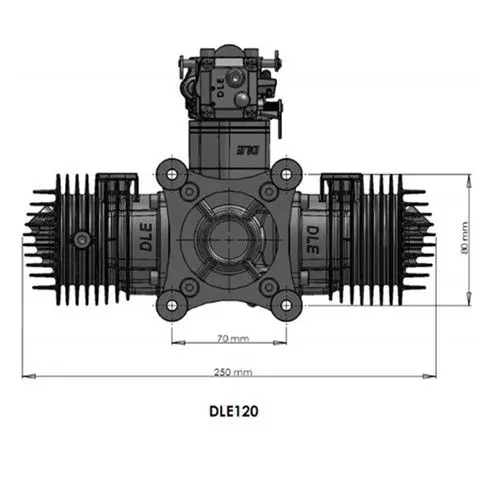

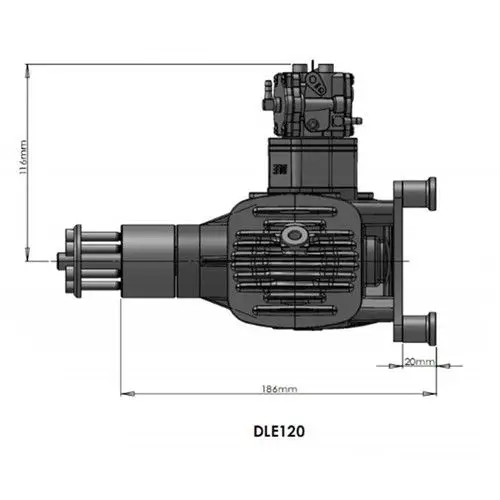

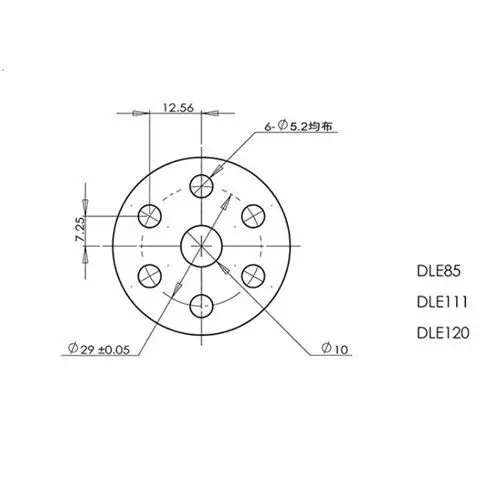

Detailed Images
