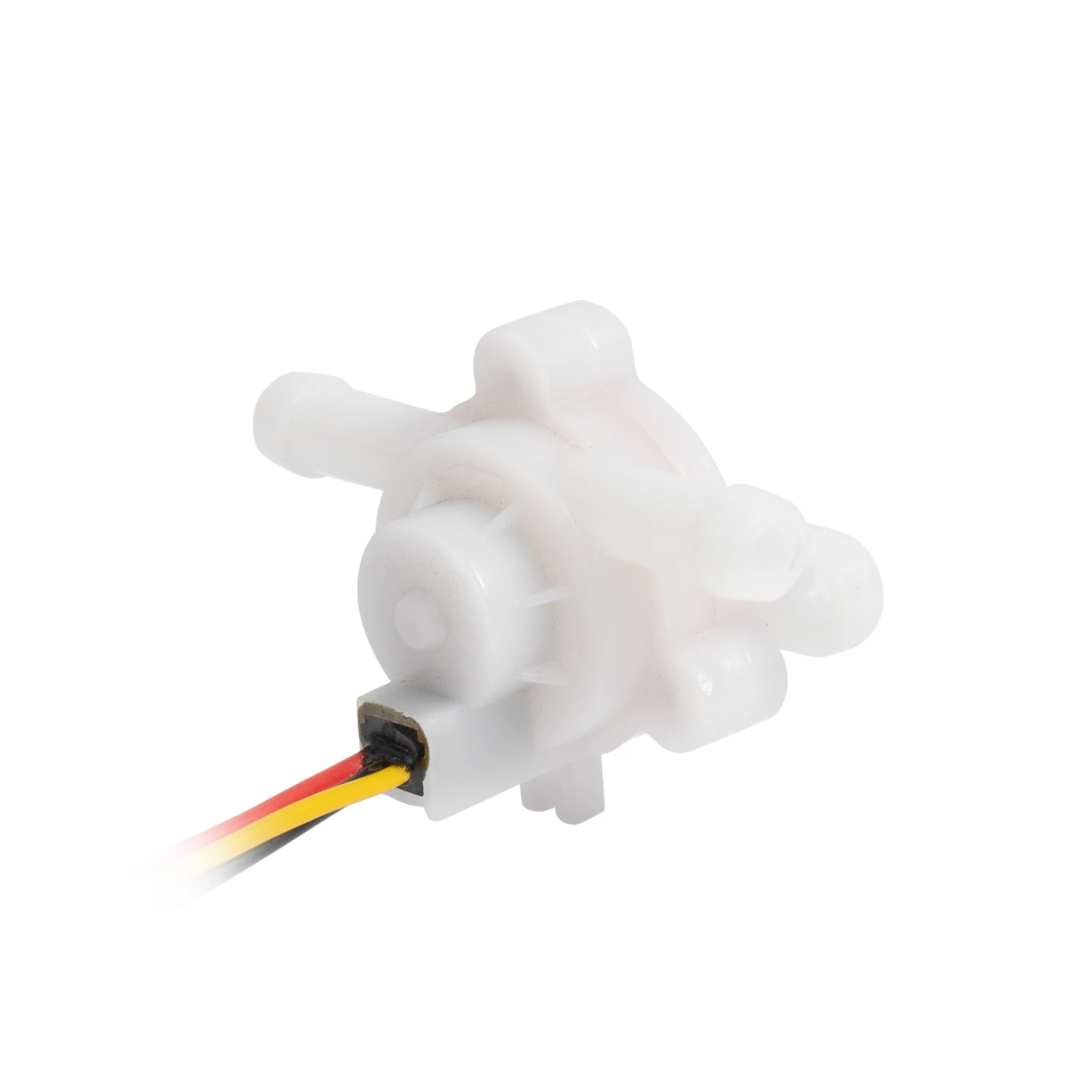

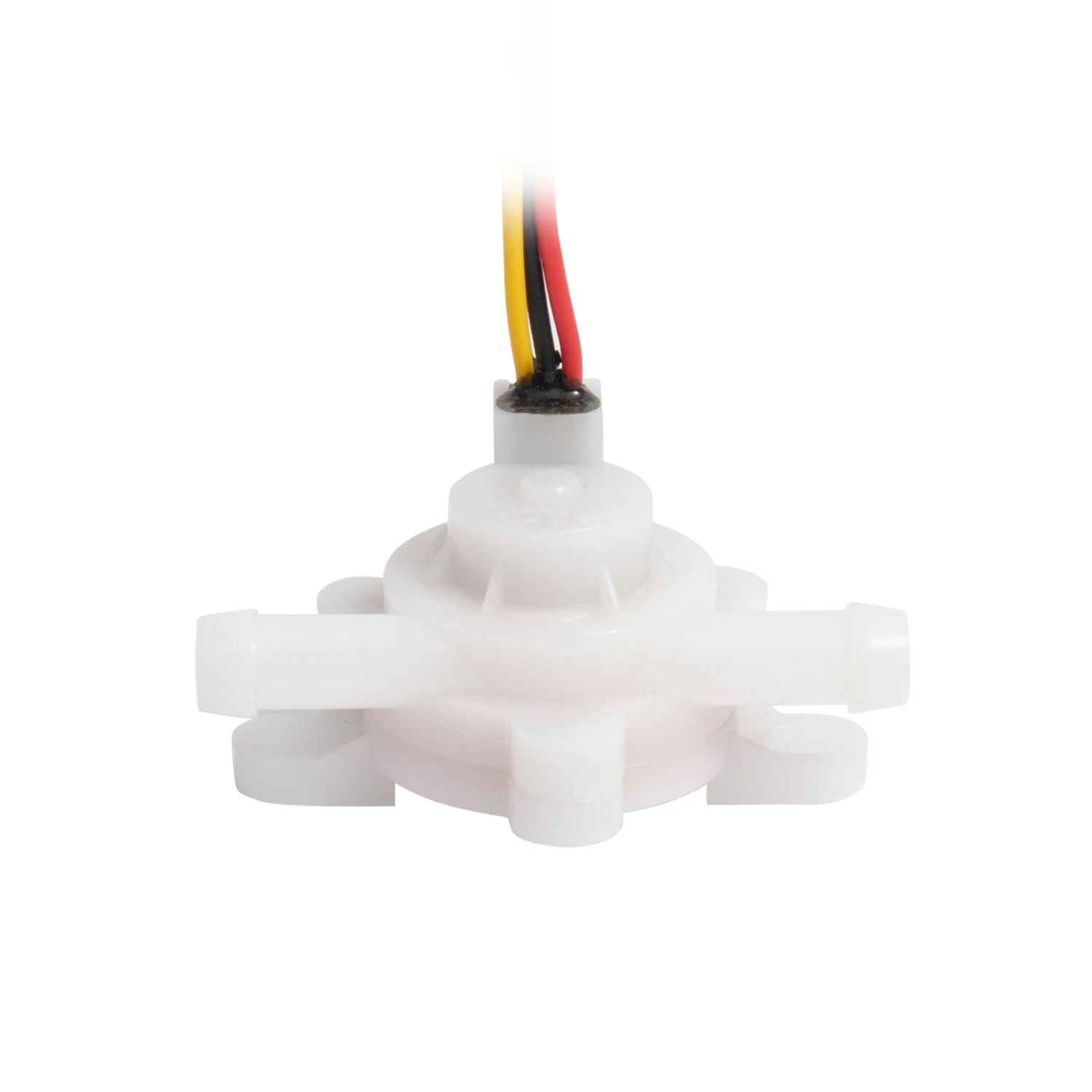

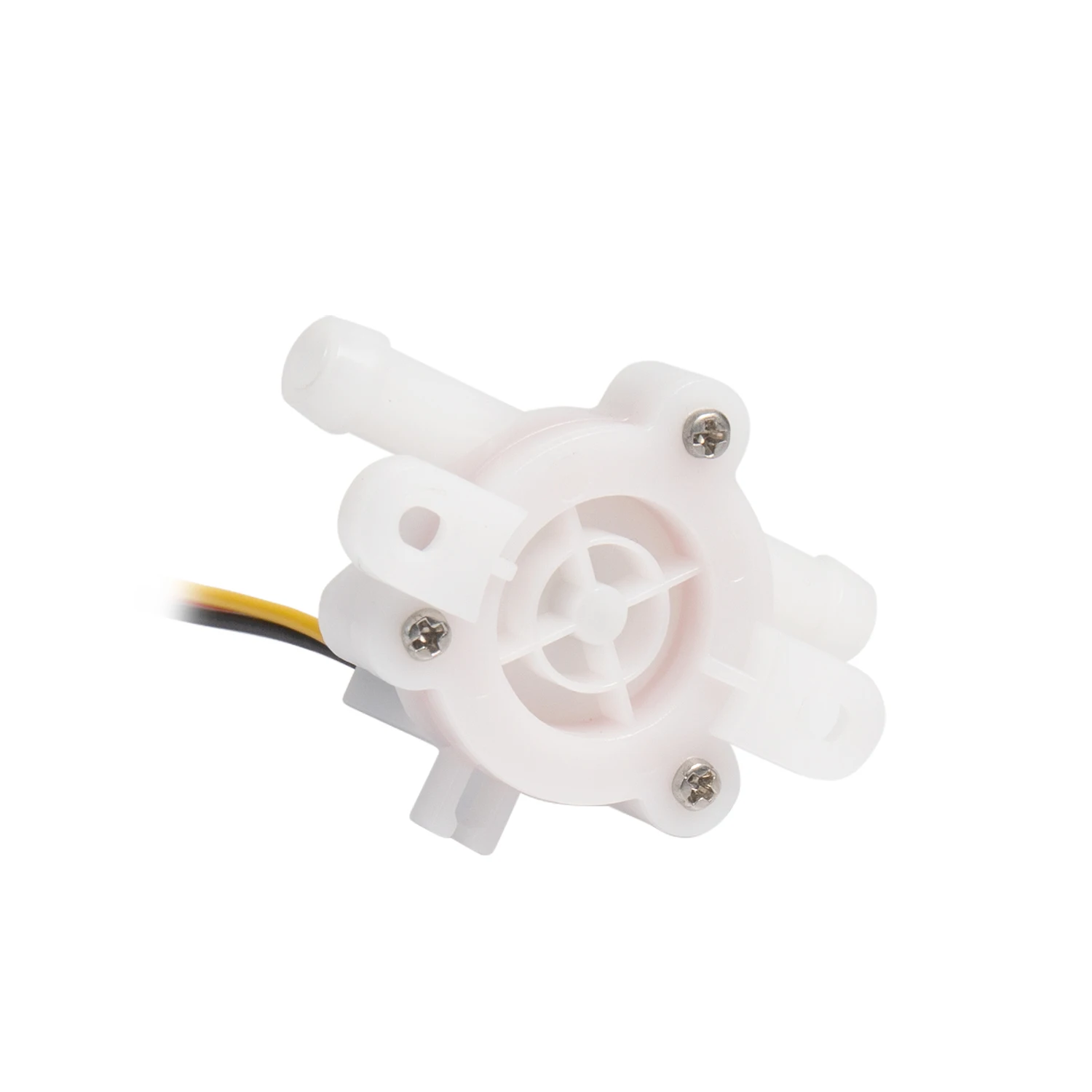

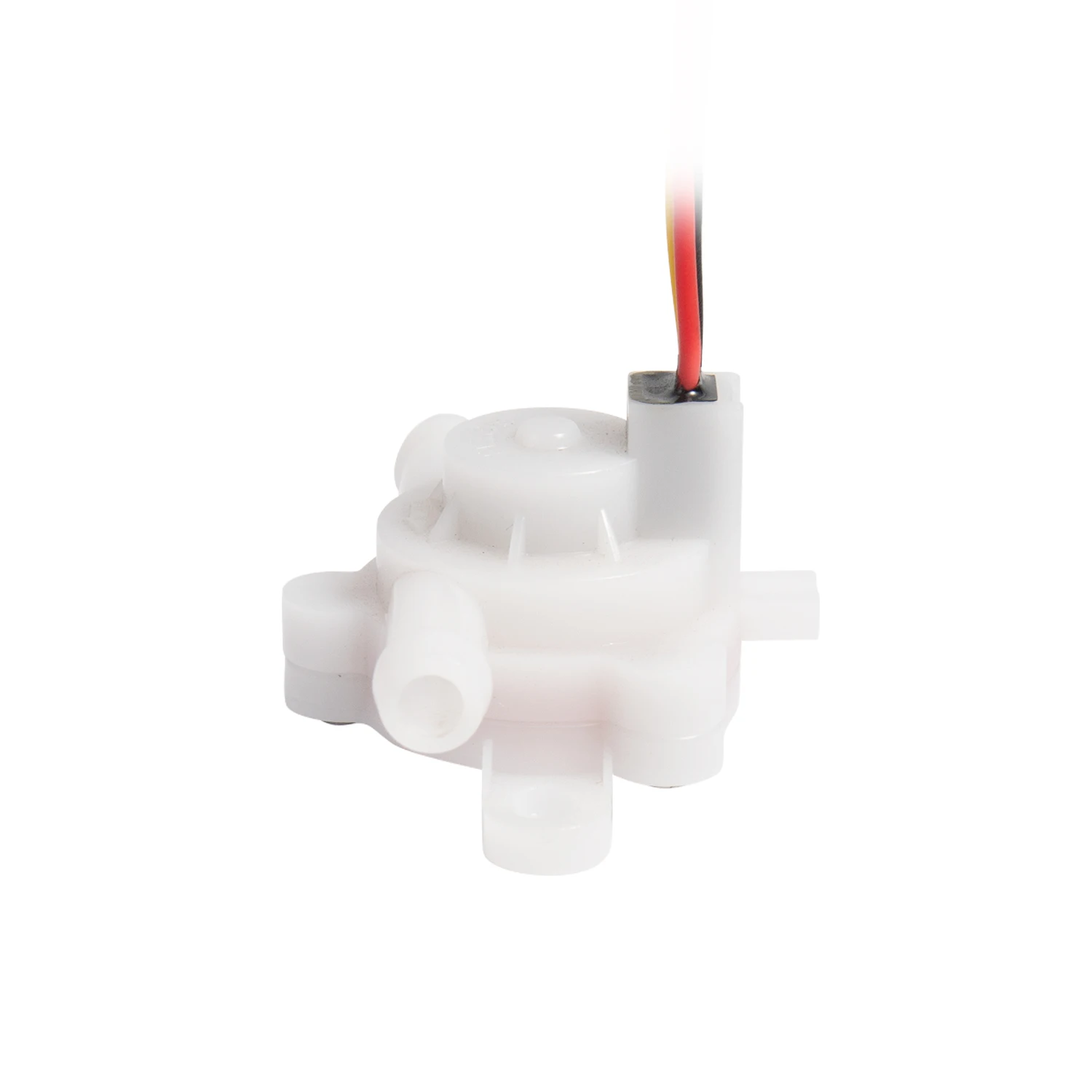

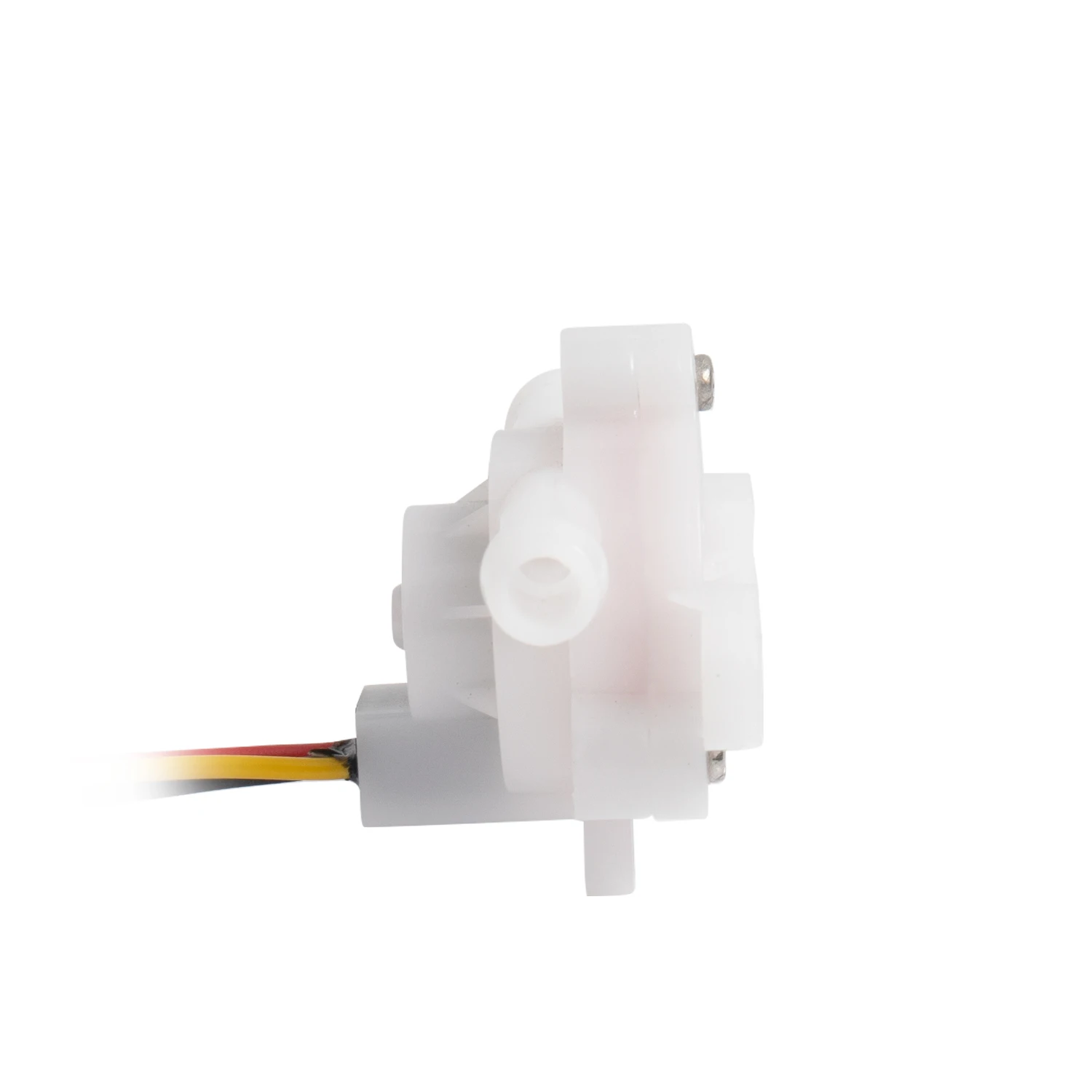

Food grade small flow electronic water flow sensor for coffee machines
- Category: Flow Sensors >>>
- Supplier: Shenzhen Baitena Electronics Co. Ltd.
Share on (1600799518959):
Product Overview
Description
Product Description
Product Name | Miniature plastic flowmeter, turbine flow sensor |
Material | POM plastic food grade material |
Flow Range | 0.3-2.5L/MIN |
Contact Capacity | DC 5-24V, can be customized DC 2.5V |
Function | Measure water flow, It is installed in various coffee machines, water dispensers, and water inlets of electrolyzers to detect the influent flow. |
Features | The product is light and flexible in appearance, small in size, plug and play, easy to install. The impeller is equipped with a stainless steel shaft, which is more powerful and prolongs the service life. The sealing ring adopts the upper and lower force structure and never leaks. The Hall element is imported and isolated from water to prevent water ingress and never age. All raw materials are in compliance with ROHS testing standards. |
Product Performance Description
The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly and a Hall sensor.
It is installed in various coffee machines, water dispensers, and water inlets of electrolyzers to detect the influent flow. When the water passes through the water flow rotor assembly, the magnetic rotor rotates and the rotational speed changes with the flow rate. The Hall sensor outputs the corresponding pulse. The signal is fed back to the controller, and the controller determines the magnitude of the water flow and performs regulation.
Specification
item | value |
Warranty | 1 years |
Type | Flow Sensors |
Customized support | OEM, ODM |
Place of Origin | China |
Guangdong | |
Brand Name | Bestla |
Model Number | BTL-B08 |
Flow Range | 0.3-2.5L/MIN |
Material | POM |
Color | White |
Certificate | ISO9001 |
Working voltage | DC2.5-24V |
Application | Coffee Maker |
Packing & Delivery
Cartons
Company Profile
Shenzhen Bestla Electronics Co., LTD. (Bestla) is a high-tech enterprise integrating research and development, production and sales. It has a modern manufacturing base and its business covers kitchen appliances, industrial control and measurement, fire safety, construction machinery, biomedicine and other fields. The company has 12 professional r & D personnel to provide customized products for customers.
Since its establishment in 2013, Beitner has been committed to the field of sensors, providing customers with customized sensor application solutions.
Beitner follows the quality policy of accurate and reliable, realistic and innovative, full participation and continuous improvement. In strict accordance with ISO9001 quality management system, beitner organizes product management process and always puts "creating value for customers" in the first place to provide customers with high-quality, stable and reliable products.
Beitner adhering to the integrity and promising business philosophy and learning ideas, relying on high-performance products, high-quality professional services, will become your strong partner.
The company's main products are:
Water flow sensor (also called the hall type water flow sensor, flow meter, the impeller type flow sensor, the turbine flow sensor, the pulse type water flow sensor), water flow switch, reed pipe flow switch, hall switch, frame type switch, duck tongue flap switch), close to switch, reed pipe switches, hall switch, capacitive switch), displacement sensors, Floating ball liquid level type, guide rail micro displacement), magnetostrictive sensor (liquid level), temperature sensor and other sensor products, widely used in kitchen appliances, household appliances, fire safety, engineering machinery, chemical industry, modern feeding plant, biomedicine, industrial control and measurement
Since its establishment in 2013, Beitner has been committed to the field of sensors, providing customers with customized sensor application solutions.
Beitner follows the quality policy of accurate and reliable, realistic and innovative, full participation and continuous improvement. In strict accordance with ISO9001 quality management system, beitner organizes product management process and always puts "creating value for customers" in the first place to provide customers with high-quality, stable and reliable products.
Beitner adhering to the integrity and promising business philosophy and learning ideas, relying on high-performance products, high-quality professional services, will become your strong partner.
The company's main products are:
Water flow sensor (also called the hall type water flow sensor, flow meter, the impeller type flow sensor, the turbine flow sensor, the pulse type water flow sensor), water flow switch, reed pipe flow switch, hall switch, frame type switch, duck tongue flap switch), close to switch, reed pipe switches, hall switch, capacitive switch), displacement sensors, Floating ball liquid level type, guide rail micro displacement), magnetostrictive sensor (liquid level), temperature sensor and other sensor products, widely used in kitchen appliances, household appliances, fire safety, engineering machinery, chemical industry, modern feeding plant, biomedicine, industrial control and measurement

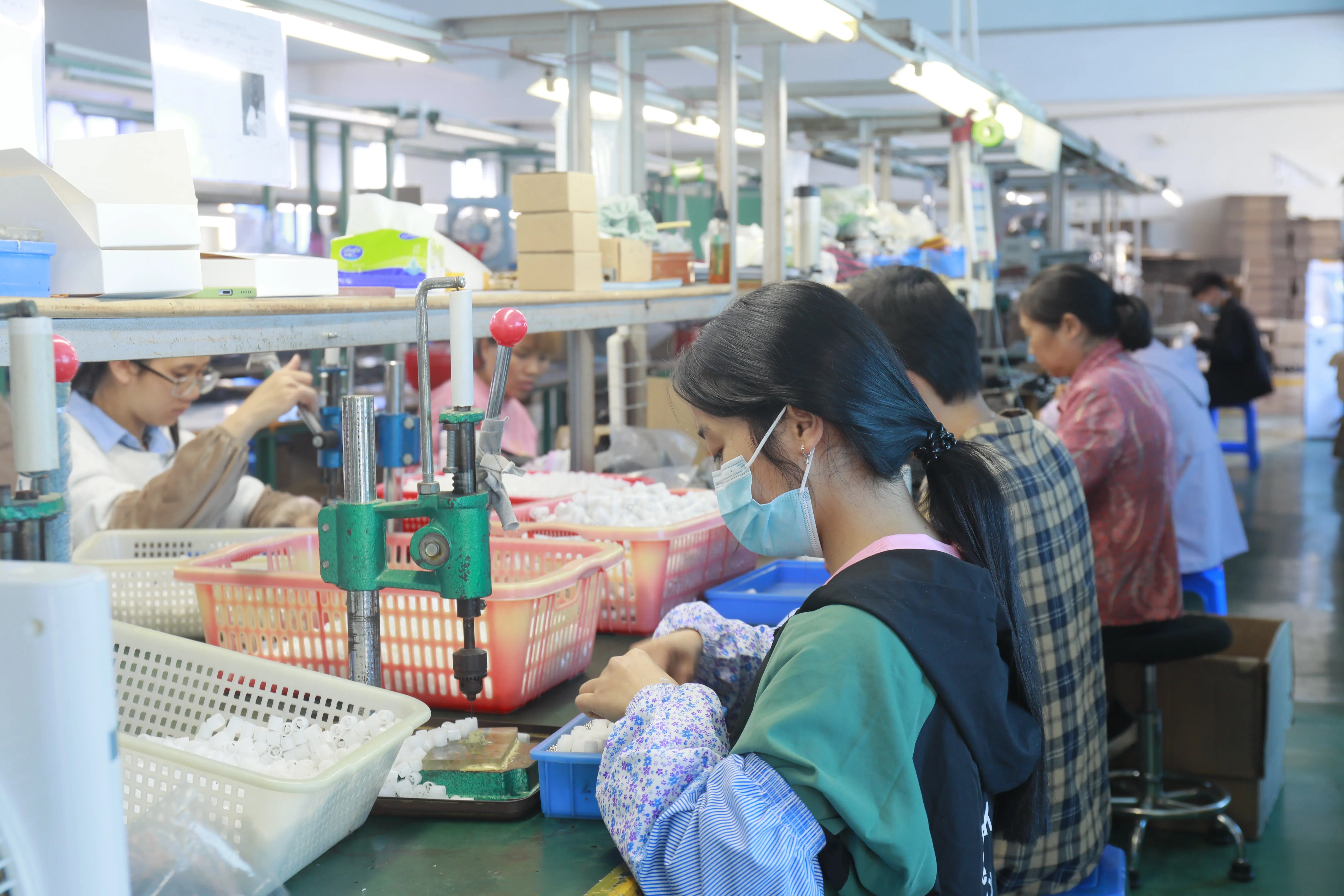

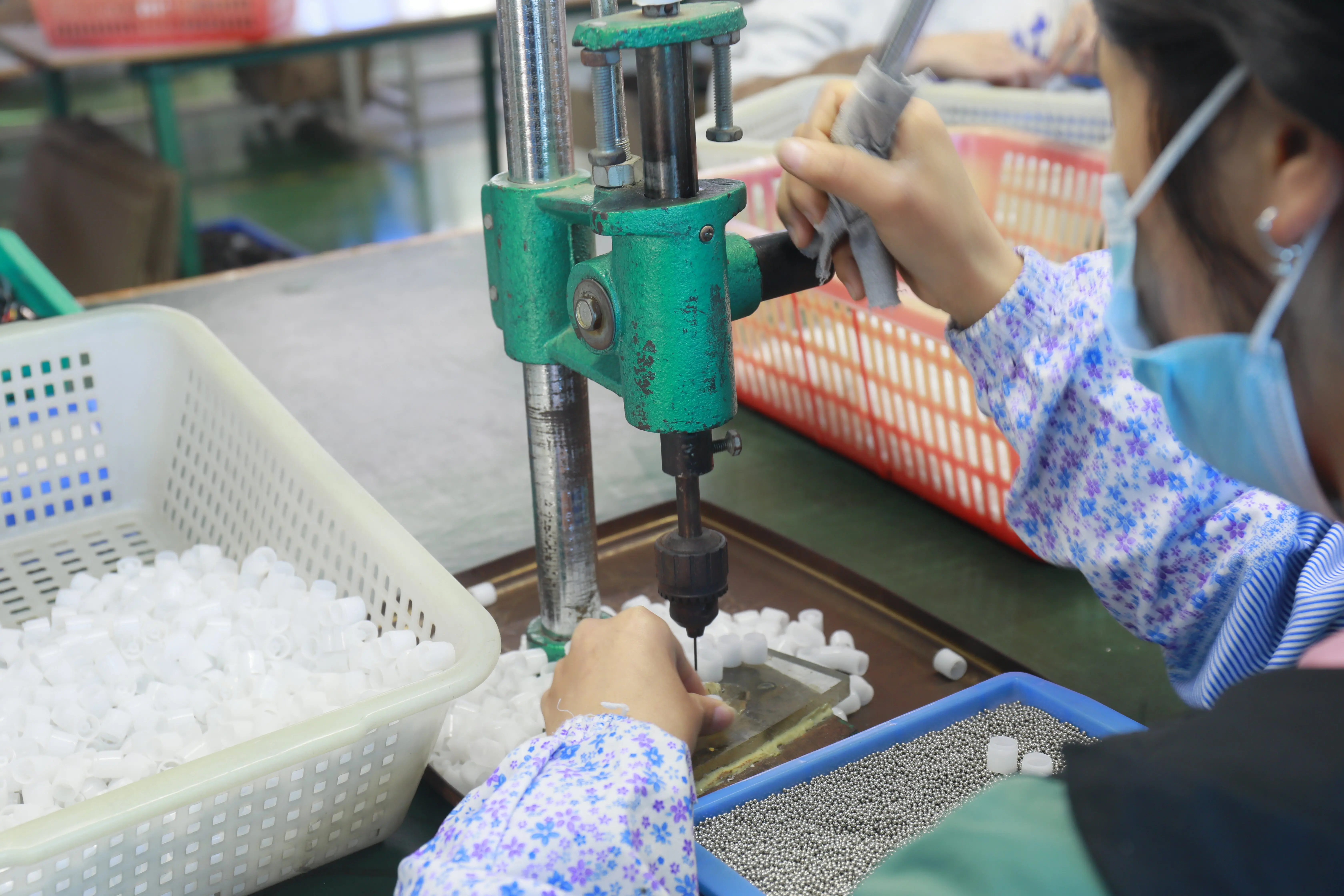

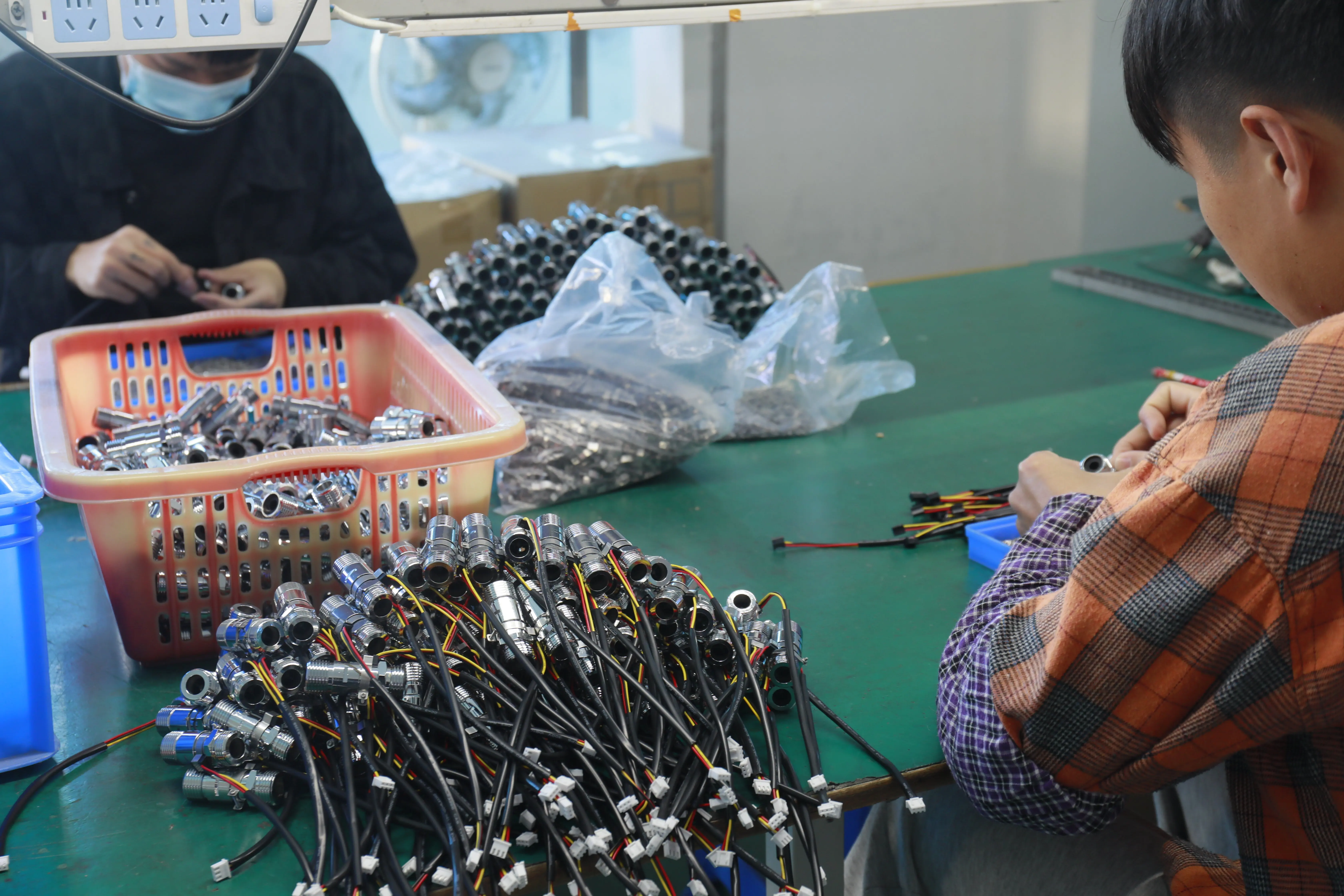

Our Factory
Product packaging
FAQ
1 . Are you traders or manufacturers
We are the factory
2. How long will you give me an answer
We’ll get back to you in four hours as soon as we can
3. Can we get a sample?
Yes, we have materials in stock that can help you get samples as soon as possible
4.What can you buy from us?
Water flow sensor, water flow switch, proximity switch, temperature sensor, displacement sensor, etc.
5.What is your delivery time?
If the goods are in stock, usually in about 15 days, if not in stock, according to the order quantity in about 30 days
6. Do you have a warranty on your product?
According to different products, our product warranty period in 12 ~ 36 months
We are the factory
2. How long will you give me an answer
We’ll get back to you in four hours as soon as we can
3. Can we get a sample?
Yes, we have materials in stock that can help you get samples as soon as possible
4.What can you buy from us?
Water flow sensor, water flow switch, proximity switch, temperature sensor, displacement sensor, etc.
5.What is your delivery time?
If the goods are in stock, usually in about 15 days, if not in stock, according to the order quantity in about 30 days
6. Do you have a warranty on your product?
According to different products, our product warranty period in 12 ~ 36 months
