CW6263E CW6280E CW62100E Dalian DMTG Lathe Manual Screw Cutting Parallel Turning Lathe
- Category: Machine Tool Equipment >>>
- Supplier: Dalian Mach Co. Ltd.
Share on (1600800217264):
Product Overview
Description
Products Description

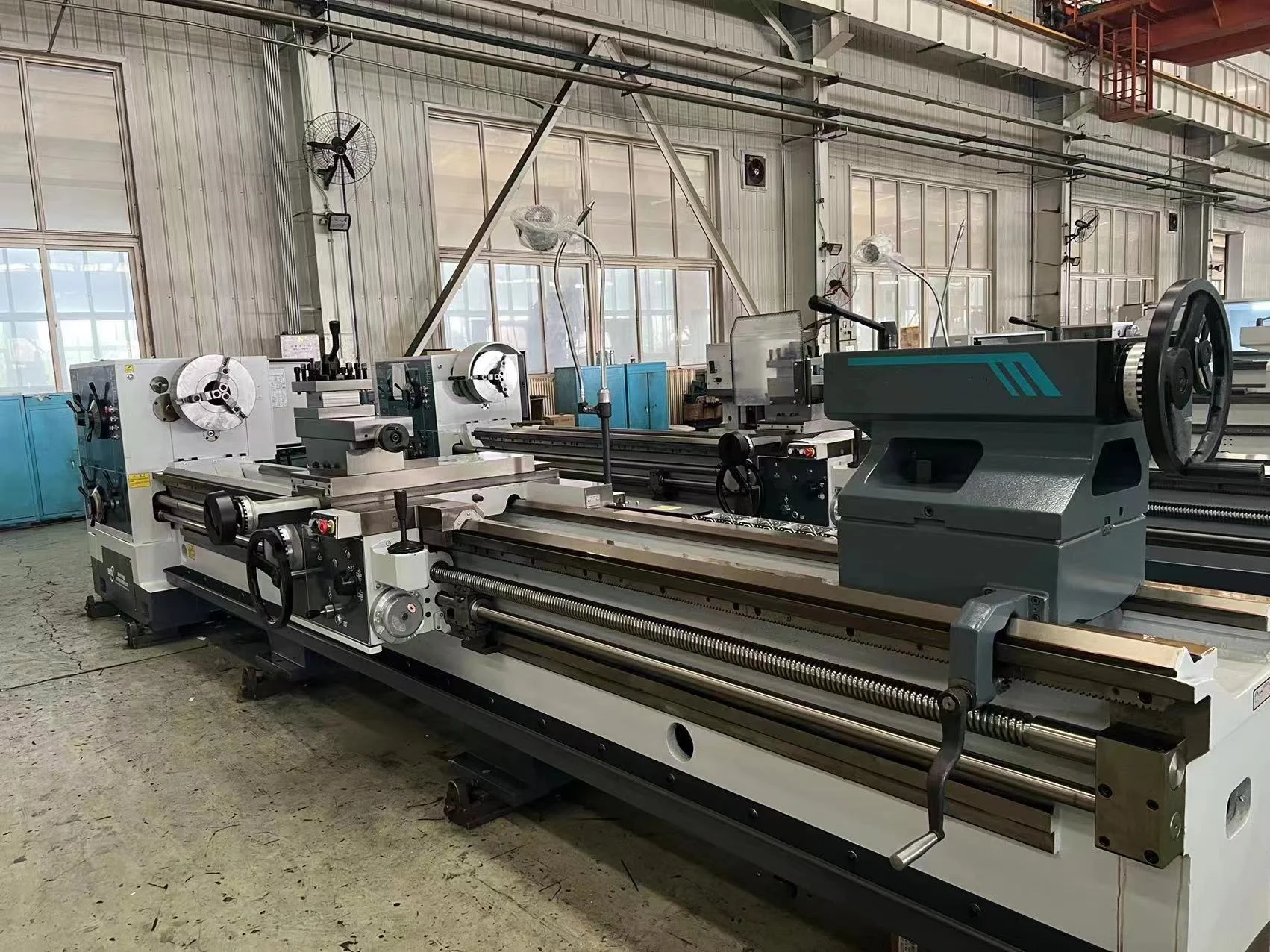

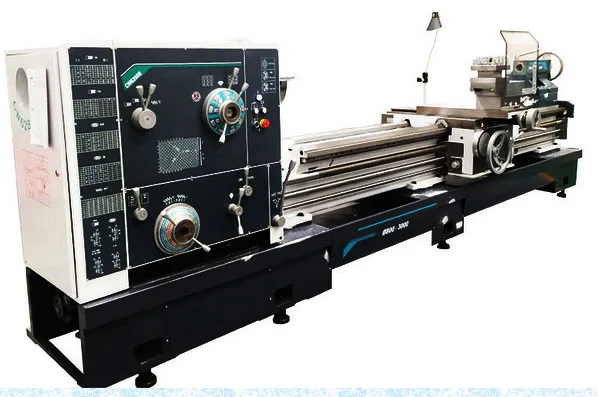

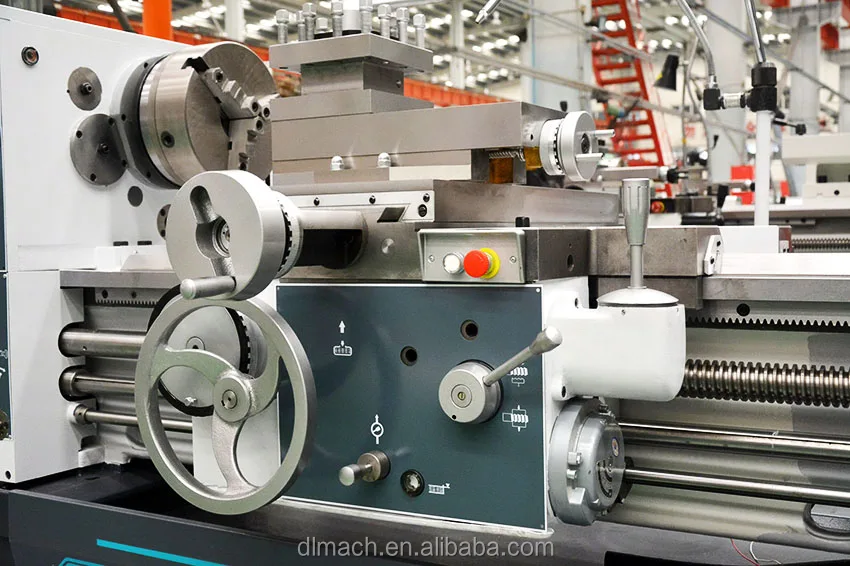

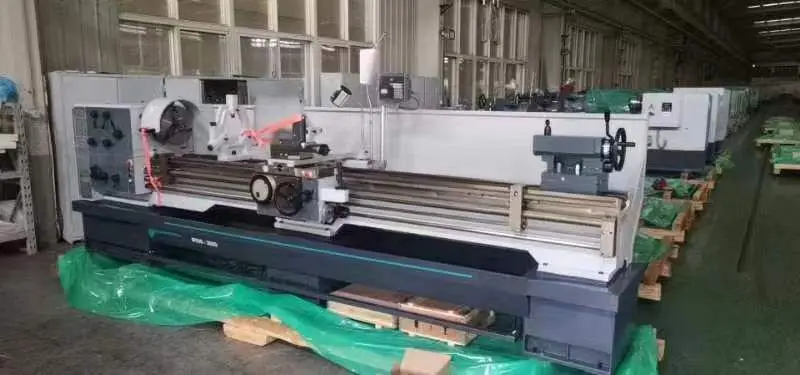

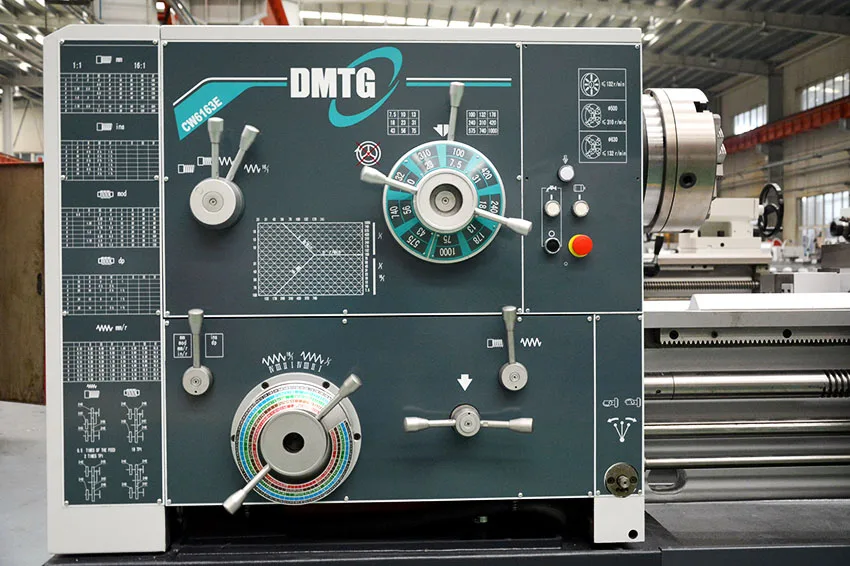

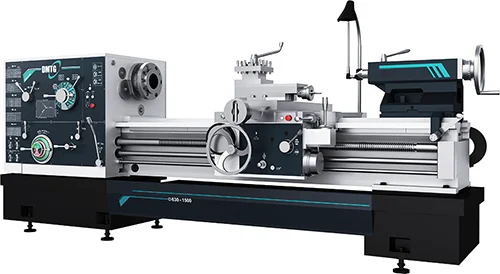

CW6280E Dalian DMTG Lathe Conventional Manual Screw-Cutting Turning Lathe
Swing Diameter over bed: 800mm
Spindle bore diameter: 105mm ( Optional 130mm )
Distance between centers: 1000/1500/2000/3000/4000/5000/6000mm
Max. Loading weight of workpiece: 2000kgs
Product Paramenters
Max.Swing diameter over bed | 800mm |
Max.Swing over cross slide | 480mm |
Max.Swing diameter in gap | 1000mm |
Max.Distance between centers | 1000/1500/2000/3000/4000/5000/6000mm |
Bed guideway width | 550mm |
Spindle motor power | 11kW (1460rpm/50HZ) Optional: 15kW (1460rpm/50HZ) |
Spindle bore | φ105mm ( Optional 130mm ) |
Chuck size | 400mm |

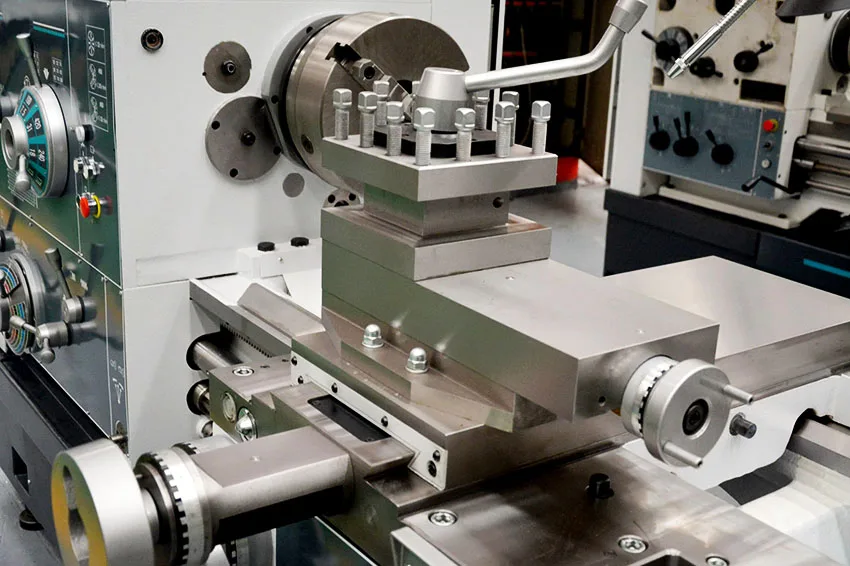

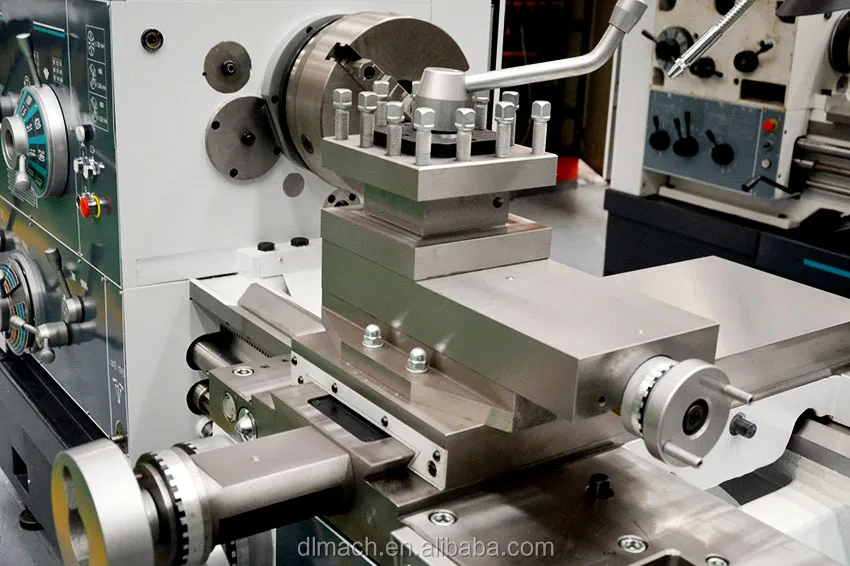

Tool post | 4-way tool post |
Spindle speed ranges | 7.5 - 1000 rpm(18 Steps ) |
Diameter of tailstock quill | φ100mm |
Travel of tailstock quill | 250mm |
Taper of tailstock quill | No.6 MT |
Max.Tool shank size | 30x30mm |
Longitudinal feed | (64) 0.1~24.3mm/r |
Cross Feed | (64) 0.05~12.15mm/r |
Rapid traverse speed | 3.8m/min |
Metric Thread | (39)1~240mm |
Inch Thread | (26) 14~1TPI |
Module Thread | (53) 0.5~120mm |
Diametrical pitch thread | (24) 28~1 |
Machine dimensions(LxWxH) | 3180/3630/4230/5130*1380*1830mm 6040/7120/8240*1470*1830mm |
Machine weight | 4250/4550/4850/5350/6650/7300/7850kg |
