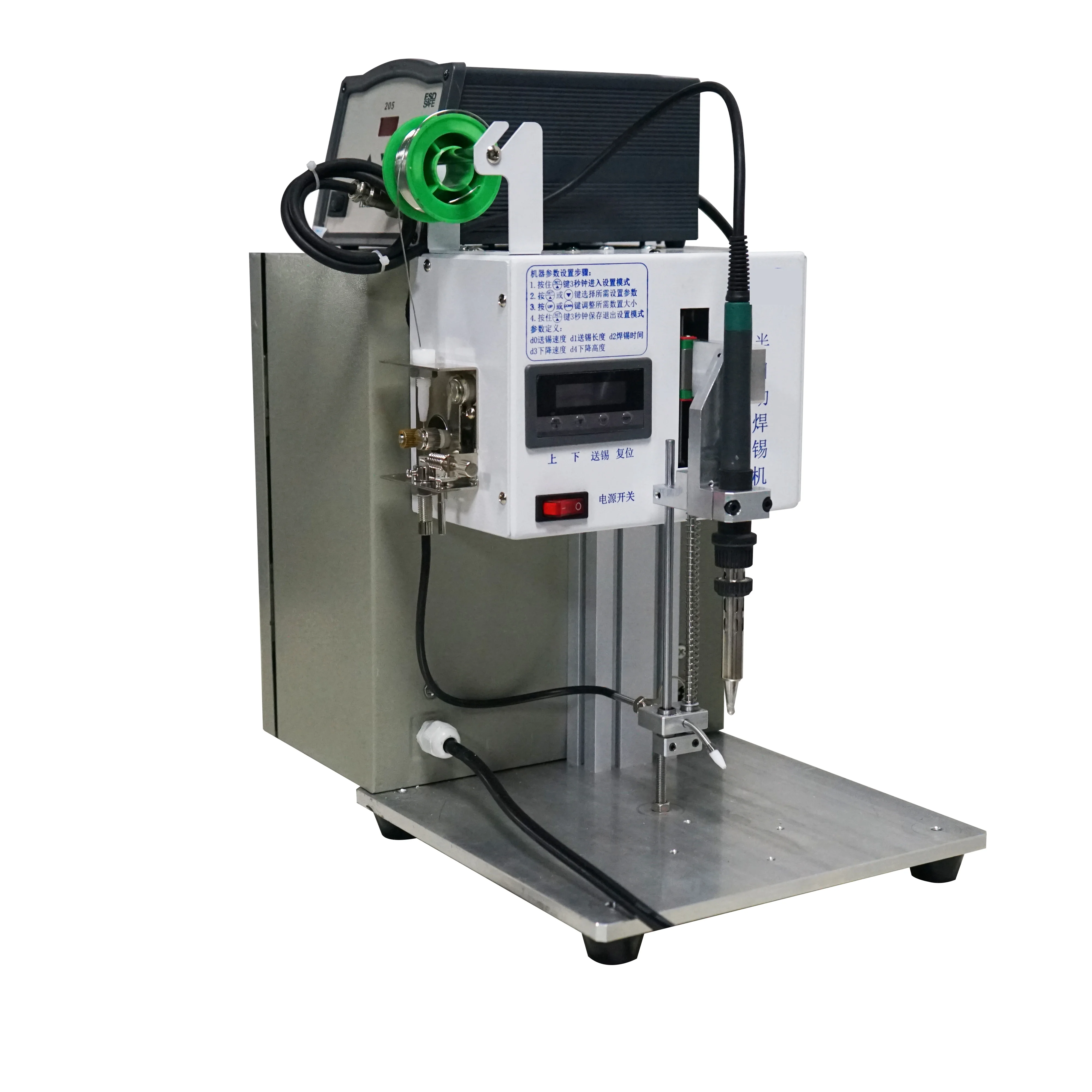

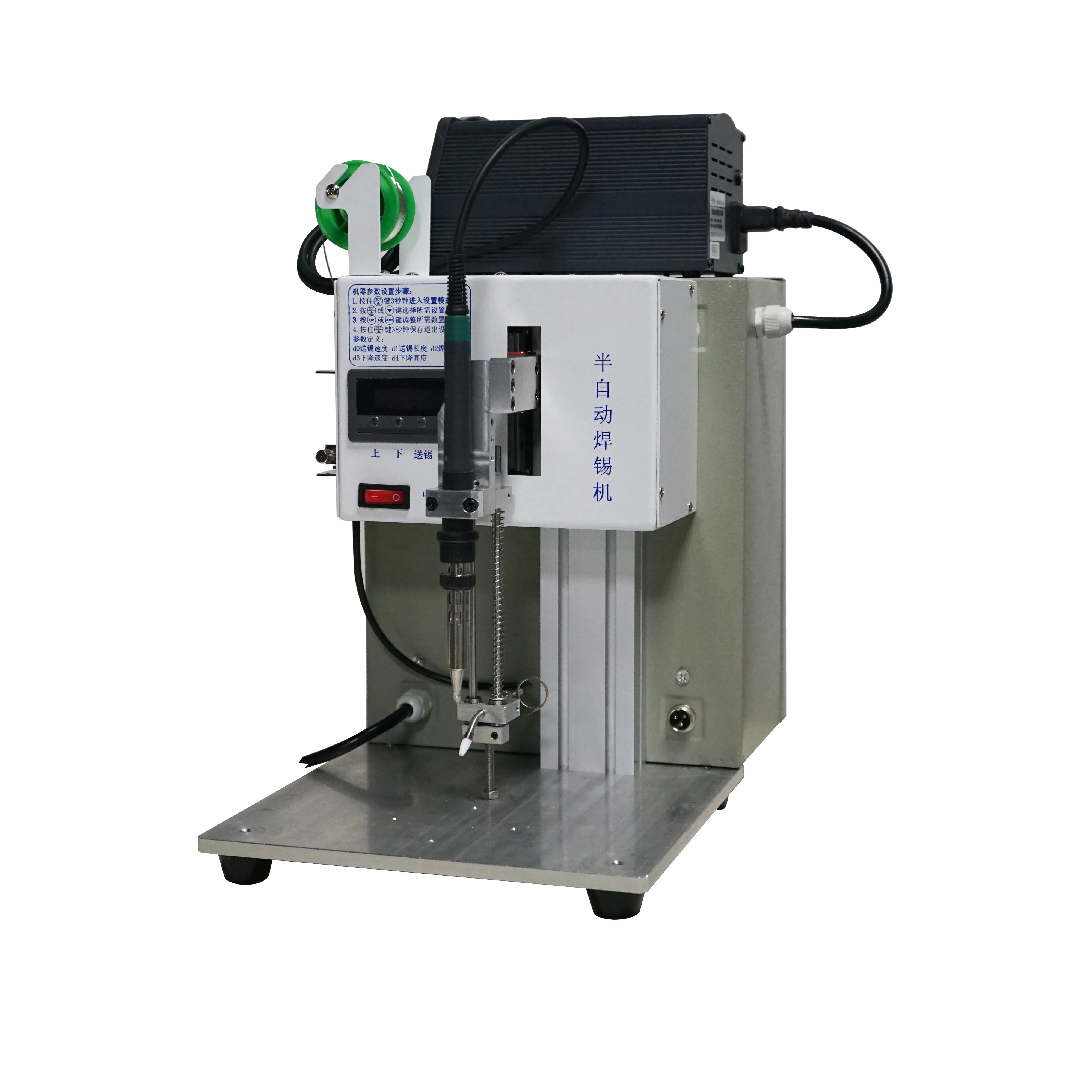

Semi Automatic Solder Paste Printing Machine Machine Semi Automatic Wire Welding Machine 331 ModeBZD
- Category: Other Machinery & Industrial Equipment >>>
- Supplier: Dongguan Jinxiang Automation Technology Co. Ltd.
Share on (1600801920514):
Product Overview
Description
Products Display
Product Description
Semi-automatic wire welding machine is designed for the product which is not suitable for the fully automatic equipment. It is widely applicable in all kinds of PCB board, lamp board, electronic components, switches, motors, three tubes, LED lights, connectors and other products of welding wire.
Features
1)Fast speed welding, multiple solder joints can be welded at one time.
2)Strong versatility, soldering time and length of tin feeding is adjustable. It will be welded different products if only change the fixed fixture.
3)Operation is simple and easy to learn, anyone can do it, no need a special skilled operator for the soldering station.
4)Easy to use, electric drive, no need pressure air.
1)Fast speed welding, multiple solder joints can be welded at one time.
2)Strong versatility, soldering time and length of tin feeding is adjustable. It will be welded different products if only change the fixed fixture.
3)Operation is simple and easy to learn, anyone can do it, no need a special skilled operator for the soldering station.
4)Easy to use, electric drive, no need pressure air.
Specification
Product Name | Semi-Automatic Wire Welding Machine | ||
Mode | CBHX BZD01 | CBHX-BZD II | |
Axis range | 60Zmm | 60Zmm | |
Work range | 60Zmm | 60Zmm | |
@Can be customized | |||
Number of Axes | 1 Axes | ||
Motor system | precision micro stepping motor | ||
Control system | Special PLC control system | ||
Control panel | Foot pedal control | ||
Voltage | AC110/220V, 50/60Hz | ||
Soldering tin wire diameter | Φ0.5～1.6mm | ||
Temperature range | 0 ~550℃ | ||
Temperature control Power | 150W(Optional 320W) | ||
Working temperature | 0-40℃ | ||
Working humidity | 20-90% | ||
External dimensions(L*W*H) | 250*380*450mm | 480*380*450mm | |
Net weight | 20kg | 30kg | |
Main Products
Company Profile
Certificate
Packing & Shipping
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
Q3: How about the quality?
Q4: Can we be your distributor?
Q5: How’s the package?
Q6: How’s the delivery time?
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
