Can be equipped with LNG hybrid engine, achieve environmental protection and energy saving.
LONG SERVICE LIFE
Ac electric drive system, low maintenance cost and long lifetime.
Independent dual rear axles+swing axle +four rear independent driving tires design, the truck is more powerful, each tire's load is evenly and lifetime is longer.
Wide distance between supporting point of the dump body, the truck is reliable.
INTELLIGENT EXTENSION
The truck setting meets the requirements of intelligent interface, which can realize unmanned driving rapid transformation of vehicles, and effectively promote the innovative development of smart mines.

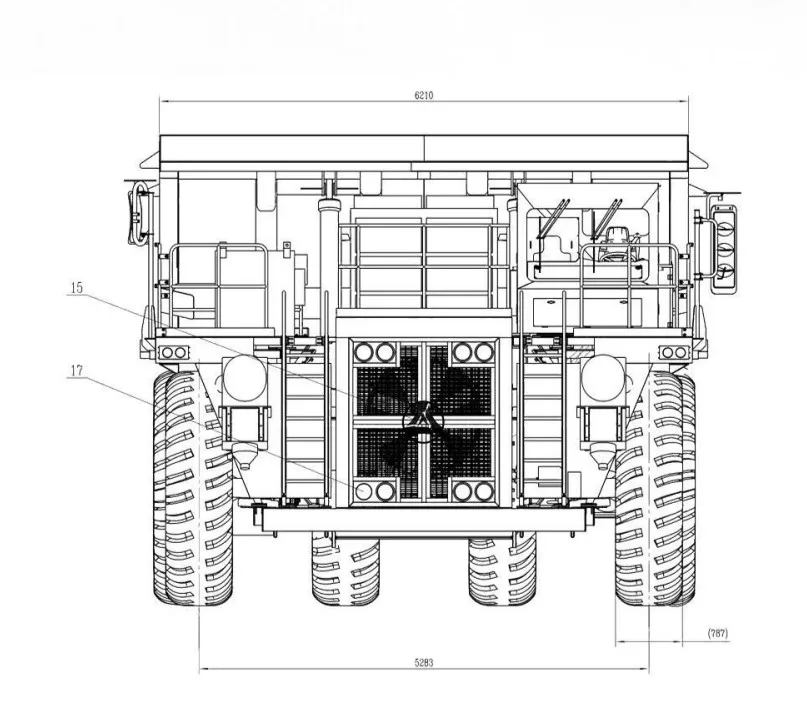

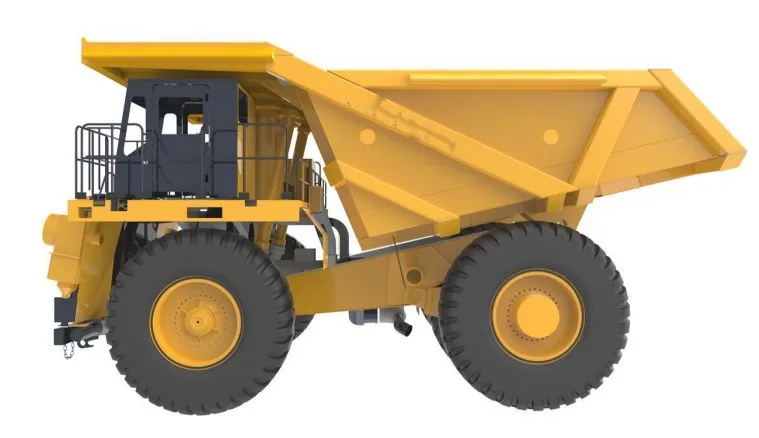

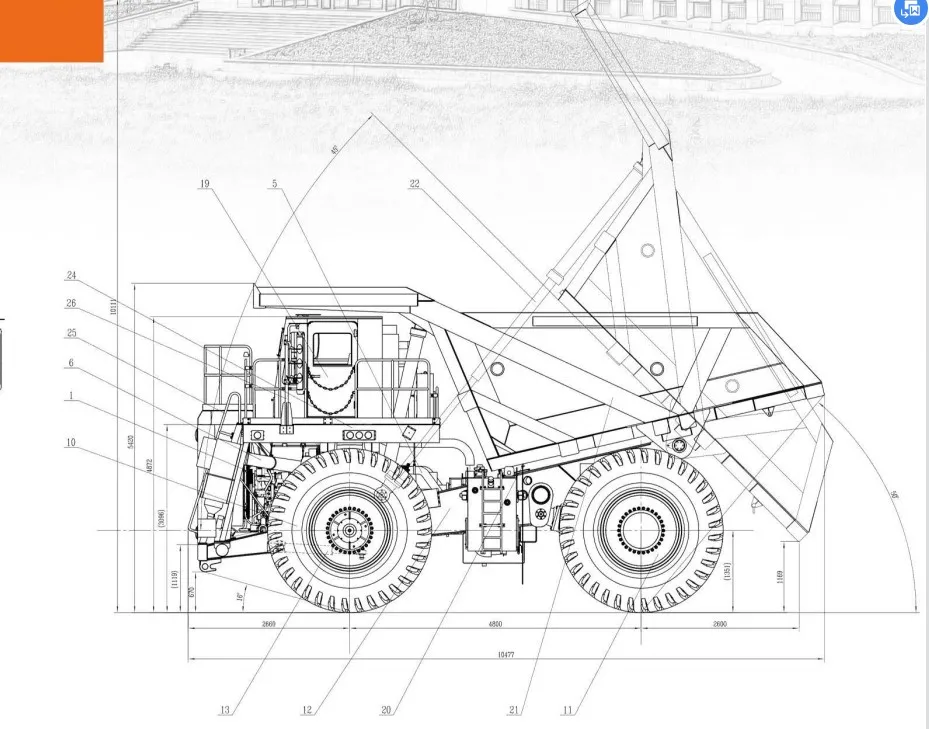

Dimension
Machine Main Technical Parameters
Dimension
Length mm
10120
Width mm
6350
Loading Height mm
4935
Dump Body up Height mm
10050
Axle Base mm
4800
Front Wheel Base mm
5300
Tire(Qty)
27.00R49(6)
Min.Ground Clearance mm
650/25.6
Weight
Payload Class Ton
110/121
Empty Vehicle Weight Ton
72/79
Gross Vehicle Weight Ton
182/201
Dump Body Volume m3
53
Fuel Tank L
1200
Hydraulic Reservoir L
600
Performance
Engine Model
MTU 16V 2000C22
Drive Mode
Independent Four Wheel
Transmission Mode
Ac Transmission
Suspension
Front :Candle Type independent suspension
Rear:Single Trailling Arm independent suspension
Steering
Full Hydraulic Power
Main Configuration
50Max.Speed
50km/h
Braking Distance at 30km/h
19.2m/63ft
22.7Min.Turning Diameter
34m/74.4ft
Rated Grade Ability
8%
Max.Grade Ability
18%
Lifting Dump Body Time
20s
SALES AND SERVICE NETWORK

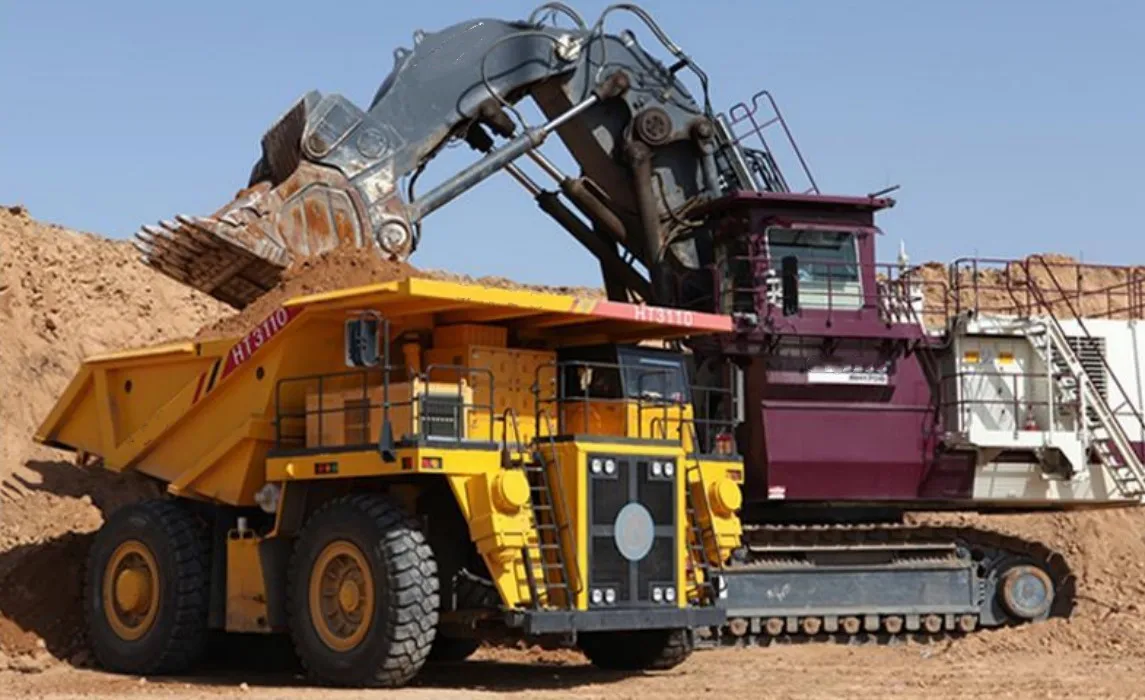

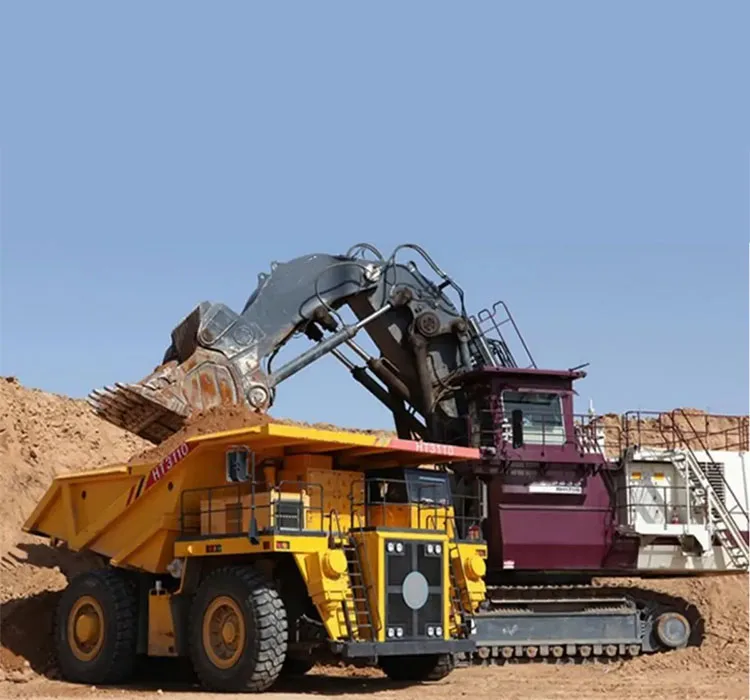

Successful Cases
