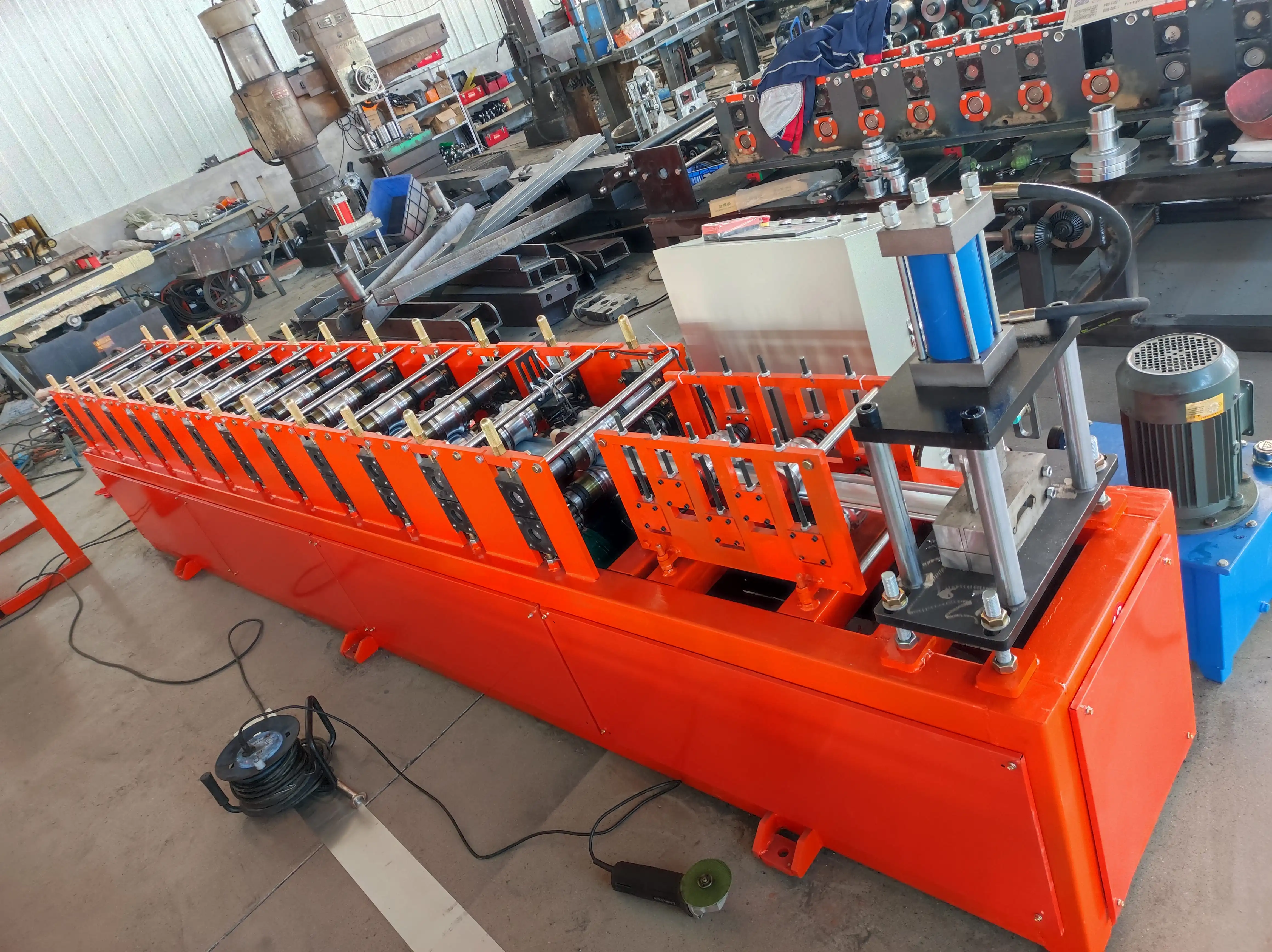

Metal Shutter Door Rolling Machine Profile Garage Door Panel Production Line Used Rolling Shutter Panel Forming Machine
- Category: >>>
- Supplier: Henan Demma CNC Equipment Co. Ltd.
Share on (1600813100962):
Product Overview
Description
Product Description

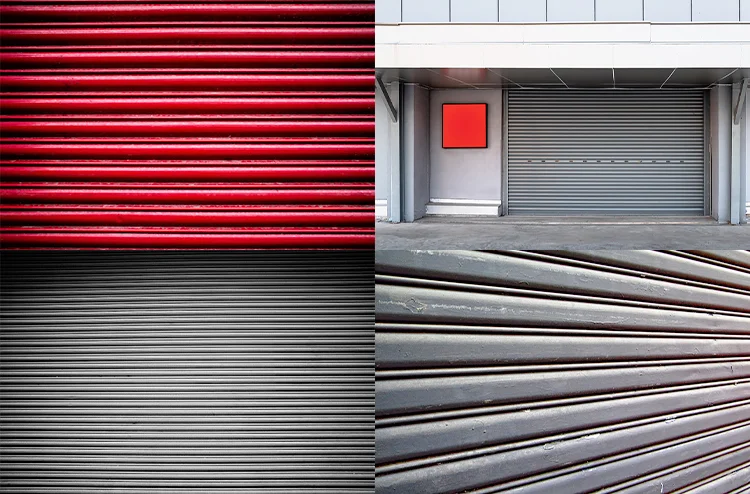

roller shutter door
Our steel strips rolling shutter door roll forming machine for different models based on different designs or customer's samples
It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength
It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength

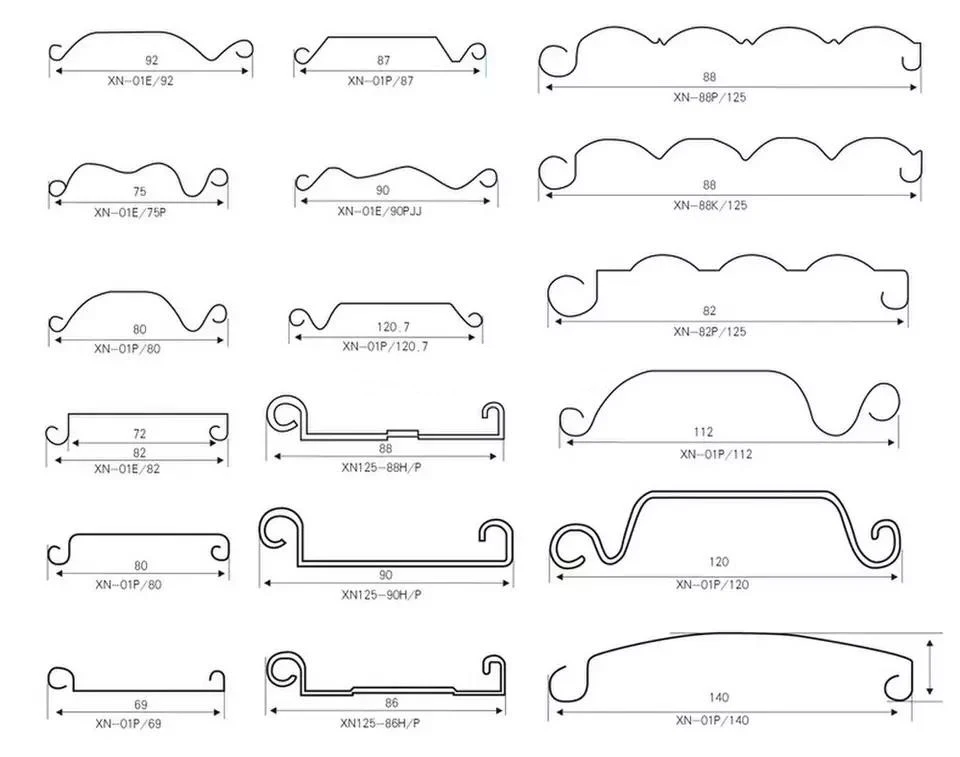

Profile drawing of Shutter door roll forming machine
Specification
Item | Specification |
Voltage | 380V |
Dimension(L*W*H) | 5900*900*1500 |
Weight | 3500kg |
Rolling thinckness | 0.8-2MM |
Feeding width | 124mm |
Raw material | GL GI PPGI PPGL |
Roller material | 45#steel Chrome Plated |
Shaft material | 45# Steel Outer Diameter: 70mm |
Cutting blade material | GCr 12 High Grade Steel |
Main frame | 350mm/400mm H-Beam |
Control system | PLC(imported Brand) |
Cutting type | Automatic Hydraulic Cutting |
Decoiler | 5T Manual Decoiler(with braking function) |
Keywords | Slat Shutter Door Forming Machine |
The rolling shutter door acts as a horizontal partition in the same way as the wall. It consists of a curtain plate, a seat plate, a guide rail, a support, a reel, a box, a control box, a rolling door machine, a limiter, a door lintel, a manual quick-release switch device, and a button switch.
It is composed of 13 parts, including safety device, and is generally installed in places where it is inconvenient to use walls to separate.
It is composed of 13 parts, including safety device, and is generally installed in places where it is inconvenient to use walls to separate.

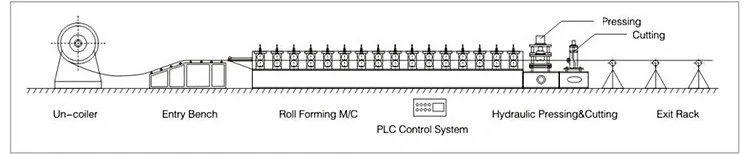

The picture shows the whole process of cold roll forming machine :
Detail Images

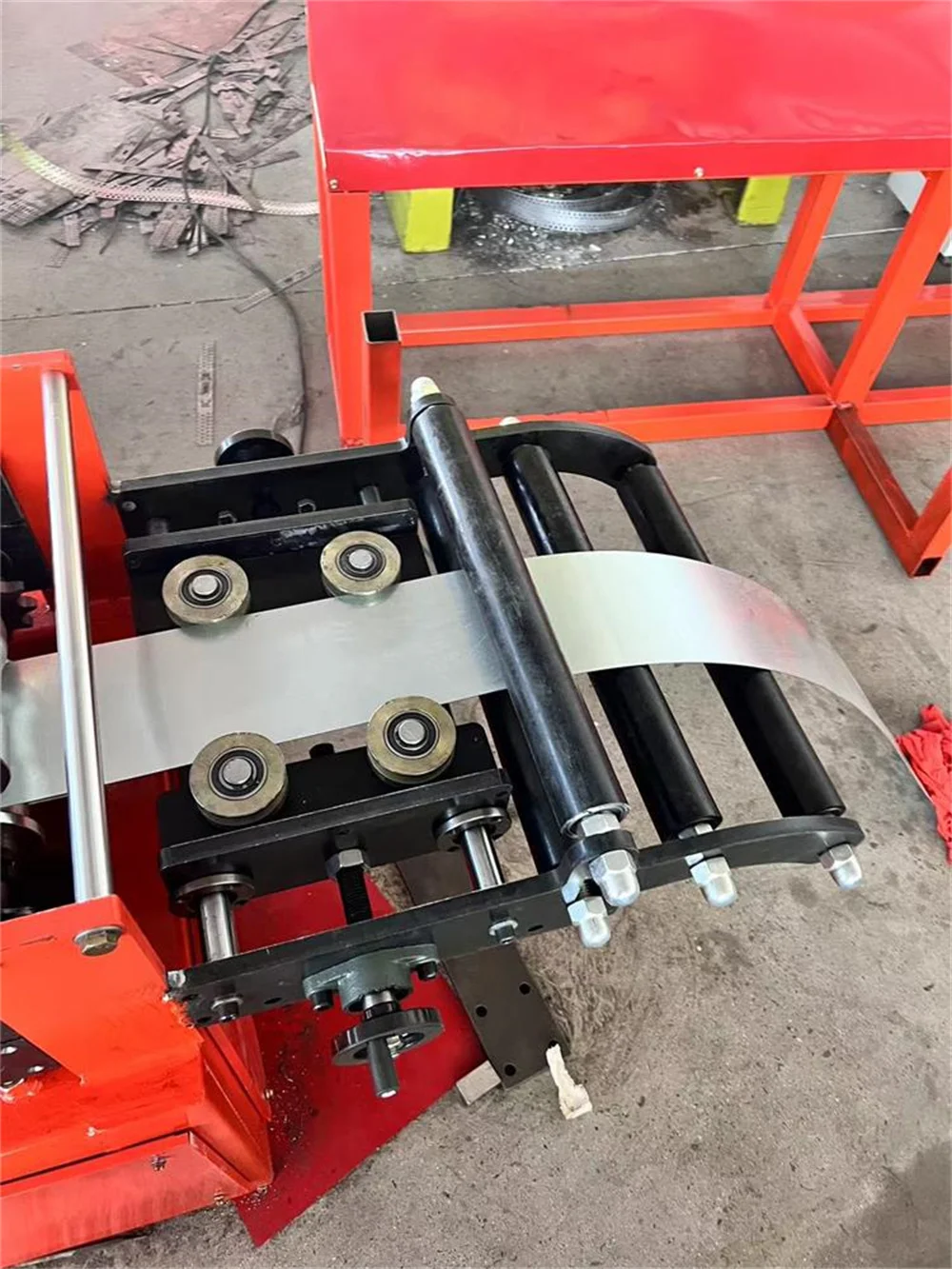

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

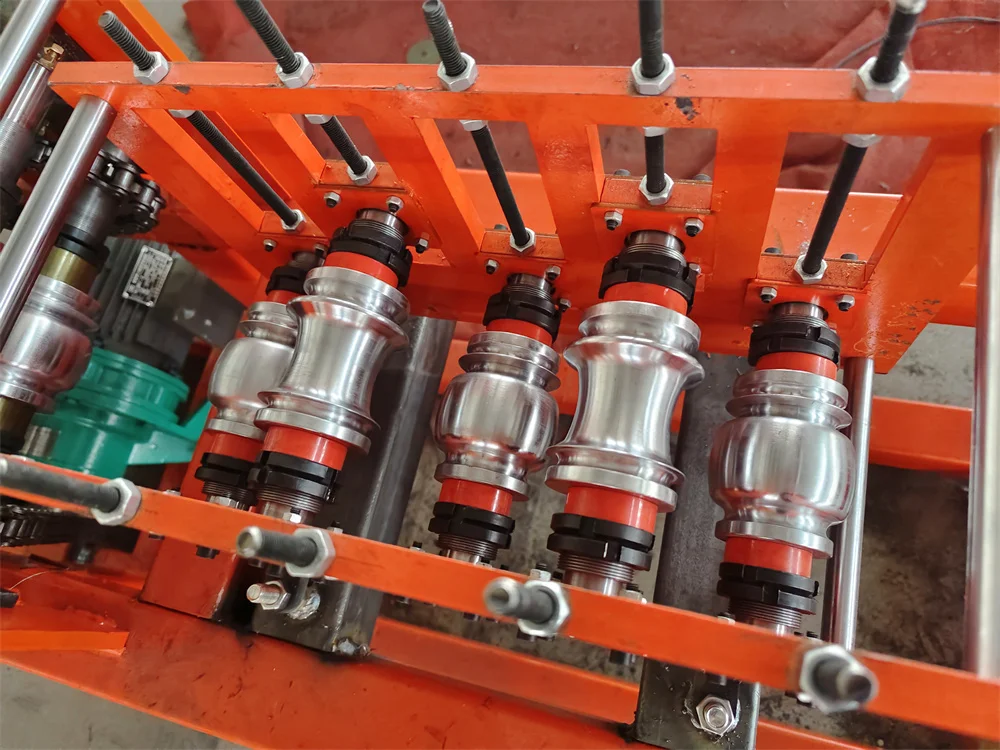

Main Rollers
The wheel material is heat treated with bearing steel.
Material of rollers:High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat
treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

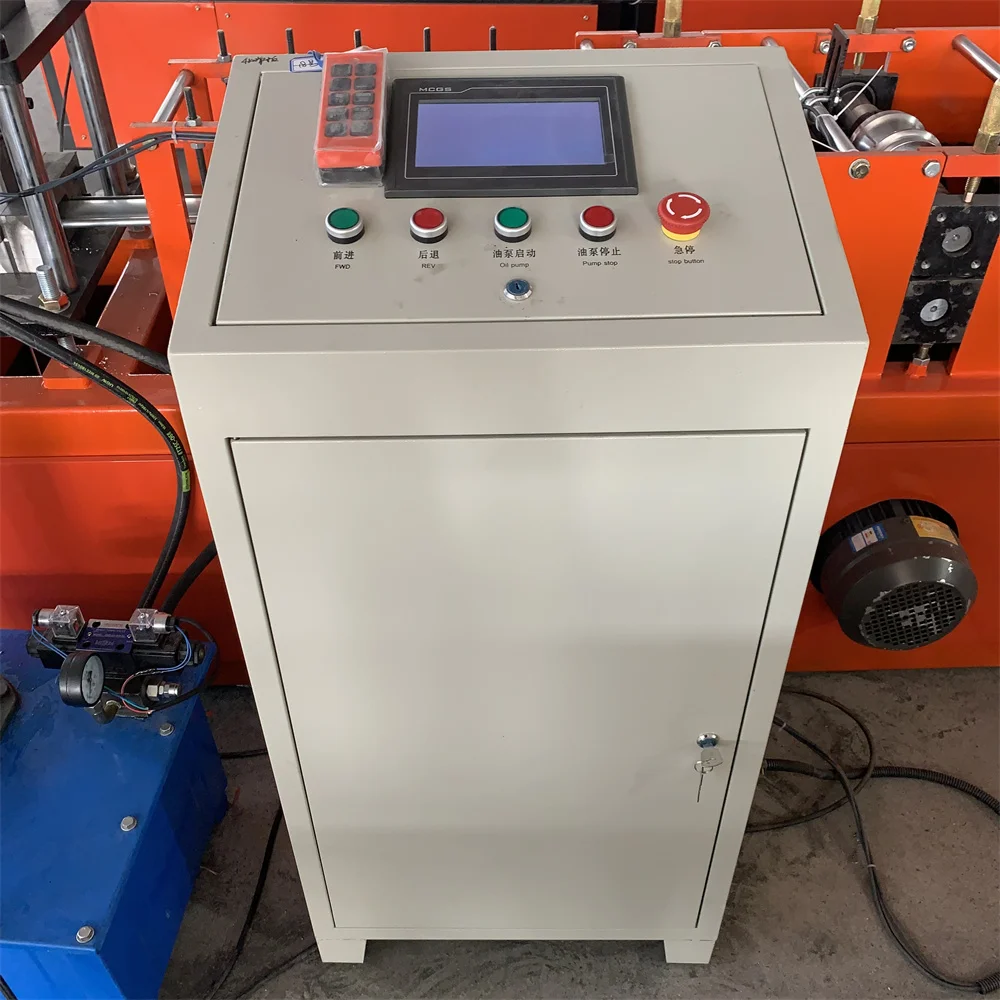

Control Cabinet
PLC:Delta PLC(or according to customer's inquirement) Touch Screen:Delta Frequency system:Delta Chinese/English / Russian/Portuguese Or Spanish

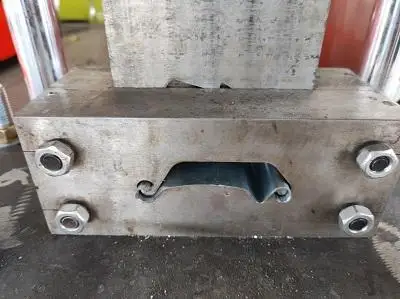

Cutter
Cutting head adopts the Motor drive and automatic location to decide the dimension and cut the target products.
Material of blades:Cr12,quenching treatment.
Material of blades:Cr12,quenching treatment.
Hydraulic station
Fast cooling, low failure rate, extending the service life of the hydraulic pump station,ensure the equipment can operate 24 hours without downtime.
Shutter Door Roll Forming Machine Steel Door Frame Making Machines For Sale

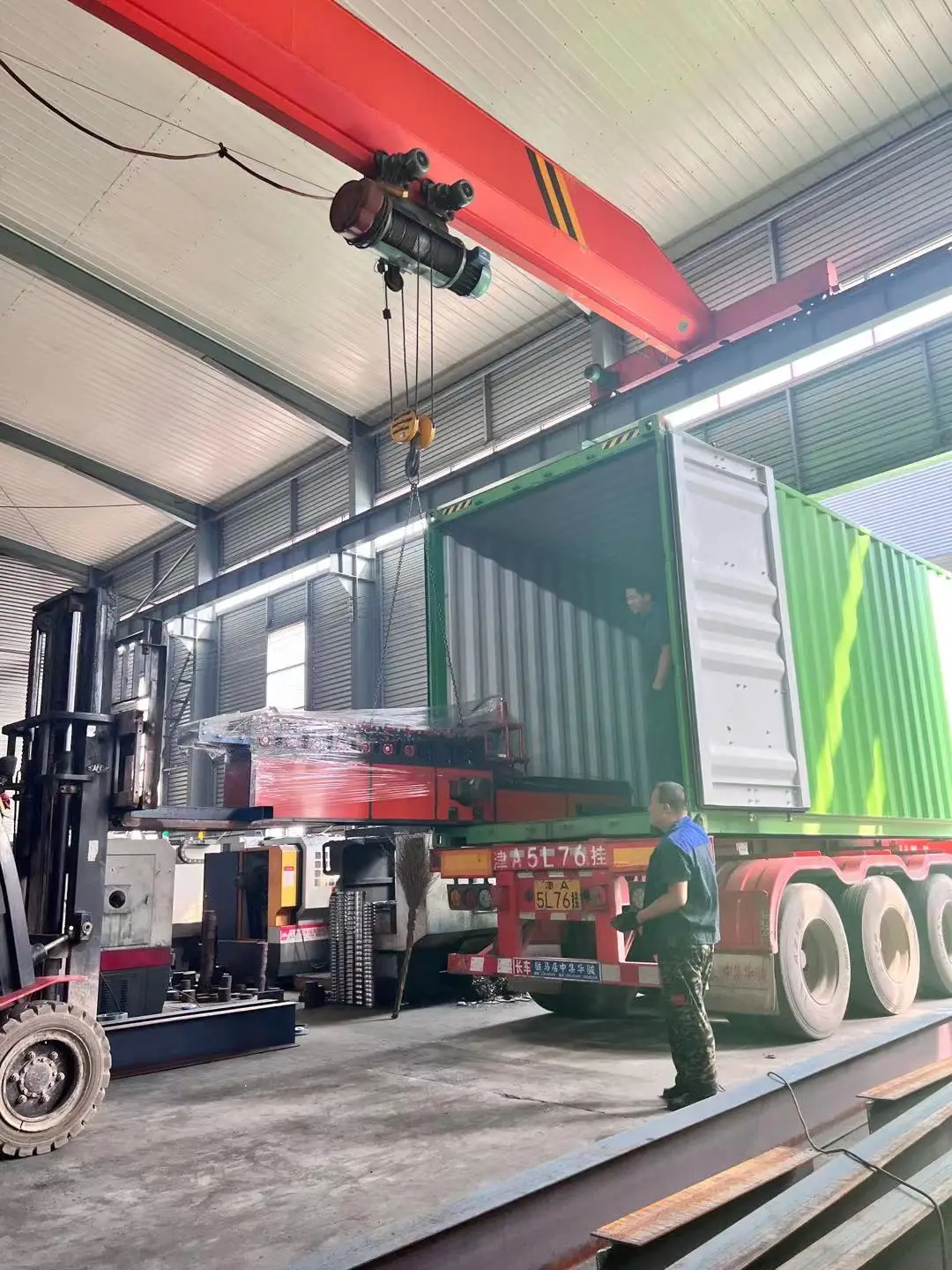

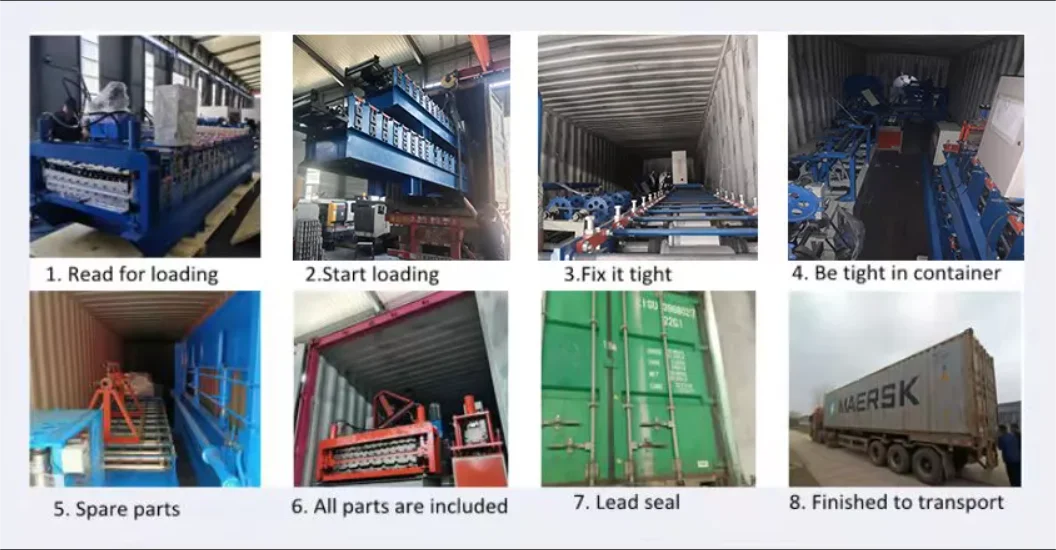

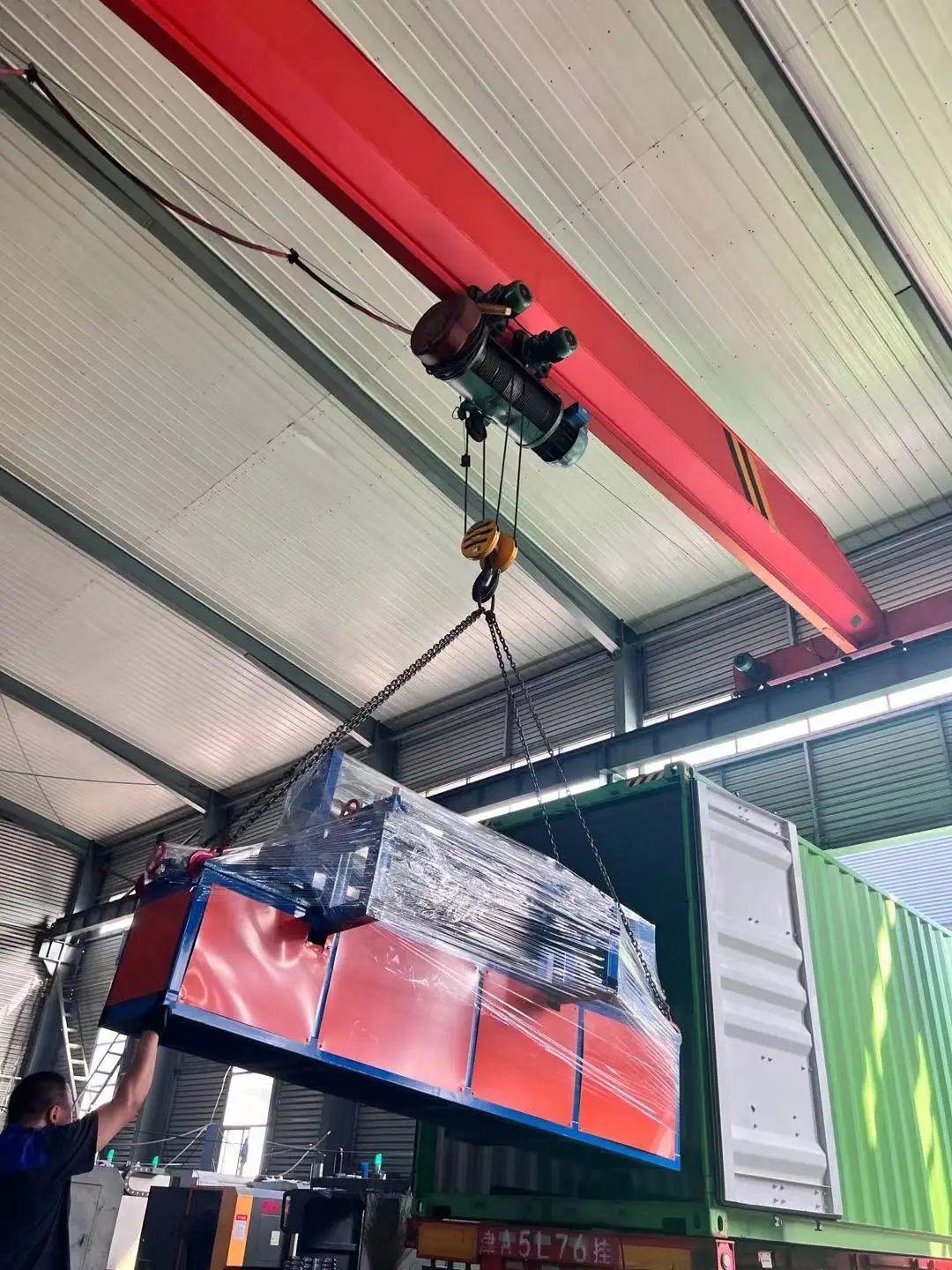

Send me an inquiry now for more discounts! !Shipping & Delivery

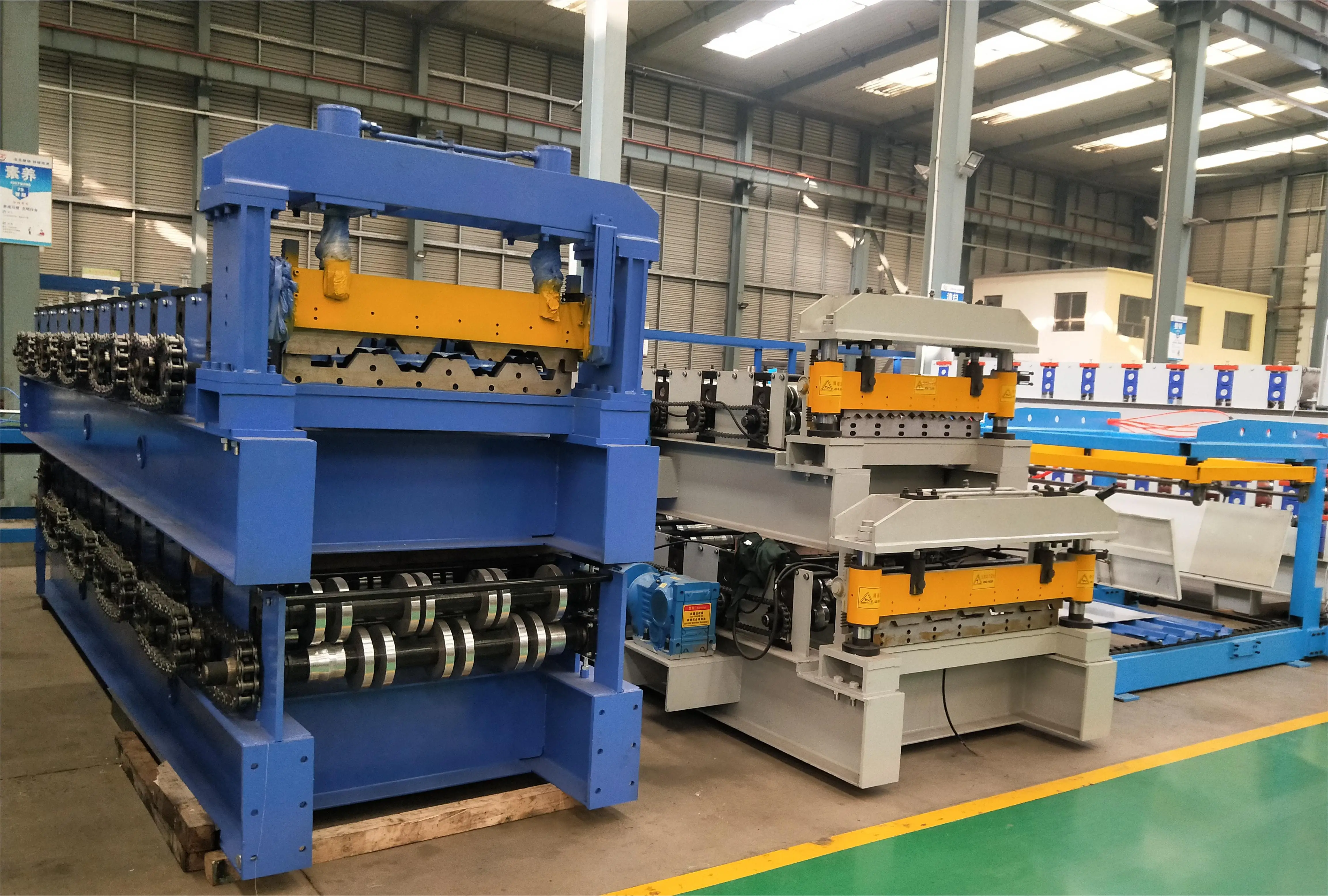

About Us
Henan Demma Electronic Equipment Co., Ltd.
Focuses on one-stop service solutions for all kinds of machinery for Roof tile, Wall tile, U profile, C profile, Z profile, L profile and ancillary machinery, such as CNC and non NC shearing machine, bending machine, slitting machine and etc.
Our factory covers an area of 8,300 square meters and has 252 employees, including 29 senior engineers and 56 technical personnel. There are 2 big workshops. The main products include Roof forming machine for IBR tiles, RIB tiles, CORRUGATE, MONTEEREY TILE, U profile, C profile, Z profile, L profile, shearing machine, bending machine, slitting machine and etc.
The structure of our company is divided into R & D department, production Department, Quality inspection Department, Business department, transportation Department, after-sales service department and finance department. We have obtained CE Certificate, ISO 9001 certification, EAC certification, FCC certification, SABER certificate and so on. Our products have been exports to more than 150 countries and regions in the world. Such as UK, Australia, India, Vietnam, Philippines, Indonesia, Japan, Russia, Kazakhstan, Saudi Arabia, Ethiopia, Zimbabwe, Pakistan and etc.
Welcome friends from all over the world to visit factory, and sincerely looking forward to cooperating with you! And we would also like you to be our local agent in your area.！
Focuses on one-stop service solutions for all kinds of machinery for Roof tile, Wall tile, U profile, C profile, Z profile, L profile and ancillary machinery, such as CNC and non NC shearing machine, bending machine, slitting machine and etc.
Our factory covers an area of 8,300 square meters and has 252 employees, including 29 senior engineers and 56 technical personnel. There are 2 big workshops. The main products include Roof forming machine for IBR tiles, RIB tiles, CORRUGATE, MONTEEREY TILE, U profile, C profile, Z profile, L profile, shearing machine, bending machine, slitting machine and etc.
The structure of our company is divided into R & D department, production Department, Quality inspection Department, Business department, transportation Department, after-sales service department and finance department. We have obtained CE Certificate, ISO 9001 certification, EAC certification, FCC certification, SABER certificate and so on. Our products have been exports to more than 150 countries and regions in the world. Such as UK, Australia, India, Vietnam, Philippines, Indonesia, Japan, Russia, Kazakhstan, Saudi Arabia, Ethiopia, Zimbabwe, Pakistan and etc.
Welcome friends from all over the world to visit factory, and sincerely looking forward to cooperating with you! And we would also like you to be our local agent in your area.！
FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories
Q2: Can I have my own customized product?
A2: Yes, your customized requirements for color, logo, design, package, carton mark, etc. are welcome
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.
Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.
Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram
Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance
Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order
