New Arrivals instrument manufacturers supply circular chart pressure recorder mechanical

Product Overview

Description

Product Features
Article No	6508
brand	Laixin
Model number	Circular chart pressure recorder
measurement accuracy	2
Order number	6508
Power Supply	24
Measuring range	0-60
Processing customization	is
Overall dimensions	25x10x3
Is it a cross-border export exclusive source of goods	no
Circular chart pressure recorder	recorder
Import or not	no
type	Circular chart pressure recorder

New Arrivals instrument manufacturers supply circular chart pressure recorder mechanical circular chart pressure recorder

  Shandong - Mining Group

  Home power   Word :180-537-99894

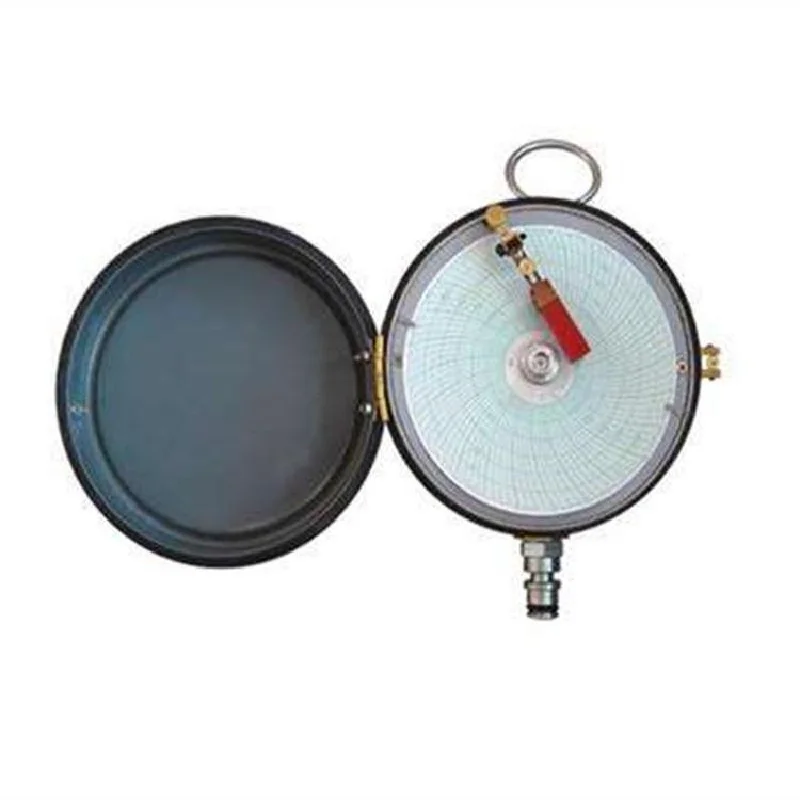

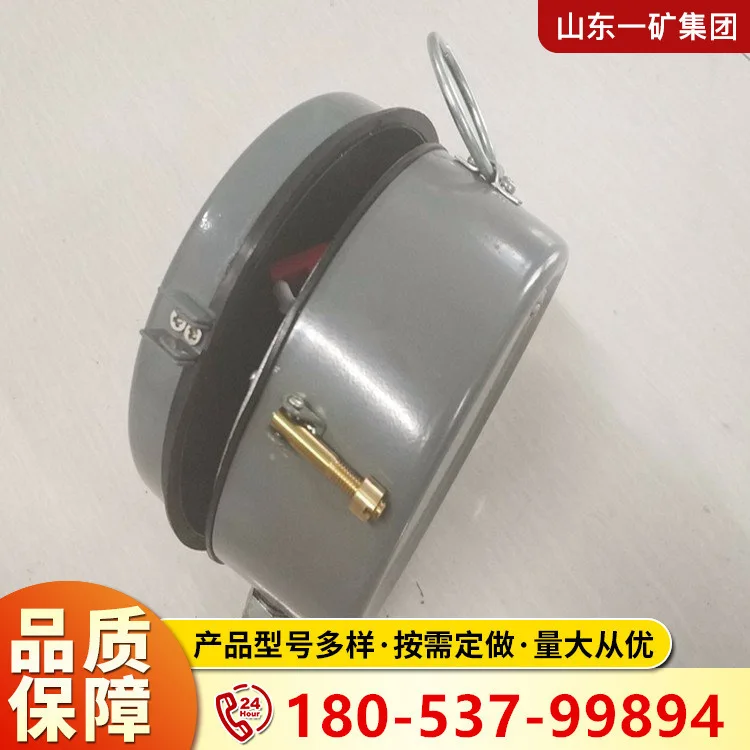

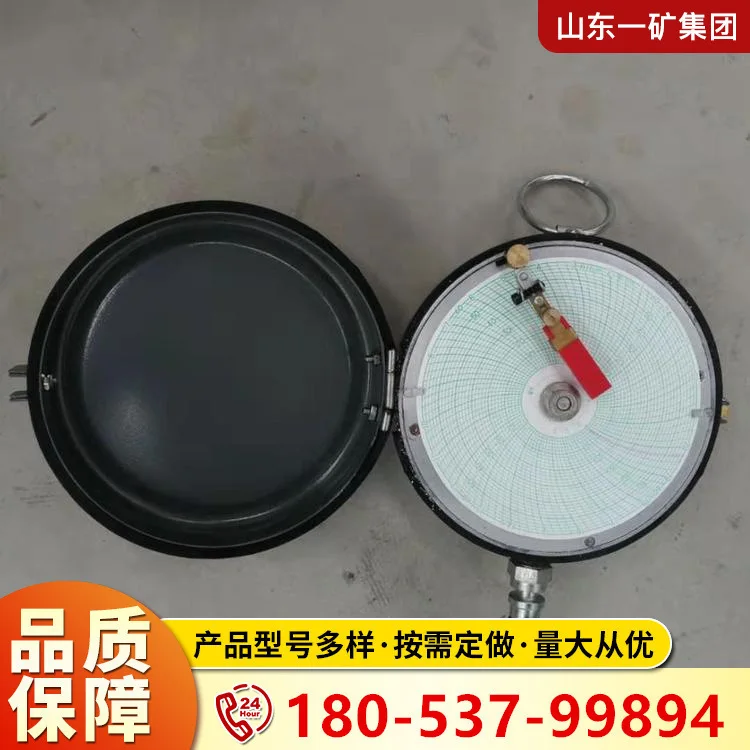

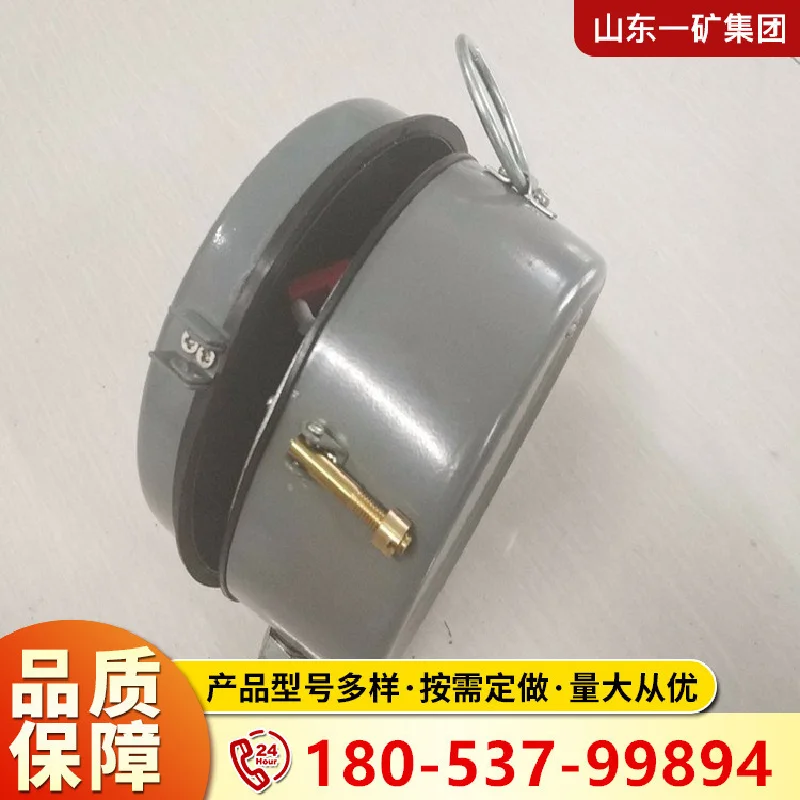

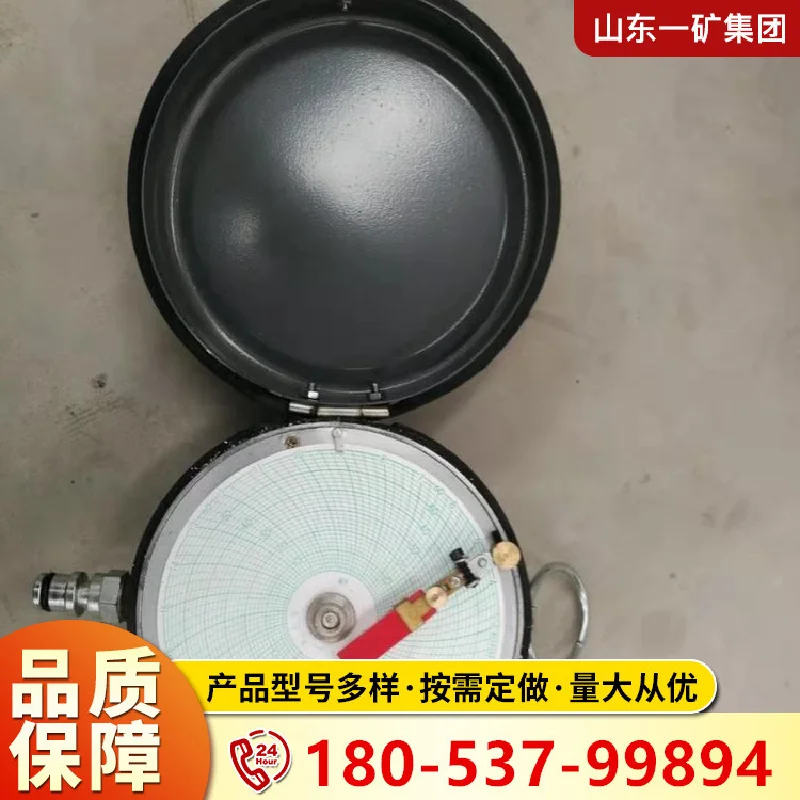

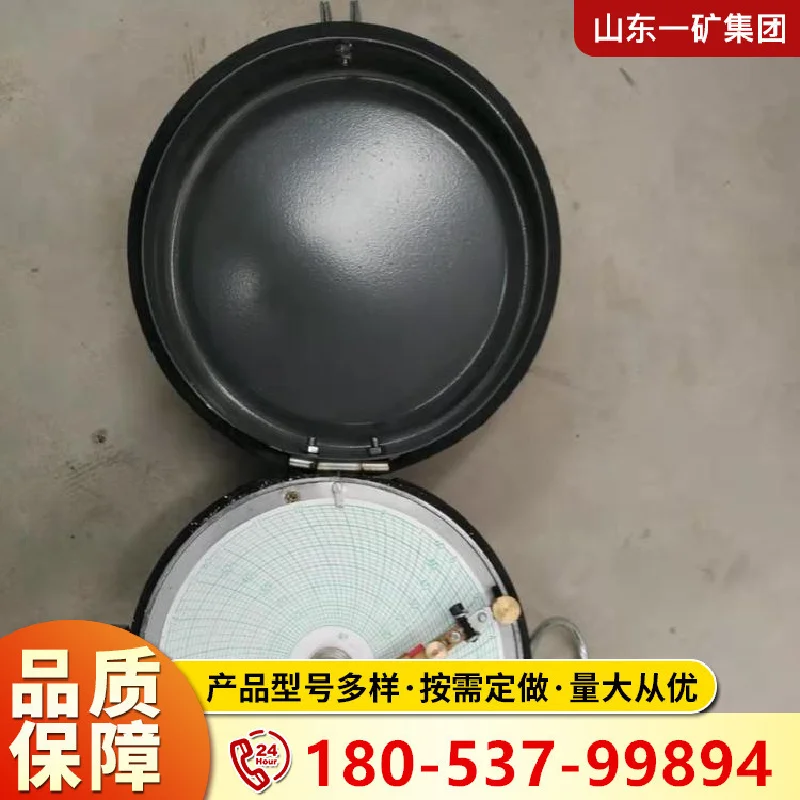

The circular chart pressure recorder is mainly used to measure and record the curve of the liquid inside the cylinder of the mine support or single liquid pressure pillar under the pressure of the roof. It is also suitable for measuring and recording the pressure of the non-corrosive fluid inside the hydraulic system. Circular chart pressure recorder can also be called fully mechanized mining support pressure circle chart recorder. To master the change of roof pressure in time and guide the support work of coal face correctly. It is also suitable for measuring and recording the pressure of non-corrosive fluids in hydraulic systems.

Use method of circular chart pressure recorder:

1\\ Instrument has been debugged before leaving the factory, shall not be disassembled at will

2\\ Keep the meter clean

3\\ Round drawing pressing mechanism adopts left screw thread

4\\ The drawing pen holder is pressed by eccentric mechanism, and the eccentric handle is lifted before replacing the round drawing

5\\ Press the record paper down with a press block

6. Gently press the test pen onto the recording paper

7\\ will record the structure of the clockwork rotation
