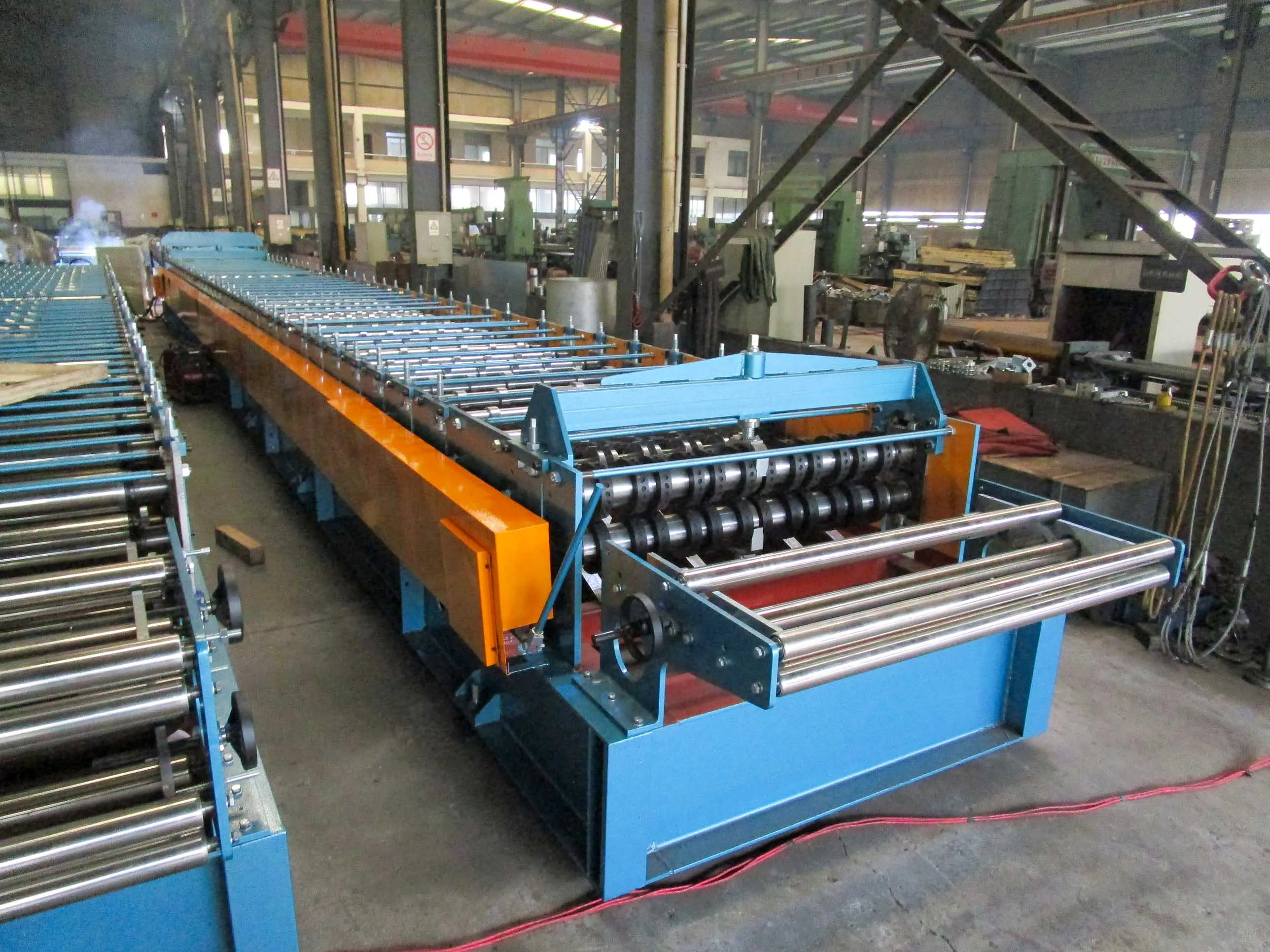

Galvanized Floor deck forming machine roll forming machine
- Category: >>>
- Supplier: Hangzhou Zhongyuan Machinery FactoryHangzhou Factory
Share on (1600818178203):
Product Overview
Description

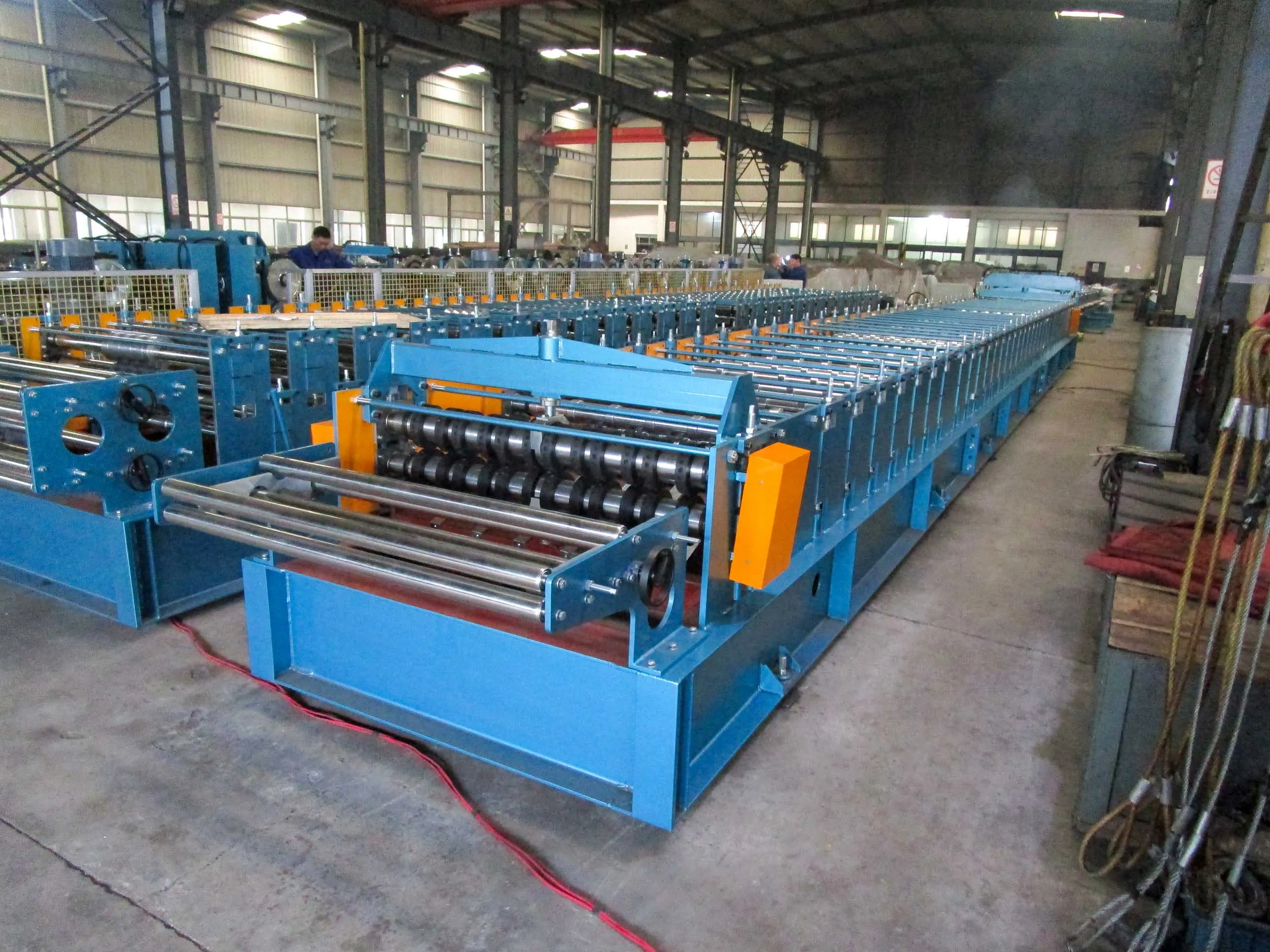

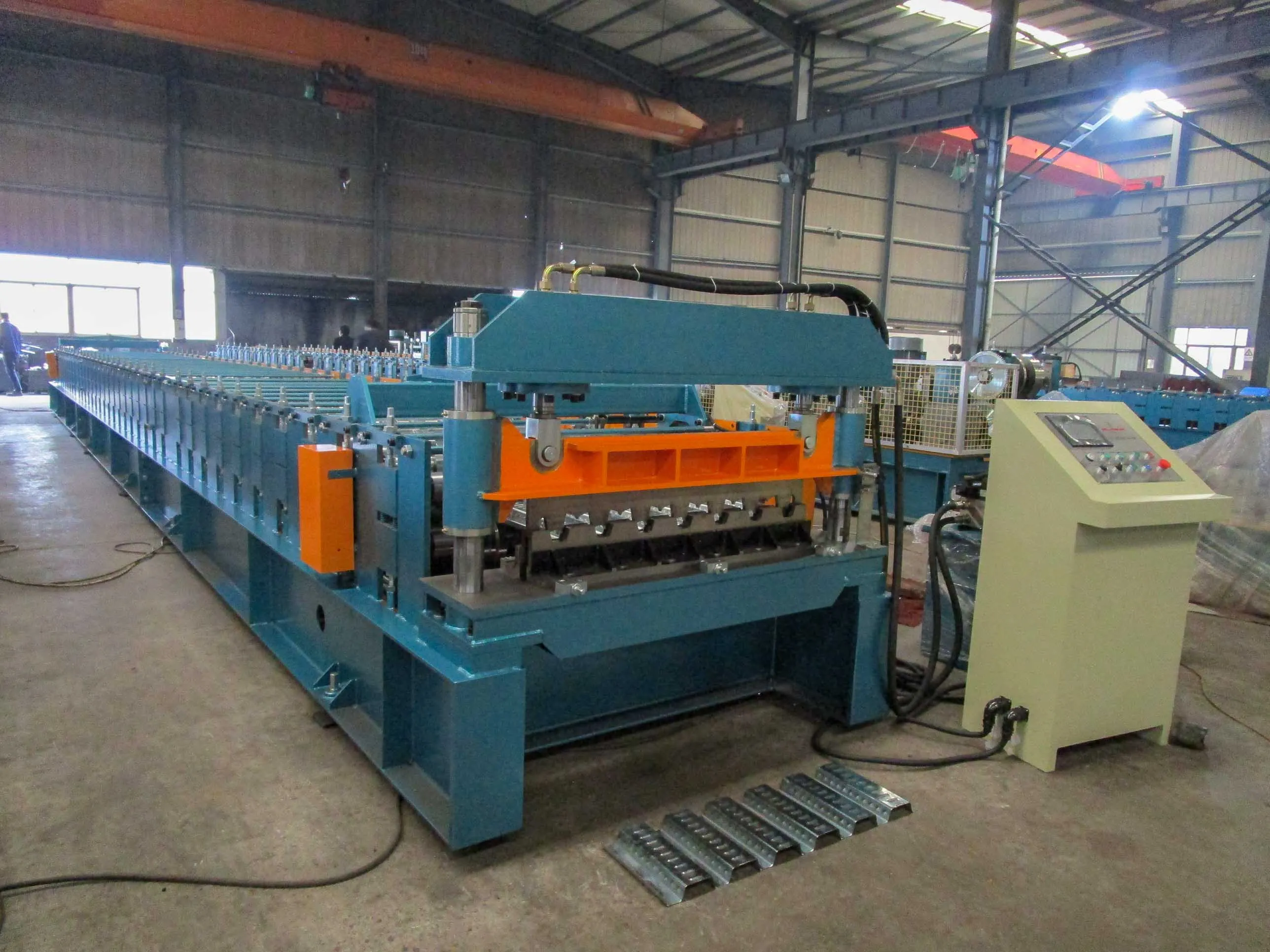

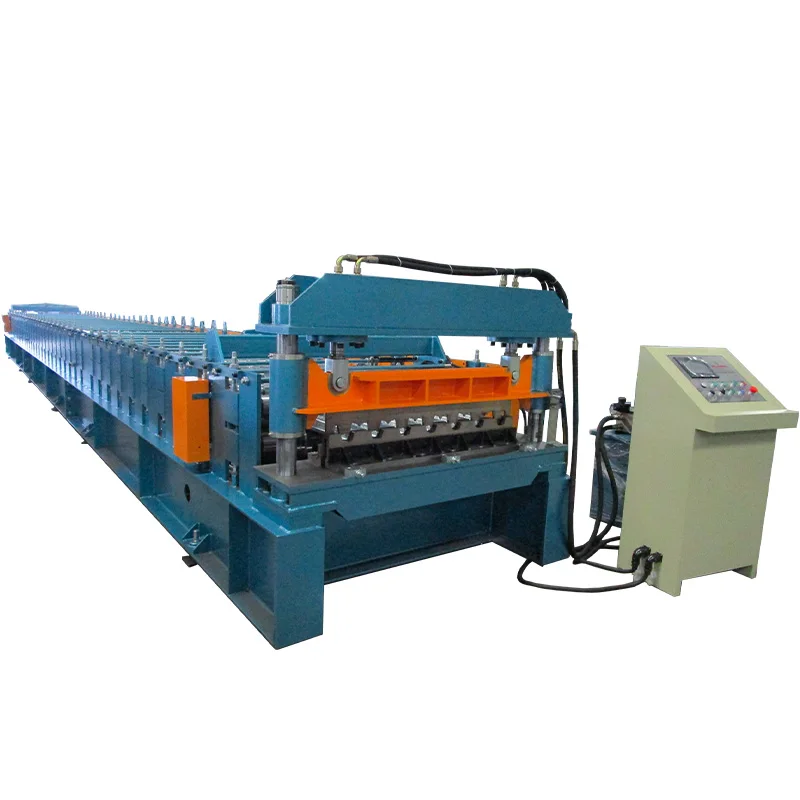

Building Material Galvanized Metal Floor Deck Sheet Roll Forming Machine For Sale
Building Material Production Metal Floor Decking Sheet Roll Forming Machine | ||
| Iterm | Specification | |
| Material | Type | Color steel sheet or galvanized steel sheet |
| Thickness(mm) | 0. 8 -1.2 | |
| Yield strength(mpa) | 235 -345 | |
| Roller material | 45#Chrome steel | |
| Forming speed(m/min) | Max 20m/min | |
| Speed adjusting mode | AC Frequency | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 Mov mold steel, quenched treatment | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power(kw) | 11*2KW (Depend on final design) | |
| Hydraulic station power | 5.5K W (Depend on final design) | |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) | |
| Machine`s size | About 16*1.9*1.6m (Depend on final design) | |
| Machine weight | About 18000kgs | |
| Components of machine: | ||
| Decoiler | 1set | |
| Feeding & guiding device | 1set | |
| Pressing system | 1set | |
| Main roll forming machine | 1set | |
| Cutting device | 1set | |
| Hydraulic cutting system | 1set | |
| PLC Controlling system | 1set | |
| Run out table | 1set | |
product description
Why choose this machine?
1. Designed by 15 years experienced R&D members with lifetime services
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. Need only one worker (minimum) to operate

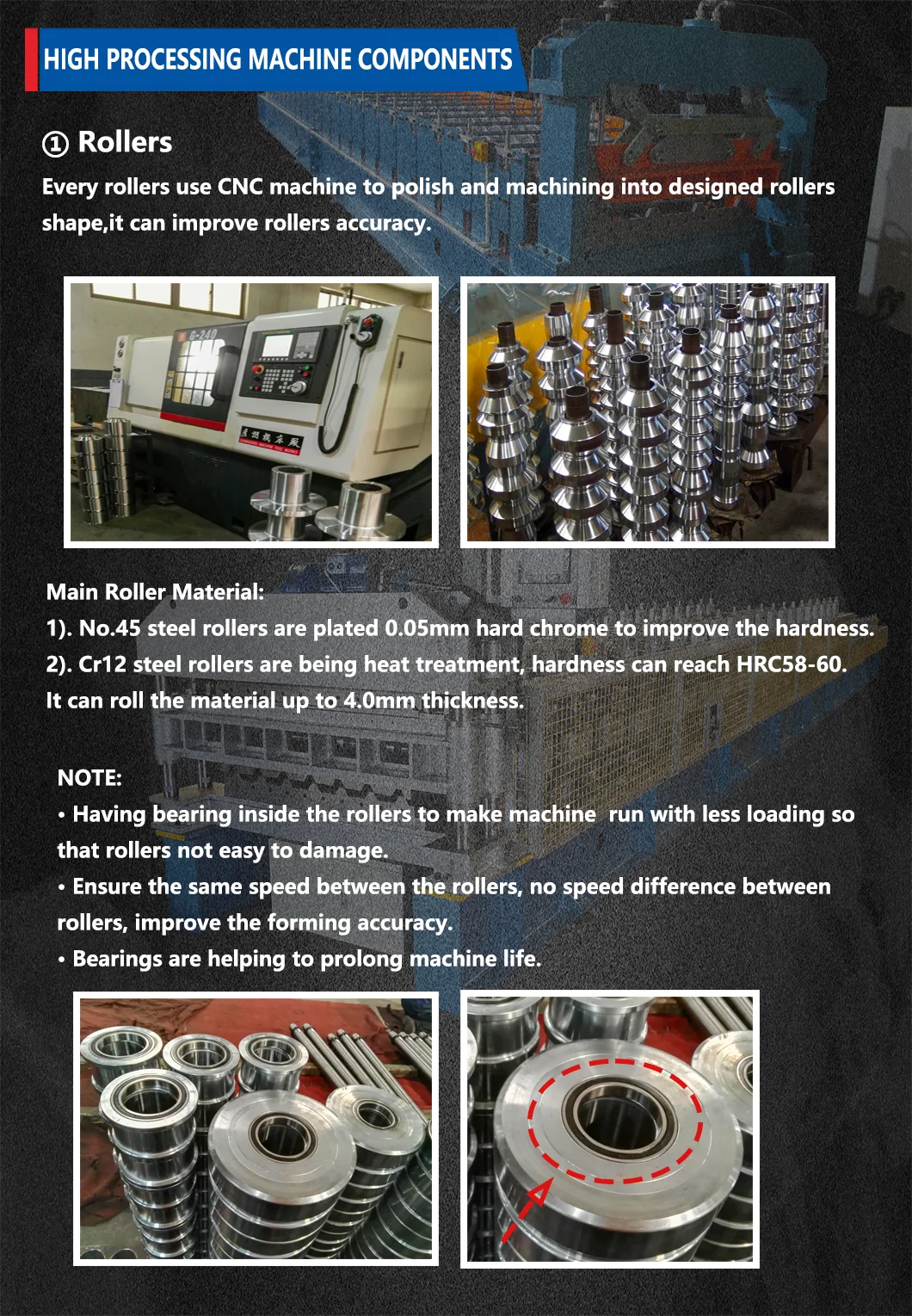

4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.

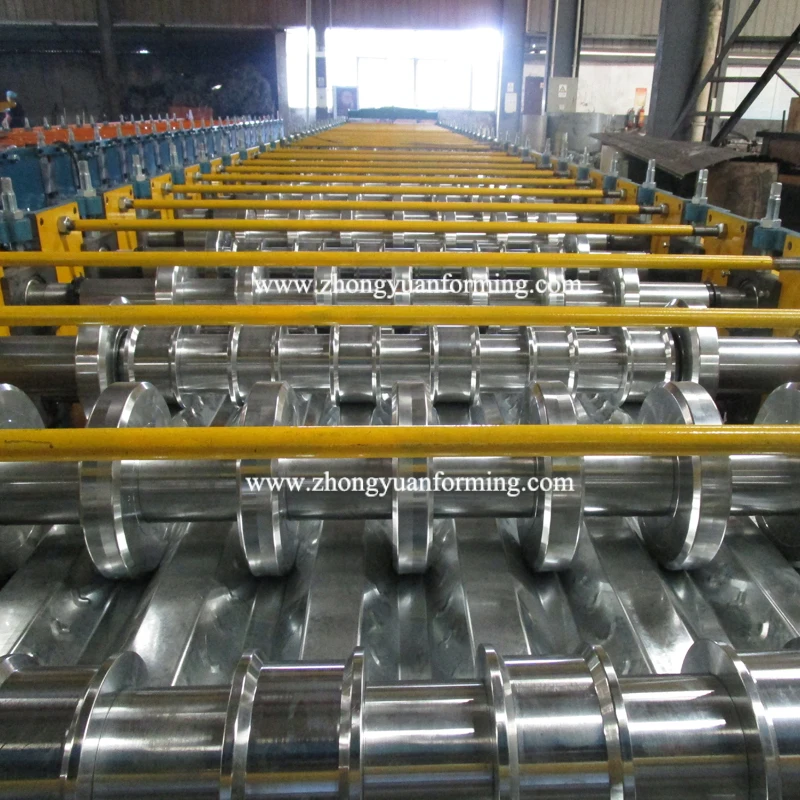

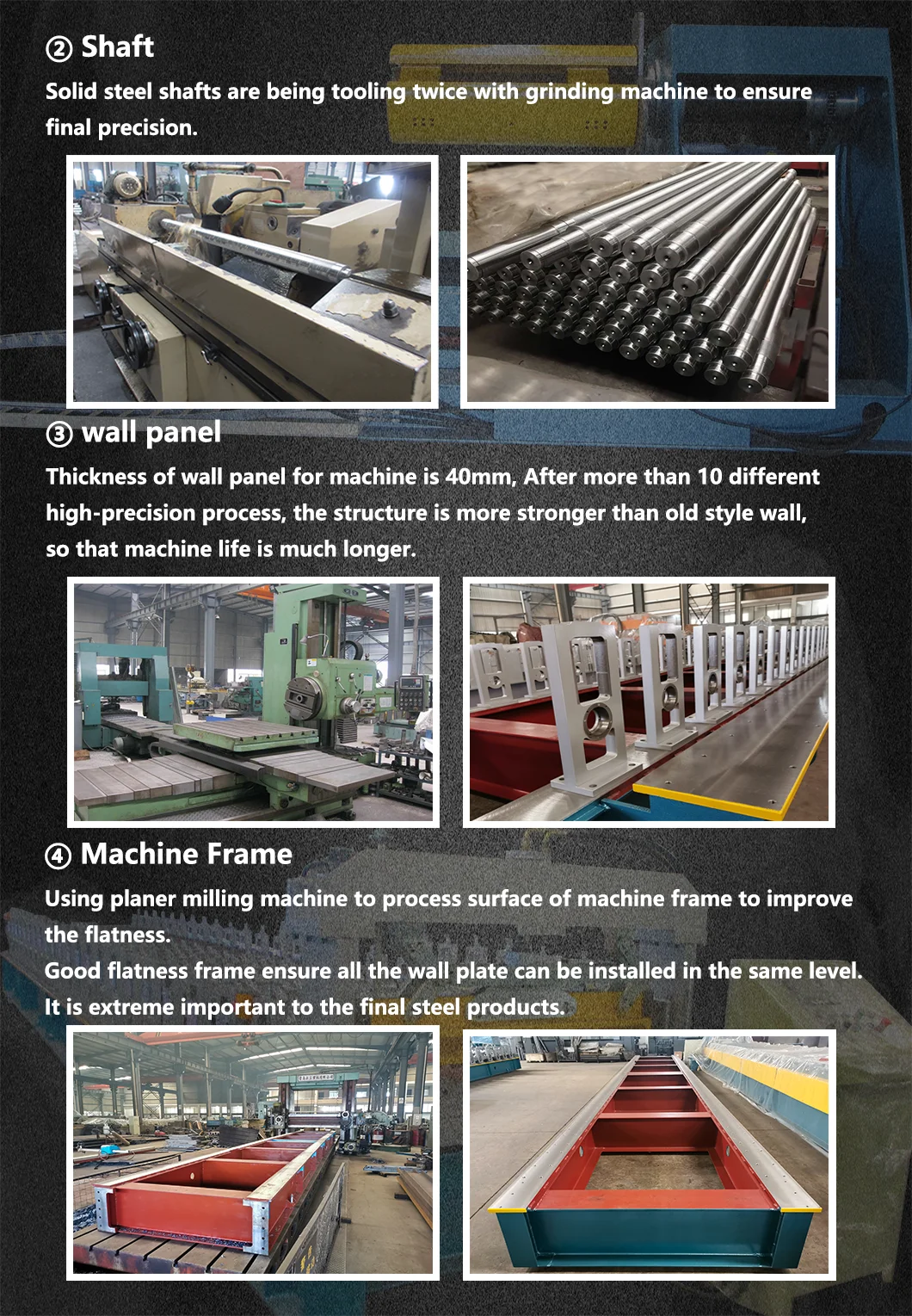

7. 82mm diameter solid steel shaft
Related Products

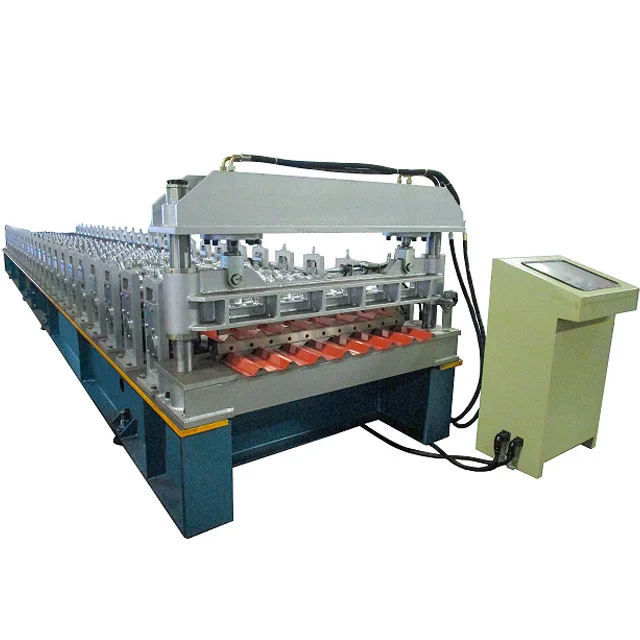

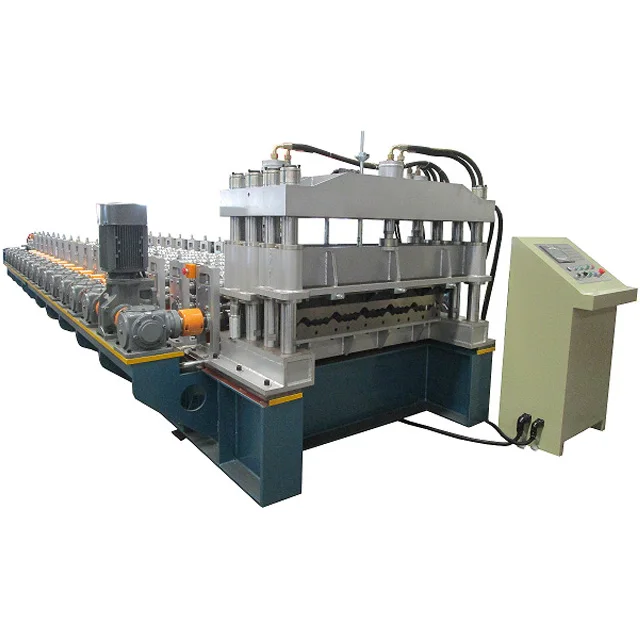

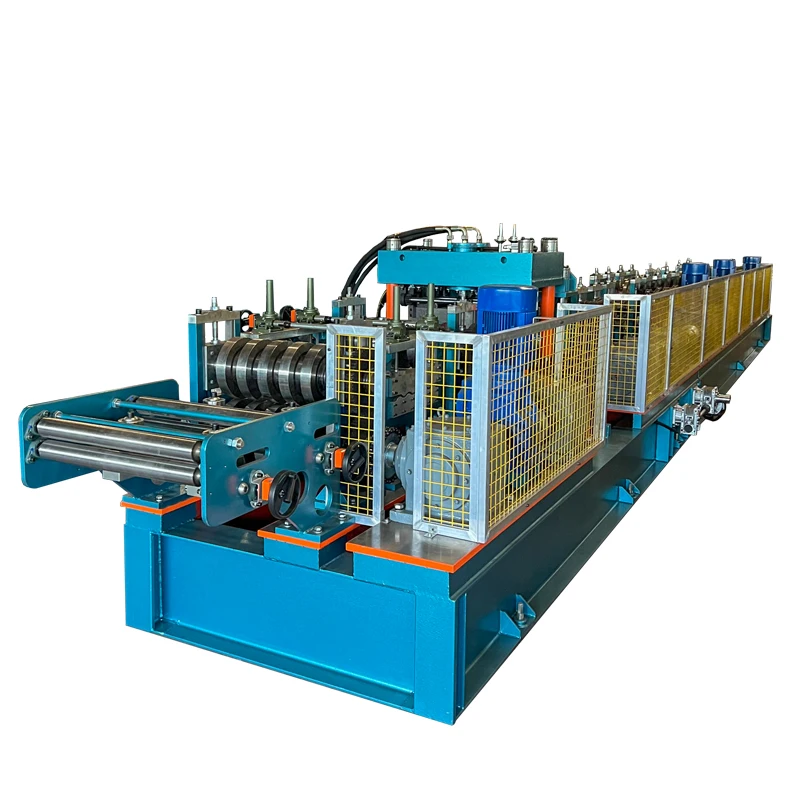

Roof roll forming machine Tile roll forming machine Purlin roll forming mahcine

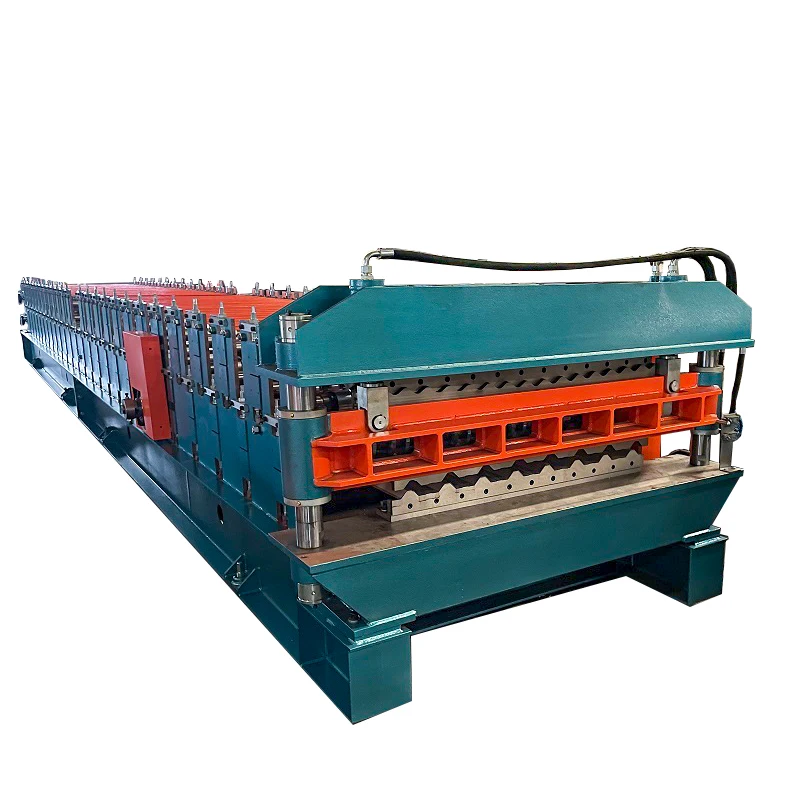

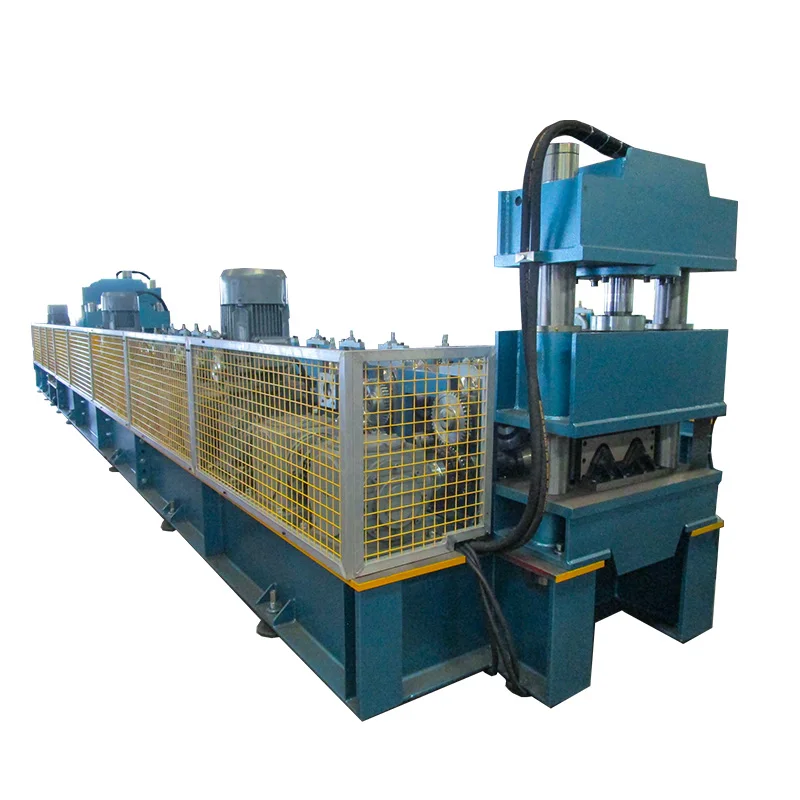

Deck roll forming machine Guardrail roll forming machine Double layer machine

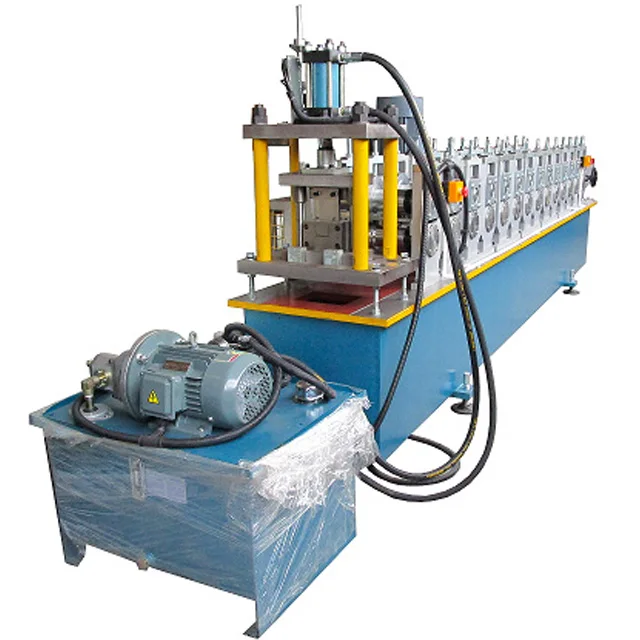

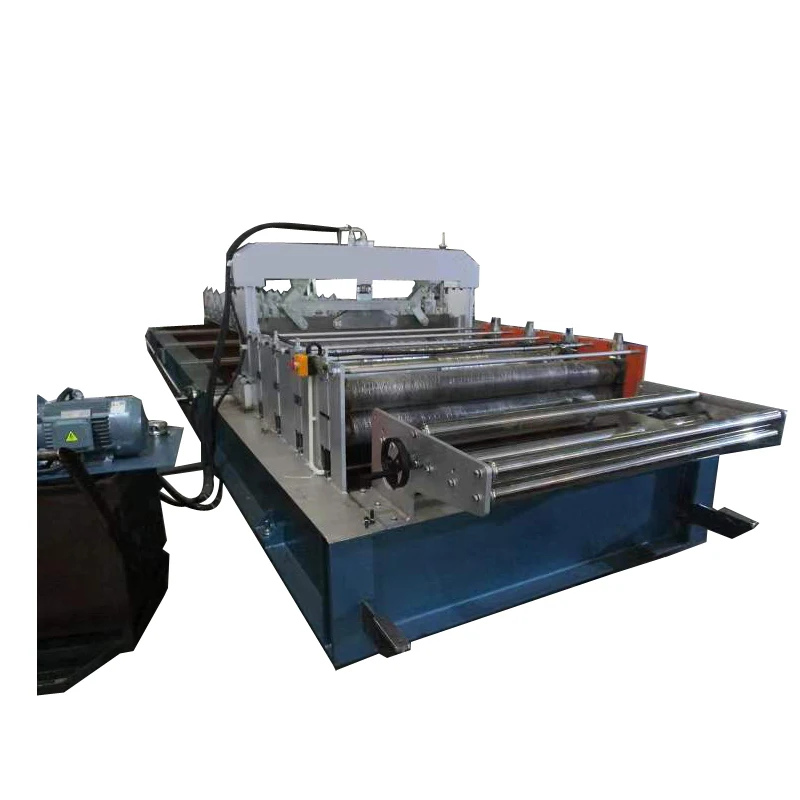

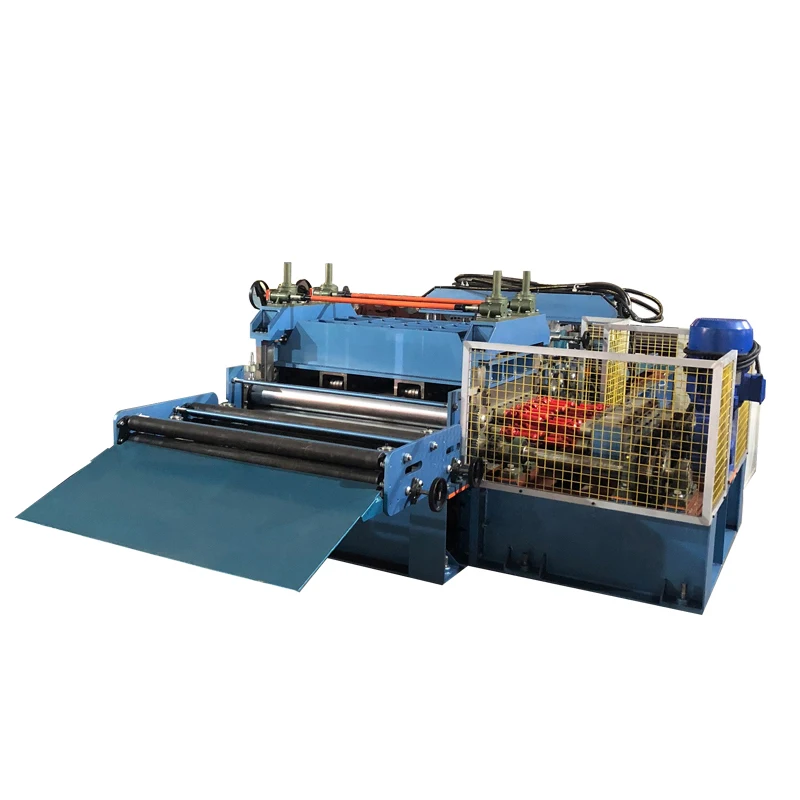

Line roll forming machine Cut to length Stud and track roll forming machine
3.Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table
Company

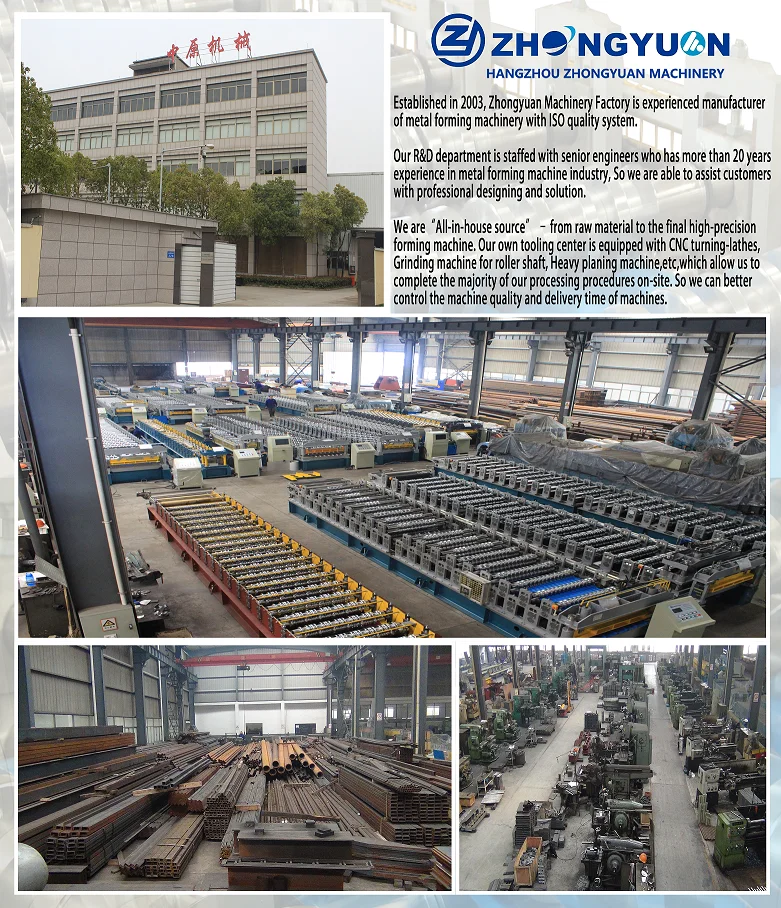

Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution.

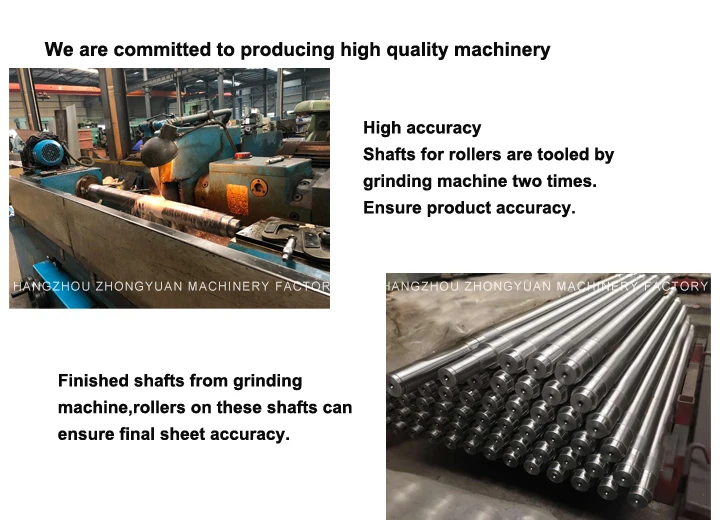

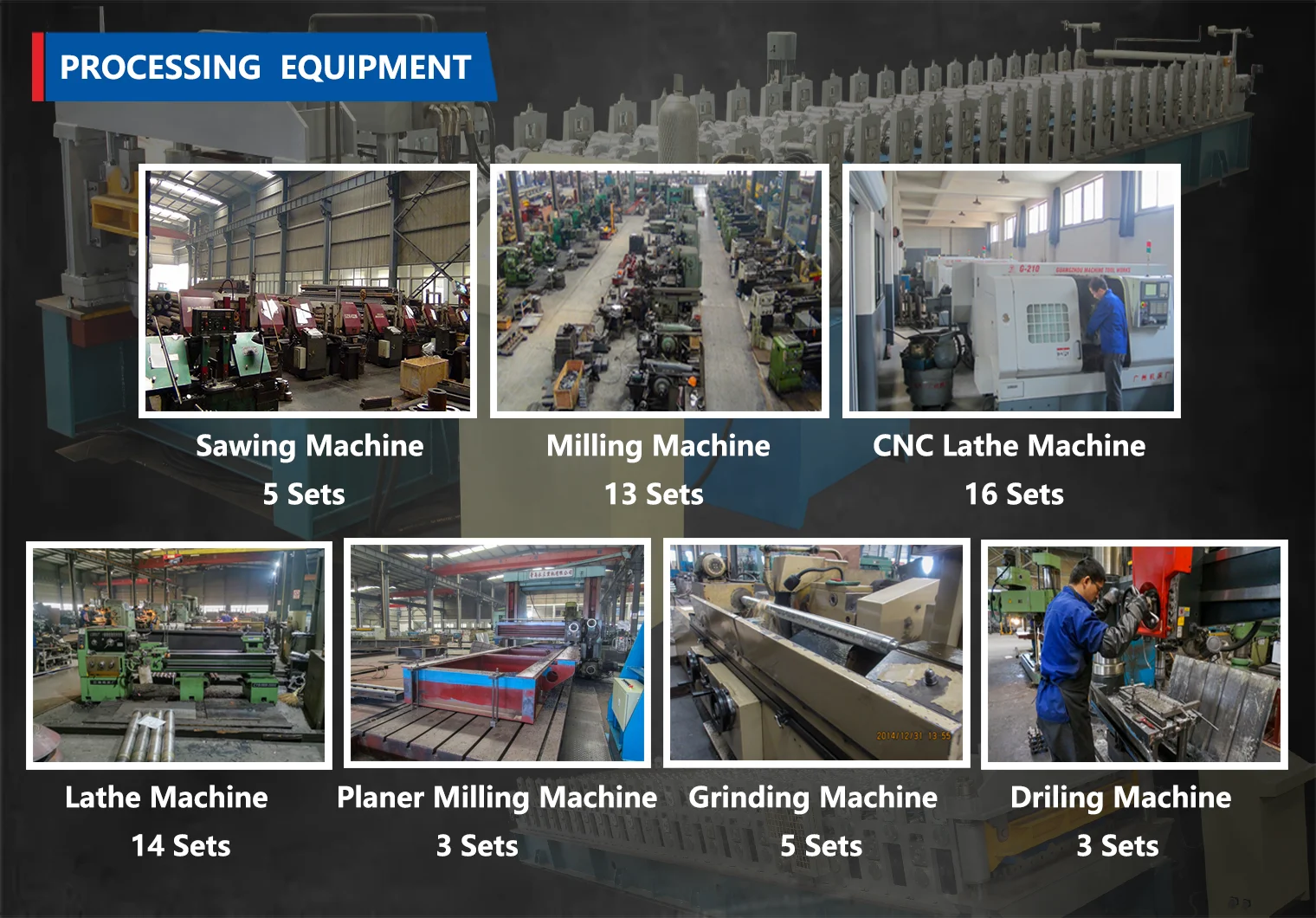

We are“All-in-house source” – from raw material to the final high-precision forming machine. Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine,etc,which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines.

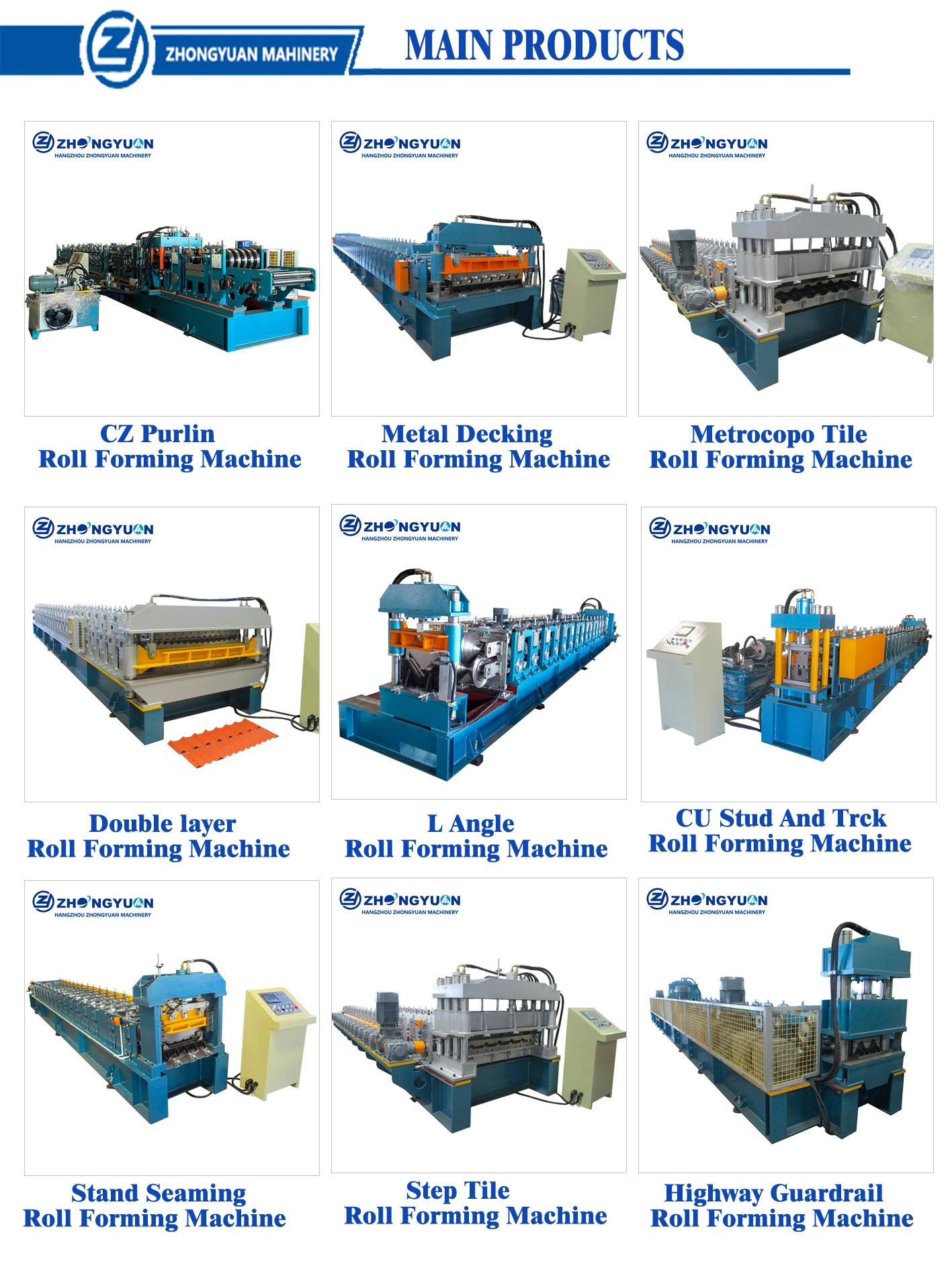

Our range of products: sandwich panel production line, roof tile forming machine, cladding forming machine, metal decking forming machines,etc. We also can supply steel coils,EPS sandwich panels,PU sandwich panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Russia, Azerbaijan and Kazakhstan.
We have rich experience for metal forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines.
Packaging & Shipping
PACKAGE:
1. need about 1*20gp&1*40gp container for loading one set machine completely;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
DELIVERY TIME:
within 60 days after getting advance payment.
