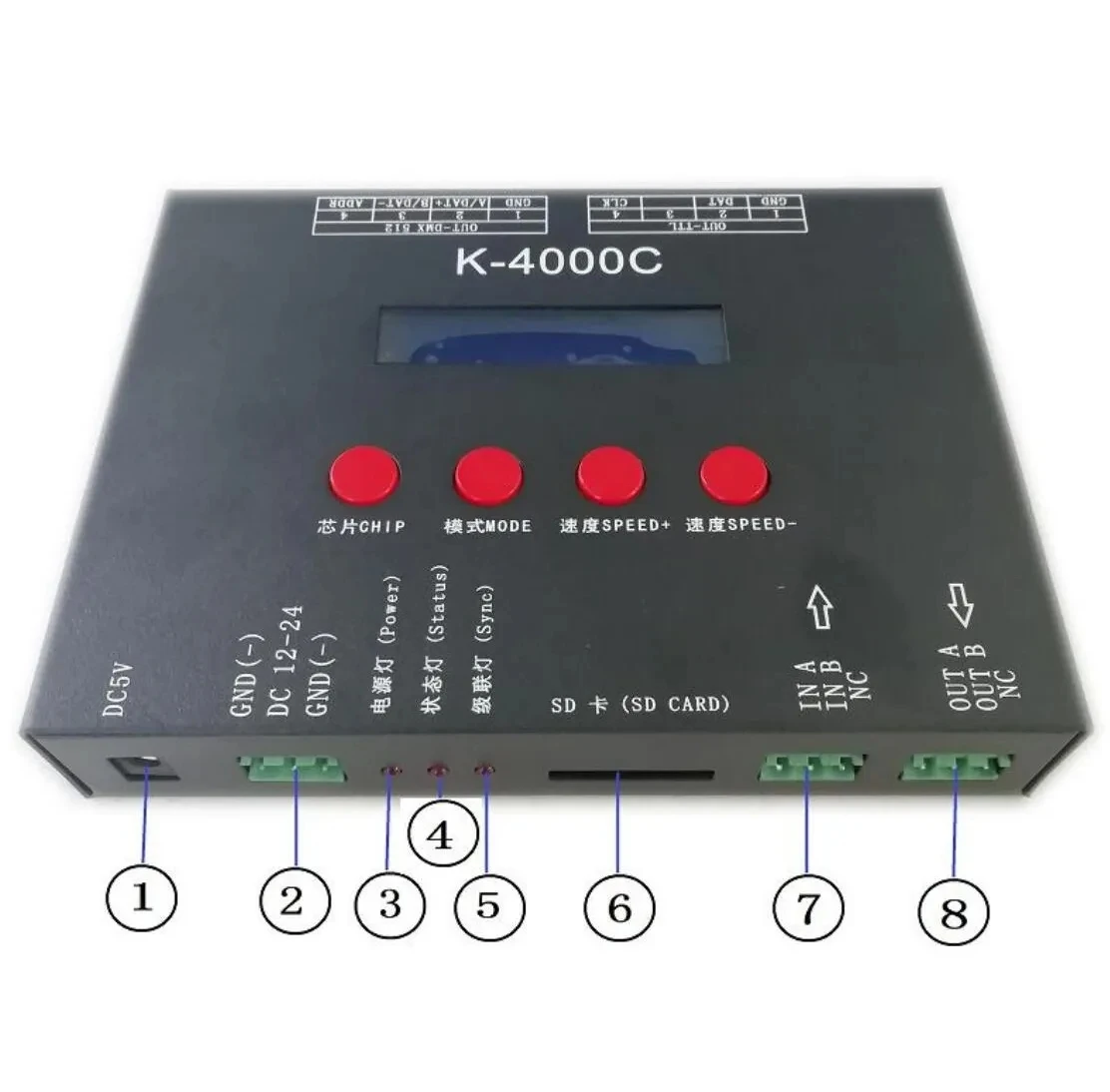

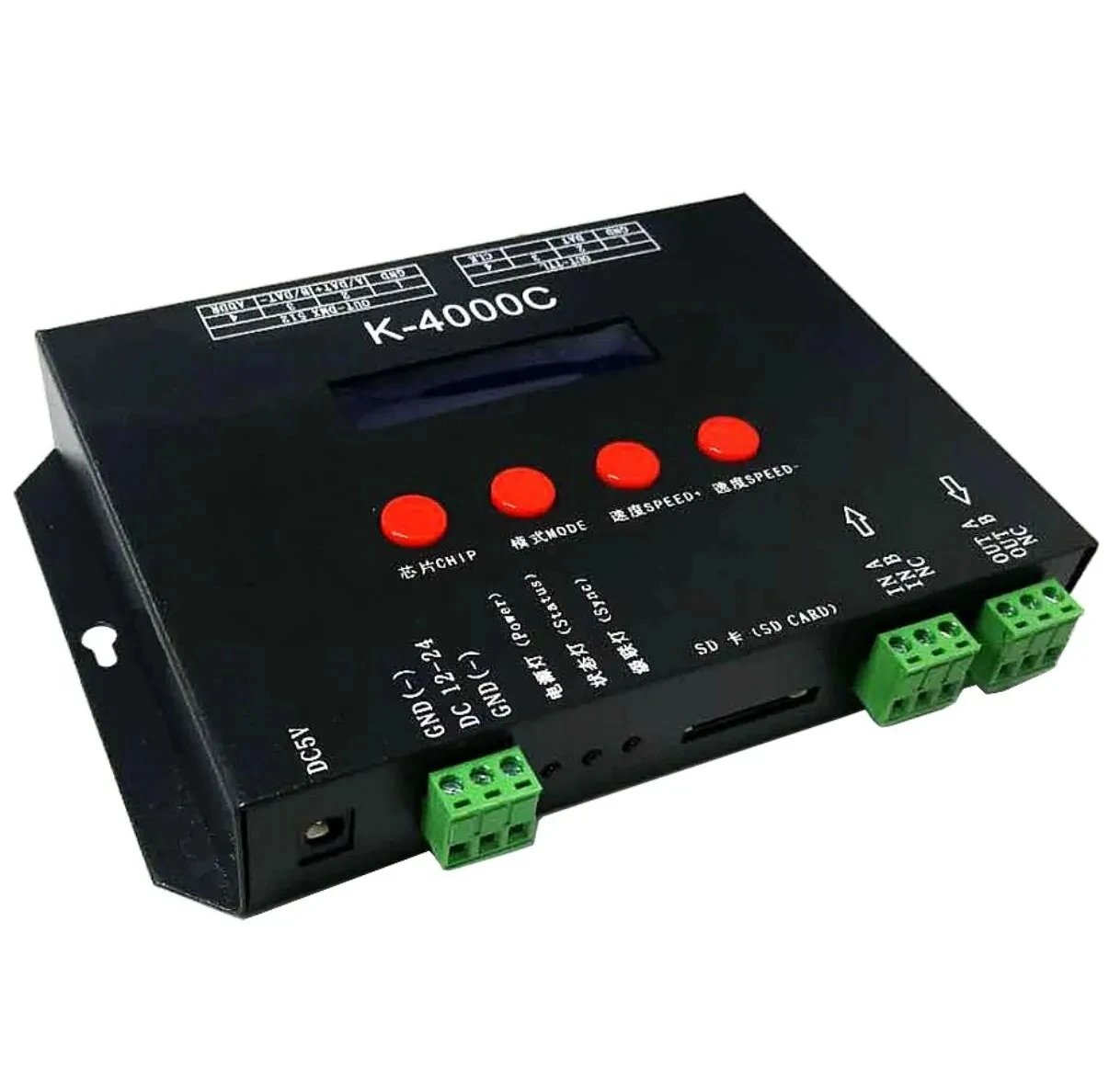

K 4000C SD Card Pixel LED Controller Original ws2812 , SPI/DMX DC5V/DC12 24V programmable dmx led light controller
- Category: >>>
- Supplier: Shenzhen Scott Electronics And Technology Co. Ltd.
Share on (1600818869699):
Product Overview
Description
Product Description
Specification
1,32 to 65536 grade gray control, software Gamma correction processing.
2,Supports various point, line and area light sources, supports various rules, and special-shaped processing.
3,The controller has four output ports, each port can support a maximum of 512/1024 pixels (the maximum 512 pixels of
the DMX luminaire is exemplified by three channels).
4,The playback content is stored in the SD card, which can store up to 32 effect files.2,Supports various point, line and area light sources, supports various rules, and special-shaped processing.
3,The controller has four output ports, each port can support a maximum of 512/1024 pixels (the maximum 512 pixels of
the DMX luminaire is exemplified by three channels).
The SD card capacity supports 128MB-32GB.

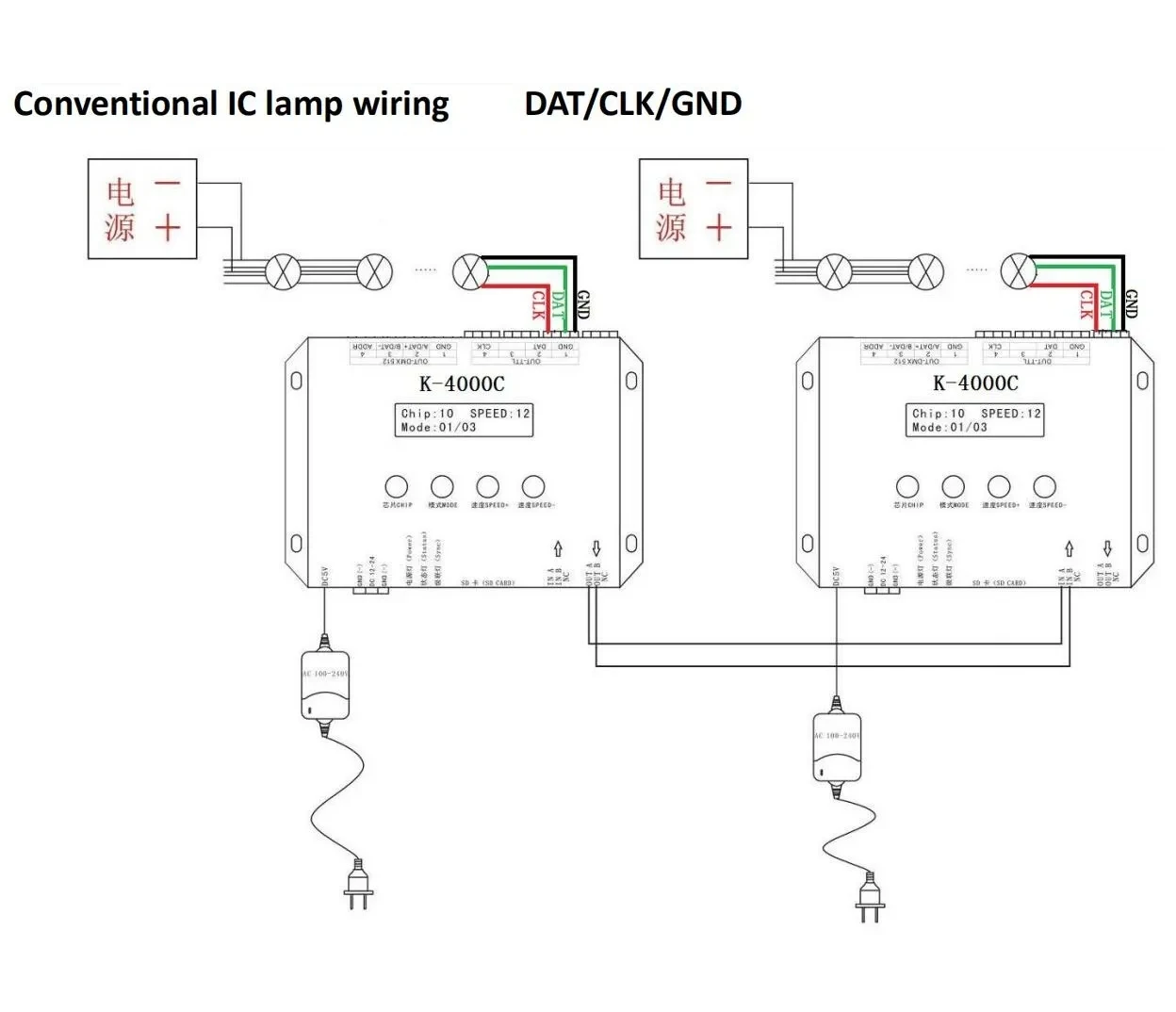

5 , The controller can be used in a single unit or in multiple cascades. The cascade uses photoelectric isolation:
anti-interference and better stability.
The cascade distance between the two units can reach 150 meters, and 0.5 square meters of pure copper power cord is needed.
6,The controller with the loaded chip can lock the loaded IC in the software or not. By adjusting the controller's chip button to select the loaded IC, this scheme is more flexible and convenient.
5 , The controller can be used in a single unit or in multiple cascades. The cascade uses photoelectric isolation:
anti-interference and better stability.
The cascade distance between the two units can reach 150 meters, and 0.5 square meters of pure copper power cord is needed.
6,The controller with the loaded chip can lock the loaded IC in the software or not. By adjusting the controller's chip button to select the loaded IC, this scheme is more flexible and convenient.
7,The IC controller for DMX luminaires comes with a write address function; in addition, with our 2016 LedEdit-K V3.26 or higher software, one-click address function can be set.
8,Supports on-board luminaires with 4 channel (RGBW) pixels or split into single channel point pixels.

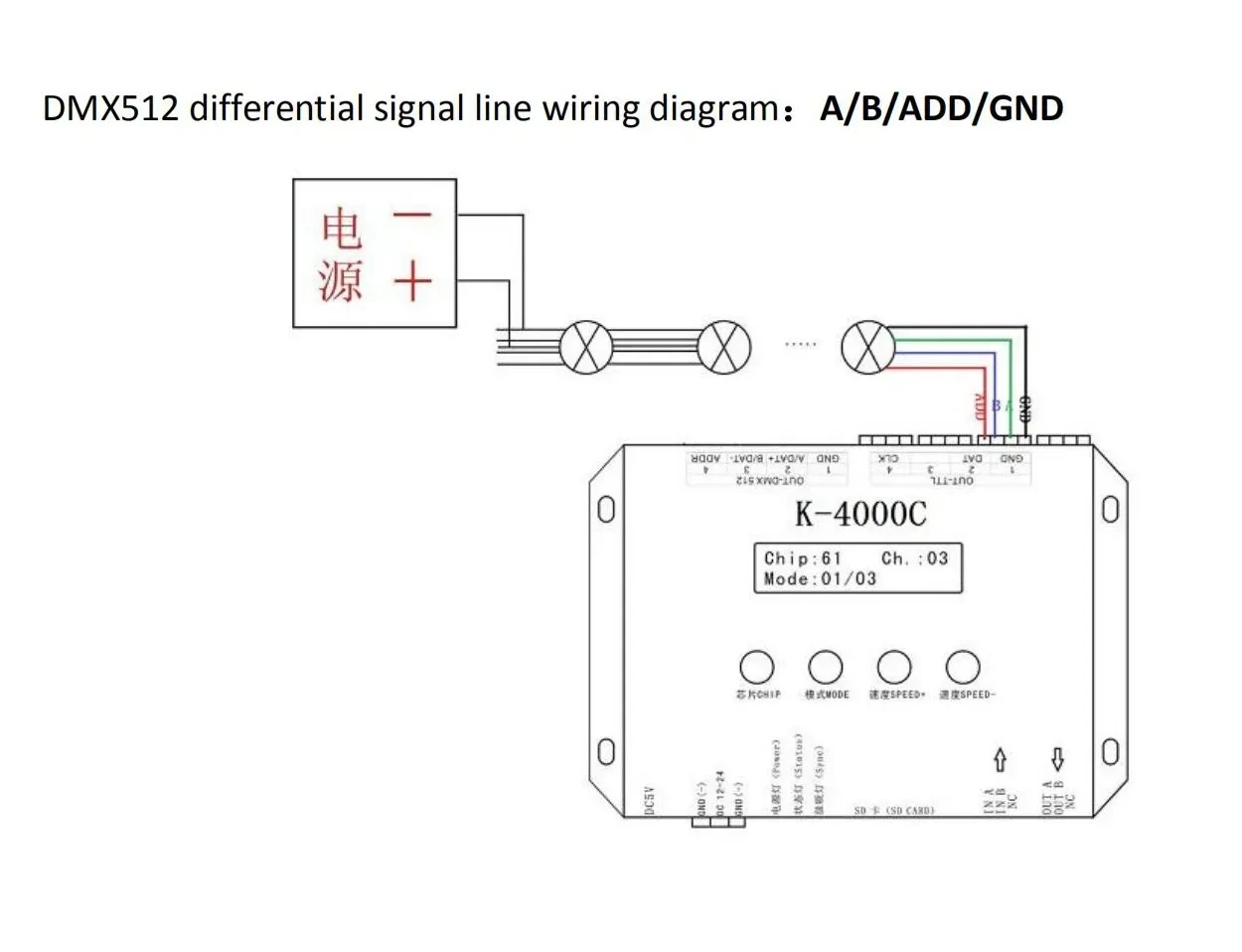

9,Enhanced TTL and 485 differential (DMX) signal output.
10,The controller comes with 22 test effects and comes with DMX512 test function.
8,Supports on-board luminaires with 4 channel (RGBW) pixels or split into single channel point pixels.
9,Enhanced TTL and 485 differential (DMX) signal output.
10,The controller comes with 22 test effects and comes with DMX512 test function.
NOTE
1. The controller carries 512 pixels of light, the speed can reach 30 frames/second, the speed of 1024 pixels can reach 25
frames/second, and the speed of 1024 pixels is about 22 frames/second (the above parameters are based on the 1903 protocol IC DATE, there will be differences between different IC).
2. The international standard DMX512 (1990 protocol) has a maximum load of 512 pixels. When the load is 170pixels of the international standard, the speed can reach 30 frames/second, the speed of 340 points is about 20 frames/second, and the speed of 512 pixels is about 12 frames/second.
3. When timing (holiday) playback, Beidou wireless synchronization, console channel distributor, please contact sales staff or technical support for details.

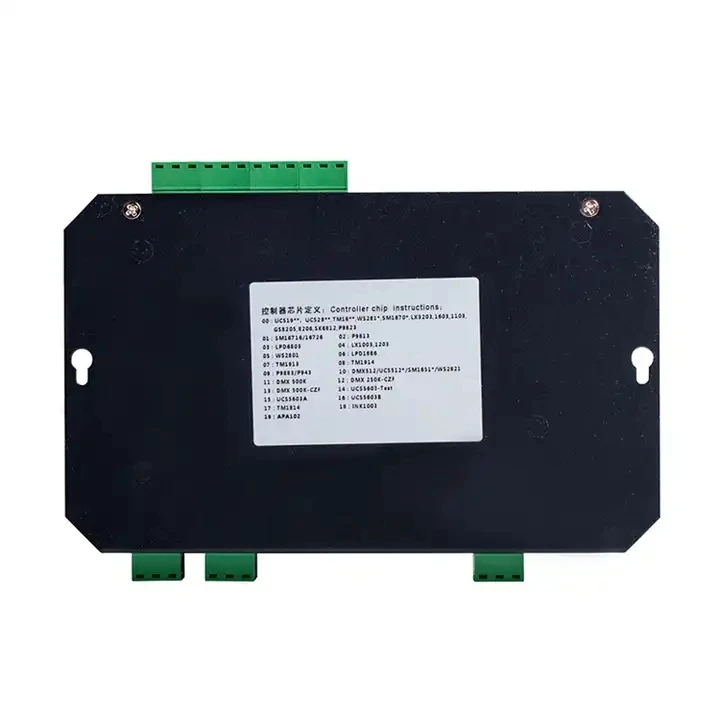

Support chips(PC Software Select K-4000-RGB)
00: UCS19**,UCS29**,TM18*,SM167**,WS28**,GS82**,SK6812(Support max.1024*4=4096 pixels)
01:SM16716,16726(Support max.1024*4=4096 pixels)
02:P9813(Support max.1024*4=4096 pixels)
03:LPD6803(Support max.1024*4=4096 pixels)
04:LX1003,1203(Support max.1024*4=4096 pixels)
05:WS2801(Support max.1024*4=4096 pixels)
06:LPD1886(Support max.1024*4=4096 pixels)
07:TM1913(Support max.1024*4=4096 pixels)
08:TM1914(Support max.1024*4=4096 pixels)
09:P9883,P9823(Support max.1024*4=4096 pixels)
10:DMX(Support max. 512*4=2048 pixels,suggest to support ≤320*4=1280 pixels)
11:DMX 500K(Support max. 512*4=2048 pixels,suggest to support ≤320*4=1280 pixels)
12:DMX 250K-CZF(Support max. 512*4=2048 pixels,suggest to support ≤320*4=1280 pixels)
13:DMX 500K-CZF(Support max. 512*4=2048 pixels,suggest to support ≤320*4=1280 pixels)
14:UCS5603-Test(Support max.1024*4=4096 pixels)
15:UCS5603A(Support max. 1024*4=4096 pixels)
16:UCS5603B(Support max. 1024*4=4096 pixels)
17 : TM1814 ( Support max. 1024*4=4096 pixels )
18 : INK1003 ( Support max. 1024*4=4096 pixels)
19:APA102(Support max. 1024*4=4096 pixels)
20:UCS8904(Support max. 1024*4=4096 pixels)
21:SM16714(Support max. 1024*4=4096 pixels)
22:SM16813(Support max. 1024*4=4096 pixels)
23:GS8512(Support max. 512*4=2048 pixels,suggest to support ≤320 pixels *4=1280)
frames/second, and the speed of 1024 pixels is about 22 frames/second (the above parameters are based on the 1903 protocol IC DATE, there will be differences between different IC).
2. The international standard DMX512 (1990 protocol) has a maximum load of 512 pixels. When the load is 170pixels of the international standard, the speed can reach 30 frames/second, the speed of 340 points is about 20 frames/second, and the speed of 512 pixels is about 12 frames/second.
3. When timing (holiday) playback, Beidou wireless synchronization, console channel distributor, please contact sales staff or technical support for details.
Support chips(PC Software Select K-4000-RGB)
00: UCS19**,UCS29**,TM18*,SM167**,WS28**,GS82**,SK6812(Support max.1024*4=4096 pixels)
01:SM16716,16726(Support max.1024*4=4096 pixels)
02:P9813(Support max.1024*4=4096 pixels)
03:LPD6803(Support max.1024*4=4096 pixels)
04:LX1003,1203(Support max.1024*4=4096 pixels)
05:WS2801(Support max.1024*4=4096 pixels)
06:LPD1886(Support max.1024*4=4096 pixels)
07:TM1913(Support max.1024*4=4096 pixels)
08:TM1914(Support max.1024*4=4096 pixels)
09:P9883,P9823(Support max.1024*4=4096 pixels)
10:DMX(Support max. 512*4=2048 pixels,suggest to support ≤320*4=1280 pixels)
11:DMX 500K(Support max. 512*4=2048 pixels,suggest to support ≤320*4=1280 pixels)
12:DMX 250K-CZF(Support max. 512*4=2048 pixels,suggest to support ≤320*4=1280 pixels)
13:DMX 500K-CZF(Support max. 512*4=2048 pixels,suggest to support ≤320*4=1280 pixels)
14:UCS5603-Test(Support max.1024*4=4096 pixels)
15:UCS5603A(Support max. 1024*4=4096 pixels)
16:UCS5603B(Support max. 1024*4=4096 pixels)
17 : TM1814 ( Support max. 1024*4=4096 pixels )
18 : INK1003 ( Support max. 1024*4=4096 pixels)
19:APA102(Support max. 1024*4=4096 pixels)
20:UCS8904(Support max. 1024*4=4096 pixels)
21:SM16714(Support max. 1024*4=4096 pixels)
22:SM16813(Support max. 1024*4=4096 pixels)
23:GS8512(Support max. 512*4=2048 pixels,suggest to support ≤320 pixels *4=1280)
