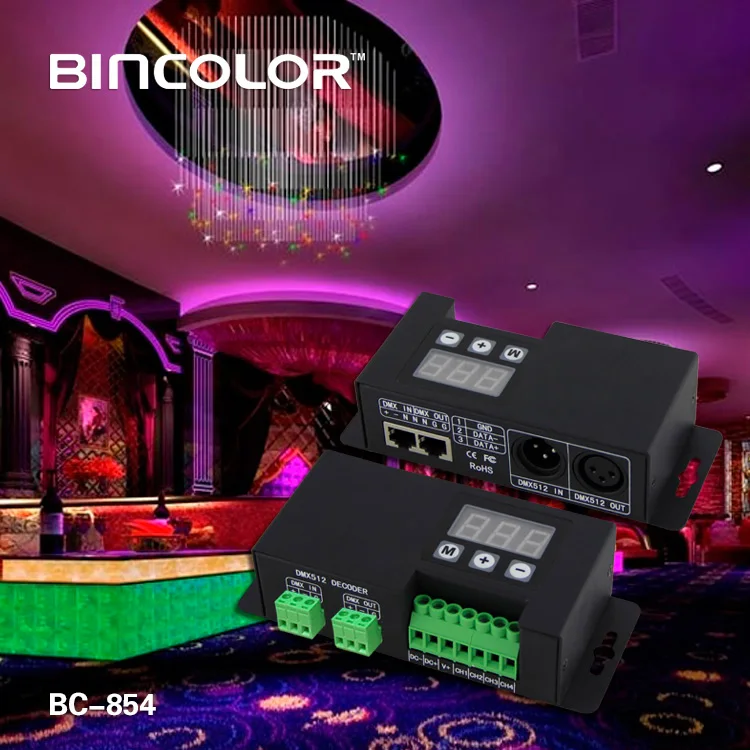

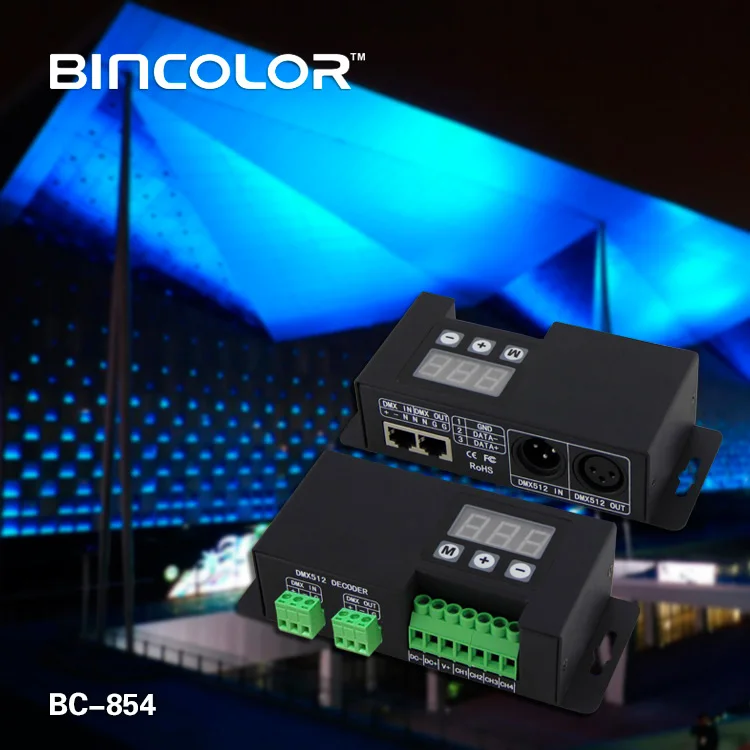

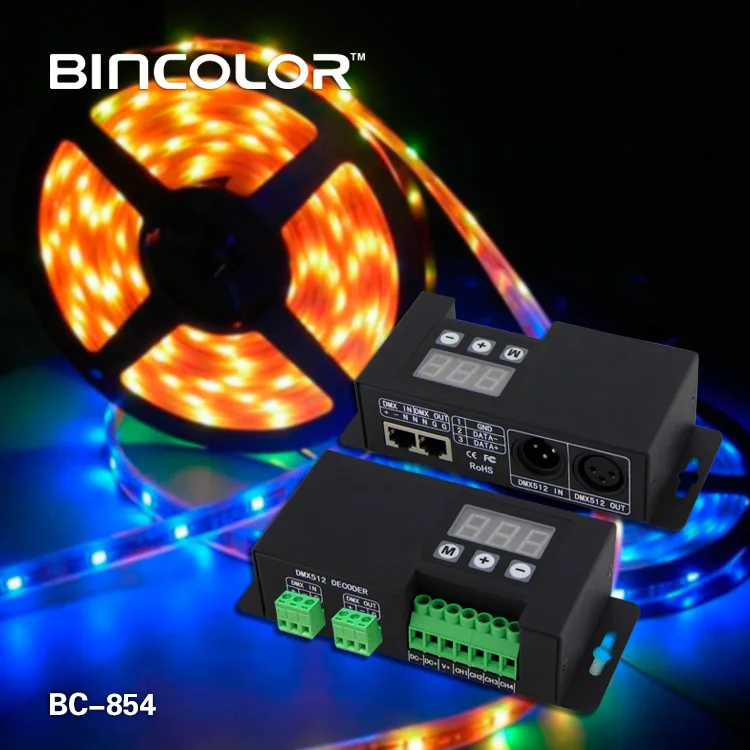

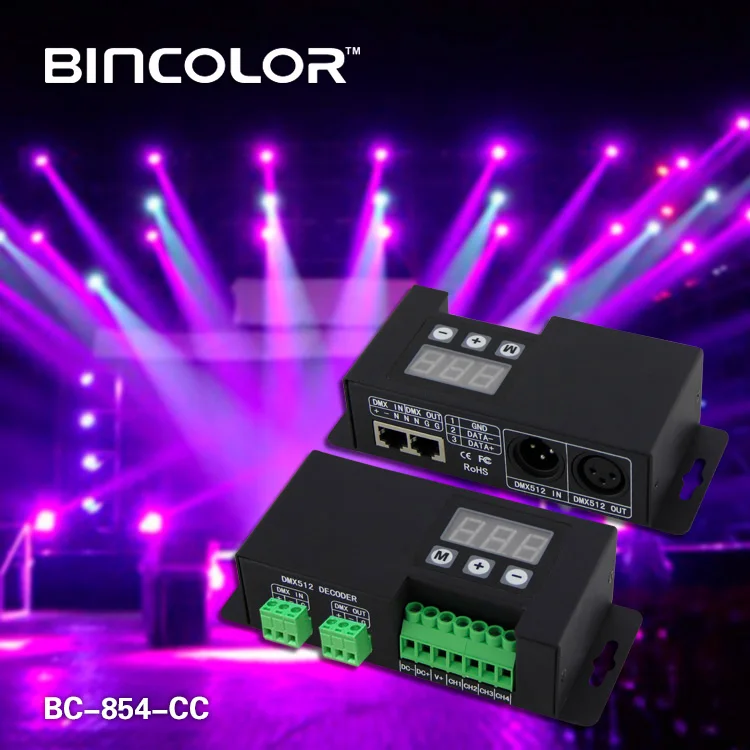

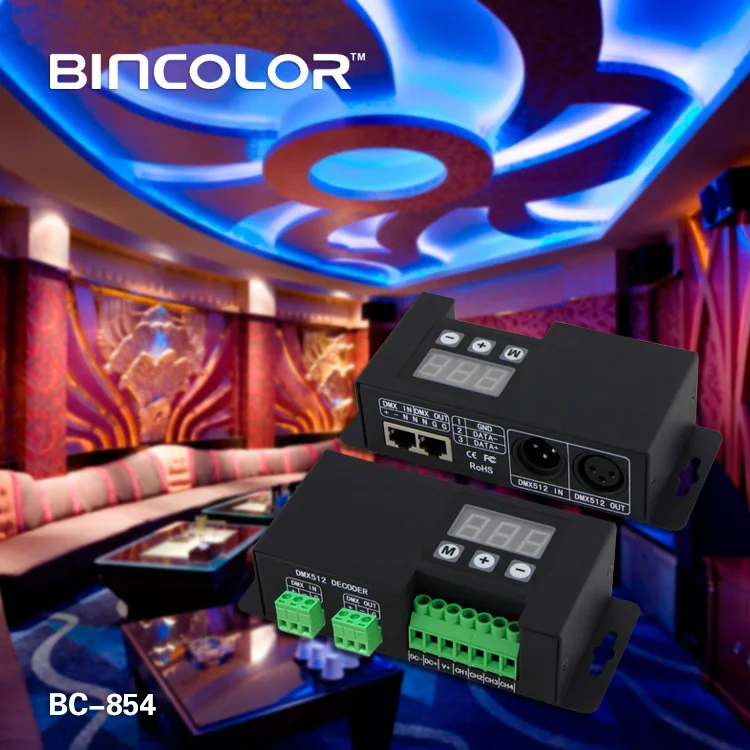

BC 854 CC High Quality 48V DMX512 Constant Current Decoder 350MA 700MA 4 Channel DMX Decoder
- Category: >>>
- Supplier: Zhuhai Bincolor Electronic Technology Co. Ltd.
Share on (1600821709809):
Product Overview
Description
4ch Constant current DMX512 decoder 350mA with digital display
Product Description
This 4CH constant current DMX512 decoder adapts 3 connector interfaces: XLR-3R port, RJ45 port and terminal block. It has 3-digital-display and three buttons; user can address the DMX512 address by the buttons, easy and convenient. There are built-in color changing, user can see the color setting by the digital display.
Product Specification:
Model | BC-854-350 | BC-854-700 |
Input voltage | DC12V-DC48V | |
Max load current | 350mA/load X4 | 700mA/load X4 |
Max output power | 12V: 1-3pcs 1W LED 24V: 1-6pcs 1W LED 36V: 1-9pcs 1W LED 48V: 1-12pcs 1W LED | 12V: 1-3pcs 3W LED 24V: 1-6pcs 3W LED 36V: 1-9pcs 3W LED 48V: 1-12pcs 3W LED |
Grey Scale | 4096 levels×4 | |
Input Signal | DMX512/1990 | |
Output Signal | Constant Current PWM×4 | |
Decode Channel | 4CH | |
DMX512 socket | XLR-3R port/ RJ45 port/ terminal block | |
Dimension | L157×W65×H40(mm) | |
Weight (G.W) | 450g | |
Product Features:
1. Automatically adapts input voltage DC12V-48V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address.
3. 4 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stable without Strobe flash.
4. Support master mode or slave mode;
5. 8 color changing modes and 10 speed scales in master mode.
6. Indicator of the DMX512 signal receiving status.
7. Power loss memory function.
8. DMX signal lines are wrong protection;
9 .Multiple DMX512 signal interface.

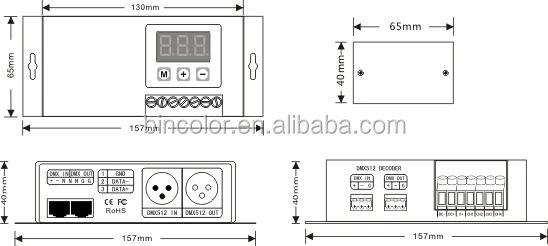

Product Diagram :
Typical Wiring Schematics:
BC-854-CC work as a decoder:
BC-854-CC work as a Master:

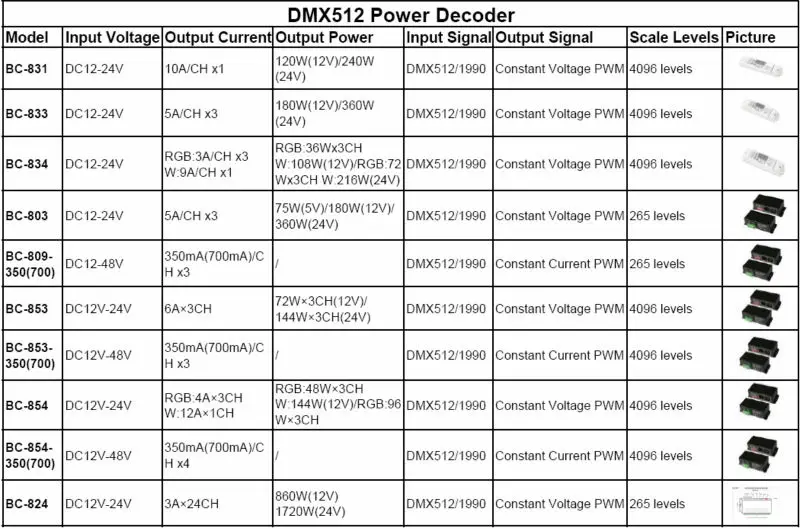

power decoder
