Professional Usb3.0 Full Hd1080p Camera Ip Video Conference System Ndi Ptz Camera Sdi 20x 30x HDM i Ptz Video Conference Cameras
- Category: >>>
- Supplier: World Win Technology (shenzhen) Co. Ltd.
Share on (1600825374933):
Product Overview
Description
Tip:
1.→→Click here to inquiry←Get better discount price.
2.OEM/ODM are also welcome；
3.Excellent quality and better Price.
3.Excellent quality and better Price.
4. This WIN-J43H series, 20X and 30X Optical Zoom for optional, Contact us for more details.
Products Description

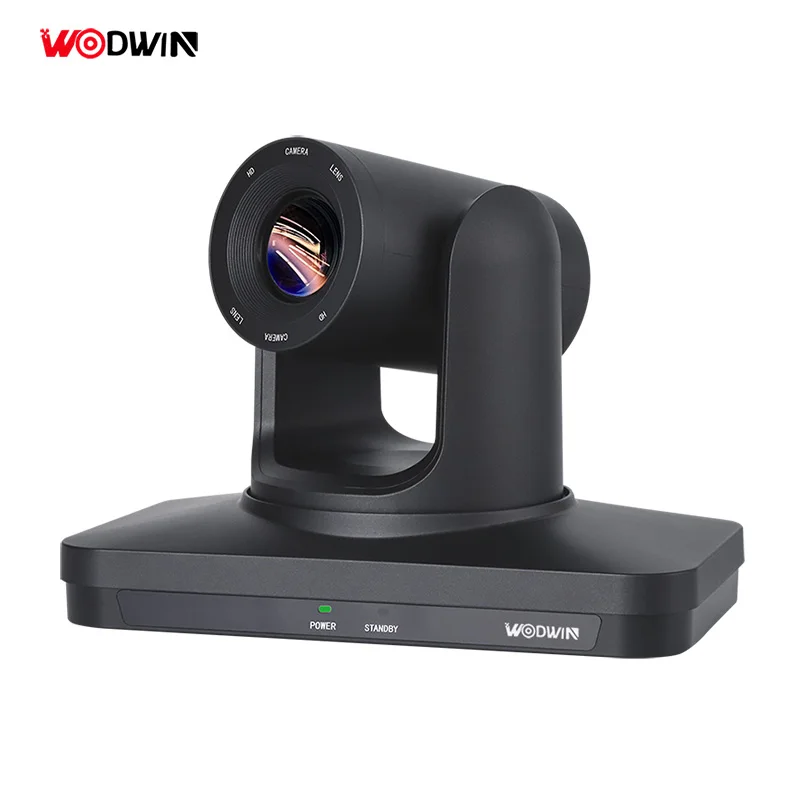

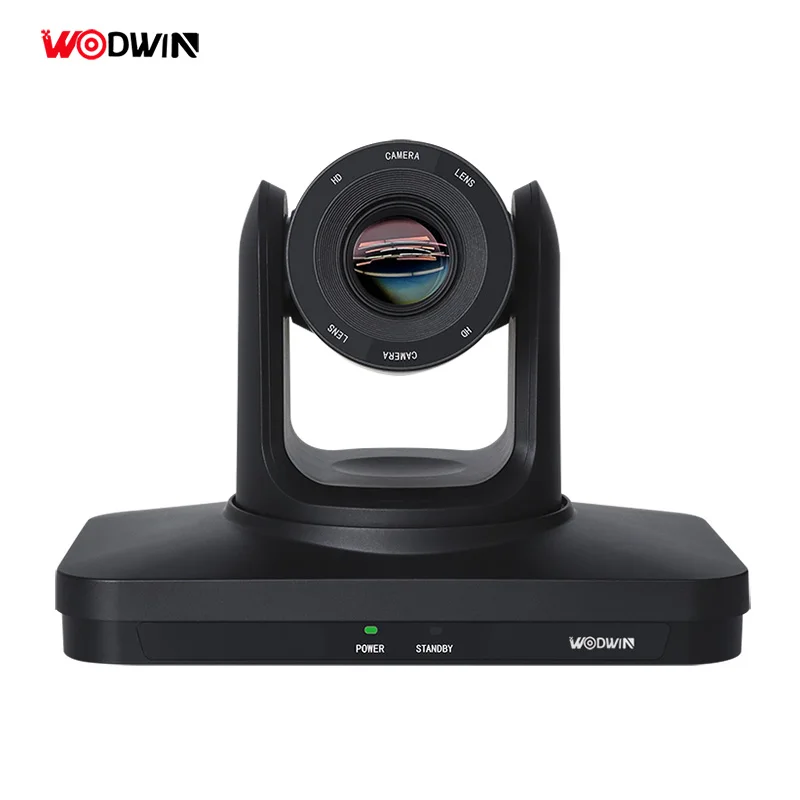

Professional Usb3.0 Full Hd1080p Camera Ip Video Conference System Ndi Ptz Camera Sdi 20x 30x HDM i Ptz Video Usb Conference Camera
WIN-J43H
WIN-J43H Video Conference System Ndi Ptz Camera 20x Selling Points:
1. WIN-J43H PTZ Camera is Full HD PTZ Camera
1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame 60fps.
2. It is 20X optical zoom, we have 30X optical zoom for optional1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame 60fps.
3. This camera have POE power on ethernet version for choice
4. Multiple interface have USB3.0, HD-MI,SDI and LAN video ports
5. The pan is 340°degree while the tilt is 120°degree
6. Low noise and High SNR
7. This WIN-J43H PTZ Camera is easily controlled via IR remote and Joystick Controller
8. You can set 255pcs postion via Joystick
9. Wall mounting, desktop or ceiling mounting
10.Suitable for Video conferencing and live streaming.Broadcast, houses of worship, Education,Events, Church, and so on.
Model No.: | ||||||
Zoom | ||||||
Wide Angle | 58.7° | 58.7° | 72.5° | 58.7° | 56° | 56° |
Interface | USB3.0, SDI, HDMI | USB3.0, SDI, HDMI,NDI | USB2.0, SDI, HDMI | USB2.0, SDI, HDMI | SDI, HDMI,USB3.0 | SDI, HDMI,USB3.0,LAN |
LAN, POE | LAN, POE | LAN | NDI(LAN), POE | LAN, POE | NDI, POE | |
RS232, RS422, RS485 | RS232, RS422, RS485 | RS232, RS422, RS485 | RS232, RS422, RS485 | RS232, RS422, RS485 | RS232, RS422, RS485 | |
Color | Black | Black or White | Black or White | Grey | Black | Black |
Details Images
WIN-J43H PTZ Camera Presets Setting
WIN-J43H Video Conference camera is easy to set presets, via IR Remote can set 9 presets, and 255presets postion can be setting via PTZ Joystick Controller.
PTZ Camera WIN-J43H 20X and 30X Zoom
PTZ camera WIN-J43H, have 20X and 30X optical zoom for choice, suitable for middle and large size room.

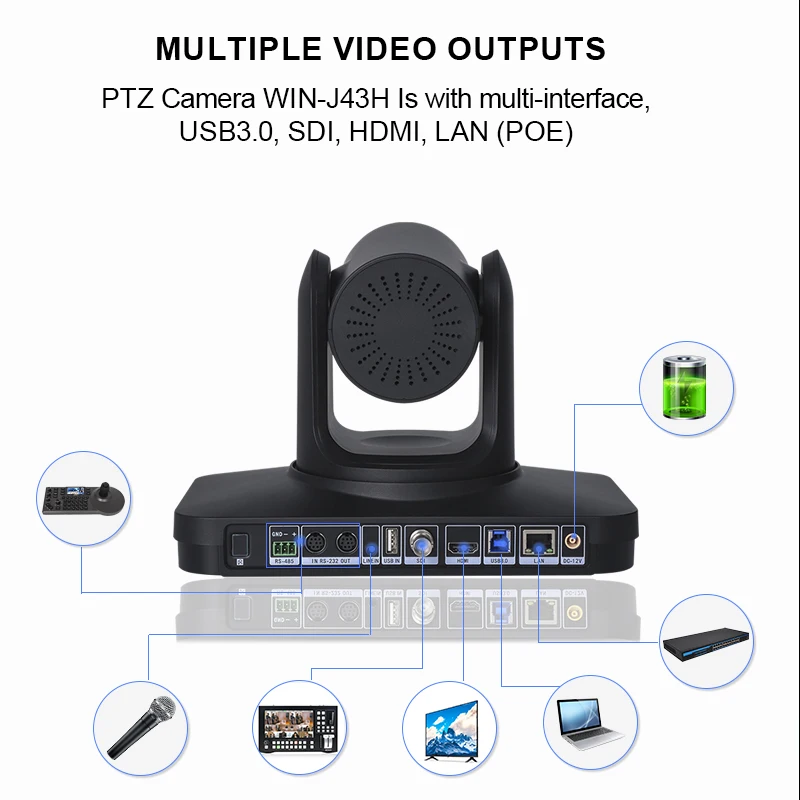

WIN-J43H PTZ BROADCAST CAMERA

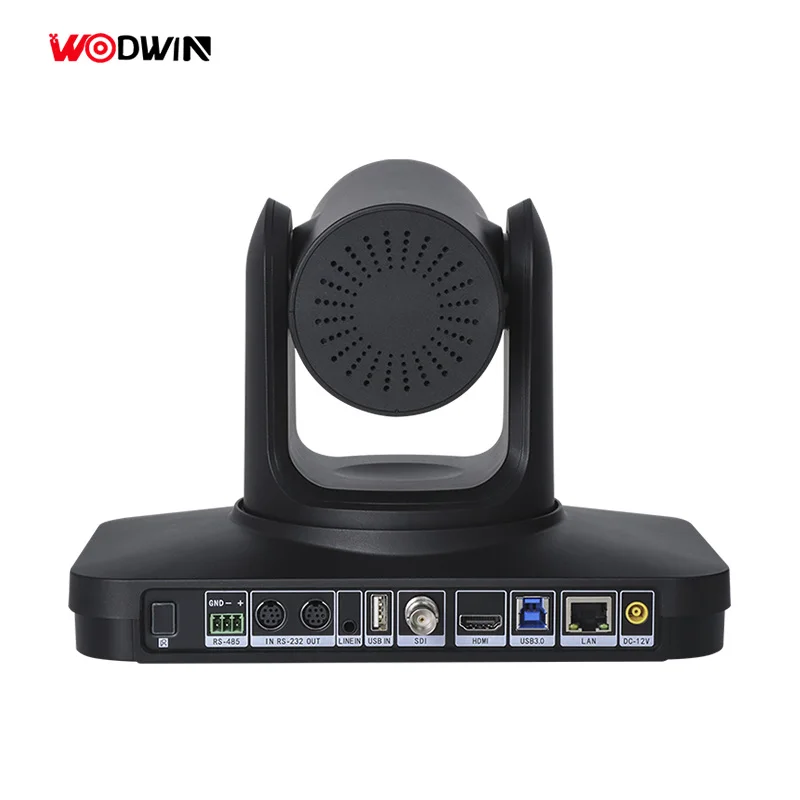

The PTZ Camera have multi interface, SDI,USB3.0,HD-MI,LAN video output, RS232/RS485 Control interface, DC12V power, USB-IN, Line-in for Audio.

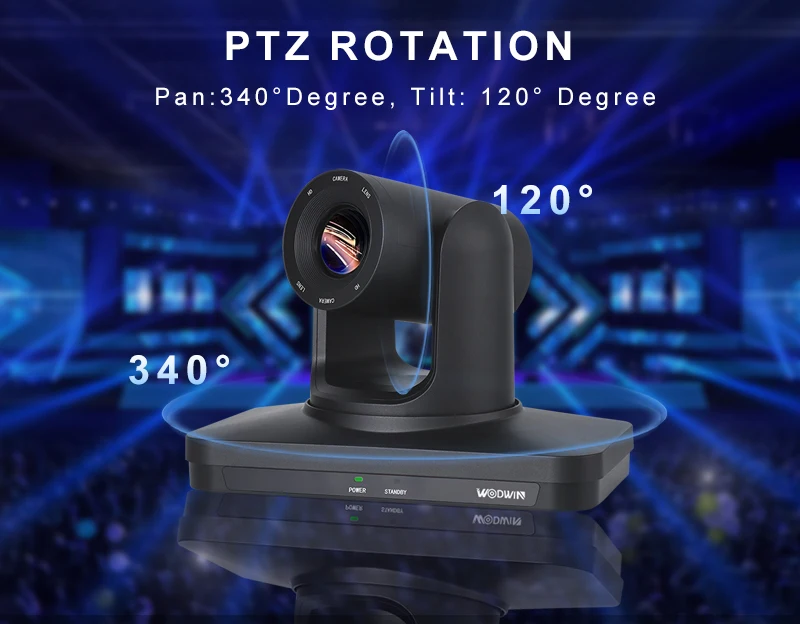

PTZ Camera WIN-J43H PAN and TILT
The PTZ Camera's pan is 340degree, and the tilt is 120 degree, it is enough for live streaming of different corner and angle of
your scene.
your scene.

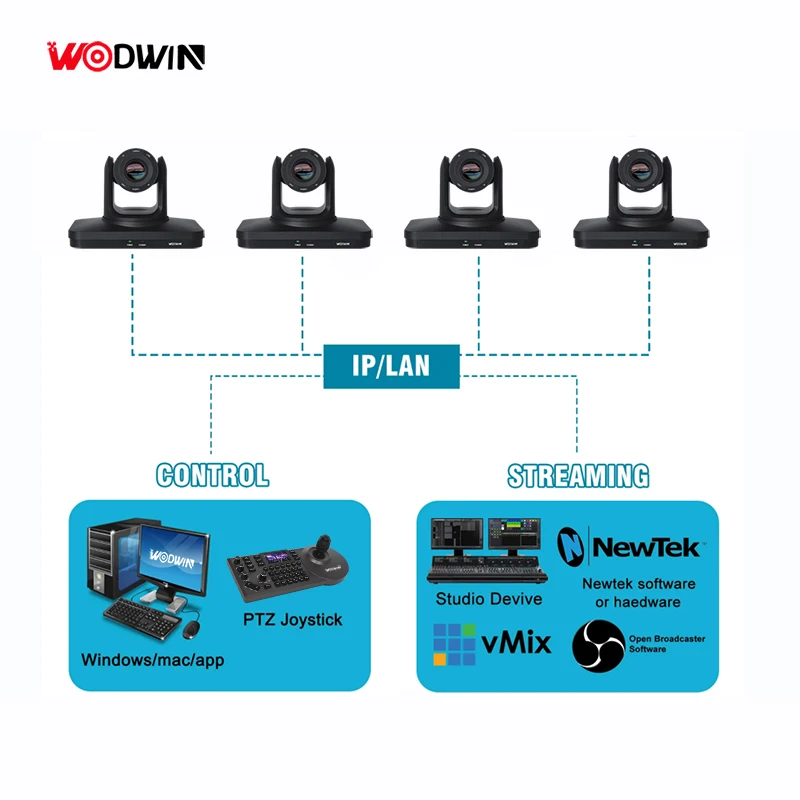

WIN-J43H Connection and Control

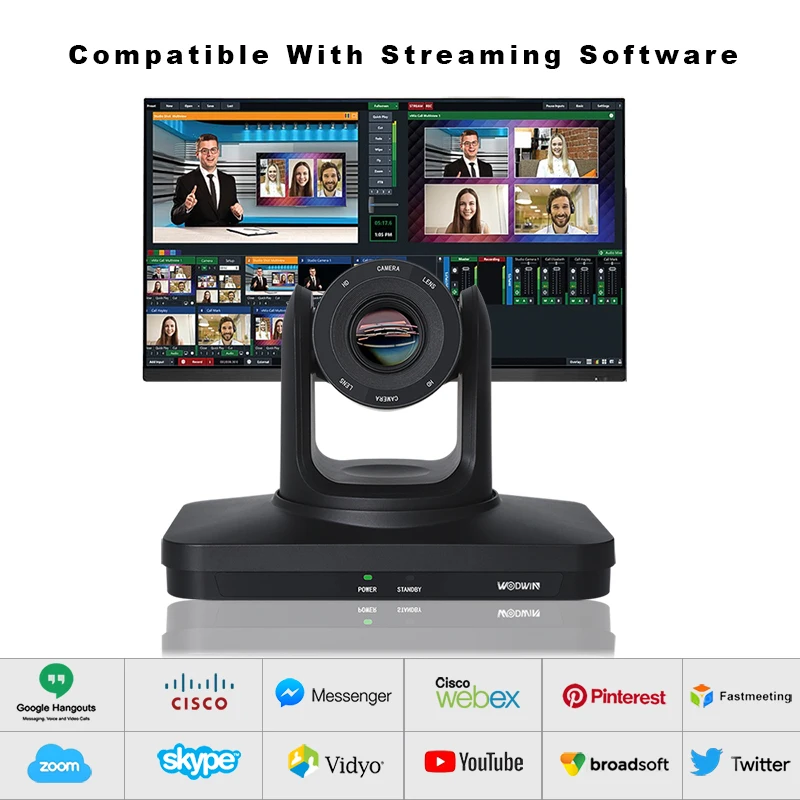

This Full HD Camera can be control via PC LAN Connect, PTZ Joystick, or the live streaming software such as OBS, vMix, Conference Software such as Vidyo,Cisco webex, Zoom and so on.

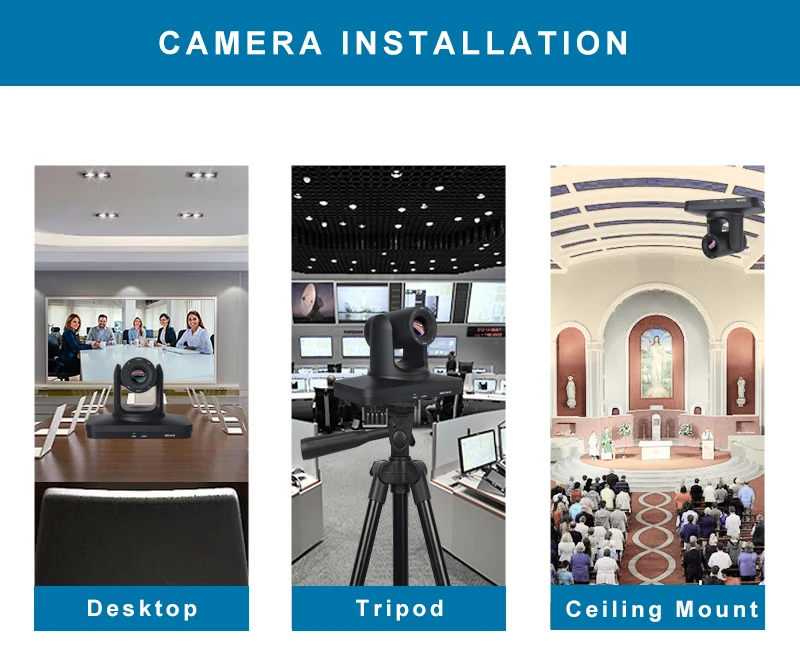

Application and Installation
This SDI PTZ Conference Camera can be used in many application such as Conference Room, Government, Concerts, Church, Tele-medicince and so on. The installation method is desktop, tripod, ceiling mounted, wall mounted.
Product Paramenters
Product Name | Video Conference System Ndi Ptz Camera 20x | ||
Item No. | WIN-J43H-20X | WIN-J43H-30X | |
Effective Pixels | 3.10 Megapixels | 3.50 Megapixels | |
Lens | 20X optical zoom | 30X optical zoom | |
Horizontal View Angle | （W）58.1°~2.14°（T） | （W）55.8°~3.2°（T） | |
Interface | HDM1, SDI, USB3.0, IP, POE | ||
Pan | 340° ( 0.1°/S~120°/S) | ||
Tilt | -30°to 90°(max.speed:90°/s) | ||
Signal | PAL/NTSC | ||
Minimu Illumination | 0.5Lux | ||
Protocol | SONY VISCA、PELCO P/D | ||
Control Mode | RS-232、RS-422/485 | ||
Dimension | 240*133.7*145mm | ||
Power | 12V DC(10.8～13.0V DC) | ||

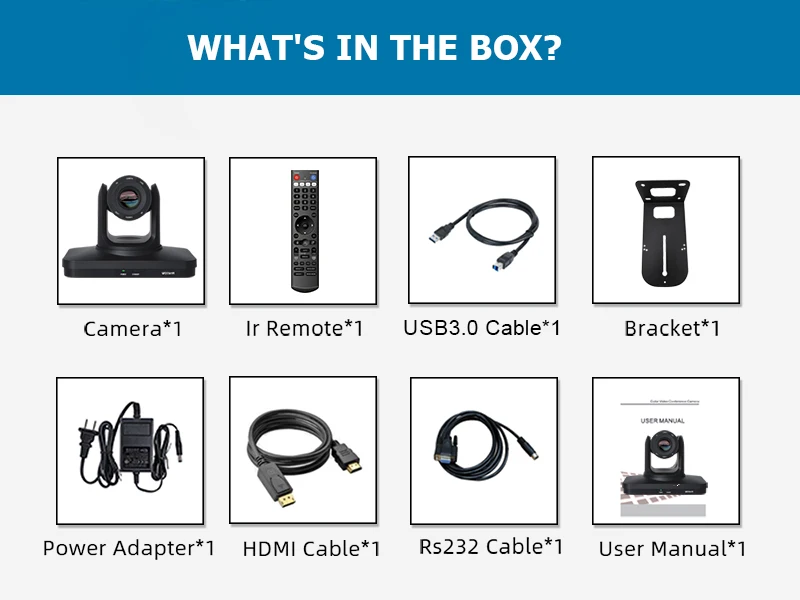

Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDM cable, USB Cable, Ceiling bracket | ||
Product packaging
Recommend Products
WIN-M57S
SDI+HDMI+IP+USB3.0
12X/20X /30X Zoom
WIN-J91AN
NDI PTZ CAMERA
20X or 12X Zoom
WIN-91AF
USB3.0+HDMI+SDI+LAN
12X/20X Zoom
Company Profile
Certifications
FAQ
Q1. Can I have a sample order?
Yes, welcome sample order to test and check quality.
Yes, welcome sample order to test and check quality.
Q2. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT.
It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. What about the lead time?
Sample needs about 2-3 working days,
Small batch production time needs 5-10 days,
OEM or large order need about 14-25 days.
Q4. Could I put my own logo on products?
Yes,we have our R&D department, we can do ODM and OEM.
Q5. What`s your warranty period?
The warranty period is 3 years and start from the purchase date.
Q6. How do you guarantee the quality?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
Yes, surely.We have very professional technical team,and it is our responsibility to help our clients
when meet with any technical problem.
Q8. I'm buying with your company at the first time, how can I trust you?
We totally understand if you have some doubt about us at our first cooperation.
You are welcome to visit our company or our factory anytime you like.
You can also choose trade assurance for your order.
Q9. What's your payment term?
Our payment term is TT in advance before shipment.
