DNHLX PV8 / 2 DC PV Combiner box photovoltaic combiner box
- Category: Solar Applications >>>
- Supplier: Zhejiang Grl Electric Co. Ltd.
Share on (1600825633036):
Product Overview
Description
VR

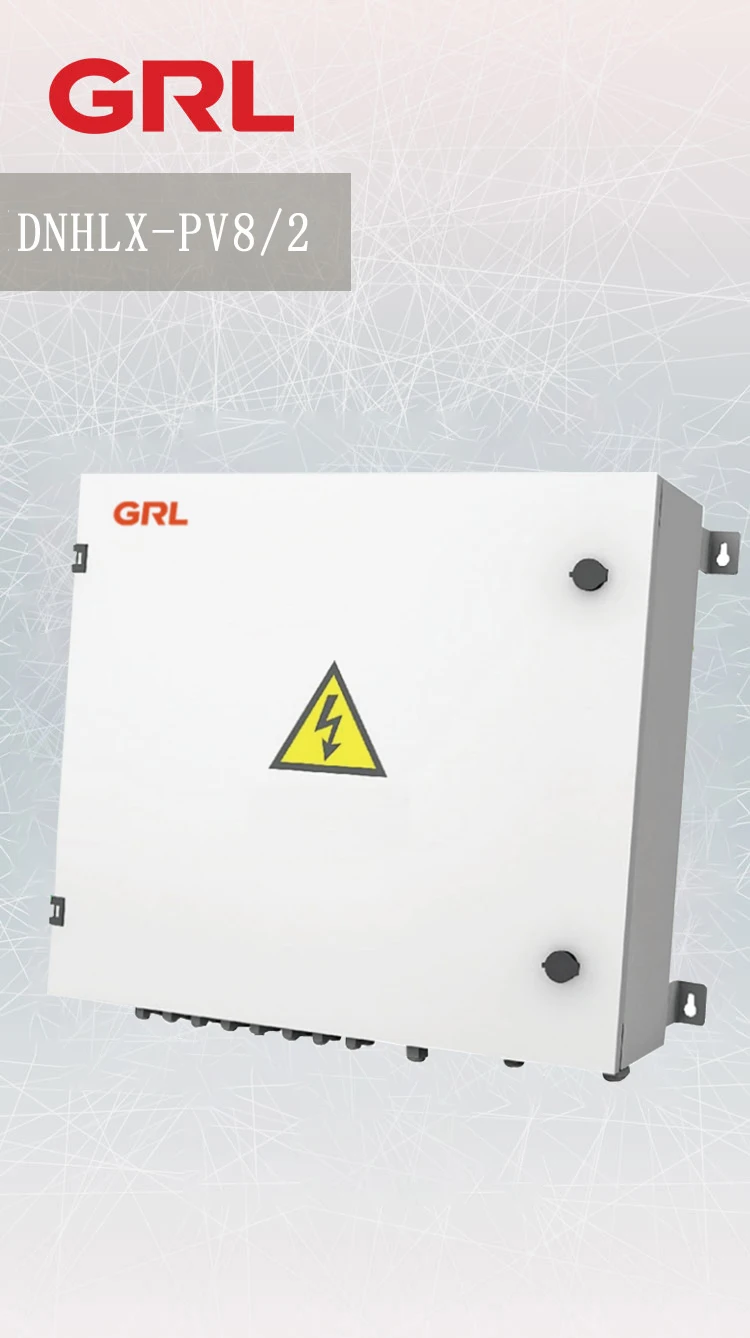

DNHLX-PV8 / 2 DC PV Combiner box

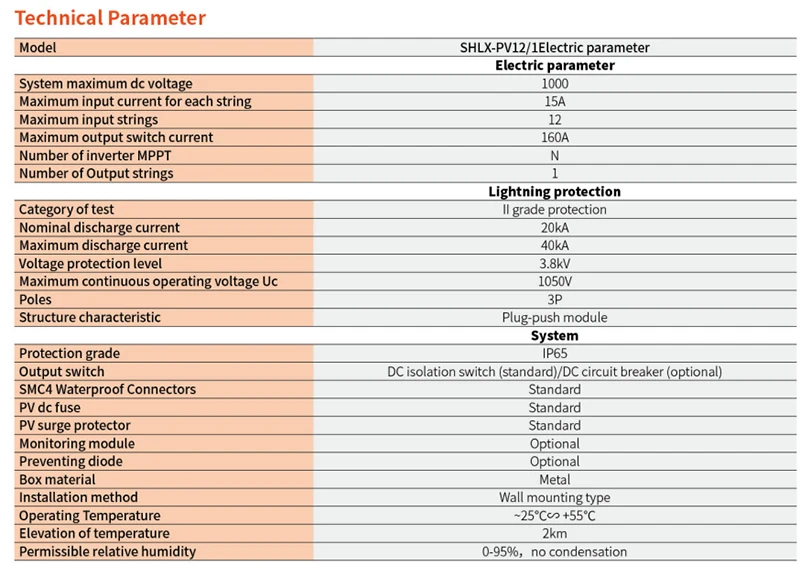

Model | SHLX-PV12/1Electric parameter |
Electric parameter | |
System maximum dc voltage | 1000 |
Maximum input current for each string | 15A |
Maximum input strings | 12 |
Maximum output switch current | 160A |
Number of inverter MPPT | N |
Number of Output strings | 1 |
Lightning protection | |
Category of test | Ⅱ grade protection |
Nominal discharge current | 20kA |
Maximum discharge current | 40kA |
Voltage protection level | 3.8kV |
Maximum continuous operating voltage Uc | 1050V |
Poles | 3P |
Structure characteristic | Plug-push module |
System | |
Protection grade | IP65 |
Output switch | DC isolation switch ( standard ) / DC circuit breaker ( optional ) |
SMC4 Waterproof Connectors | Standard |
PV dc fuse | Standard |
PV surge protector | Standard |
Monitoring module | Optional |
Preventing diode | Optional |
Box material | Metal |
Installation method | Wall mounting type |
Operating Temperature | ~25℃~+55℃ |
Elevation of temperature | 2km |
Permissible relative humidity | 0-95%,no condensation |
Description
DNHLX-PV8 / 2 DC combiner box is suitable forinverter ( MAX input voltage DC1000V , 8 PVinput channel , 2 output channel , doubleMPPTinverter ) . Box body is made of PVC engineeringmaterials , with test for fire retardant , temperaturerise , anti impact ,anti ultraviolet , and othertesting IP65 protection grade .Design and configuration , strictly accordancewith the ” Technicalspecification for photovoltaicjunction equipment ”
CGC / GF 037 : 2014 . Provideusers with a safe , brief , beautiful and applicablephotovoltaic system products
CGC / GF 037 : 2014 . Provideusers with a safe , brief , beautiful and applicablephotovoltaic system products
Advantages
* High Reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch
* Strong Adaptability
IP65 design , waterproof , anti dust and anti ultraviolet .Strict test for high and low temperature , used widely .The simple
installation , the simplified system wiring ,the convenient wiring.
The box body is made of cold rolled steel and other metal materials
* Flexible configuration
Used for single crystal silicon solar modules ,polycrystalline silicon solar modules , thin film solar modules . Current rating of the photovoltaic fuse ,circuit breaker , load isolation switch is modified.
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch
* Strong Adaptability
IP65 design , waterproof , anti dust and anti ultraviolet .Strict test for high and low temperature , used widely .The simple
installation , the simplified system wiring ,the convenient wiring.
The box body is made of cold rolled steel and other metal materials
* Flexible configuration
Used for single crystal silicon solar modules ,polycrystalline silicon solar modules , thin film solar modules . Current rating of the photovoltaic fuse ,circuit breaker , load isolation switch is modified.
