Product Overview
Description

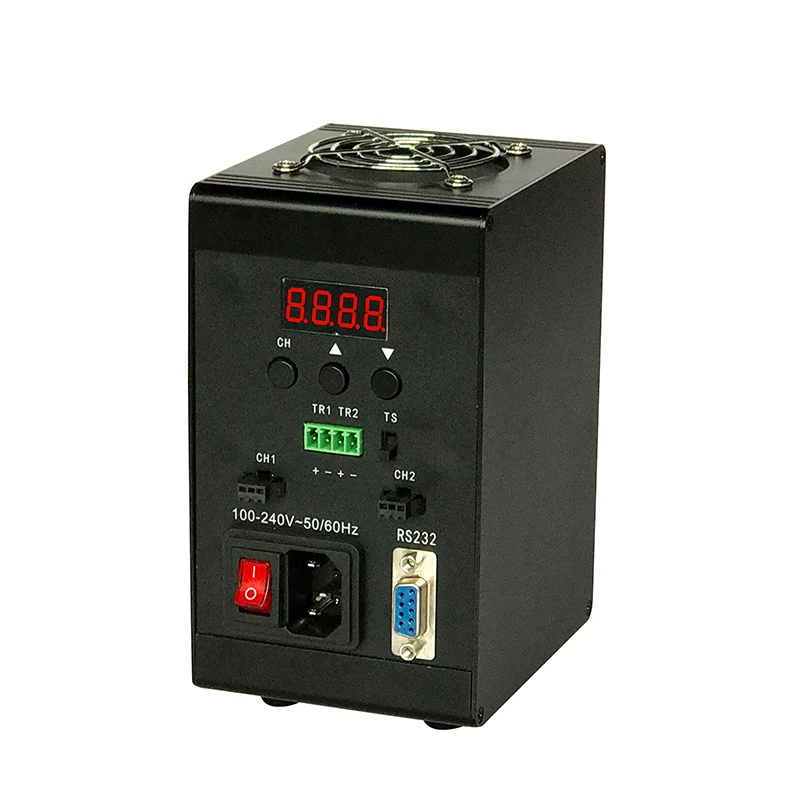

Koma Machine Vision Lighting Controllers
● Two Channels: Output 24VDC two channels standard LED dimmer controller. It operates on DC (constant Voltage) voltage, not for changing LED light colors.
● Wide Application: Widely used for LED brightness control, Channel switching is performed via the "CH" button on the panel. Pressing the“▼” or “▲”button to decrease or increase the brightness level.
● Remote Control: Clear and simple design, easy for use, remote control via Controller upper computer software (DPS.exe) isavailable. RS232 communication port connects the controller to upper computer. On the upper computer, the brightness levels of each channel can be easily set, and the present brightness levels can also be read and displayed.
● Auto memory: 8 seconds after adjusting the brightness level of each channel with the keys on controller panel or upper
computer application, the controller automatically starts to record the brightness level of each channel, and the record will not be lost even when power failure happens.
● Excellent capacity & experience: 0 - 100% full range dimming capability and smooth dimming experience, also works as ON/OFF switch. Very stable output and no flicker.
● Wide Application: Widely used for LED brightness control, Channel switching is performed via the "CH" button on the panel. Pressing the“▼” or “▲”button to decrease or increase the brightness level.
● Remote Control: Clear and simple design, easy for use, remote control via Controller upper computer software (DPS.exe) isavailable. RS232 communication port connects the controller to upper computer. On the upper computer, the brightness levels of each channel can be easily set, and the present brightness levels can also be read and displayed.
● Auto memory: 8 seconds after adjusting the brightness level of each channel with the keys on controller panel or upper
computer application, the controller automatically starts to record the brightness level of each channel, and the record will not be lost even when power failure happens.
● Excellent capacity & experience: 0 - 100% full range dimming capability and smooth dimming experience, also works as ON/OFF switch. Very stable output and no flicker.
Features & details:

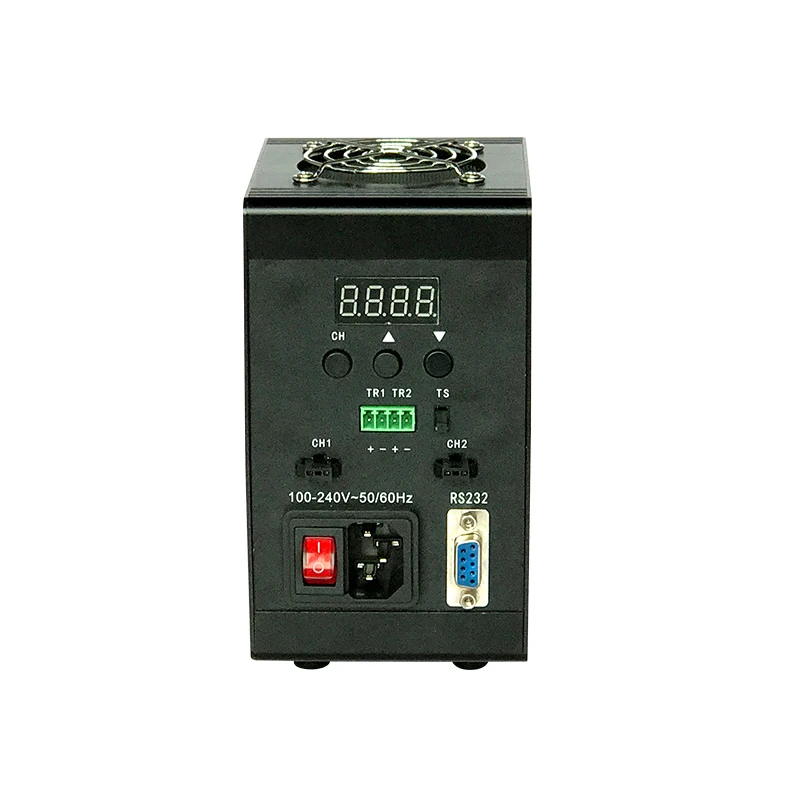

● “CH”: Channel switching button, simple and clear.
● Digital Display: 4-digit LED display shows the real-time brightness level from 0 - 255.

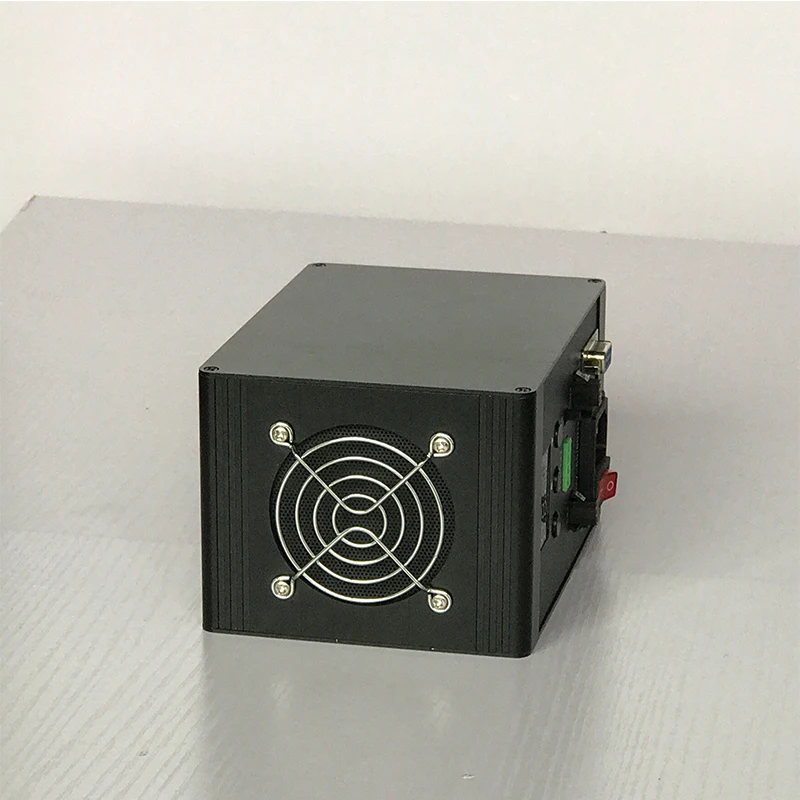

● Delicate design: Aluminum Alloy shell, elegant, durable and excellent for heat dissipation.
● Multiple Program Language Integrated: The upper computer software for remote control comes with most of the popular program languages, C, C++, Python, VB, etc.
● Short Press & Long Press: After selecting a channel, the brightness level of the channel can be adjusted continuously
(decrease or increase) by short pressing the "▼" or "▲" button. If long pressing the "▼" or "▲" button, the brightness level of the channel will be roughly changed (10 brightness levels each long press).
● Digital Display: 4-digit LED display shows the real-time brightness level from 0 - 255.
● Delicate design: Aluminum Alloy shell, elegant, durable and excellent for heat dissipation.
● Multiple Program Language Integrated: The upper computer software for remote control comes with most of the popular program languages, C, C++, Python, VB, etc.
● Short Press & Long Press: After selecting a channel, the brightness level of the channel can be adjusted continuously
(decrease or increase) by short pressing the "▼" or "▲" button. If long pressing the "▼" or "▲" button, the brightness level of the channel will be roughly changed (10 brightness levels each long press).
Specification
Item | Value |
Warranty(Year) | 1-Year |
Lighting solutions service | Lighting and circuitry design |
Place of Origin | Guangdong, China |
Main Material | Aluminum Alloy |
Type | MANUAL SWITCH |
Max. Load Power | 120W |
Input Voltage | 100~220VAC |
Output Voltage | 24VDC |
Control Type | RS232 serial control |
Application | Brightness adjustment |
Certificates | CE, RoHS |
Net Weight | 0.9 kg |
Memory Type | Automatic memory |
Style | Standard digital |
Adjustment Range | RF 0~100% Dimming |
Model Naming | Model | Channel | Power | Output Volts | External Trigger |
DCS2.0-2C030W-24PS D--Digital Controller C--Current Driven S--Standard Type 2.0--Second Generation Controller 2C-- Two Output Channels 030W--Single channel max power output: 30W 24--Output voltage: 24V PS--Passive trigger | DCS2.0-2C015W-24PS | 2 | 15W | 24V | Yes |
DCS2.0-2C030W-24PS | 2 | 30W | 24V | Yes | |
DCS2.0-2C060W-24PS | 2 | 60W | 24V | Yes | |
- | - | - | - | - | |
- | - | - | - | - | |
- | - | - | - | - |

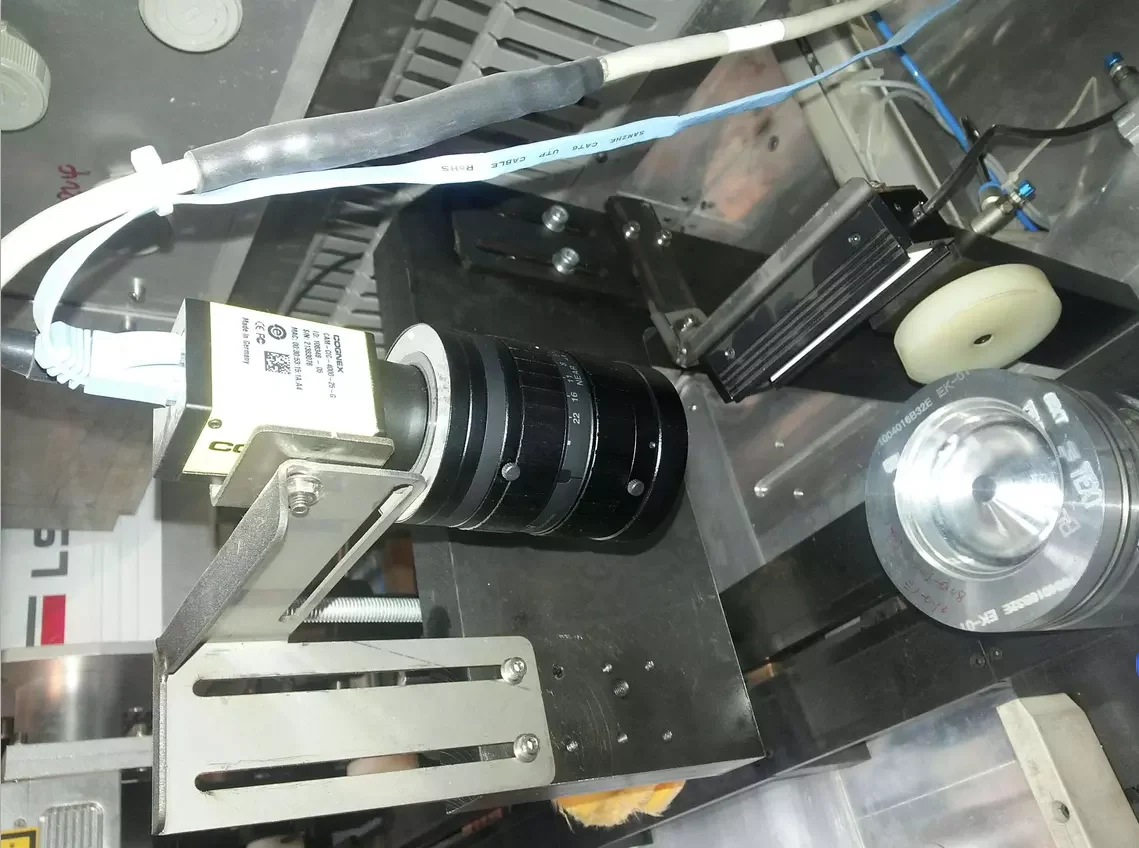

Application
