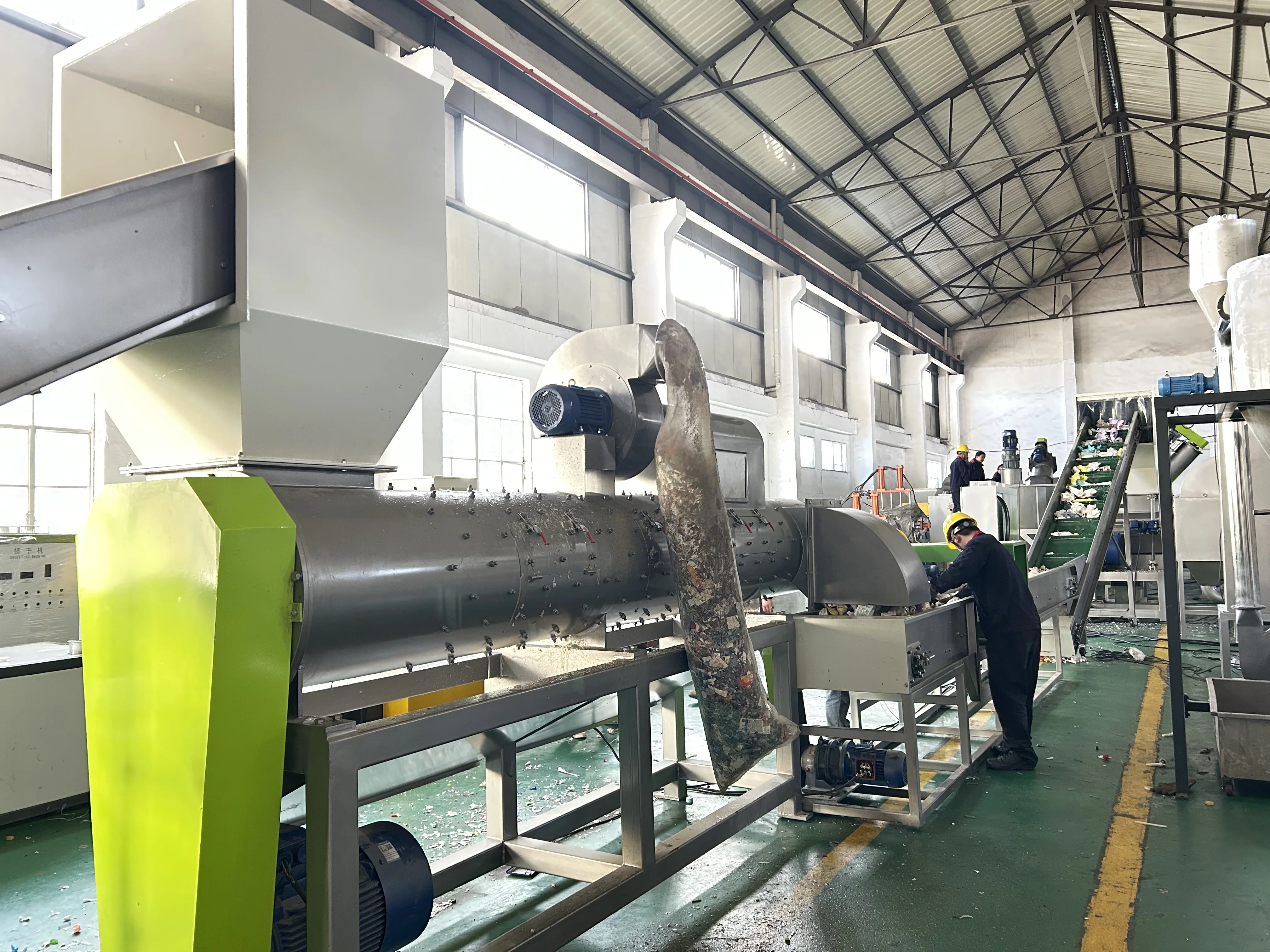

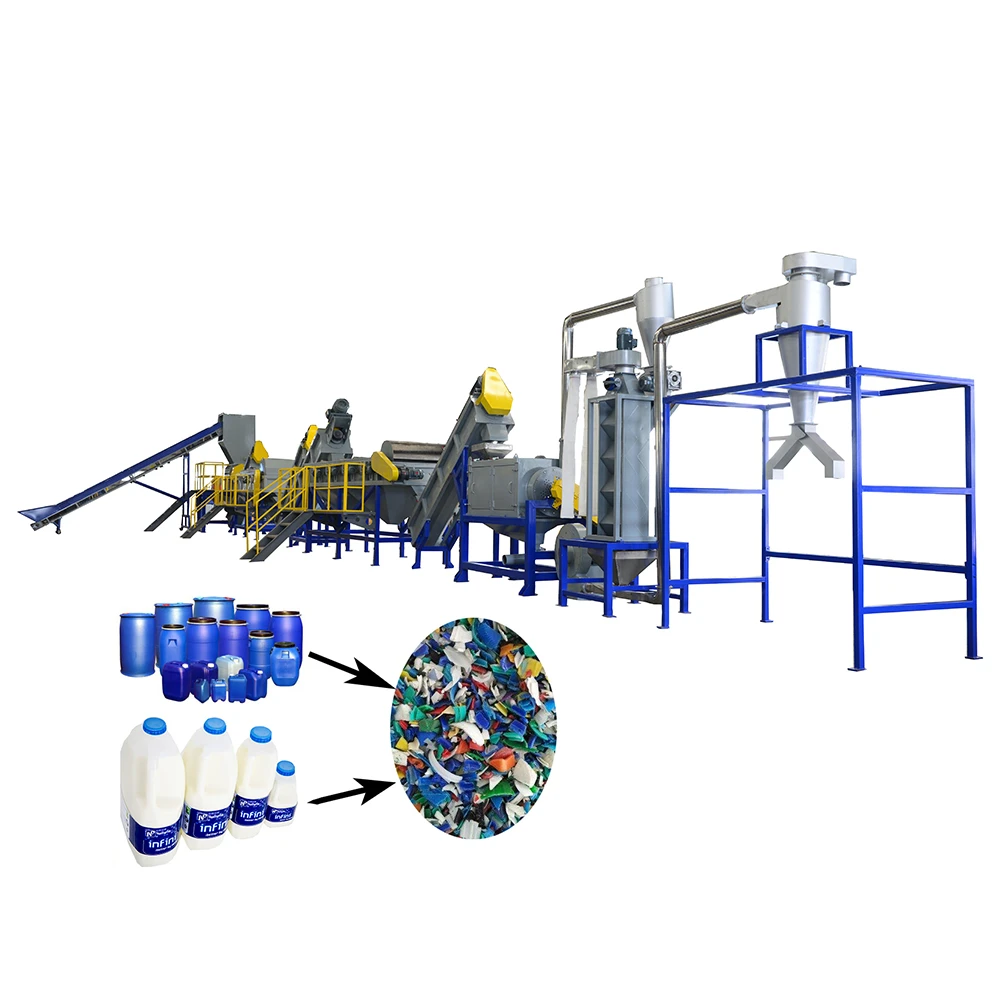

automatic PE Plastic washing line with label remover
- Category: Plastic & Rubber Processing Machinery >>>
- Supplier: Zhangjiagang Weiquan Machinery Co. Ltd.
Share on (1600828435205):
Product Overview
Description
Product Overview
Pet Bottle Recycling And Washing Line
1. It is an ideal equipment in waste plastic recycling industry, with leading technology in the world.
2.This unit is mainly for PP PE plastic film: the used plastic film are teared and crushed, then after being washed, dewatered and dryed, the water content will be very low, and PP/PE film after being washed can be directly granulated (water-ring palletizing), the gained granules are even and smooth with shiny surface. So, it is an ideal equipment in waste plastic recycling industry, with leading technology in the world.
3.We professionally manufacture plastic machinery and waste plastic washing production lines, such as PET (bottle) flakes washing lines, PP/PE waste plastic film washing and granulating/ palletizing production lines, pipes and shape pipes production lines, and various auxiliary machines. Our products are more reasonable in design, more excellent in processing and more durable in usage.
4. dewater mode: According to the material choice of different dewatering methods, please contact with our company, we will recommend the most suitable equipment for you.
5. Electrical parts: Schneider contactor, RKC temperature controllers etc.
2.This unit is mainly for PP PE plastic film: the used plastic film are teared and crushed, then after being washed, dewatered and dryed, the water content will be very low, and PP/PE film after being washed can be directly granulated (water-ring palletizing), the gained granules are even and smooth with shiny surface. So, it is an ideal equipment in waste plastic recycling industry, with leading technology in the world.
3.We professionally manufacture plastic machinery and waste plastic washing production lines, such as PET (bottle) flakes washing lines, PP/PE waste plastic film washing and granulating/ palletizing production lines, pipes and shape pipes production lines, and various auxiliary machines. Our products are more reasonable in design, more excellent in processing and more durable in usage.
4. dewater mode: According to the material choice of different dewatering methods, please contact with our company, we will recommend the most suitable equipment for you.
5. Electrical parts: Schneider contactor, RKC temperature controllers etc.
FEATURES AT A GLANCE

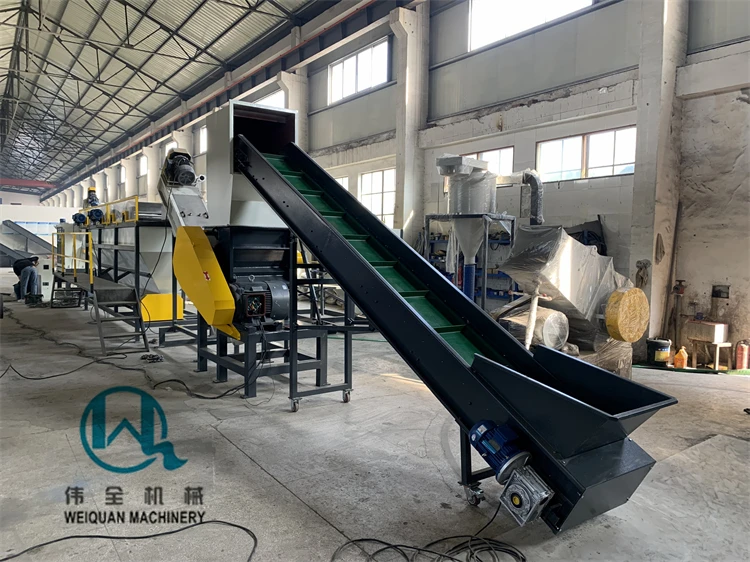

Loading conveyor belt
>>It transports waste plastics into the crusher.

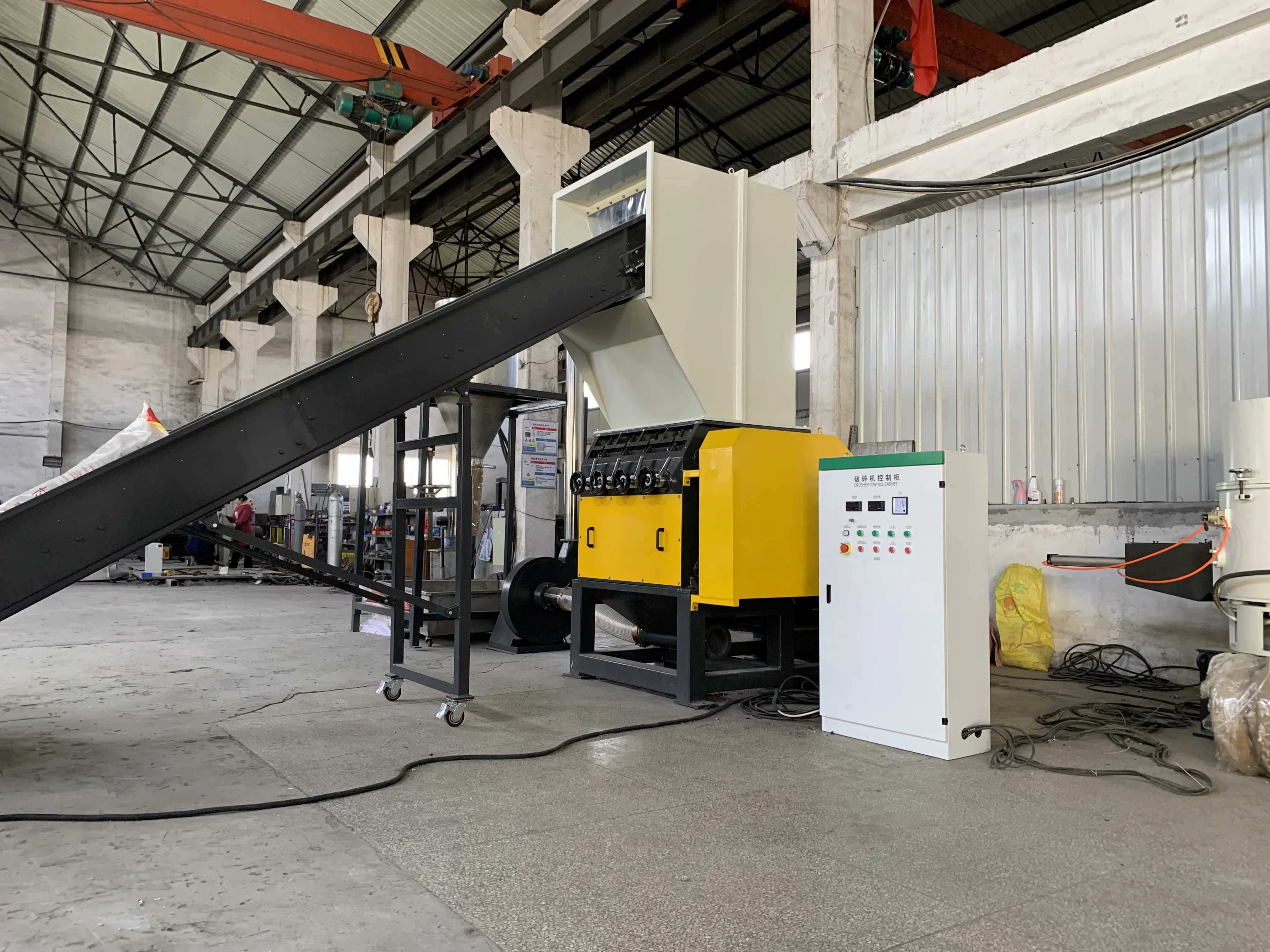

Crusher Machine
>>Cutting geometry: V-shaped arrangement of the rotor knives
>>The chamber with wear-proof design
Data:
>>Rotor width: 700mm
>>Rotor diameter: Φ500mm
>>Rotor speed: 600rpm
>>Drive motor: 30kW
>>Screen size: 12/14mm
>>No. of rotor knives: 5pcs x2
>>No. of stator knives: 2pcs >>Blades materials: D2
>>Hydraulic pusher: 3.7KW
>>Cutting geometry: V-shaped arrangement of the rotor knives
>>The chamber with wear-proof design
Data:
>>Rotor width: 700mm
>>Rotor diameter: Φ500mm
>>Rotor speed: 600rpm
>>Drive motor: 30kW
>>Screen size: 12/14mm
>>No. of rotor knives: 5pcs x2
>>No. of stator knives: 2pcs >>Blades materials: D2
>>Hydraulic pusher: 3.7KW

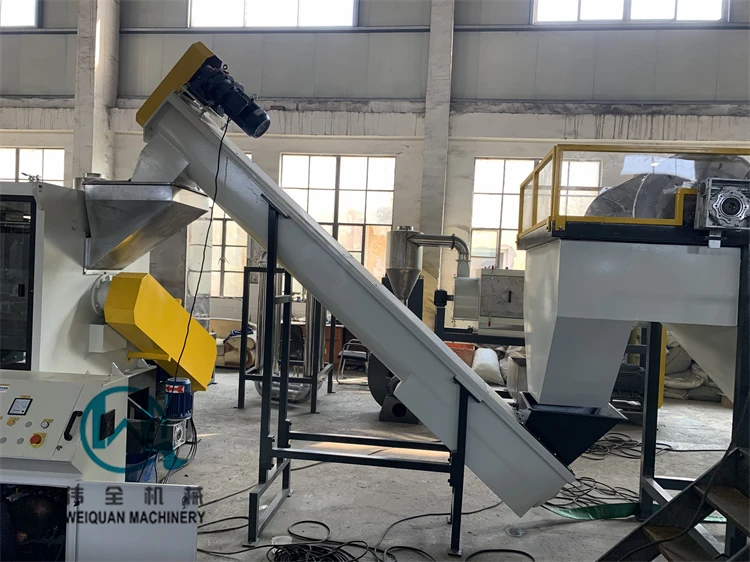

Screw Loader
>>Conveying PE/ PP grinding materials
>>Materials: S. S. 304
Data:
>>Motor power: 2.2kW.4-P motor, AC
>>Screw structure: "U" type
>>Screw diameter: Φ250mm
>>Screw flight: 5mm
>>Screw body: 4mm
>>Conveying PE/ PP grinding materials
>>Materials: S. S. 304
Data:
>>Motor power: 2.2kW.4-P motor, AC
>>Screw structure: "U" type
>>Screw diameter: Φ250mm
>>Screw flight: 5mm
>>Screw body: 4mm

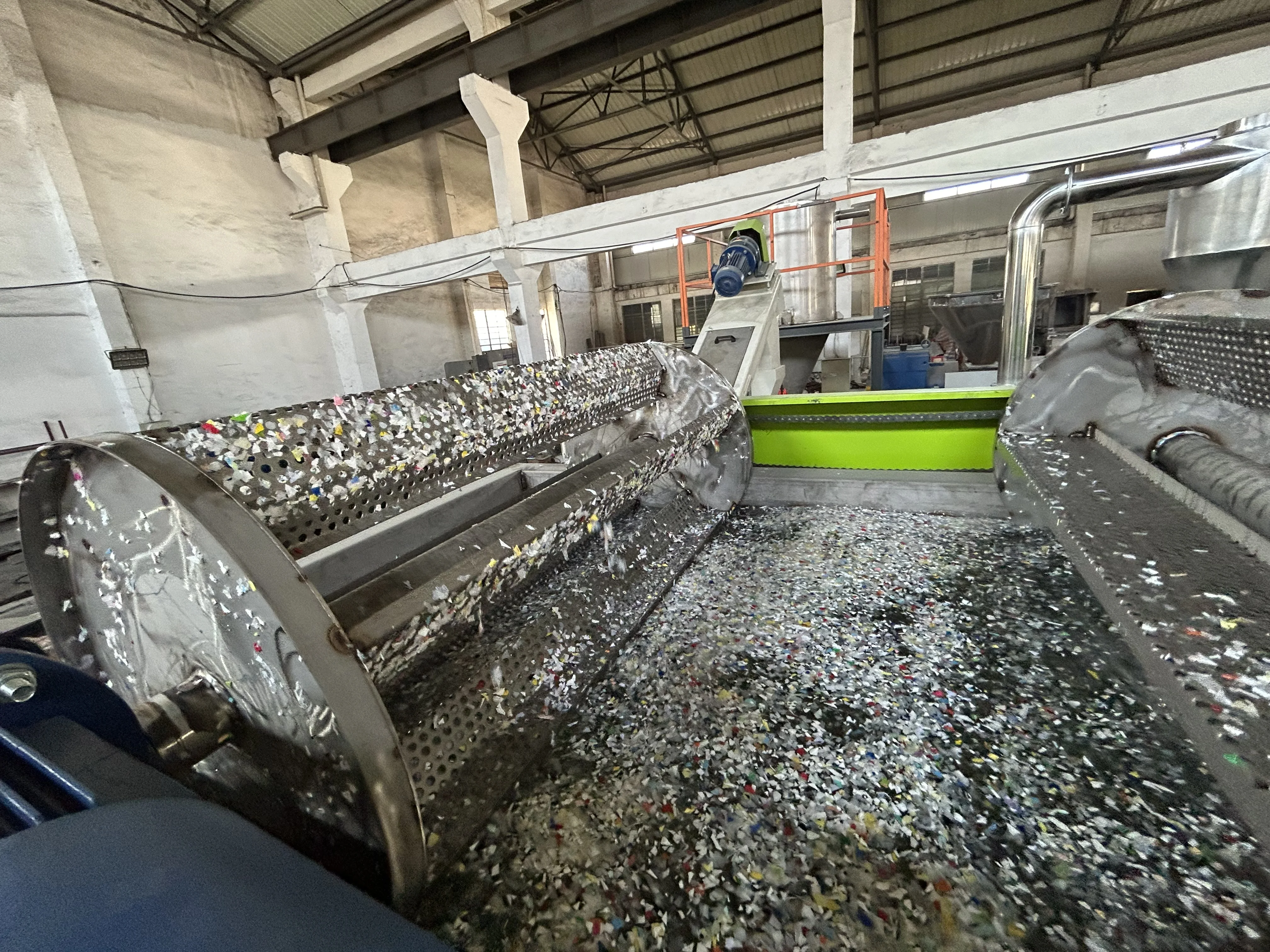

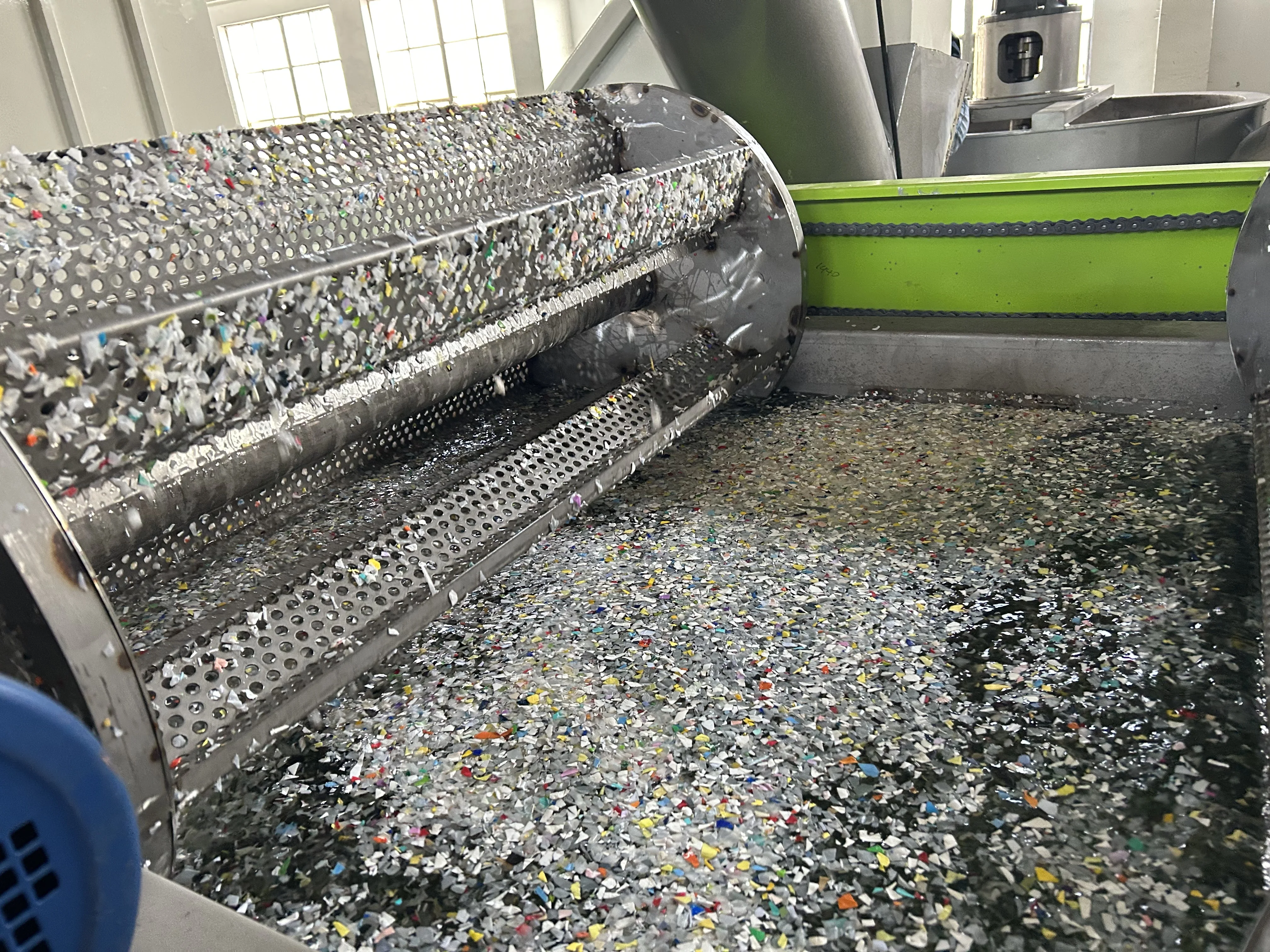

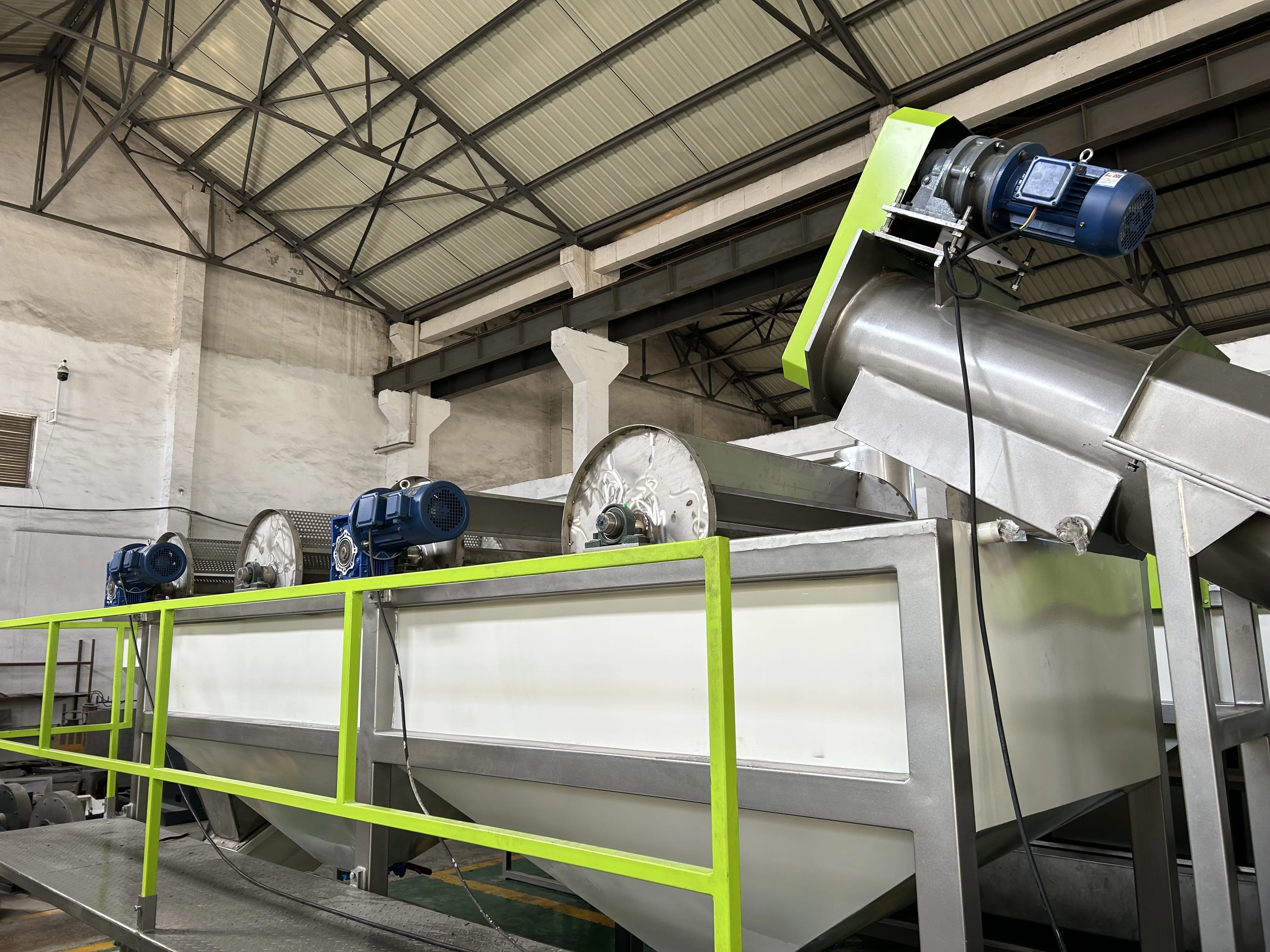

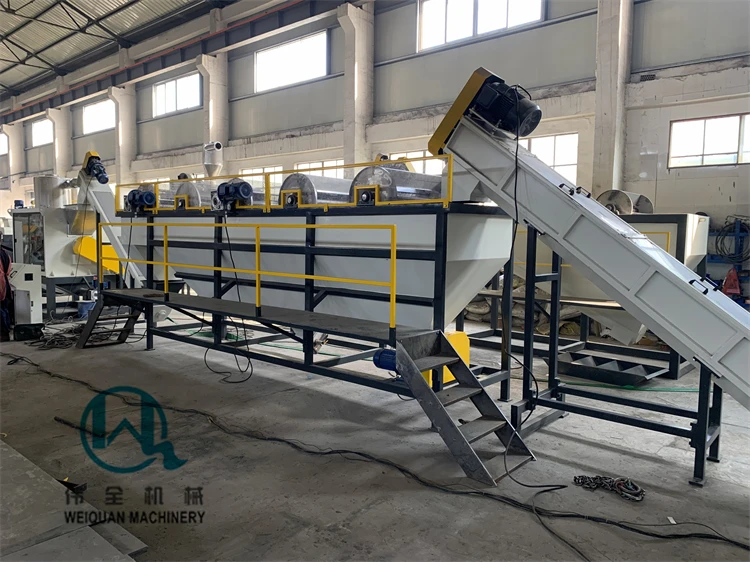

Floating Washing Tank
>>Clean materials by water, paddles and friction, Sludge and sands discharge by pneumatic valves
>>Materials: S.S. 304
Data:
>>Tank(Length x Width): 4.2mx 1.2m
>>Tank Structure: Rolling paddles
>>Top paddles motor: AC 0.37kW x 3
>>Bottom sucking pump: AC1.5kW
>>Lift motor: 1.5kW
>>Materials: S.S. 304
Data:
>>Tank(Length x Width): 4.2mx 1.2m
>>Tank Structure: Rolling paddles
>>Top paddles motor: AC 0.37kW x 3
>>Bottom sucking pump: AC1.5kW
>>Lift motor: 1.5kW
Low Speed Friction Washing
>> Strongly friction to clean the materials mechanically
Data:
>>Motor power: 11kW,6-P motor, AC
>>Rotary Diameter: Φ300mm
>>Rotary Speed: 700rpm
>>Main Shaft: Φ114Χ12mm
>>Bearing: NSK/Japanese brand
>>Screen sieve: 2mm
>> Strongly friction to clean the materials mechanically
Data:
>>Motor power: 11kW,6-P motor, AC
>>Rotary Diameter: Φ300mm
>>Rotary Speed: 700rpm
>>Main Shaft: Φ114Χ12mm
>>Bearing: NSK/Japanese brand
>>Screen sieve: 2mm
Dewatering Machine
>>Drying materials by centrifugal force
Data:
>>Motor power: 15kW,2-P motor, AC
>>Driving of motor: Star-Delta Start
>>Rotary Diameter: Φ450mm
>>Rotary Speed: 1800rpm
>>Bearing: NSK/Japanese brand
>>Screen sieve: 2mm
>>Humidity remain ratio: 0.5-1.5%(depends on raw materials)
>>Drying materials by centrifugal force
Data:
>>Motor power: 15kW,2-P motor, AC
>>Driving of motor: Star-Delta Start
>>Rotary Diameter: Φ450mm
>>Rotary Speed: 1800rpm
>>Bearing: NSK/Japanese brand
>>Screen sieve: 2mm
>>Humidity remain ratio: 0.5-1.5%(depends on raw materials)

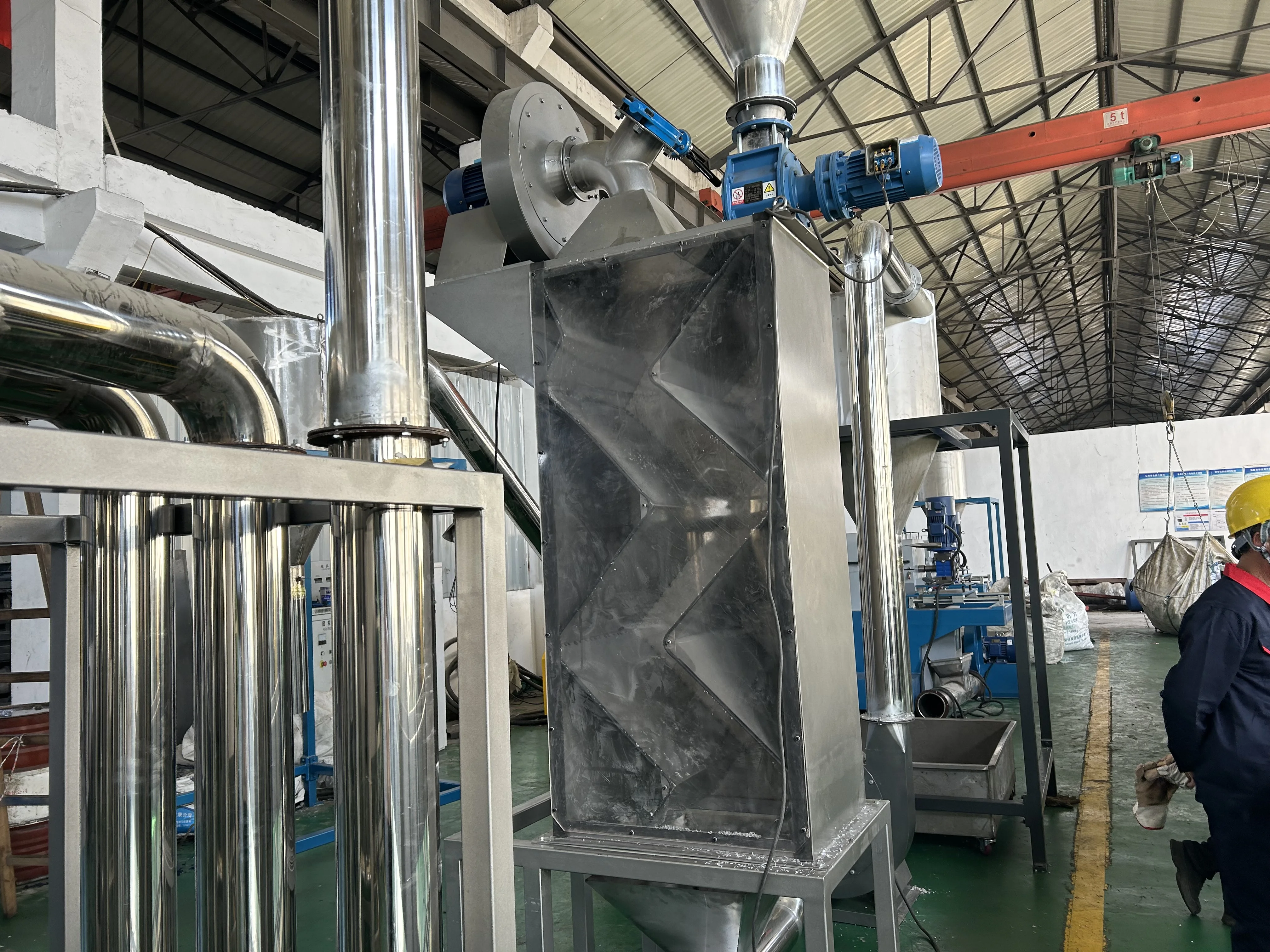

hot air blow Drying
>>Further drying materials by hot air
Data:
>>Capacity: 500kg/h
>>Heating power: 36KW
>>Pipeline length: 17m
>>Blower: 1.5kw
>>Feeding fan: 7.5kw
>>Further drying materials by hot air
Data:
>>Capacity: 500kg/h
>>Heating power: 36KW
>>Pipeline length: 17m
>>Blower: 1.5kw
>>Feeding fan: 7.5kw
Silo
>>For packaging materials
Data:
>>Fan Motor power: 5.5kW,
>>Driving of motor: Directly
>>Discharge of materials: Double outlet
>>Discharge controlling: Pneumatic Valve
>>Cylinder: SAL-CM-40*100-SD 8psc
>>For packaging materials
Data:
>>Fan Motor power: 5.5kW,
>>Driving of motor: Directly
>>Discharge of materials: Double outlet
>>Discharge controlling: Pneumatic Valve
>>Cylinder: SAL-CM-40*100-SD 8psc
PRODUCT SPECIFICATIONS
Model | Capacity | power | water supply | Area required |
WQ-300 | 300KG/H | 100KW | 4-5 T/H | 20*4.5*5 |
WQ-500 | 500KG/H | 115KW | 5-6T/H | 20*4.5*5 |
WQ-1000 | 1000KG/H | 125KW | 7-8T/H | 23*5*5 |
WQ-1500 | 1500KG/H | 180KW | 8-10T/H | 25*5*5 |
WQ-2000 | 2000KG/H | 225KW | 10-15T/H | 28*5*5 |
PE PP washing line
PP PE Pelletizing line
https://www.alibaba.com/product-detail/Waste-PP-PE-film-woven-bags_1600509209096.html?spm=a2747.manage.0.0.3c8471d2X7hwIW
Usage:
This machine can process a variety of thermoplastic plastics,such as PC,PA,PP,ABS,PE,POM,PET etc. Different from LDC series, this kind of machine has two even three stages.
Features:
It is used for PP PE ABS PA PS PET crushed material extruding and granule-making. It adopt the two-step structure to meet the the double-layer filter purpose. It can effectively remove the impurities from the recycling material and fully exhaust the gas. It can produce ample,consolidated and fine luster granules.
This machine can process a variety of thermoplastic plastics,such as PC,PA,PP,ABS,PE,POM,PET etc. Different from LDC series, this kind of machine has two even three stages.
Features:
It is used for PP PE ABS PA PS PET crushed material extruding and granule-making. It adopt the two-step structure to meet the the double-layer filter purpose. It can effectively remove the impurities from the recycling material and fully exhaust the gas. It can produce ample,consolidated and fine luster granules.
PET Washing line
https://www.alibaba.com/product-detail/PET-Waste-Bottles-Customized-Recycling-Machine_1600491687077.html?spm=a2747.manage.0.0.387f71d2A08KPd
PET bottles/bottle bales/flakes washing and recycling line mainly used to recycling waste PET bottle, The whole line is fully automatic and it has characteristics of high efficiency, low noise and easy operation.the humidity of final output could be within1%.It adopts hot water washing to get good quality. Various output capacities can be chosen: 500kg/h, 1000kg/h, 1500kg/h 2000kg/h.3000kg/h,5000kh/h.The waste dirty material go through delabelling, crushing, washing, drying, and collecting process will turn to be clean flakes for reuse.
This pet bottle washing machine can be displayed "L" or "U" shape according to clients' workshop.
This pet bottle washing machine can be displayed "L" or "U" shape according to clients' workshop.
conveyor belt
crush machine
hot washing tank
