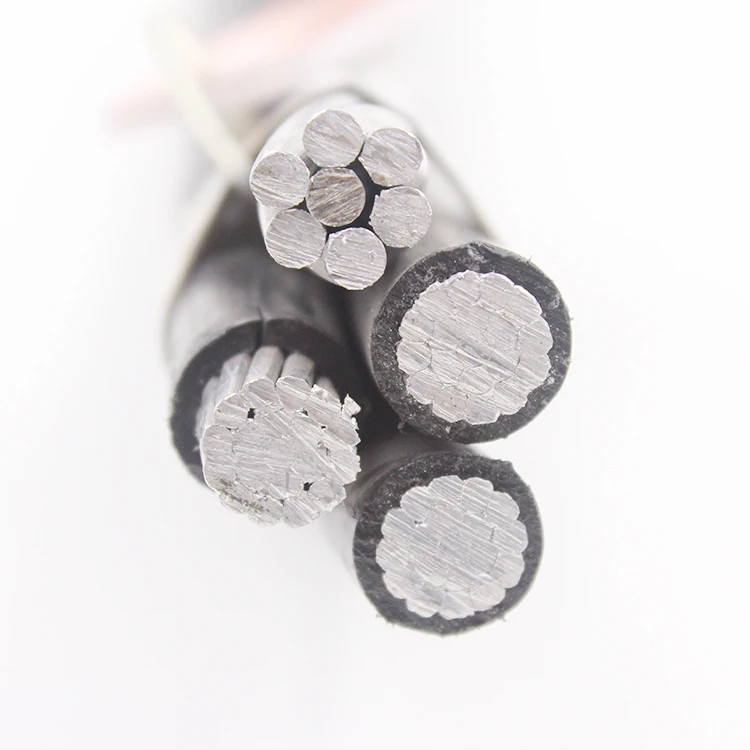

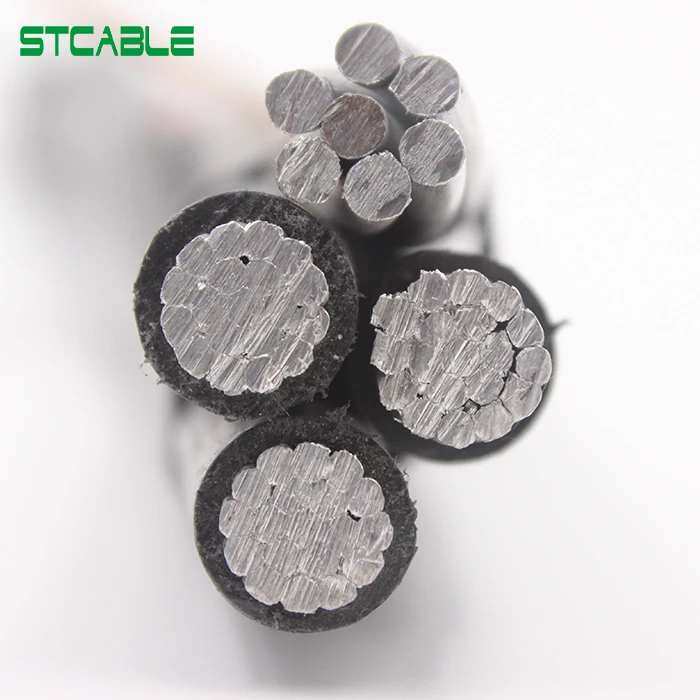

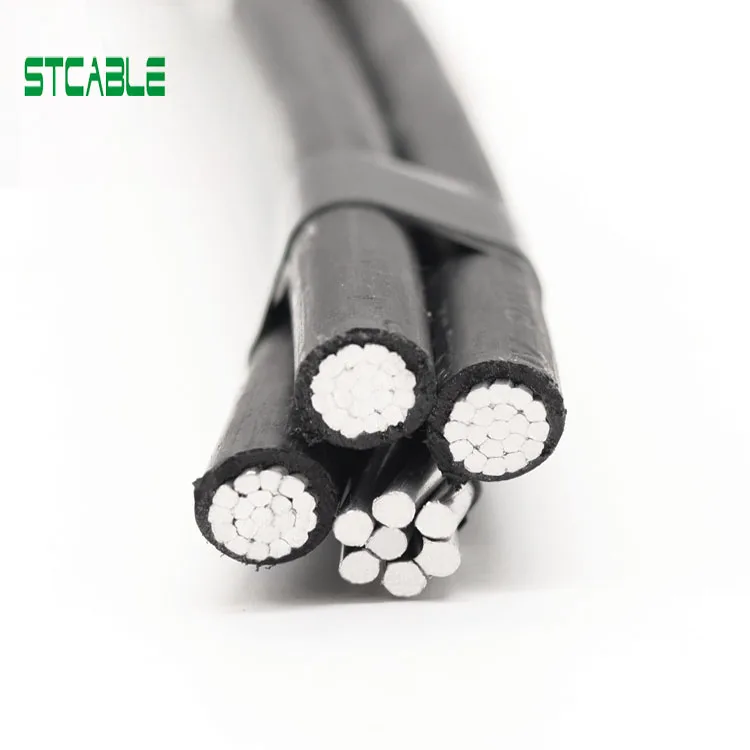

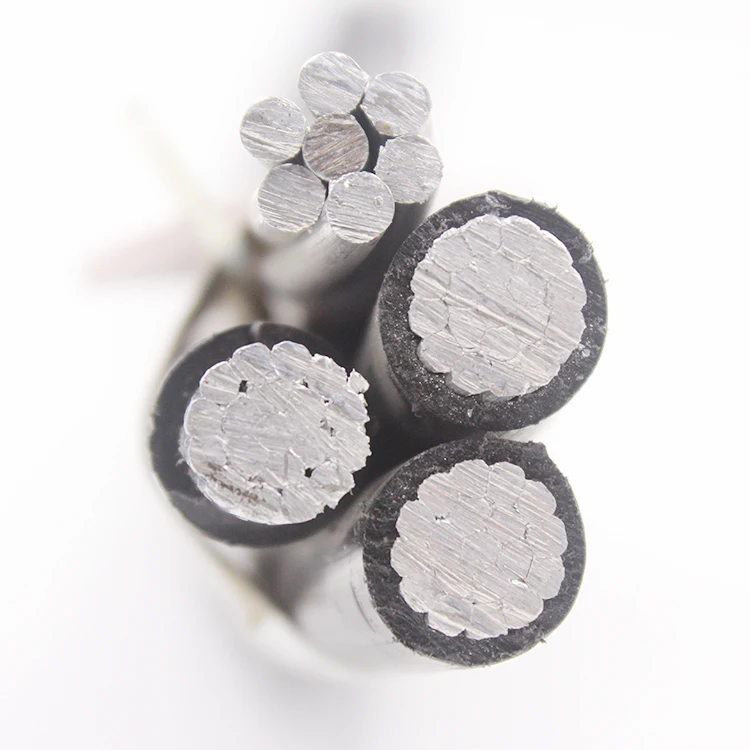

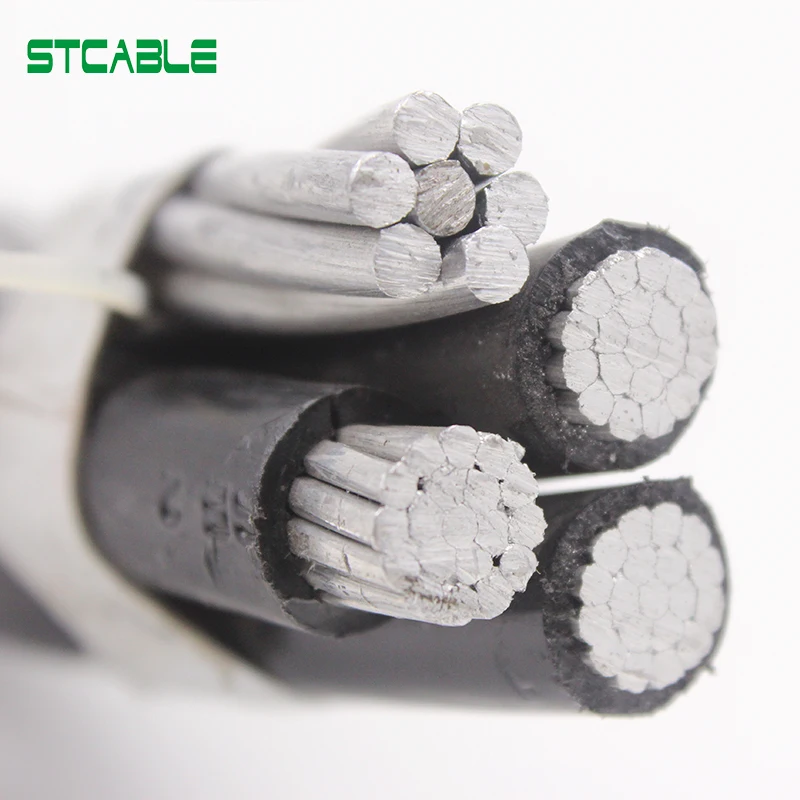

Power cable xlpe insulation with bare neutral messenger 0.6/1kv 4 core abc cable

    The ABC cable have been widely used in the world with the advantages of the excellent electric properties,Strong ability to resist short circuit,long service life,light weight,without the limit of fall,easy to install,operate and maintain,etc.

    ABC cable primarily used for overhead service applications such as street lighting ,outdoor lighting,and temporary service for construction, Especially suitable for the city streets and greening areas near the building of the power supply and overhead lines,and suit for the operation and management requiements of the rural areas, and the densely populated cities and towns.

 Specifications of quadruplex service drop

 Quadruplex service drop

Used to supply 3 phase power,usually from a pole-mounted transformer,to the user’s service head where connection to the service entrance cable is made.To be used at voltage of 600 volts or less phase to phase and at conductor temperature no to exceed 75°C for polyethylene insulated conductor or 90°C for crosslinked polyethylene insulated conductors.

High Quality Material

All cables will be packed in rool or different sizes wooden reels according to their outside diameter and net weight. 1. We use fumigated & treated timber wooden reel to package cables. 2. Frequently-used reel sizes: 0.7*0.7*0.7m, 1.1*1.1*0.8m, 1.8*1.8*1.1m, 2.2*2.2*1.8m, or as customer's reauests 3. Wooden plate sealed. 4. 72 pcs of 0.7m wooden reel can be put in one 20FCL. 28 pcs of 1.1m wooden reel can be put in one 20FCL. 6 pcs of 1.8m wooden reel can be put in one 20FCL.

Zhengzhou Sitong Cable Co.Ltd. is founded by one of the most professional manufacturers.We specialize in producing and exporting all kinds of wires and cables.We have advanced tech-staff, advanced equipment and  30year's experience engineer.Welcome to visit  at any time.Since we were founded, we have been built favorable business relationship with many customers from all over the world.  We comply with the principle - “honest management,practical and pioneering spirit ,pursuit of excellence”.We are willing to collaborate with our friends all over the world and build brilliant future with the perfect quality of products and service.

Our company has single wire area,stranding area,extruding area,armouring area,cabling area,package area, and has its own laboratory.  There are 4 tubular stranding machines in our factory. All of these are seven strands of wire, can stranding the wire to left and right two directions. The range and speed of the strand wire are different. We have 4 extruded molding machines totally. The two is 90, one is 65 and the other is 120 .(Note : 90, 65, 120 means the diameter of the screw tube on the extruder. )Insulation thickness ranges from 1 mm to 4 mm.the color master batch of 2%-3%  XLPE PE.Process: The screw and insulation materials are squeezed together by the extruder. Next printed with the print machine or inkjet machine, then cooled through the sink, and eventually entangled on the axle directly.etc.

Laboratory:

DC bridge : dc resistance at 20℃, IEC 60228, ASTM ,BS

Section projector : test thickness , min thickness , average thickness

Aging test :hot elongation,test 15 minute

Tensile strength testing equipment :tensile strength and elongation
