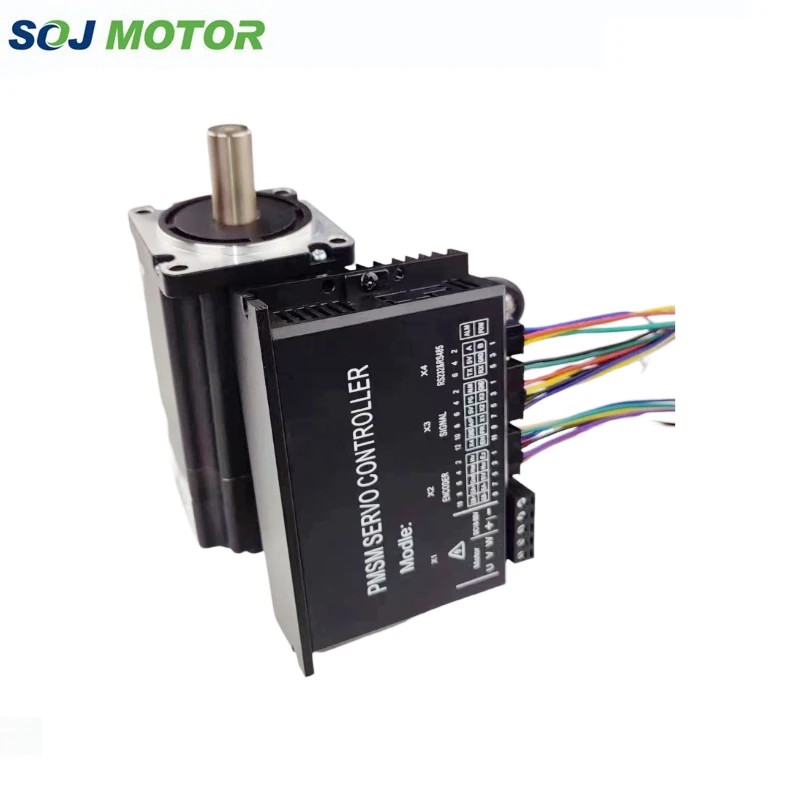

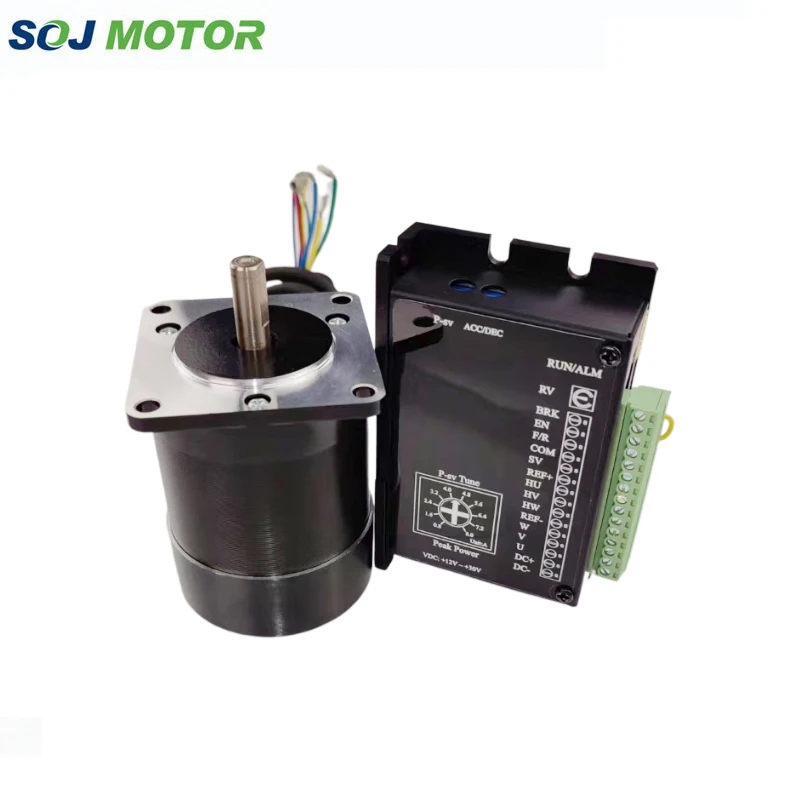

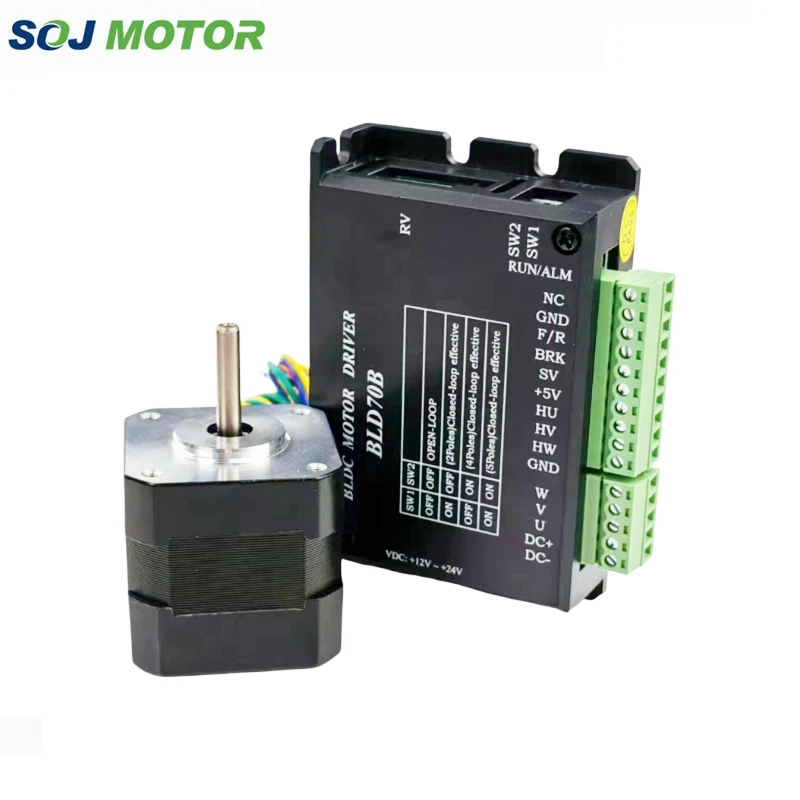

Оптовая продажа, электрические колеса OEM, 350 Вт, 36 В, 24 В, торговая скорость, плюш 32, 36va, бесщеточный двигатель постоянного тока с контроллером для Rc

Driver parameter

Min Value

Typical Value

Max Value

Unit

Voltage input DC

12

48

56

V

Current output

-

-

15

A

Motor speed range

0

-

20000

RPM

Hall signal voltage

-

-

5

V

Hall drive current

12

-

-

mA

External potentiometer

-

10

-

KΩ

Environmental factors

Environmental indicators

Heat sinking method

Natural or forced cooling

Atmosphere

Avoid dust, oil mist and corrosive air

Operating temperature

10℃-+50℃

Ambient humidity

90% or less(non condensing)

Vibration Resistance

5.7m/S² max

Storage temperature

0℃-+50℃

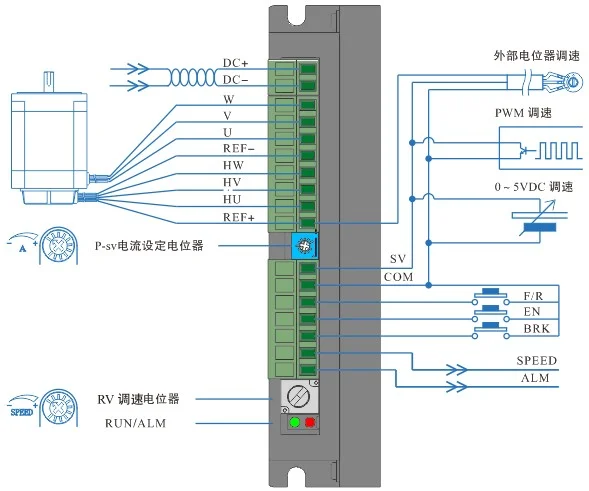

Signal

category

Terminal

Function Description

Power connection

DC+/DC-

Dc voltage input terminal (12-56VDC)

Motor connection

U

Motor line U phase

V

Motor line V phase

W

Motor line W phase

Hall signal

REF-

Hall  sensor signal-

Hu

Hall  sensor signal Hu

Hv

Hall  sensor signal Hv

Hw

Hall  sensor signal Hw

REF+

Hall  sensor signal+

Control signal

SV

External potentiometer speed setting input; External analog voltage input terminal ;PWM speed setting input

COM

Common port(0V)

F/R

Motor direction control terminal;F/R and COM disconnection,motor will rotates

Clockwise,and otherwise,motor will rotate anticlockwise.

EN

Stop signal terminal; EN connects COM ,motor runs,otherwise motor stops.

BRK

Motor brake stop control signal;BRK and COM connect in default,motor brake stops when BRK and COM disconnect.

Output signal

SPEED

Speed signal output terminal

ALARM

Motor or driver fault signal output. It is 5V in normal situation and  0V when fault occurs.
