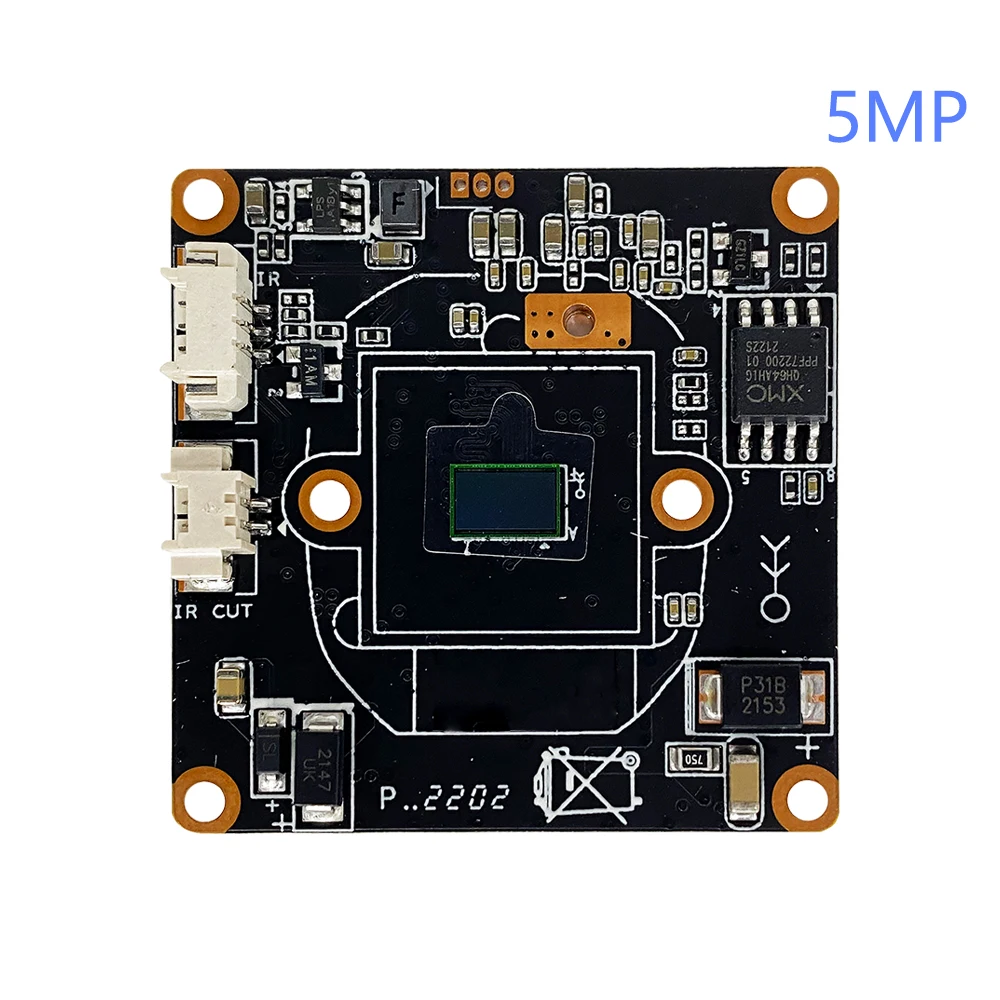

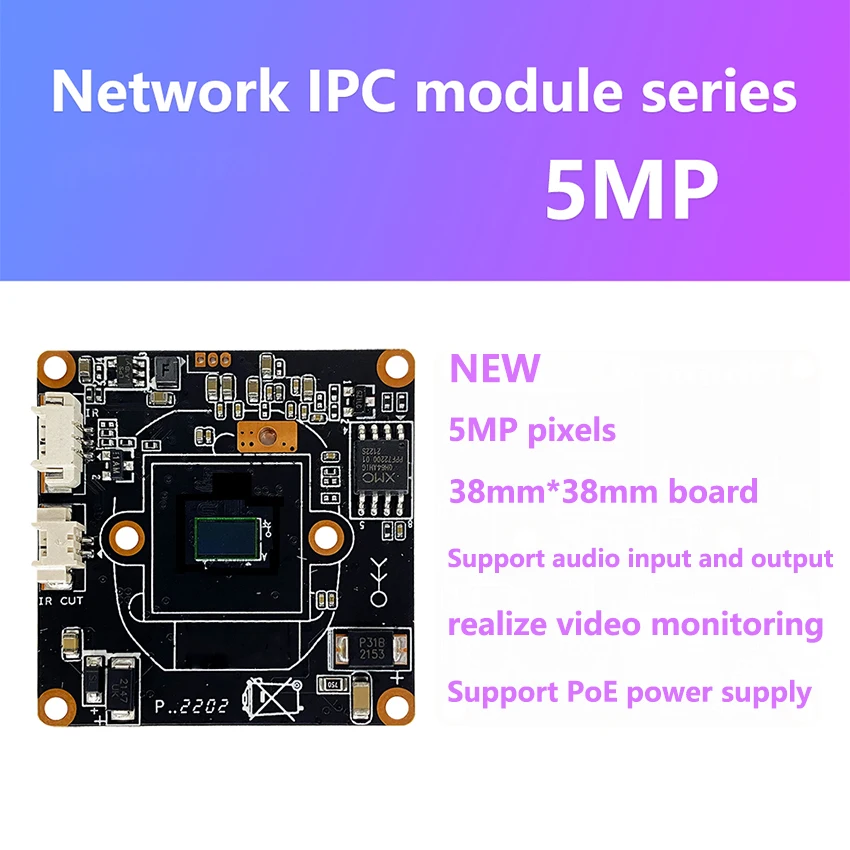

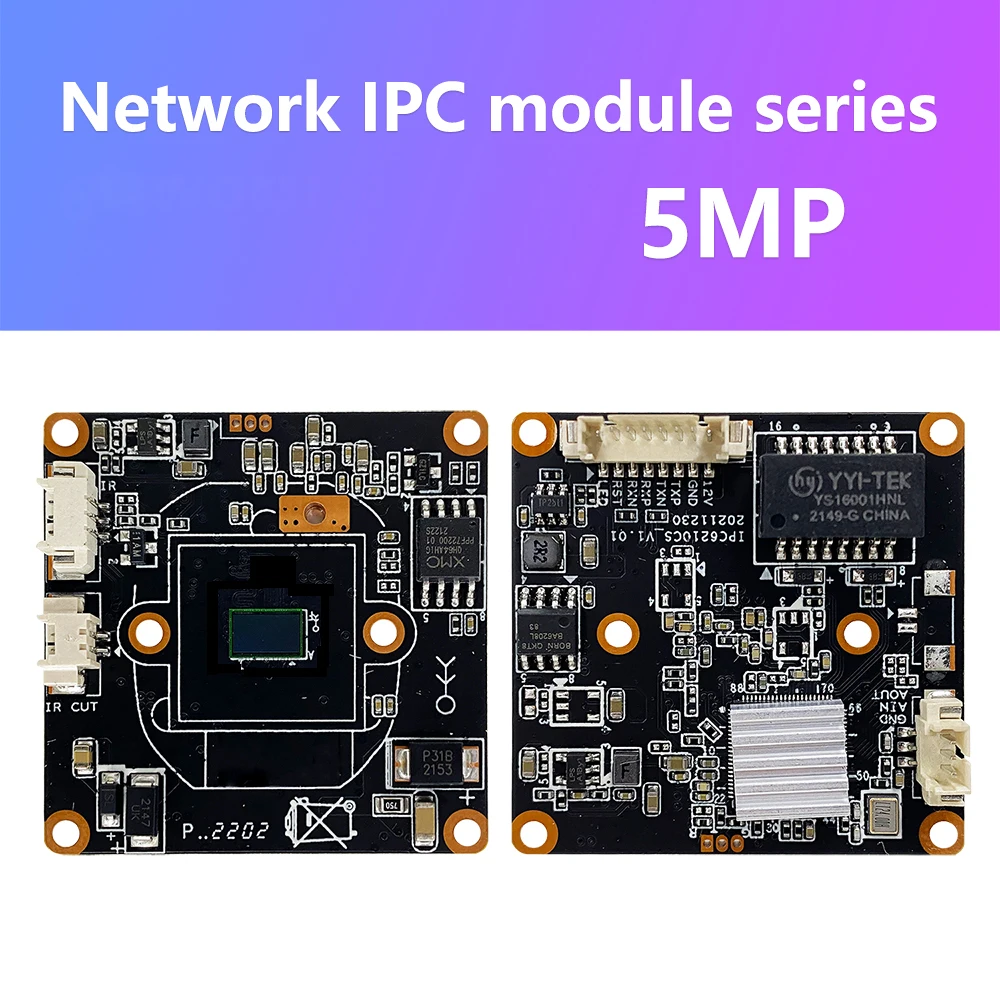

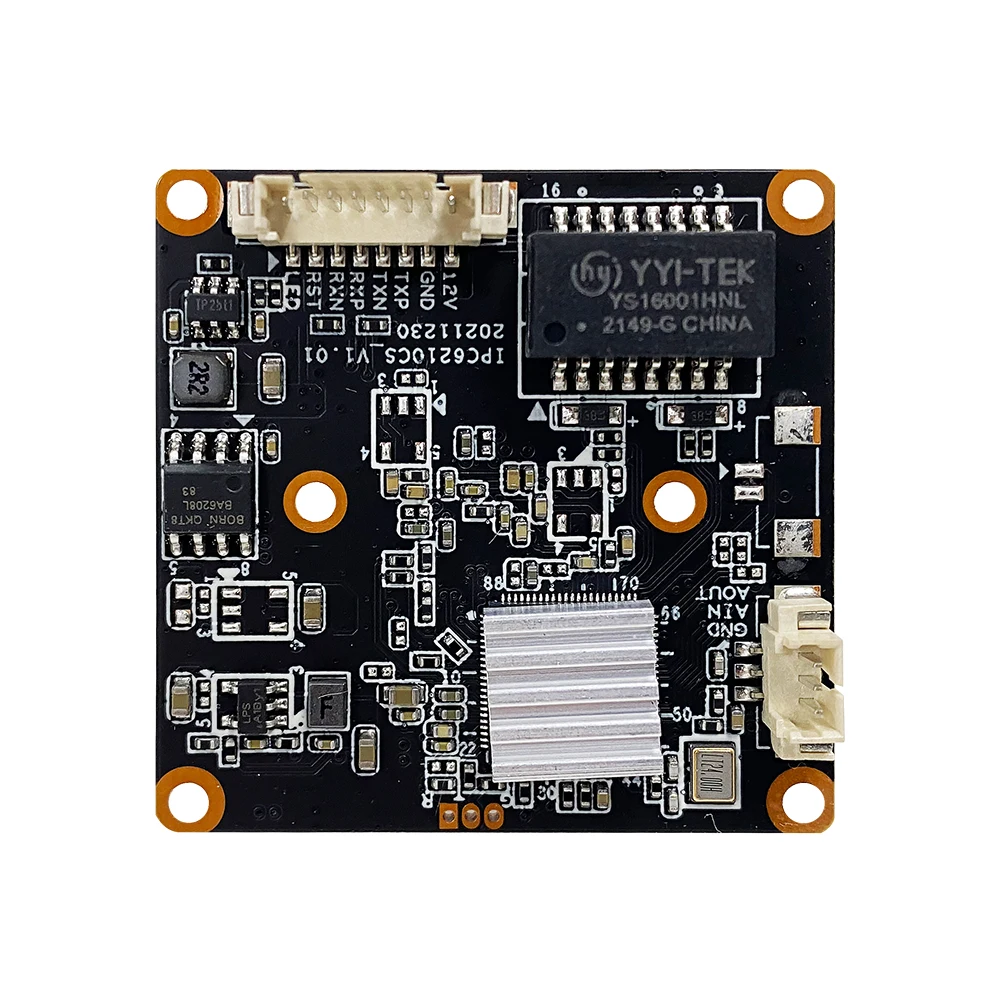

5MP H.265 Starlight основная плата модуль камеры CCTV FH Сетевая камера Ip печатная плата
- Category: Surveillance Products >>>
- Supplier: Shenzhen STD Monitoring Co. Ltd.
Share on (1600833359226):
Product Overview
Description
VR
Product Description
Specification
Module | IPC6223EA-SS | ||
Main chip | FH8852V200 | ||
Sensor | 5MP pixel , 1/2.9″ CMOS sensor | ||
Encoding format | H.264, H.265 encoding, support dual stream | ||
Maximum frame rate | PAL:5M:20fps/s; 4M:25fps/s; 2M:25fps/s; NTSC:5M:20fps/s;4M:25fps/s; 2M:30fps/s | ||
Image Resolution | Main stream: 2880*1620,2560*1440,1920*1080； Auxiliary stream: 704*576,640*480,352*288 Snap stream: 704*576,640*480,352*288 | ||
Subtitle overlay | Support channel name, date and time overlay, overlay position is adjustable | ||
Alarm data transmission | FTP, E-mail, browser, management software | ||
Protocol support | TCP/IP,RTSP,RTP,HTTP,DNS,DDNS,DHCP,FTP,NTP,UPNP | ||
ONVIF protocol | Standard ONVIF protocol | ||
Client browsing | Client browsing supports IE8.0 and above (device embedded Web Server), Edge,Chrome,Safari browser browsing | ||
Mobile client | Support iOS, Android platforms | ||
Audio format | G.711A | ||
Audio input | 1 audio input | ||
Audio output | 1 audio output | ||
Powered by | DC12V | ||
Equipment power | Bare board 1.2W (MAX) | ||
Dimension | 38(L) * 38(W) | ||
IR-CUT hole distance | 20mm | ||
Equipment weight | 0.1 kg | ||
Network protocol: | TCP/IP、UDP、HTTP DDNS、DHCP、FTP、NTP | ||
ONVIF: | No | ||
Storage: | TF Card（Max 128G）；Cloud storage (optional) | ||
Power input: | 5V/1.6A (EU and US Plug optional) | ||
Work environment: | Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH | ||
Temperature and humidity | Zero 10 ° C -60 ° C, humidity less than 90% [no condensation] | ||
power supply | DC 5V ± 10% | ||
Motion detect | Support ,send message to the phone | ||
Audio I/O | Support two-way voice | ||
