High Speed Wirecut Edm Dk7732 Cnc Wire Cutting Machine
US $5555-$8888

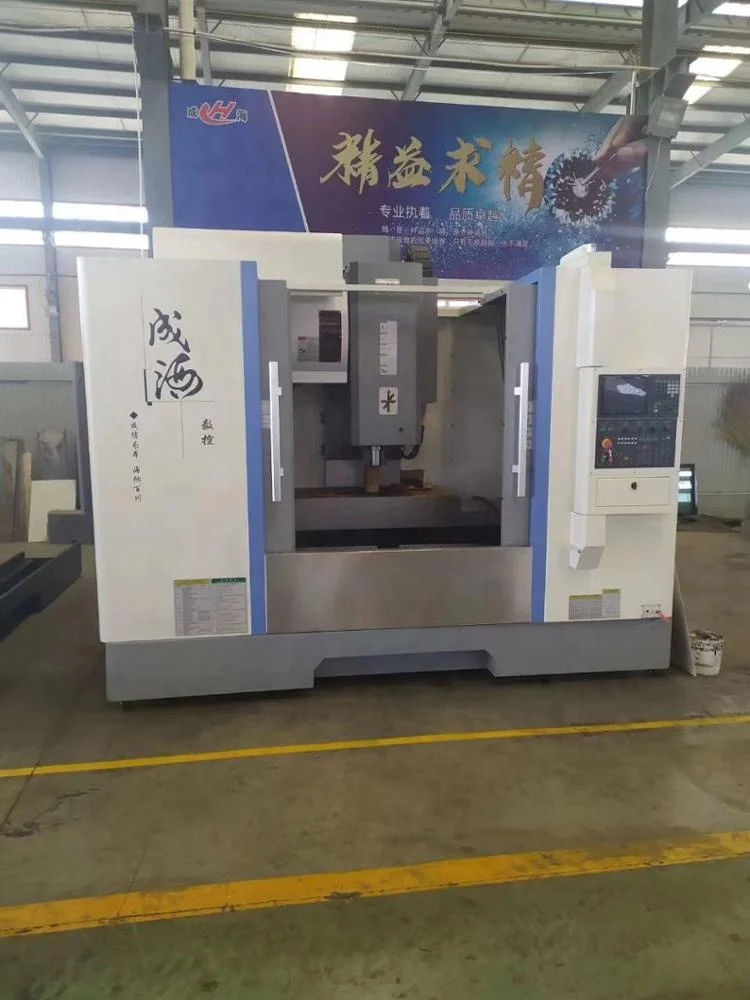

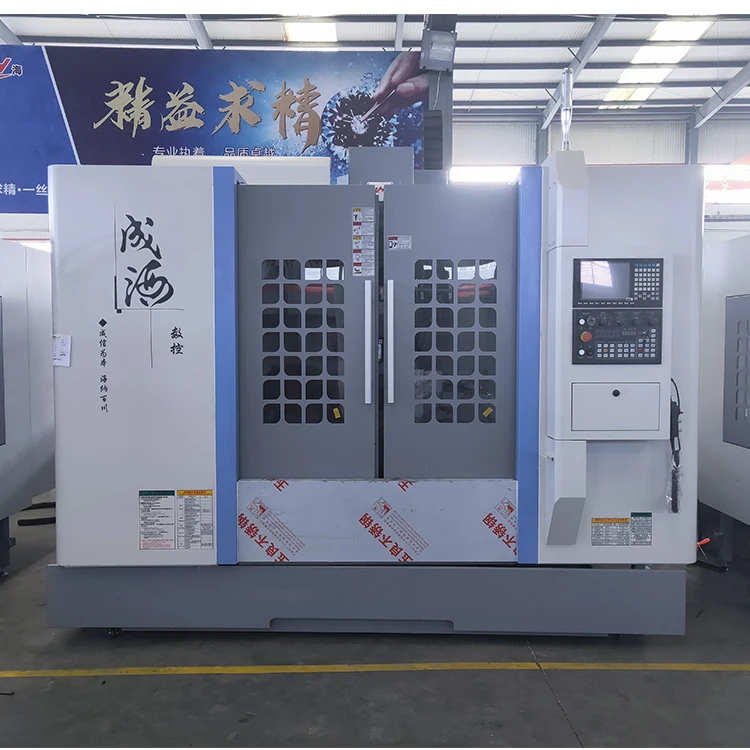

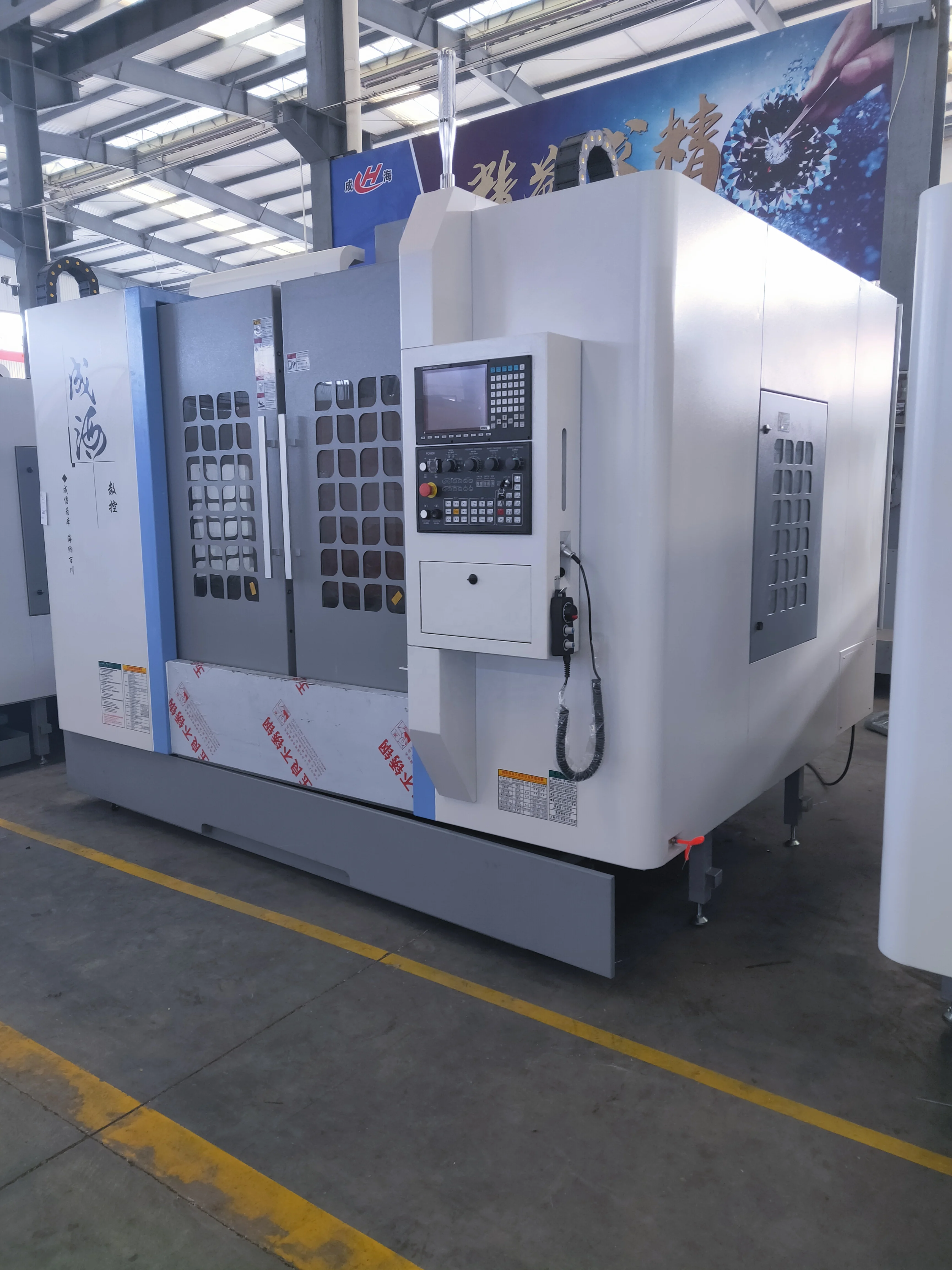

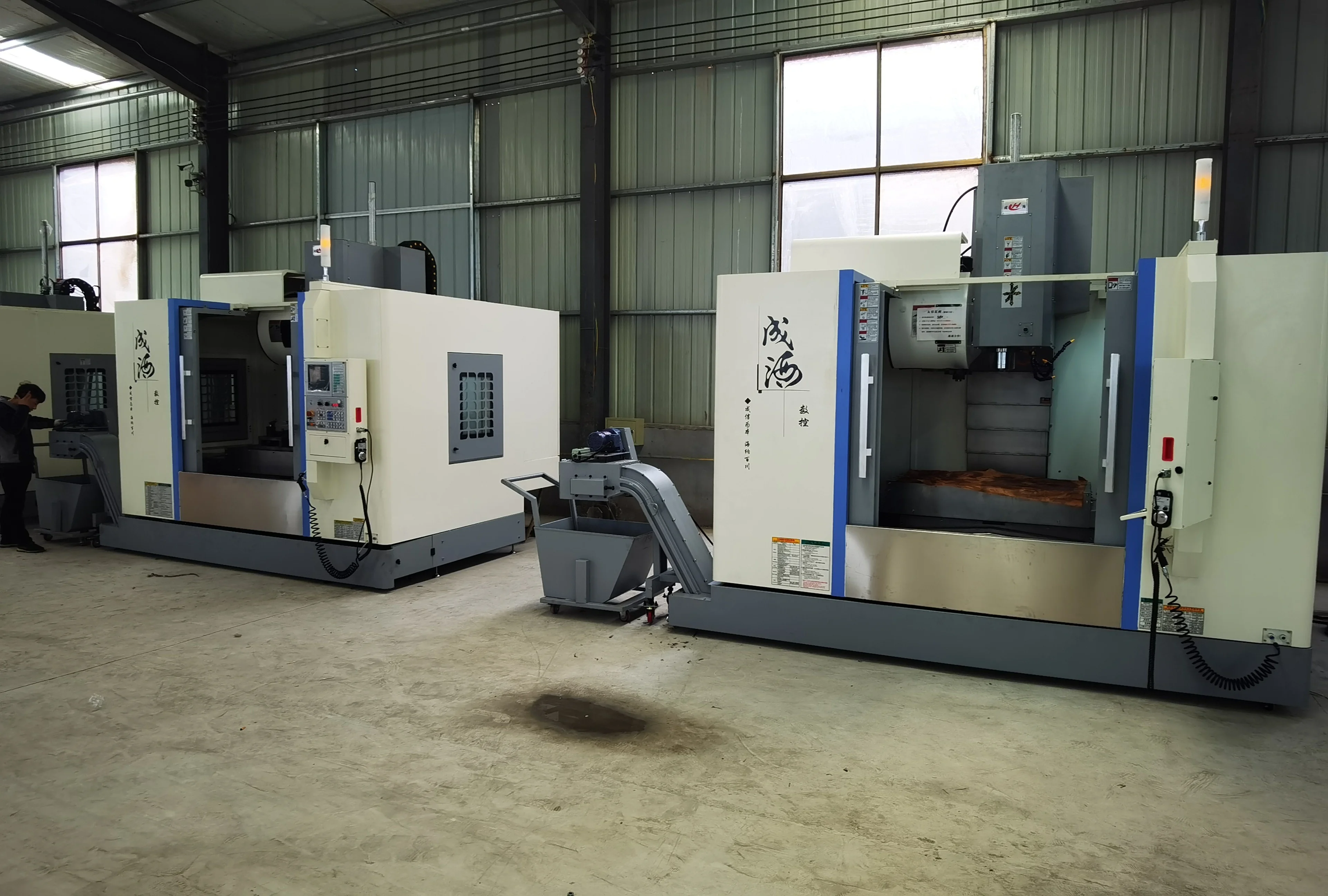

Фрезерный станок с ЧПУ центр для плесени vmc1160 вертикальный обрабатывающий центр
- Category: Machine Tool Equipment >>>
- Supplier: Tengzhou Chenghai Machine Tool Co. Ltd.
Share on (1600833399998):
Product Overview
Description
Product Description
General vertical machining center ,mainly used in medium-sized parts and molds, the workpiece in a
fixture may be for the completion of milling ,drilling ,boring.,reaming and other processes of processing,
it can be single used and can also be used for multiple operations on parts in a production line Cutting
with powerful ,high-speed positioning mechanical and electrical integration, automatic chip control and
security protection features.
fixture may be for the completion of milling ,drilling ,boring.,reaming and other processes of processing,
it can be single used and can also be used for multiple operations on parts in a production line Cutting
with powerful ,high-speed positioning mechanical and electrical integration, automatic chip control and
security protection features.
Standard configuration
* FANUC ,Mistubishi, Siemens, GSK, KND system
* Full cover protection
* Automatic lubricationsystem
* Foundationbolts and pads
* Open the doorof the electrical cabinet & power off/automatic power off
* Dual LED work light
* Oil cooler (optional)
* Hand-held air gun
* Screw/Chain type chip conveyor(optional)
* High pressure inner chipping
* Spindle air curtain protection system
* Machinery, electrical appliances, operatinginstructions
* Electrical cabinetheat exchanger
* Electrical cabinetair conditioner (optional)
* Full cover protection
* Automatic lubricationsystem
* Foundationbolts and pads
* Open the doorof the electrical cabinet & power off/automatic power off
* Dual LED work light
* Oil cooler (optional)
* Hand-held air gun
* Screw/Chain type chip conveyor(optional)
* High pressure inner chipping
* Spindle air curtain protection system
* Machinery, electrical appliances, operatinginstructions
* Electrical cabinetheat exchanger
* Electrical cabinetair conditioner (optional)
Workpieces Samples
Specification
Item | Unit | VMC 1160 |
X/Y/Z axis travel | mm | 1100*600*600 |
Distance from spindle nose to worktable | mm | 120-720 |
Distance from spindle center to column guide rail surface | mm | 600 |
Spindle speed | rpm | 8000 |
The spindle taper | BT40 | |
Cutting tool specification | BT40 | |
Spindle motor power | kw | 11Kw |
Tool magazine ATC (optional | tools | BT40/24T |
X/Y/Z axis motor power | N.m | XY:β12*2/3000rpm，Z:β22*1/3000rpm |
The worktable | ||
Table size (L × W) | mm | 1200*600 |
Table Max loading capacity | kg | 800 |
X axis Rapid movement | m/min | 36 |
Y axis Rapid movement | m/min | 36 |
Z-axis rapid movement | m/min | 24 |
Cutting feed speed | mm/min | 1-10000 |
Positioning accuracy | mm | ±0.005 |
Repeated positioning accuracy | mm | ±0.003 |
The controller | FANUC, Mistubishi, Siemens, GSK, KND | |
Machine weight | T | 7.3 |
The power demand | KVA | 15 |
Water tank capacity | L | 350 |
Air source | kg/cm2 | 6 |
Machine dimensions (L × W × H) | mm | 3400*2480*2960 |
Packing & Delivery
The machine package is the exported plywood case with steel bracket.
Company Profile
Tengzhou Chenghai Machine Tool Co., Ltd. is an enterprise integrating the research, development and sales of lathes. Our company has been a manufacturer specializing in machinery for ten years, with well-equipped testing equipment and strong technical force.
Our company produces drilling machines, milling machines, radial and milling machines, saw machines, CNC machines and many kinds of lathe machines with good quality, competitive price and stylish design. Because of these advantages, our machines are popular all over the world. We mainly export the machines to Southeast Asia, the Middle East and Europe. Our products are widely recognized and trusted by users and can meet developing economic social needs.
In recently years, our company has continuously increased the investment in the research, technological innovation and quality improvement. A number of high-tech and efficient products are introduced to enhance the market competitive of enterprise.
Tengzhou Chenghai Machine Tool Co., Ltd. wants to have cooperation with you for common development.
Our company produces drilling machines, milling machines, radial and milling machines, saw machines, CNC machines and many kinds of lathe machines with good quality, competitive price and stylish design. Because of these advantages, our machines are popular all over the world. We mainly export the machines to Southeast Asia, the Middle East and Europe. Our products are widely recognized and trusted by users and can meet developing economic social needs.
In recently years, our company has continuously increased the investment in the research, technological innovation and quality improvement. A number of high-tech and efficient products are introduced to enhance the market competitive of enterprise.
Tengzhou Chenghai Machine Tool Co., Ltd. wants to have cooperation with you for common development.
FAQ
1. who are we?
We are based in Shandong, China, start from 2004,sell to South Asia(11.11%),Northern Europe(11.11%),Eastern Asia(11.11%),Mid East(11.11%),Southeast Asia(11.11%),Eastern Europe(11.11%),South America(11.11%),North America(11.11%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cnc machine center,Cnc Milling machine,Lathe,Drilling machine,Milling machine
4. why should you buy from us not from other suppliers?
1. Supply best quality drilling machine, milling machine, lathe machine;
2. We have our own factory, we are esteemed manufacturer;
3. First-class sales and technical teams;
4. In time response with 24 hours.
5. Quick delivery and shipment.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese,Spanish
We are based in Shandong, China, start from 2004,sell to South Asia(11.11%),Northern Europe(11.11%),Eastern Asia(11.11%),Mid East(11.11%),Southeast Asia(11.11%),Eastern Europe(11.11%),South America(11.11%),North America(11.11%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cnc machine center,Cnc Milling machine,Lathe,Drilling machine,Milling machine
4. why should you buy from us not from other suppliers?
1. Supply best quality drilling machine, milling machine, lathe machine;
2. We have our own factory, we are esteemed manufacturer;
3. First-class sales and technical teams;
4. In time response with 24 hours.
5. Quick delivery and shipment.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese,Spanish
