Product Overview
Description

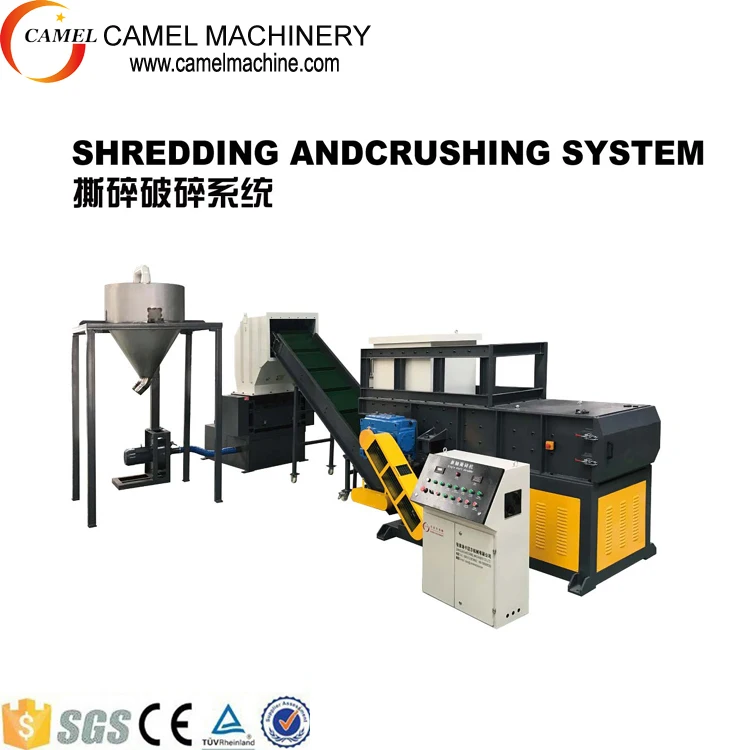

Waste plastic shredder and crusher system
Specifications
plastic shredder machine
1. composed by shredder and crusher
2. suitable big HDPE pipe plastic drum lump
3. heavy duty
General description of plastic shredder machine:

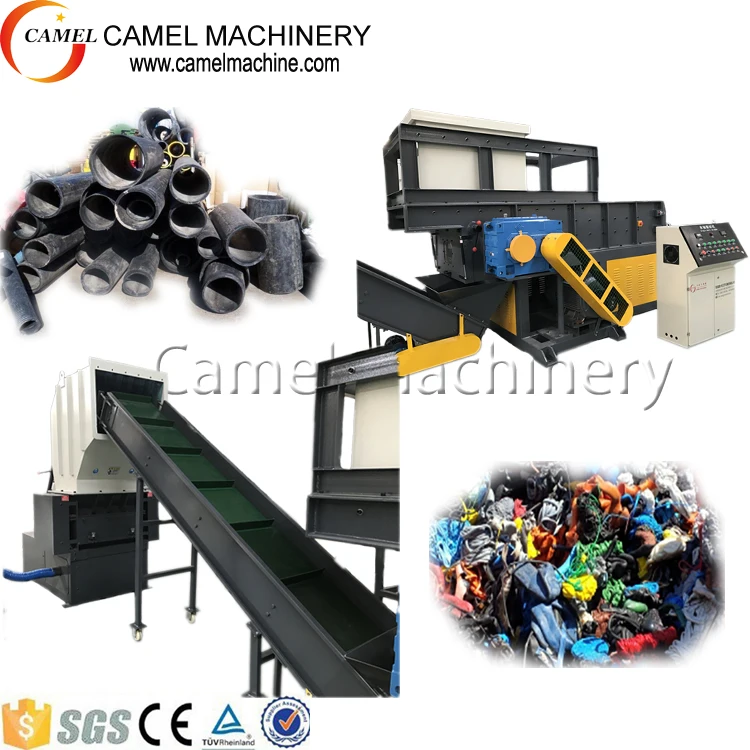

plastic shredder machine is designed for crushing big volume plastic and hard plastic, such as:
plastic drums made of HDPE/PP, HDPE pipe, Plastic lumps, even wood pallets and so on.
plastic shredder machine
1. composed by shredder and crusher
2. suitable big HDPE pipe plastic drum lump
3. heavy duty
General description of plastic shredder machine:
plastic shredder machine is designed for crushing big volume plastic and hard plastic, such as:
plastic drums made of HDPE/PP, HDPE pipe, Plastic lumps, even wood pallets and so on.
Features:
1)Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material
2)PLC control system with automatic overload protection and auto reverse switch
3)Unique hydraulic pushing system accelerates the shredding speed, for light material particularly
4)Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree
5)Each fixed blades has two cutting edges which enable reutilization after being abraded, by rotating 180 degree
6)Quiet operation at low speed
7)Screen mesh is adjustable according to customers' requirement
8)The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.
1)Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material
2)PLC control system with automatic overload protection and auto reverse switch
3)Unique hydraulic pushing system accelerates the shredding speed, for light material particularly
4)Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree
5)Each fixed blades has two cutting edges which enable reutilization after being abraded, by rotating 180 degree
6)Quiet operation at low speed
7)Screen mesh is adjustable according to customers' requirement
8)The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.

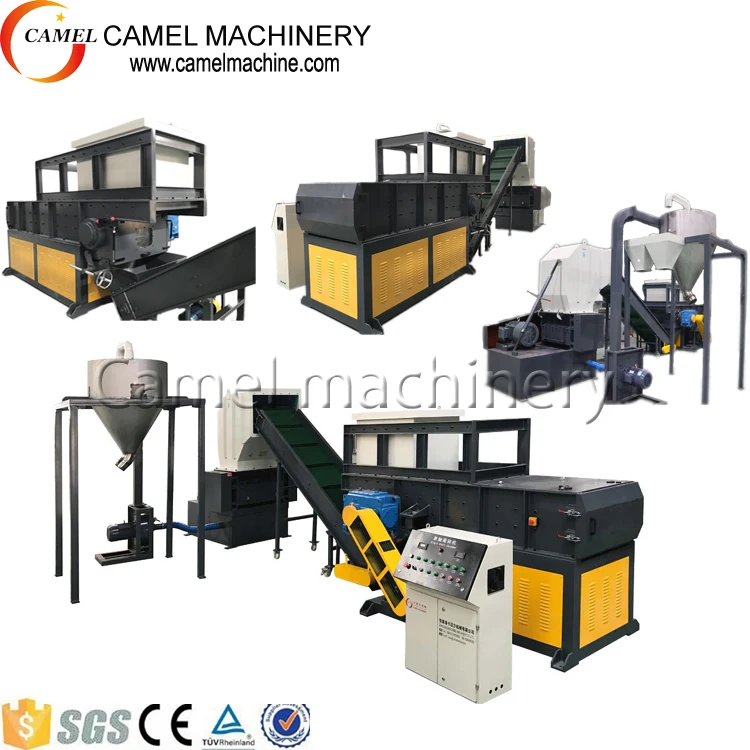

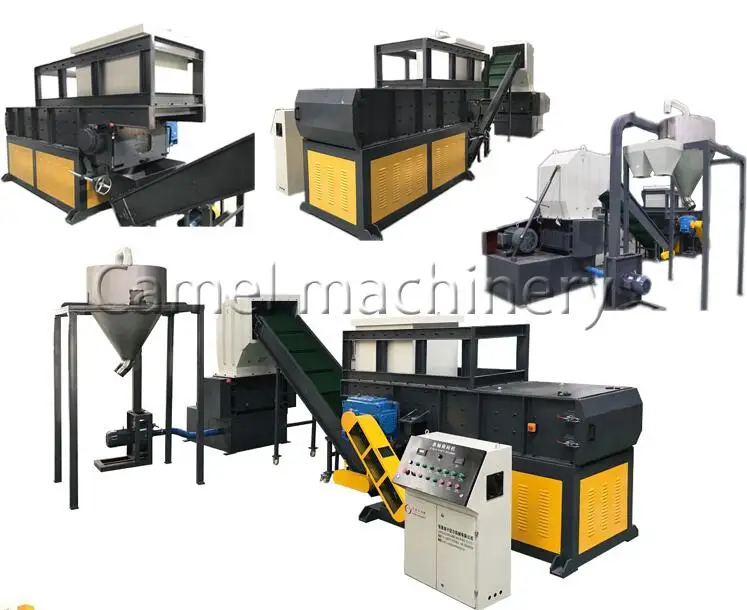

Plastic shredder machine composed by:
1. Single shaft shredder
2. Conveyor
3. Plastic crusher
4. Blow wind system
1. Single shaft shredder
2. Conveyor
3. Plastic crusher
4. Blow wind system
Model | Power (kw) | Number of rotary knife | Knife size (mm) | Shaft Rotating diameter (mm) | Dimension of crushing chamber (mm) | Output (kg/h) | Weight (kg) |
WD-500 | 18.5 | 28 | 40*40 or 50*50 | ᴓ280 | 500*550 | 300~500 | 2800 |
WD-600 | 22 | 32 | ᴓ280 | 600*650 | 500~600 | 2900 | |
WD-800 | 45 | 44 | ᴓ350 | 800*850 | 500~800 | 4100 | |
WD-1000 | 55 | 52 | ᴓ350 | 1000*1050 | 800~1000 | 6500 | |
WD-1200 | 75 | 68 | ᴓ350 | 1200*1250 | 1000~1200 | 7000 | |
WD-1500 | 90 | 81 | ᴓ550 | 1500*1600 | 1000~1500 | 10500 | |
WD-1600 | 110 | 85 | ᴓ550 | 1600*1700 | 1000~1600 | 13800 |
Model | Motor power | Rotating blade | Fixing blade | Output |
PC600 | 18.5KW or 22KW | 10 or 30Pcs | 2Pcs | 200-300kg/h |
PC800 | 30KW or 37KW | 10 or 24Pcs | 4Pcs | 500-600kg/h |
PC1000 | 55KW | 10 or 24Pcs | 4Pcs | 600-800kg/h |
PC1200 | 75KW | 10 or 24Pcs | 4Pcs | 1000kg/h |
Company Information
Delivery Ways
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or Alibaba trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
·A6 380V 50hz 3 phase or any other voltage according to client's requirement.
Q7:If you support Alibaba trade assurance pay?
A7:Yes.100% support.
