Безопасная система контроля ES80A A6 атмосферного загрязнения воздуха rs485, Малая система контроля давления атмосферного воздуха с озоном so2 no2 (1600834817486)

Share on (1600834817486):


Price:2 000,00 $ - 3 500,00 $

Quantity:


Product Overview

Description



Products Description




Product Name

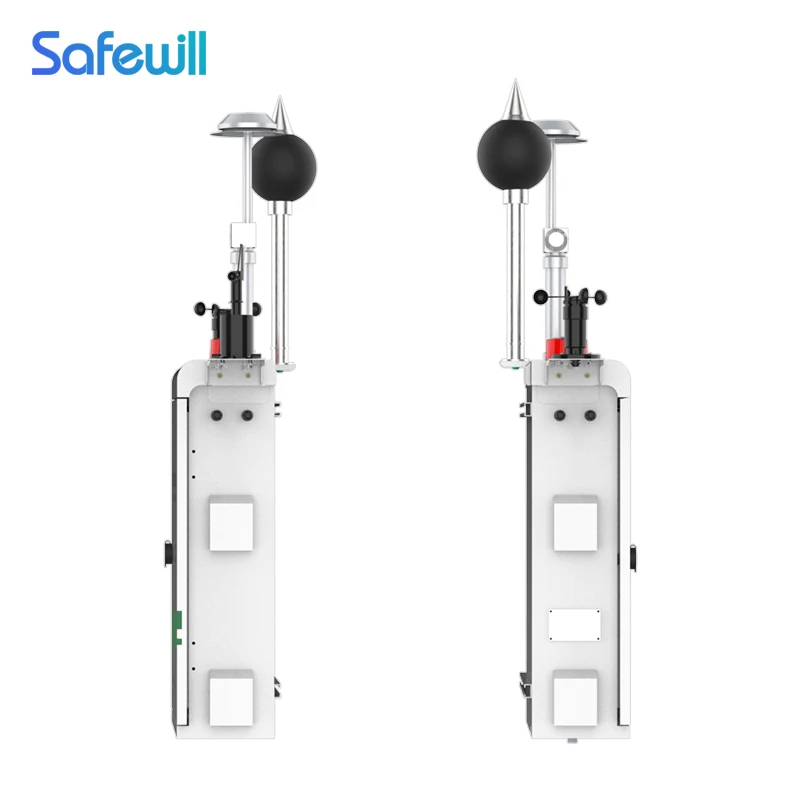

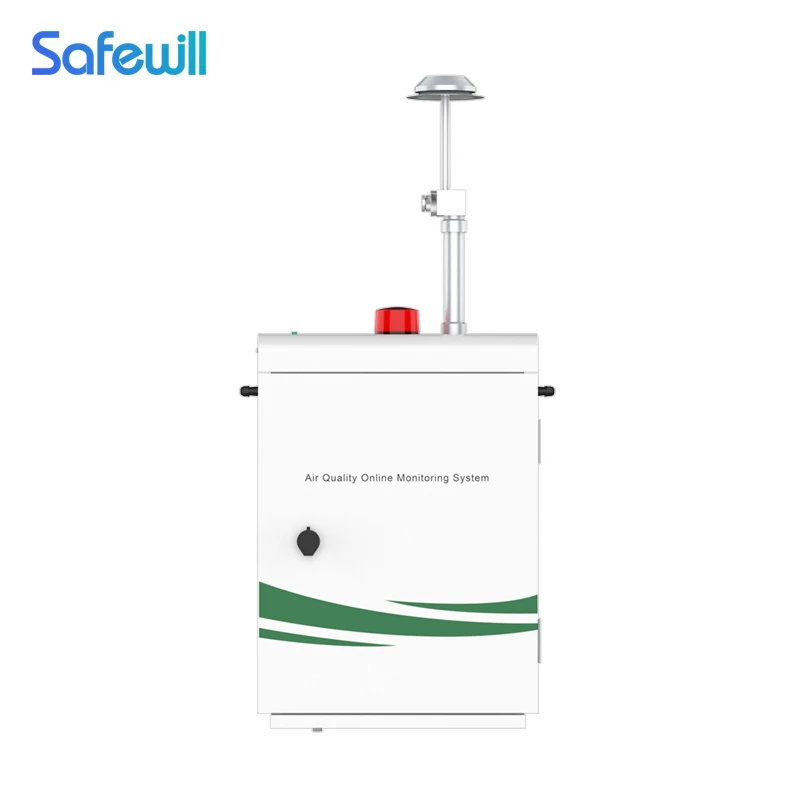

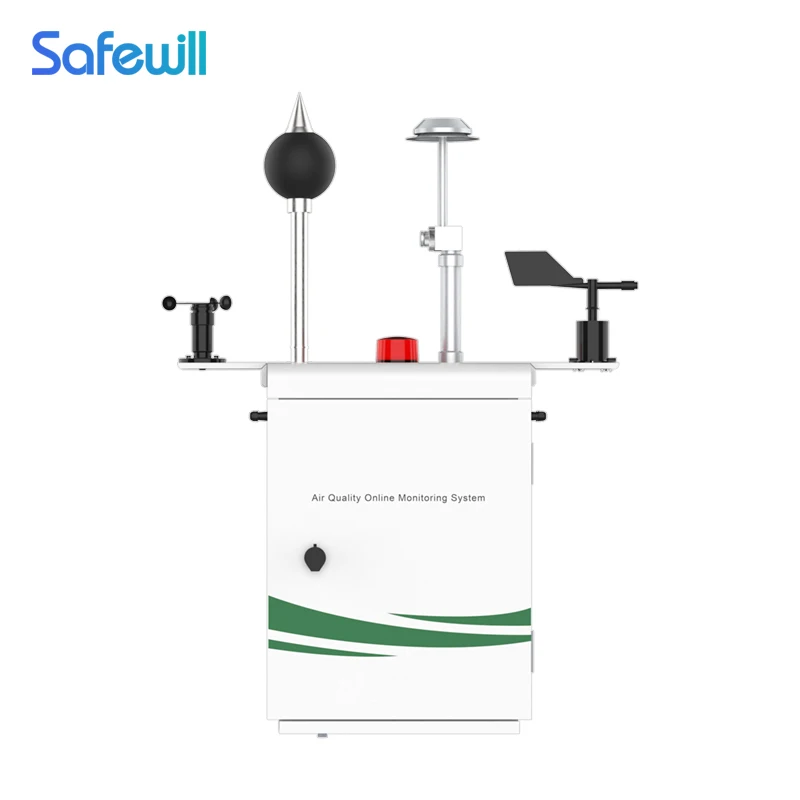

SAFEWILL ES80A-A6 Air Quality Online Monitoring System
Detection Method
Diffusion / Suction
Data Transmission
RS485 Modbus/4G LTE Optional
Preheat Time
90 Seconds
Temperature/ Humidity
-20℃~50 ℃/10%RH ~95%RH (No Condensation)
Power Supply/Consumption
AC220V/50Hz/Optional Solar Power Supply/80W(MAX)
Size
620*440*160MM
The Main Material
Cold Rolled Steel Plate
Installation Method
Outdoor Column Installation
Protection Class
IP53

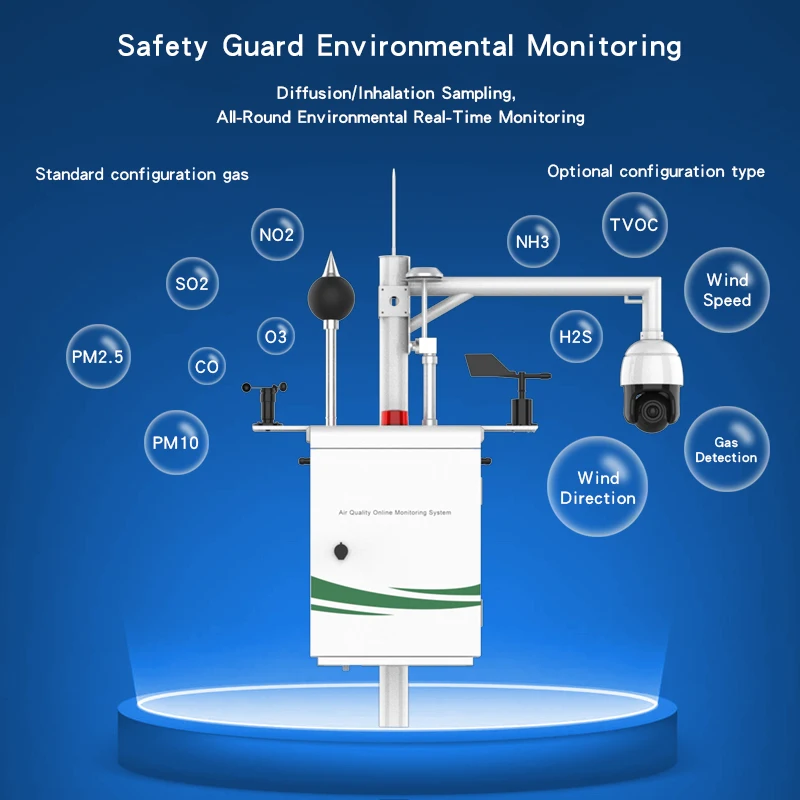

The Standard Gas Configuration
Gas Type
Measuring Range
Resolution
Indication Error
T90
O3
500ppb
1ppb
≤±10%FS
120S
NO2
500ppb
1ppb
≤±10%FS
120S
SO2
500ppb
1ppb
≤±10%FS
120S
CO
50ppm
0.1ppm
≤±10%FS
120S
Optional Gases
Gas Type
Measuring Range
Resolution
Indication Error
T90
TVOC
10ppm
0.01ppm
≤±10%FS
120S
H2S
20ppm
0.1ppm
≤±10%FS
120S
NH3
20ppm
0.1ppm
≤±10%FS
120S
Particulate Technical Parameters
Project
Technical Indicators
Measuring Range
PM2.5/10/TSP:(0-2000) μg/m3
Sampling Cutter
Cyclone Physical Cutter
Sampling Time
Adjustable, Default Five Minutes
Resolution
1ug/m3
Sampling Mode
Suction Type
Air Intake Heating
Heating And Dehumidifying According To Air Humidity
Malfunction Alarm
Real-Time Display Of Fault Alarms
Zero Method
Automatic zero calibration


Meteorological And Other Parameters(Optional)
 Parameters
Range
Resolution
Accuracy
Temperature
-30℃--50℃
0.1℃
±1℃
Humidity
0-95%Rh
1%Rh
±5%Rh
Wind Speed
0~60m/s
0.1 m/s
±1m/s
Wind Direction
0-360°
/
Atmospheric Pressure
600—1100hPa
1 hPa
/
Noise
30dB(A)~130dB(A) (A-weighted)
/
±3dB
Rainfall
0~4mm/min
0.1mm
±0.4mm (≤10mm) ±4%(>10mm)
Illumination
0~200,000 Lux
/
±7% (25℃)
UV Radiation
0~400mW/㎡
1mW/㎡
±5%
