Touch Screen Paperless Conference System Chairman Delegate Desktop Speaking and Voting Terminal with Microphone
- Category: >>>
- Supplier: Guangzhou DSPPA Audio Co. Ltd.
Share on (1600834826896):
Product Overview
Description
Details Images
Features
● A conference speaking unit integrating functions such as speaking and voting.
● Electret cardioid directional condenser pickup with two-color indicator ring (red/green). It is red when speaking and green when applying for speaking.
● The microphone rod can be dismounted in the absence of a meeting for easy maintenance and preservation.
● With a 3.5mm stereo headphone jack to connect headphones.
● With super strong anti-interference capability against mobile phones.
● With 1 microphone on/off button and 5 voting buttons. The chairman unit enjoys one more chairman priority button.
●The sign-in function can be accessed with one button.
●Each conference unit holds a unique ID number.

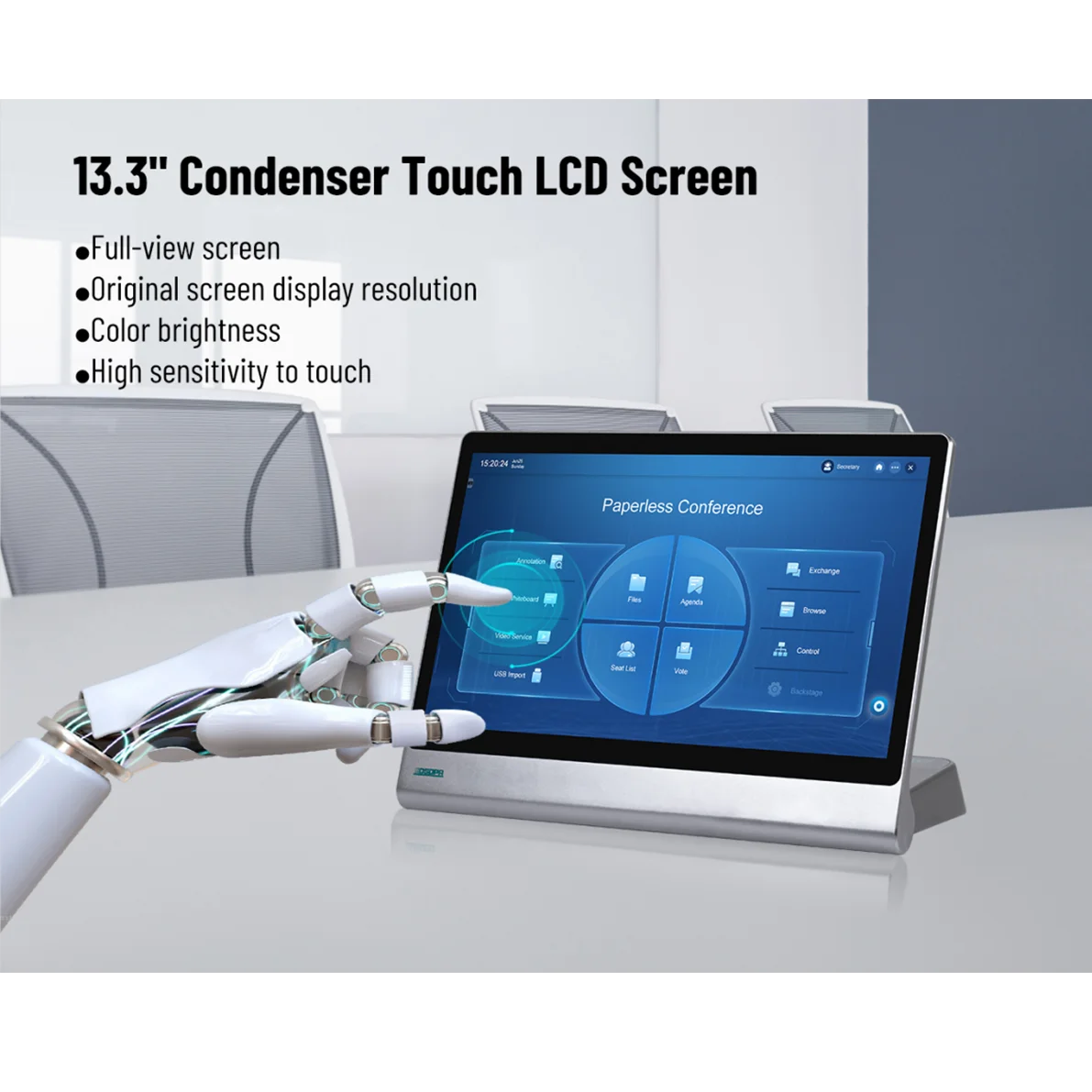

●With a 13.3" capacitive touch screen. Please refer to the paperless conference system service software for the displayed content.
●Combined with a camera, it can realize automatic camera tracking after set by the digital conference system host or PC control software.
●Used in conjunction with the control host, the unit can realize the self-test function. The items to be tested include buttons, microphone and LED indicator.
●The unit is a passive device powered by the system host or PoE switch with the input voltage of +48V.
●Through the host settings, the chairman unit will be endowed with a priority function (to mute or turn off all delegate units) and a podium mode (the chairman unit is normally on).
●The chairman unit has the authority to approve the application for speaking from the delegate unit.
●The chairman unit can be turned on freely without being restricted by the number of speaking units.
●The chairman unit has the priority function of having full control over the order of the conference.
●There is no restriction on the location of the chairman unit when connected to the system.
● Electret cardioid directional condenser pickup with two-color indicator ring (red/green). It is red when speaking and green when applying for speaking.
● The microphone rod can be dismounted in the absence of a meeting for easy maintenance and preservation.
● With a 3.5mm stereo headphone jack to connect headphones.
● With super strong anti-interference capability against mobile phones.
● With 1 microphone on/off button and 5 voting buttons. The chairman unit enjoys one more chairman priority button.
●The sign-in function can be accessed with one button.
●Each conference unit holds a unique ID number.
●With a 13.3" capacitive touch screen. Please refer to the paperless conference system service software for the displayed content.
●Combined with a camera, it can realize automatic camera tracking after set by the digital conference system host or PC control software.
●Used in conjunction with the control host, the unit can realize the self-test function. The items to be tested include buttons, microphone and LED indicator.
●The unit is a passive device powered by the system host or PoE switch with the input voltage of +48V.
●Through the host settings, the chairman unit will be endowed with a priority function (to mute or turn off all delegate units) and a podium mode (the chairman unit is normally on).
●The chairman unit has the authority to approve the application for speaking from the delegate unit.
●The chairman unit can be turned on freely without being restricted by the number of speaking units.
●The chairman unit has the priority function of having full control over the order of the conference.
●There is no restriction on the location of the chairman unit when connected to the system.
Product Paramenters
Model No. | D7613MC/D7613MR | |
Structure Type | Desktop | |
Output Frequency Response | 80Hz-15KHz (±3dB) | |
Static Power Consumption | <6W | |
Maximum Power Consumption | 12W | |
S/N Ratio | >70dB | |
Crosstalk Attenuation | >75dB | |
Harmonic Distortion | <0.5% | |
Headphone Output | 9dBu, 8-32Ω, 3.5mm | |
Working Power | Powered by the host or PoE switch with the input voltage of +48V | |
Unit Interface | Network interface (CAT5 network cable) | |
Package Dimensions | 380×280×220mm | |
Machine Dimensions (W×D×H) | 335×150×270mm | |
Gross Weight | 3.9kg | |
Net Weight | 2.4kg | |
Microphone | ||
Microphone Type | Electret cardiod condenser | |
Frequency Response | 80Hz-15KHz (±3dB) | |
Sensitivity | -45dBV/pa | |
Input Impedance | 2kΩ | |
Equivalent Noise | 20dB(SPL) | |
MAX. SPL. | 125dB(THD< 3%) | |
