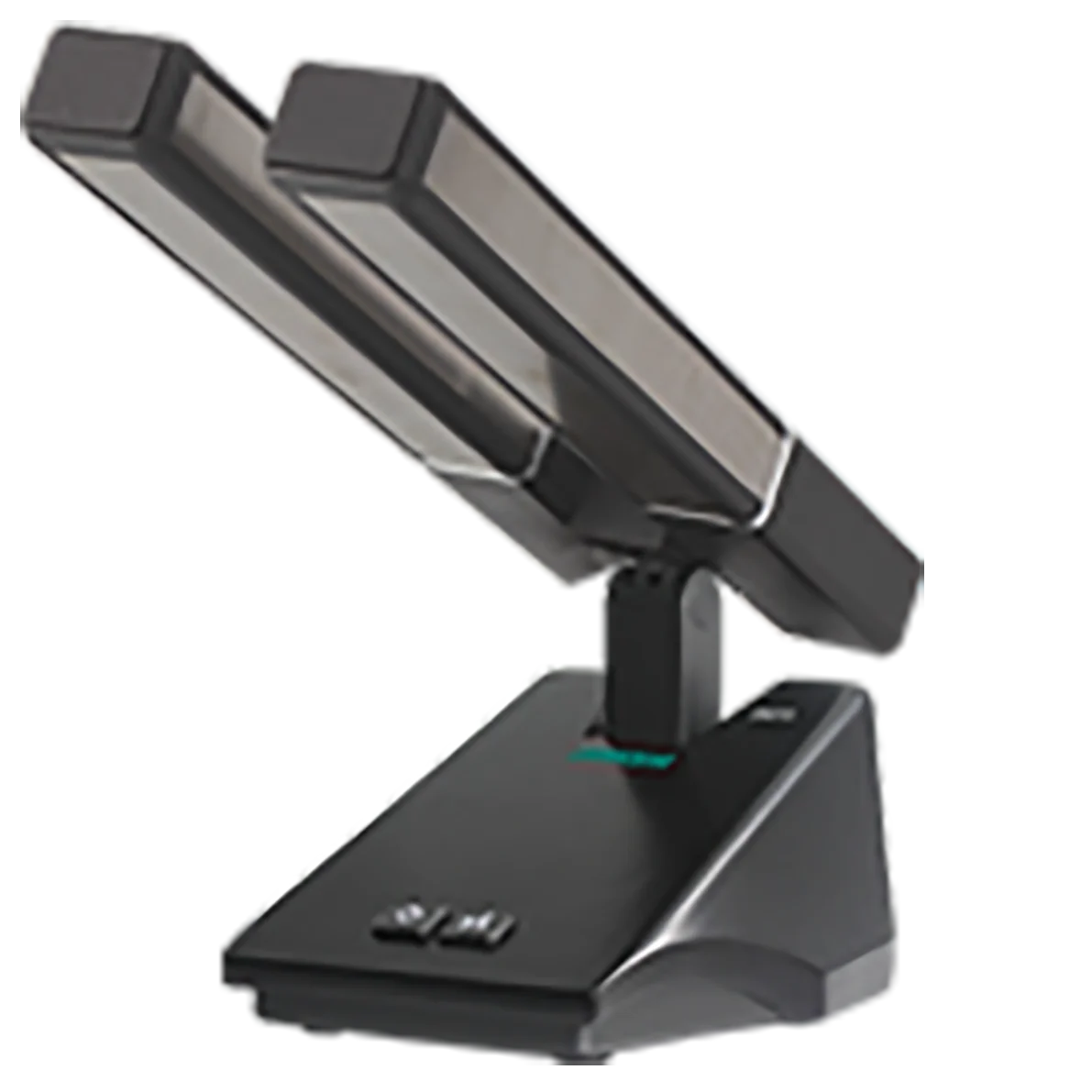

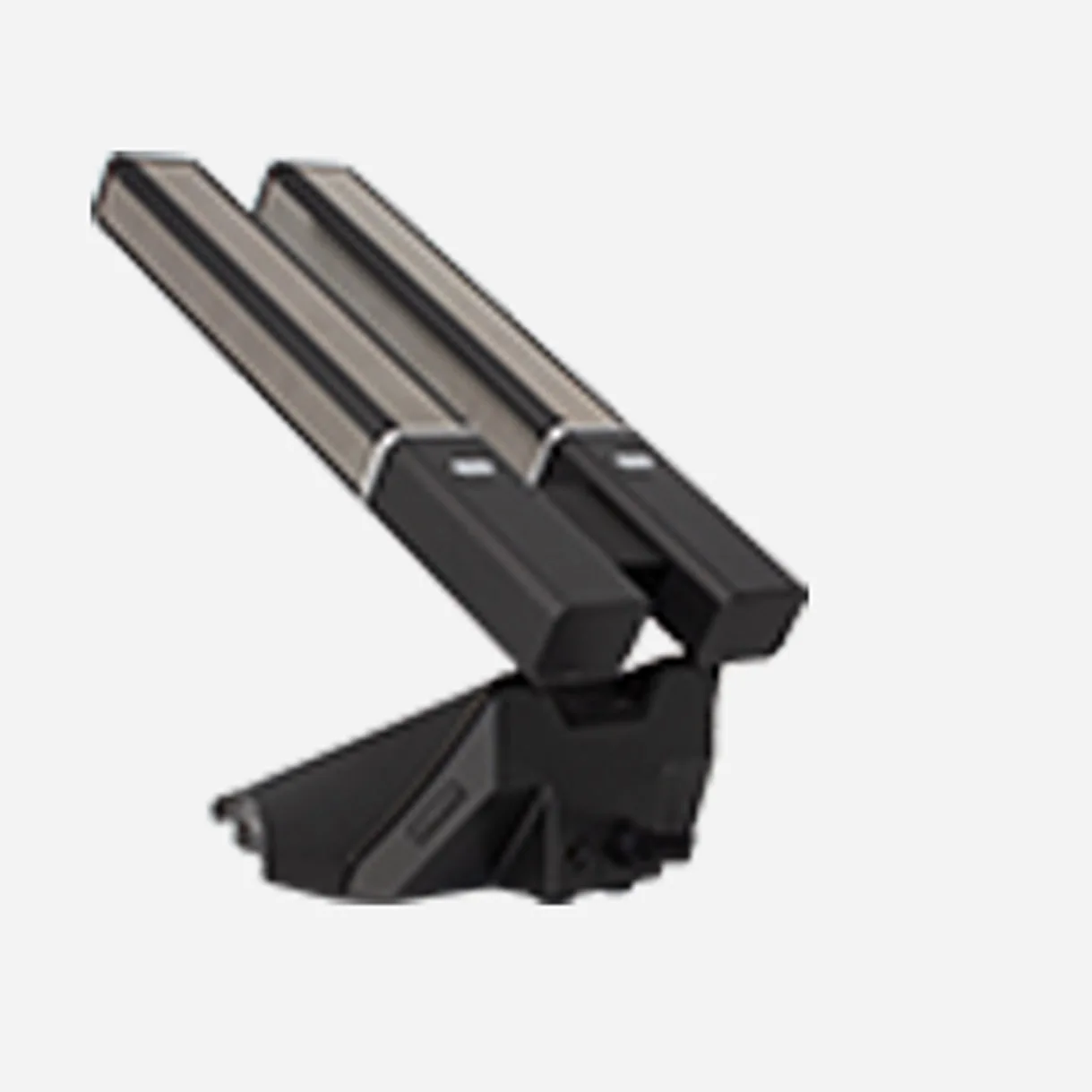

Dual Rods Desktop Speaking Chairman Unit Microphone Conference Audio Microphone for Meeting Room Equipment
- Category: >>>
- Supplier: Guangzhou DSPPA Audio Co. Ltd.
Share on (1600835212976):
Product Overview
Description
Details Images
Features
●A speech conference unit integrating speech, and sign-in functions.
●With 2m dedicated 8-pin DIN high-density cable, and an aviation male connector.
●With 3.5mm stereo headphone jack for headphone connection to monitor the speech of other units.
●Can adjust the microphone volume and headphone monitoring volume independently.
●With microphone on/off button, with a chairman priority button for the chairman unit.
●With a unique ID for each conference unit.
●Used with a camera to realize automatic camera tracking after setting by the digital conference system host or PC control software.
●Through the host settings, the chairman unit has the priority function
●The chairman unit has the function of approving the application for speaking from the delegate unit.
●Support “hand-in-hand”, “T-type” and “+-type” connection modes.
●With 2m dedicated 8-pin DIN high-density cable, and an aviation male connector.
●With 3.5mm stereo headphone jack for headphone connection to monitor the speech of other units.
●Can adjust the microphone volume and headphone monitoring volume independently.
●With microphone on/off button, with a chairman priority button for the chairman unit.
●With a unique ID for each conference unit.
●Used with a camera to realize automatic camera tracking after setting by the digital conference system host or PC control software.
●Through the host settings, the chairman unit has the priority function
●The chairman unit has the function of approving the application for speaking from the delegate unit.
●Support “hand-in-hand”, “T-type” and “+-type” connection modes.
Product Paramenters
Model | D6273/D6273D/D6274/D6274D | ||
Structure and Type | Desktop | ||
Static power consumption | <1W | ||
Max. power consumption | <2W | ||
SNR | >80dB | ||
Crosstalk Attenuation | >80dB | ||
Harmonic distortion | <0.3% | ||
Headphone Output | 9dBu, 8-32Ω, 3.5mm | ||
Working Power Supply | DC 24V power supply | ||
Port on the unit | 8pin DIN socket | ||
Microphone | Type of microphone | Electret cardioid condenser | |
Sensitivity | -45dBV/pa | ||
Input impedance | 2kΩ | ||
Equivalent Noise | 20dB (SPL) | ||
Max SPL | 125dB (THD<3%) | ||
