0.5% точность интеллектуальный передатчик давления 4 20ma цена
- Category: Pressure Transmitters >>>
- Supplier: All-Instruments International Trading (Shanghai) Co. Ltd.
Share on (1600837464758):
Product Overview
Description
explosion-proof 0.1% Low Cost Price Industrial Water Air Gas gauge absolute seal Liquid Pressure Sensor
Product Description
Enough Experience on local applications for overseas markets
Meet your toughest environmental conditions with -45℃ working LED display (Option), Customerized color of Housing, Special manual with local language, technical support for OEM,ODM coopertion,etc.

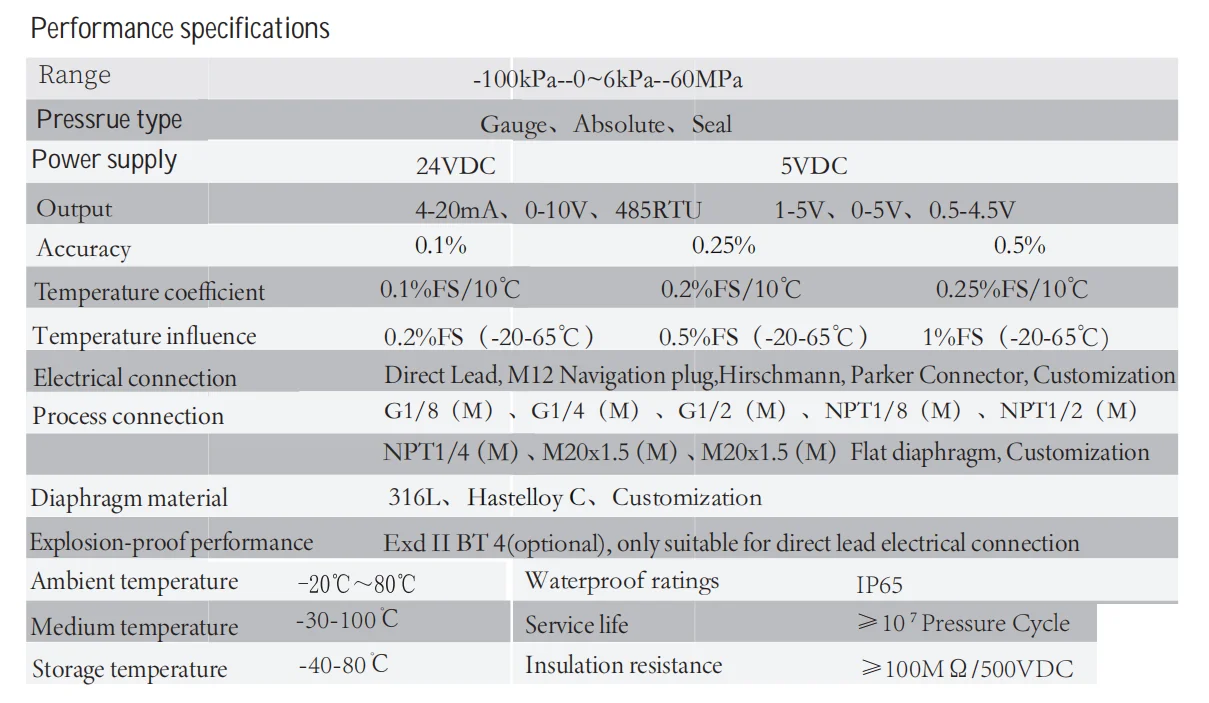

Performance Specifications
Range | -100kPa--0~6kPa--60MPa | ||||
pressure type | gauge | absolute | seal | ||
Power supply | 24VDC | 5VDC | |||
Output | 4-20ma, 0-10V , 485RTU | 1-5V, 0-5V, 0.5-4.5V | |||
Precision level | 0.1 | 0.25 | 0.5 | ||
Temperature coefficient | 0.1%FS10℃ | 0.2%FS10℃ | 0.25%FS10℃ | ||
Temperature influence | 0.2%FS（-20--65℃） | 0.5%FS（-20--65℃） | 1%FS（-20--65℃） | ||
Electrical connection | Direct Lead, M12 Navigation plug,Hirschmann, Parker Connector, Customization | ||||
Process connection | G1/8(M), G1/4(M),G1/2(M),NPT1/8(M),NPT1/2(M),NPT1/4(M),M20*1.5(M) Flat diaphragm customization | ||||
Diaphragm material | stainless steel 316 | Hastelloy C | customization | ||
Explosion-proof performance | Exd II BT 4(optional), only suitable for Direct Lead electrical connection | ||||
Ambient temperature | -20℃~80℃ | ||||
Ambient temperature | -30℃~100℃ | ||||
Ambient temperature | -40℃~80℃ | ||||
Degrees of protection | IP65 | ||||
Insulation resistance | >100MQ/500VDC | ||||
Detailed Images
Company Profile
All-Instruments International Trading (Shanghai) Co.,Ltd widely supports pressure tansmitter,pressure sensors, fowmeters, analyzers and other agent instuments for world wide clients in Middle East, North America, South America, Southeast Asia, Europe, South Africa etc. countries and regions clients.
Exhibition
Russia, South Korea, the United States, Italy,
Germany, the Netherlands, Singapore, Malaysia,India, Morocco, etc.
Overseas sales accounted for approximately 40% of total sales revenue。
Why Choose Us
Product packaging
