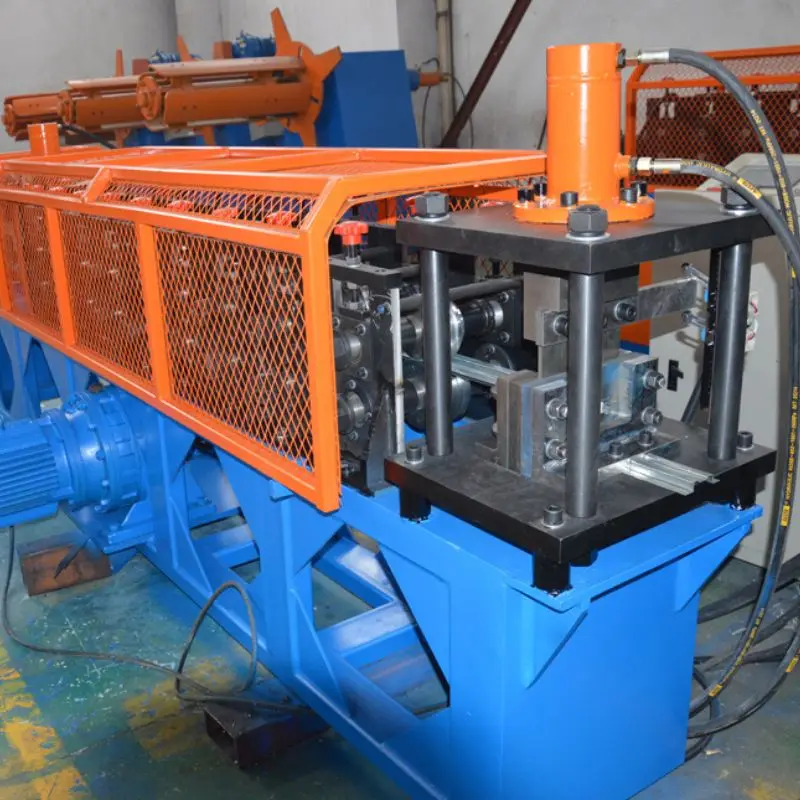

Customized OEM 0.75 0.9mm Galvanized Steel Shelves Pallet Rack Support Hat Channel Roll Forming Machine
- Category: >>>
- Supplier: Sussman Machinery (wuxi) Co. Ltd.
Share on (1600845013233):
Product Overview
Description
Product Description

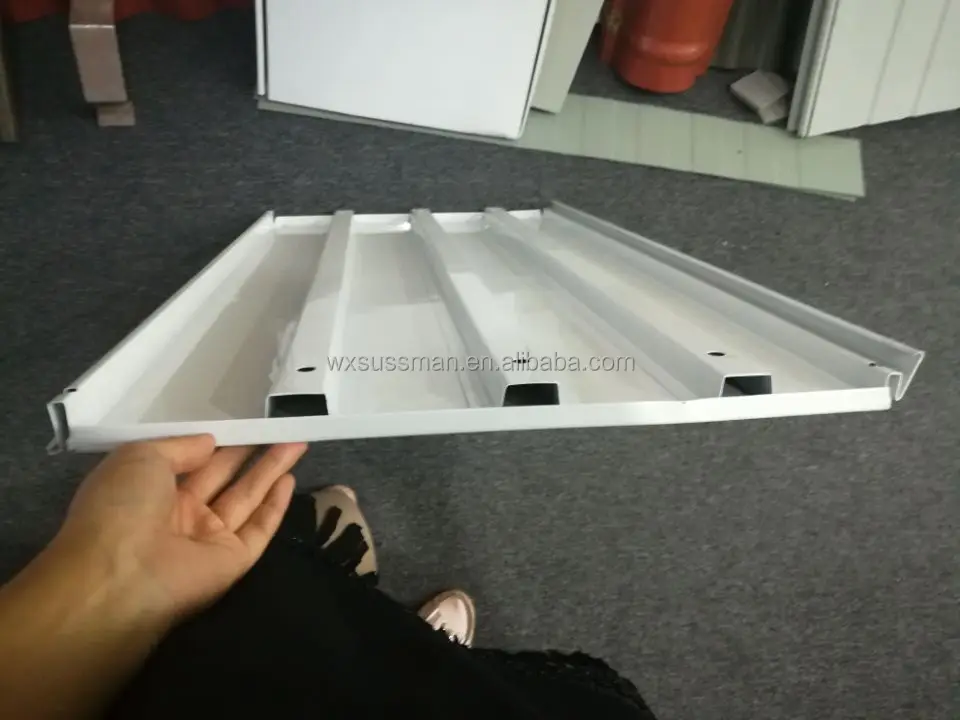

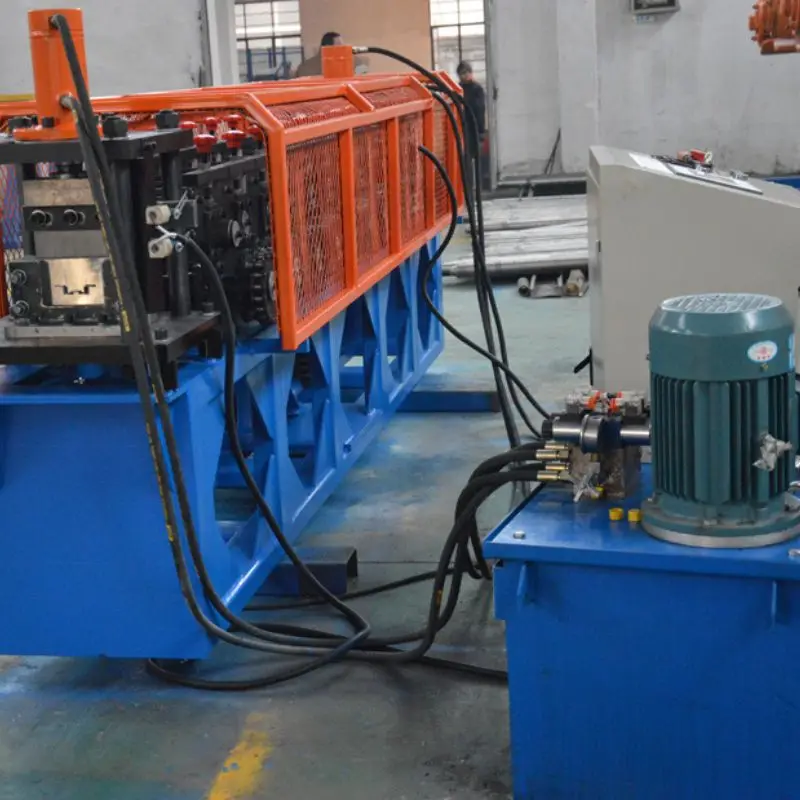

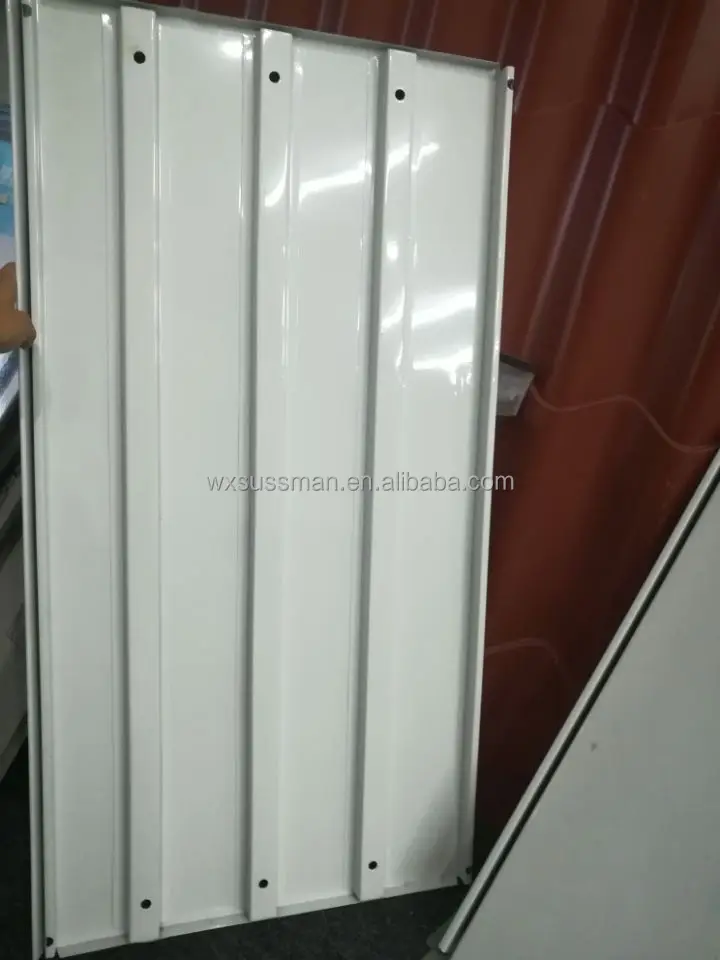

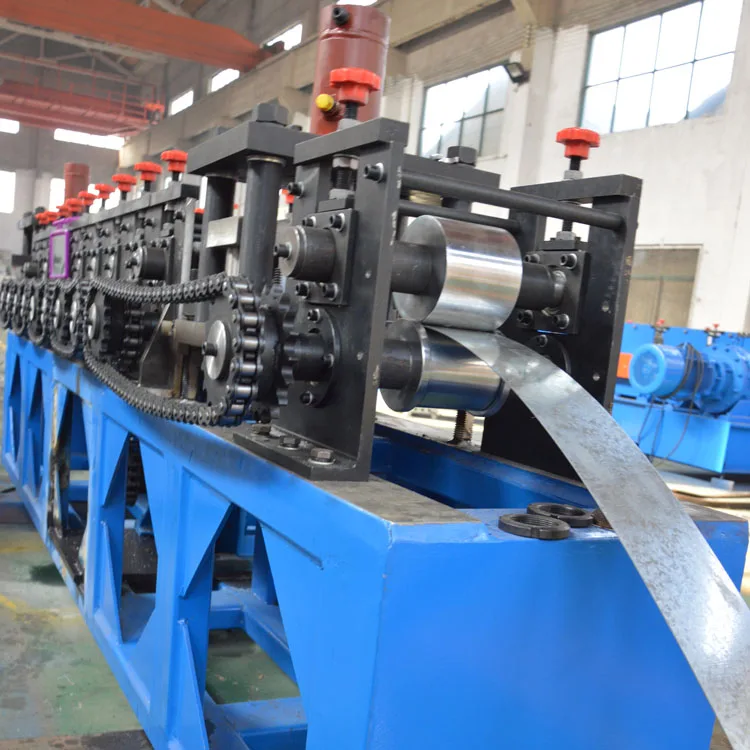

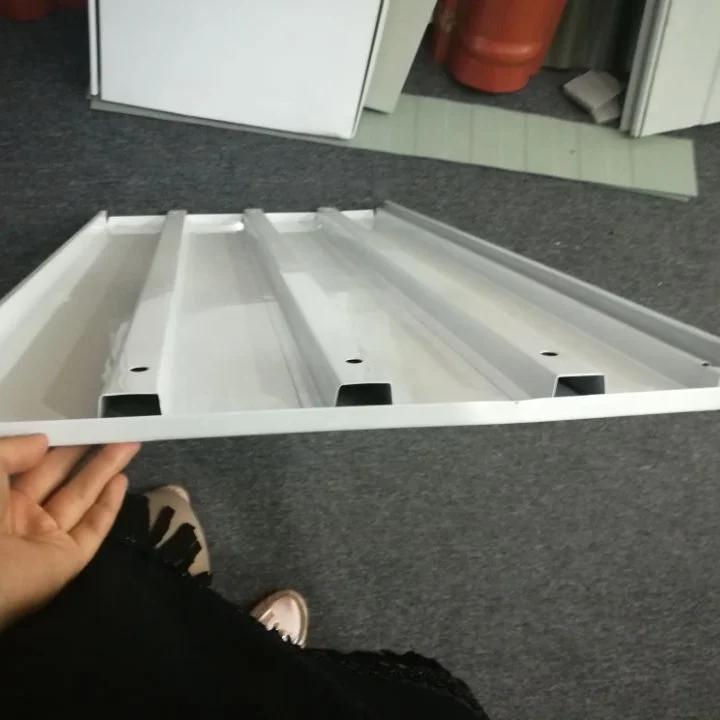

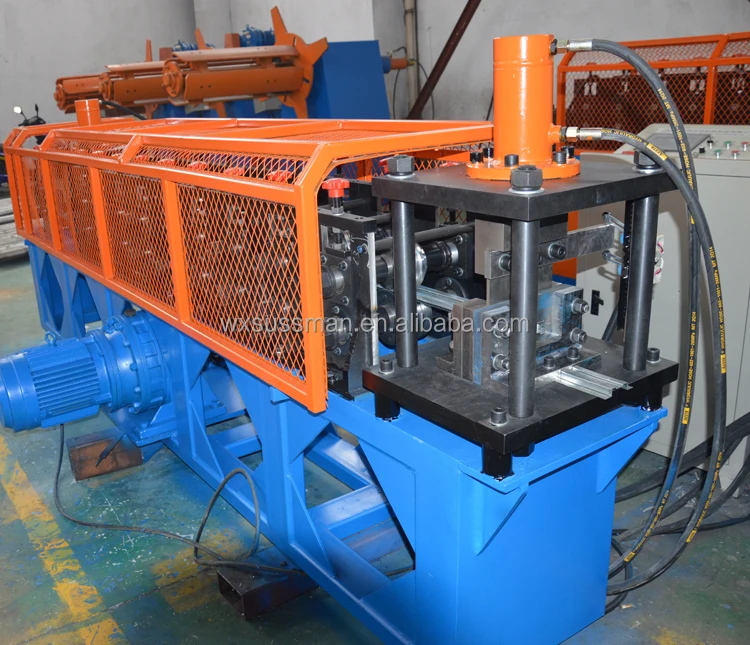

Top hat machine is used for reinforcement of the shelves, this lines include manual decoiler, roll forming system, hydraulic cutting to any length and out put table to receive the products

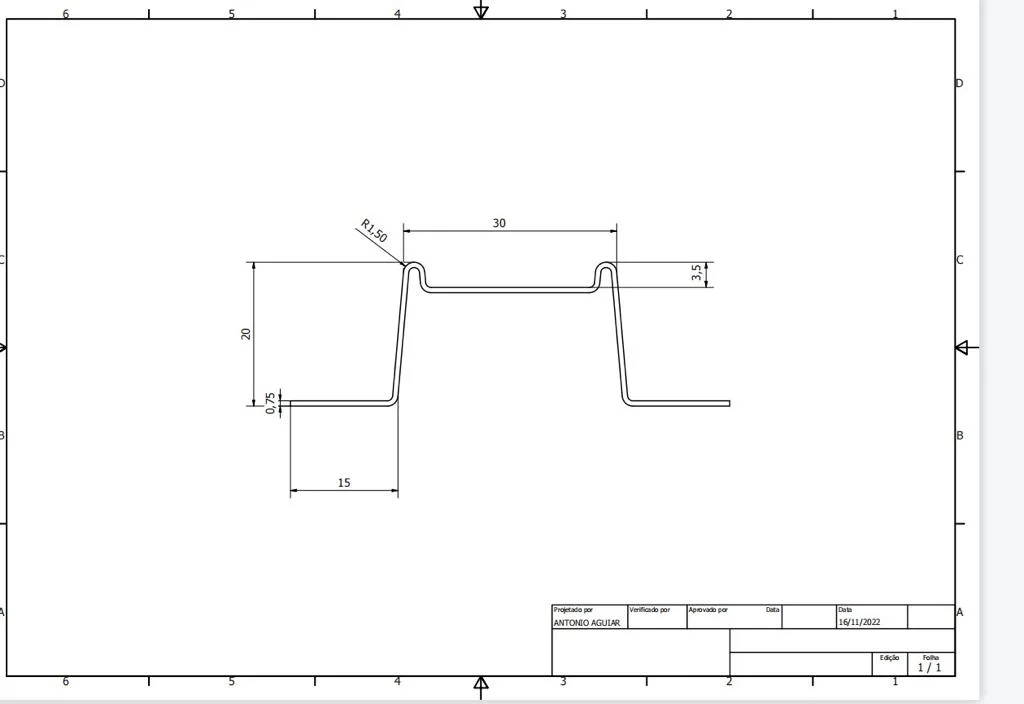

Material for this machine is galvanized steel or color steel,we can according to customer design, manufacture different specifications of cold-formed, for the furring channel ( hat profile), we can make dot which is embossing pattern in the hat top.
In pallet rack system, we could provide roll forming machine as following:
1. Shelf tray roll forming machine
2. Shelf box panel roll forming machine
3. Conner bead (Angle bead) roll forming machine
4. Rack tube roll forming machine
5. Shelf back panel / rear panel roll forming machine
6. Beam welding machine
Feeding material | 0.75-0.9mm galvanized zinc |

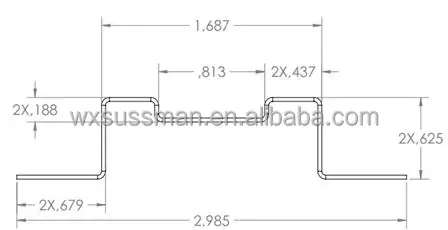

Profile size | As profile or customized |
Roller Station: | 13 Steps |
Roller Shaft | 60mm |
Driving Motor | 5.5KW |
Cutting System | Hydraulic stop cutting and non stop cutting |
Cutting Mold | Cr12Mov |

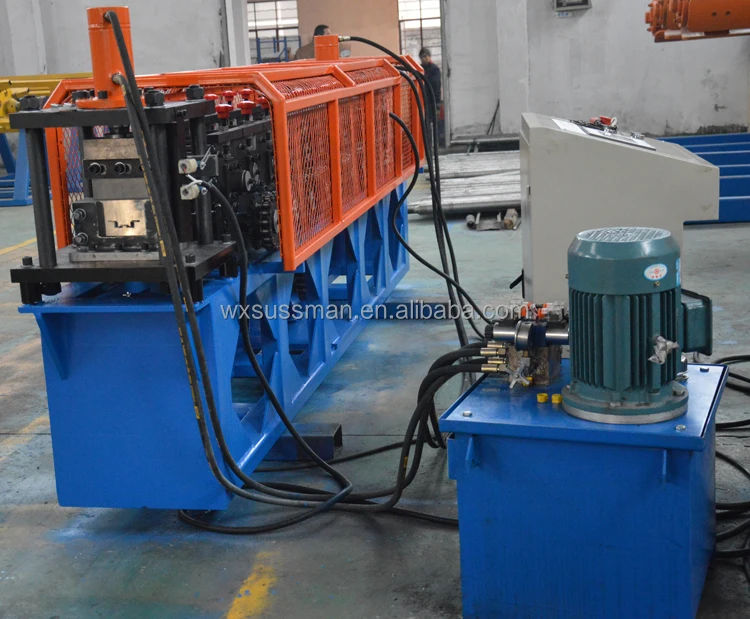

Hydraulic Pump Station | 5.5KW |
Transmission | Chain |
Production Speed | 8-12m/min or 0-30m/min |
Non-stop Cut System | PLC ,Omron encoder |
Detailed Images

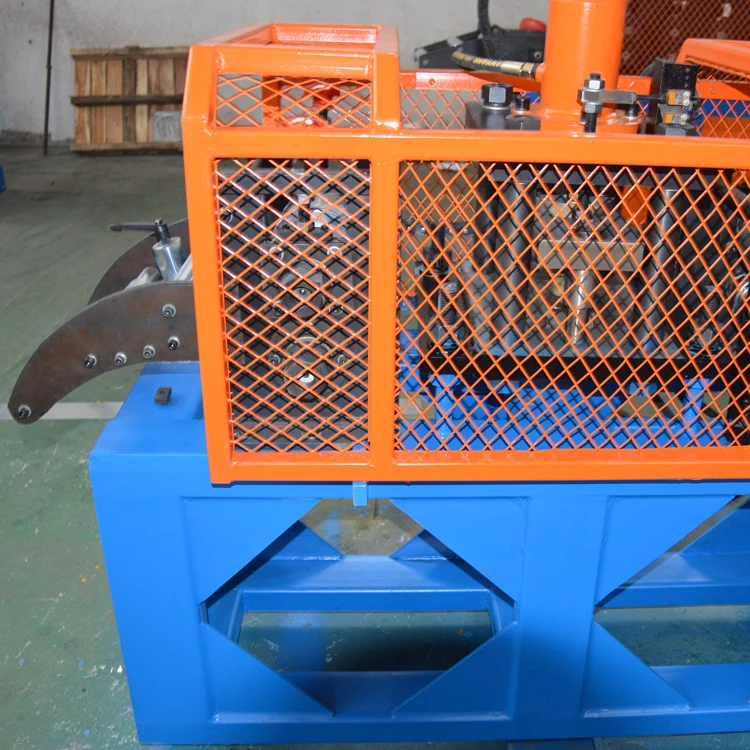

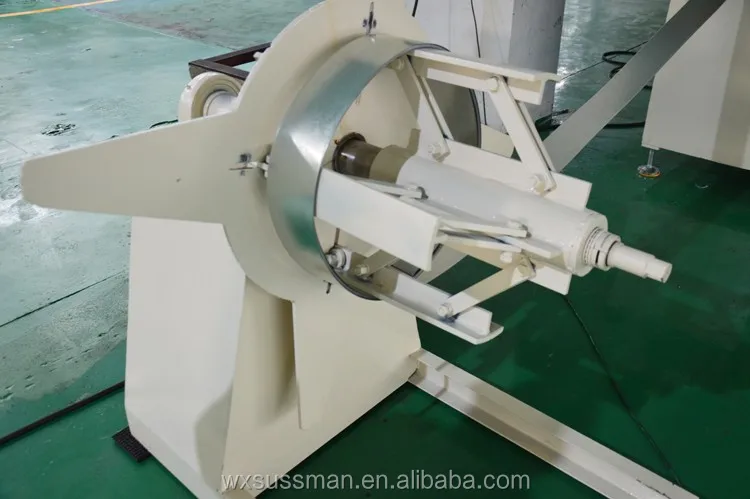

Coil inner Diameter: ￠460mm~520mm
Max out diameter of the coil: ￠800mm
Expansion: Manual with brake
Max Coil Width: 500mm

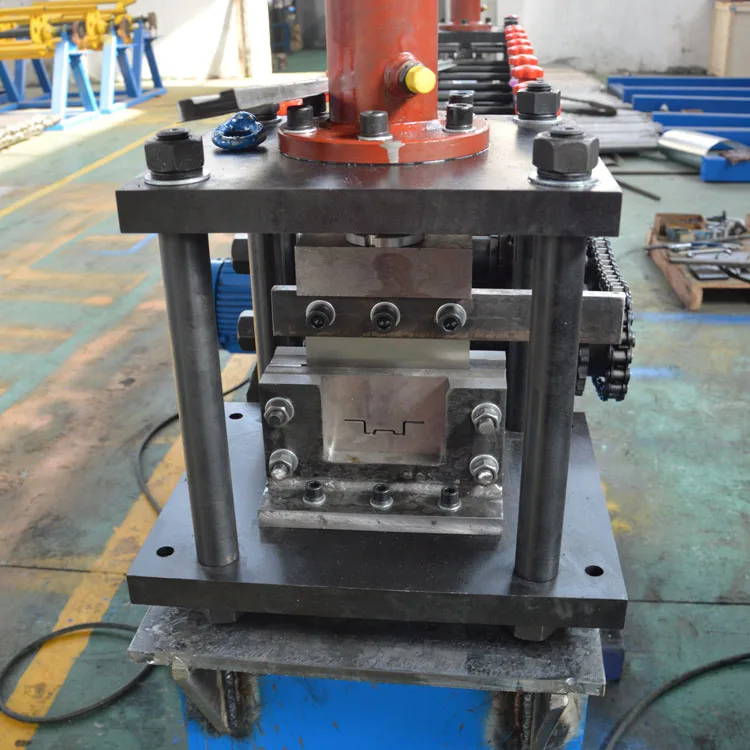

Cutting way: Stop to cut.
Oil pump statio:1set.
Hydraulic power: 4 kw hydraulic system.
Blade Material: CR12Mov with heat treatment HRC58-62.
Tolerance:\t+-1.5mm
Power supplier: 380V, 50 Hz, 3 Phase (adjusted with the requestment)

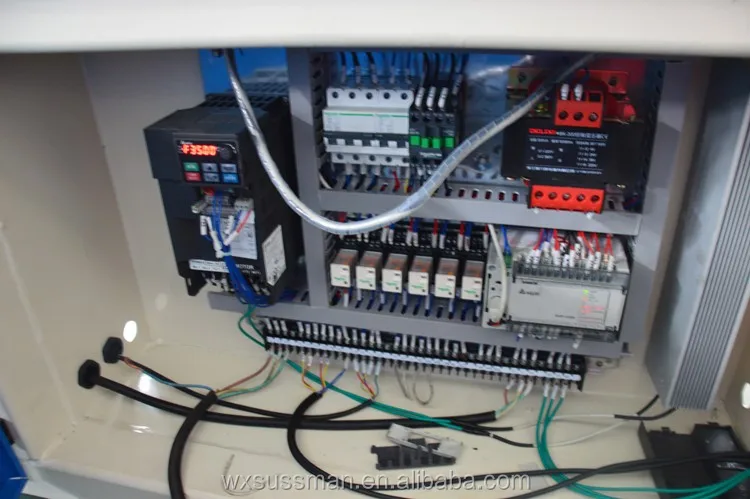

Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
It adopts welded steel and supported roller to transmit the products.
Size:4000*1350*1000mm

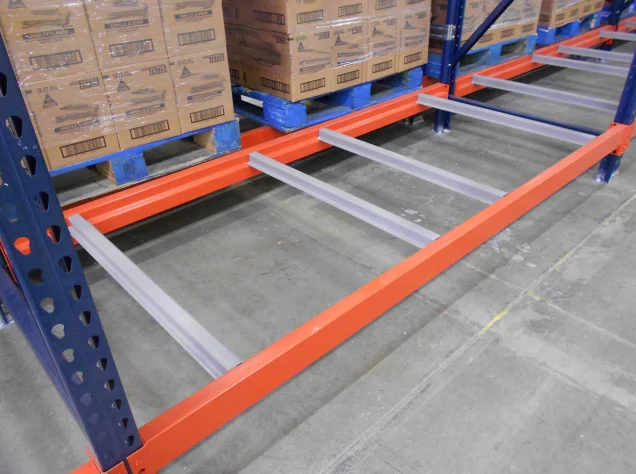

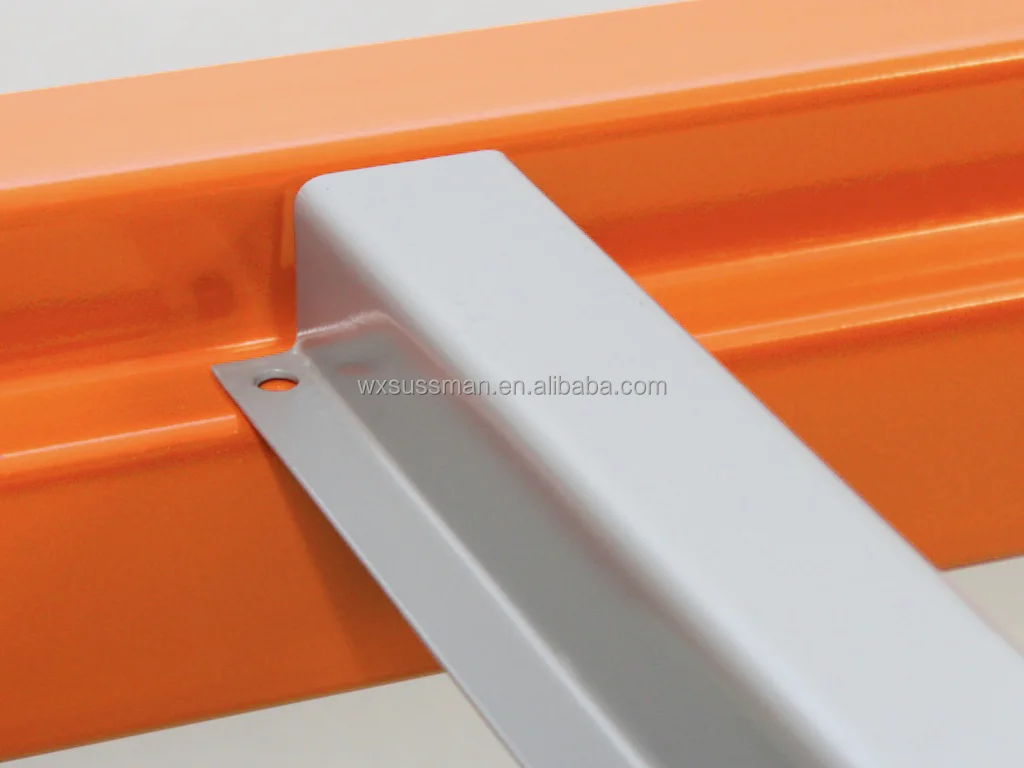

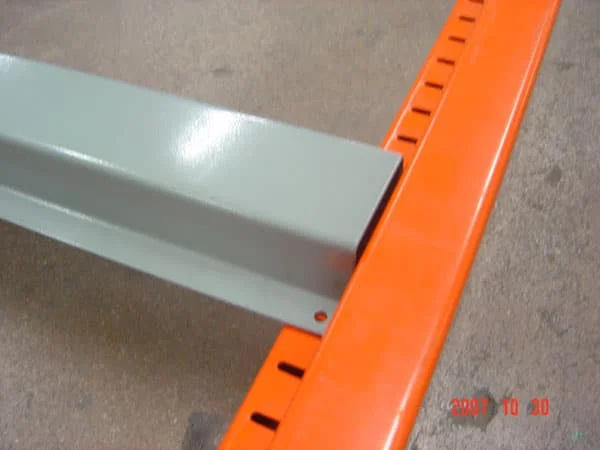

Top hat style pallet supports are called “Top Hat” because they are shaped like top hat! The advantage to these crossbars is that they sit down flush with the top of the beam!
Top hat pallet supports are ideal for supporting the bottom of pallets stored in a selective pallet rack system. Pallet rack supports are the most economical method for supporting full pallet loads stored in industrial selective pallet rack shelving.
Advantages of top hat pallet supports:
• Gives support to bottom of pallets while stored in pallet rack
• Reduce load times by giving lift truck driver confidence when loading pallets on high beam levels
• This increased confidence decreases loading times of forklift drivers
• Help prevent pallets that are not loaded 100% centered on beams from falling to the floor
Top hat pallet supports are ideal for supporting the bottom of pallets stored in a selective pallet rack system. Pallet rack supports are the most economical method for supporting full pallet loads stored in industrial selective pallet rack shelving.
Advantages of top hat pallet supports:
• Gives support to bottom of pallets while stored in pallet rack
• Reduce load times by giving lift truck driver confidence when loading pallets on high beam levels
• This increased confidence decreases loading times of forklift drivers
• Help prevent pallets that are not loaded 100% centered on beams from falling to the floor
Our customers
Sussman Machinery has exported its equipment and machines to more than 80 countries over the world, such as Russia, India, Australia, Malaysia, Nigeria, Romania, South Africa,Mauritius,Mexico,etc. It has received excellent reputation. In the future, we are committed to better equipment and sales service and meeting customers' requirements when and where they need.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available. We need your machines running in order to keep your business running.
Q: Once we've bought a corrugated sheet roll forming machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: My current machine rollers need to be replaced. Would you be able to assist me?
A: Yes. Send us your profile and specifications then we will manufacture the rollers for you.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
