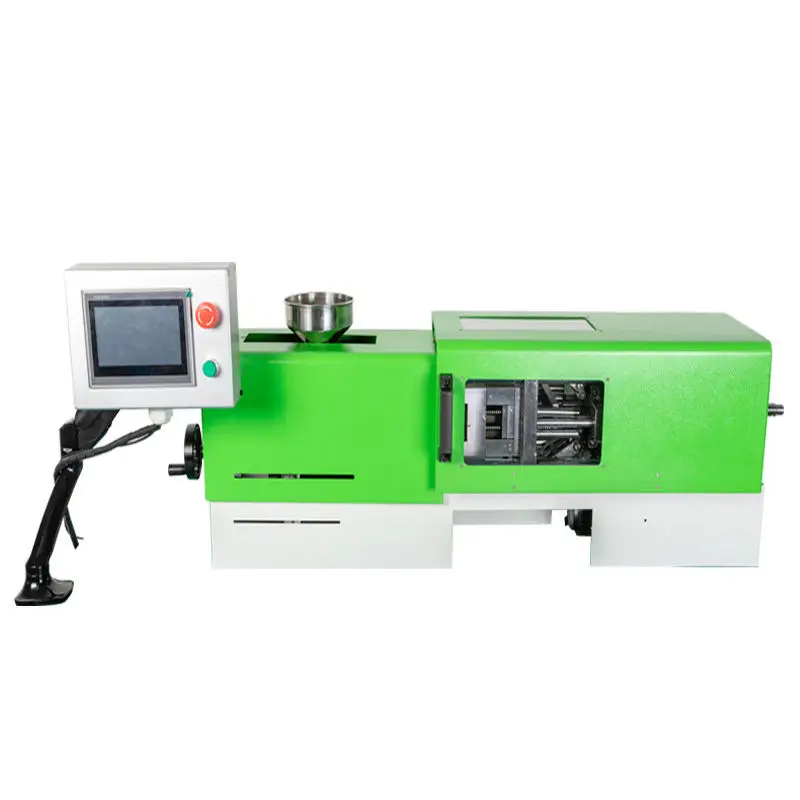

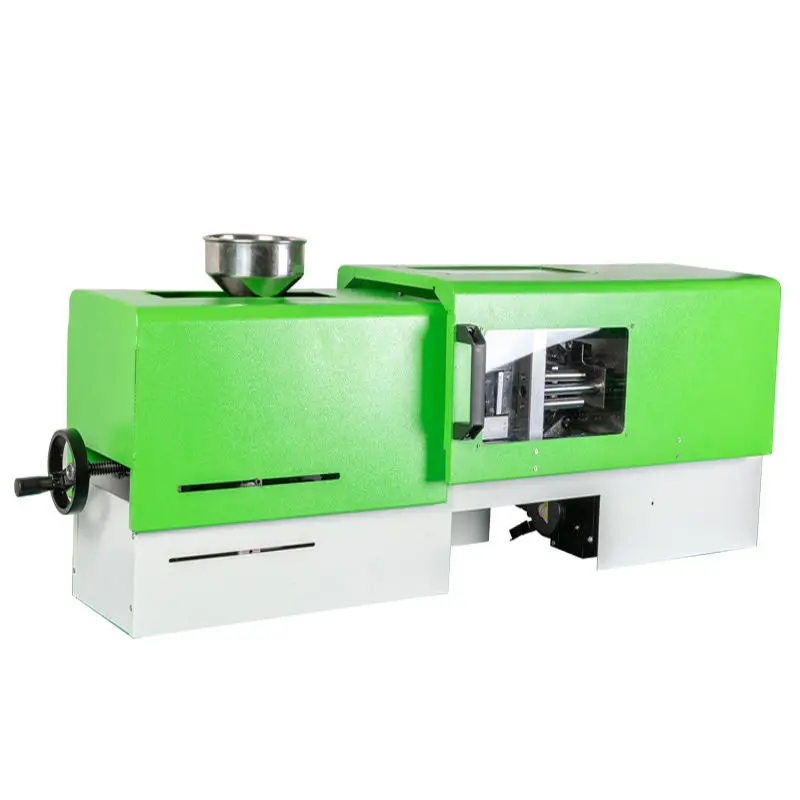

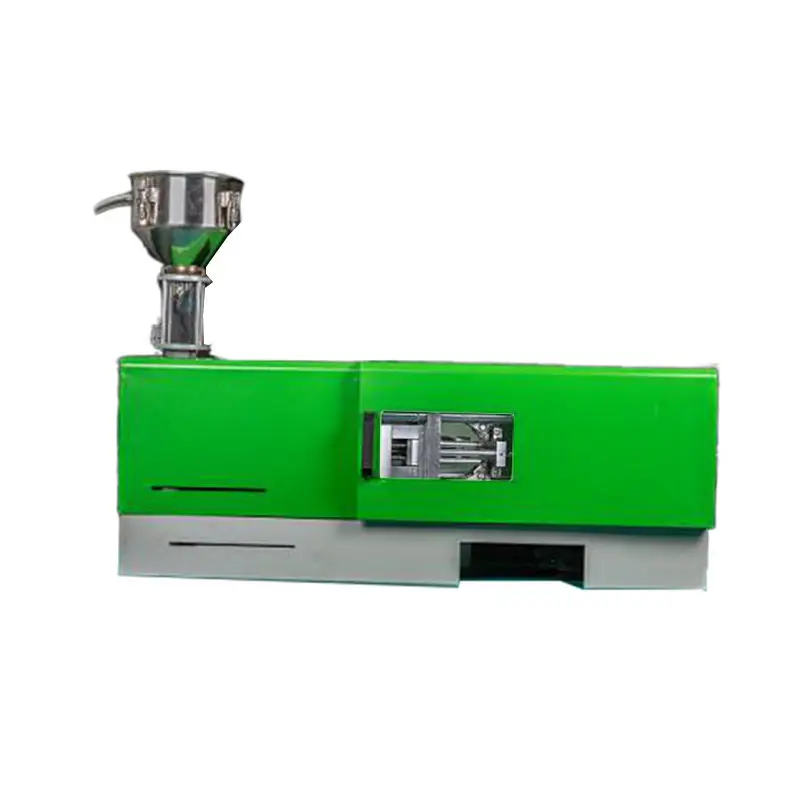

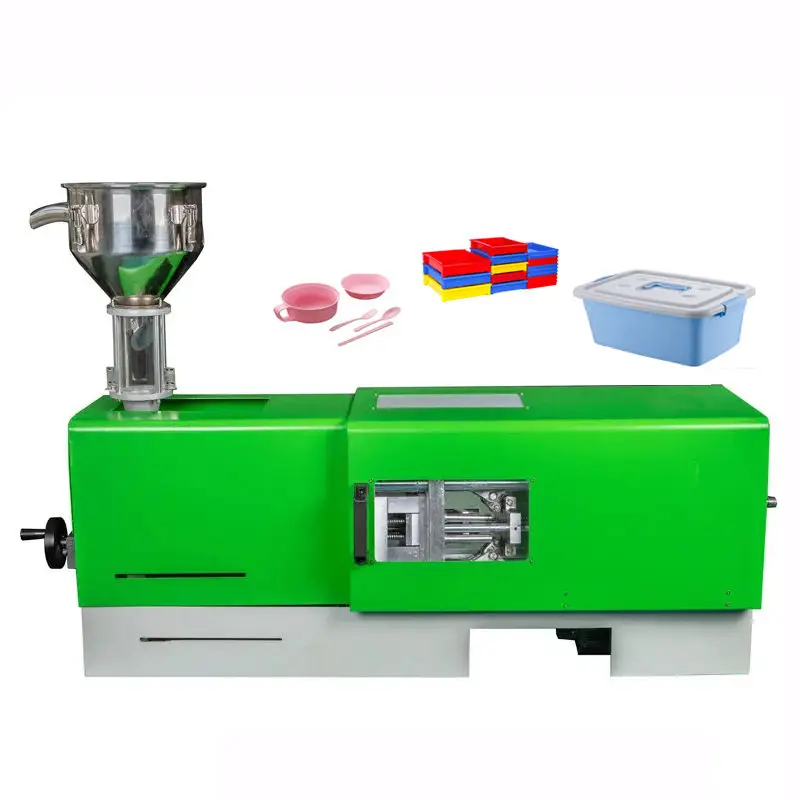

Electric plastic mini desktop injection molding machine, micro small products injection molding machine

Share on (1600845692863):


Price:$6,500.00 - $6,900.00

Quantity:


Product Overview

Description



Product Description





 Mini desktop injection machine is the most cost-effective way to produce the small plastic components in the market. As a redesigned and optimized model of the traditional injection machine, and easy to apply for prototyping, testing, new product development and small part production. Easy for maintenance, fast changing mold and lower investment for production.







Technical Parameters

Technical Parameters
































































Product Name




Small desktop injection molding machine




Clamping force




12T



15T



Voltage




Single phase, 220V 60Hz




Machine Size




1300*400*450mm



1400*475*550mm



Machine weight




145kg



225kg



Screw diameter




18mm



22mm



Nozzle diameter




2mm



3mm



Mold opening stroke




75mm



125mm



Max. production weight




30g



40g



Maximum mold installation size




200*120*150mm



175*250*170mm



Temperature range




0-400C




Applicable materials




PP, PE, PVC, ABS, PC, PA6, PS, PEI, PIMMA, TPU, PTE etc.

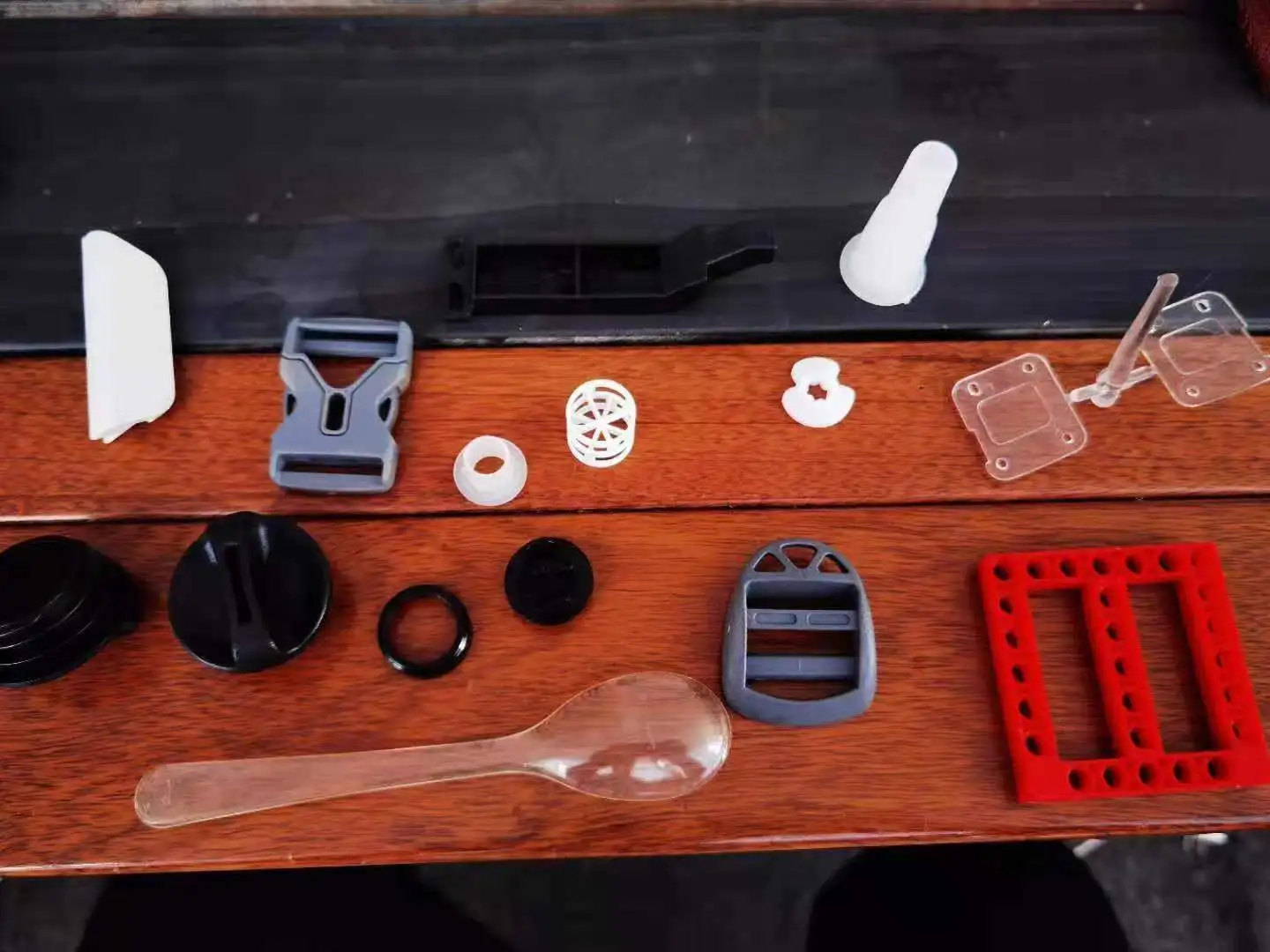

 .jpg

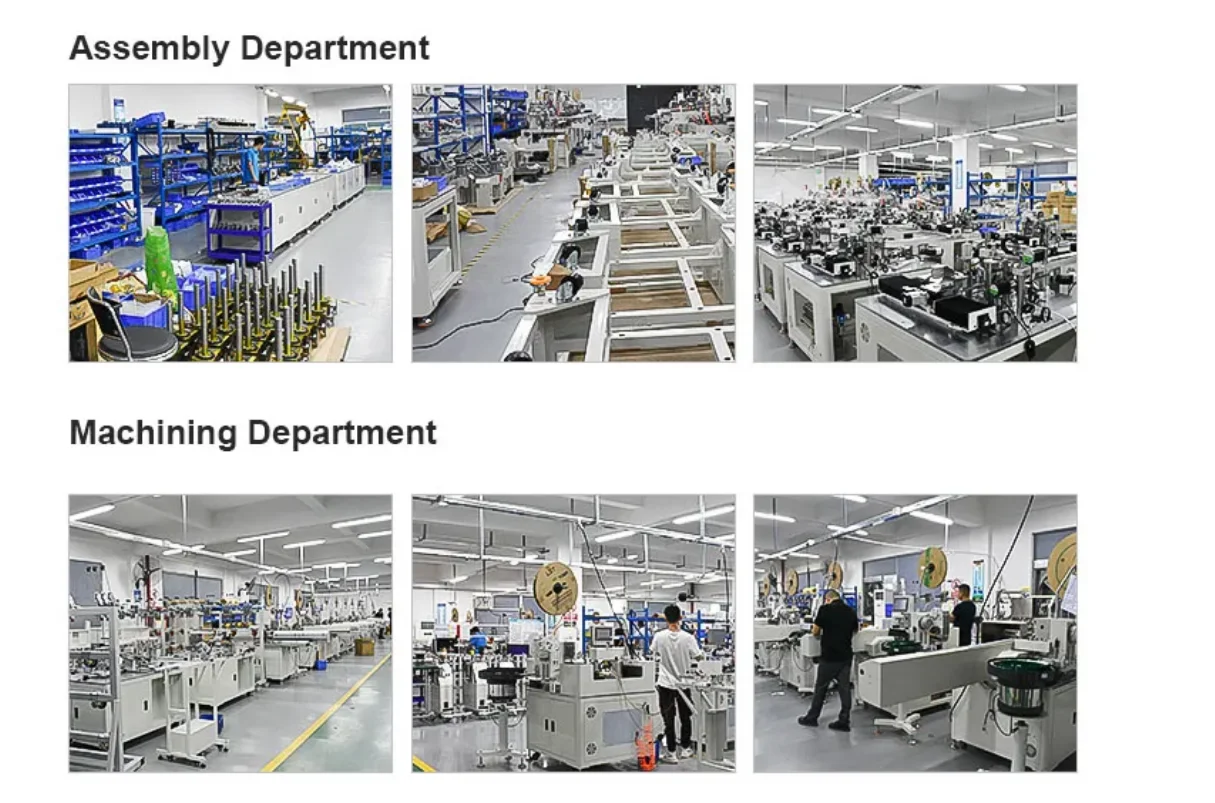

Company Information
