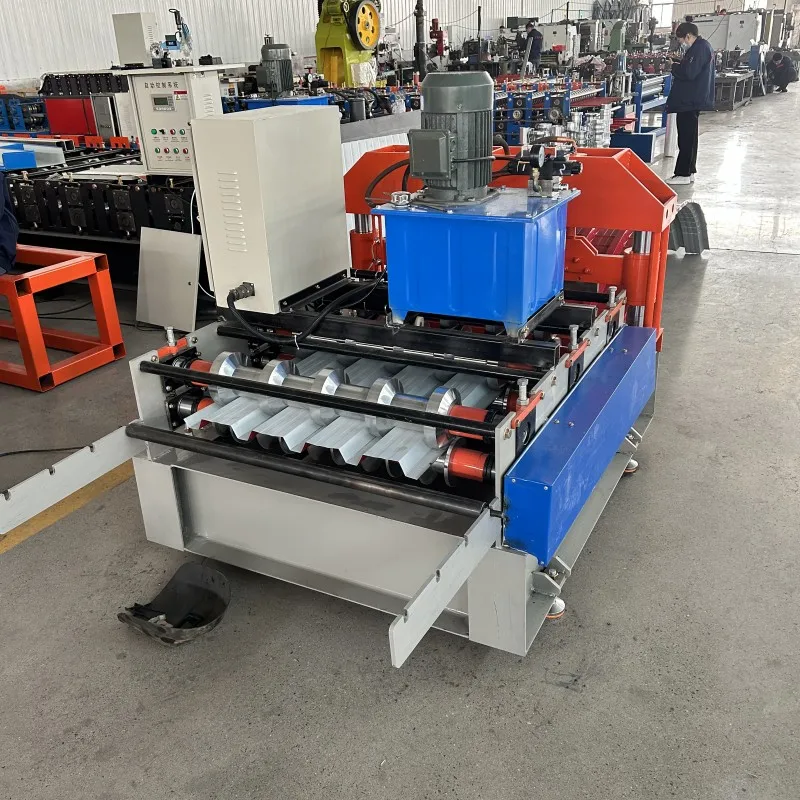

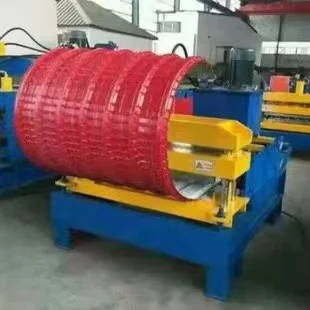

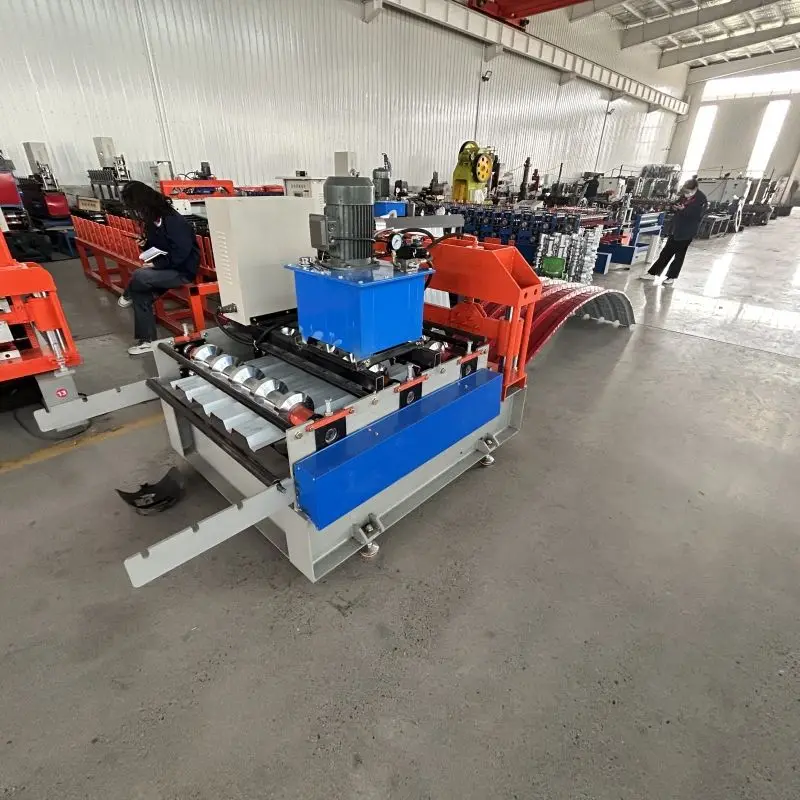

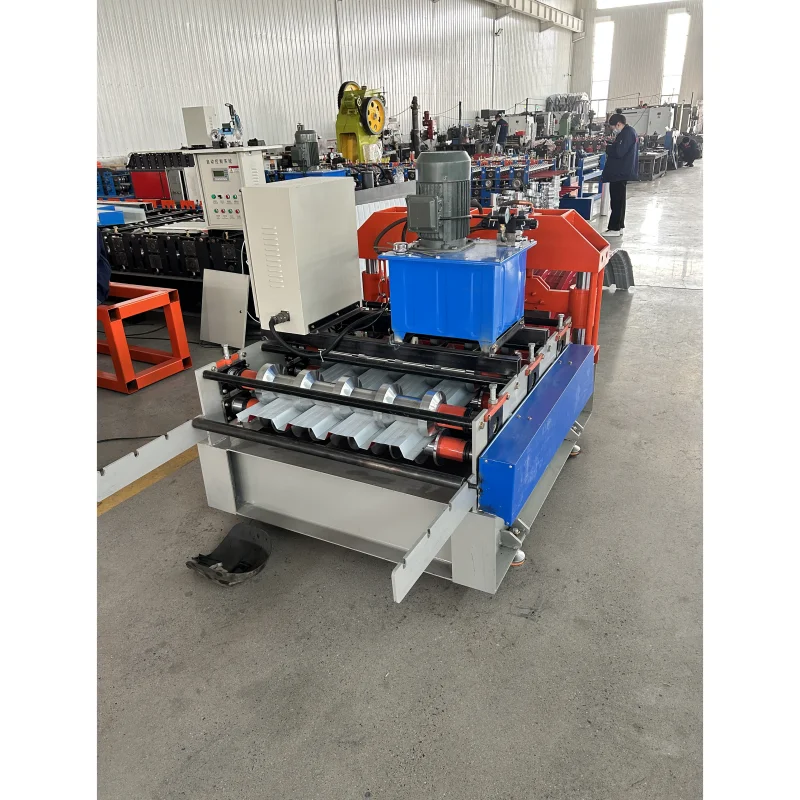

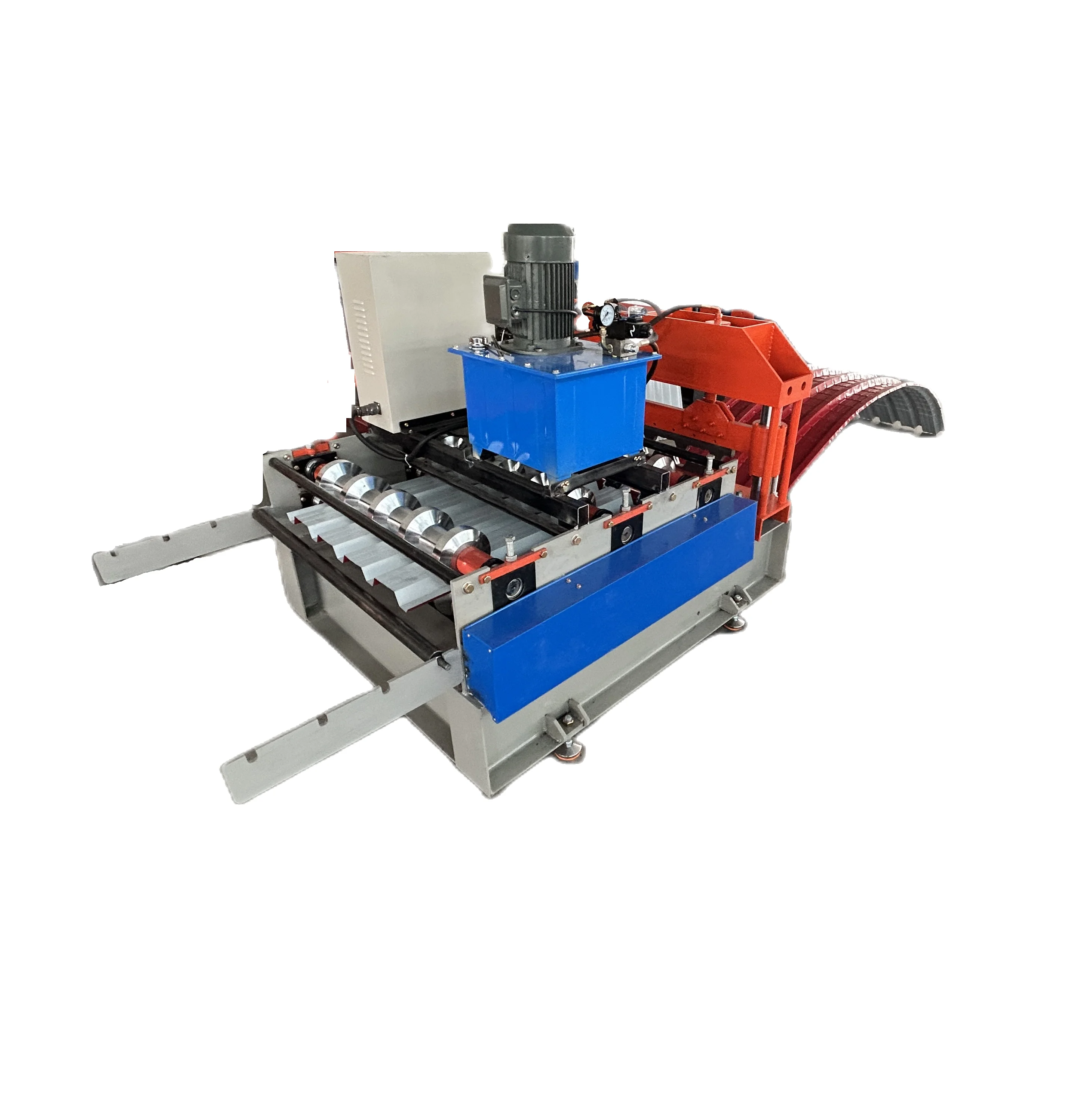

curving former machine angle color steel roofing sheets hydraulic arch camber curving roll forming machine
- Category: >>>
- Supplier: Henan Dingkou Industrial Co. Ltd.
Share on (1600845810294):
Product Overview
Description
DESCRIPTION
1. Good quality: we have a professional designer and experienced engineer team, we use good raw materials and accessories.
2. Good service: we provide technical support for the whole life of the machine.
3. Guarantee period: within one year from the end of commissioning. The warranty covers all electrical, mechanical and hydraulic components except vulnerable parts.
4. Simple operation: the whole machine is controlled by PLC computer control system.
5. Elegant appearance: rust proof, customized color
6. Reasonable price: we offer the best price in the industry.
2. Good service: we provide technical support for the whole life of the machine.
3. Guarantee period: within one year from the end of commissioning. The warranty covers all electrical, mechanical and hydraulic components except vulnerable parts.
4. Simple operation: the whole machine is controlled by PLC computer control system.
5. Elegant appearance: rust proof, customized color
6. Reasonable price: we offer the best price in the industry.
Specifications:
We customize the machine according to customer's requirements and can be used for a wide variety of profiles.
Items | SH-HD Model |
Power | Motor-Pump: 7.5 – 11 kw |
Weight of machine | 6 – 7 tons |
Dimension | L=7-8m; W=1.1m; H=1.5m |
Forming speed | 20 meters/ minute – 5 meters x 4 pcs/min – 4 meters x 5 pcs/min |
Roller stations | 18 – 22 |
Transmission system | Hydraulic motor |
Profile cutting | Hydraulic cylinder |
Punching system | Hydraulic cylinder |
Control system | PLC, HMI automatic programmable |
Material thickness | 0.75 – 1.2 mm / 1.2 – 1.6 mm |
Material width | 135/ 170/ 180/ 215 mm |
Material Yield Strength | G400 – G550 Mpa (GI/PPGI, GL/PPGL) |
DETAIL IMAGES
Automatic operation;

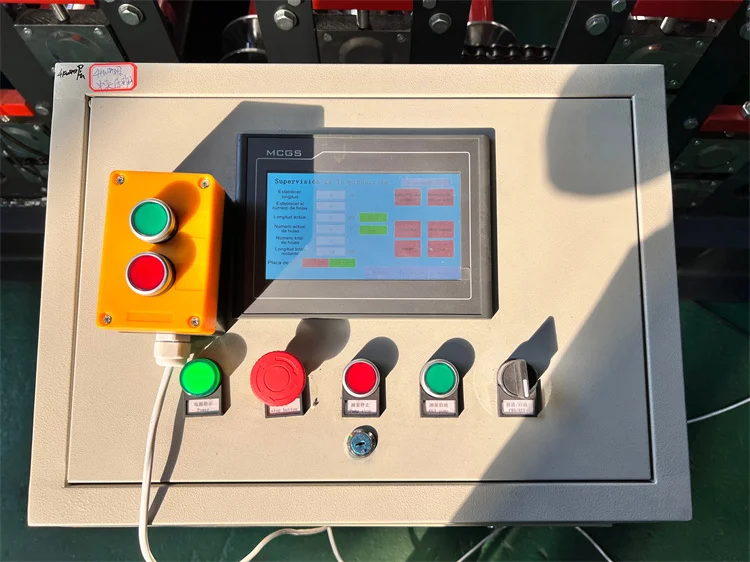

Equipment programming done on a color touch-screen;
Equipment programming done on a color touch-screen;

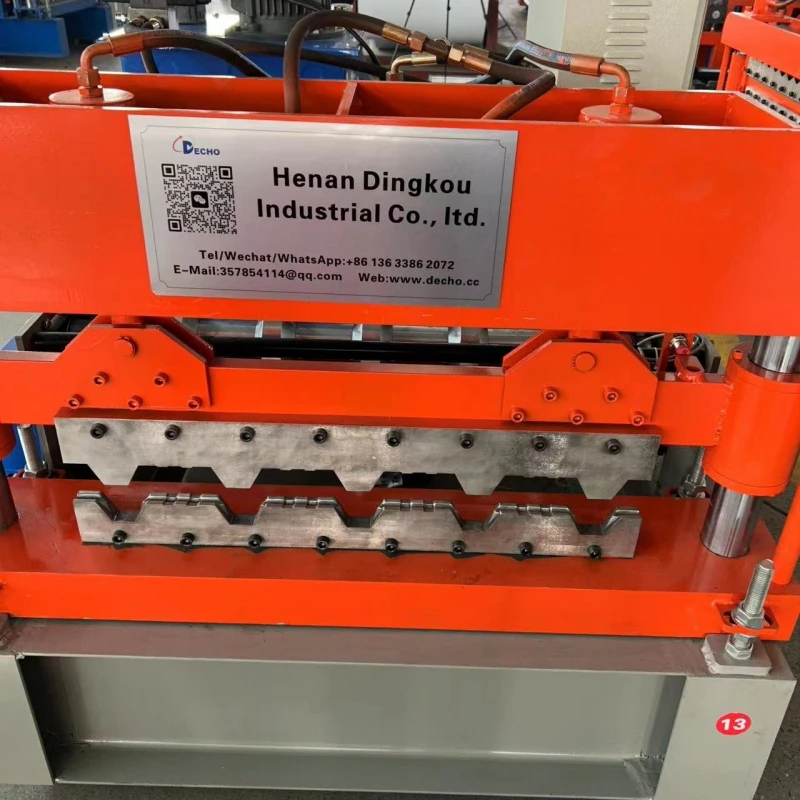

Set of forming rollers made of Steel with 100% hard chrome coating;
Traction system made through a set of chains;

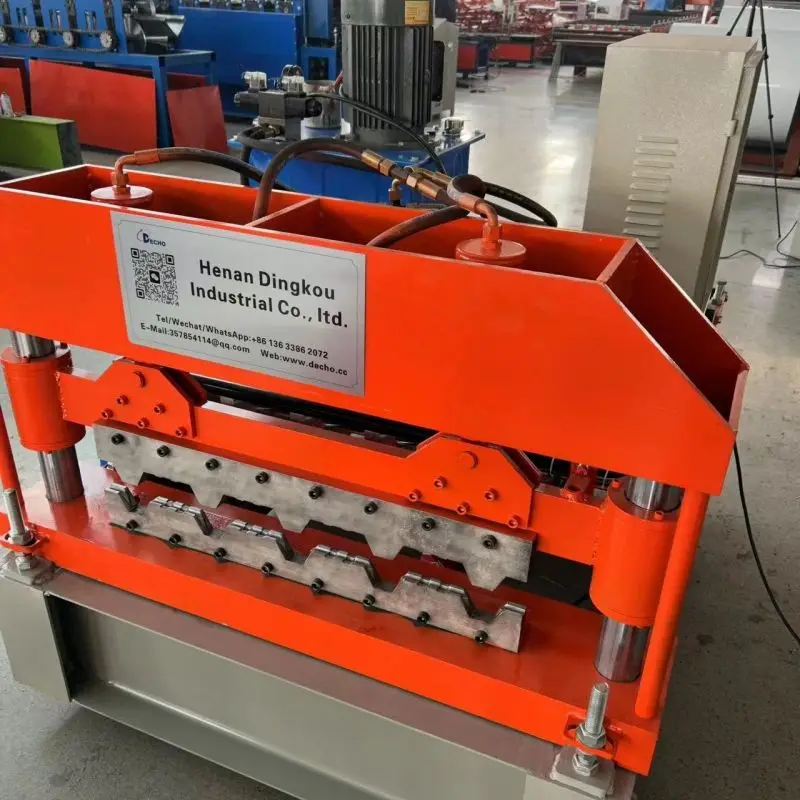

Knife made of steel;
Automatic activation;
TECHNICAL FLOW PROCESS

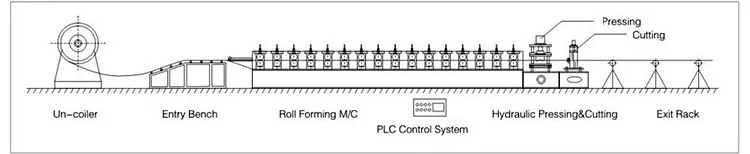

The picture shows the whole process of cold roll forming machine :
The machine is fully automatic and it is easy to operate with a friendly HMI panel. It consists of one decoiler, sheet guiding equipment, roll forming section, PLC control system, Hydraulic cutting, collection table.
Equipment List:
Item | Designations | Quantity | Unit |

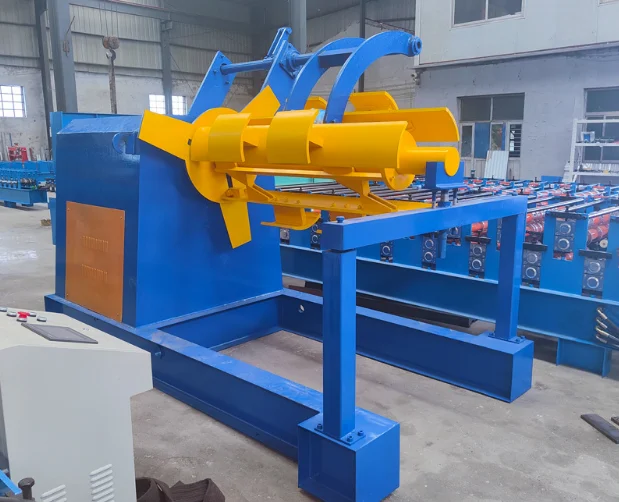

1 | Decoiler | 1 | Set |
2 | Roll Forming System | 1 | Set |
3 | Cutting System | 1 | Set |
4 | Control System | 1 | Set |
5 | Stacking Rack | 1 | Set |
Packaging & Shipping
1. One container (20ft or 40ft ) for loading one set machine with manual decoiler and receiving rack.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
