wire butt welder steel wire butt welding machine
US $60000-$80000
Bending machine for plastic sheet plastic sheet welding machine hdpe geomembrane weldi plastic pvc card sheet cutting machine
- Category: >>>
- Supplier: Qingdao Polyfusion Machinery Co. Ltd.
Share on (1600849089179):
Product Overview
Description

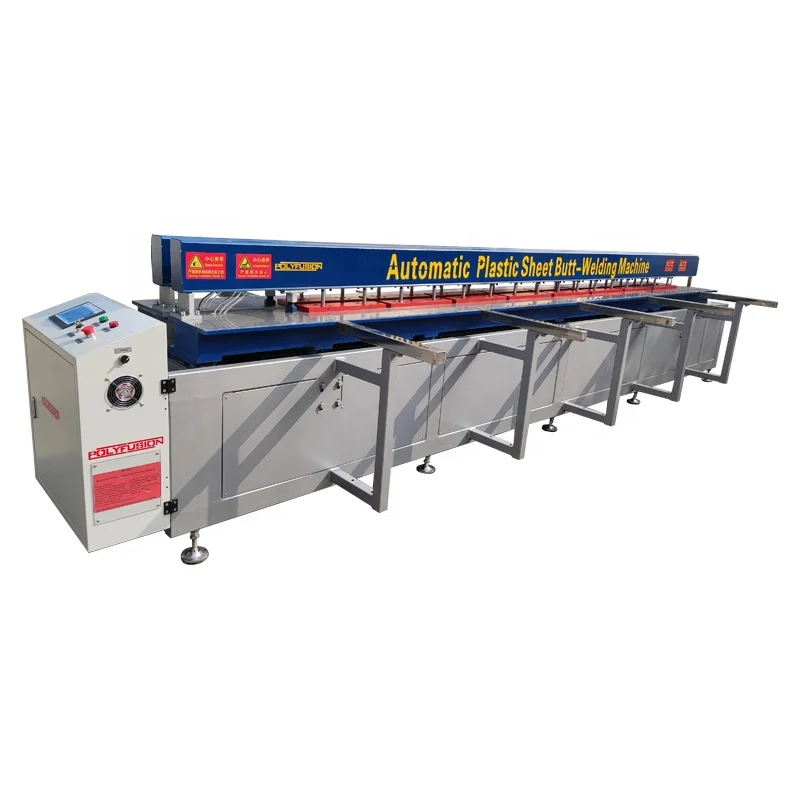

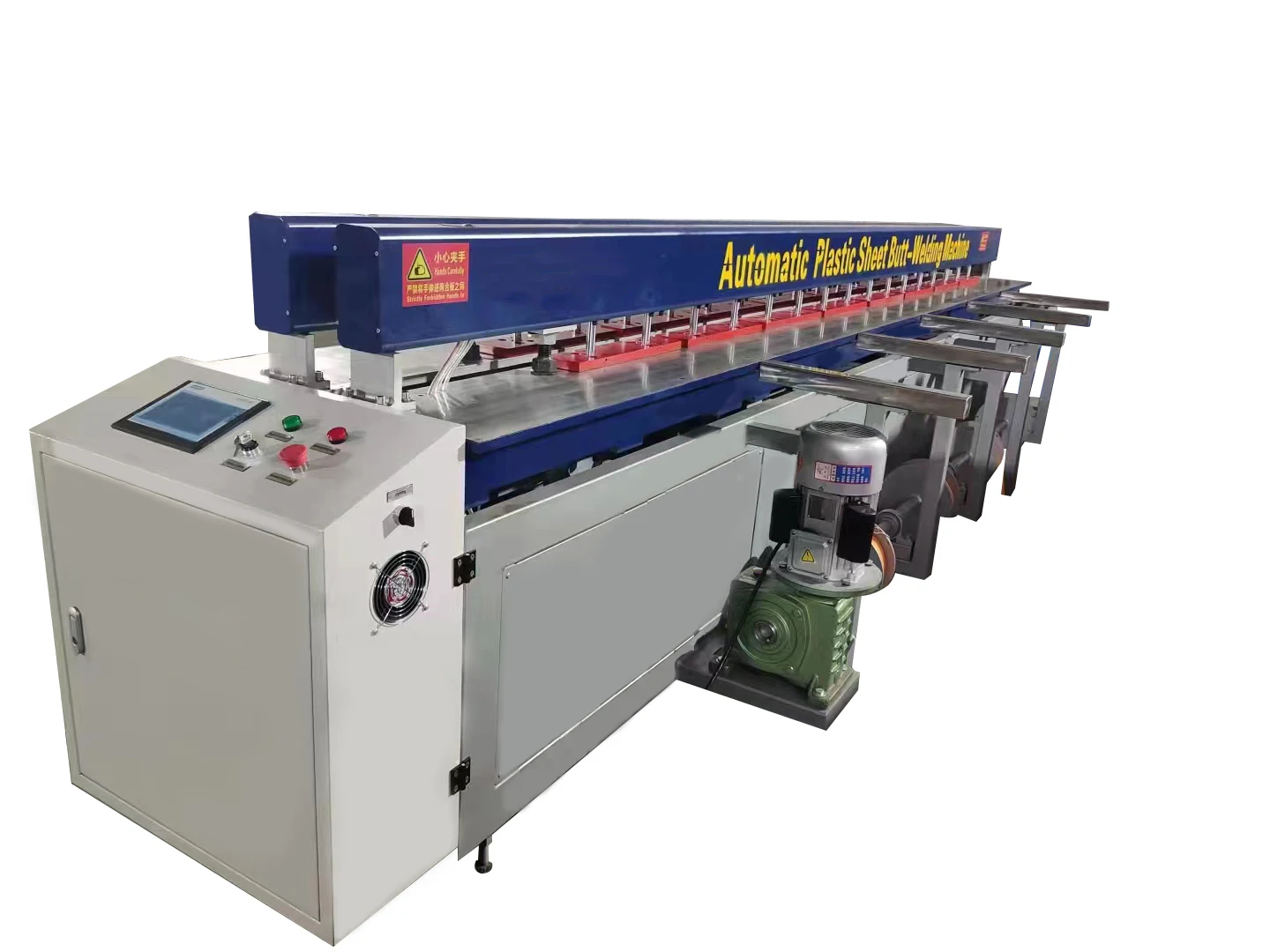

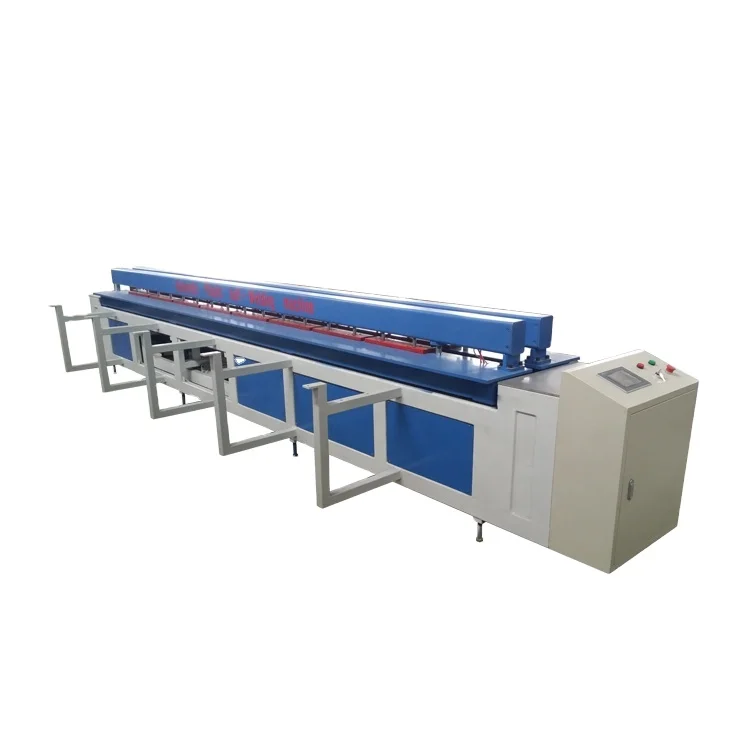

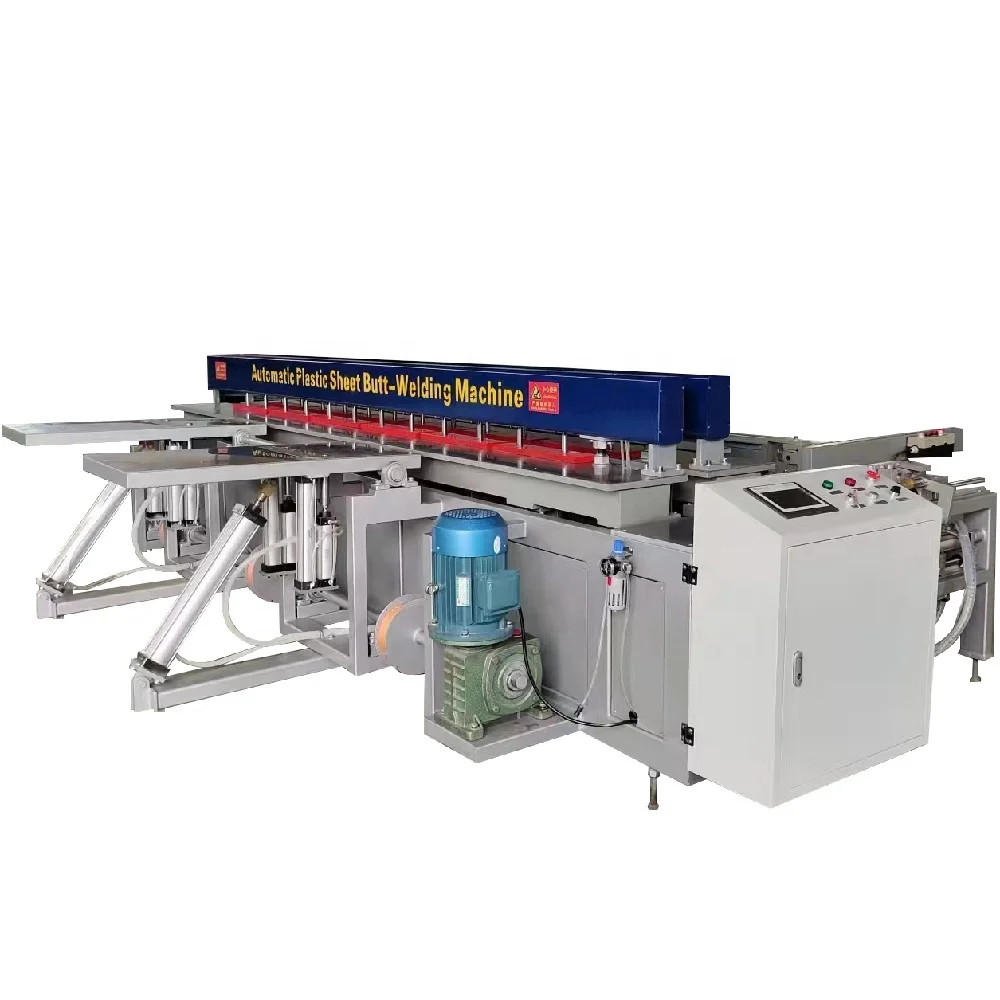

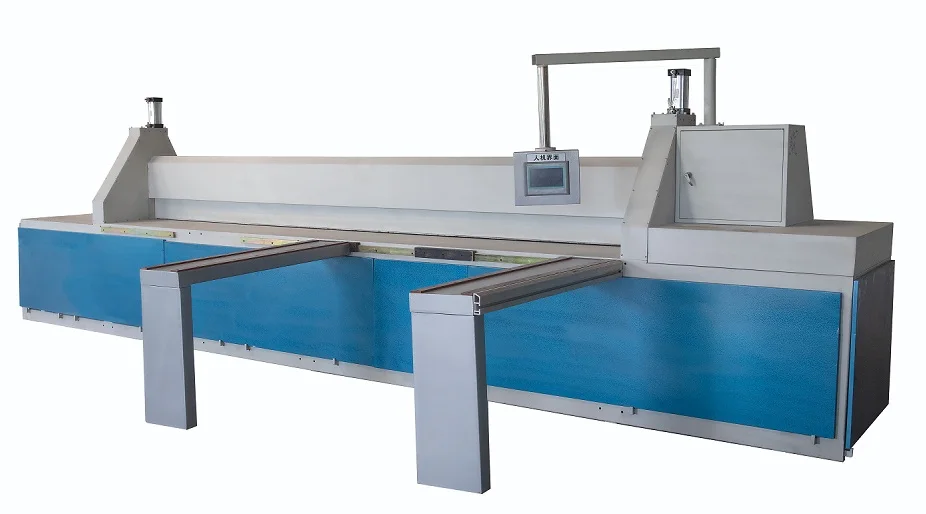

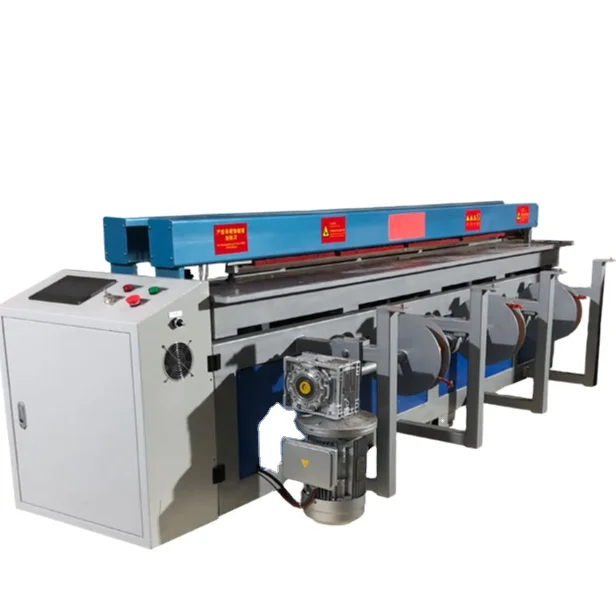

Automatic Butt Fusion Rolling Bending Welding Machine 3000mm PP PVC PPS Plastic Sheet Welding Machine
PRODUCT SPECIFICATIONS
Model | DZA2000 | DZA3000 | DZA4000 | DZA5000 | DZA6000 | DZA7000 | |||||
Processing Length(mm) | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | |||||
Butt-Fusion Thickness(mm) | 3~50 | 3~50 | 3~50 | 3~50 | 3~50 | 3~50 | |||||
Bend Thickness(mm) | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | |||||
Rolling Thickness(mm) | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | |||||
Range of Rolling Diameter(mm) | ≥360mm | ≥360mm | ≥450mm | ≥550mm | ≥600mm | ≥600mm | |||||
Range of Bend | 0~145° | 0~145° | 0~145° | 0~145° | 0~145° | 0~145° | |||||
Pressure of Air Supply | 6-8kg.f/cm² | 6-8kg.f/cm² | 6-8kg.f/cm² | 6-8kg.f/cm² | 6-8kg.f/cm² | 6-8kg.f/cm² | |||||
Rated Voltage | 220V | 220V/380V | 220V/380V | 380V or customized | 380V or customized | 380V or customized | |||||
Heating Plate Power(weld) | 3.0KW | 4.5KW | 6.0KW | 7.5KW | 9KW | 10.5KW | |||||
Heating Plate Power(bend) | 7KW | 9.6KW | 12.4KW | 16KW | 20KW | 21KW | |||||
Power of Rolling Motor | 2.2KW | 4KW | 6KW | 7.5KW | 9.0KW | 11KW | |||||
Dimension (mm) | 3700*3200*1100 | 4700*3200*1100 | 5770*3200*1200 | 6860*3500*1250 | 7860*3550*1400 | 9060*3500*1450 | |||||
Application | Plastic Sheet/Board made from HDPE,PP,PVC,PVDF,PPS,PPN,PPH...... | ||||||||||
Welding Material
HDPE SHEET
PP SHEET
PVC SHEET
PVDF SHEET
Hollow Plastic Sheet
Other Plastic Sheet
Details Images
Siemens Touch Screen
Butt Fusion Line

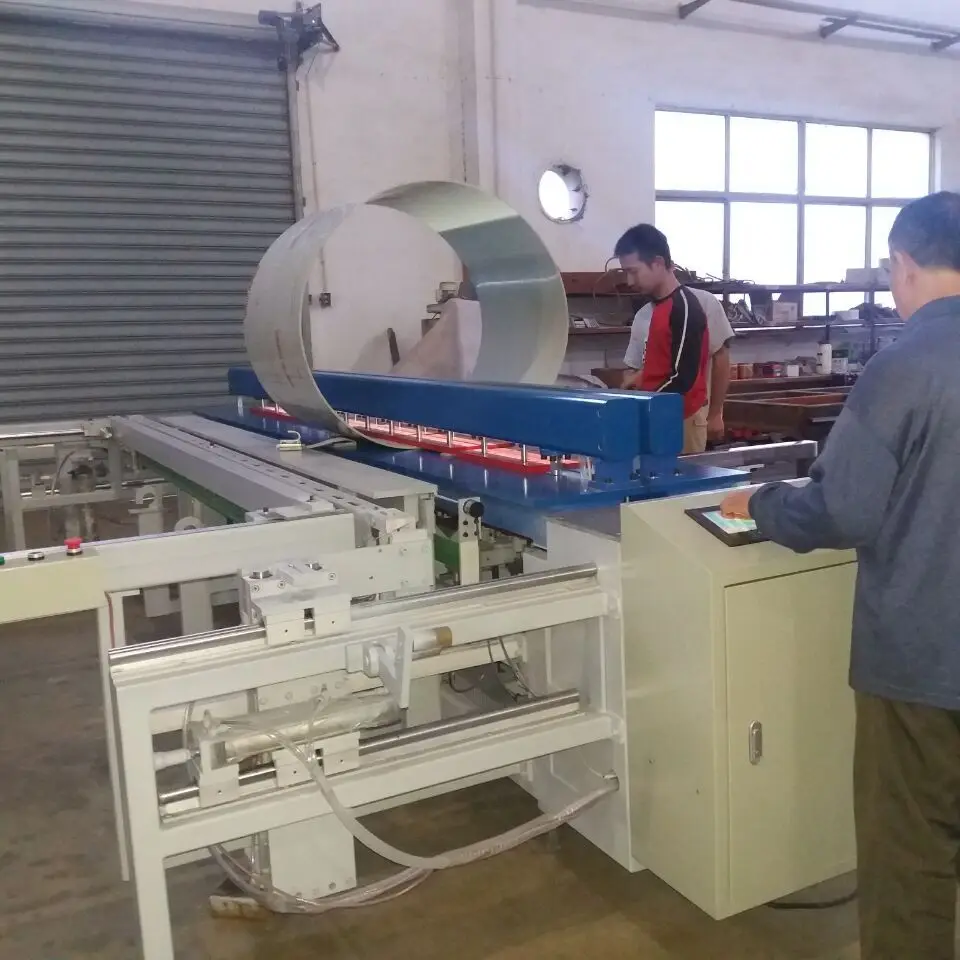

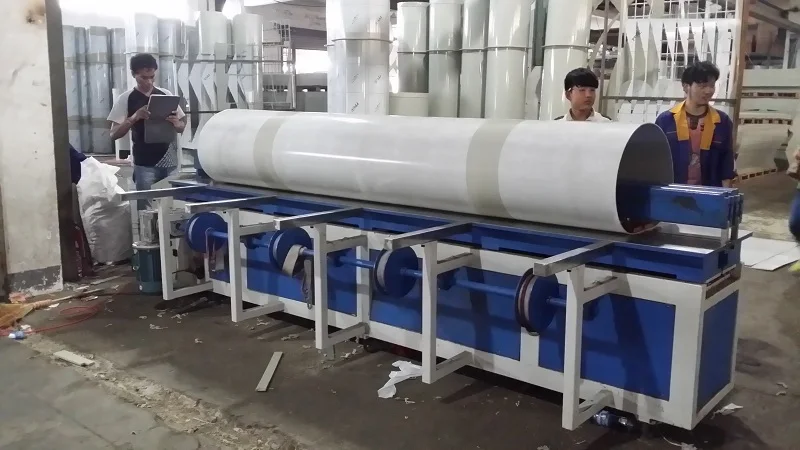

Rolling Pipe
Bending
Simens PLC
Left/Right Button
Range of Application
Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics.

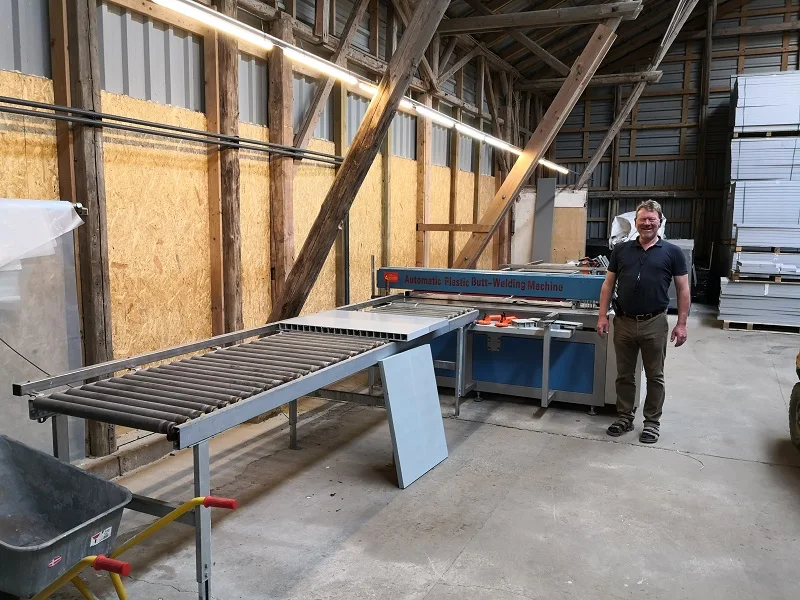

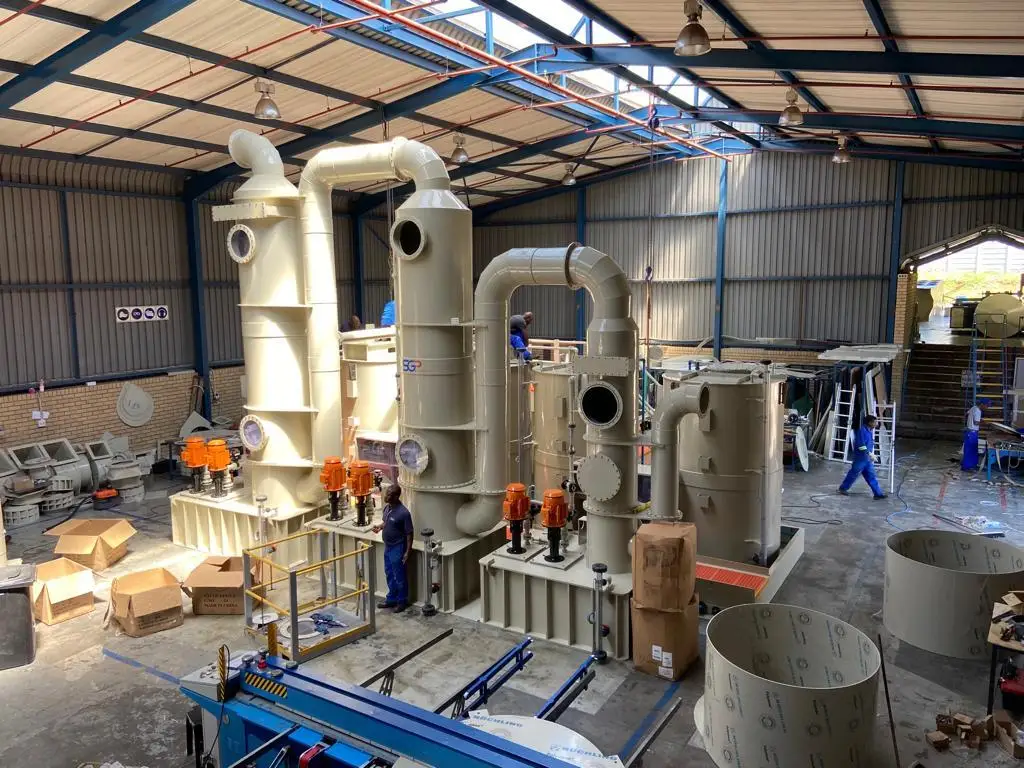

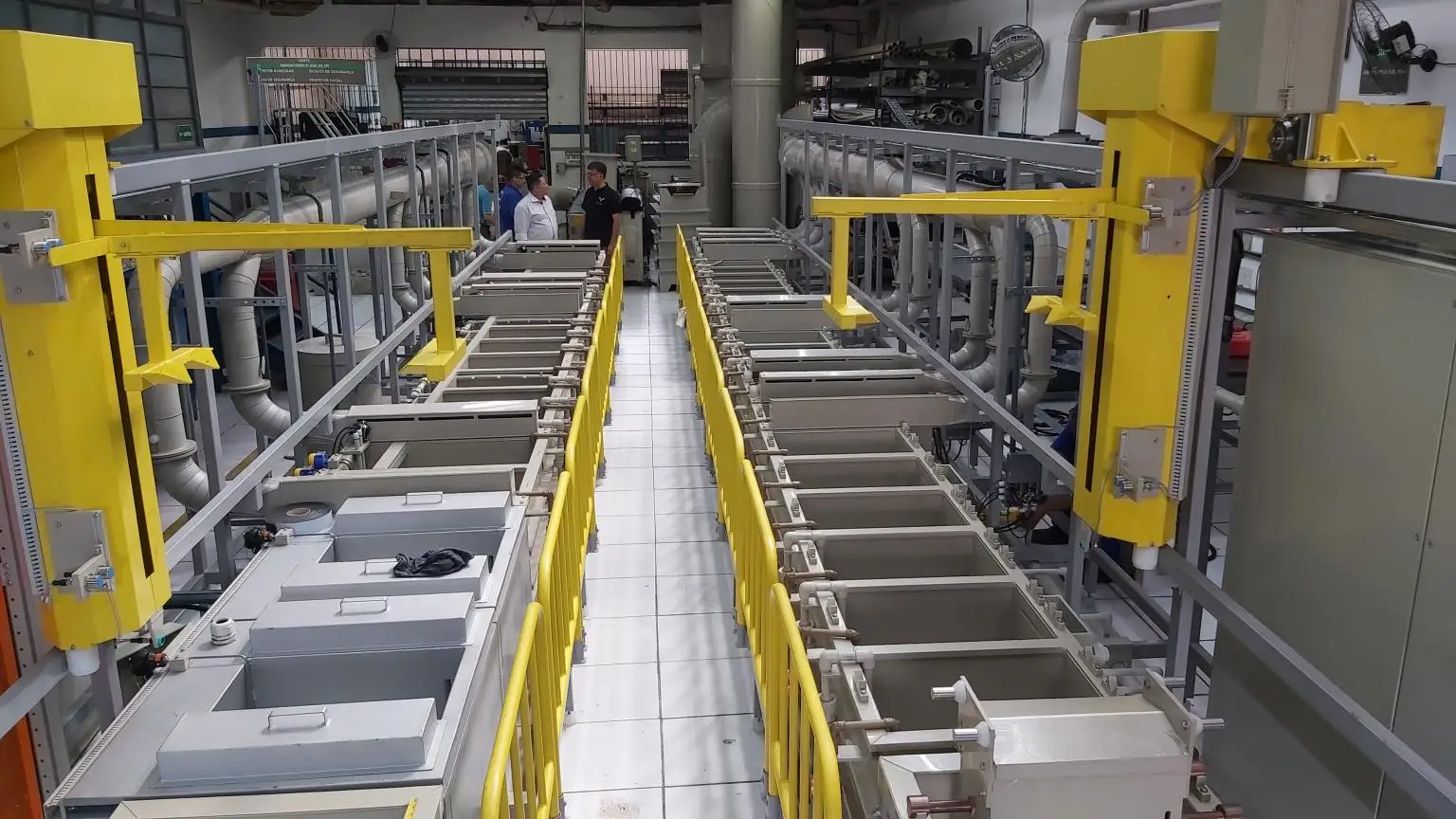

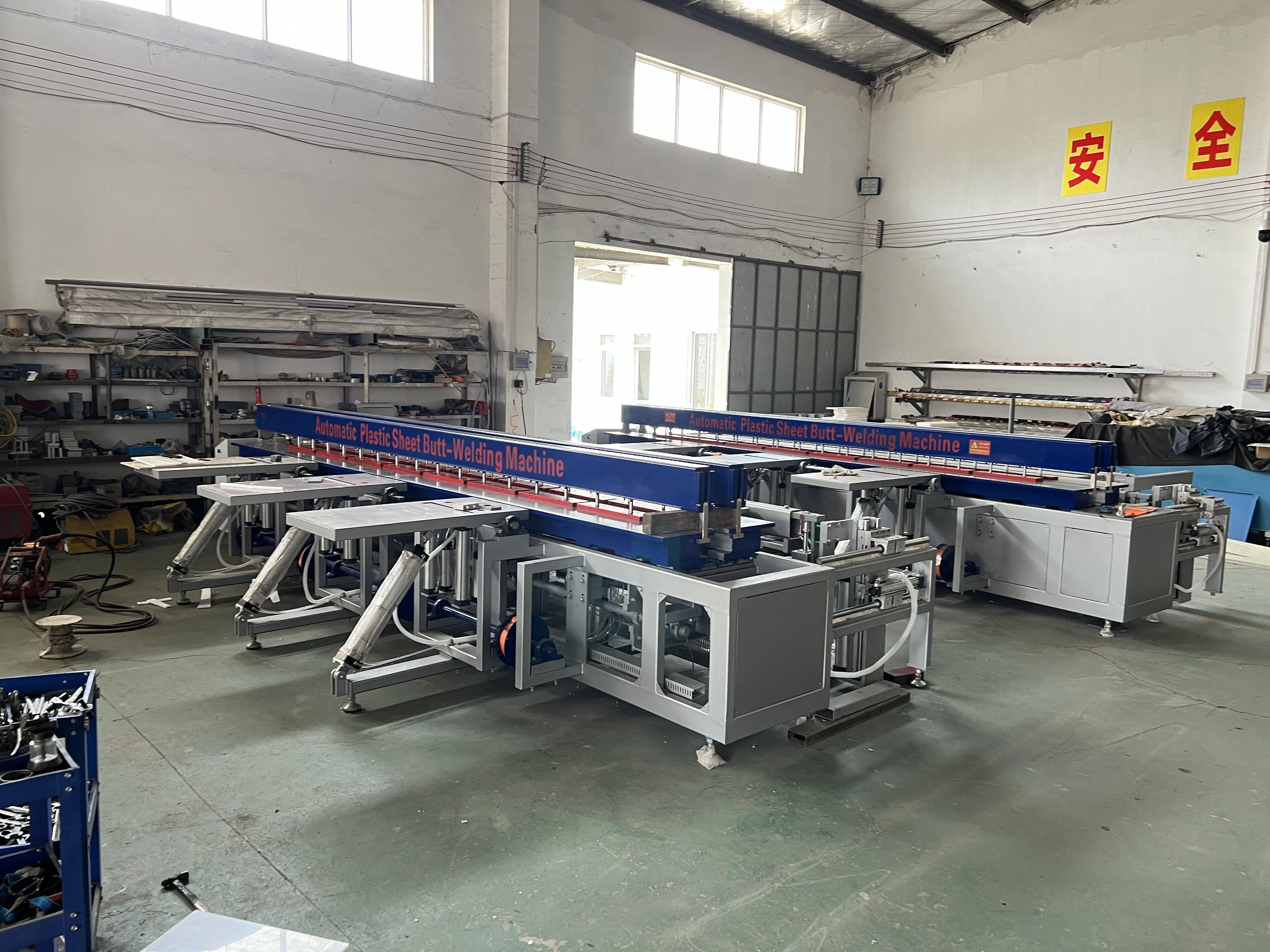

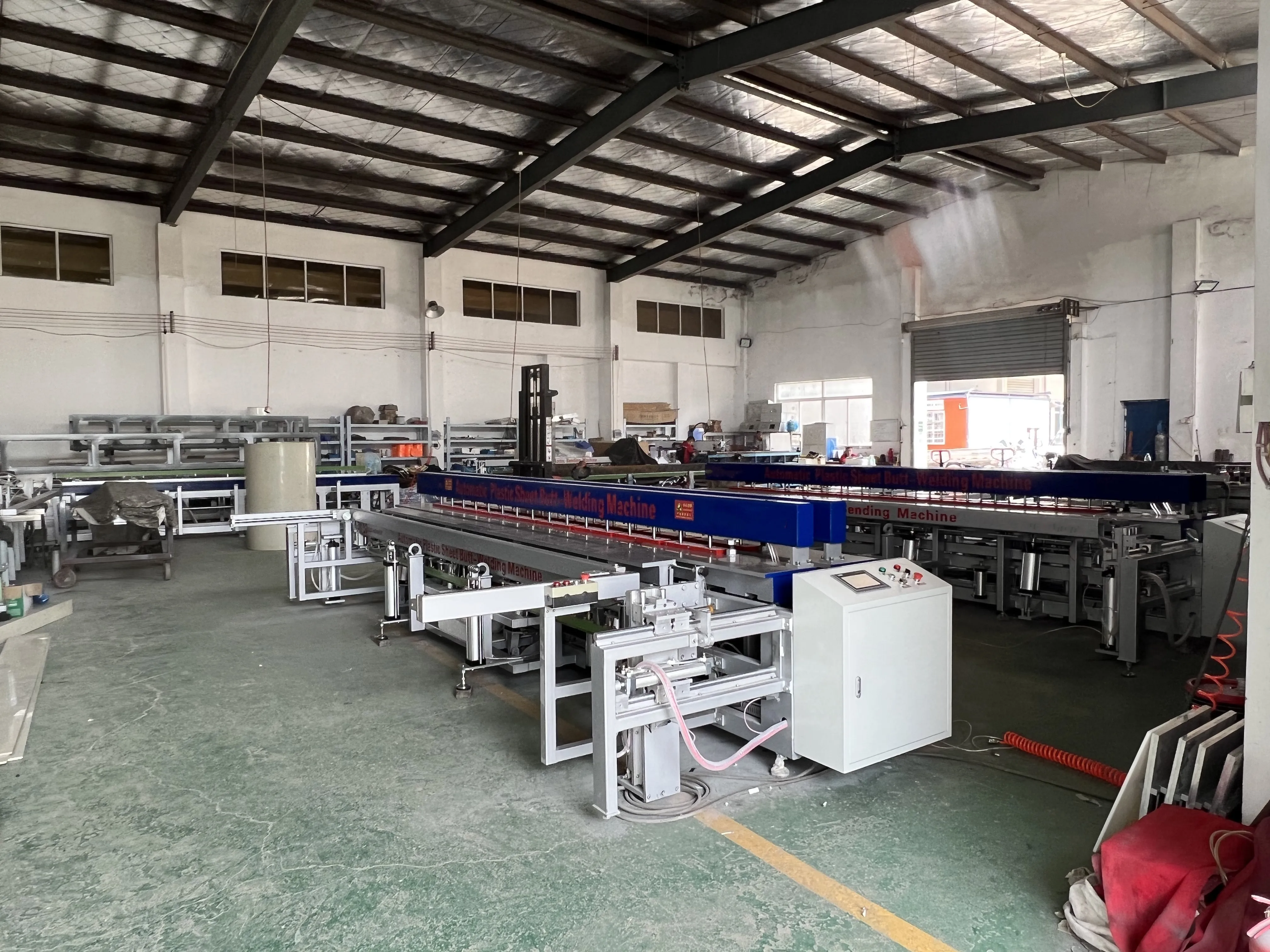

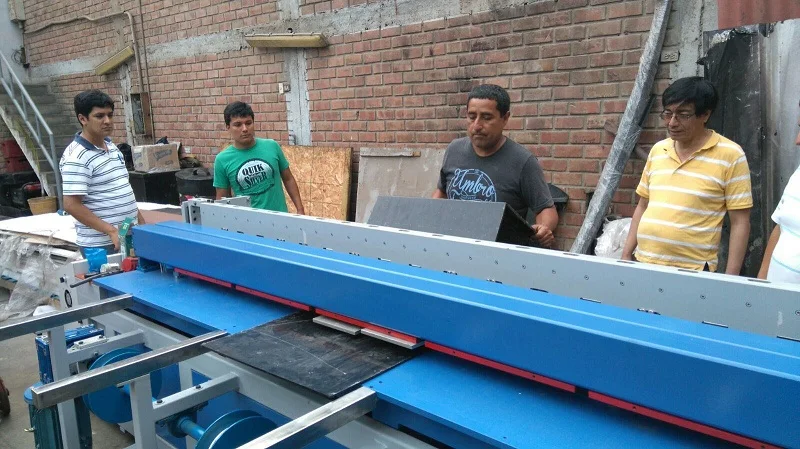

Successful Project
QINGDAO POLYFUSION MACHINERY CO.,LTD. is a professional manufacturer, trader in China.Years of production and export experience,we can supply the best quality machines to all the customers.
Our products including: Hydraulic Butt Fusion Machines, Manual Butt Fusion Machines,Electrofusion Welding Machines, Socket Fusion Welding Machines, Workshop Fitting Welding Machines, Plastic Sheet Butt Welding/Rolling/Bending Machine, HDPE Fittings, Electrofusion Fittings, ect.
Customers’ biggest benefit is our goal, and the quality of machine is the life of our company. With many years of growth, we have our best partners in the world。
We have the certficate of ISO9001 and CE,BV,SGS and CNAS approval with the strength of service, with good quality and pretty competitive pnice. This ensures our machines have the highest quality, best service and reliability warranty.

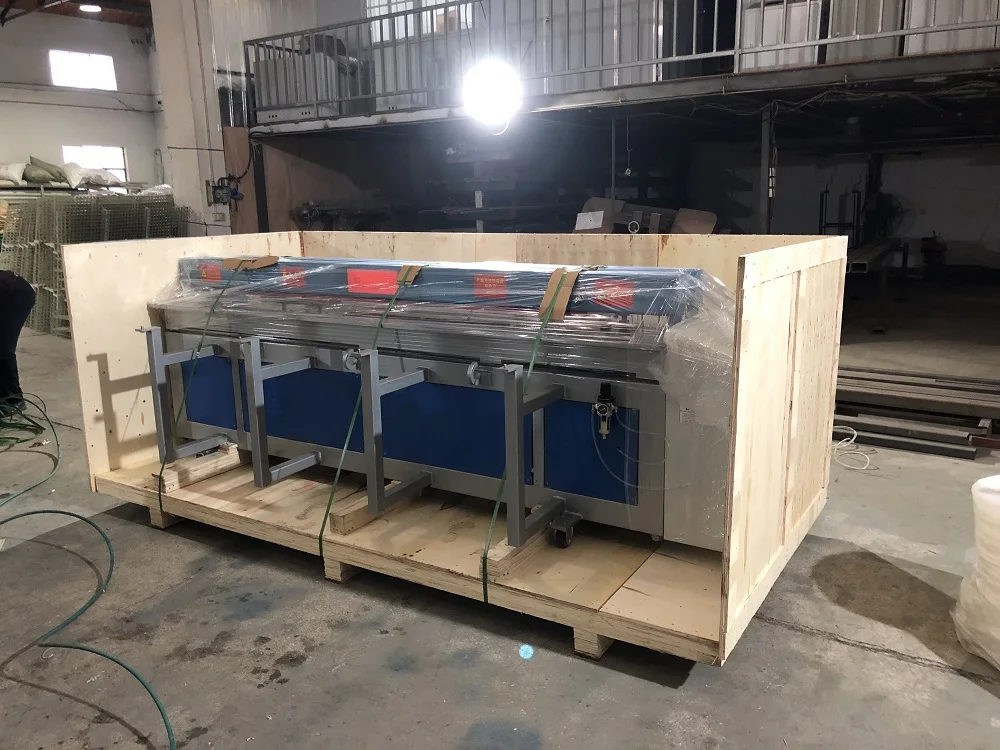

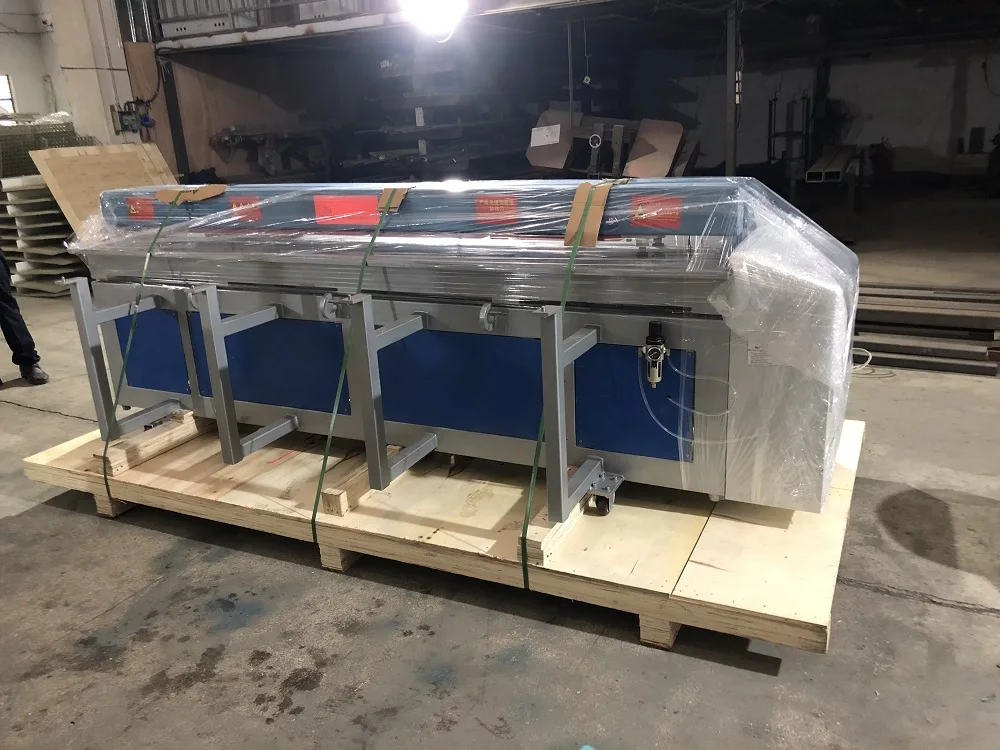

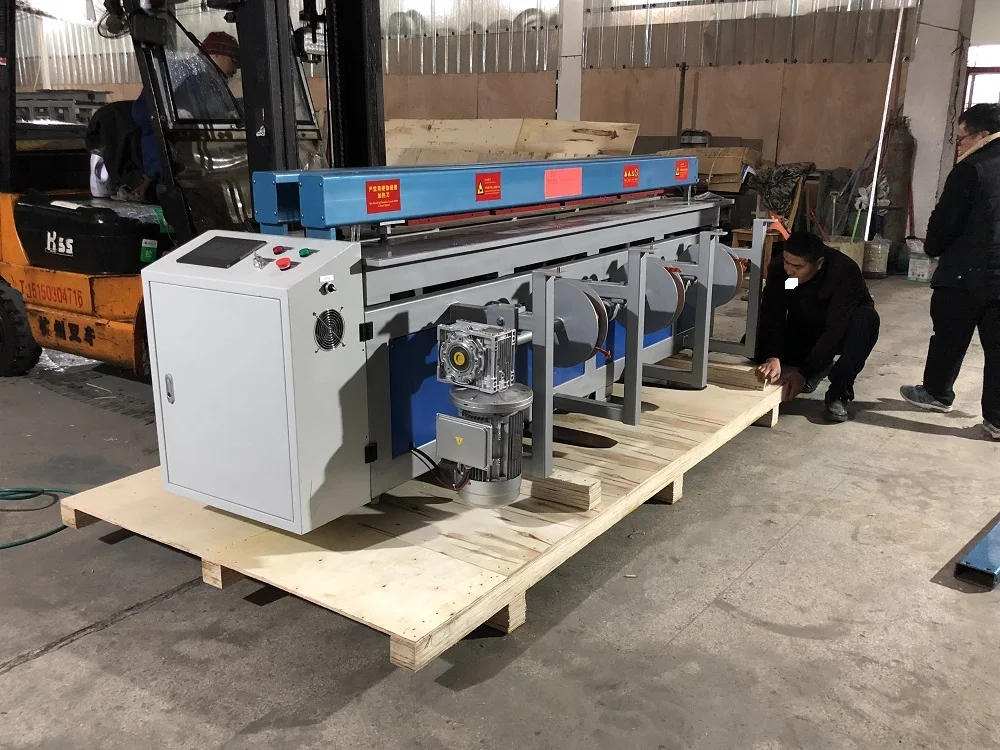

Product packaging
