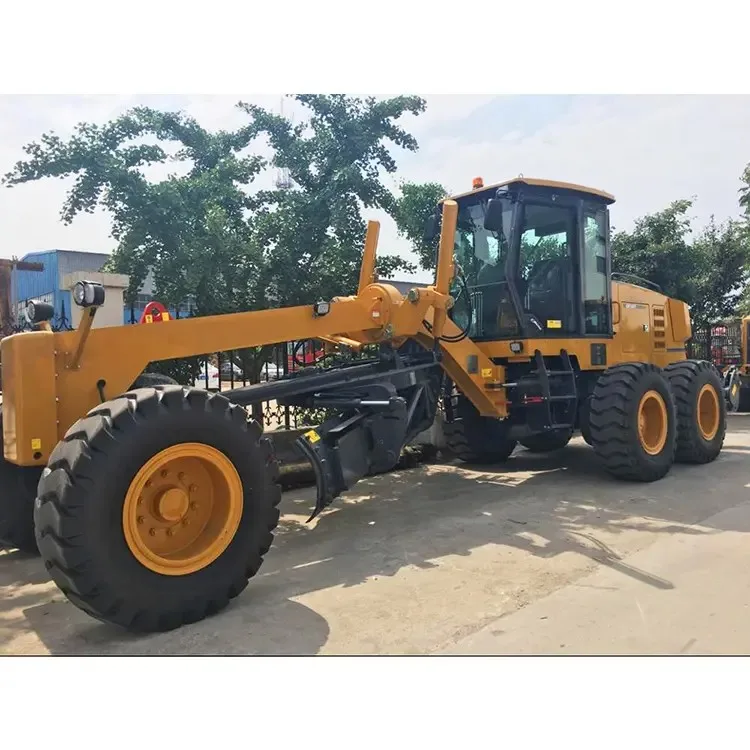

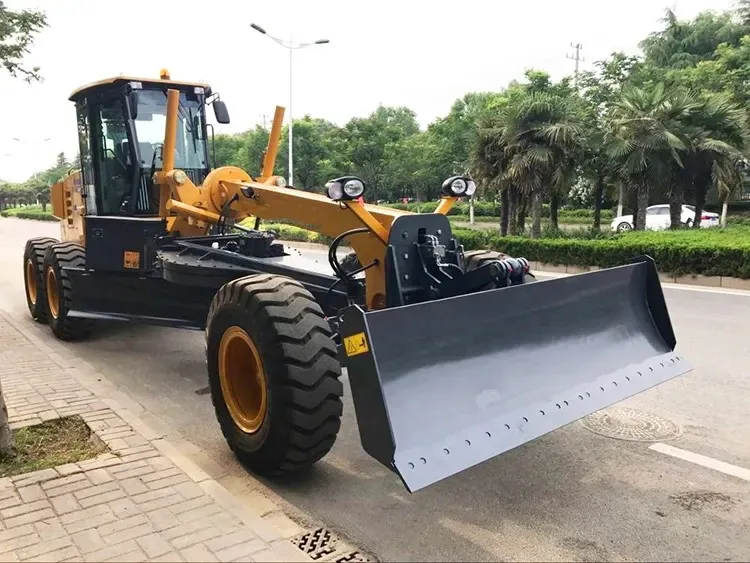

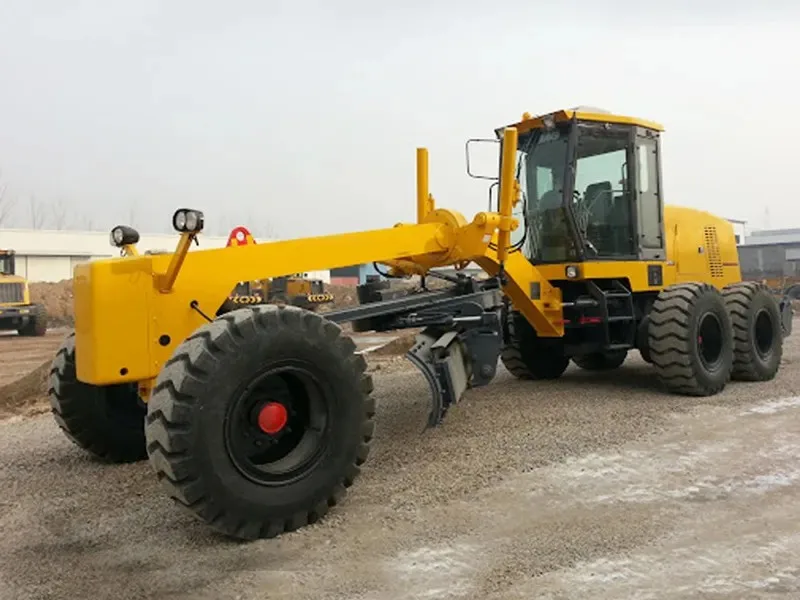

New Road Machinery Grader Gr2403 178kw 240hp Mining Heavy type road Motor Grader with attachment for sale
- Category: >>>
- Supplier: Xuzhou Shangheng Engineering Machinery Co. Ltd.Xuzhou Ltd.
Share on (1600863288552):
Product Overview
Description

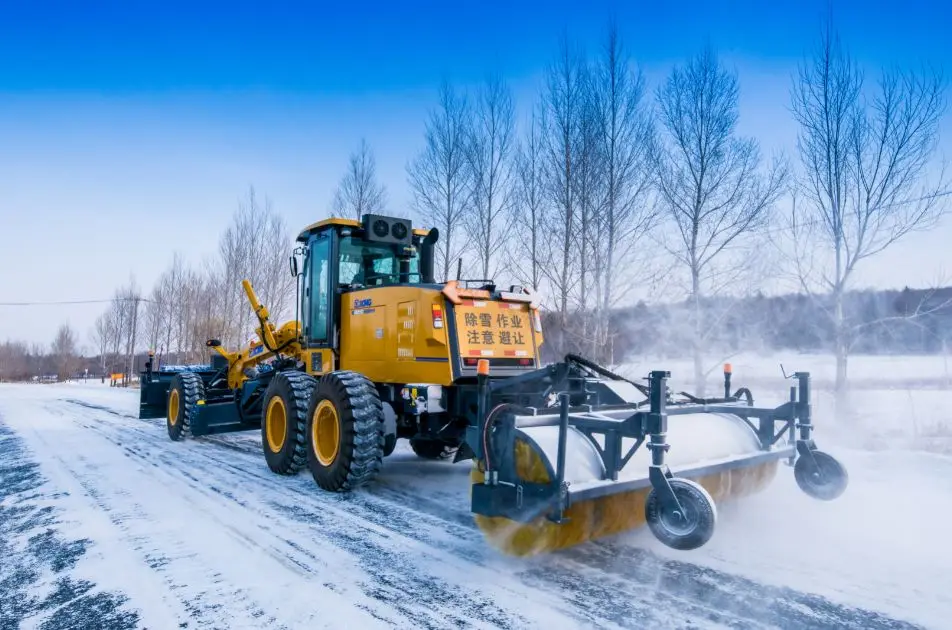

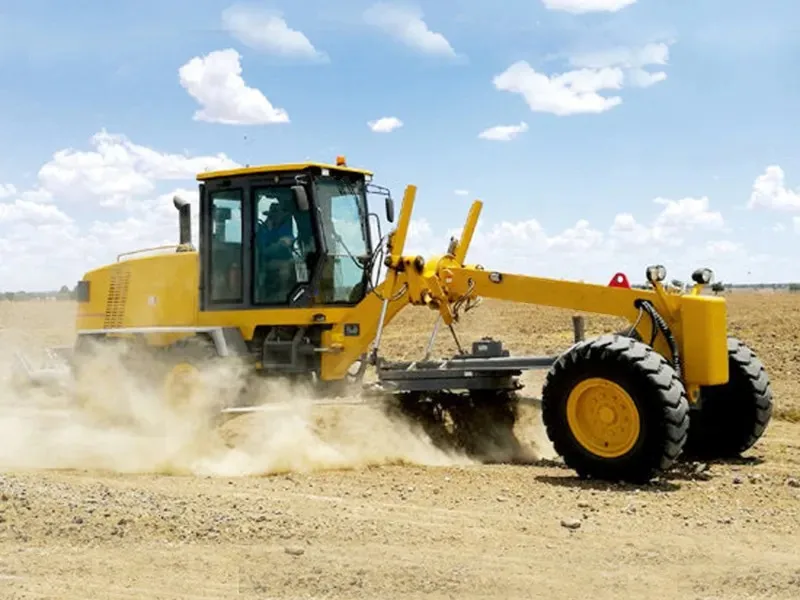

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.

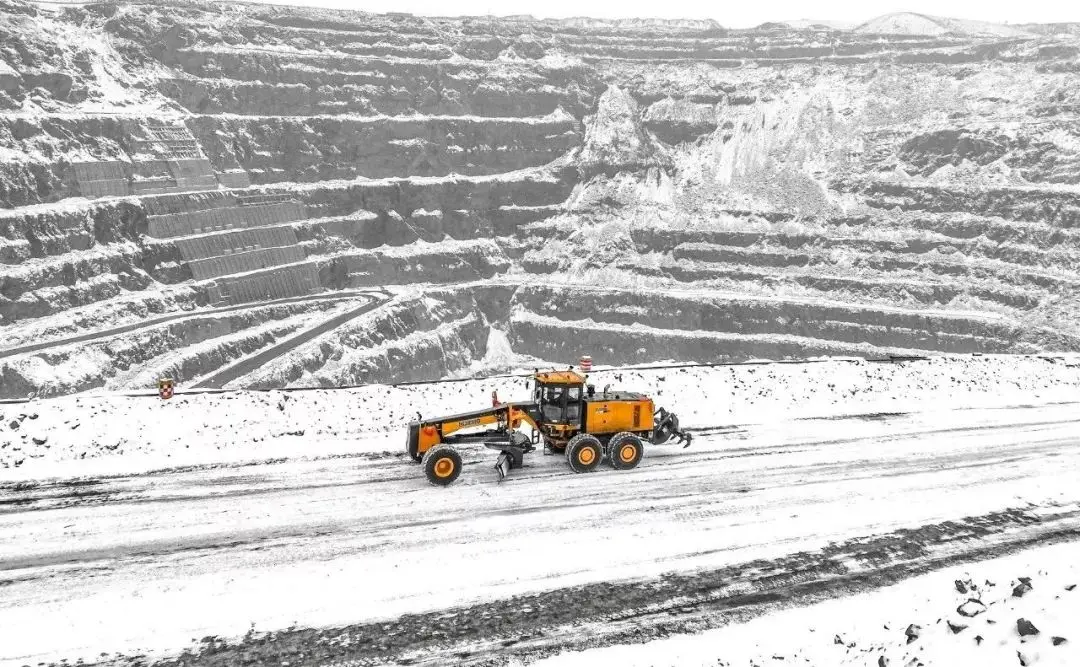

It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Item | GR2403 | ||||
Basic parameters | Engine model | QSB6.7 | |||
Rated power/speed | 178kW/2000rpm | ||||
Overall dimension (standard) | 8970x2625x3420 | ||||
Total weight (standard) | 17000 kg | ||||
Tire specification | 17.5-25 | ||||
Ground clearance (front axle) | 430mm | ||||
Space of front and rear axles | 6219 mm | ||||
Space of middle and rear wheels | 1538 mm | ||||
Performance parameters | Forward velocity | 5,8,11,19,23,38km/h | |||
Reverse speed | 5,11,23km/h | ||||
Tractive effort f=0.75 | 87kN | ||||
Maximum gradeability | 25% | ||||
Tire inflation pressure | 260kPa | ||||
Working system pressure | 20MPa | ||||
Transmission pressure | 1.3-1.8Mpa | ||||
Working parameters | Maximum steering angle of front wheel | ±48° | |||
Maximum slant angle of front wheel | ±17° | ||||
Maximum oscillating angle of front axle | ±15° | ||||
Maximum oscillating angle of equilibrium box | forwards15°, Reverse15° | ||||
Maximum steering angle of frame | ±27° | ||||
Minimum turning radius | 7.3m | ||||
Scrape knife | Maximum lift height | 400mm | |||
Maximum cutting depth | 500mm | ||||
Maximum tilt angle | 90° | ||||
Cutting angle | 28°-70° | ||||
Angle of revolution | 360° | ||||
Length & chord height | 3965x610mm | ||||
Oil filling amount | Coolant | 50L | |||
Fuel tank | 280L | ||||
Engine | 24L | ||||
Transmission | 38L | ||||
Equilibrium box | 46L | ||||
Drive alex | 28L | ||||
Hydraulic oil | 110L | ||||
1. Energy saving and noise reduction:
adopt low speed engine transmission line, low fuel consumption and energy saving and environmental protection; The transmission system is equipped with low speed ratio, and the average fuel consumption is reduced by about 8%. Three levels of engine, cab and seat vibration reduction;
The cab is supported by six points; Deceleration of engine, cooling fan with large diameter, sound absorption sponge inside the hood, good sealing of the cab reduces noise of the whole machine.
2. Strong power:
2. Strong power:
Imported brand engine and hydraulic torque converter, the optimal torque converter achieves the best matching of torque converter and engine, reducing the start time, increase the work of torque output at low speed, strong and powerful. The optional herringbone tread tires, the adhesion can be increased by 10% in loosing soil and leveling, further enhance the power output.
3. Rotation with load:
improve the pressure of hydraulic system system, the rotary force of the blade, the high frequency quenching treatment improves the wear resistance and life span, and realize the rotation operation.
4. Efficient operation:
4. Efficient operation:
improves the displacement of hydraulic pump and hydraulic motor, increase the oil cylinder speed by 20%, realizes the industry leading work efficiency, the optimized blade shape can turn and remove the soil quickly and efficiently, and realize optimal load distribution and the minimum material accumulation within the rotary discarea.
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu
province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on
the advantage of them,we also estabish long-time business with other famous brands.
2. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are constantly
treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than the
price from manufacturers/factories.
3. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a
variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for
manufacturers/factories, it will take more than 30 days to produce the ordered machine.
4. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the
time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
5. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of
original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek
the advice from the individual sales manager whom you work with.
6. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
7. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare
parts.
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu
province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on
the advantage of them,we also estabish long-time business with other famous brands.
2. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are constantly
treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than the
price from manufacturers/factories.
3. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a
variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for
manufacturers/factories, it will take more than 30 days to produce the ordered machine.
4. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the
time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
5. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of
original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek
the advice from the individual sales manager whom you work with.
6. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
7. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare
parts.
