Loaded Wheel Tester for emulsion asphalt and slurry sealer and Micro surfacing mix design tests
Loaded Wheel Tester for emulsion asphalt and slurry sealer and Micro surfacing mix design tests
Loaded Wheel Tester for emulsion asphalt and slurry sealer and Micro surfacing mix design tests
Loaded Wheel Tester for emulsion asphalt and slurry sealer and Micro surfacing mix design tests

Loaded Wheel Tester for emulsion asphalt and slurry sealer and Micro surfacing mix design tests

Share on (1600867959546):


Price:$1,360.00

Quantity:


Product Overview

Description



Product Description

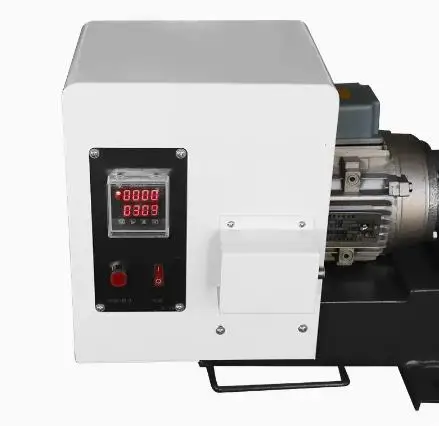

Loaded Wheel Tester
Wet track abrasion tester for emulsion asphalt and slurry sealer and Micro surfacing mix design tests.Complete per ISSA TB 109 & 147A


Apparatus and materials:
1. Load wheel rolling tester: The power of the motor is 0.25kW, the speed is 1750r/min, it has a 40:1 horizontal double-acting output shaft gear reducer, the radius of the drive crank is 152±2mm, and the rubber caster of the load wheel is The rubber hardness is between HRC60~HRC70, and the horizontal distance from the driving wheel to the caster shaft is 610±1mm. 2. Loading material: iron sand or iron block.
3. Sample tray: 77×407mm galvanized steel tray with deburred edges.
4. Mold trial: 6.4±0.1mm, internal size 380±1.0mm, width 50±1.0mm; 12.7±0.1mm,
External dimension 406±1.0mm, width 76±1.0mm.
5. Steel cover plate: the size is 3×36×353mm.
6. Steel sand frame: the inner size is 38×355mm.
7. Bench scale: Weighing 100kg, the sensing capacity is not more than 0.5kg.
8. Balance: the weighing is 2000g, and the sensing capacity is not more than 1g.
9. Oven: with forced ventilation, the temperature can be controlled at 60℃±3℃.
10. Sieve: aperture 0.6mm and 0.15mm.
11. Oil felt: the size is 77mm×407mm.
12. Standard sand for cement.
13. Others: mixing pot, mixing shovel, measuring cylinder, etc.


Specification


1. Motor speed: 1400r/pm
2. Rolling frequency: 44 times/min
3. Crank radius: 152mm
4. Loading weight: the total weight of the trolley is 56.7kg
5. Car stroke: 304mm
6. Rubber wheel hardness: HRC60-70
7. Sample tray: 77mm×407mm stainless steel tray
8. Power: 300W
9. Mold trial: 6.4±0.1mm, 12.7±0.1mm
Internal size: 50mm×380mm External: 406×76mm
10. Working power supply: three-phase 380V/50Hz motor power 550W
11. Weight: 80kg
12. Dimensions: 1350×380×550mm
13. Ambient temperature: ≤35°C
14. Relative humidity: ≤85%
