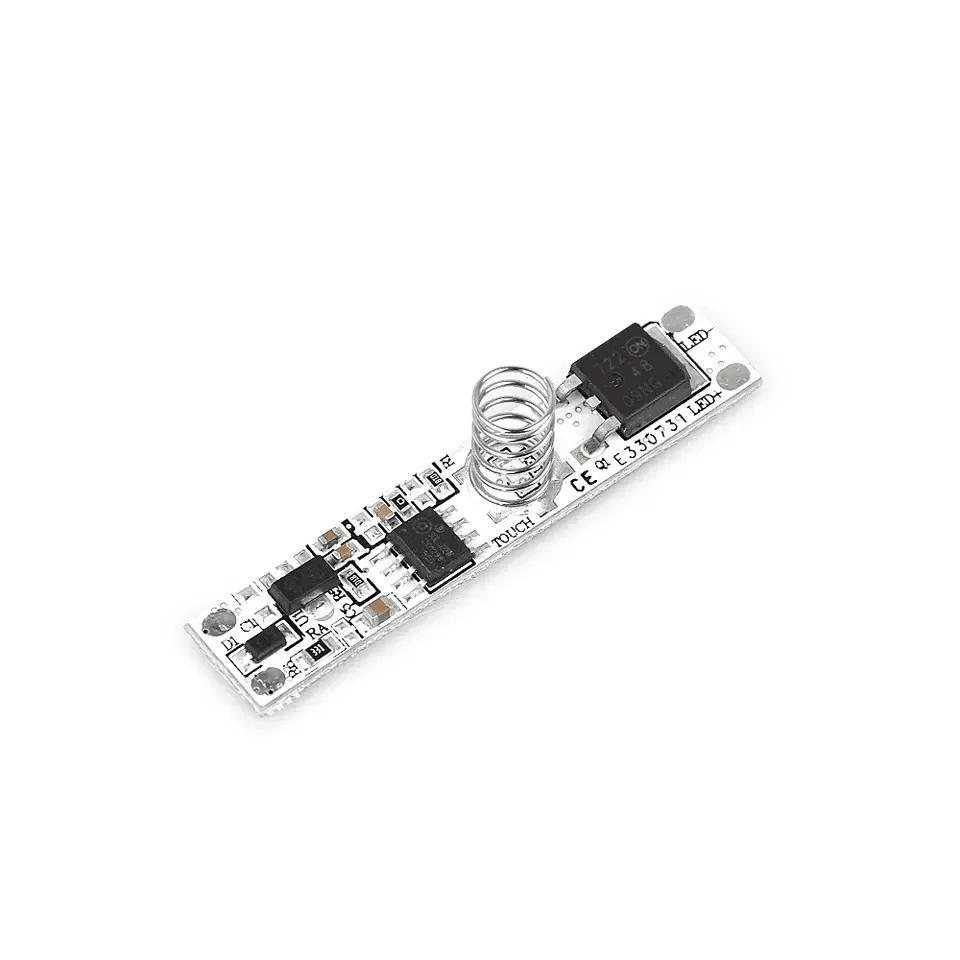

DC12V 24V Touch Sensor Led Dimmer Switch MINI Built in Controller For Aluminum Profile Linear Strip On Off And Adjust brightness

Product Overview

Description

Features

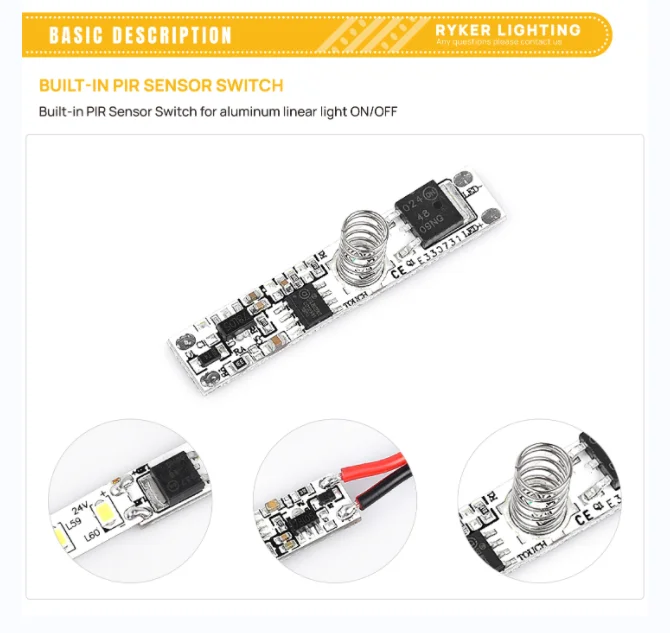

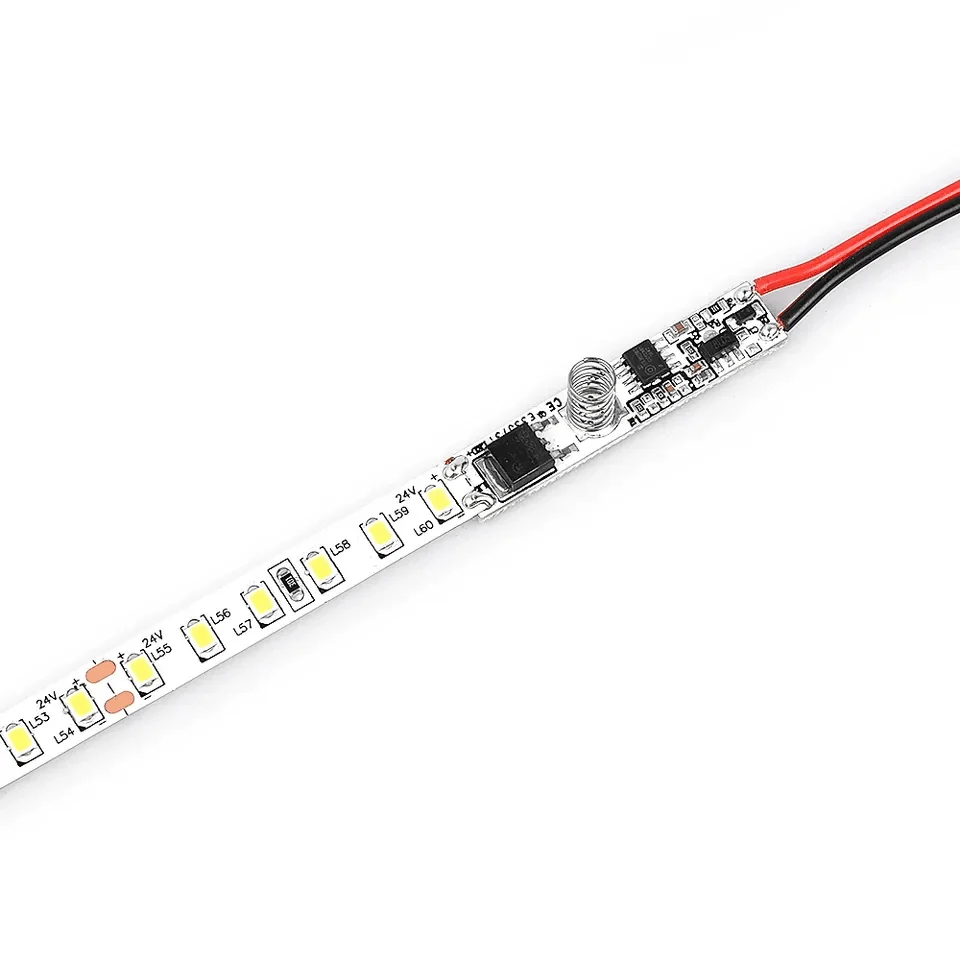

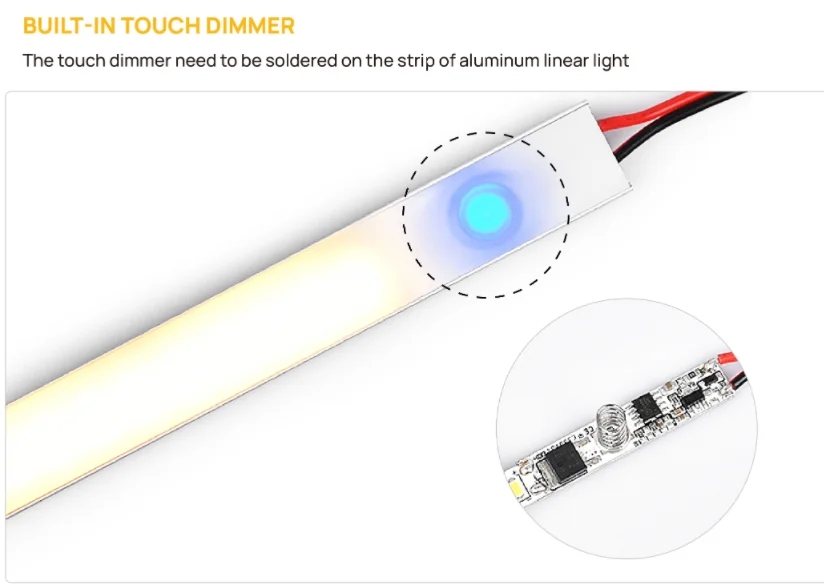

1,Very small size and easy to solder on the led strip FPC board;

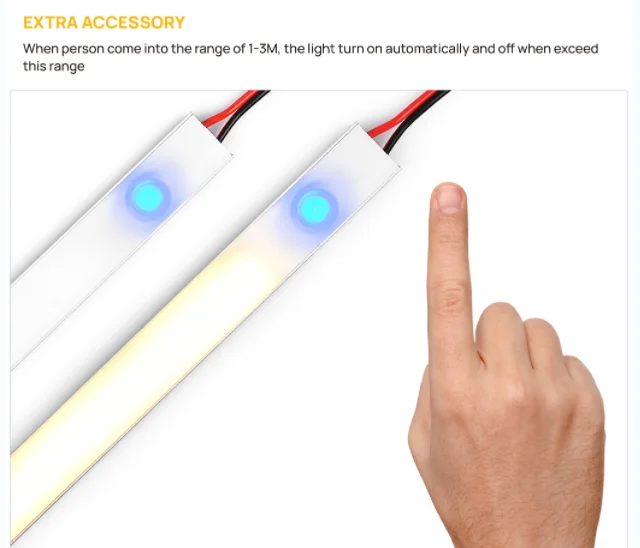

2,Short press to turn on/off the lamp, long press to dim the brightness;

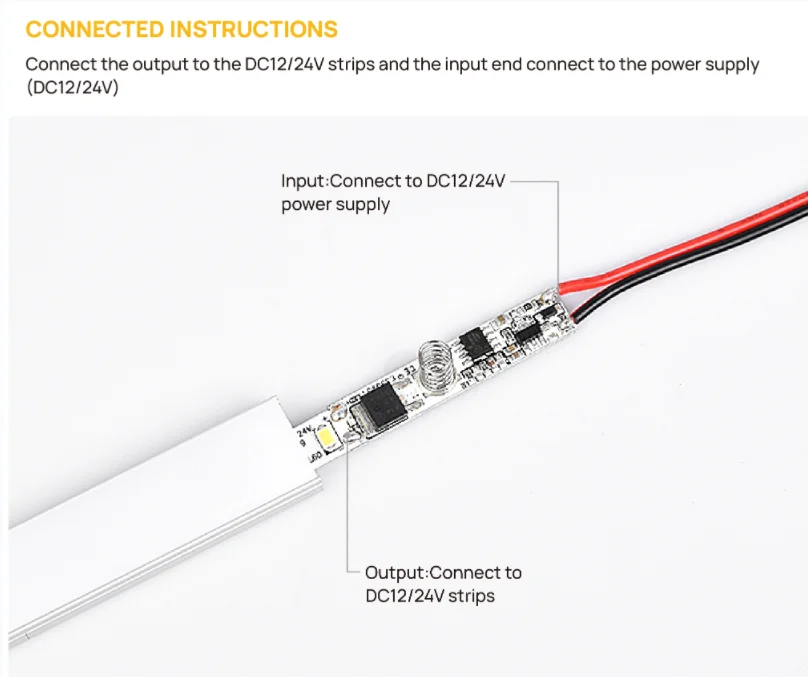

3,DC12-24V wide voltage range, compatible to the led strip DC12/24V mode;

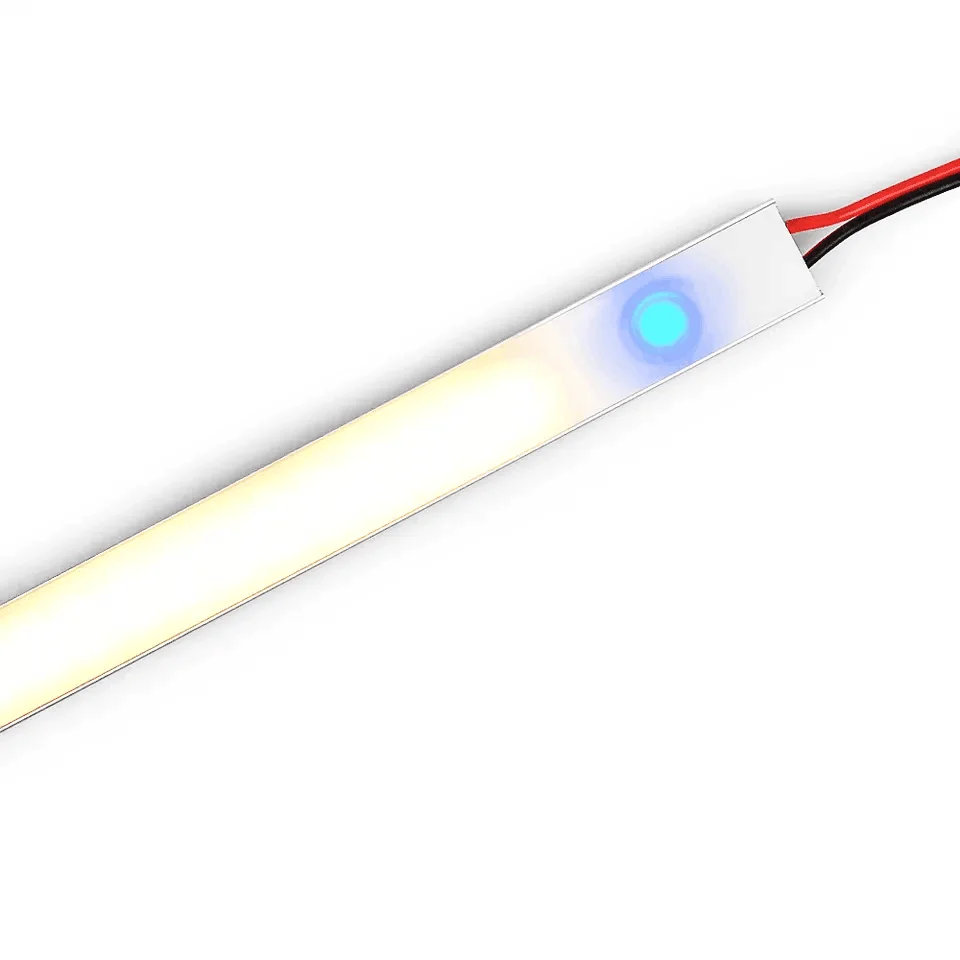

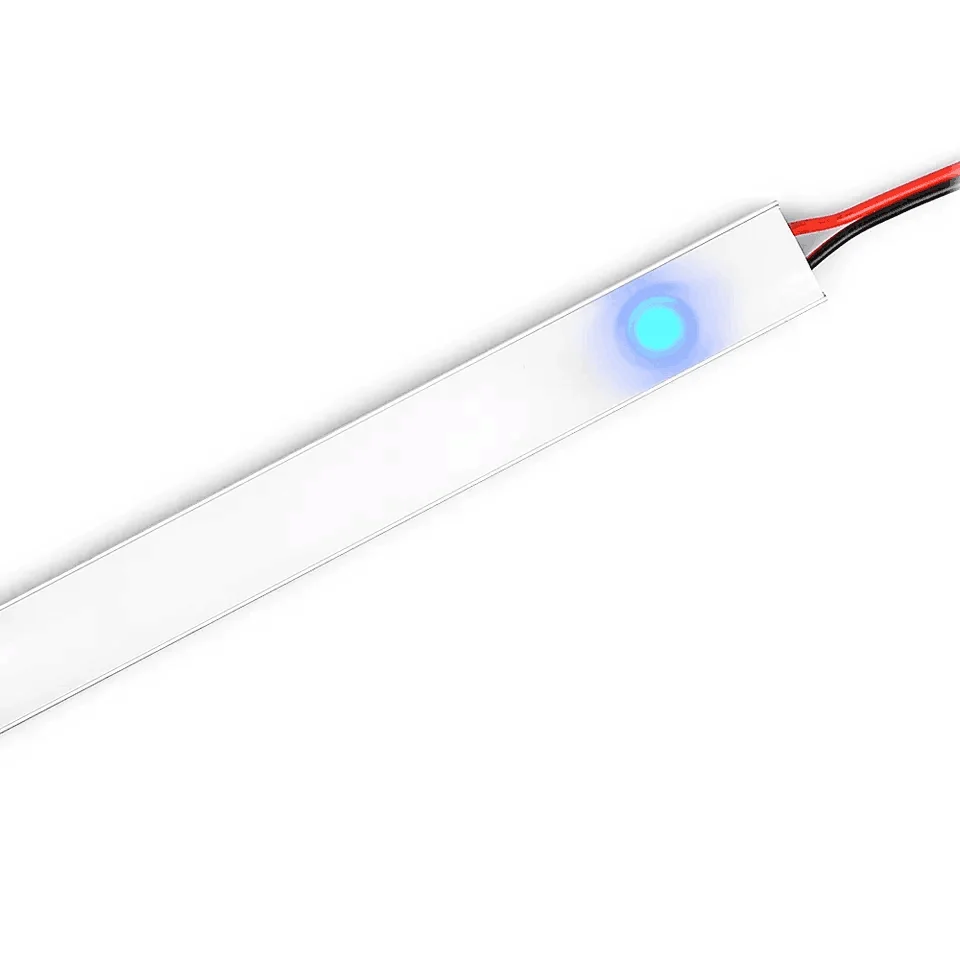

4,It's visible in Blue light when it connect to the power supply;

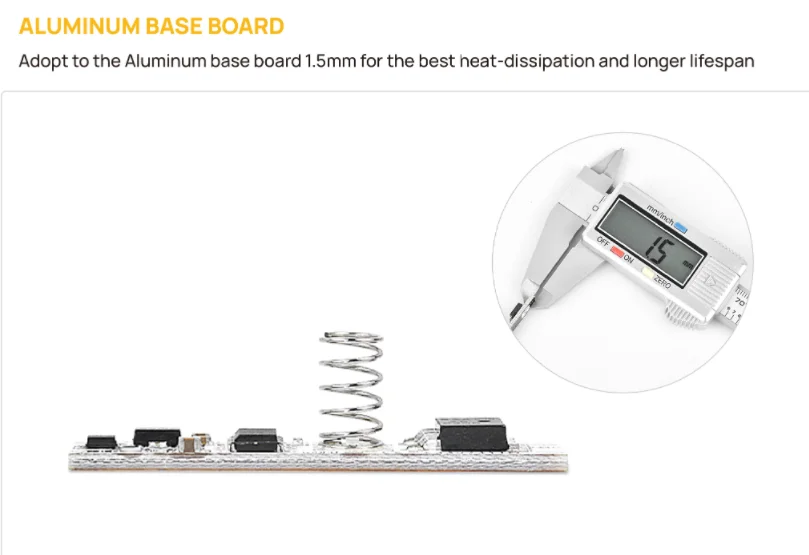

5,1.5mm thickness aluminum base board for the best heat-dissipation and long lifespan;



Key Specifications

Product Name	Touch  Led Dimmer

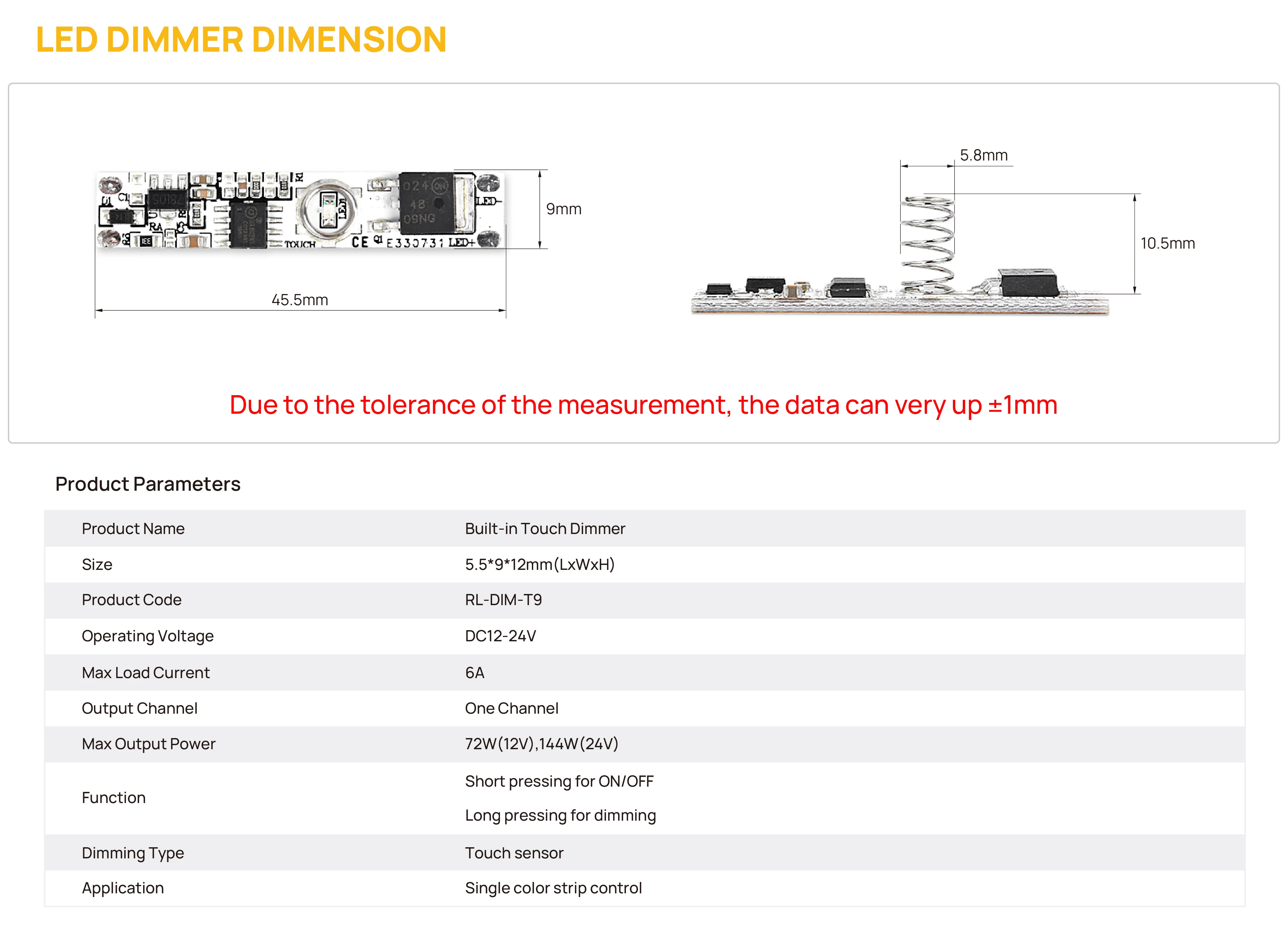

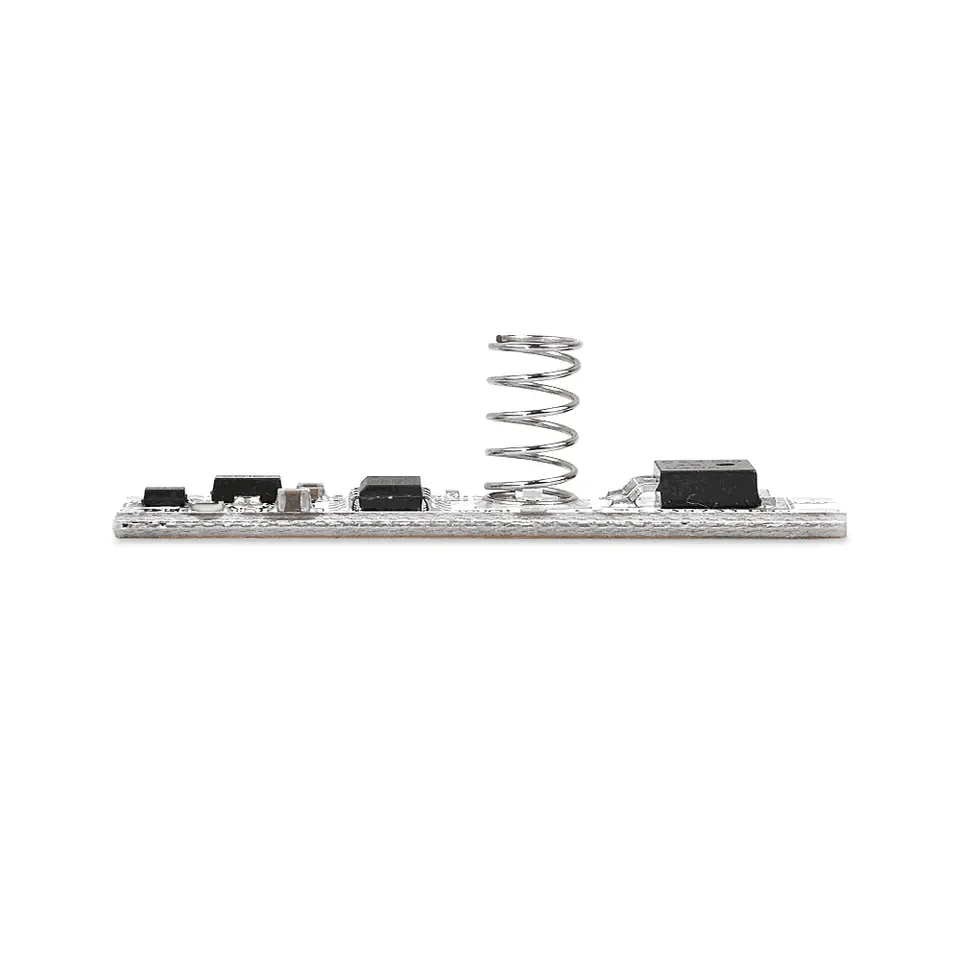

Size	45.5*9*12mm
Product Code	DIM-T9
Operating Voltage	DC12-24V
Max Load Current	6A
Output Channel	One Channel
Function	Short Press ON/OFF Long press dimming
Output Power	12V(72W) 24V(144W)
Weight	0.03G

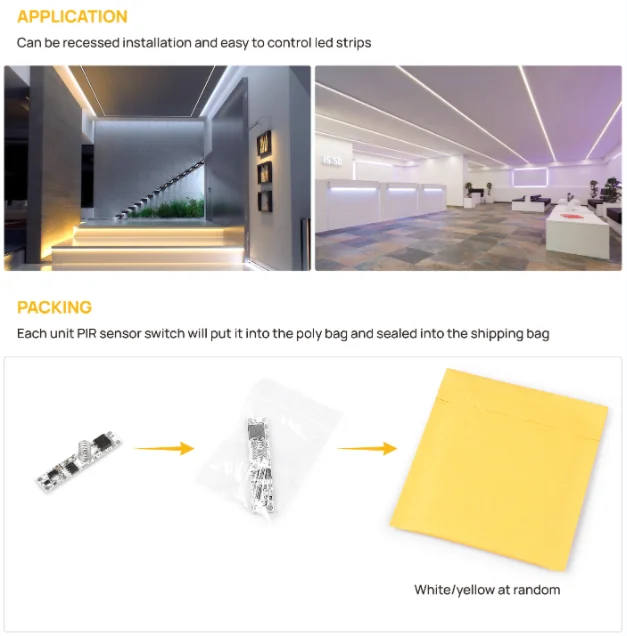

Packing Size	200pcs/Carton 27*514cm/0.5kg/carton
