99.999% Liquid Argon/Argon Gas in 20FT T75 ISO Tank Container
- Category: Pressure Vessels >>>
- Supplier: Qingdao Ruiming Blue Sky Energy Co. Ltd.
Share on (1600868549873):
Product Overview
Description
PRODUCT OVERVIEW
ISO Tank Container
The 20-foot ISO framework type tank container is applicable to Intermodal transportation. Marine, highway, and railroad transportation. With its overall dimensions conforming to the ISO standards, the tank container has a rating for as high as 9 high stacking loaded. Various components such as valves, safety accessories, heating, cooling components, insulation, walkway, and ladders can be configured according to specific client needs and product requirements to store and transport chemicals globally.
We work directly with each customer to ensure their specific needs are met. Our ISO tank containers can be heated or non-heated,insulated or non-insulated with multiple storage capacities.
We meet all safety standards and regulations so customers can transport a variety of liquids, including water, fuel, food-grade products, hazardous chemicals, Bitumen, compressed gases and more. All ISO tanks are designed to meet your specific needs.
We work directly with each customer to ensure their specific needs are met. Our ISO tank containers can be heated or non-heated,insulated or non-insulated with multiple storage capacities.
We meet all safety standards and regulations so customers can transport a variety of liquids, including water, fuel, food-grade products, hazardous chemicals, Bitumen, compressed gases and more. All ISO tanks are designed to meet your specific needs.
FEATURES AT A GLANCE
Left elevation

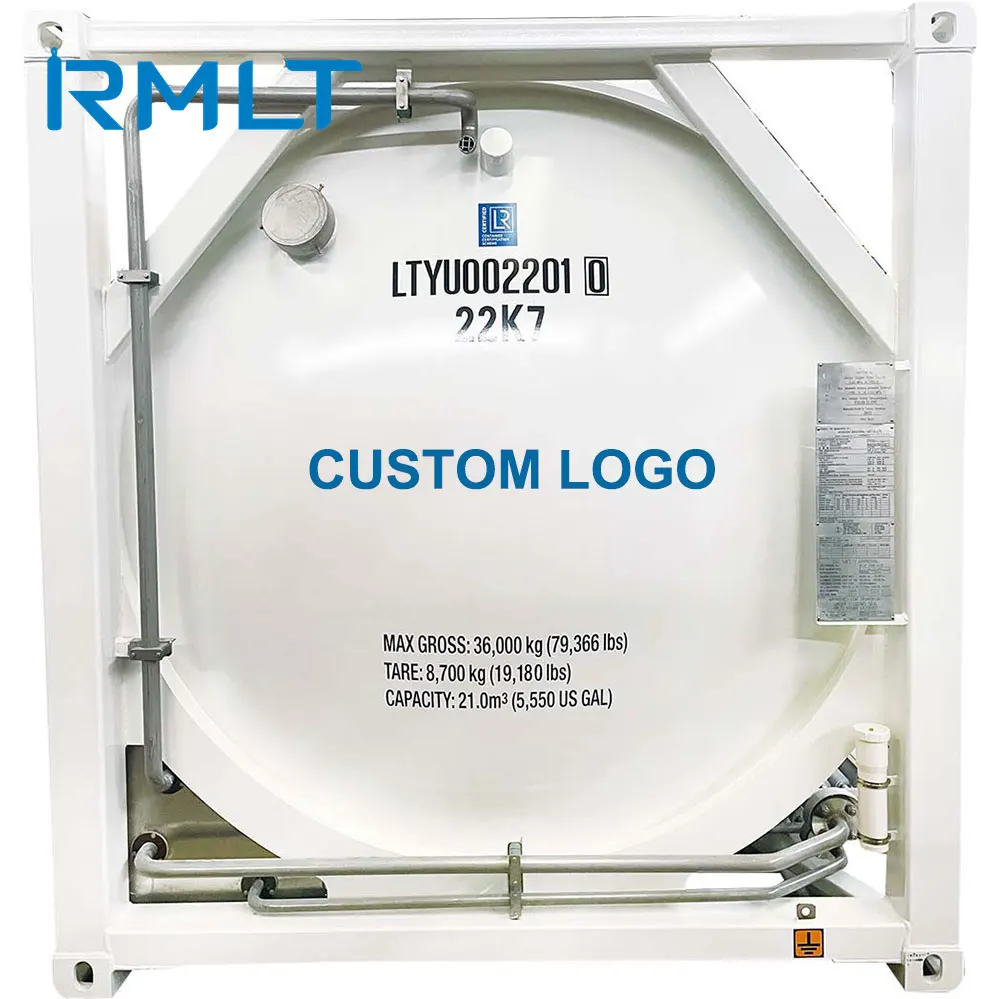

Custom Logo
Right elevation
PRODUCT SPECIFICATIONS
1.0 General | Item | |
Type of product | Intermodal ISO Container UN T75 | |
Medium | LO2 /LN2 /LAr/LCO2 /LN2O/LNG/ LC2H4/ LC2H6 | |
MAWP. | 22 bar | |
Water Capacity | 21,100 Liters | |
Filling ratio | 95%/90%/80% | |
Tare weight | 8,700kg(f3%) | |
Load weight | 27,300 kg | |
Maximum gross weight | 36,000 kg | |
Stacking | 192,000 kg | |
Design code | ISO1496 ,IMDG ,ADR , RID , ASME, US-DOT | |
Approvals | CCC, CSC | |
Approval and inspectionorg | Lloyd's Register | |
2.0 Inner vessel | ||
Design code | ASME SECT.Đ DIV.1 with U stamp(Mandatory Appendix 44) | |
Material | Stainless steel(SA240 304N) | |
Design temperature | 50°C | |
MDMT | -196°C | |
Baffles | Two transverse baffles | |
Surface treatment | Pickling | |
3.0 Out jacket | ||
Material | Carbon steel(Q345R)/Stainless steel(S30408) | |
Design temperature | 50°C | |
MDMT | 40°C | |
Surface treatment | Shot blast to SA 21/2 | |
4.0 Insulation | ||
Type of insulation | Vacuum with multi-layer super insulation | |
Vacuum | ≤0.1Pa( Warm) | |
Net evaporation rate | 0.34% /d ( LN2 ) (ambient conditions:100kPa and 15°C) | |
PRODUCT CONFIGURATION
Safety Valve
Hose
Pressure Gauge

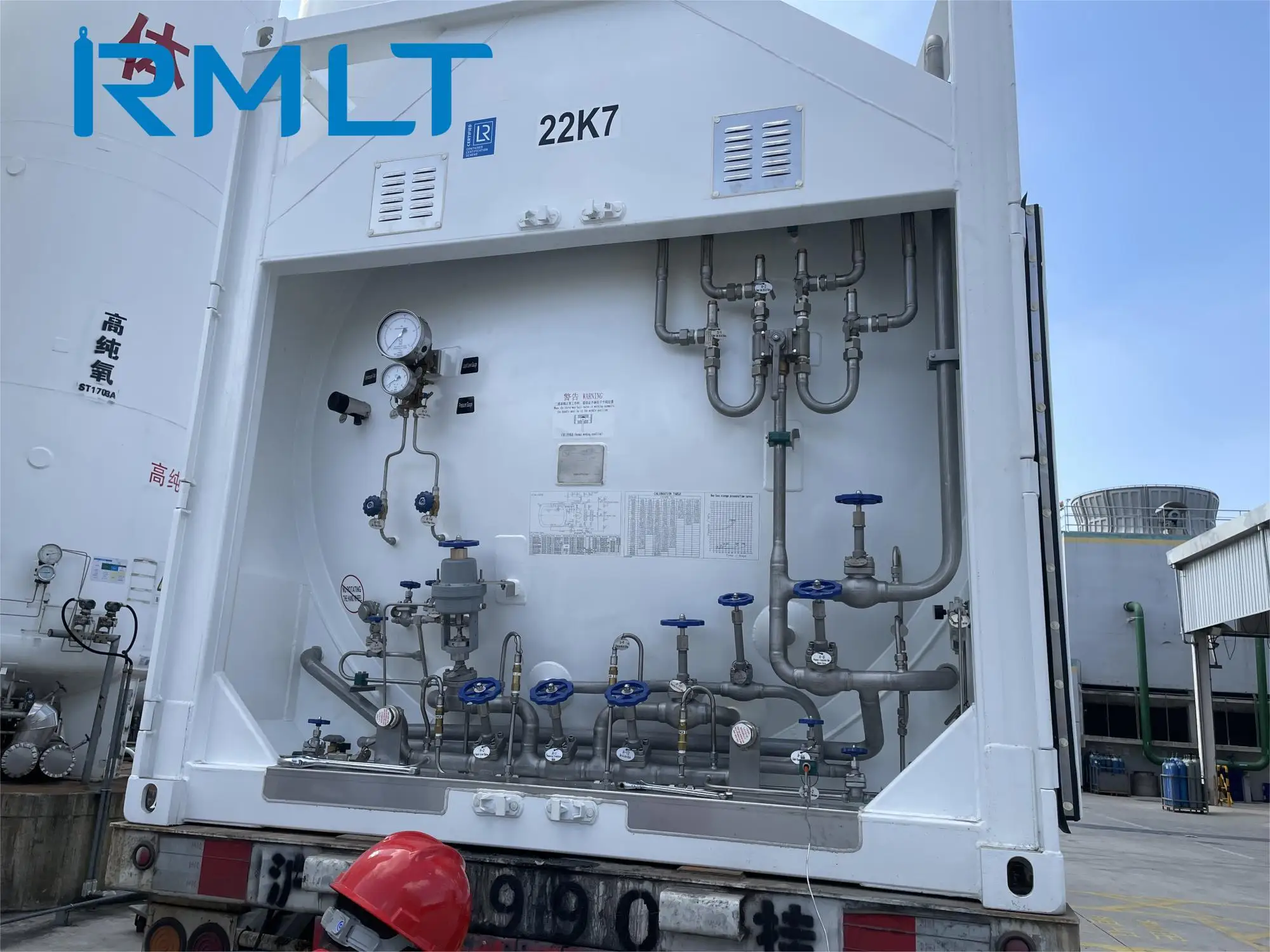

SUCCESSFUL PROJECT
Right View
Front View
Left View
SIMILAR PRODUCTS
2. We Supply Systems Solutions - Perfect for many applications: LAR, LIN, LCO2, LN2O, LC2H4 ,LC2H6,ECT.
COMPANY PROFILE
FAQ
Q1. What's the MOQ?
A:Different products have different MOQ,Pls feel free to contact with me directly for your requirement.
Q2:What is the delievery time?
A:Normal delivery time for 40L gas cylinder: 15 days
50L 200 BAR gas cylinders: 25-30 days
If you need gas filling , it will take more 10 days.
Q3:What is the package, storage& transportation details?
A:Package:Steamless steel cylinder with different valves,or as to your requirement.
Q4:What is the payment terms?
A:30% T/T in advance, balance against the B/L.
Q5: If the cylinder recycled and can be refilled gas again?
A: Yes, usually the seamless steel cylinder can recycle to use for 20 years, and also can be refill gas again.
But , when you ordered our cylinder, you have to inform us before exporting, we will handle all the import customs clearance formalities.
Q6:Why choose us?
A:HIGH QUALITY
We have implemented strict and complete quality control system, which ensures each gas cylinder can meet quality requirements. All gas cylinders must be strictly inspected before shipment.
COMPETITVE PRICE
As a big gas cylinder factory, our output is over 4000 PCS per day, that will effectively reduce labor cost and other cost of gas cylinders like valve and raw materials. That's why we could always offer you best price !
GOOD AND PROFESSIONAL SERVICE
We have worked in this field for over 10 years, all of our egineers and sales could supply best suggestions and answers for your questions, no matter gas cylinders or the gas filling process in fillowing.
Since now, we could supply you:
1. Gas filling service: N2O, Argon, CO2, Helium, Oxygen, Nitrogen, ect.
2. Used Gas cylinder insepection service too keep safe
3. Related gas equipment supply
When you chose RUIMING, you chose a trustworthy partner!
A:Different products have different MOQ,Pls feel free to contact with me directly for your requirement.
Q2:What is the delievery time?
A:Normal delivery time for 40L gas cylinder: 15 days
50L 200 BAR gas cylinders: 25-30 days
If you need gas filling , it will take more 10 days.
Q3:What is the package, storage& transportation details?
A:Package:Steamless steel cylinder with different valves,or as to your requirement.
Q4:What is the payment terms?
A:30% T/T in advance, balance against the B/L.
Q5: If the cylinder recycled and can be refilled gas again?
A: Yes, usually the seamless steel cylinder can recycle to use for 20 years, and also can be refill gas again.
But , when you ordered our cylinder, you have to inform us before exporting, we will handle all the import customs clearance formalities.
Q6:Why choose us?
A:HIGH QUALITY
We have implemented strict and complete quality control system, which ensures each gas cylinder can meet quality requirements. All gas cylinders must be strictly inspected before shipment.
COMPETITVE PRICE
As a big gas cylinder factory, our output is over 4000 PCS per day, that will effectively reduce labor cost and other cost of gas cylinders like valve and raw materials. That's why we could always offer you best price !
GOOD AND PROFESSIONAL SERVICE
We have worked in this field for over 10 years, all of our egineers and sales could supply best suggestions and answers for your questions, no matter gas cylinders or the gas filling process in fillowing.
Since now, we could supply you:
1. Gas filling service: N2O, Argon, CO2, Helium, Oxygen, Nitrogen, ect.
2. Used Gas cylinder insepection service too keep safe
3. Related gas equipment supply
When you chose RUIMING, you chose a trustworthy partner!
Any questions or demand , pls feel free to contact with us.
