Flier Factory Multirotor Drone UAV Plane 380A brushless ESC paramotor
US $108.00-$168.00
Multi 2S 6S Lipo Parallel Balanced Charging Board XT60 T Plug For RC Battery Charger B6AC A6 720i Parallel Charging Plate Board
- Category: >>>
- Supplier: Hubei Jingzhou Mayatech Intelligent Technology Co. Ltd.
Share on (1600869595972):
Product Overview
Description
PCB parallel charging board Support up to 6 3s batteries Charging board for B6AC Charger XT60 T-plug
Note: This one is just a parallel charging board. It needs to be used with the charger.
Note: This one is just a parallel charging board. It needs to be used with the charger.
Details Images
Products Description
Matters needing attention：
1. The power supply and balance head are plugged into the charger.
2. Batteries must have the same brand, the same voltage and the same capacity when charging together.
3. Sequence for parallel charging board: Battery charging balance head first inserts the left and then the charging head, the
second battery first inserts the right balance head, then inserts the charging head, in order. (Unnecessary for the last charging head)
1. The power supply and balance head are plugged into the charger.
2. Batteries must have the same brand, the same voltage and the same capacity when charging together.
3. Sequence for parallel charging board: Battery charging balance head first inserts the left and then the charging head, the
second battery first inserts the right balance head, then inserts the charging head, in order. (Unnecessary for the last charging head)

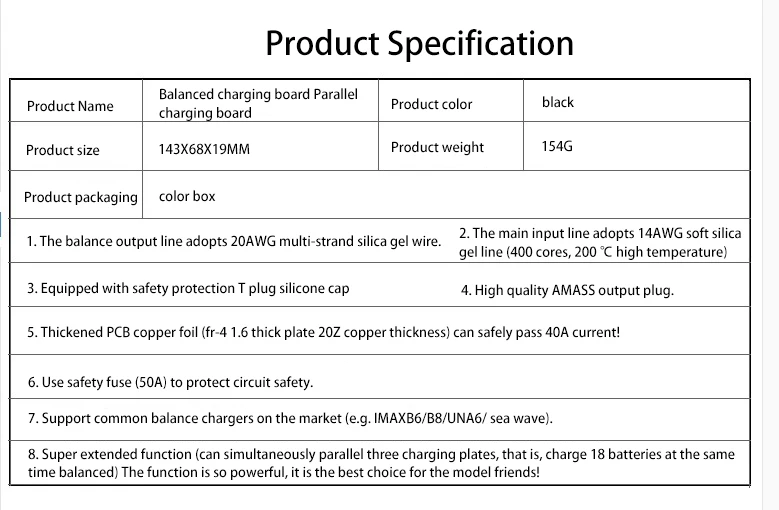

【Detailed parameters】
1. The balance output line adopts 20AWG multi-strand silica gel wire.
2. The main input line adopts 14AWG soft silica gel line (400 cores, 200 ℃ high temperature)
3. Equipped with safety protection T plug silicone cap
4. High quality AMASS output plug.
5. Thickened PCB copper foil (fr-4 1.6 thick plate 20Z copper thickness) can safely pass 40A current!
6. Use safety fuse (50A) to protect circuit safety.
7. Use LED indicator to display working status.
8. Add cascade port, which can expand charging port indefinitely.
Product Display
1. The balance output line adopts 20AWG multi-strand silica gel wire.
2. The main input line adopts 14AWG soft silica gel line (400 cores, 200 ℃ high temperature)
3. Equipped with safety protection T plug silicone cap
4. High quality AMASS output plug.
5. Thickened PCB copper foil (fr-4 1.6 thick plate 20Z copper thickness) can safely pass 40A current!
6. Use safety fuse (50A) to protect circuit safety.
7. Use LED indicator to display working status.
8. Add cascade port, which can expand charging port indefinitely.
Product Display

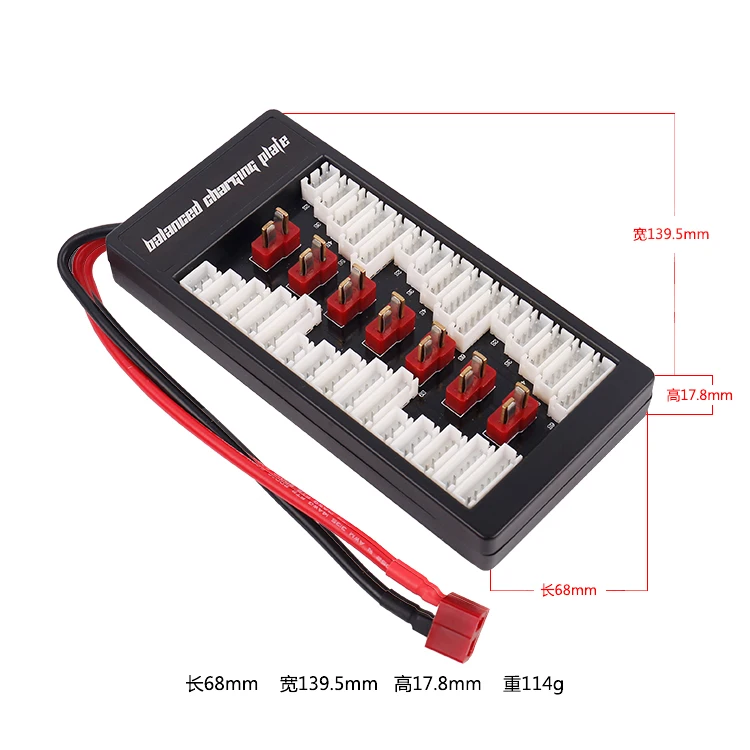

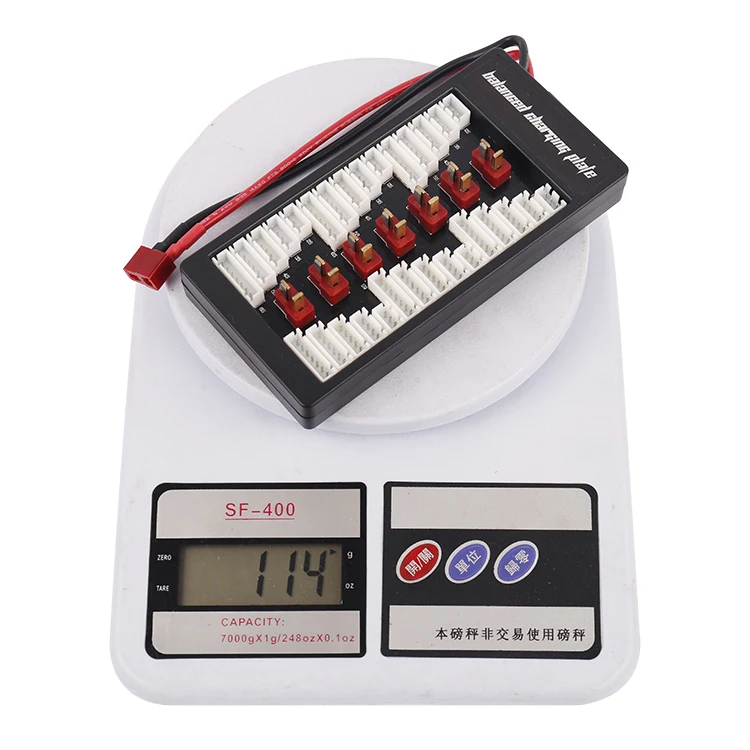

Length: 68 mm wide, 139.5 mm high, 17.8 mm heavy, 114 g

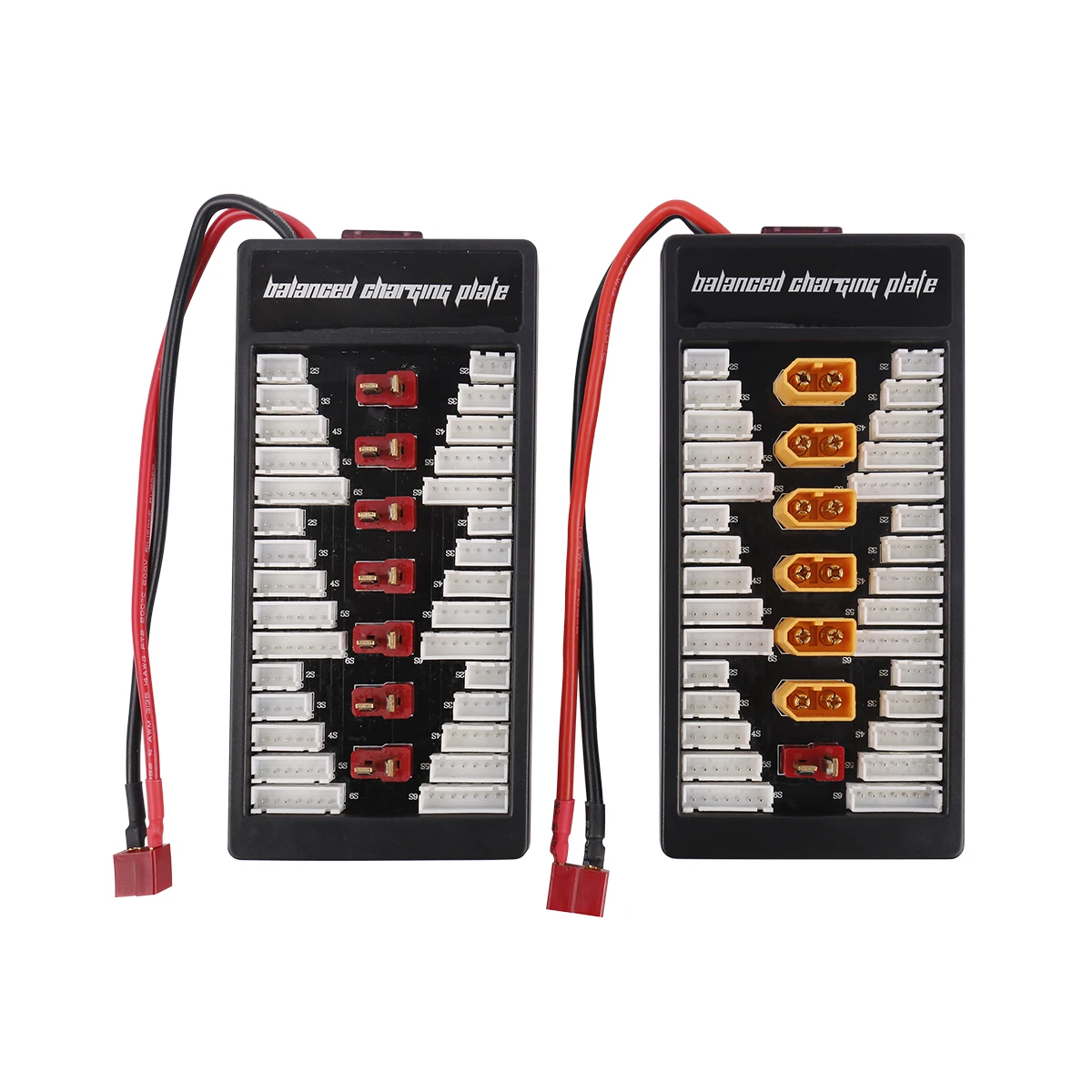

Parallel Charging Board XT60 PLUG:
Product characteristics
1. Balanced charging of 6 groups of 2-6S batteries of the same type and number can be carried out in parallel with common series chargers (such as IMAX B8) or independent chargers (such as UNA6). It can support 6 groups of 2S, or 6 groups of 3S, or 6 groups of 4S, or 6 groups of 5S, or 6 groups of 6S at the same time.
2. All chargers with balanced interfaces can be used to charge lithium battery packs with equal number of segments (starting voltage, capacity, discharge rate allowed for a certain difference) at the same time. Avoid the trouble of users changing batteries many times.
3. The overall voltage value is more balanced and the average voltage difference is smaller, which improves the balance efficiency of the charger and shortens the balance time at the end of charging. Moreover, the single-group charging needs to be balanced six times while using this product only needs to be balanced once. The charging time is greatly shortened.
4. When six batteries are connected in parallel at the same time, even batteries that do not support high current charging can safely charge equally at 6 times the original charging current of a single group. The charging time of six batteries is 1/6 of the original one, which greatly shortens the charging time.
5. Support up to 6 batteries of the same type, 2-6S batteries with the same number of sections. This product is suitable for
parallel connection to 6 batteries (including LIPO. LIFE, LoN) and can balance charging.
6. Self-contained short circuit protection function
7. Support 3 sets of parallel charging plates (i.e. charging 18 batteries of the same nature at the same time)
8. Avoid overcharging of a single battery, thus improving the balance efficiency and greatly shortening the later stage of the balance charging cycle
9. The charging time is only the charging time of a single battery, so the charging time can be saved.
10.Avoid the trouble of replacing batteries repeatedly.
11.20Z ultra-thick copper berth can withstand sustained 80A current.
Product Details photos
1. Balanced charging of 6 groups of 2-6S batteries of the same type and number can be carried out in parallel with common series chargers (such as IMAX B8) or independent chargers (such as UNA6). It can support 6 groups of 2S, or 6 groups of 3S, or 6 groups of 4S, or 6 groups of 5S, or 6 groups of 6S at the same time.
2. All chargers with balanced interfaces can be used to charge lithium battery packs with equal number of segments (starting voltage, capacity, discharge rate allowed for a certain difference) at the same time. Avoid the trouble of users changing batteries many times.
3. The overall voltage value is more balanced and the average voltage difference is smaller, which improves the balance efficiency of the charger and shortens the balance time at the end of charging. Moreover, the single-group charging needs to be balanced six times while using this product only needs to be balanced once. The charging time is greatly shortened.
4. When six batteries are connected in parallel at the same time, even batteries that do not support high current charging can safely charge equally at 6 times the original charging current of a single group. The charging time of six batteries is 1/6 of the original one, which greatly shortens the charging time.
5. Support up to 6 batteries of the same type, 2-6S batteries with the same number of sections. This product is suitable for
parallel connection to 6 batteries (including LIPO. LIFE, LoN) and can balance charging.
6. Self-contained short circuit protection function
7. Support 3 sets of parallel charging plates (i.e. charging 18 batteries of the same nature at the same time)
8. Avoid overcharging of a single battery, thus improving the balance efficiency and greatly shortening the later stage of the balance charging cycle
9. The charging time is only the charging time of a single battery, so the charging time can be saved.
10.Avoid the trouble of replacing batteries repeatedly.
11.20Z ultra-thick copper berth can withstand sustained 80A current.
Product Details photos
Use steps:
1. Connect the ends of the balancing cable to the balancing terminals of the balancing charger and the balancing charger plate respectively, as shown in the figure.
2. Connect the power terminal of the balanced charger board to the output terminal of the balanced charger.
3. Connect the battery to the battery board. Insert the balance head, and then connect to the output terminal of the battery.
Set the charging voltage (the same for a single battery) and the current. The current settings are as follows:
I=i1+i2+i3+…_in(n≤6)
I:Total Current.
I:the charge current of every battery.
Note: If the maximum output current of the balanced battery is less than the total current "I", set the current of the charger to the maximum.
The maximum current of the balanced charging plate is 80A. When charging, the voltage of the battery must be the same, and the capacity and discharge rate can be set arbitrarily. After several balances, the voltage will be more balanced and smaller.
Warning: If you only need to charge less than six batteries, please put the housing on the T plug or other plugs currently not in use, so as to avoid accidents. When charging, each T plug has electricity.
According to the different balancing heads available on the market, there are four types of balancing charger plates: JST-XH,THUNDER POWER (TP), HYPERION (HP) and EH (KOkam). We can choose one of them according to your battery, but we usually use JST-XH.
The functions and principles of these four types of charging boards are the same.
This product can be used not only for LiPo batteries, but also for LiFe and Li-Ion batteries.
1. Connect the ends of the balancing cable to the balancing terminals of the balancing charger and the balancing charger plate respectively, as shown in the figure.
2. Connect the power terminal of the balanced charger board to the output terminal of the balanced charger.
3. Connect the battery to the battery board. Insert the balance head, and then connect to the output terminal of the battery.
Set the charging voltage (the same for a single battery) and the current. The current settings are as follows:
I=i1+i2+i3+…_in(n≤6)
I:Total Current.
I:the charge current of every battery.
Note: If the maximum output current of the balanced battery is less than the total current "I", set the current of the charger to the maximum.
The maximum current of the balanced charging plate is 80A. When charging, the voltage of the battery must be the same, and the capacity and discharge rate can be set arbitrarily. After several balances, the voltage will be more balanced and smaller.
Warning: If you only need to charge less than six batteries, please put the housing on the T plug or other plugs currently not in use, so as to avoid accidents. When charging, each T plug has electricity.
According to the different balancing heads available on the market, there are four types of balancing charger plates: JST-XH,THUNDER POWER (TP), HYPERION (HP) and EH (KOkam). We can choose one of them according to your battery, but we usually use JST-XH.
The functions and principles of these four types of charging boards are the same.
This product can be used not only for LiPo batteries, but also for LiFe and Li-Ion batteries.
Use precautions:
1.4.0 Banana Head Insert into Power Charging Port of Charger
2. The balancing head is connected to the 6S balancing port of the charger, and the 6S balancing port is in the top and middle of the parallel charging plate.
3. The power supply and balance head are plugged into the charger.
4. Batteries must have the same brand, the same voltage and the same capacity when charging together.
5. Sequence for parallel charging board: Battery charging balance head first inserts the left and then the charging head, the
second battery first inserts the right balance head, then inserts the charging head, in order. (Unnecessary for the last charging head)

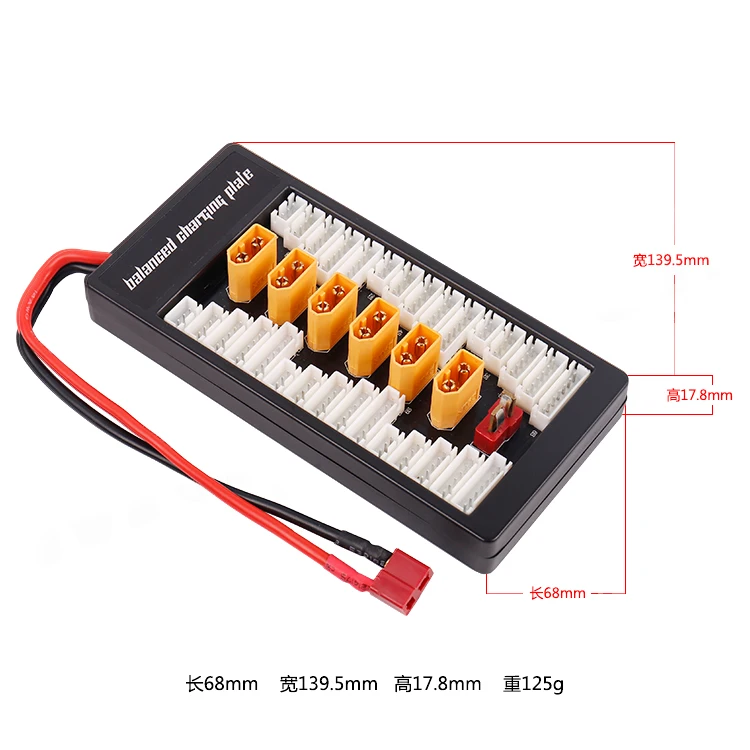

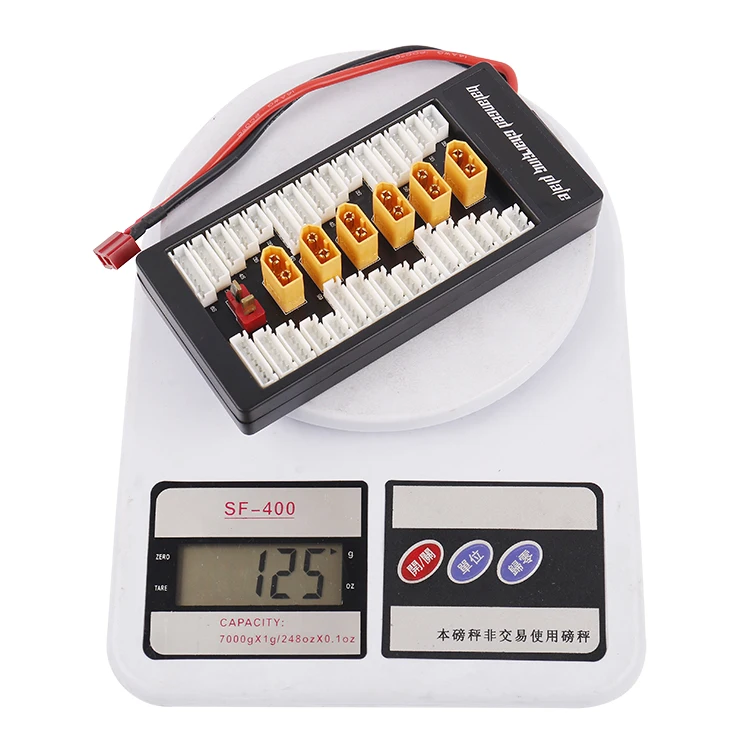

Length: 68 mm wide, 139.5 mm high, 17.8 mm heavy, 125 g
1.4.0 Banana Head Insert into Power Charging Port of Charger
2. The balancing head is connected to the 6S balancing port of the charger, and the 6S balancing port is in the top and middle of the parallel charging plate.
3. The power supply and balance head are plugged into the charger.
4. Batteries must have the same brand, the same voltage and the same capacity when charging together.
5. Sequence for parallel charging board: Battery charging balance head first inserts the left and then the charging head, the
second battery first inserts the right balance head, then inserts the charging head, in order. (Unnecessary for the last charging head)
Length: 68 mm wide, 139.5 mm high, 17.8 mm heavy, 125 g
Product Display：
