Perforated Cable Tray Making Machine Metal Cable Tray Manufacturing Machine Cable Tray Production Line
Cable Tray Roll Forming Machine
* Automatically forming and cutting at any length with pre-set quantity.
* Signal feedback from encoder showinglength of product.
* The control panel enables to count a total length of finished coil.
* Rollers are alloy steel fabricated by CNC precision machine and hard chromium plated.
* Cutting die is SKD11 steel fabricated by CNC machine, thermal treatment get 55-60HRC.
* Automatically forming and cutting at any length with pre-set quantity.
* Signal feedback from encoder showinglength of product.
* The control panel enables to count a total length of finished coil.
* Rollers are alloy steel fabricated by CNC precision machine and hard chromium plated.
* Cutting die is SKD11 steel fabricated by CNC machine, thermal treatment get 55-60HRC.
* Hydraulic system is equipped with a cooling system.

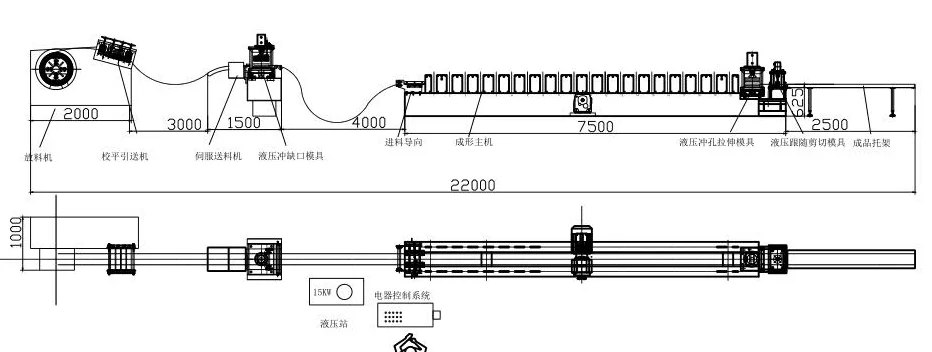

Cable Tray Production Line Work Flow
Uncoiler → Punching →Roll Forming → Cutting
Specification

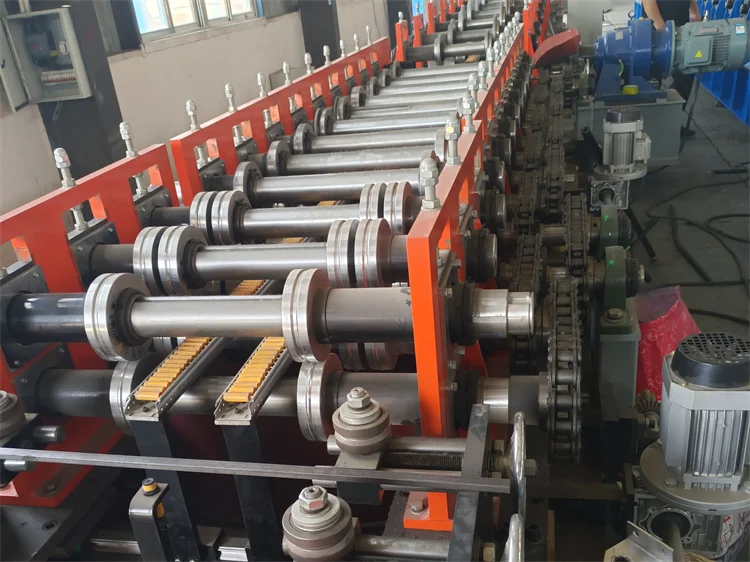

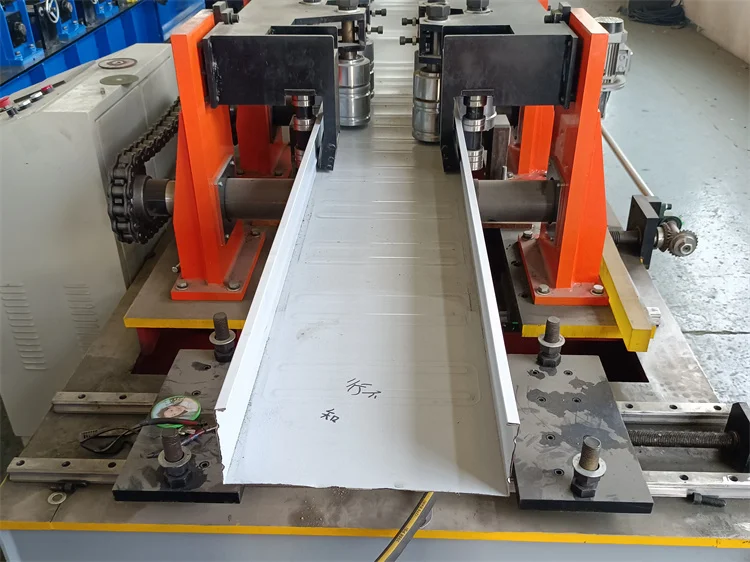

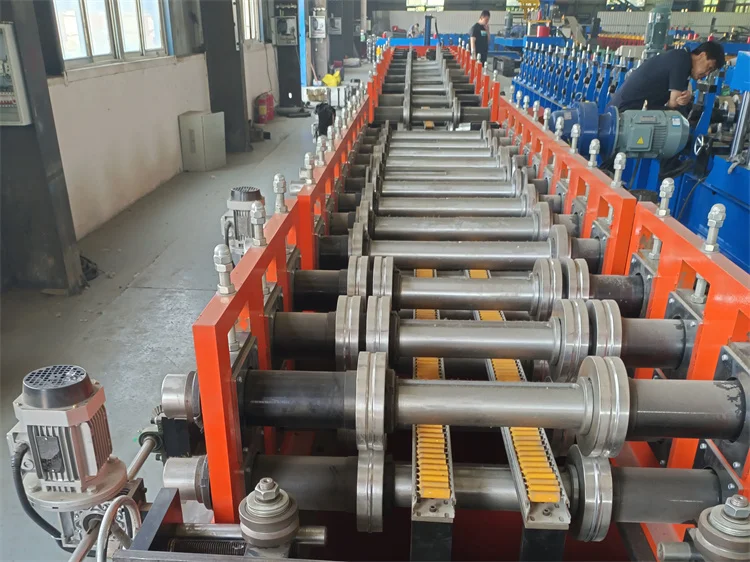

Roll Forming
The material is then passed through a series of rollers and dies that gradually shape it into the desired profile. The rollers and dies are specifically designed to create the unique shape of a profiles, including the trough and the various bends and folds.

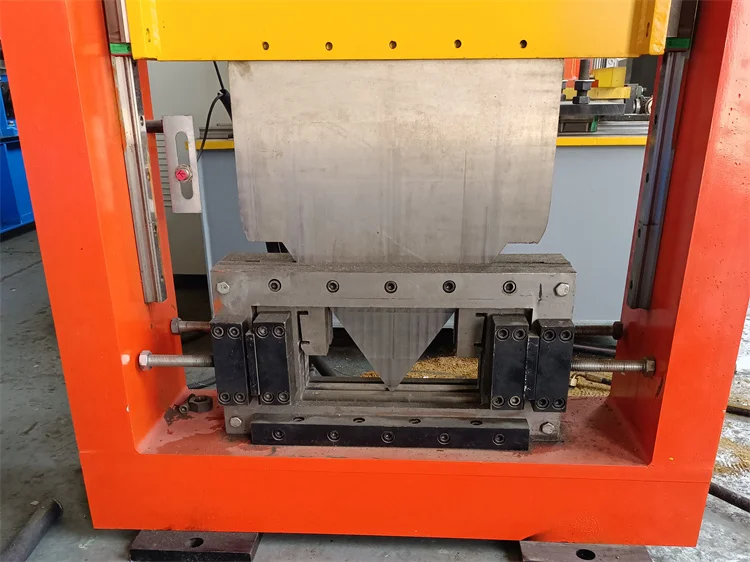

Cutting
At specific intervals, the machine will have a cutting mechanism that can cut the formed profiles into the desired lengths. The length control system ensures that each section of the profiles is consistent in size.

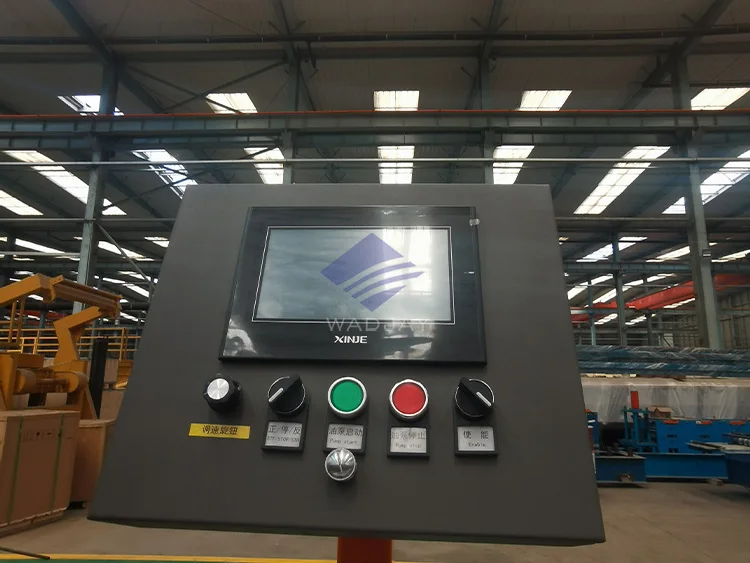

Contact Panel
Use Mitsubishi or Siemens operating system with stable performance, simple operation, as long as the input length and quantity are automatically produced by the profiles forming machine, and the cutting length tolerance is within ± 2mm
Items | WJ-EH Model |
Transmission system | Electric motor and Gear box |
Cutting system | Hydraulic cylinder |
Control system | PLC, HMI automatic programmable |
Material thickness | 0.3 – 0.5mm |
Material width | 280 / 295 / 310 / 400 / 500 mm |
Material Yield Strength | G300 – G500 Mpa |
Rollers | Cr |
Company Profiles

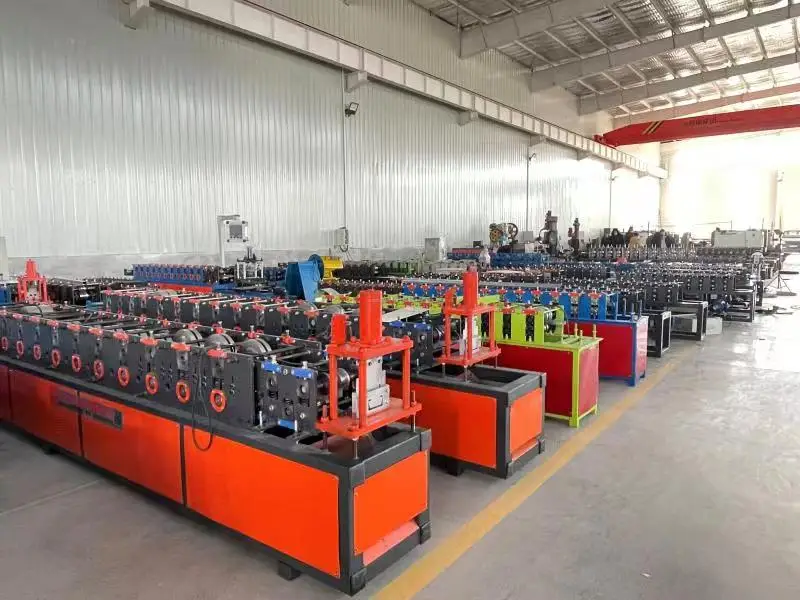

WADJAY welcome customers from all over the world to visit our factory.
