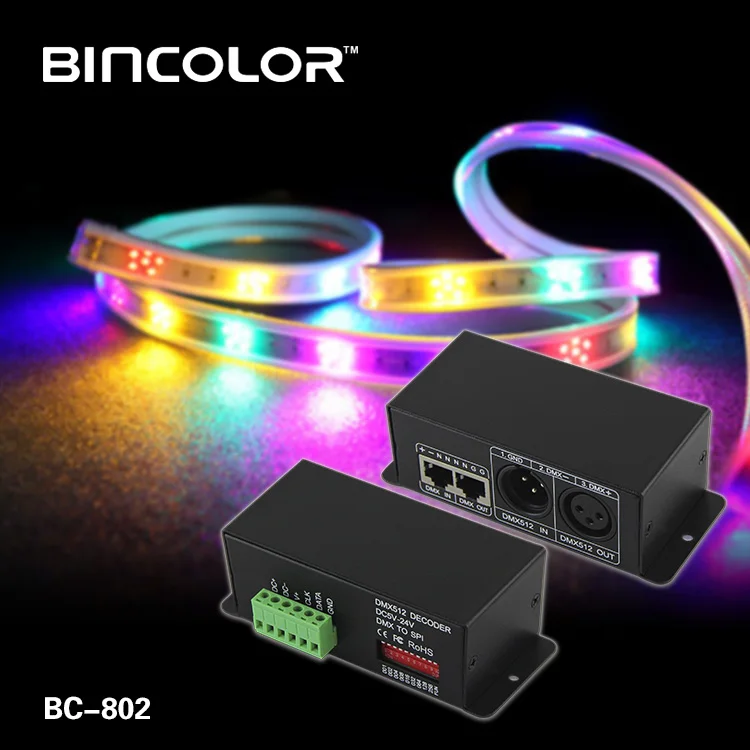

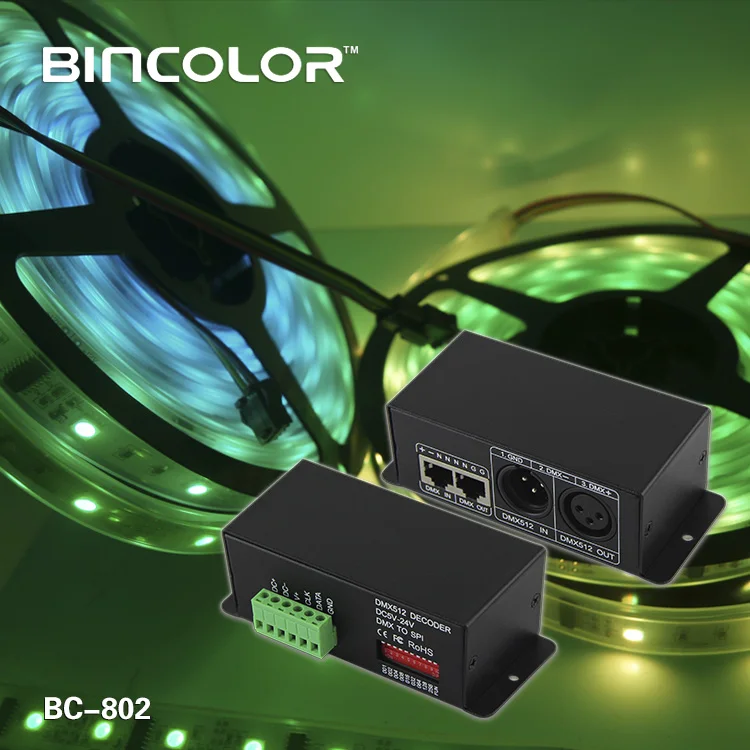

BC 802 Wholesale DMX Decoder 512 WS 2811 Pixel Led DMX SPI Decoder
- Category: >>>
- Supplier: Zhuhai Bincolor Electronic Technology Co. Ltd.
Share on (1600876167730):
Product Overview
Description
The DMX512 Data Decoder adopted the advanced decoding technology to convert the international standard DMX512/1990 signal into standard LPD6803 / LPD8806 / TM1809/P9813/ TLS3001/WS2801 signals, each decoder has 96/510 DMX output channels, and the output channels can be expanded by adding decoders, therefore, most of LED lights can be controlled by DMX512/1990 protocol via the signal conversion, then widely used pixel light, digital tube light, floodlight, pixel screen, dancing floor light etc.
Feature function:
1. In put standard DMX512 protocol,Address can be set by DIP.
2. Automatically adapt input voltage DC5V-24V.
3. Self-Changing Mode exist.
4. Output TTL Signal.
5. Power loss memory function.
Product Description
Specifications
| Model | 6803 |
| Input Voltage | DC5V-DC24V |
| Input Signal | DMX512/1990 |
| Output Signal | LPD6803 |
| Decode Channel | 510 |
| Control LED QTY | 170 |
| Control Chip model | LPD6803,LPD1101,D705,UCS6909,UCS6912 |

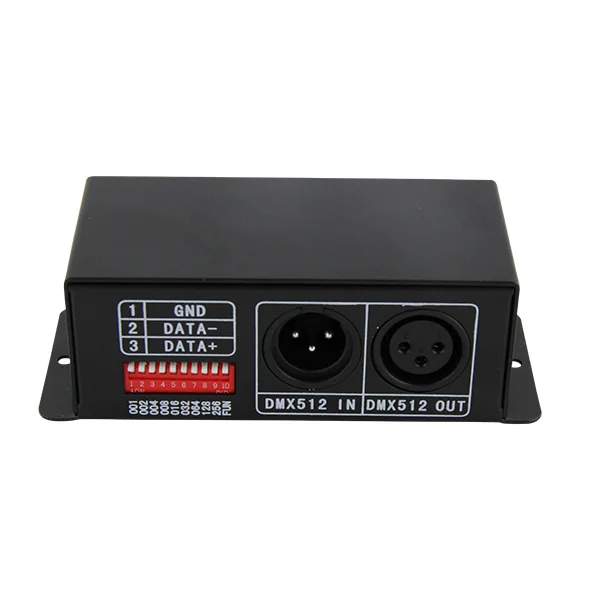

| DMX Socket | Standard XLR-3,RJ45 port |
| Size (mm) | L125*W52*H40(mm) |
| Weight | 320 g |

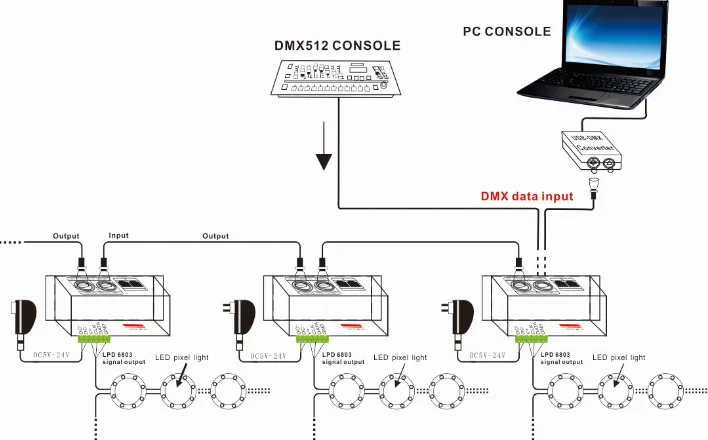

WIRING DIAGRAM
Company Information
WORKSHOP
APPLICATION
FAQ
1. How many years warranty of Bincolor items?
3 years warranty.
2. What kinds of export certifications of Bincolor items?
All Bincolor items pass CE, RoHS and FCC.
3. Could you provide the OEM or ODM service?
Bincolor have rich experience in OEM and ODM service, R&D the products completely according to customers’ demands.
4. Do all items design by your company?
All of our products are independent research and development production.
5. How long is the delivery time?
Within 1-3 working days for routine quantity, goods usually can be sent out on the same day or the next day. Within 20 working days for large quantity. Accurate time is according to the actual inventory.
