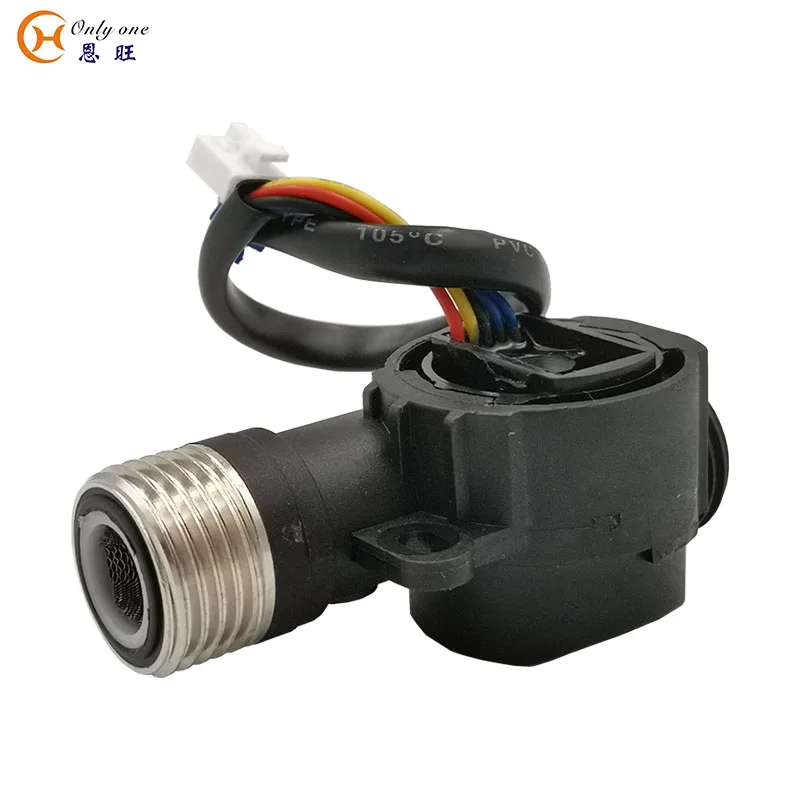

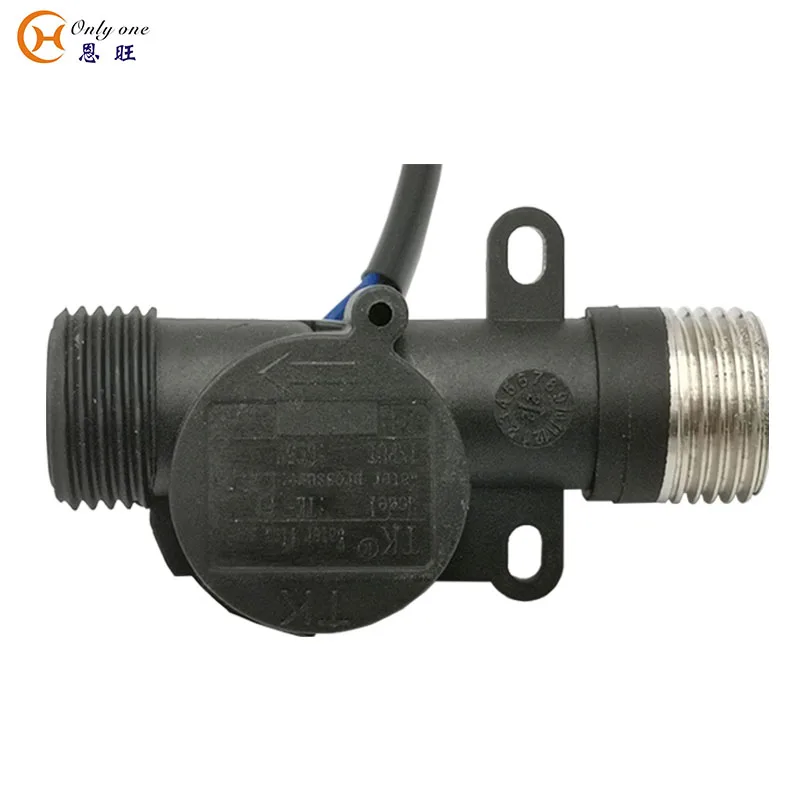

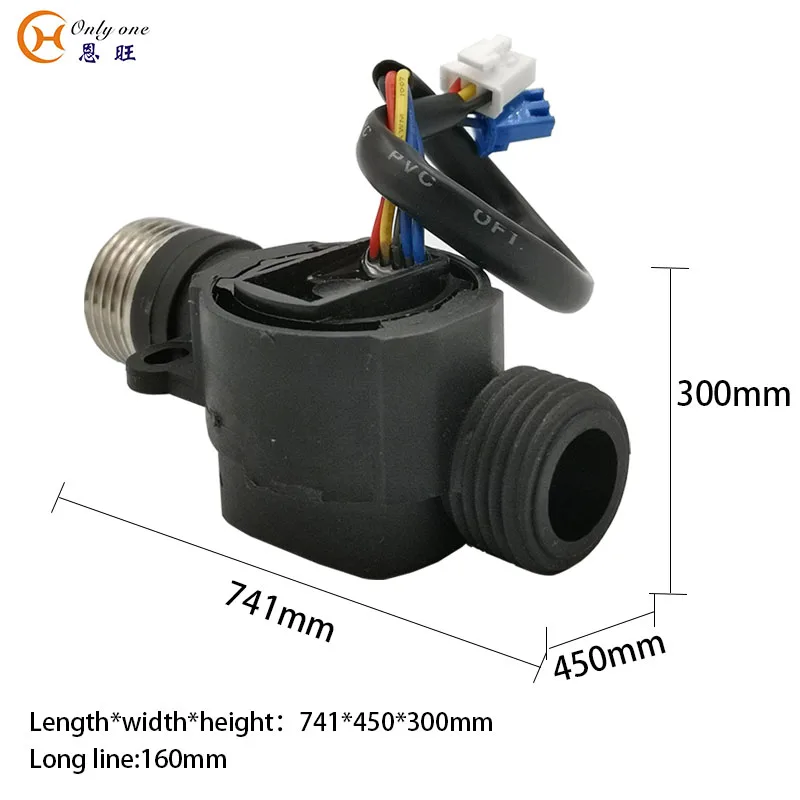

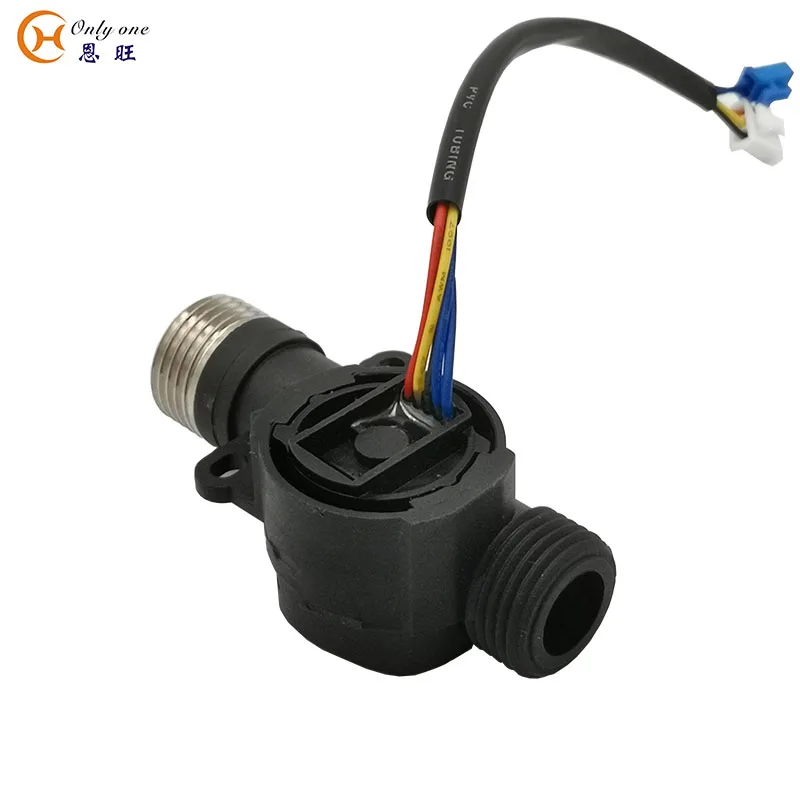

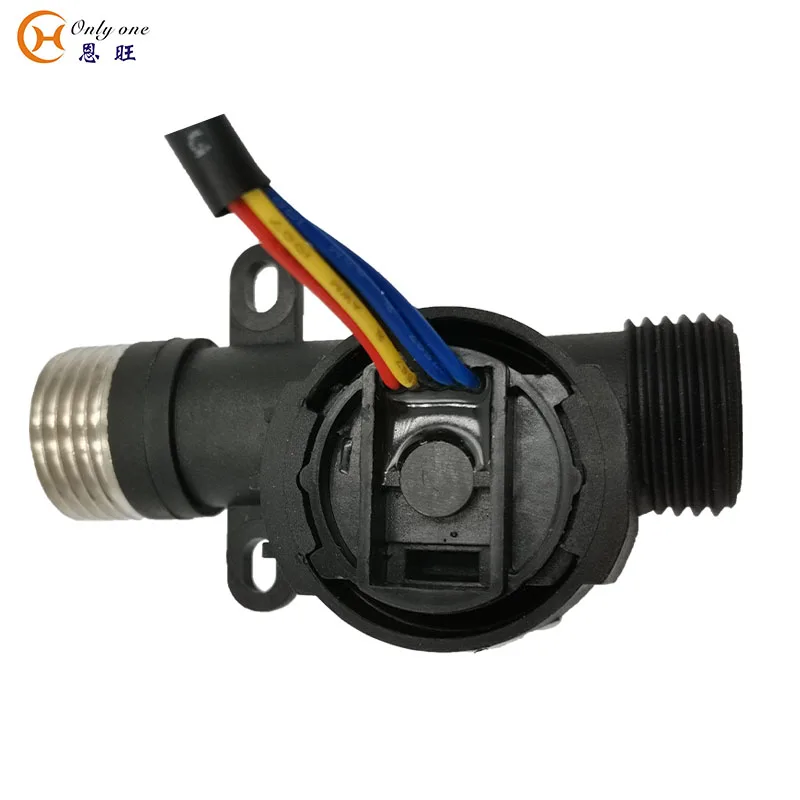

Plastic Magnetic Water Flow Sensor Multifunction Liquid Flowmeter 2 30L/Min
- Category: Flow Sensors >>>
- Supplier: Foshan Shunde Onlyone Electrical Appliance Co. Ltd.
Share on (1600877014286):
Product Overview
Description
\t\t\t\t\t\t\t\t\tWater Flow Sensor \t\t\t\t\t\t\t
Product Name | DN15 Hall Vortex Rotor Water Flow Sensor Water Meter Sensors Liquid Flow Sensor |
Application | Water Heater/Water Boiler/Water Dispenser/Coffee Machine |
Material | Nylon + Glass Fiber |
Rated Voltage | DC 5V |
Operating Voltage Range | 5-24V DC |
Max Working Current | 15mA(DC 5V) |
Resistance to Water Pressure | ≤1.75 Mpa |
Flow pulse characteristic | F=(7.5/8/9/10/11/12/13) Q=L/MIN |
Consumed current | 15mA (DC 5V) |
Insulated Resistor | >100MΩ |
Accuracy | [2-30L/Min]+/-10% |
Connection | G 1/2" |
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPackage \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-5 days if the order is our popular models. or it is 5-15 days if the goods are specially designed for you, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T downpayment ,70% balance before shippment.
