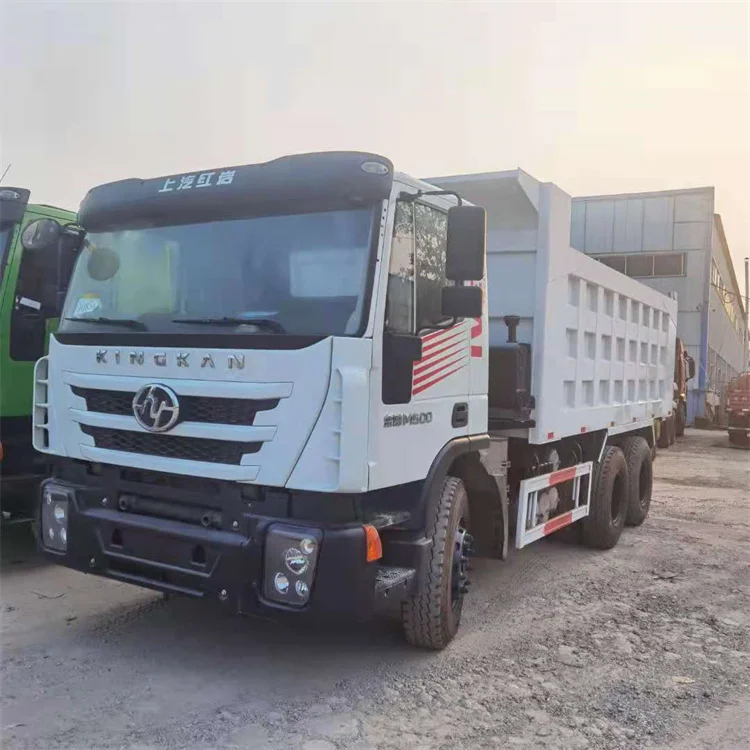

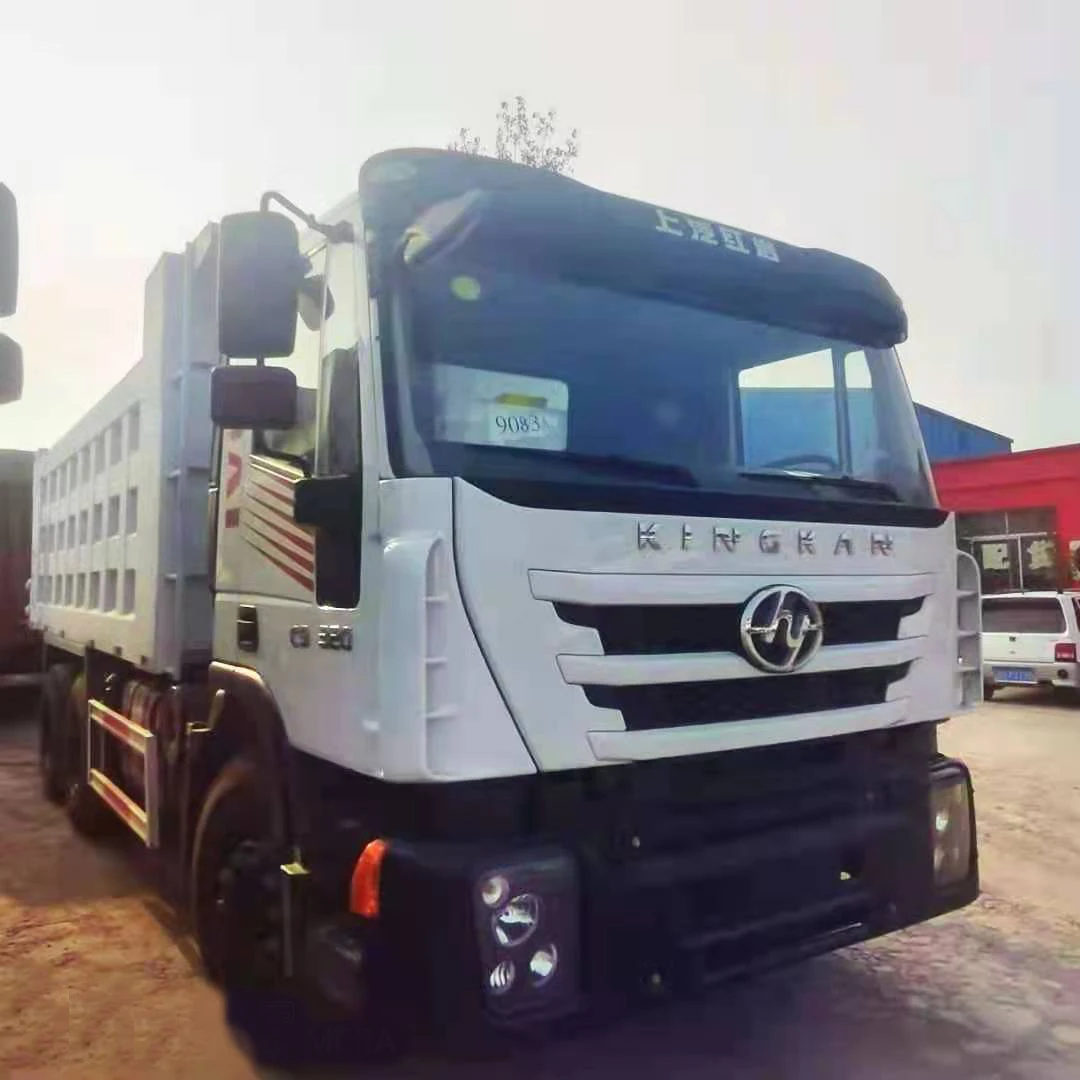

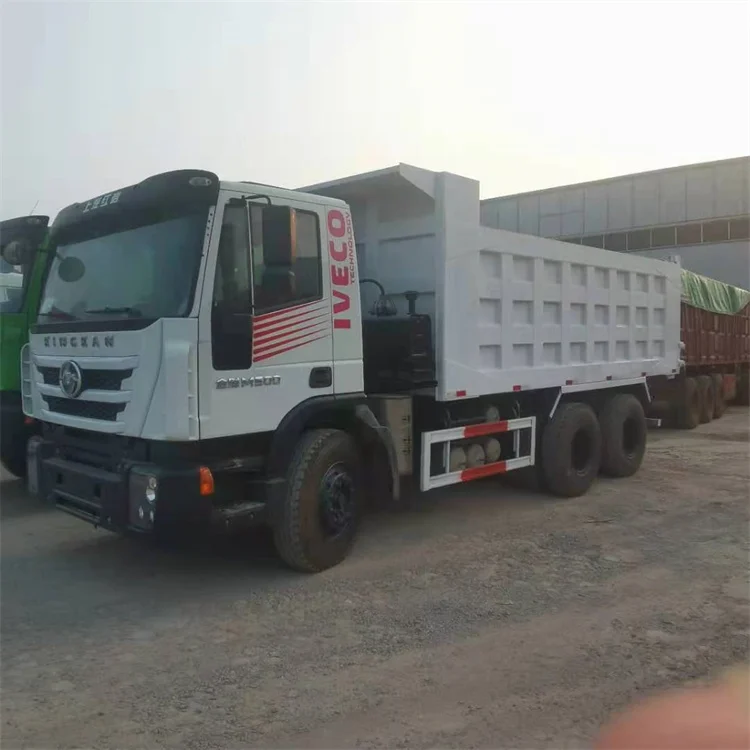

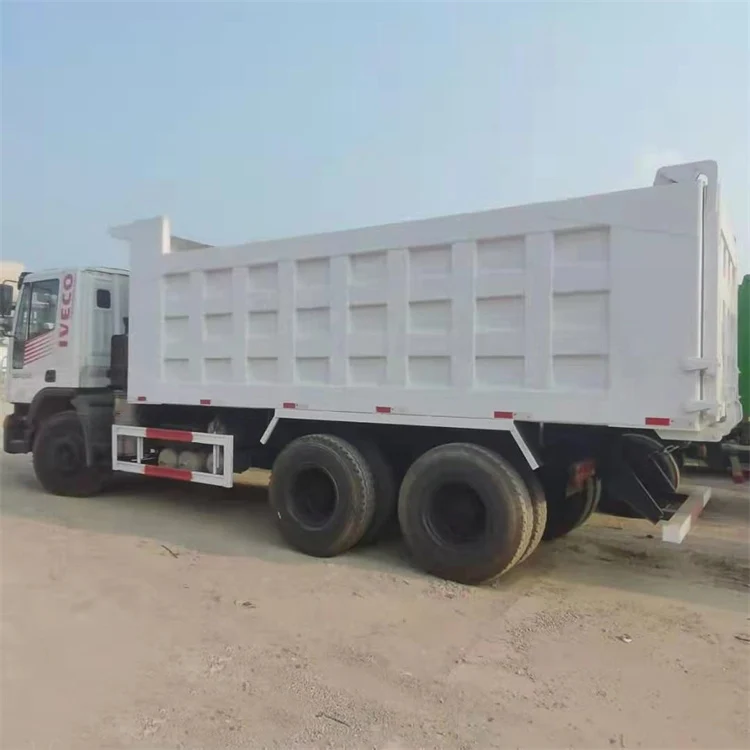

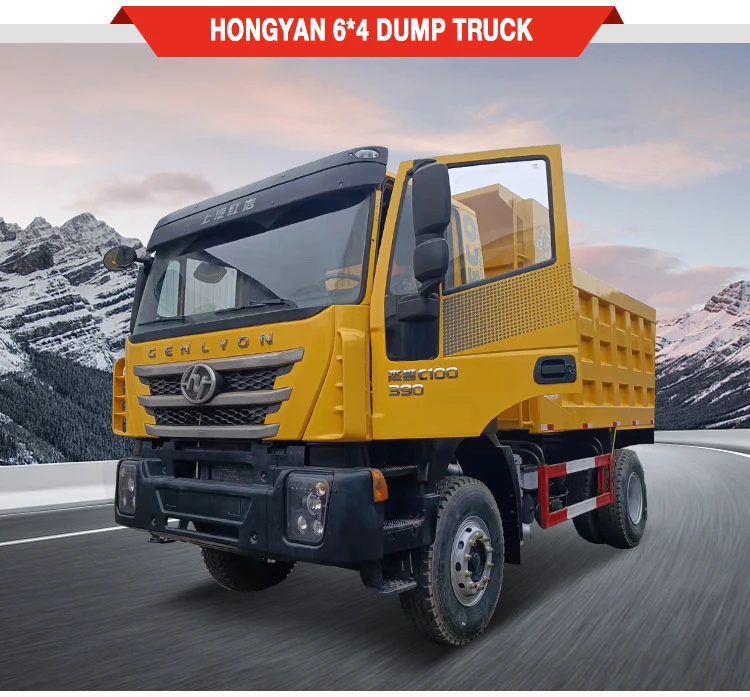

Low Price Hongyan Used Tipper 6*4 Dump Truck for sale
- Category: >>>
- Supplier: Liangshan Xuandong Automobile Trading Co. Ltd.
Share on (1600877162100):
Product Overview
Description
Products Description
Dump Trucks can be used for: Short- And Medium-Distance Road Transportation, Pit Coal Mine Transportation, Sand transportation and Urban Muck Transportation.

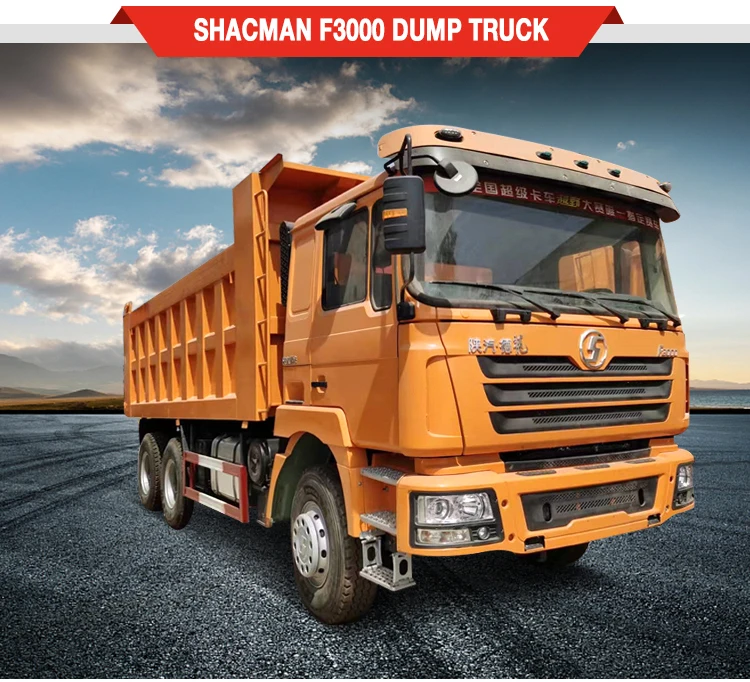

Model | Shacman F3000 dump truck |
Dimension | 8354*2490*3450mm |
Carriage Dimensions | 5600*2300*1130mm |
Wheel base | 3775+1400mm |
Cylinder quantity | 6 |
Fuel tank | diesel |
Tank capacity | 300L |
Horsepower | 340hp |
Maximum output | 250kw |
Rated speed | 2200rpm |
Tire quantity | 10 |
Displacement | 9.726L |
Steel thickness of Carriage | Floor: 8mm, Side:6mm |
Hydraulic Lift of Carriage | Ventral lift |
Color | optional |
Transmission | 10 forward, 2 reverse |
Steering | hydraulic steering with power assistance |
Front axle | STR |
Rear axle | ST16 |
Cab | standard cab, one berth |
Rim/Tires | 12.00-20 bias tire |

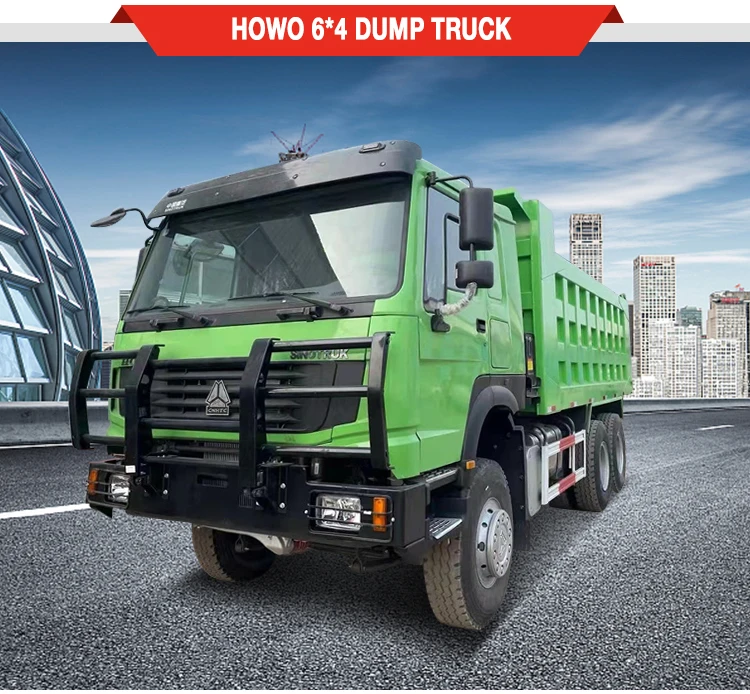

Model | HOWO 6*4 dump truck |
Driving Type | Left Hand Driving |
Cabin | HW76 |
Engine | Make: SINOTRUK wd615.47 |
Transmission | HW19712, 12F & 2R, with PTO |
Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance |
Front Axle | HF9 SSteering with doubleT-cross section beam |
Rear Axle | AC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.Ratio:5.73 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake):spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Tires | 12.00r20, radial tires with one spare tire. |
Fuel Tank | 300 L |
Cargo Body | 5600*2300*1500 mm, Floor 8 mm and side 6 mm, |
Overall Dimension | 8200*2550*3500 mm |
Driving Type | Left Hand Driving |
Cabin | HW76 |
Engine | Make: SINOTRUK wd615.47 |
Driving type | 6X4 | |
Price validity | 1 month | |
BODY SPECIFICATION | ||
Material | Q235 | |
Thickness of bottom (mm) | 12 | |
Thickness of side (mm) | 10 | |
Lifting system and type | haiwo 157 Front lifting | |
Length (mm) | 5800 | |
Width (mm) | 2300 | |
Height (mm) | 1500 | |
Capacity (cbm) | 20.01 | |

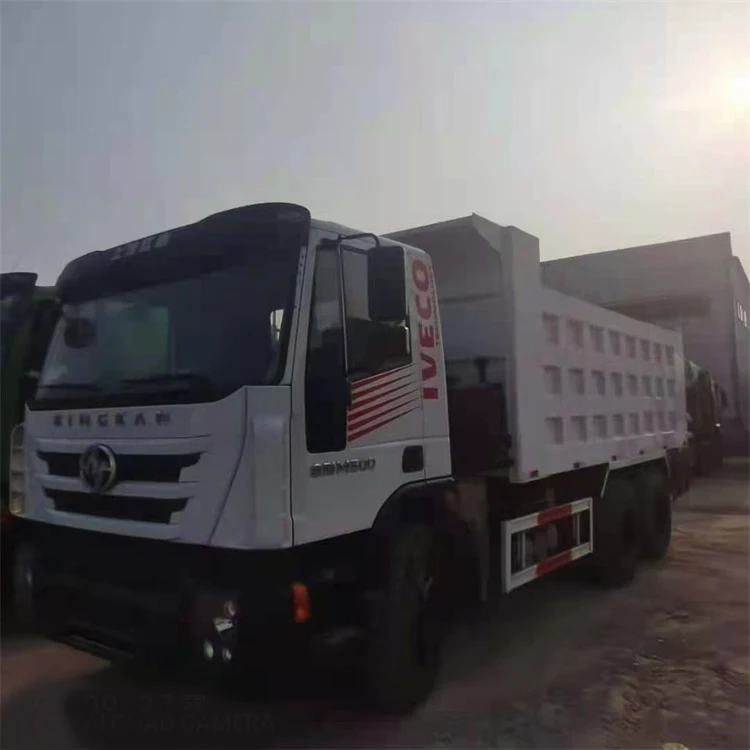

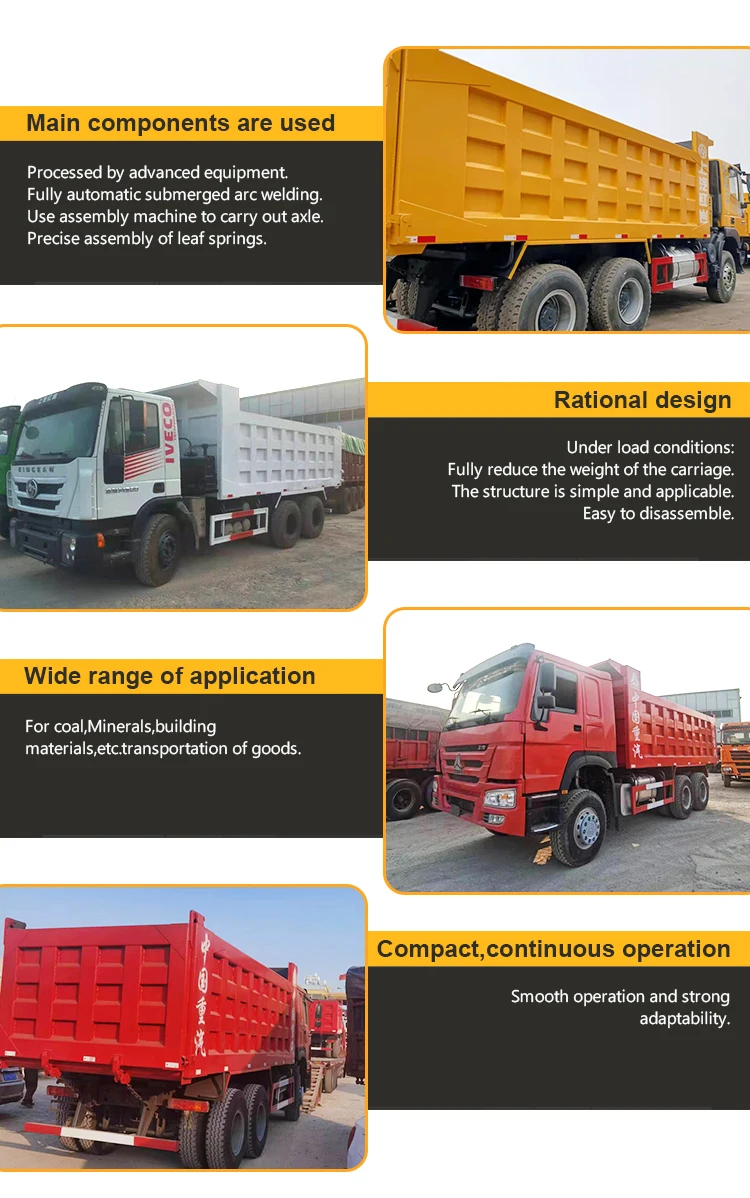

Details Images
Product packaging
Company Profile
FAQ
Q1. What's your MOQ?
A1.One unit trailer or truck.
Q2. Can you satisfy my special requirement?
A2.Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3.How about your product quality?
A3.High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.Established a procedure to check products at all stages of the manufacturing process,raw materials,process materials,validated or tested materials finished goods ect.
Q4. How can I get the price of your truck?
A4.You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the truck?
A5.Totally acceptable as you wish.
Q6.What's the delivery time?
A6.The delivery time is within 30-50 working days after receiving your advance payment.
Q 7:How do you transport the truck?
A7.We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Q8.Can you supply some quick-wear truck or truck parts?
A8.Yes, we can supply truck and truck, parts as your request.
A1.One unit trailer or truck.
Q2. Can you satisfy my special requirement?
A2.Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3.How about your product quality?
A3.High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.Established a procedure to check products at all stages of the manufacturing process,raw materials,process materials,validated or tested materials finished goods ect.
Q4. How can I get the price of your truck?
A4.You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the truck?
A5.Totally acceptable as you wish.
Q6.What's the delivery time?
A6.The delivery time is within 30-50 working days after receiving your advance payment.
Q 7:How do you transport the truck?
A7.We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Q8.Can you supply some quick-wear truck or truck parts?
A8.Yes, we can supply truck and truck, parts as your request.
