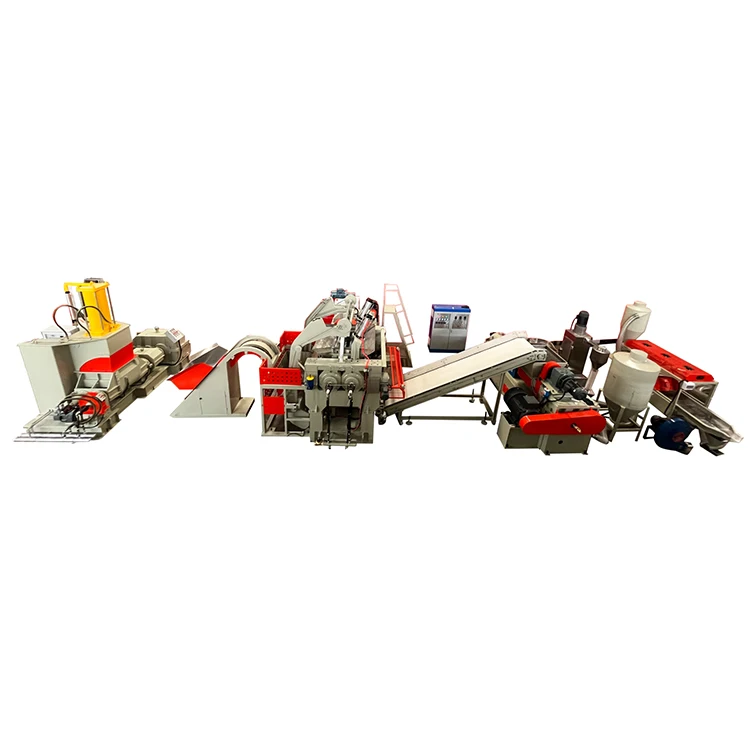

2023 Hot product EVA automatic water cooling granulating line plastic granulation production line
- Category: Other Machinery & Industrial Equipment >>>
- Supplier: Quanzhou Hongtai Machinery Co. Ltd.
Share on (1600879022249):
Product Overview
Description
Products Description
This water ring granule line is special for EVA,modified material or color masterbatch.When assorted with same specification kneader and mixing mill,forming a complete granulation line.
According to the unable extrusion particularity of various materials,we have successful made some special design on the structure of the screw able to detect and control temperature accurately,to effectively avoid the forming and color difference in extruding and fianlly make finished granules even and smooth.The granulated line is stable in operation with low emergy cost,high productivity and compact structure.It is an ideal granulating and sampling equipment for granulation manufacturers.
The technological process is as follows:
Kneader mixer→bucket conveyor→ automatic mixing mill→extruder mainframe and cutter→speed-spin dryer→whirlwind cooler→cooling conveyor→blender→final product(granule)
Technical parameters
DESCRIPTION | SPECIFICATION | QUANTITY | ||||

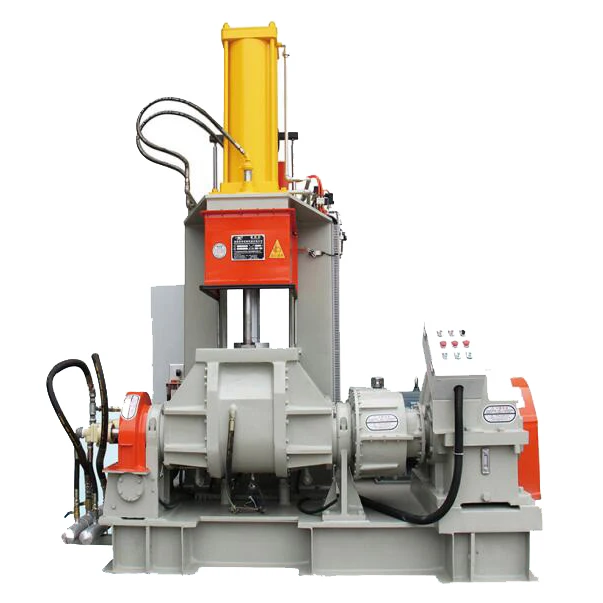

35L Kneader mixer | 1.Capacity：35L 2.Main motor power：55kw 3.Temperature adjustment: steam heating or water cooling 4.Material feeding:Front and back feeding 5.Mixing capacity per time: 30-40kgs/time 6.Mixing time: 4-8minutes/time 7.Overall dimension：3200x1900x3000mm 8.Weight：6500kg | 1set | ||||

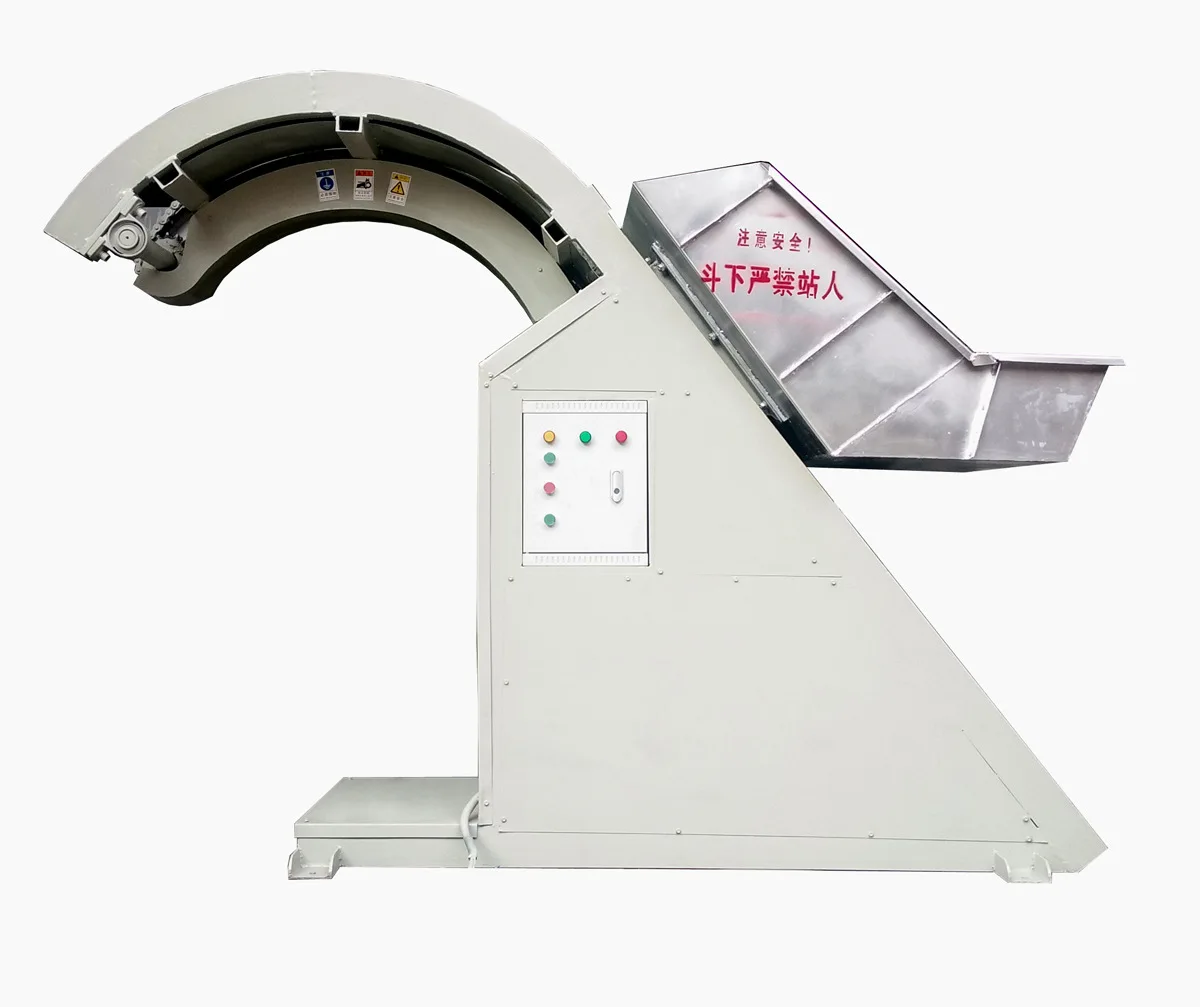

1.Bucket dimension : 700*600*300mm 2.Overall dimensions(L*W*H) : 3300*1000*2000mm 3.Material : stainless 4.Motor Power : 1.5kw 5.Weight : 550kg | 1set | |||||

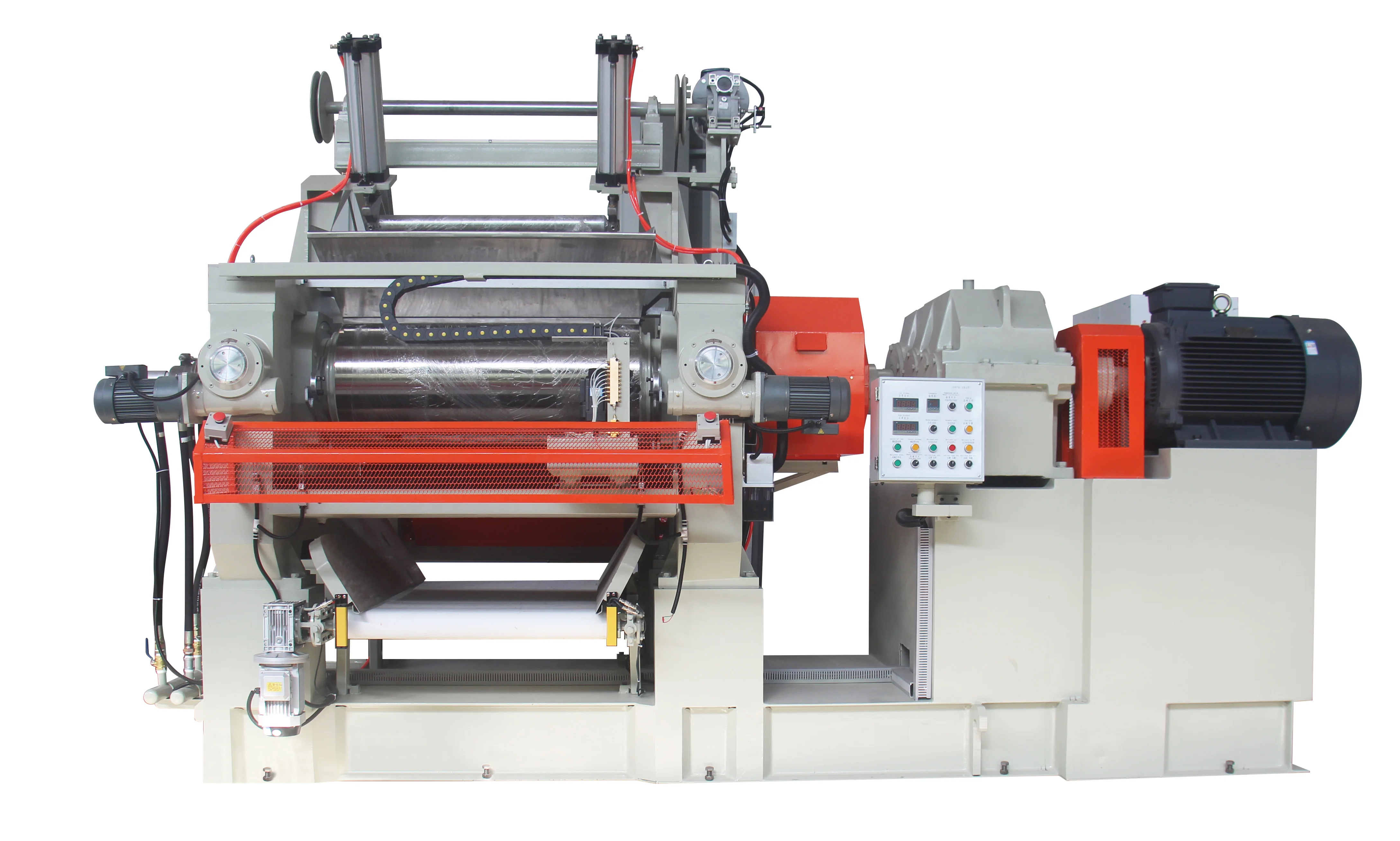

12inch automatic mixing mill | 1.model：XK-310 2.motor power:22KW 3.roller diameter:310mm 4.roller working length:900mm 5.speed ratio:1:1.21 6.mixing capacity:30-40kgs 7.reducer ratio:1:35 8.machine size:3750x3000x2600 9.weight:6000kgs | |||||

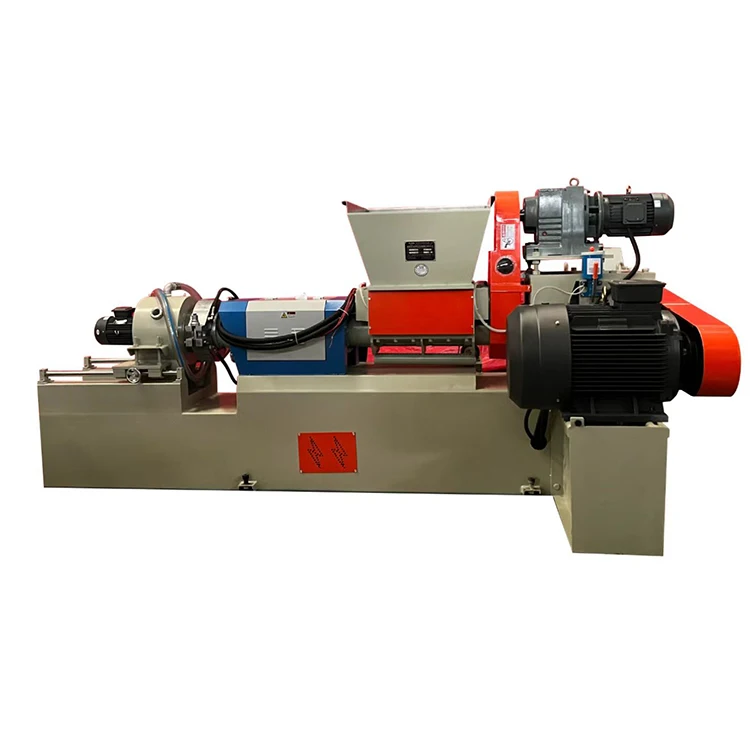

Extruder mainframe and cutter | 1.Screw diameter : Φ100 mm 2.Screw speed : 0~50r/min 3.Main motor power : 30kw (all with inverter) 4.Vice motor power: 4.0kw (all with inverter) 5.Cutter motor power: 1.5kw 6.Heat power : 10kw 7.Gear box : oil bath lubrication,hardened gear reducer 8.Cutting system : water cooling 9.Auto thermo control : 5 zones 10.Screw/barrel material : 38CrMoAIA 11.Barrel cooling system : water cooling 12.Granule diameter : 3~5mm 13.L/D : 10/1 14.Output : 200-250 kg/h 15.Overall dimension (L*W*H) : 4150*1900*1550mm 16.Weight : 2000kg | |||||

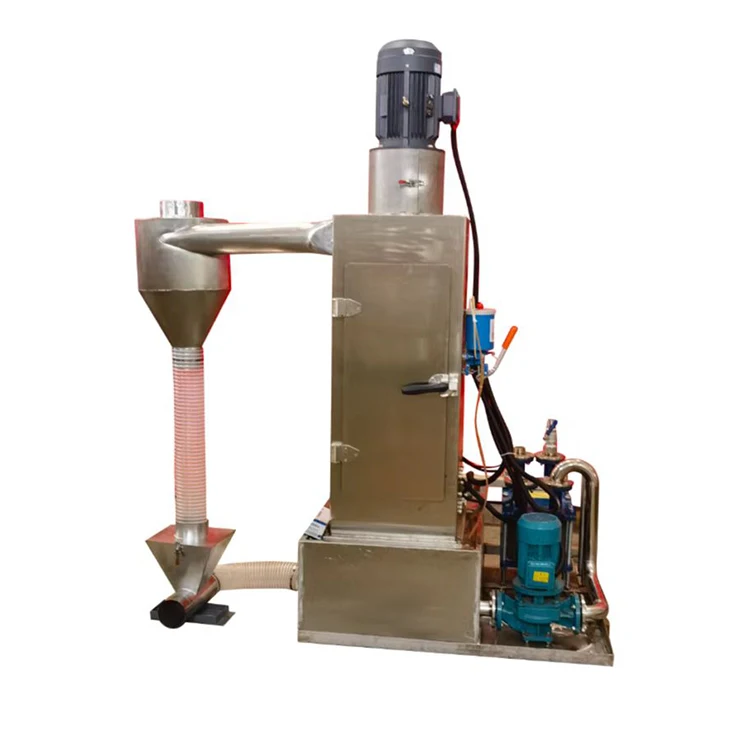

1.Model : 495*495 2.Motor Power: 3.7kw 3.Movement speed : 1440r/min 4.Overall dimensions(L*W*H) : 1050*800*2015mm 5.Weight: 300kg | 1set | |||||
Whirlwind Cooler | 1.Cooling tank diameter : Φ650 2.Joint diameter : Φ125 3.Overall dimensions(L*W*H) : 880*880*2830mm 4.Weight : 200kg 5.Material :stainless | |||||

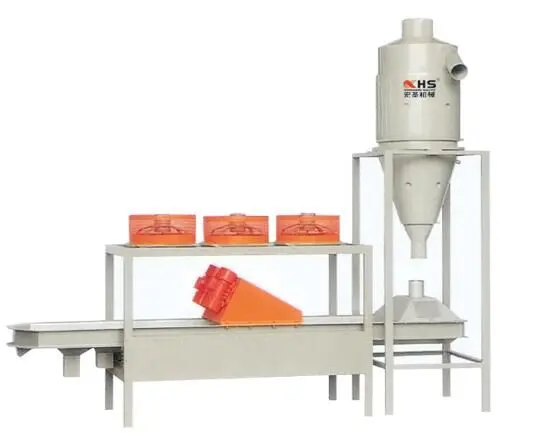

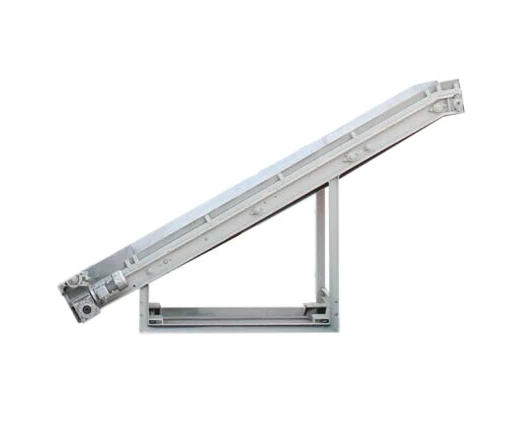

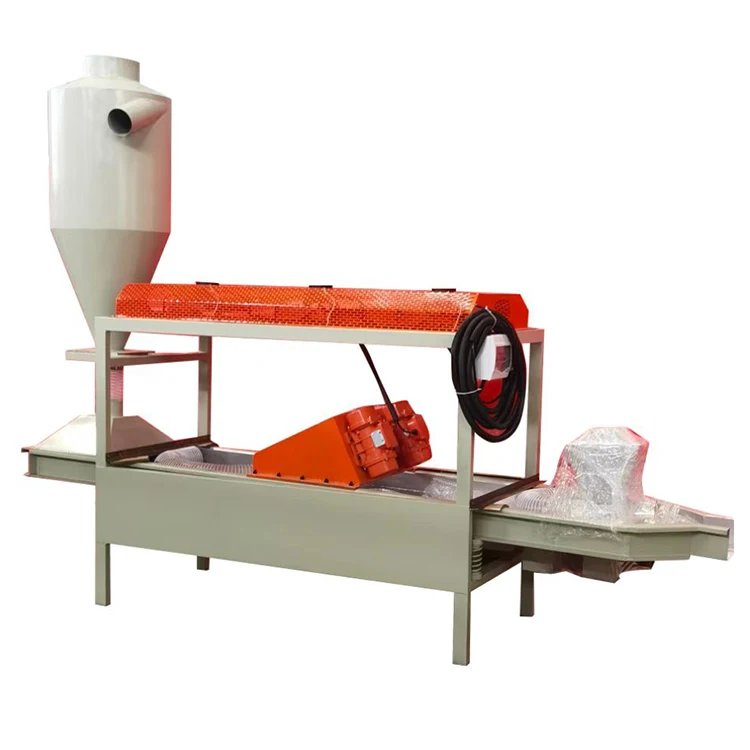

Cooling conveyer | 1.Length and width : 4200*610 2.Motor power : 4.5kw 3.Overall dimensions(L*W*H) : 4260*880*1240mm 4.Weight : 650kg 5.Material :stainless | |||||

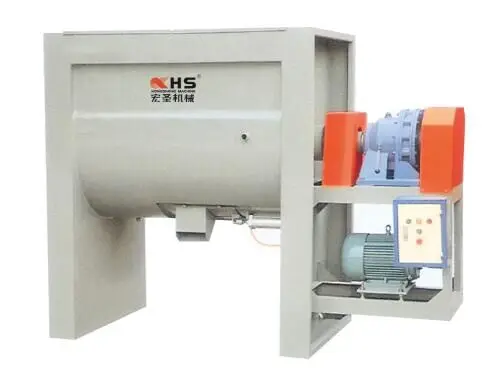

Blender | 1.Capacity : 500L 2.Spindle speed : 11r/min 3.Motor power : 7.5kw 4.Overall dimensions(L*W*H) : 2450*1000*2100mm 5.Weight : 1400kg 6.Material : stainless 7.Thickness : 5mm | |||||
Air machine | 1.Model : 3kw 2.Screw speed : 2880r/min 3.Overall dimensions(L*W*H) : 750*600*650mm 4.Weight : 250kg | |||||
Transparent tube | 1.Model : 5inches 2.Material : PVC | 30M | ||||
Machine Pictures

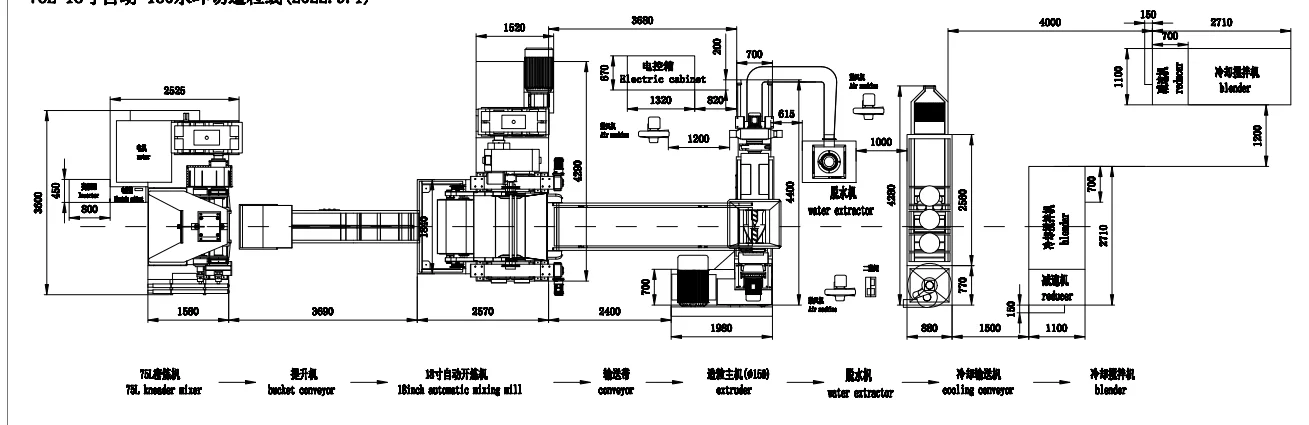

Installation drawing

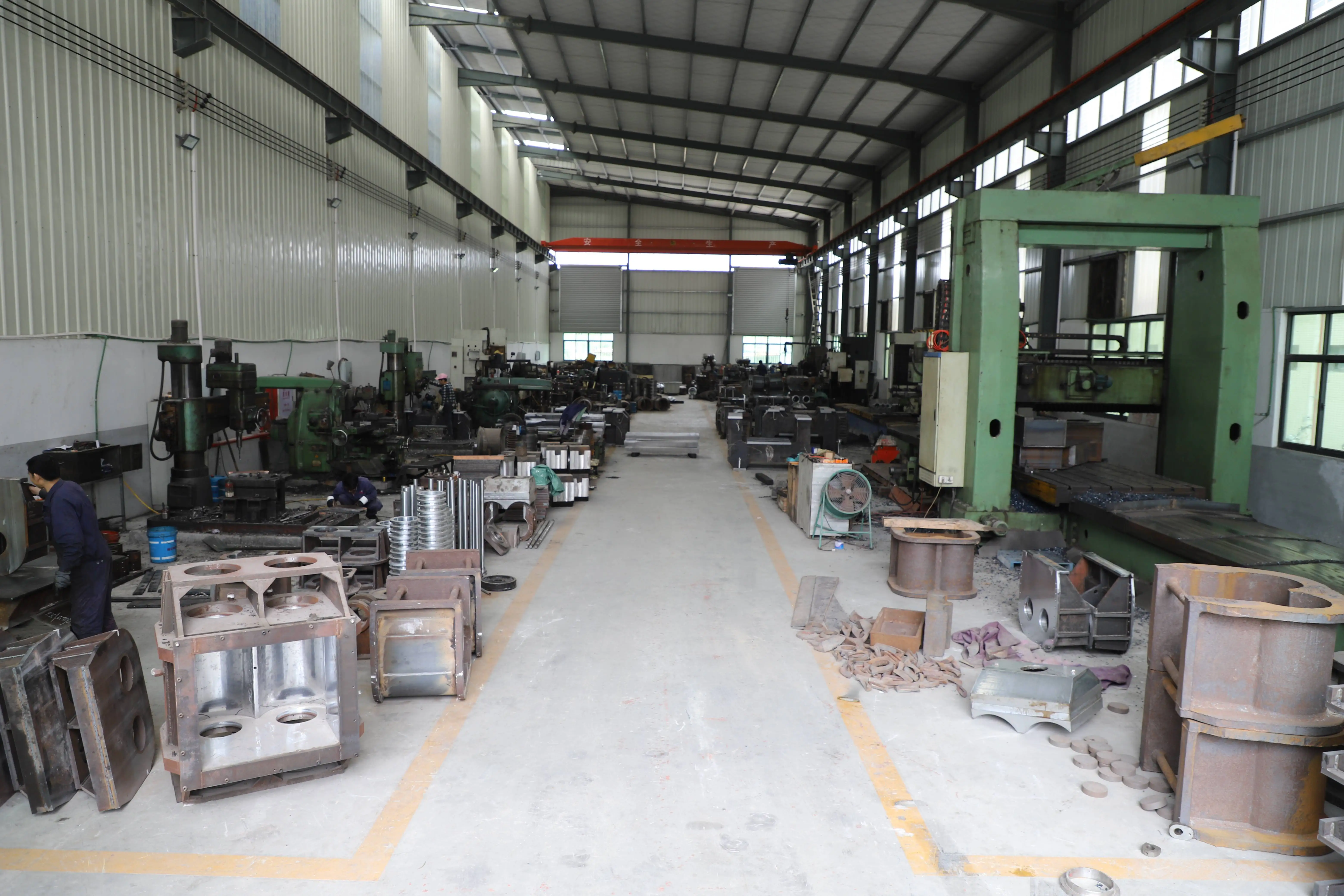

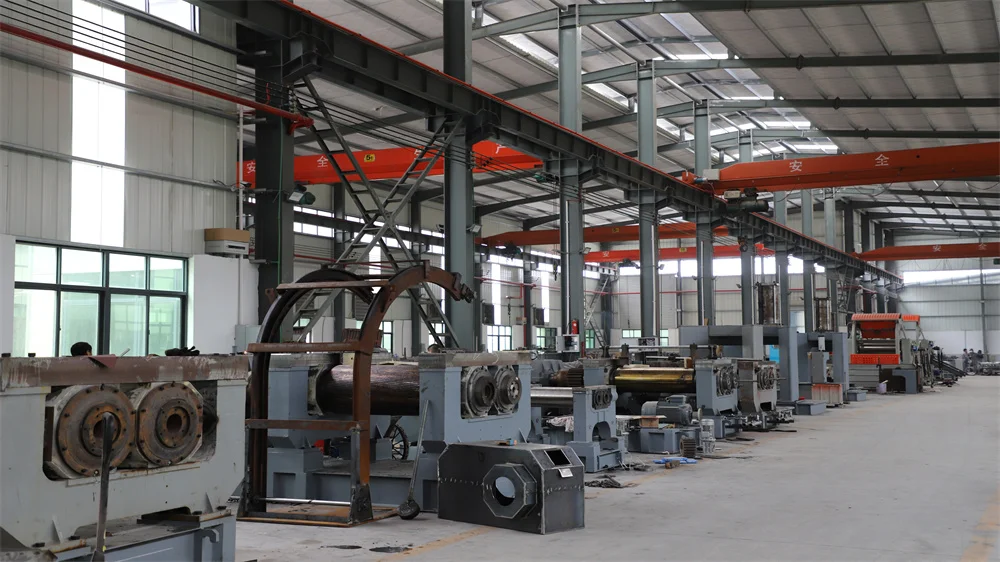

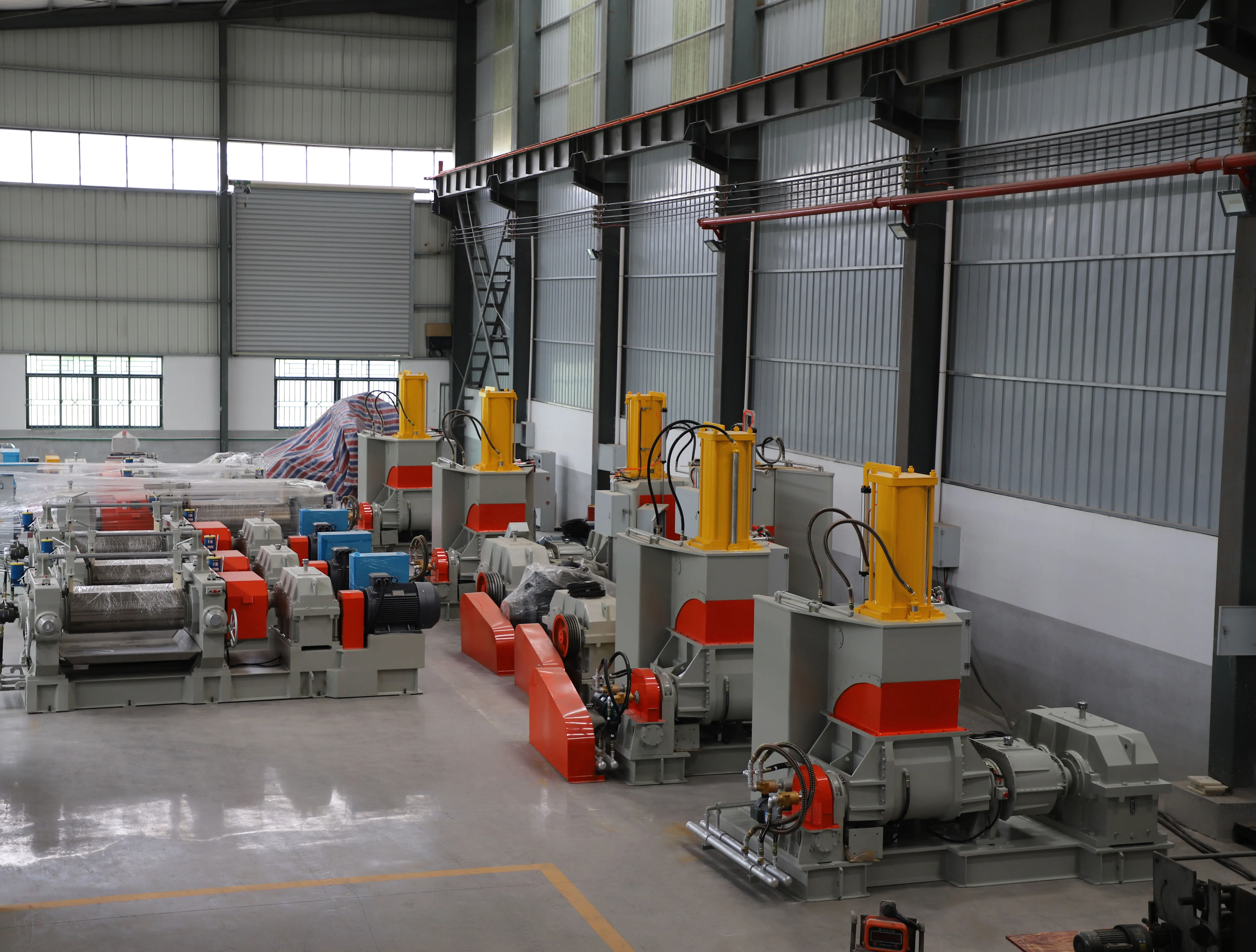

Factory photo

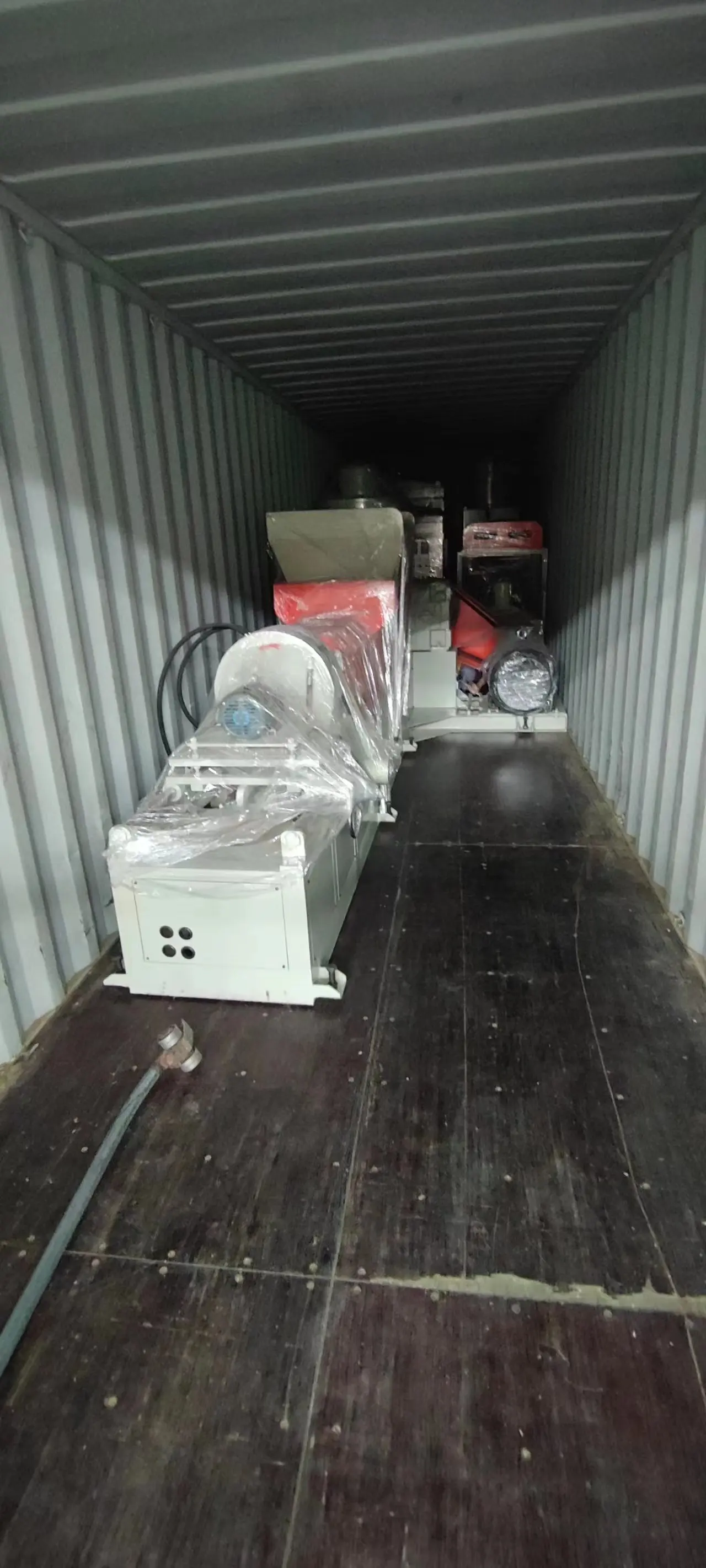

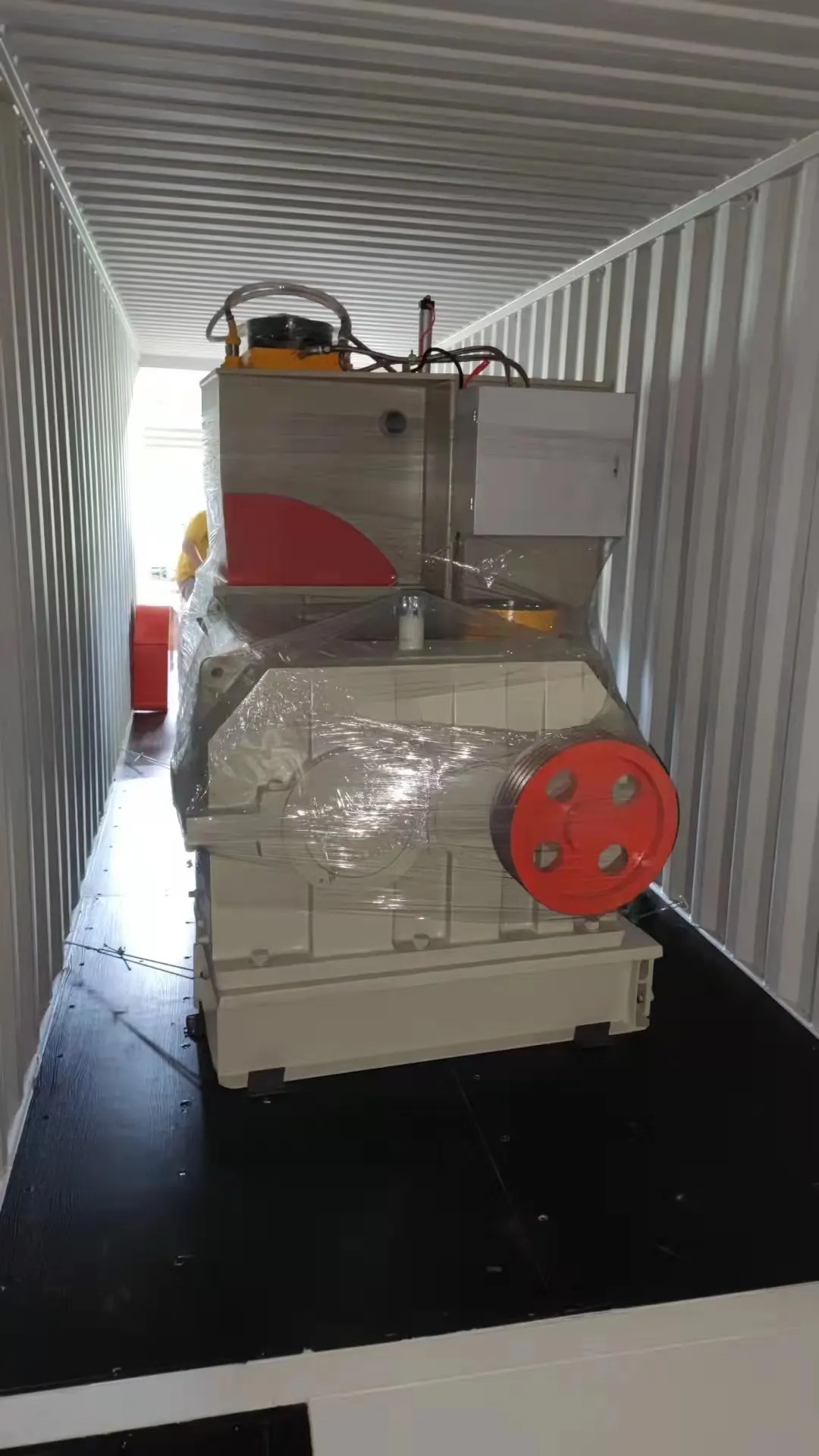

Packing&shipping
FAQ
1. How to choose the most suitable equipment line?
We will give you best advice as long as you make an inquiry to us.
2. What’s the delivery term?
If you need machine urgently, we can consider making special arrangement for you.
3. How to install and use the machine?
The product is shipped with an operating instructions.We support installation drawing,circuit diagram and provide professional guidance for installation.
We will give you best advice as long as you make an inquiry to us.
2. What’s the delivery term?
If you need machine urgently, we can consider making special arrangement for you.
3. How to install and use the machine?
The product is shipped with an operating instructions.We support installation drawing,circuit diagram and provide professional guidance for installation.
