Product Overview
Description
Specification

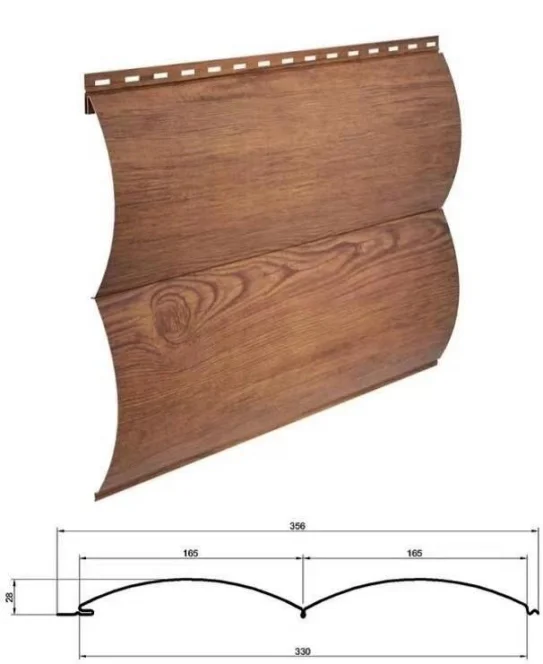

Profile Drawing (for reference)
Flow Diagram：
Production process:
Decoiling→Feeding→Roll forming→ PLC controlling→Cutting to length→Receiving
Main components: | No | Name | Unit | Quantity | Remark |
Part 1 | Roll Rorming Machine | set | 1 | ||
Part 2 | Decoiler | set | 1 | Chain driving | |
Part 3 | Feeding platform | set | 1 | ||
Part 4 | PLC control station | set | 1 | Delta brand | |
Part 5 | Hydraulic pump station | set | 1 | Hydraulic |
Technical Specifications:
Voltage:380V 3Phase 50HZ, or according to client’s request | ||||||
Thickness of sheet | 0.3-0.8mm | Productivity | 10--20m/min | |||
Material width | ***mm | Effective width | 356mm | |||
Dimension | 11500mm*800mm*1200mm | Weight | About3.5T | |||

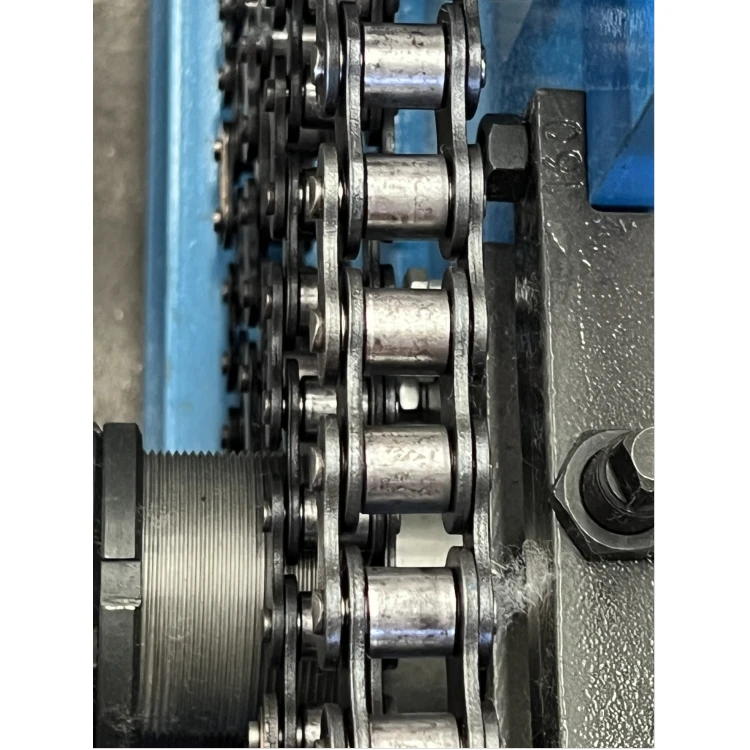

Driven system | Motor drive | Transmission type | Chain&Sprocket | |||
Roller stations | 22 rows layer | Shaft | diameter 50 mm solid shaft | |||
Under frame | 80mm square pipe rack | Connecting plate | 14mm steel | |||
Roller material | High-grade45#steel,hard chrome plated | Chain | 1.0 inch | |||
Motor power | 4kw*2 | Hydraulic power | 3kw | |||
Cutting type | 4 Guide pillar | Operation | Kunlun Touchscreen | |||
PLC brand | xinjie | Frequency brand | zhongchen | |||

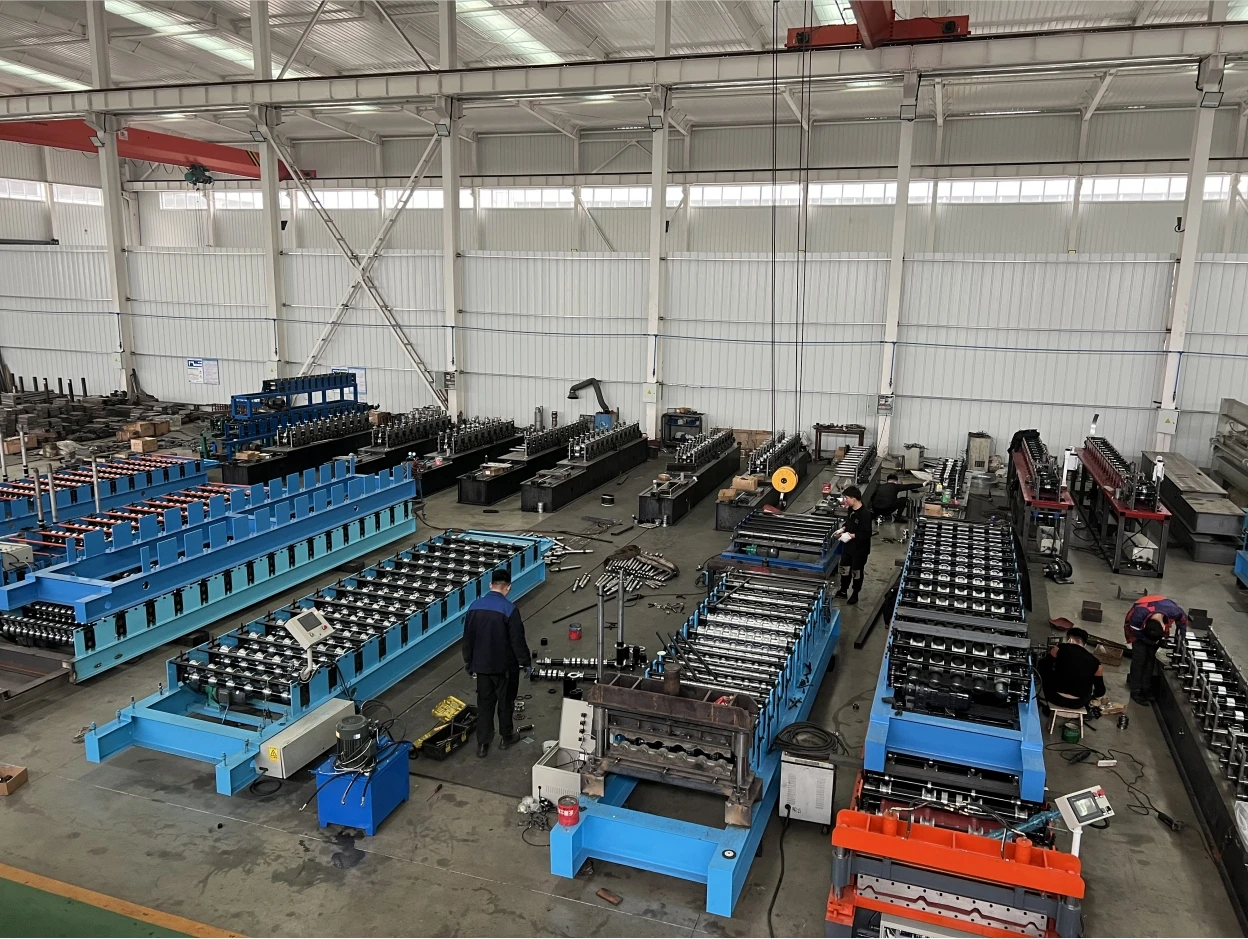

Hua Nuo Presure Tile Machinery Manutacturing Flant is located in Boha Rim Economic Park near to the beautiful coast bohai sea Which is located the botou city named the foundry township the automobile mold township.
Our factory has been engaged in the producion of roofing and pressure plate equipment of stell structure for many years. At the same time and committed to the develpment of various products, with advanced production equipment and develpment and design personnel products with high efficiency, high precision, low processing consumption characteristics of the industry leading level.To help you get the most ideal equipment.
Qur factory has perect alle sales service Make sure to solve all problems in time and get our considerate service！
Our factory has been engaged in the producion of roofing and pressure plate equipment of stell structure for many years. At the same time and committed to the develpment of various products, with advanced production equipment and develpment and design personnel products with high efficiency, high precision, low processing consumption characteristics of the industry leading level.To help you get the most ideal equipment.
Qur factory has perect alle sales service Make sure to solve all problems in time and get our considerate service！
Q1.If I want a custom machine, what should I provide?
A:It is necessary to provide the outline, material, thickness, voltage and your special requirements.
Q2.What are your payment terms and delivery?
A:After confirming the required model, 30% down payment is made and theremaining 70% is delivered to balance payment after the control machine beforedelivery. Production will be arranged after deposit is received.
Q3.When is the warranty?
A:The machine will be repaired free of charge for 12 months from the date of shipment. We will also send you a set of CD and specifications (Chinese and English) with the machine.
Q4.What can you do if the car breaks down?
A:The warranty period of our machine is 12 months. lf the broken parts can not be repaired, we will send new parts to replace for free. But if the warranty period is over, you need to pay the express fee. We are able to solve problems through negotiation and provide the technical support for the whole life equipment.
lf you need us to send engineers to your factory, you need to pay for travel expenses, such as Visa, round trip air ticket, hotels (from our factory until return to our factory).
